Protege BW55 2HP Submersible Bore Water Pump Stainless Steel 240V

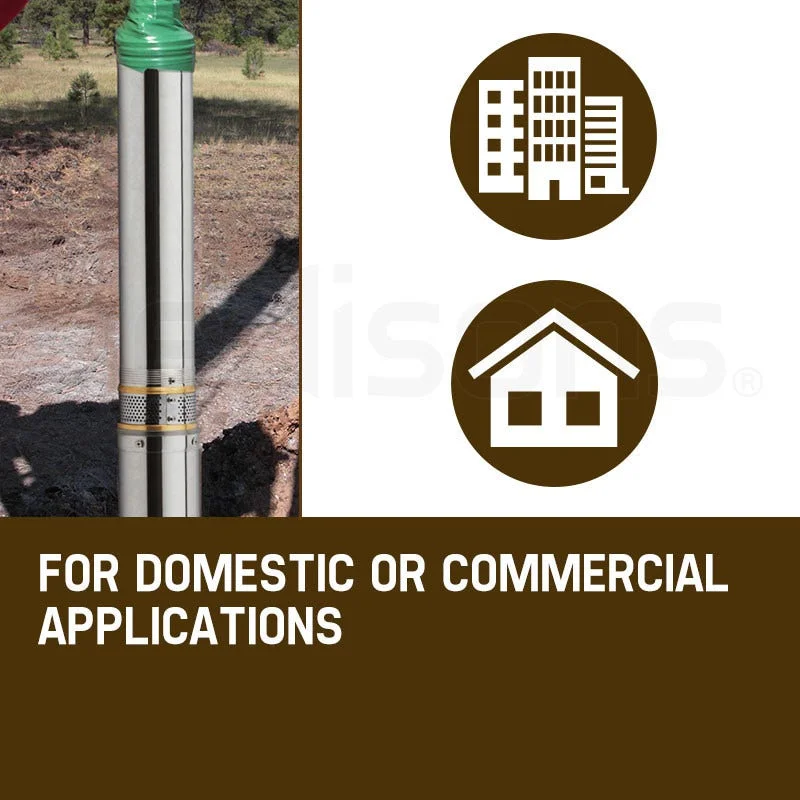

The Protege BW55 2HP submersible bore water pump delivers a class-leading flow rate, producing up to 83L/min at 51 metres' depth and still 17L/min at a dizzying 155 metres. Built with a 304-grade stainless steel housing and brass inlets and outlets, it is made to last in demanding domestic and commercial applications.

Key Features

• Class-leading flow rate for a bore water pump
• 83L/min at 51m depth, 17L/min at 155m
• 20 impellers
• 155m maximum head

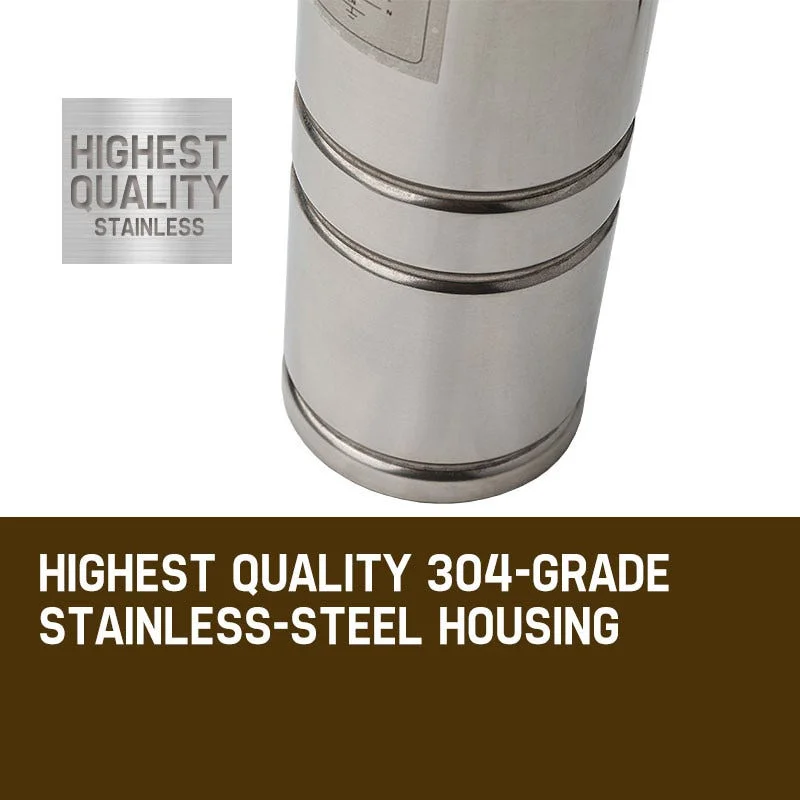

• 304-grade stainless steel housing
• Brass inlet and outlets
• Can be mounted horizontally as well as vertically

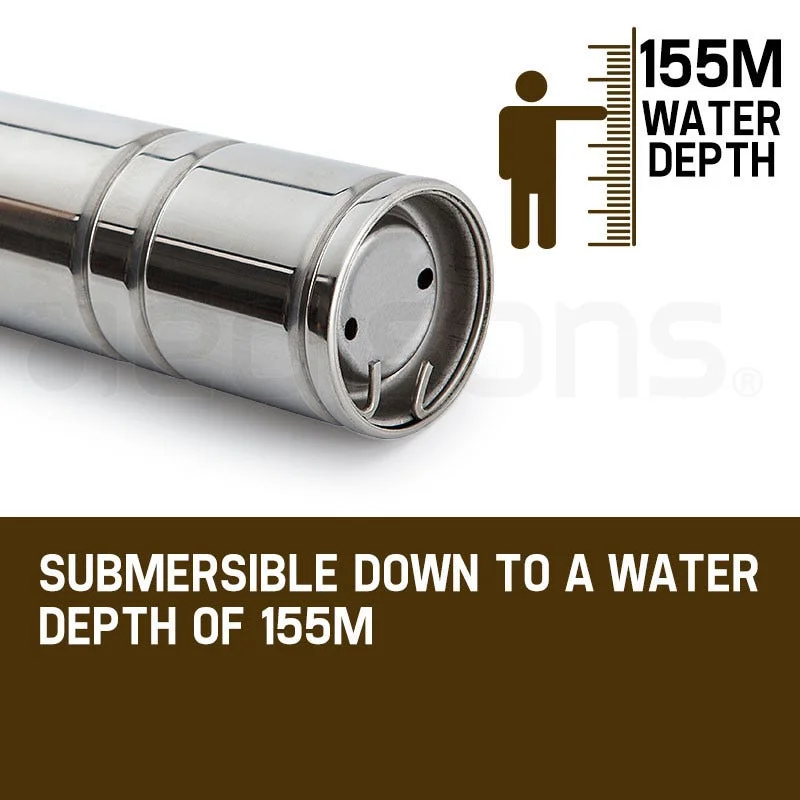

• Submersible down to a water depth of 155m

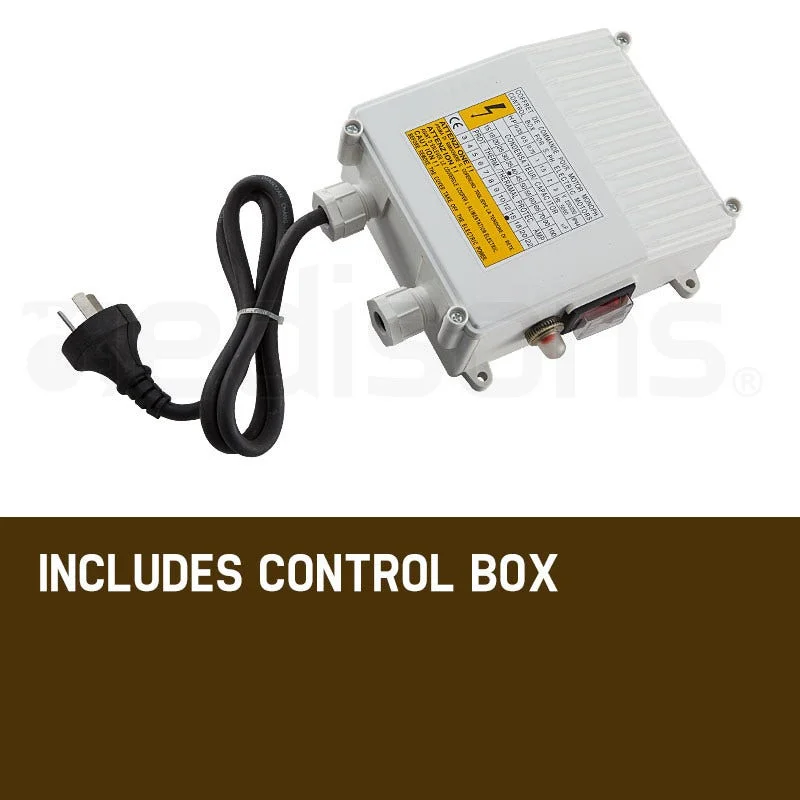

• Includes pre-wired IP rated controller
• Only requires a 100mm borehole

Specifications

• Brand: Protege
• Model: BW55
• Type: Bore pump, submersible
• Motor: 2HP / 1.5kW
• Phase: Single

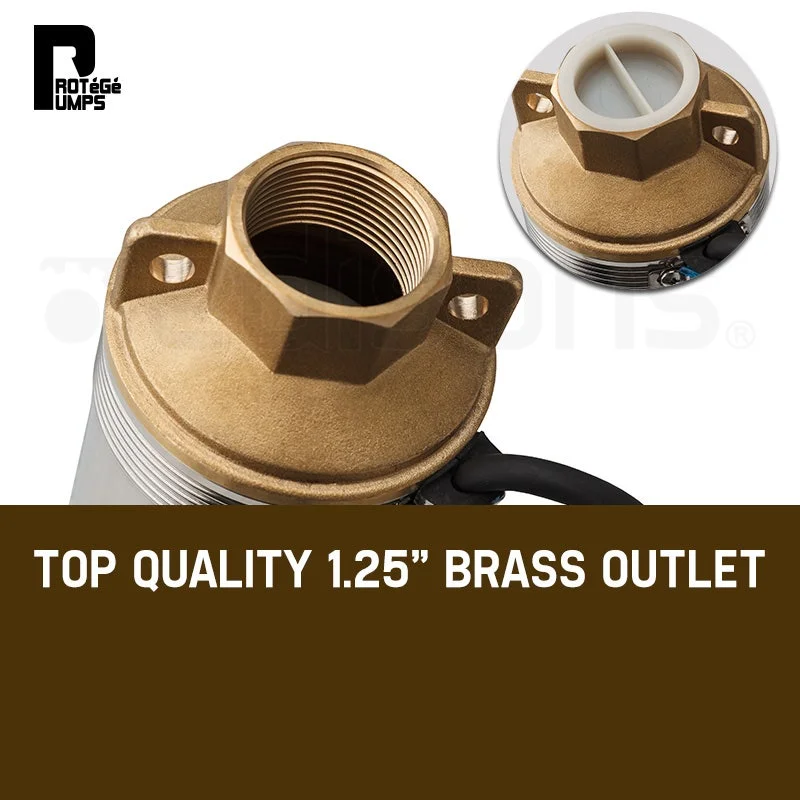

• Brass outlet: 1.25"
• Revolution: 2850 RPM
• Water pH: 6.5 - 8.5
• Max ambient temp: 70 C

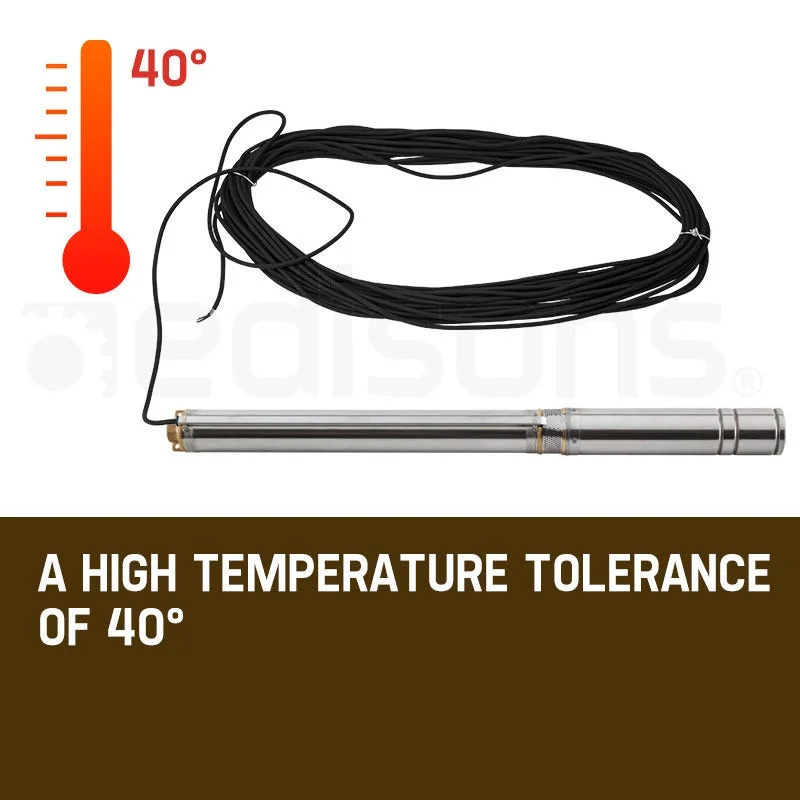

• Max fluid temp: 40 C
• Vertical / horizontal mounting: Yes
• Max starts per hour: 30
• Overload trip time: <10 sec
• Insulation class: I
• Power plug: 10 amp, Australian standard
• Protection class: IP68
• Cable length: 30m
• Power source: Electric
• Input voltage: 240V / 50Hz 11A

Flow Rate

• 17L/min @ 155m
• 25L/min @ 149m
• 33L/min @ 143m
• 42L/min @ 132m
• 50L/min @ 121m
• 67L/min @ 91m
• 83L/min @ 51m

What's in the Box

• 1 x Deep water pump
• 1 x Pre-wired IP rated controller
• 1 x User manual

Size and Weight

• Carton dimensions (W x D x H): 12 x 148 x 19cm
• Carton weight: 24kg

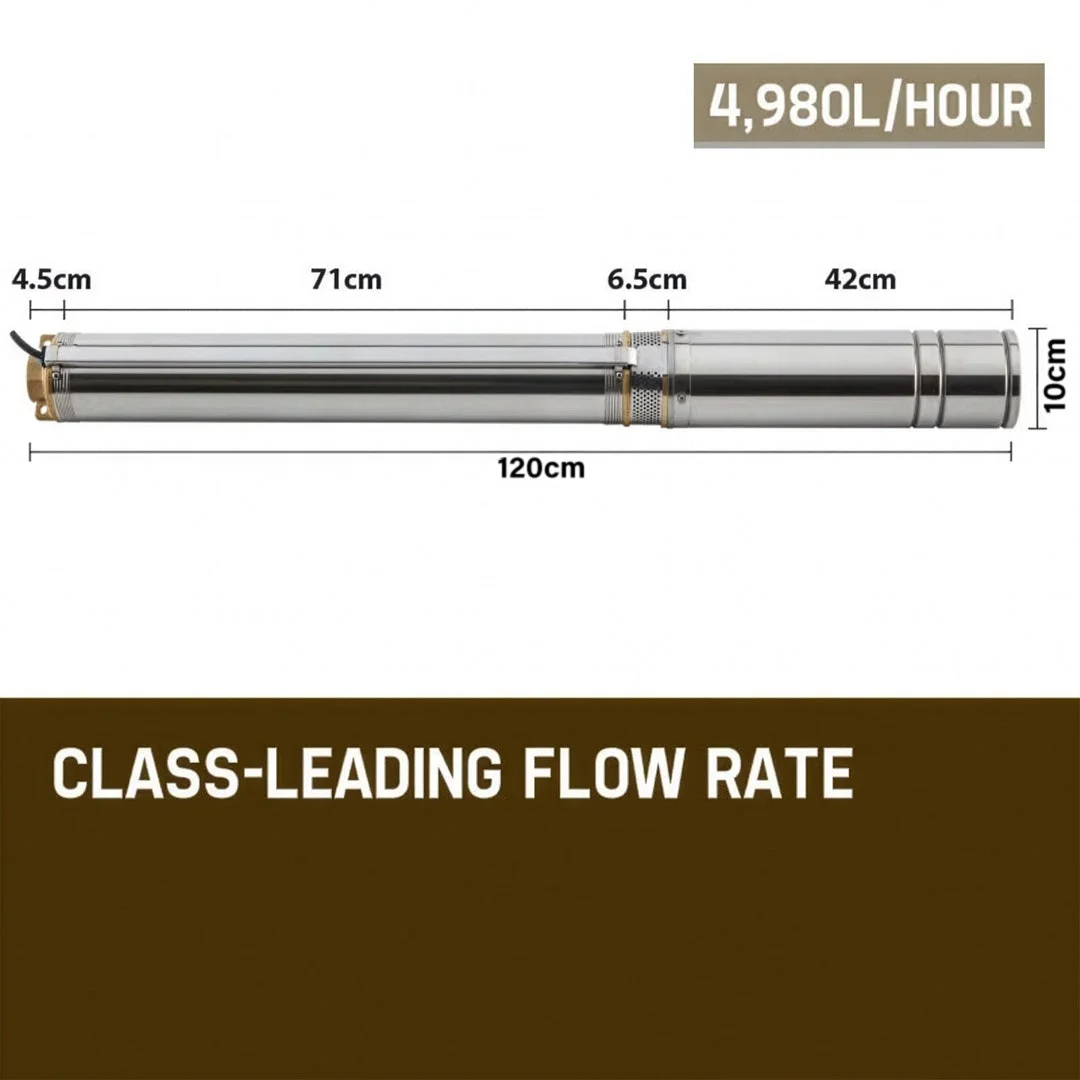

• Product dimensions (W x L): 10cm x 120cm
• Product weight: 22kg
