Protege PT-MT4 Multi-Stage Water Pressure Pump with Auto-Controller 1100W

The Protege PT-MT4 multi-stage water pressure pump with auto-controller delivers strong, stable on-demand water pressure for home, garden and agricultural irrigation, grey water systems and emergency water supply. With a maximum flow rate of 60L/min and a 41m maximum head, it can run multiple taps, hoses and sprinklers at once without pressure drop.

Key Features

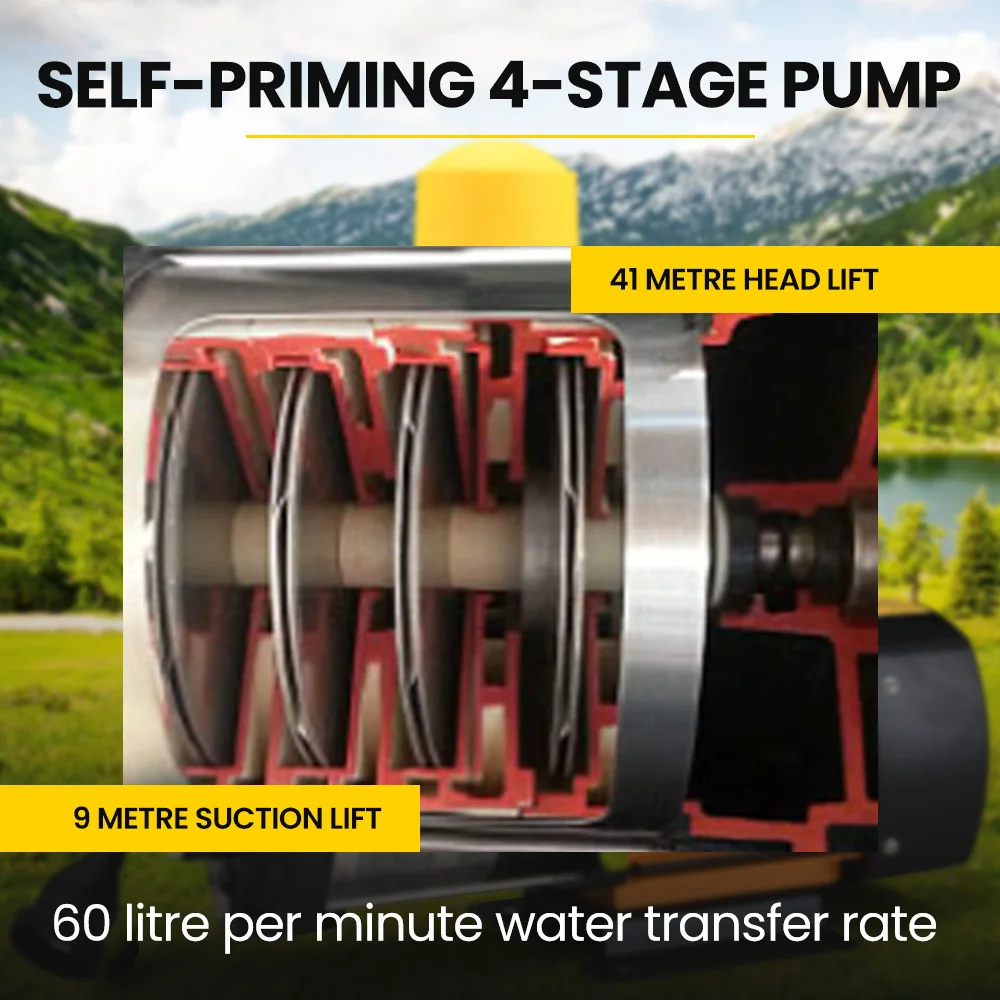

• Four-stage Phthalate-free Advanced Polymer impellers on a strong stainless shaft
• Self-priming design for ease of use
• Stainless steel body mounted in robust cast iron ends

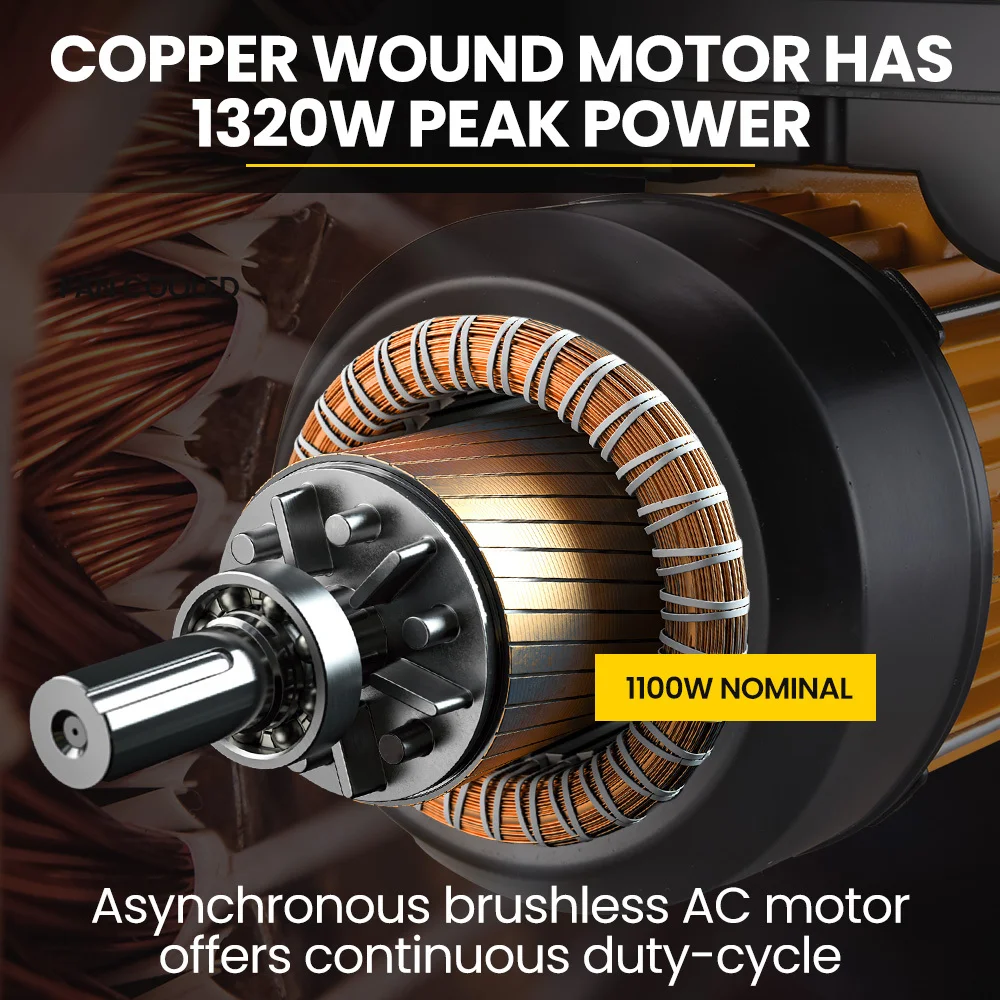

• Pure copper wound 1100W (1.5hp) motor with 1320W (1.8hp) maximum surge

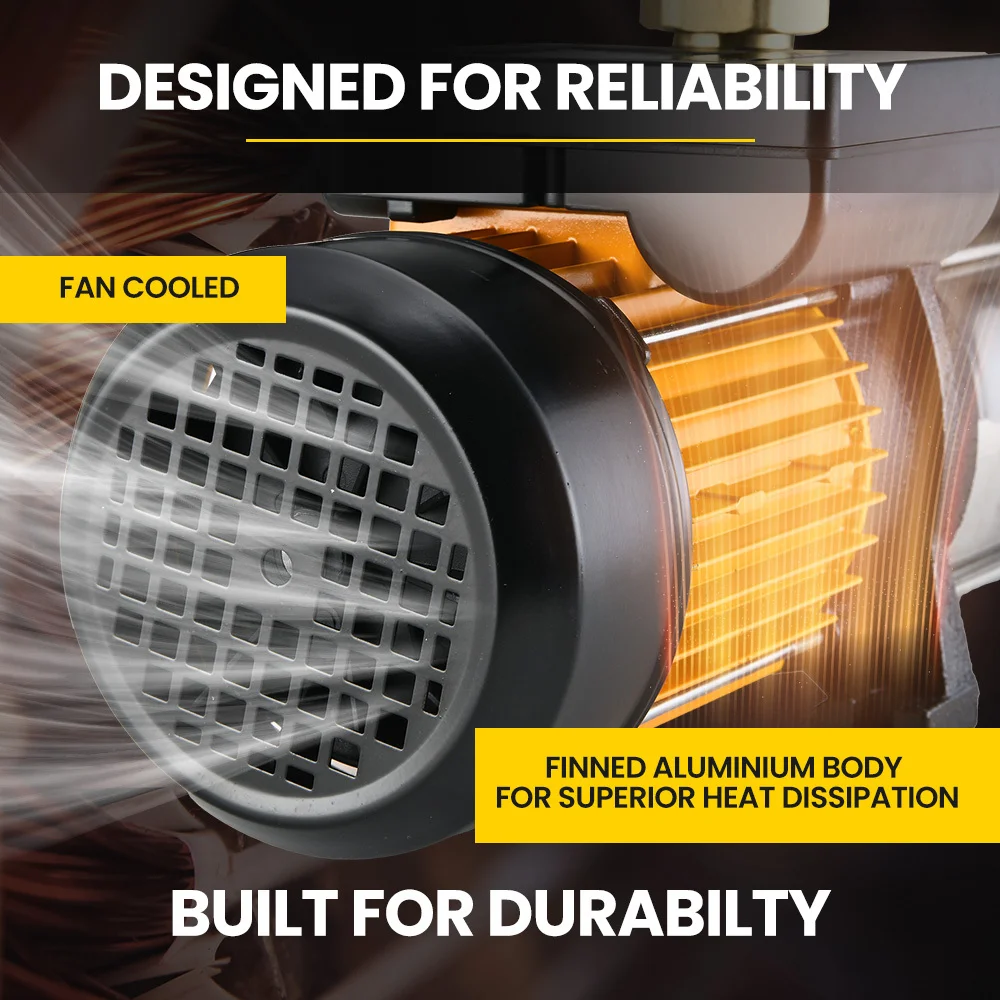

• Copper wound rotor and heavy-duty stator in an aluminium finned heat sink chassis for cool running

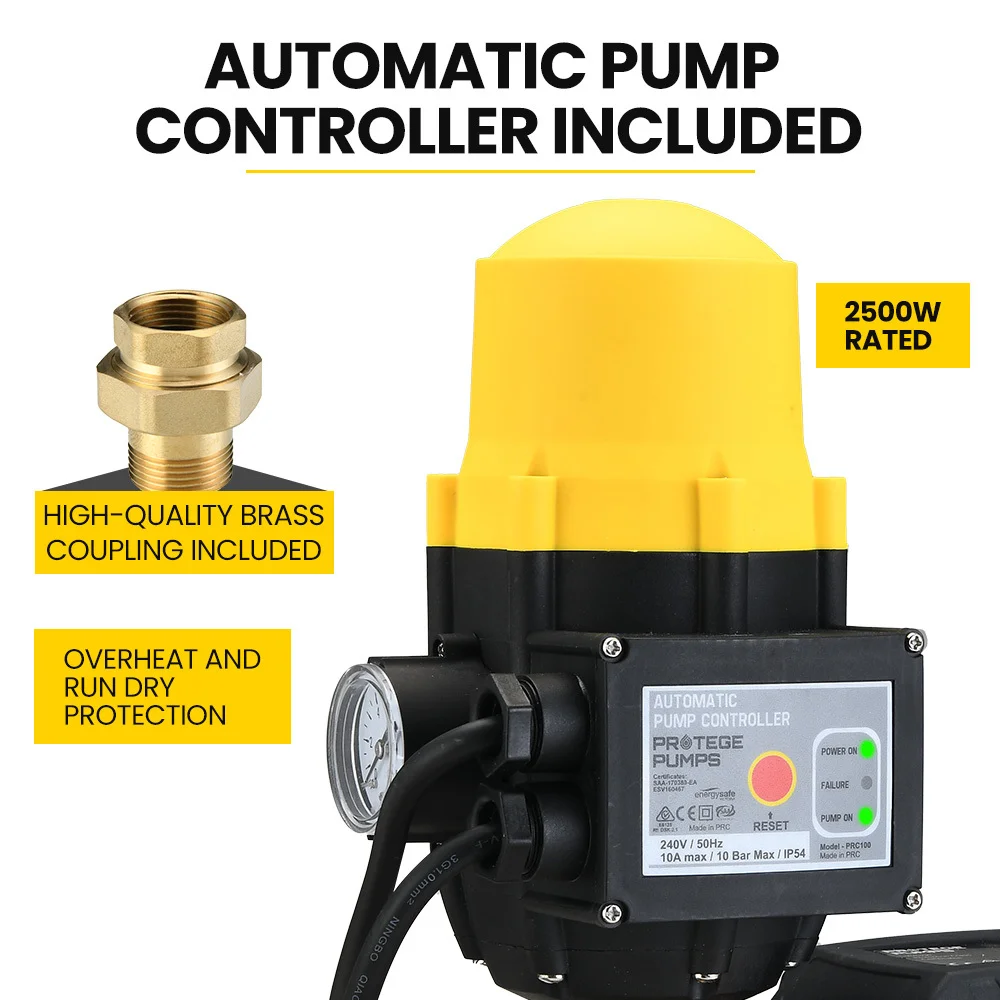

• Automatic pump controller provides constant stable on-demand pressure by monitoring pressure and flow as taps open and close

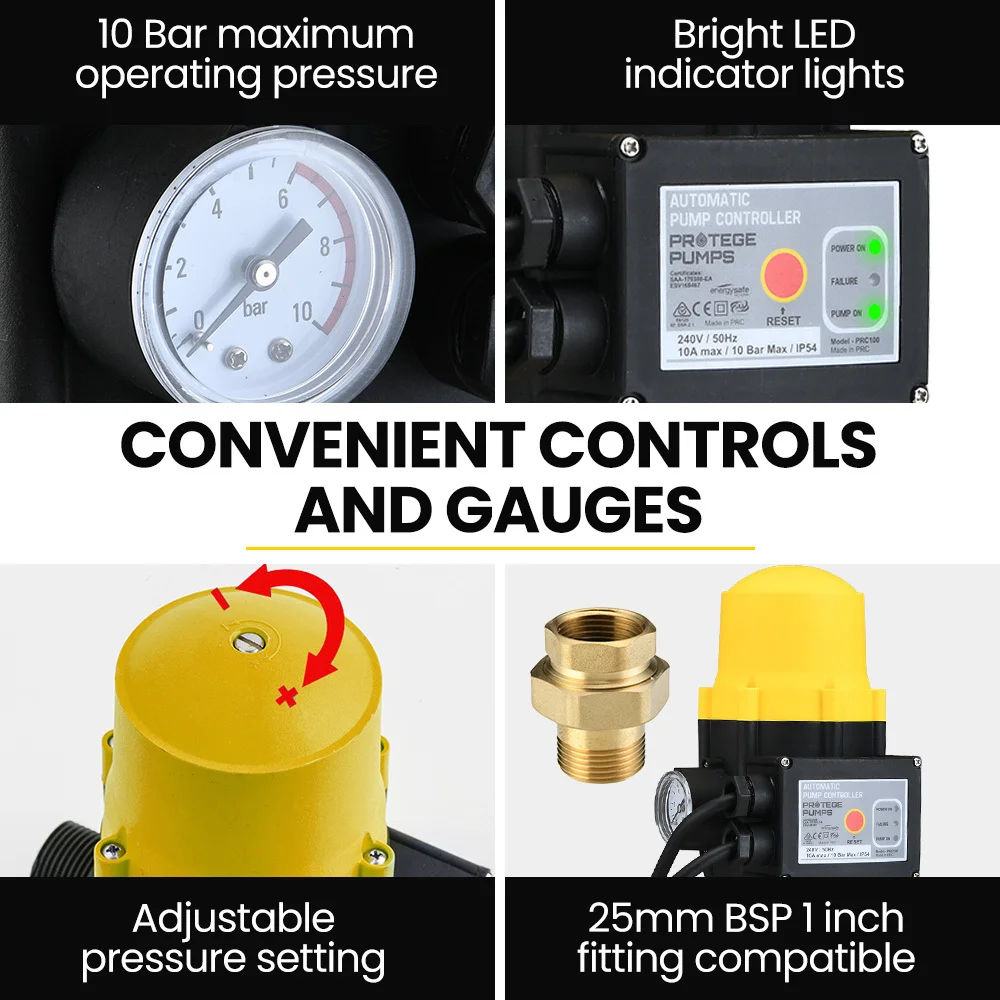

• Controller features bright LED function lights, accurate pressure gauges and electronic automatic switching
• Controller has IP54 protection, an impact-resistant rust-free body and marine grade seals
• Controller plugs into any 240V socket or runs in serial with the pump
• Handles water temperatures up to 60°C

Specifications

• Brand: Protege
• Model: PT-MT4
• Impeller material: P-phenylene oxide
• Motor: AC Brushless Induction
• Motor power: 1100W 1.5HP (1320W 1.8HP max)
• Max power: 1320W
• Max flow rate: 60L/min, 3600L/hr
• Max pumping head height: 41m
• Max lift suction height: 9m
• Max water temperature: 60°C
• Maximum working pressure: 4.5 bar

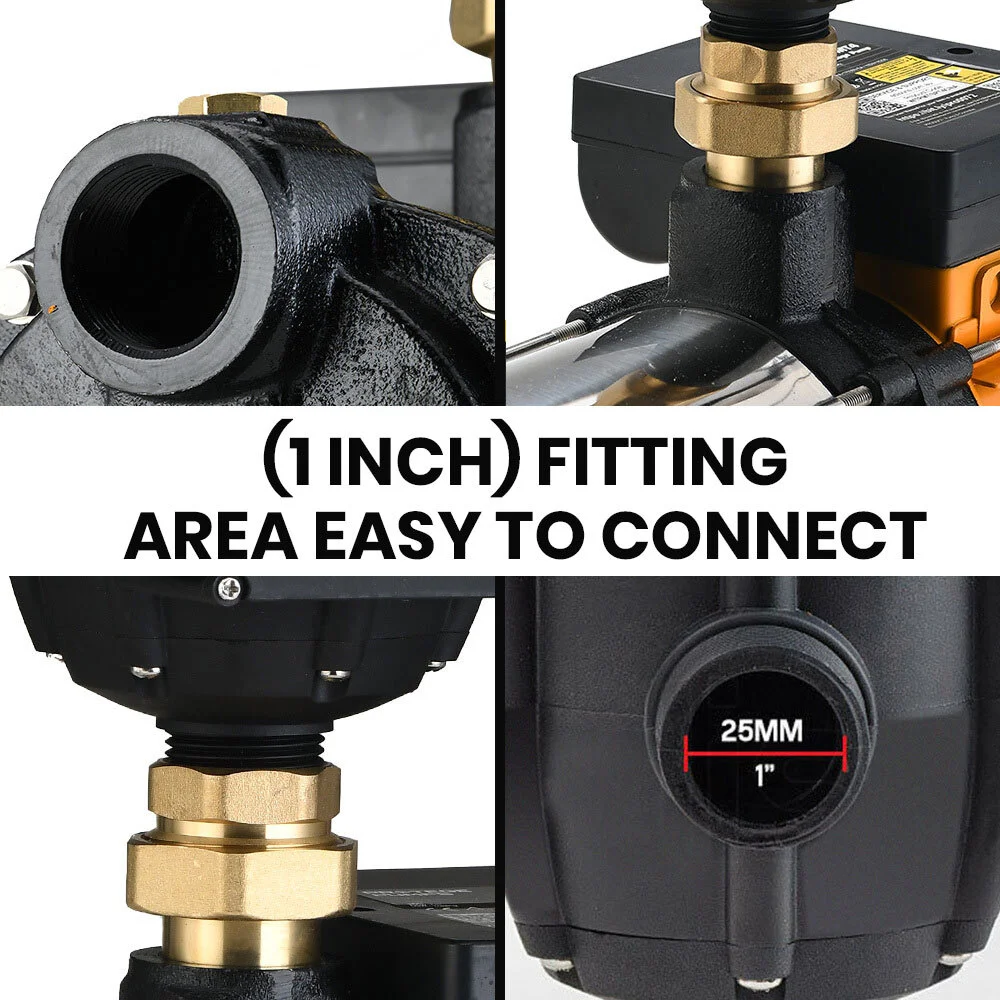

• Inlet/outer size: 1"/1"
• IP rating: IP44
• Input voltage: 240V AC
• Power plug: 10A Australian Standard

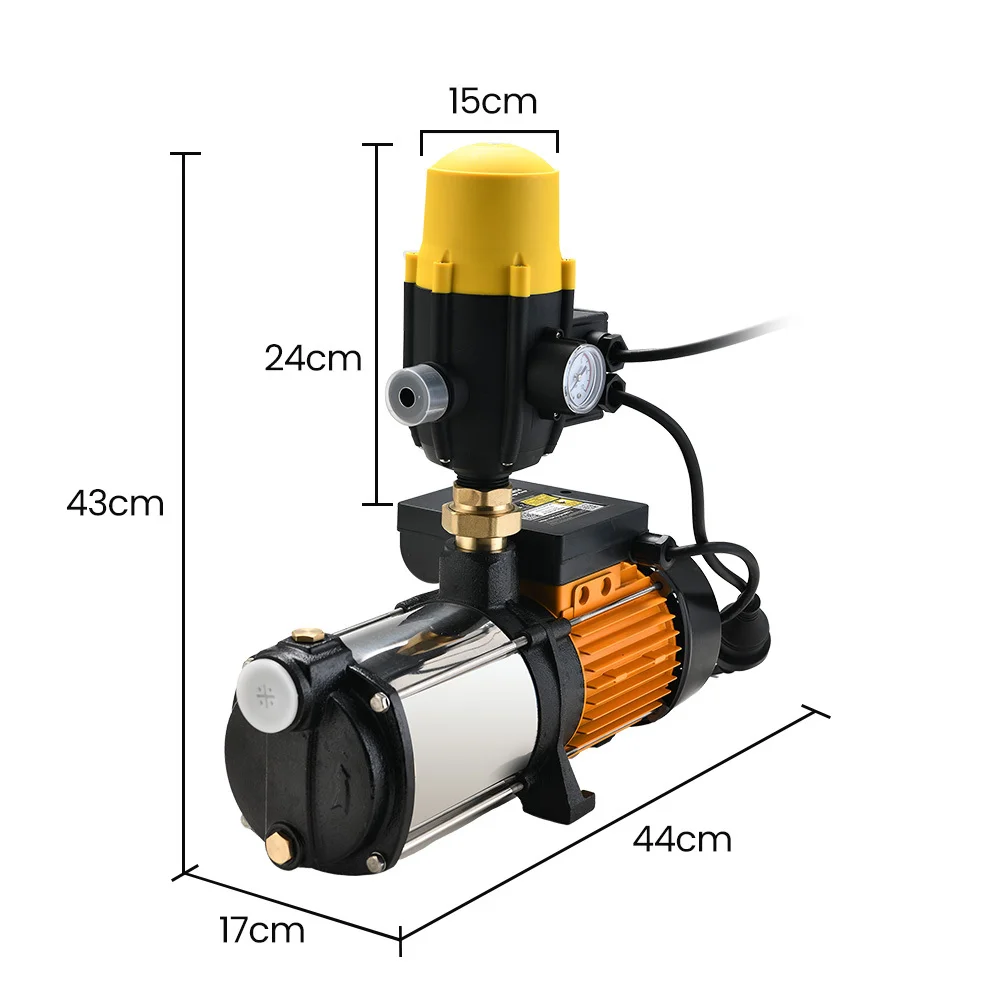

• Product dimensions (W x L x H): 17 x 44 x 43cm
• Product weight: 14kg
• Carton dimensions (W x L x H): 22 x 63 x 28cm
• Carton weight: 17kg
• Note: Minimal assembly required

What's in the Box

• 1 x Protege PT-MT4 pump with auto-controller
• 1 x Brass coupling
• Note: User manual is accessible online
