Protege BW66 3HP Submersible Bore Water Pump Stainless Steel 240V

The Protege BW66 3HP submersible bore water pump delivers high flow from deep bores, producing 83L/min at 120 metres and 17L/min at 195 metres. Built with a 304-grade stainless steel housing and brass inlet and outlets, it suits domestic and commercial water supply and irrigation.

Key Features

• High flow rate for deep bore applications

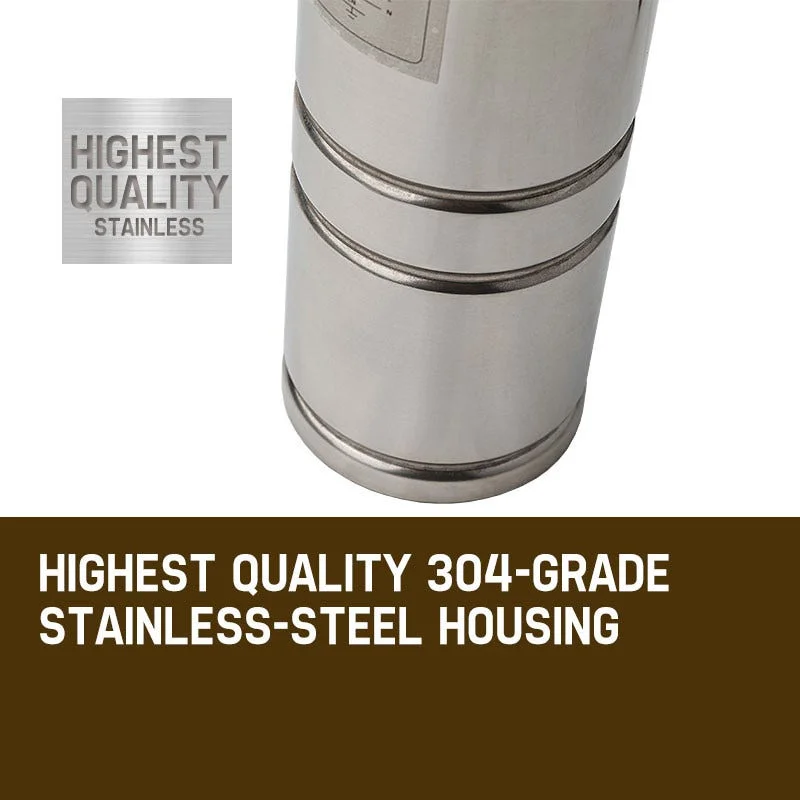

• 304-grade stainless steel housing
• Brass inlet and outlets
• 28 impellers
• Can be mounted horizontally as well as vertically
• 210m maximum head

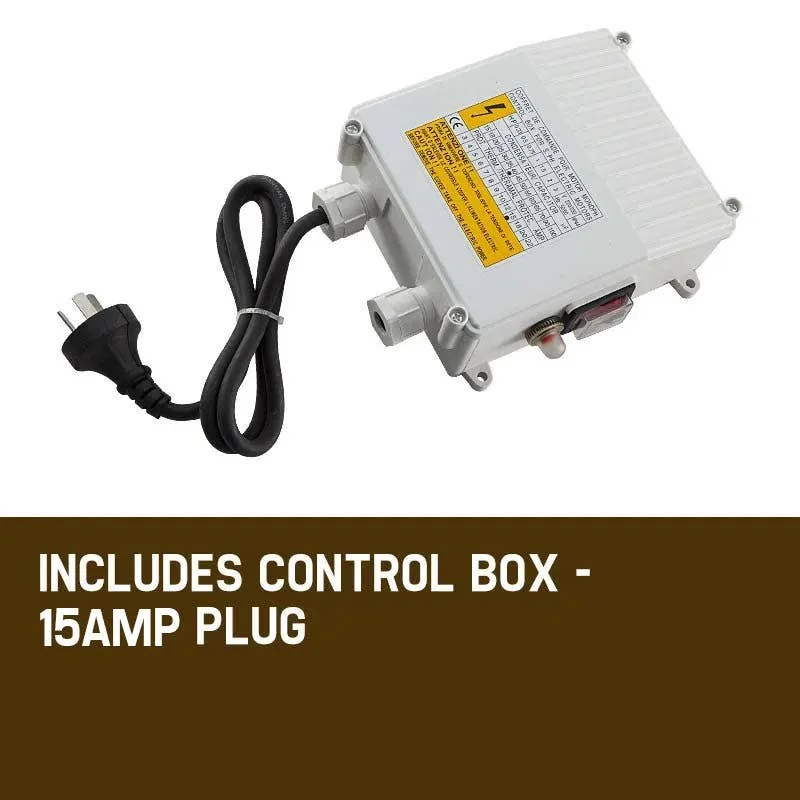

• Includes pre-wired IP rated controller

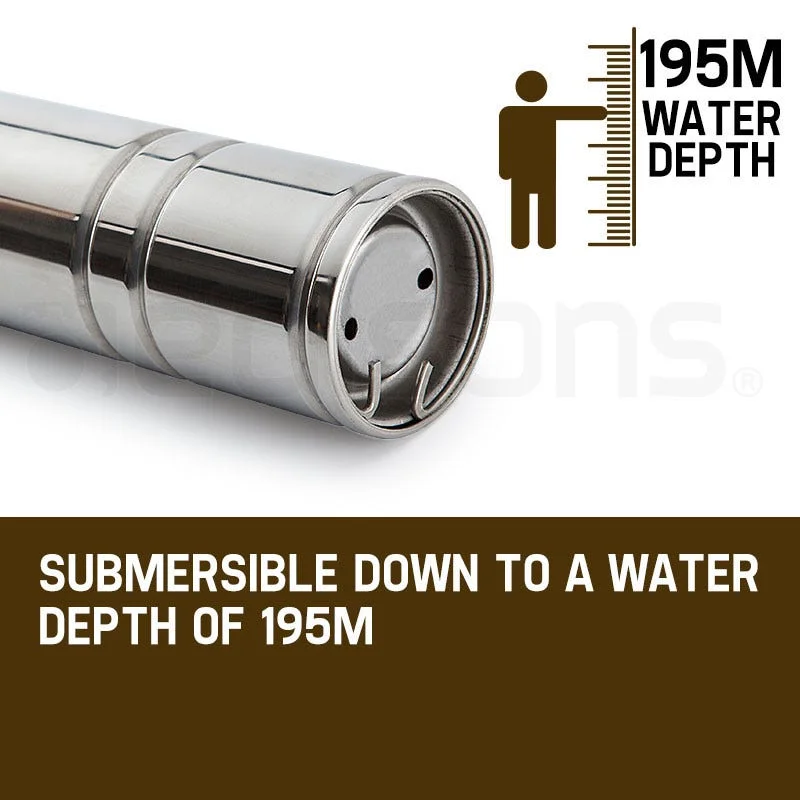

• Submersible to a water depth of 195m
• 12-month Australian warranty

Specifications

• Brand: Protege
• Model: BW66
• Motor: 3.0HP / 2.2kW
• Phase: Single
• Voltage: 240V / 50Hz 15A

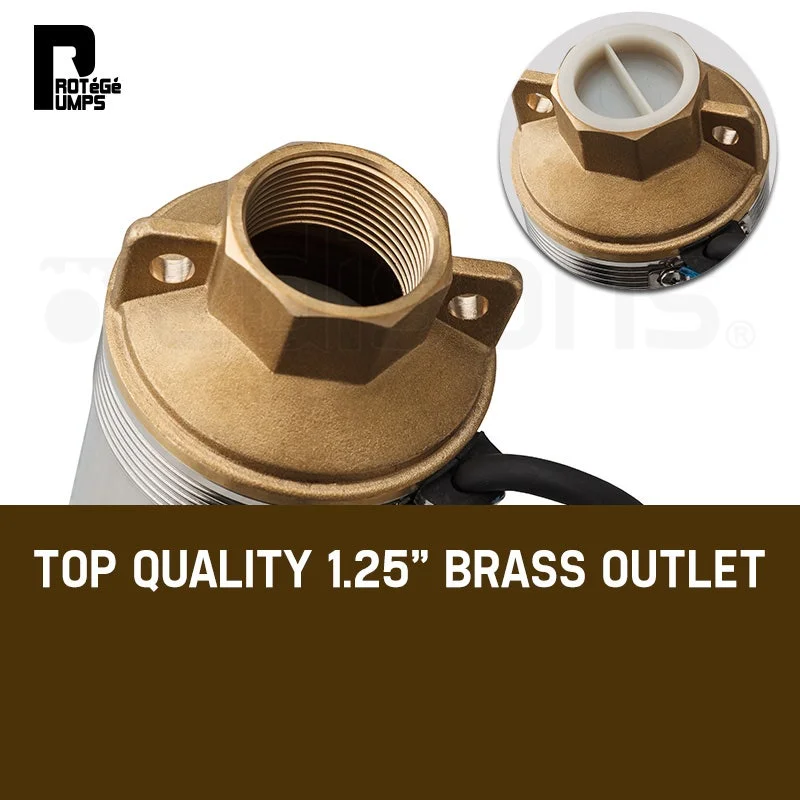

• Brass outlet: 1.25"
• Rev: 2850 rpm
• Water pH: 6.5 - 8.5
• Max ambient temp: 70 C

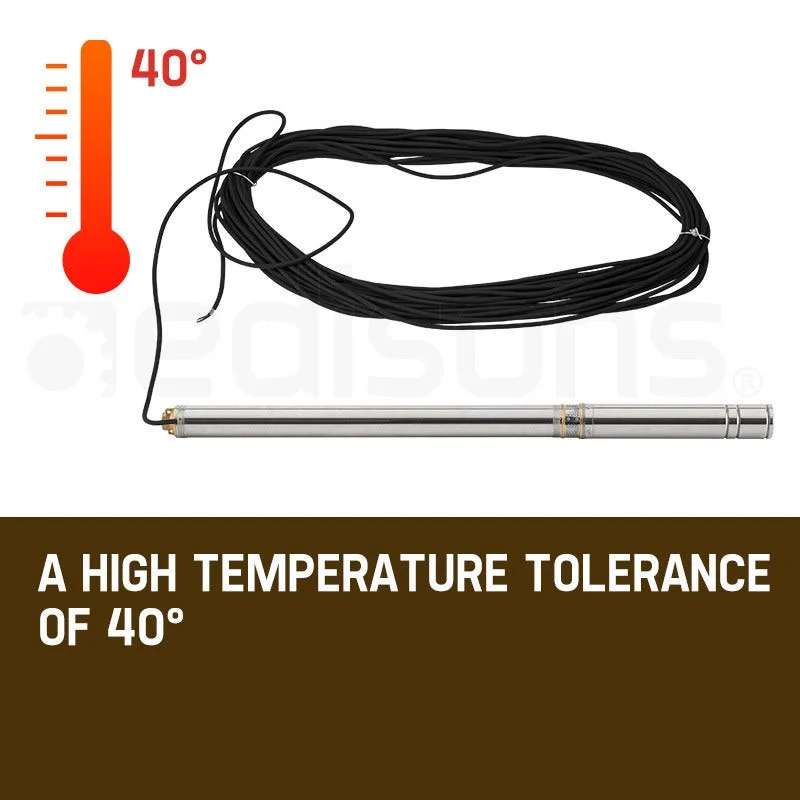

• Max fluid temp: 40 C
• Max starts per hour: 30
• Overload trip time: <10sec
• Insulation class: I
• Plug: 15 amp
• Protection class: IP68
• Cable length: 30m
• Power plug: Australian standard
• Flow rates:
  • 17L/min @ 195m
  • 25L/min @ 189m
  • 33L/min @ 180m
  • 42L/min @ 168m
  • 50L/min @ 150m
  • 67L/min @ 135m
  • 83L/min @ 120m

What's in the Box

• 1 x Protege BW66 3HP submersible bore water pump
• 1 x Pre-wired IP rated controller
• 1 x User manual

Size and Weight

• Carton dimensions (L x W x H): 176 x 12 x 19cm
• Carton weight: 30kg
• Product dimensions (W x L): 10cm x 148cm
• Product weight: 28kg
