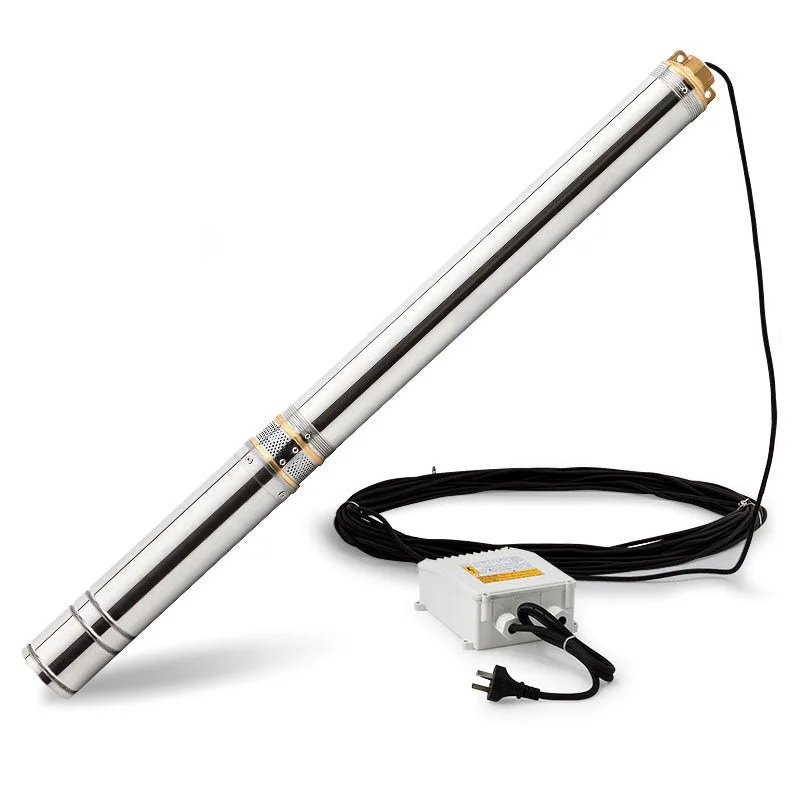

Protege 1.5HP Submersible Bore Water Pump Stainless Steel Deep Well

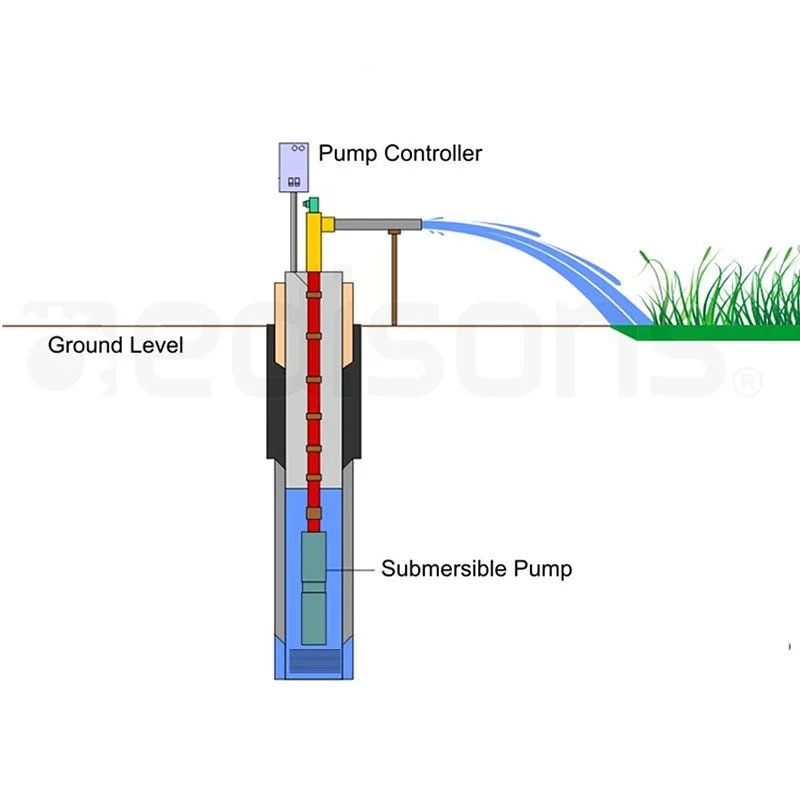

The Protege 1.5HP submersible bore water pump delivers a class-leading flow rate of 83L/min at 38 metres' depth, making it ideal for deep well irrigation and water supply. With 14 impellers, it performs reliably even at extreme depths, producing 17L/min at 108 metres.

Key Features

• High flow rate: 83L/min at 38m, 17L/min at 108m
• 14 impellers for consistent performance at depth
• 110m maximum head

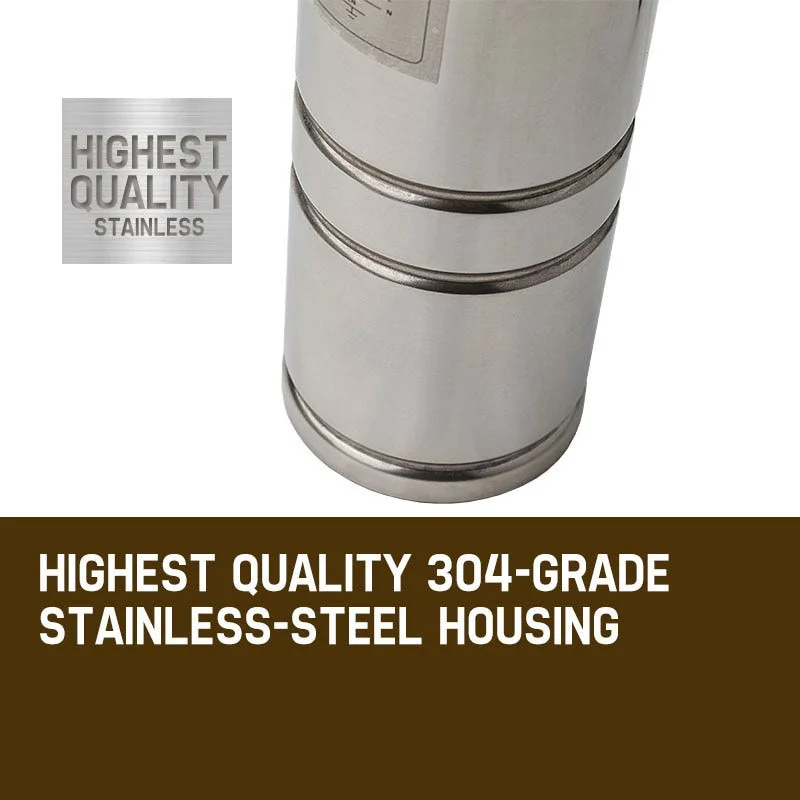

• Durable 304-grade stainless steel housing
• Brass inlets and outlets
• Can be mounted horizontally or vertically

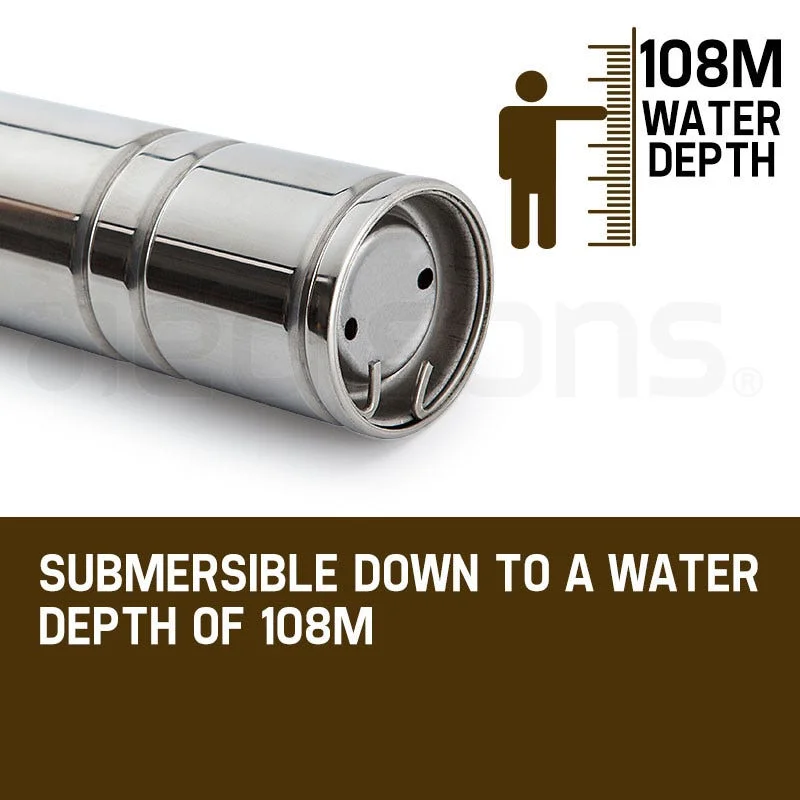

• Submersible down to 108m water depth

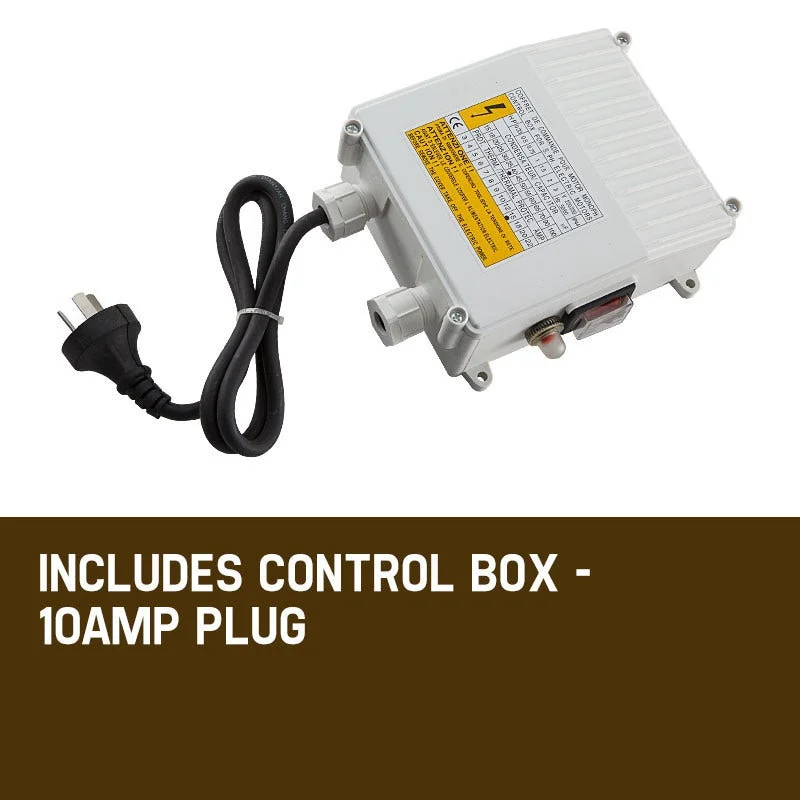

• Includes pre-wired IP-rated controller
• 12-month Australian warranty

Specifications

• Brand: Protege
• Motor: 1.5HP / 1.1kW
• Phase: Single
• Voltage: 240V / 50Hz 8.4A

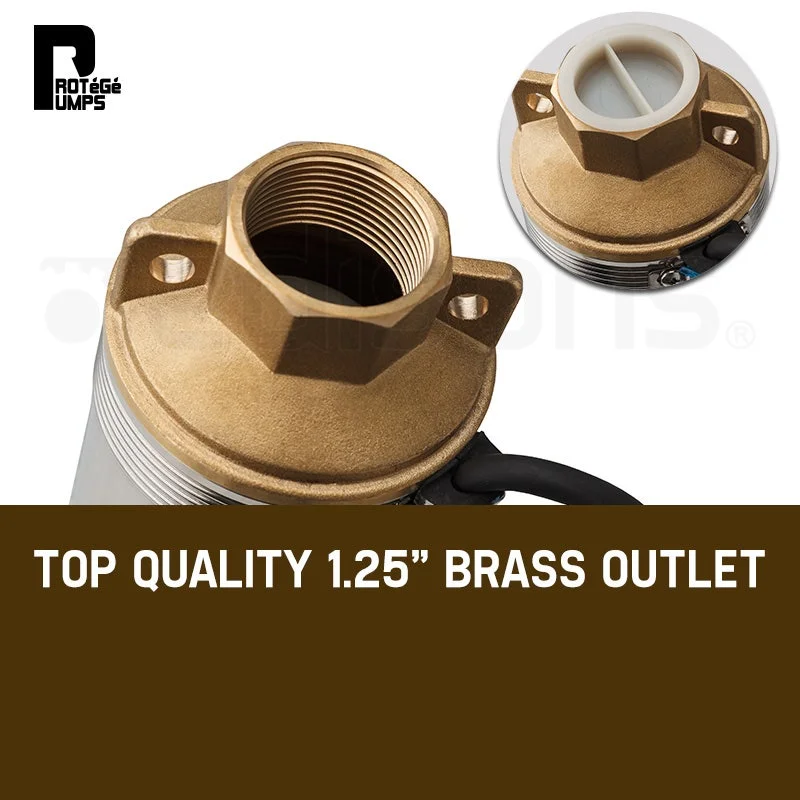

• Brass outlet: 1.25"
• Speed: 2850 rpm
• Water pH: 6.5 - 8.5
• Max ambient temperature: 70°C

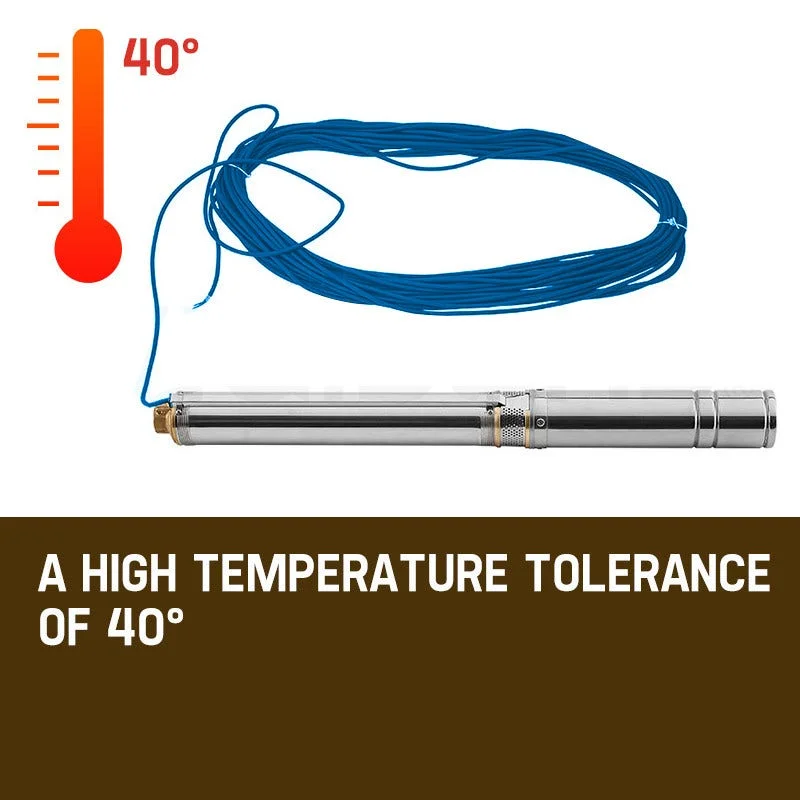

• Max fluid temperature: 40°C
• Max starts per hour: 30
• Overload trip time: <10sec
• Insulation class: I
• Plug: 10 amp
• Protection class: IP68
• Cable length: 30m
• Flow rates:
  • 17L/min @ 108m
  • 25L/min @ 103m
  • 33L/min @ 99m
  • 42L/min @ 93m
  • 50L/min @ 86m
  • 67L/min @ 64m
  • 83L/min @ 38m
• Power plug: Australian standard

What's in the Box

• 1 x Protege deep water pump
• 1 x Pre-wired IP-rated controller
• 1 x User manual

Size and Weight

• Carton dimensions (L x W x H): 127 x 12 x 19cm
• Carton weight: 19kg

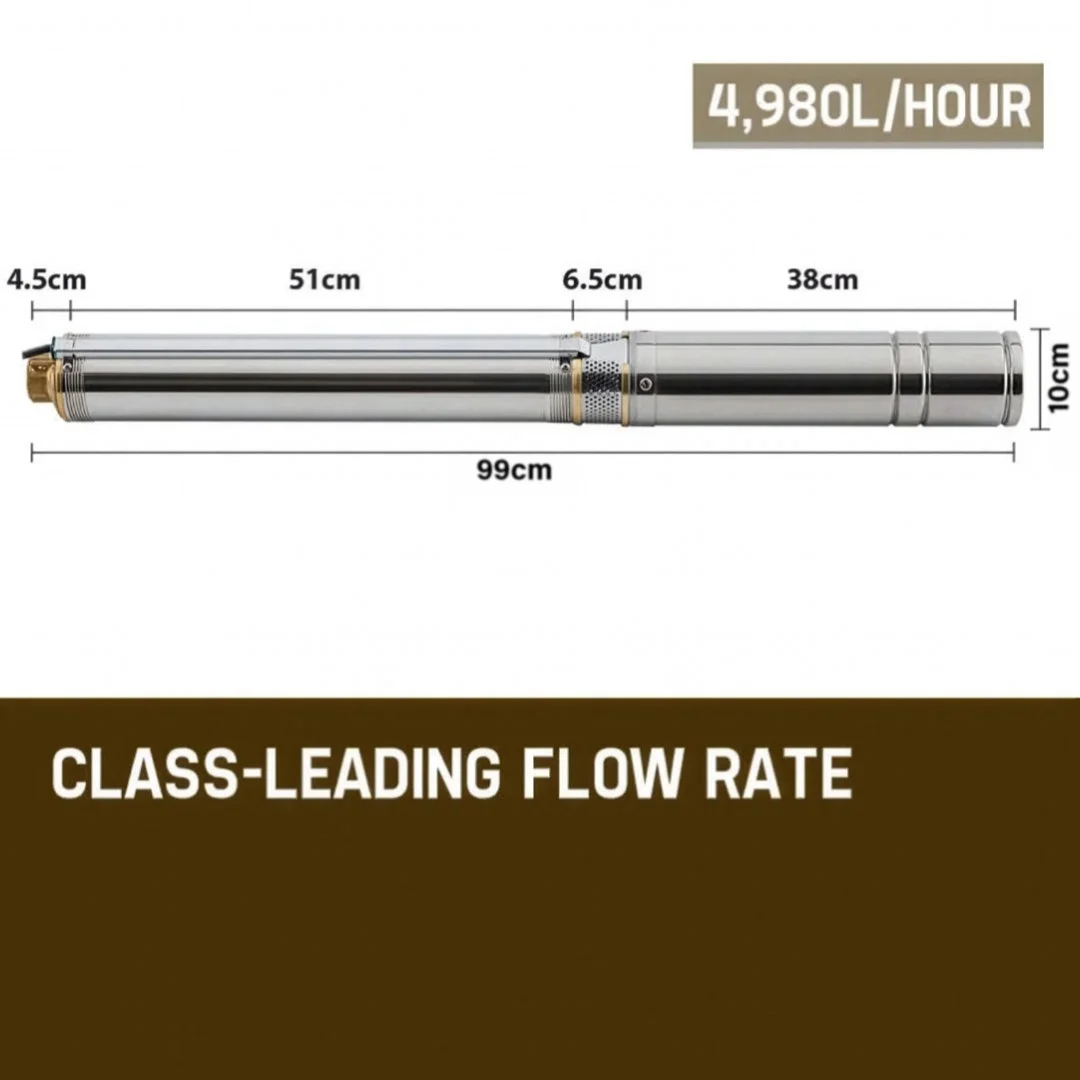

• Product dimensions (W x L): 10cm x 99cm
• Product weight: 17kg
