Protege BW33 1HP Submersible Bore Water Pump Stainless Steel 240V

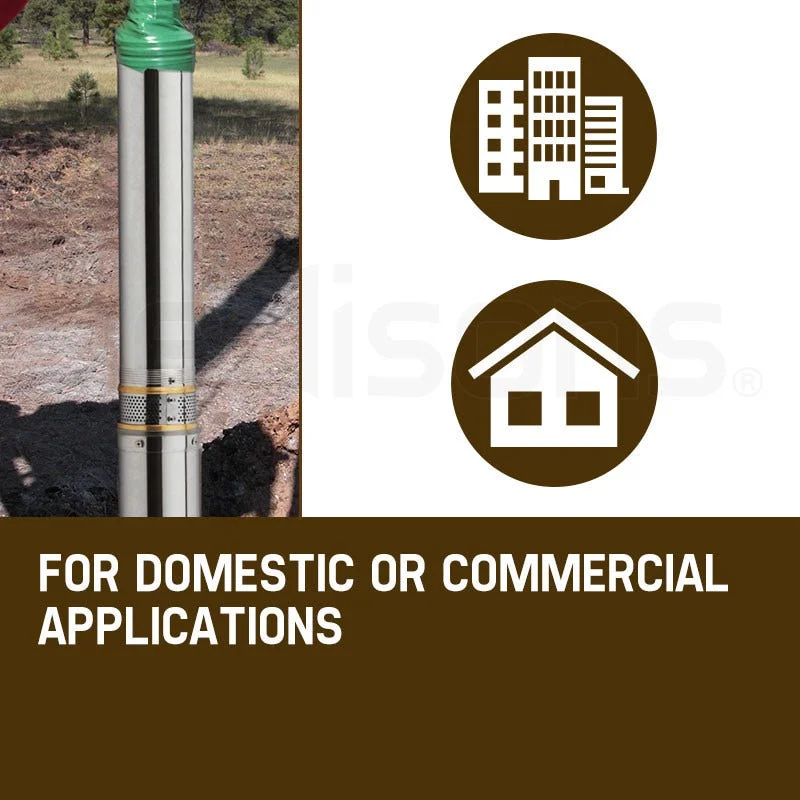

The Protege BW33 1HP submersible bore water pump delivers a class-leading flow rate, producing up to 83L/min at 26 metres' depth and still moving 17L/min at a dizzying 88 metres. With a 304-grade stainless steel housing and brass inlets and outlets, it is built for reliable service in domestic and commercial irrigation.

Key Features

• Class-leading flow rate
• 83L/min at a depth of 26 metres; 17L/min at 88 metres
• 10 impellers
• 90m maximum head
• Brass inlets and outlets

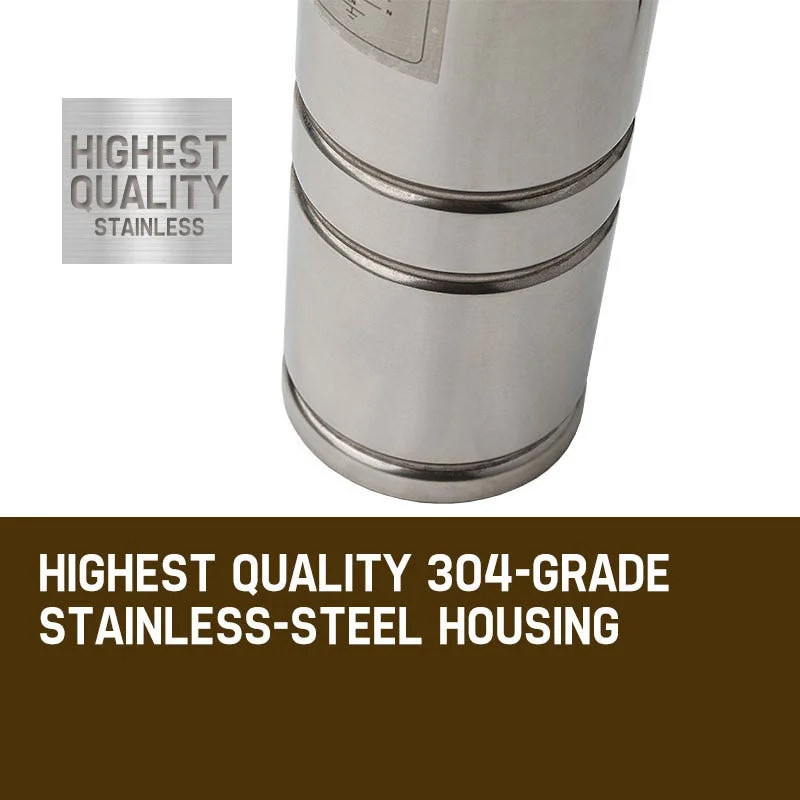

• Highest quality 304-grade stainless steel housing
• Can be mounted horizontally as well as vertically

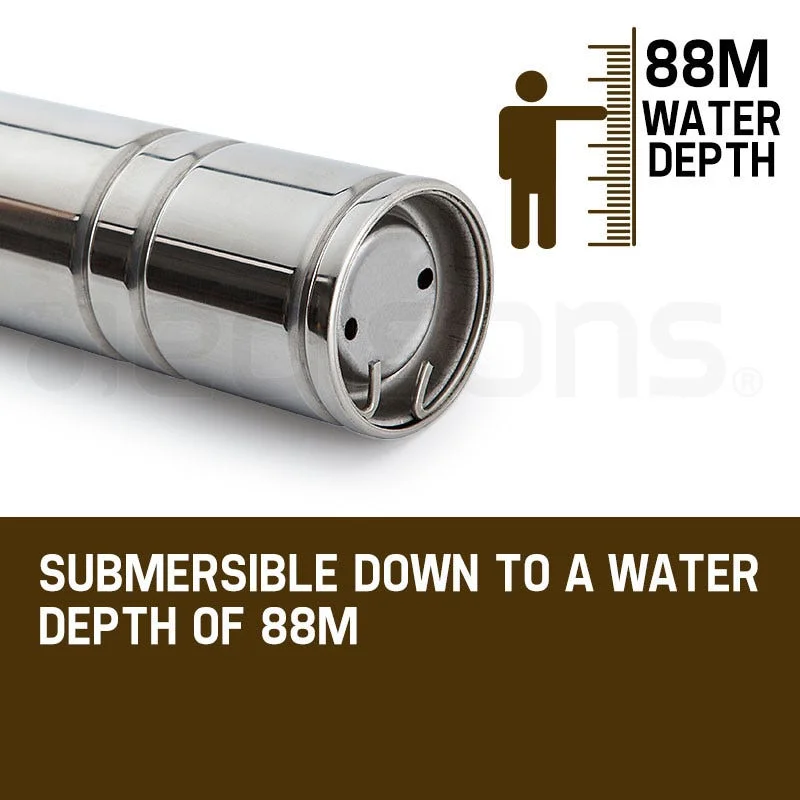

• Submersible down to a water depth of 88m

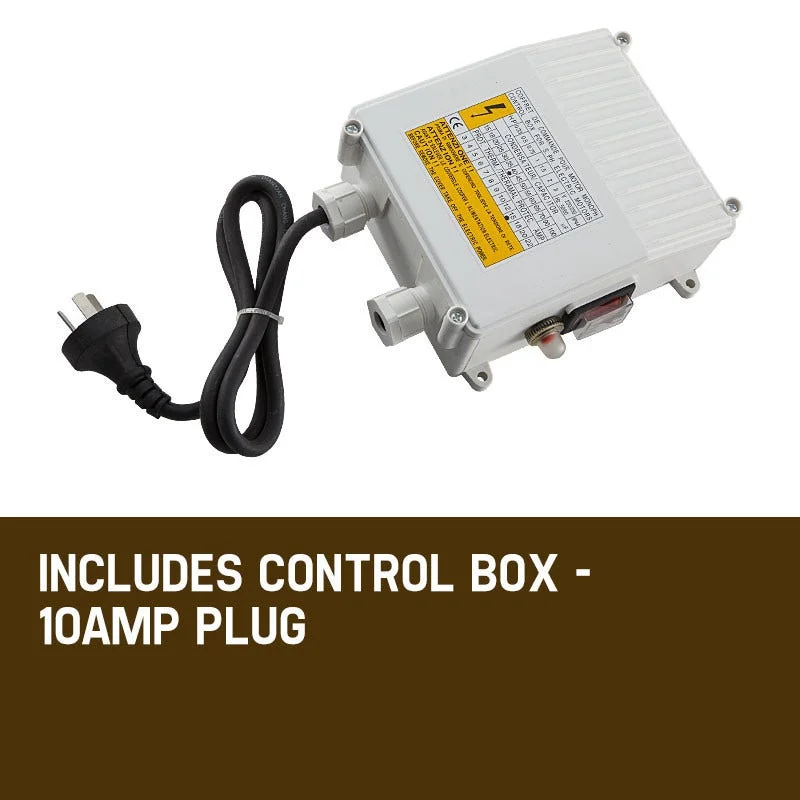

• Includes control box

Specifications

• Brand: Protege
• Model: BW33
• Type: Bore pump, submersible
• Motor: 1HP/0.75kW
• Phase: Single

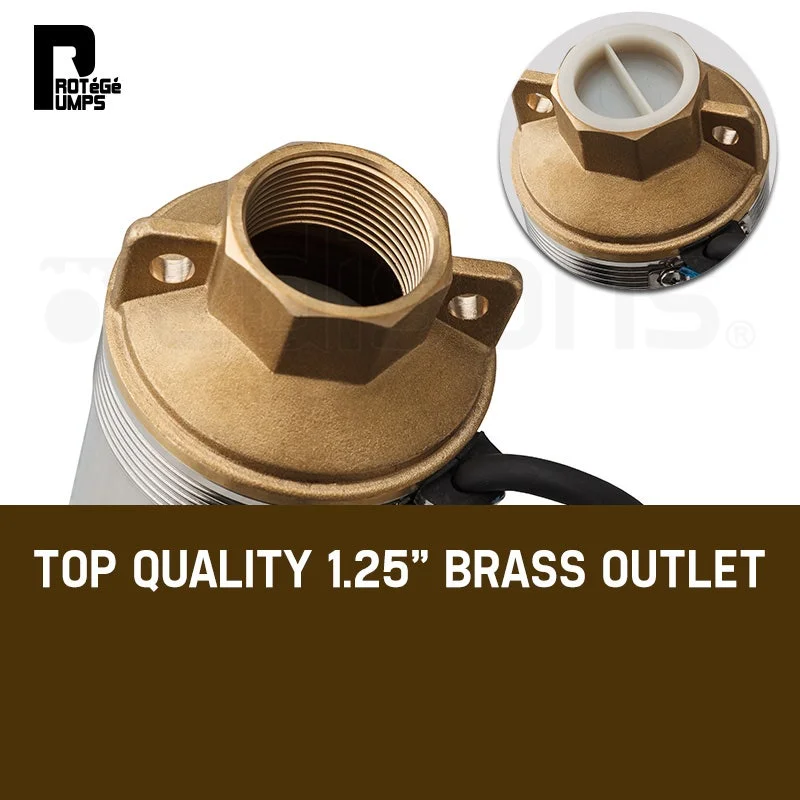

• Brass outlet: 1.25"
• Revolution: 2850 RPM
• Water pH: 6.5 - 8.5

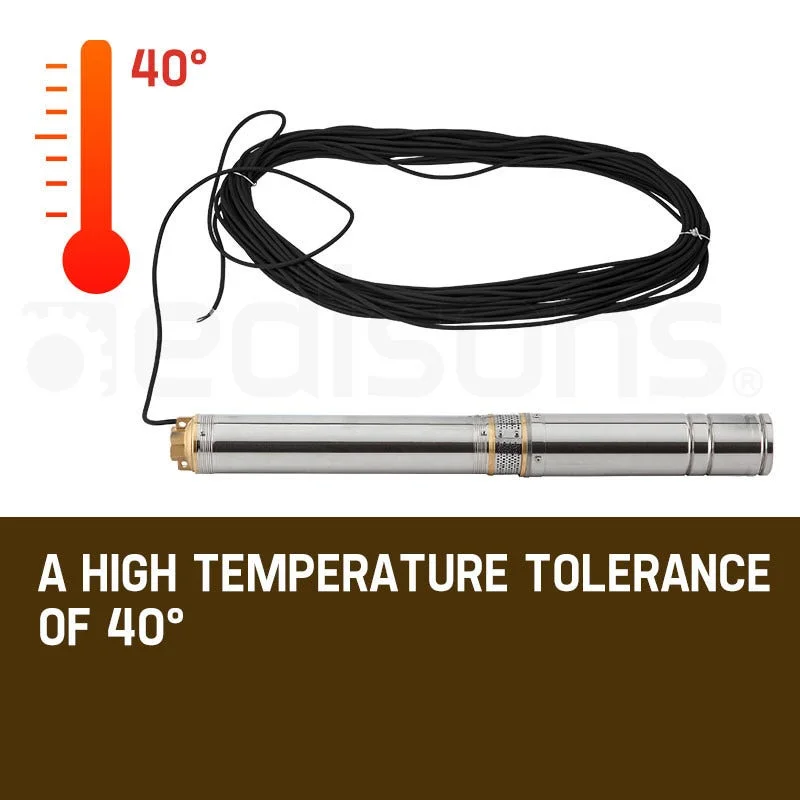

• Max ambient temp: 70 C
• Max fluid temp: 70 C
• Vertical/horizontal mounting: Yes
• Max starts per hour: 30
• Overload trip time: <10Sec
• Insulation class: I
• Plug: 10 amp
• Protection class: IP68
• Cable length: 30m
• Power source: Electric
• Input voltage: 240V / 50Hz 6A
• Power plug: Australian Standard

Flow Rate

• 17L/min @ 88m = 36.4psi
• 25L/min @ 83m = 61.6psi
• 33L/min @ 77m = 85.4psi
• 42L/min @ 69m = 96.6psi
• 50L/min @ 61m = 107.8psi
• 67L/min @ 44m = 116.2psi
• 83L/min @ 26m = 123.2psi

What's in the Box

• 1 x Protege 1HP water pump
• 1 x Control box
• 1 x User manual

Size and Weight

• Carton dimensions (W x D x H): 12 x 117 x 19cm
• Carton weight: 17kg

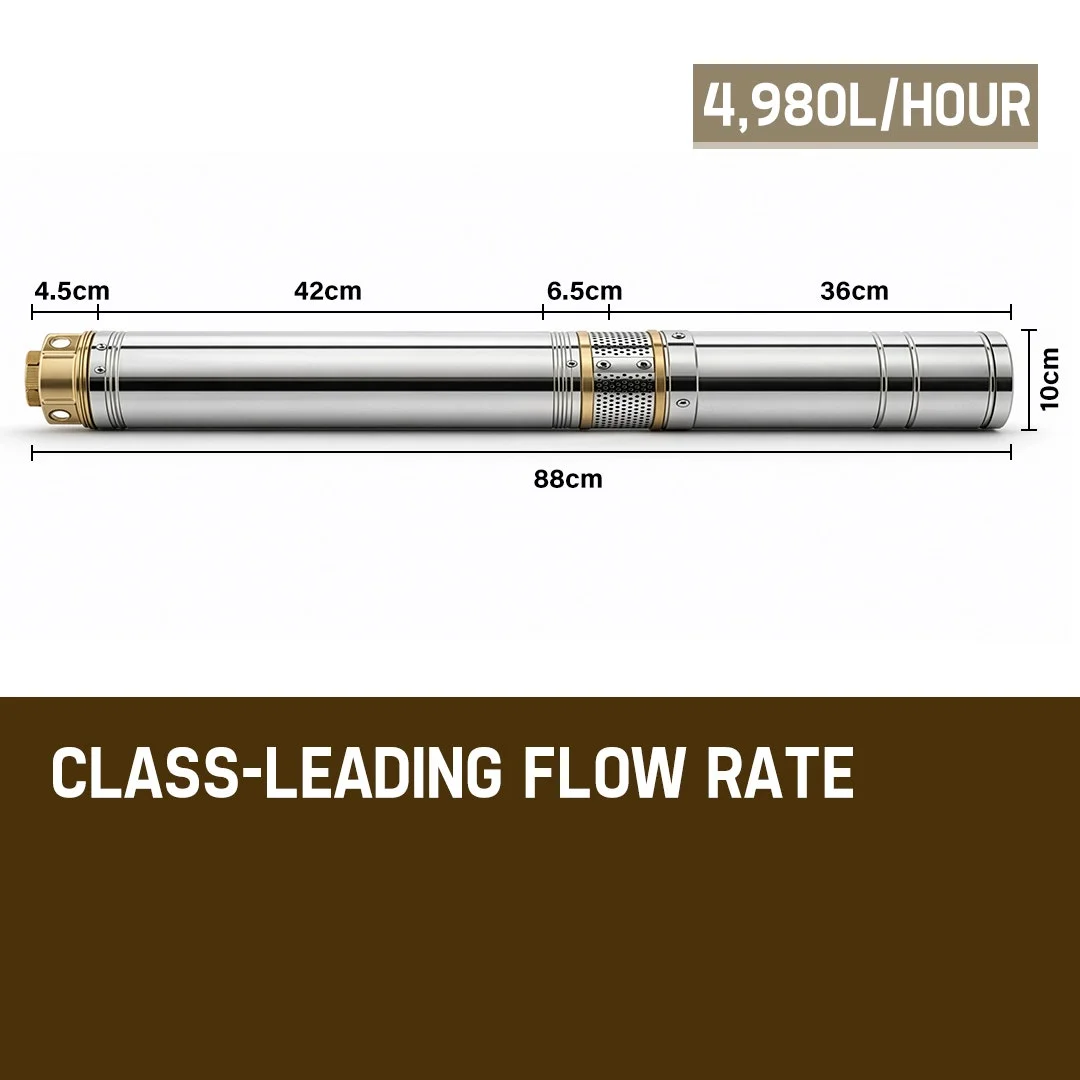

• Product dimensions (W x L): 10cm x 88cm
• Product weight: 16kg
