Simplecom CHT811 11-in-1 USB-C Docking Station with Triple 4K Display, Dual HDMI & DP

The Simplecom CHT811 11-in-1 USB-C docking station expands your laptop's connectivity through a single USB-C connection, adding triple 4K display outputs, five USB data ports, Gigabit Ethernet and a headset jack. It's a compact all-in-one solution for building a productive multi-screen workspace at home or in the office.

Key Features

• 11-in-1 laptop docking station with a single USB-C host connection
• Triple display outputs (2x HDMI, 1x DisplayPort) support up to three extended monitors
• MST (Multi-Stream Transport) support for mirrored or extended display modes
• HDMI and DisplayPort outputs support resolutions up to 4K@60Hz
• Five USB-A and USB-C data ports, with data transfer speeds up to 5Gbps
• USB-C PD port supports up to 100W Power Delivery charging
• Gigabit Ethernet for a stable wired connection up to 1000Mbps
• 3.5mm TRRS audio jack with microphone support for headsets
• Durable aluminium alloy casing for efficient heat dissipation
• Compact and portable design, easy to carry with your laptop
• Plug and play with no drivers or software required

Specifications

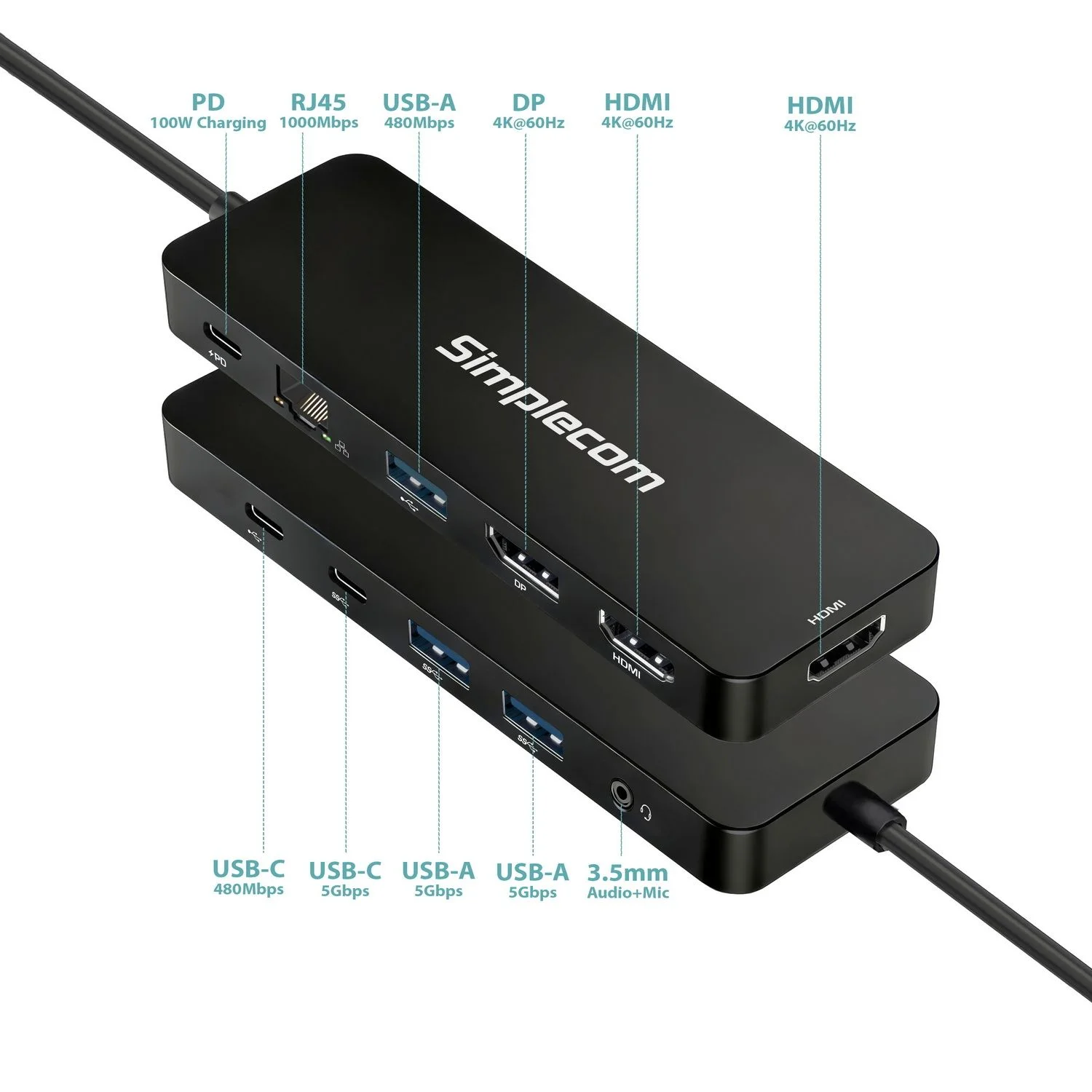

• Model: CHT811
• Host Interface: USB-C
• USB-A Data Ports: 1x USB 480Mbps, 2x USB 5Gbps
• USB-C Data Ports: 1x USB 480Mbps, 1x USB 5Gbps
• Display Ports: 2x HDMI, 1x DP
• HDMI Resolution: up to 4K@60Hz (3840x2160)
• DP Resolution: up to 4K@60Hz (3840x2160)
• HDCP Support: HDCP 2.3 compliant, backwards compatible
• Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
• Audio Port: 4-Pole TRRS 3.5mm Audio Jack (Stereo/Mic Combo)
• PD Input: USB-C PD (charging only), up to 100W
• Housing Material: Aluminium
• Operation Temperature: 0 - 50C
• Dimensions: 13.3 x 4.2cm x 1.4cm
• Weight: 86g

System Requirements

• Operating system: Windows 10 or later, macOS 10.12 or later (no MST support)
• Available USB-C port with DP Alt Mode support (video output over USB-C), Thunderbolt USB-C port or USB4 port
• macOS does not support MST technology and will only support one extended mode output
• Laptop GPU with DP 1.4 or higher supports up to 3x extended displays
• For 3x extended screens at 4K resolution, DP 1.4 (or higher) and DSC (Display Stream Compression) are required for the laptop GPU

Important Notes

• Confirm that the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports support only charging or data transfer and do not offer video output functionality.
• 4K@60Hz is supported by laptop GPUs with DP 1.4 or higher version (e.g., Intel 12th Gen Core Mobile Processors or later).
• The USB-C PD port is for Power Delivery (PD) charging only and does not support data transfer.
• A laptop GPU with DP 1.2 supports 2x extended screens only; a laptop GPU with DP 1.4 or higher supports 3x extended screens.

What's in the Box

• 1x 11-in-1 Docking Station
• 1x User Manual
