Simplecom CHT815 15-in-1 USB-C Docking Station with Triple 4K Display, 100W PD

The Simplecom CHT815 15-in-1 USB-C docking station expands your laptop through a single USB-C connection, adding triple 4K display outputs, seven USB data ports, Gigabit Ethernet and a card reader. It is a practical all-in-one hub for a home or office desk, letting you extend your workspace across multiple monitors and connect your peripherals at the same time.

Key Features

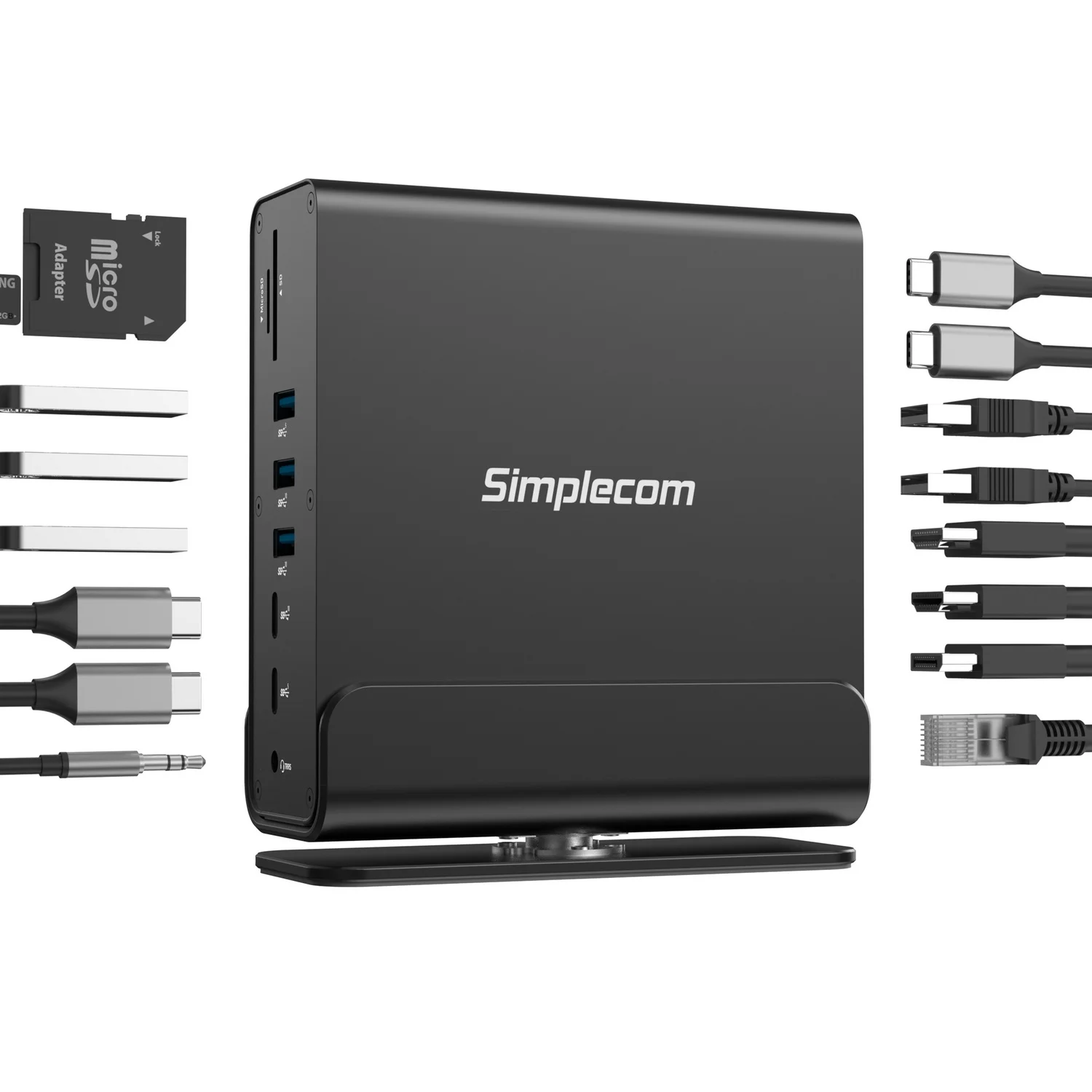

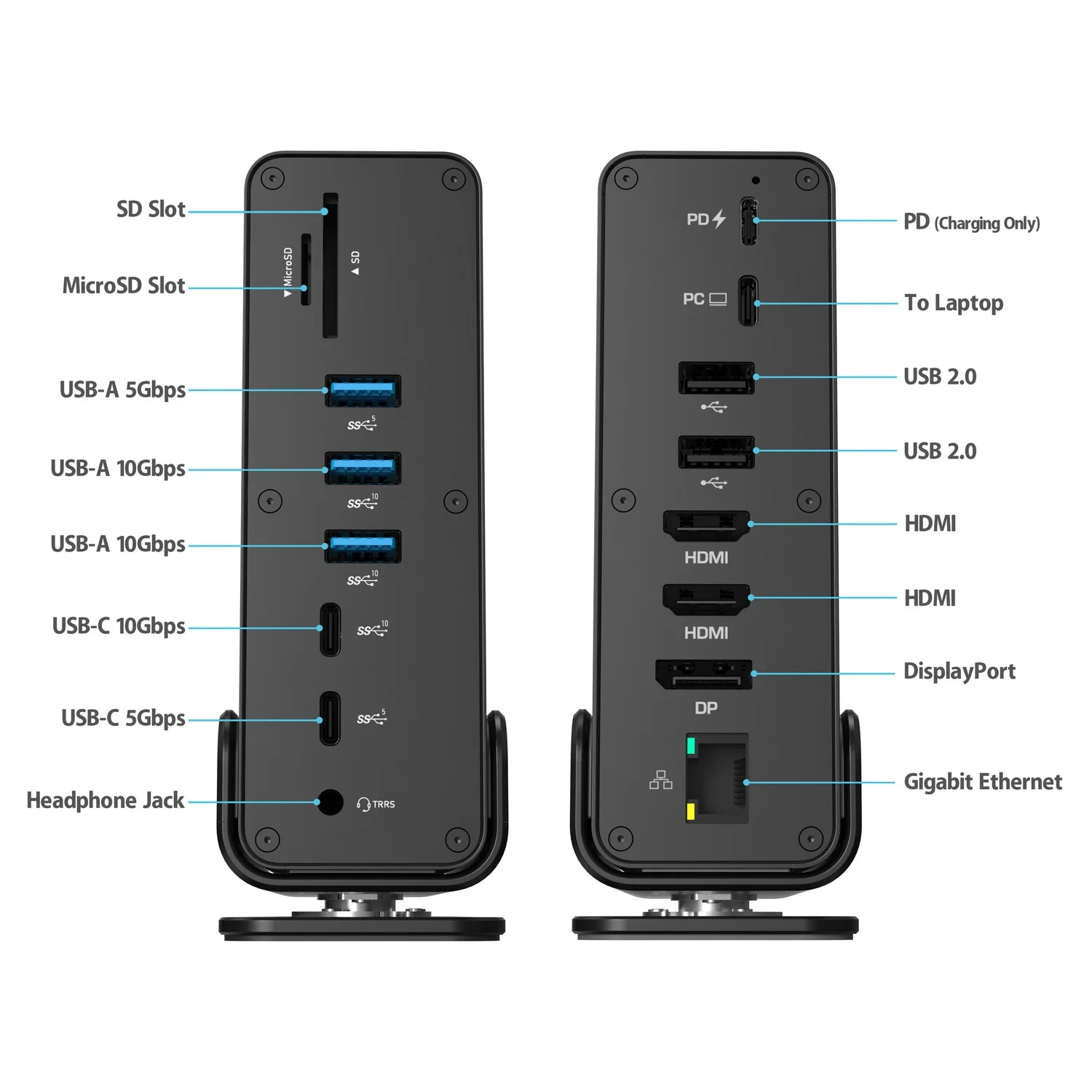

• 15-in-1 USB-C docking station with 5 USB-A and 2 USB-C data ports, 2 card reader slots, Gigabit Ethernet, a headphone jack and 3 display output ports (two HDMI and one DisplayPort)

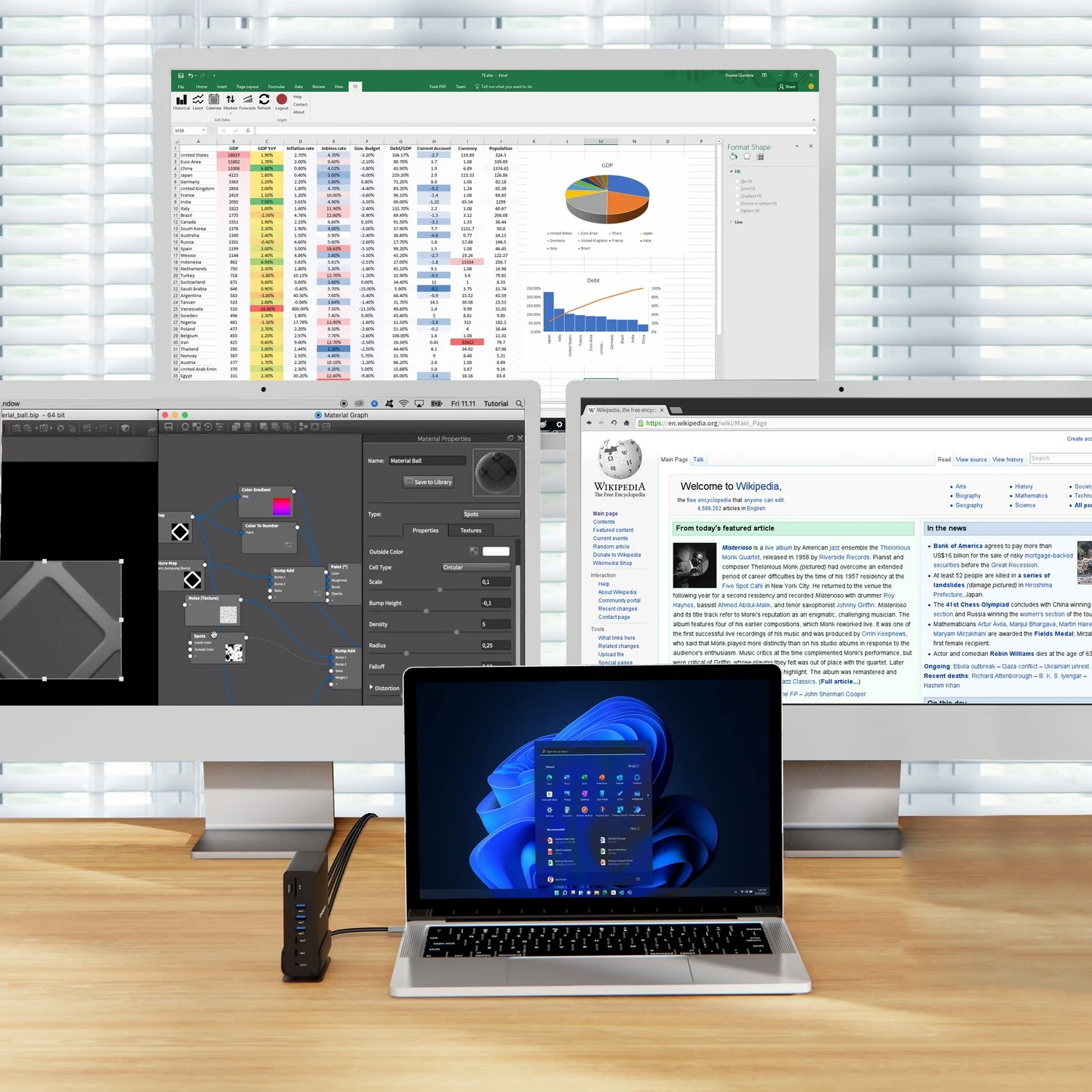

• Triple display outputs support up to three extended displays in 4K resolution
• MST (Multi Stream Transport) for mirror or extended screens
• HDMI and DP ports support UHD resolutions up to 4K@60Hz

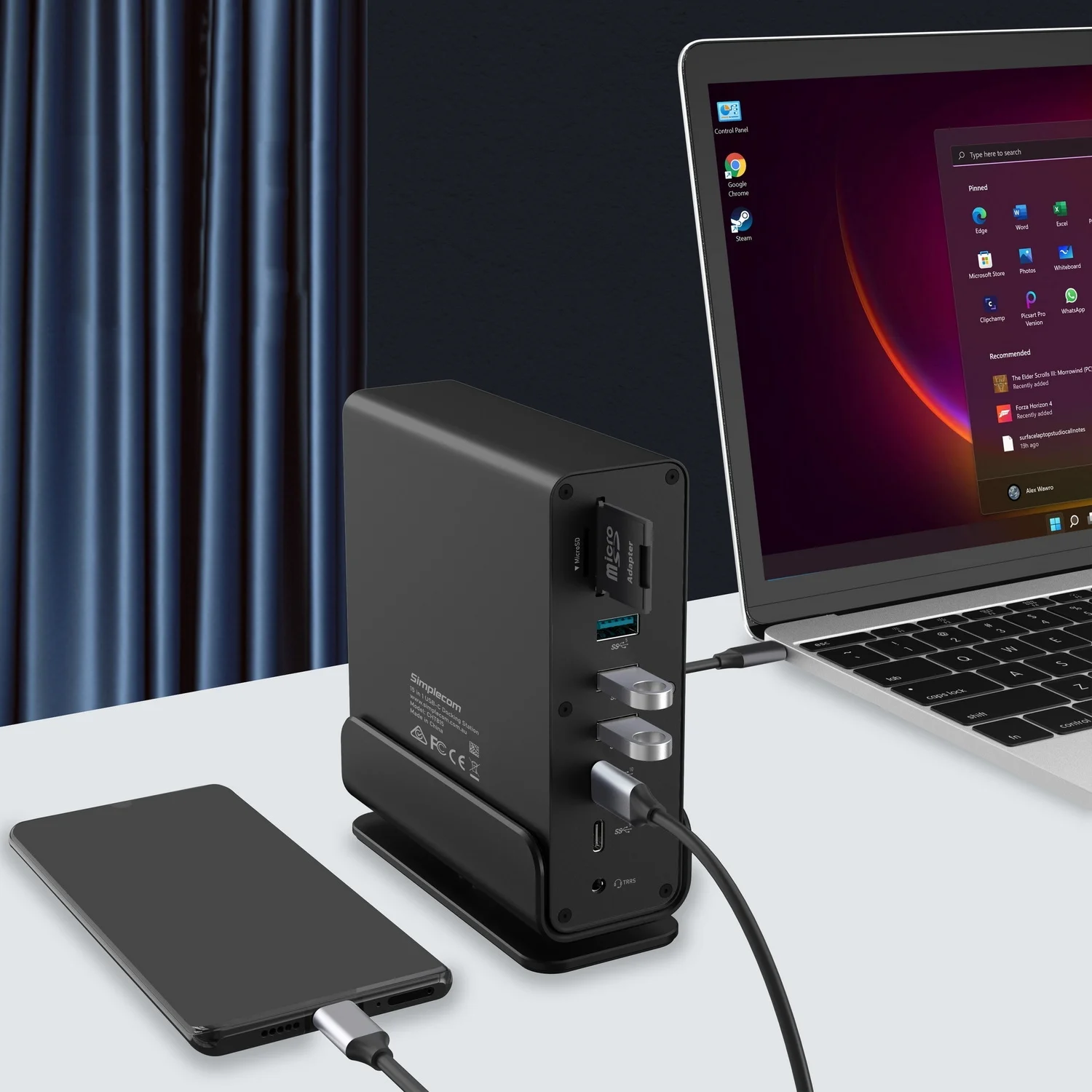

• Power Delivery up to 100W charging via the USB-C PD port
• Multiple USB-A and USB-C data ports support transfer rates up to 10Gbps
• Gigabit Ethernet supports connection speeds up to 1000Mbps
• 2-slot card reader for SD and microSD with SuperSpeed data transfer
• Plug and play, no driver or software required
• Aluminium casing for durability and better heat dissipation

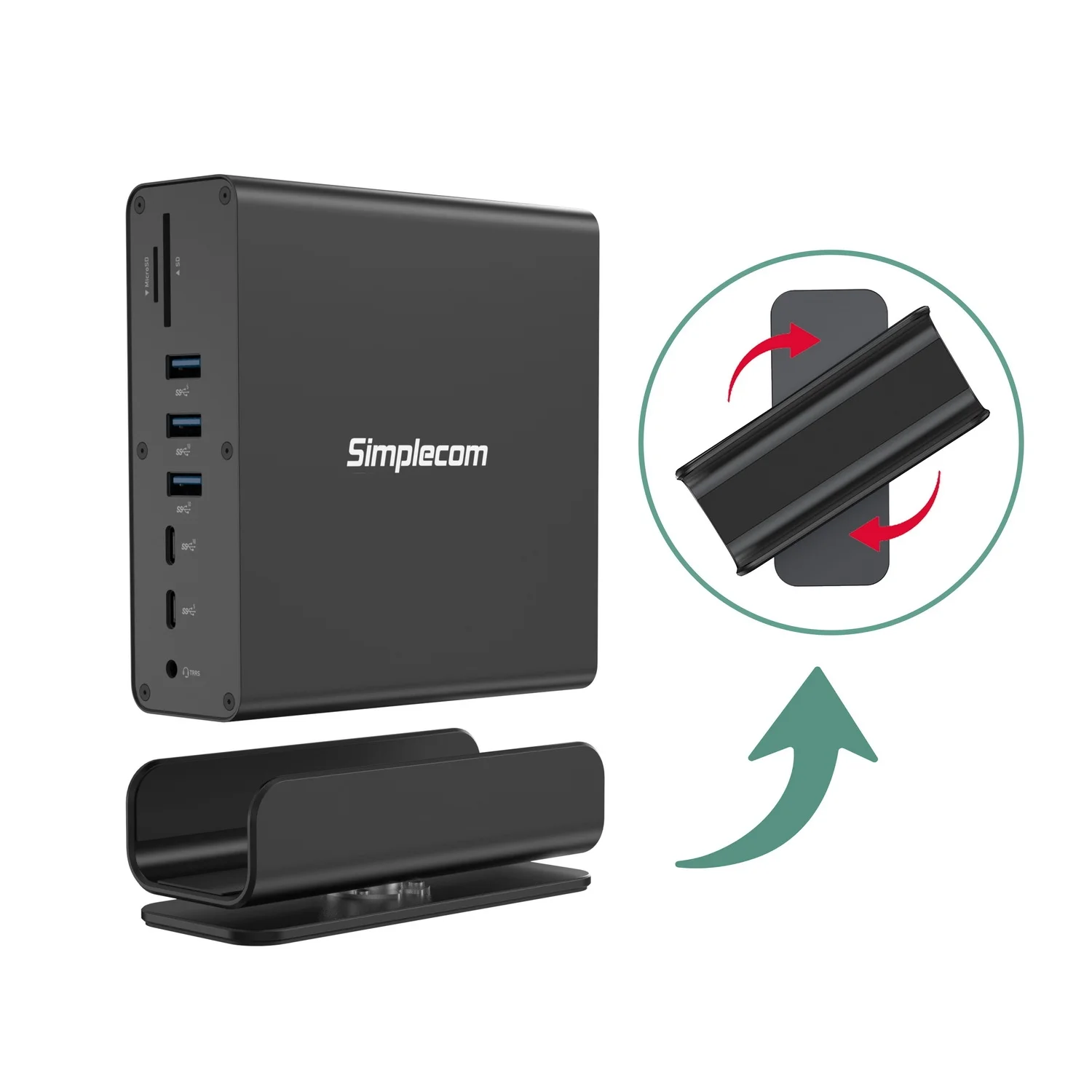

• Rotatable vertical stand helps save desk space

Specifications

• Material: Aluminium
• Host Interface: USB-C Female
• USB-A Data Ports: 2x USB 480Mbps, 1x USB 5Gbps, 2x USB 10Gbps
• USB-C Data Ports: 1x USB 5Gbps, 1x USB 10Gbps
• Display Ports: 2x HDMI 2.0, 1x DP 1.4
• HDMI Resolution: up to 4K@60Hz (3840x2160)
• DP Resolution: up to 4K@60Hz (3840x2160)
• HDCP Support: HDCP 2.3 compliant, backwards compatible
• Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
• Audio Port: 4-Pole TRRS 3.5mm Audio Jack (Stereo and Mic Combo)
• Card Reader: SD and MicroSD (SuperSpeed 5Gbps)
• PD Charging: 1x USB-C Female (for charging only), up to 100W
• Operation Temperature: 0 - 50°C
• Weight: 350g
• Dimensions: 12.6cm (13.8cm with vertical stand) x 12.1cm x 4.2cm

System Requirements

• Available USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
• Thunderbolt USB-C port and USB4 port are recommended

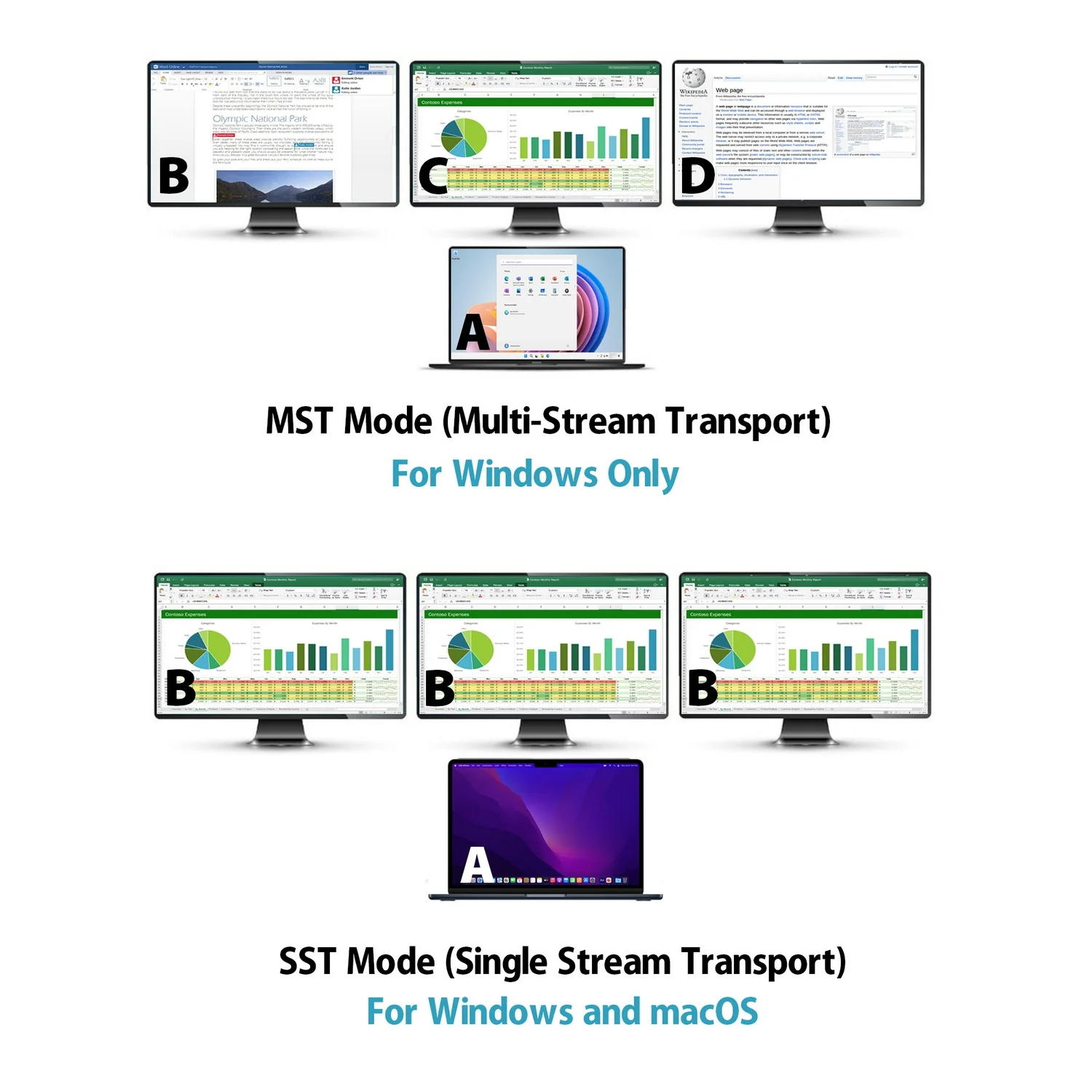

• Windows 10 or above for MST and extended screens support
• macOS does not support MST technology and will only support one extended mode output
• Laptop GPU with DP1.4 supports up to 3x extended screens
• Laptop GPU with DP1.2 supports up to 2x extended screens
• For 3x extended screens at 4K resolution, DP 1.4 and DSC (Display Stream Compression) are required for laptop GPU

Important Note

• Confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, with no video output function.
• Laptop GPU with DP1.2 supports 2x extended screens only; laptop GPU with DP1.4 supports 3x extended screens.
• For a more stable connection when using multiple devices, connect a PD power adaptor to the USB-C PD port for extra power.

What's in the Box

• 1x 15-in-1 Docking Station
• 1x USB4 Cable
• 1x Vertical Stand
• 1x User Manual
