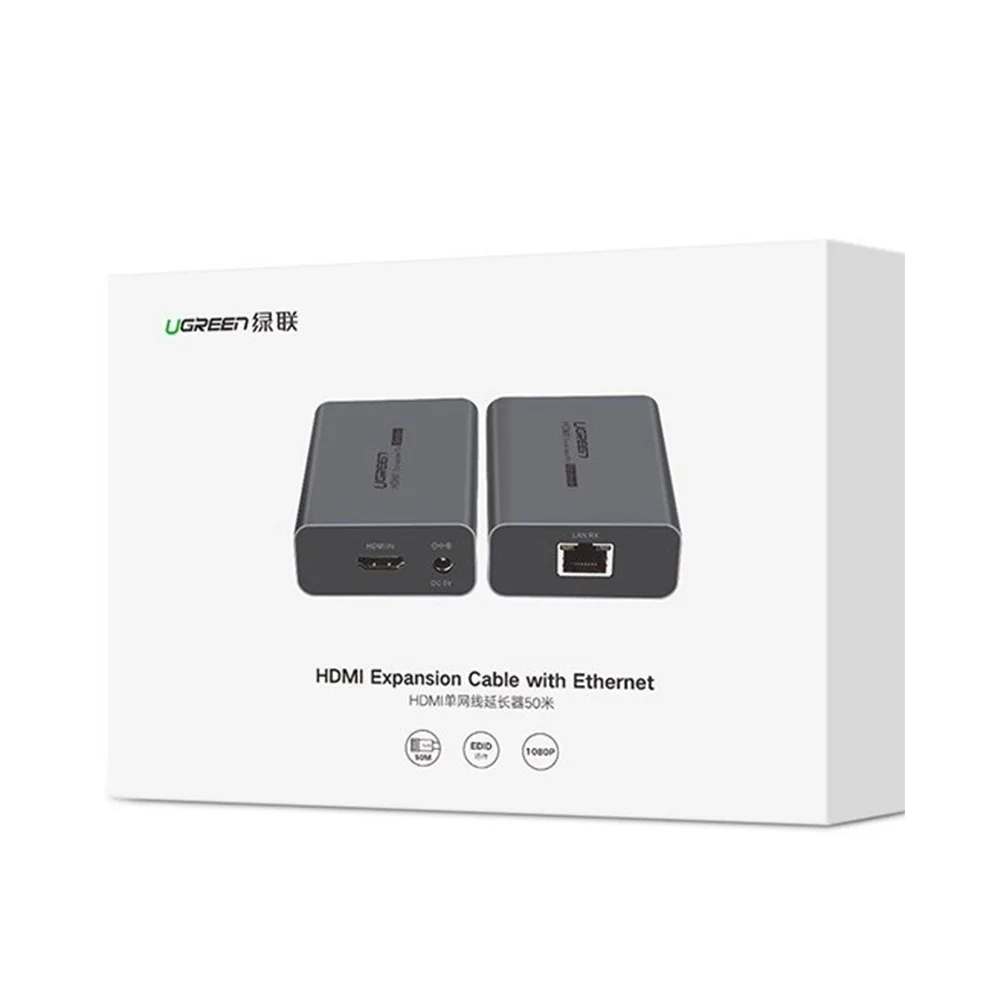

UGREEN HDMI Extender 1080P up to 70m via RJ45 Cat 5e

Extend your HDMI signal over long distances with the UGREEN HDMI Extender, which carries 1080P video up to 70m over a single Cat 5e or higher Ethernet cable. Housed in a durable aluminium case, it is a practical solution for connecting displays across large rooms or between floors.

Key Features

• Aluminium case
• Converts HDMI signal up to 70m
• Compliant with HDCP 1.4/1.3/1.2/1.1
• Supports HDMI I/O 24AWG cable up to 20m

Specifications

• Model: CM455-20519
• HDMI Version: 1.3
• HDCP Version: HDCP 1.4 and backward compatible
• Digital Sampling Rate: 192KHz/24bit
• Digital Audio Format: supports PCM/DTS/DSD/Dolby AC-3/5.1/7.1CH
• HDMI Resolution: supports resolutions up to 4K @30Hz and backward compatibility
• HDMI Cable Length: 1080P@60Hz ≤ 40m, 4K@30Hz ≤ 20m (input + output)
• Ethernet Cable Length: 1080P@60Hz ≤ 70m, 4K@30Hz ≤ 35m Cat 5e or above single-strand pure copper cable (8-core)
• Power Supply: DC 5.5mm 5V/1A
• Compatible Systems: macOS/Windows/Linux
• Dimensions: L74 x W26 x H56 (mm)/L2.91 x W1.02 x H2.02 (inch)
