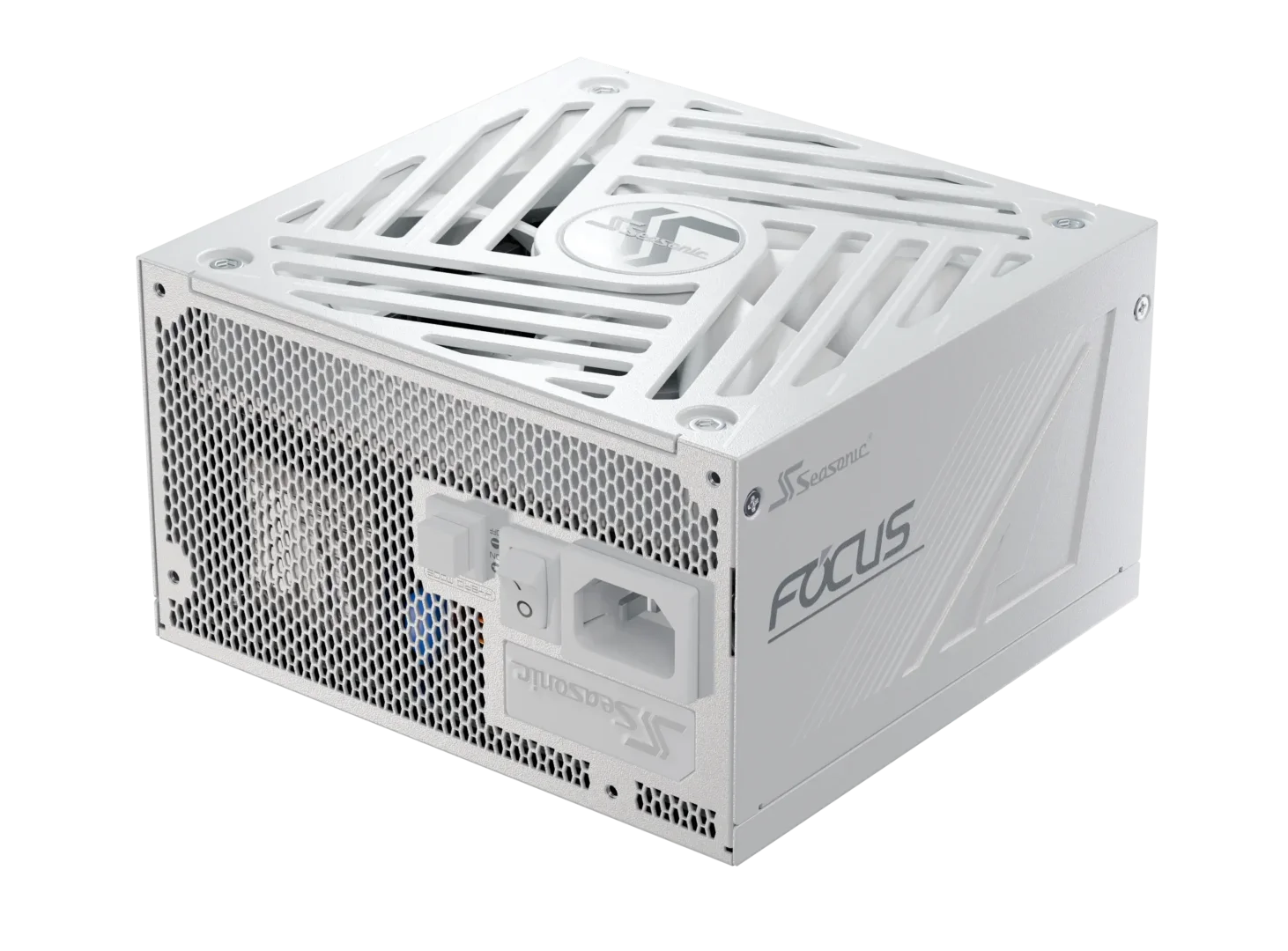

Seasonic FOCUS GX-750 V4 750W 80+ Gold Fully Modular White ATX 3.1 PSU

The Seasonic FOCUS GX-750 V4 is a 750W fully modular ATX 3.1 power supply in a white finish, built to power the latest high-power graphics cards and processors. Compliant with ATX 3.1 and PCIe 5.1, it combines 80 PLUS Gold efficiency with a compact 140mm depth and quiet 135mm fan.

Key Features

• ATX 3.1 and PCIe 5.1 compliant
• 80 PLUS Gold certified, Cybenetics Platinum efficiency level
• Cybenetics Noise Level A-

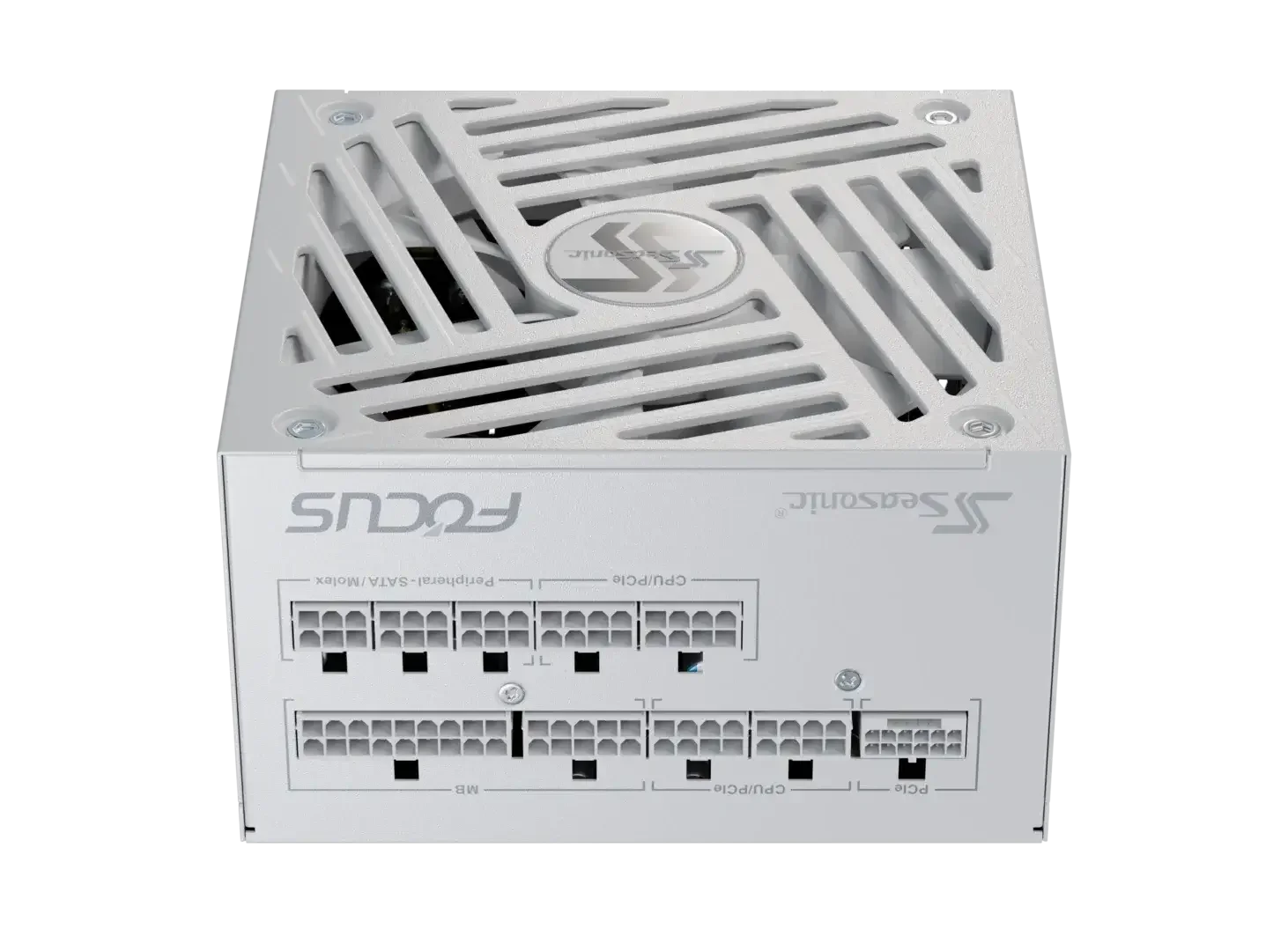

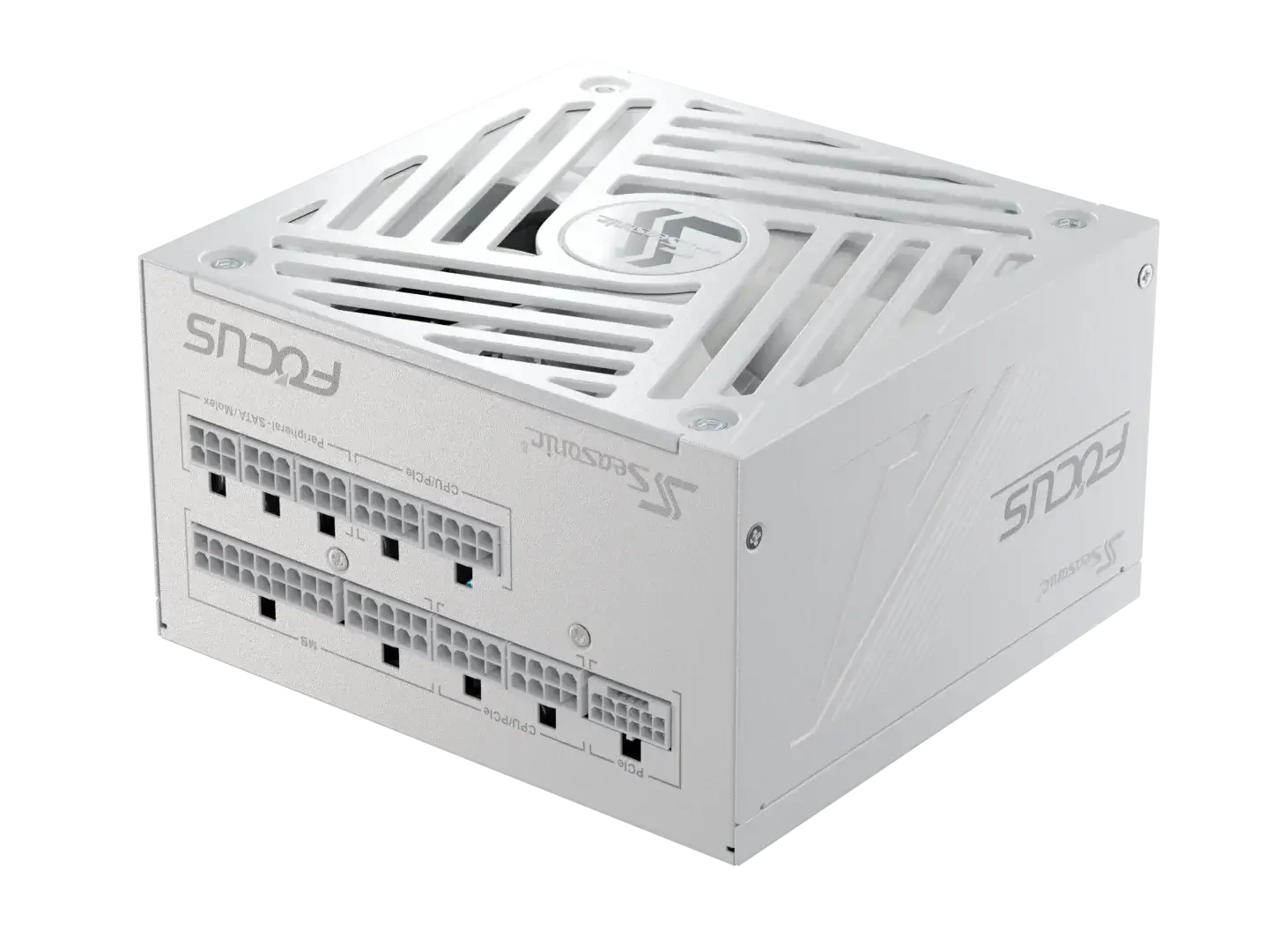

• Fully modular design with individual white cables with braided pattern
• Includes a 12V-2x6 cable
• OptiSink technology
• 135mm fan with Digital Hybrid Fan Control and Fluid Dynamic Bearing
• Compact 140mm depth
• Stunning white finish

Specifications

• Model: FOCUS GX-750 V4 White
• Total continuous power: 750W
• Form factor: ATX/EPS
• AC input: 100V - 240V, 10 - 5A, 50Hz - 60Hz, full range
• DC output: +3.3V 20A, +5V 20A, +12V 62A, -12V 0.3A, +5VSB 3A
• Maximum power: 100W (+3.3V and +5V combined), 744W (+12V), 3.6W (-12V), 15W (+5VSB)
• Fan: 135mm, Fluid Dynamic Bearing, Digital Hybrid Fan Control
• Fan life expectancy: 50,000 hours at 40 C, 15% - 65% RH
• Operating temperature: 0 - 50 C
• MTBF: 100,000 hours at 25 C, excluding fan
• Protection: OCP, OPP, OTP, OVP, SCP, UVP
• Safety and EMC: CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC
• Environmental compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE
• Cable type: individual white cables with braided pattern
• Modularity: fully modular
• Warranty: 10 years
