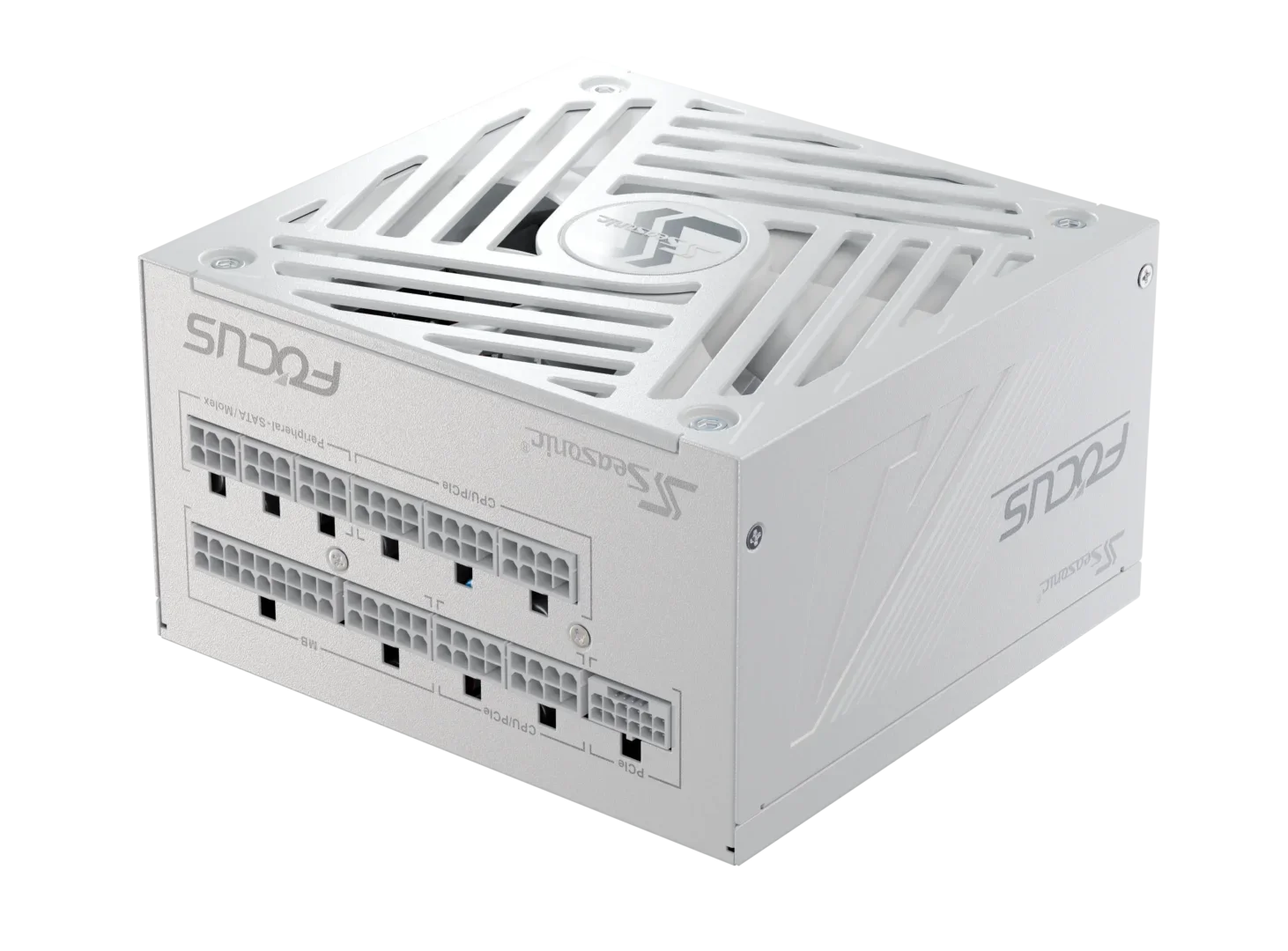

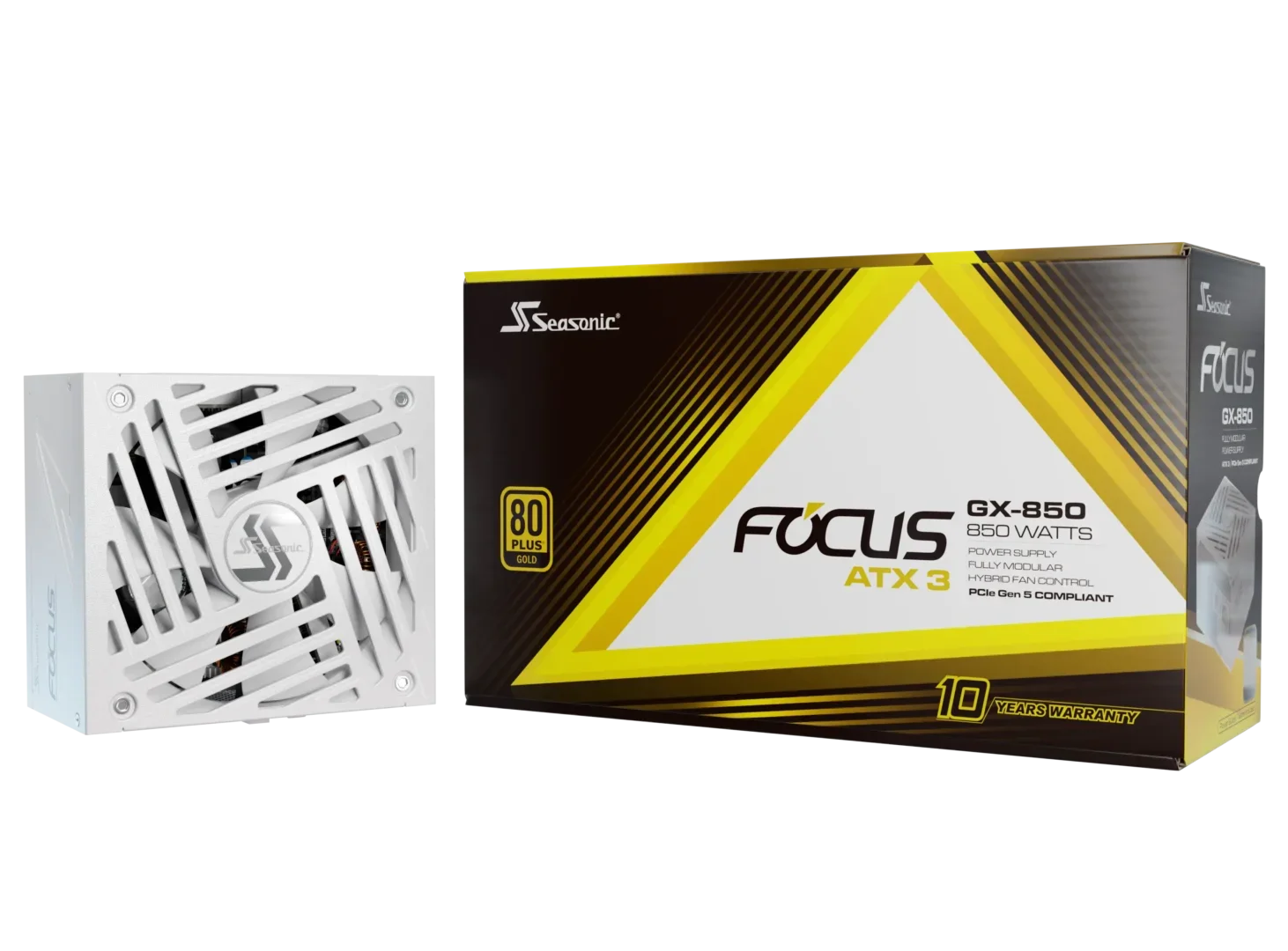

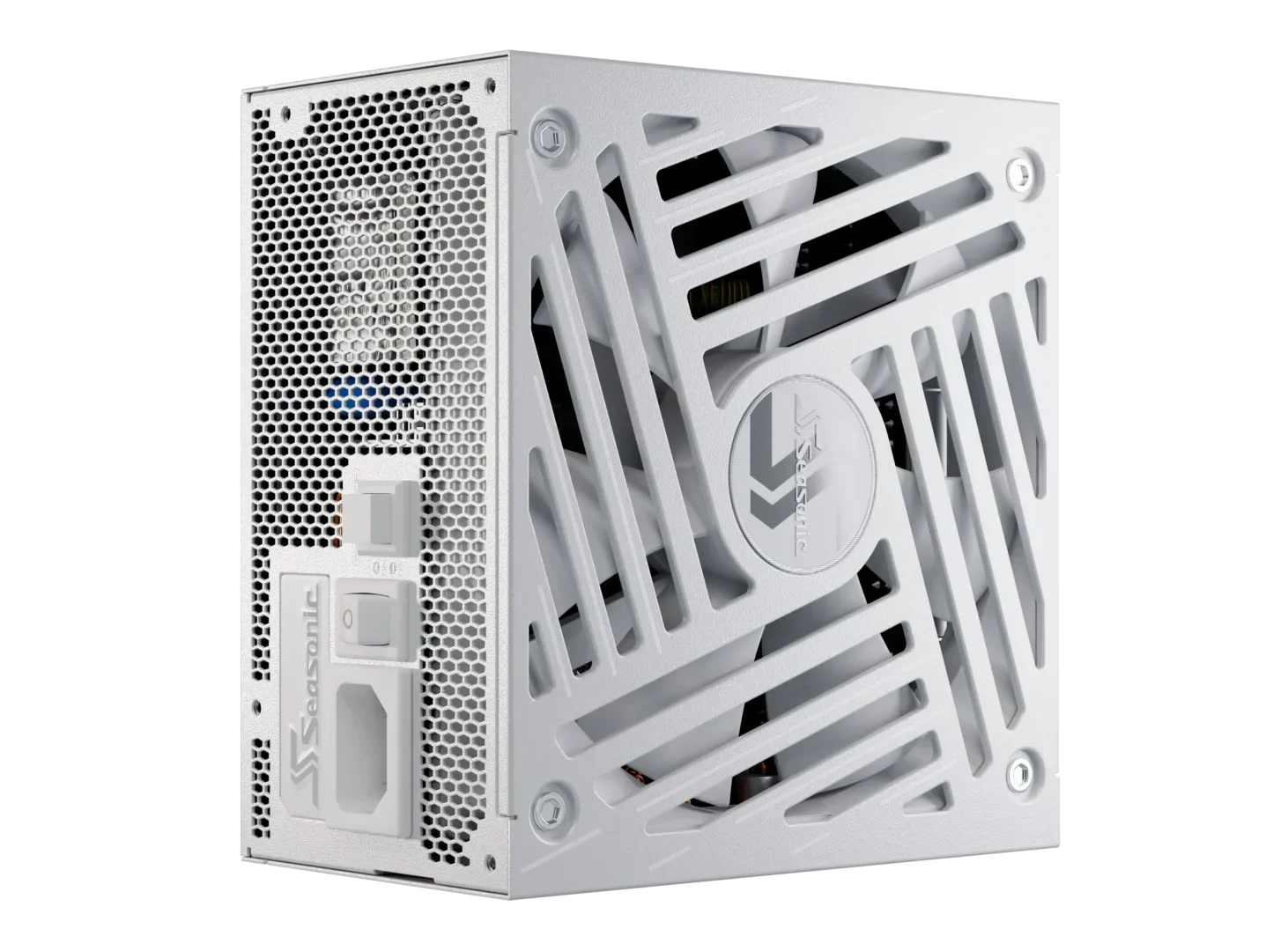

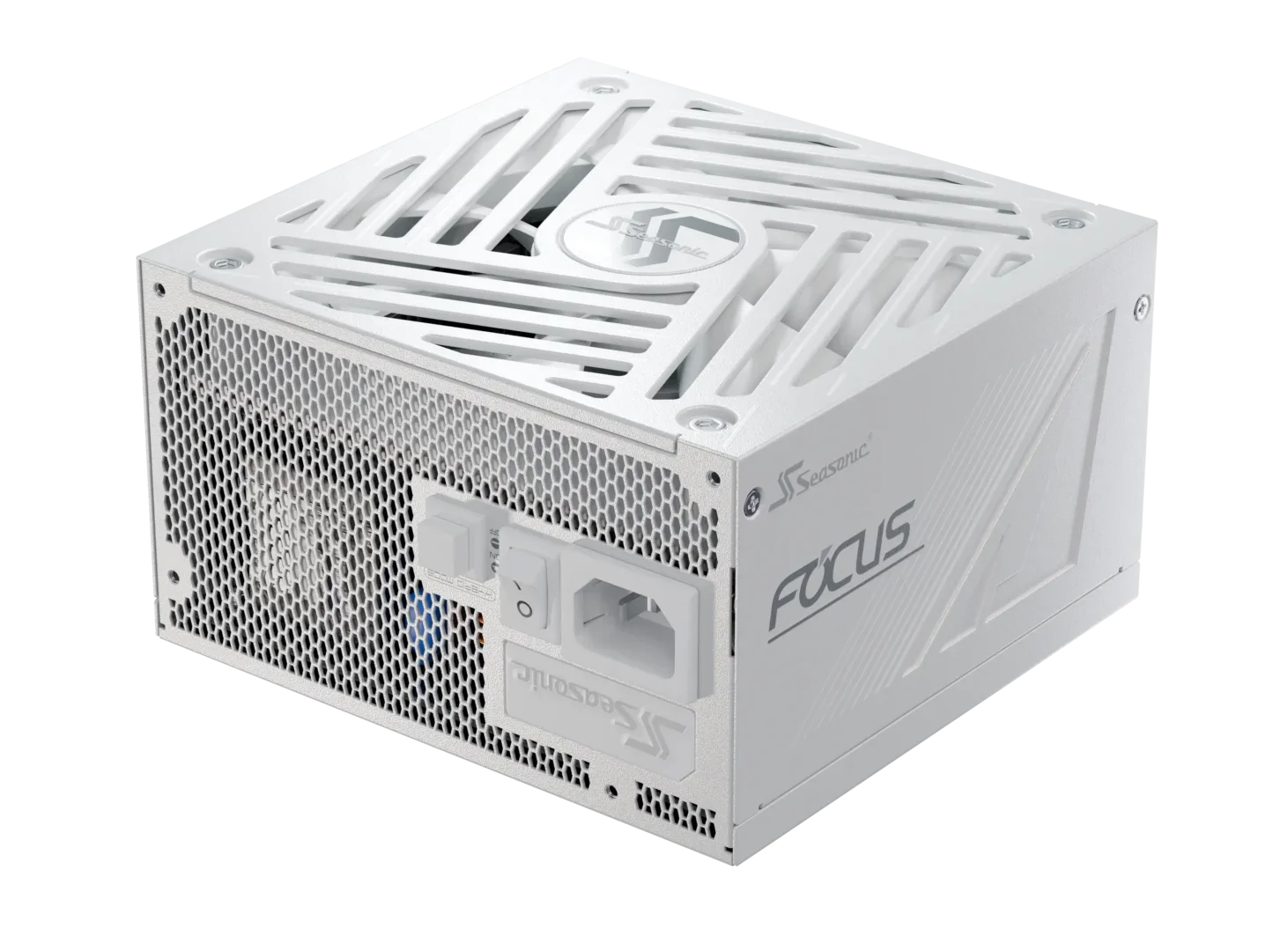

Seasonic Focus GX-850 V4 White 850W Fully-Modular 80 PLUS Gold ATX 3.1 PSU

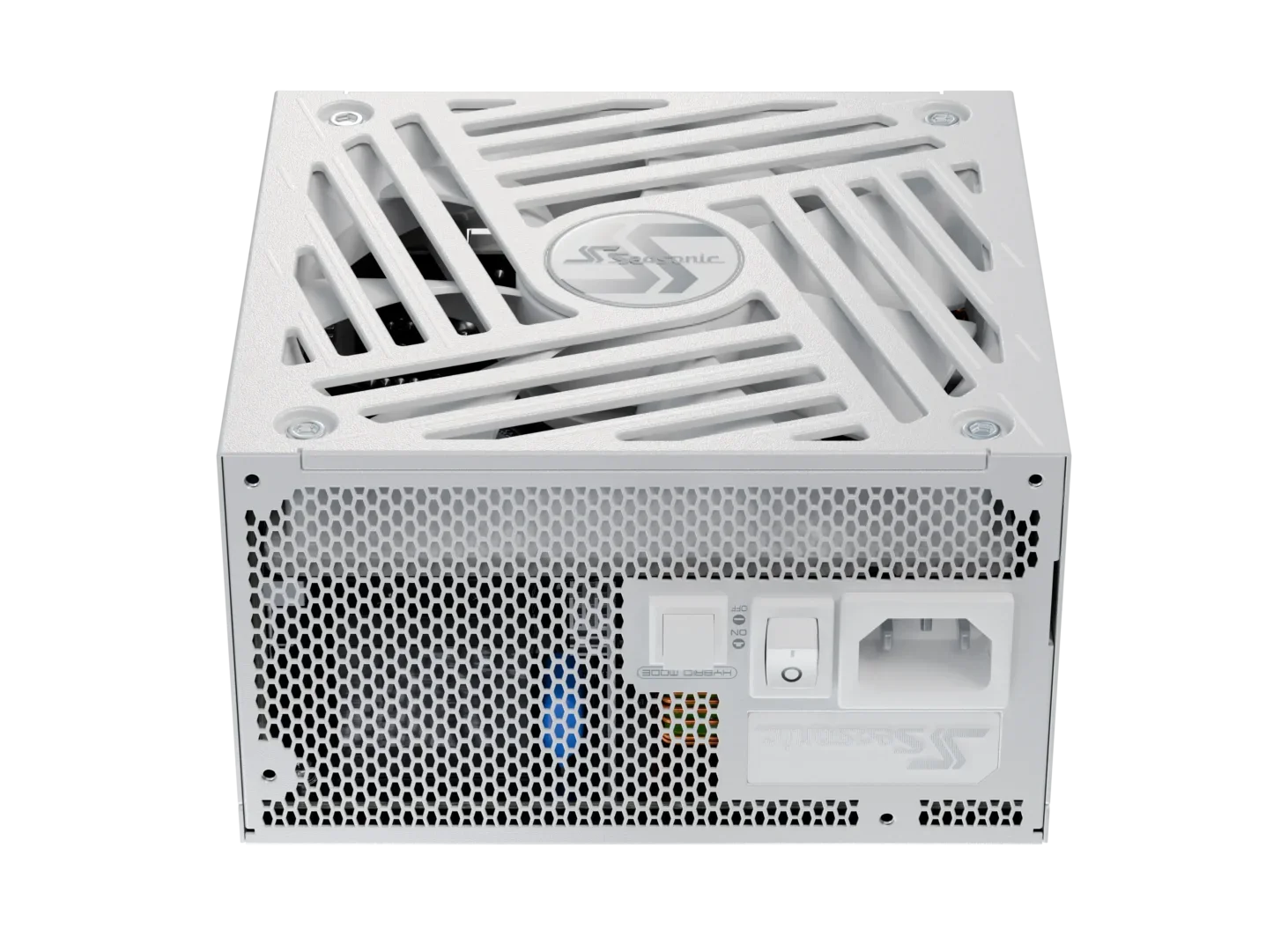

The Seasonic Focus GX-850 V4 White is a fully-modular 850W power supply built for the latest high-power graphics cards and processors. Upgraded to ATX 3.1 and PCIe 5.1 standards, it combines 80 PLUS Gold efficiency, a compact 140mm-deep chassis and a striking white finish with individually braided white cables.

Key Features

• 850W total continuous power output
• 80 PLUS Gold efficiency
• ATX 3.1 and PCIe 5.1 compliant

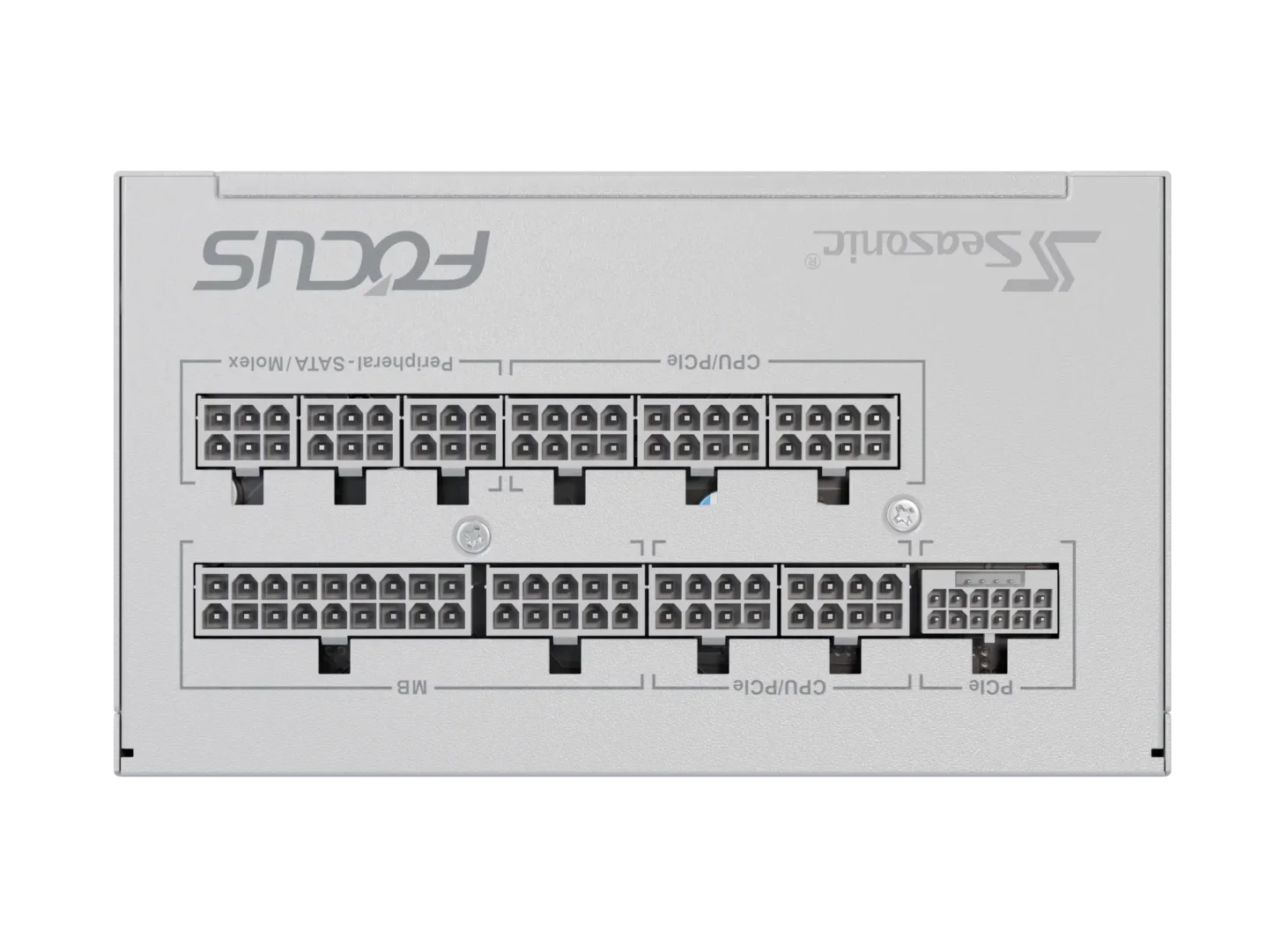

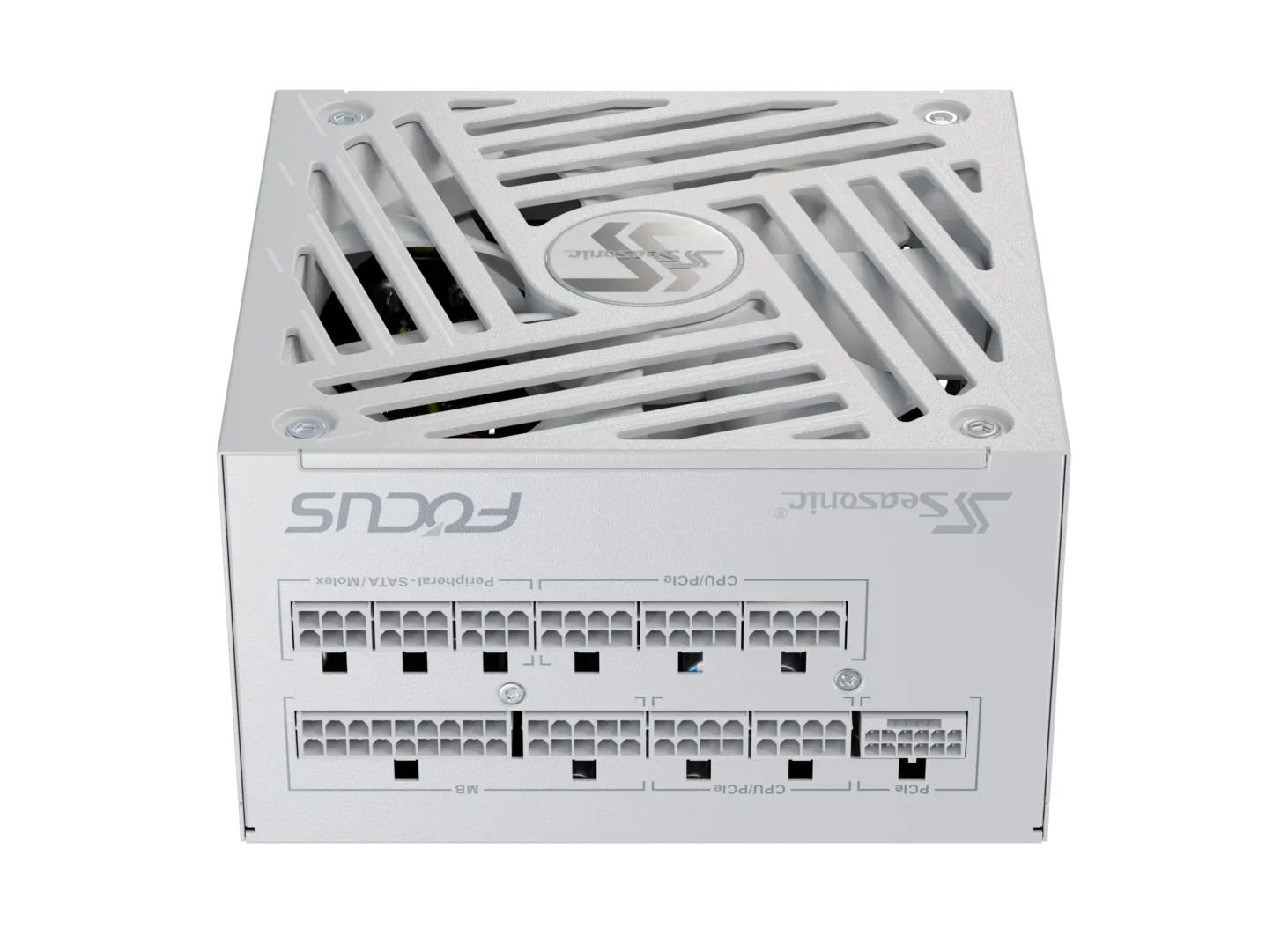

• Fully modular design with individual white cables in a braided pattern
• 12V-2x6 cable included for modern high-power graphics cards

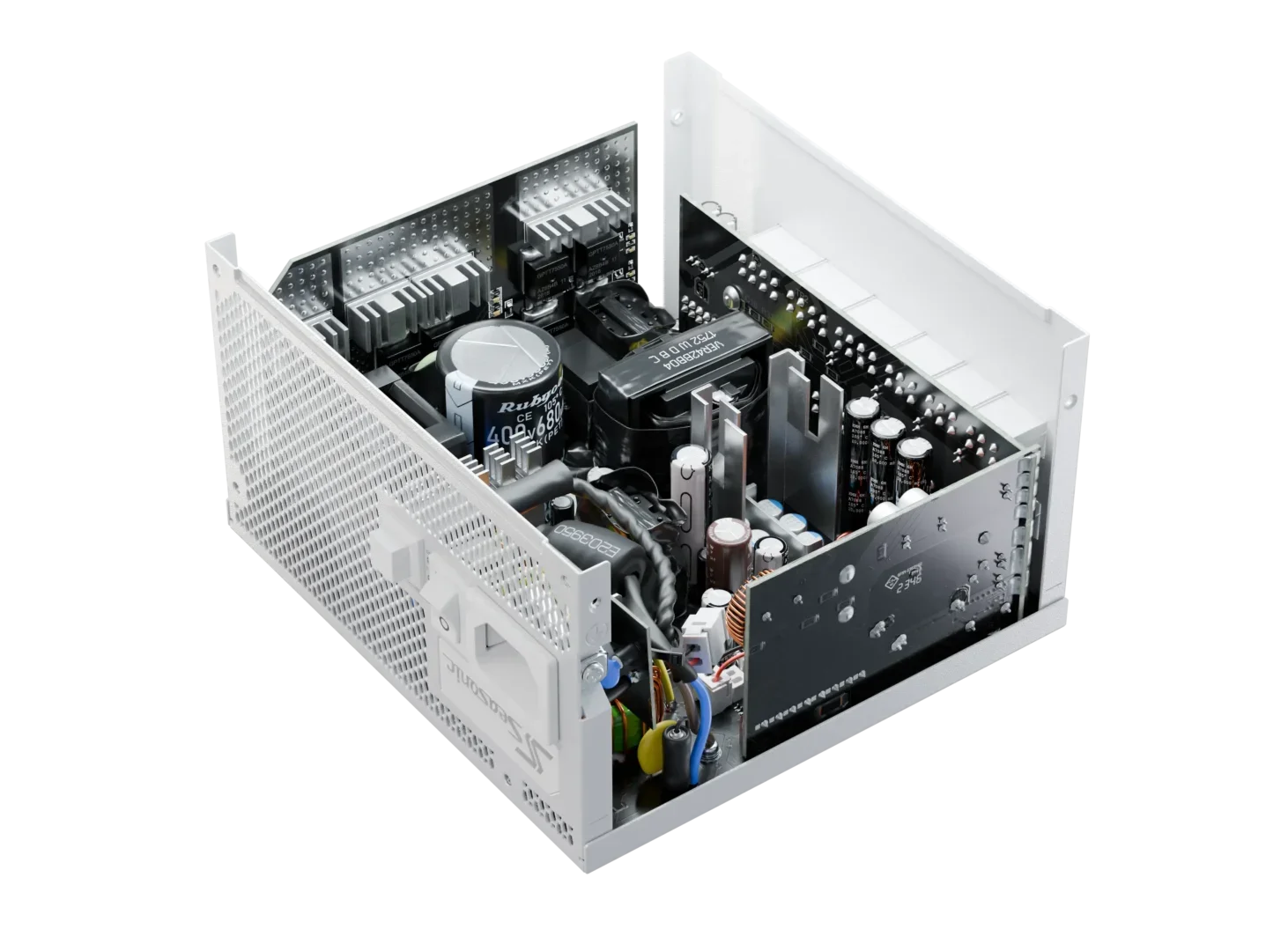

• OptiSink technology

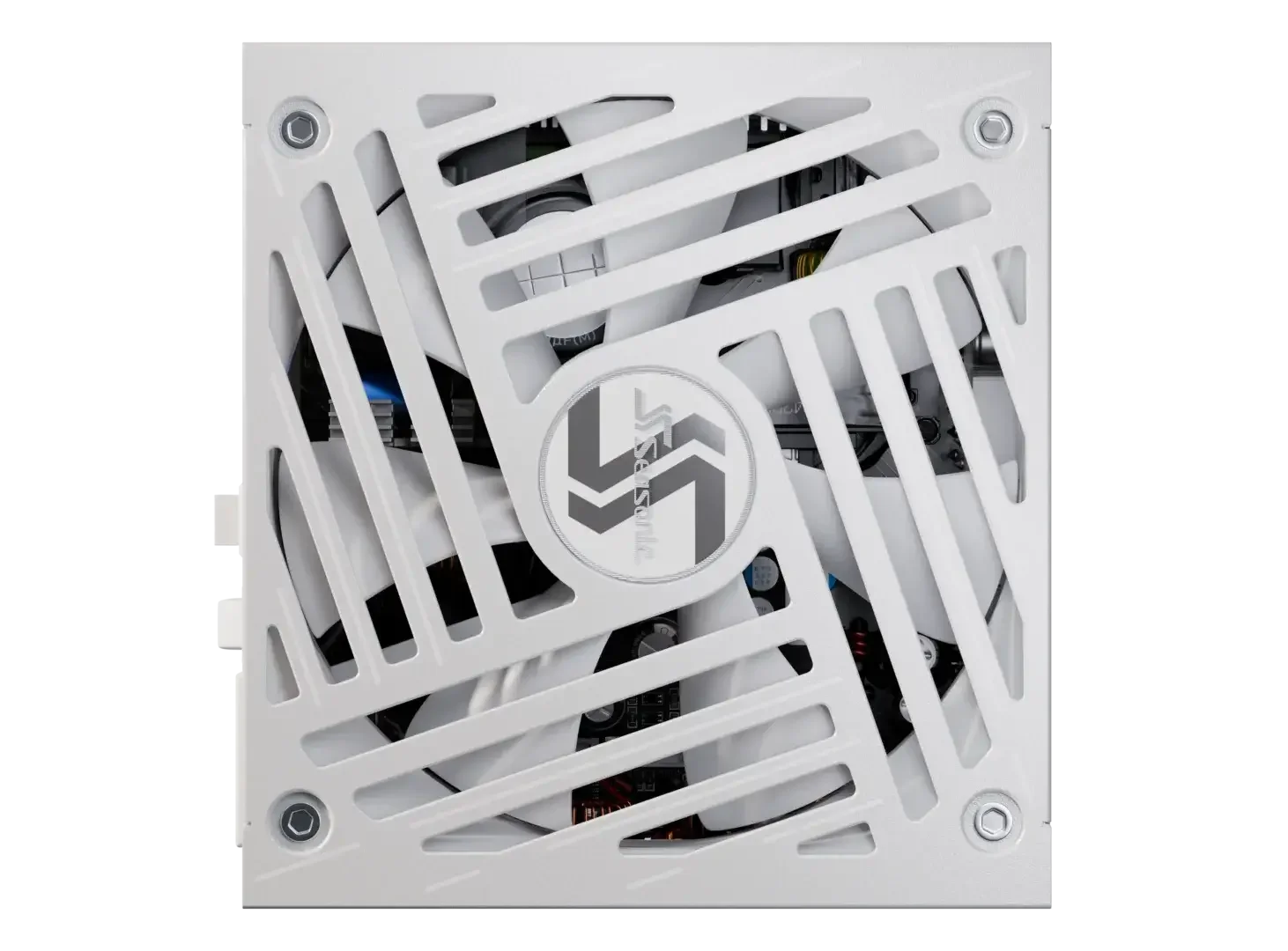

• 135mm fan with Digital Hybrid Fan Control
• Fluid Dynamic Bearing fan with 50,000 hours life expectancy at 40 C, 15% - 65% RH
• Compact 140mm depth

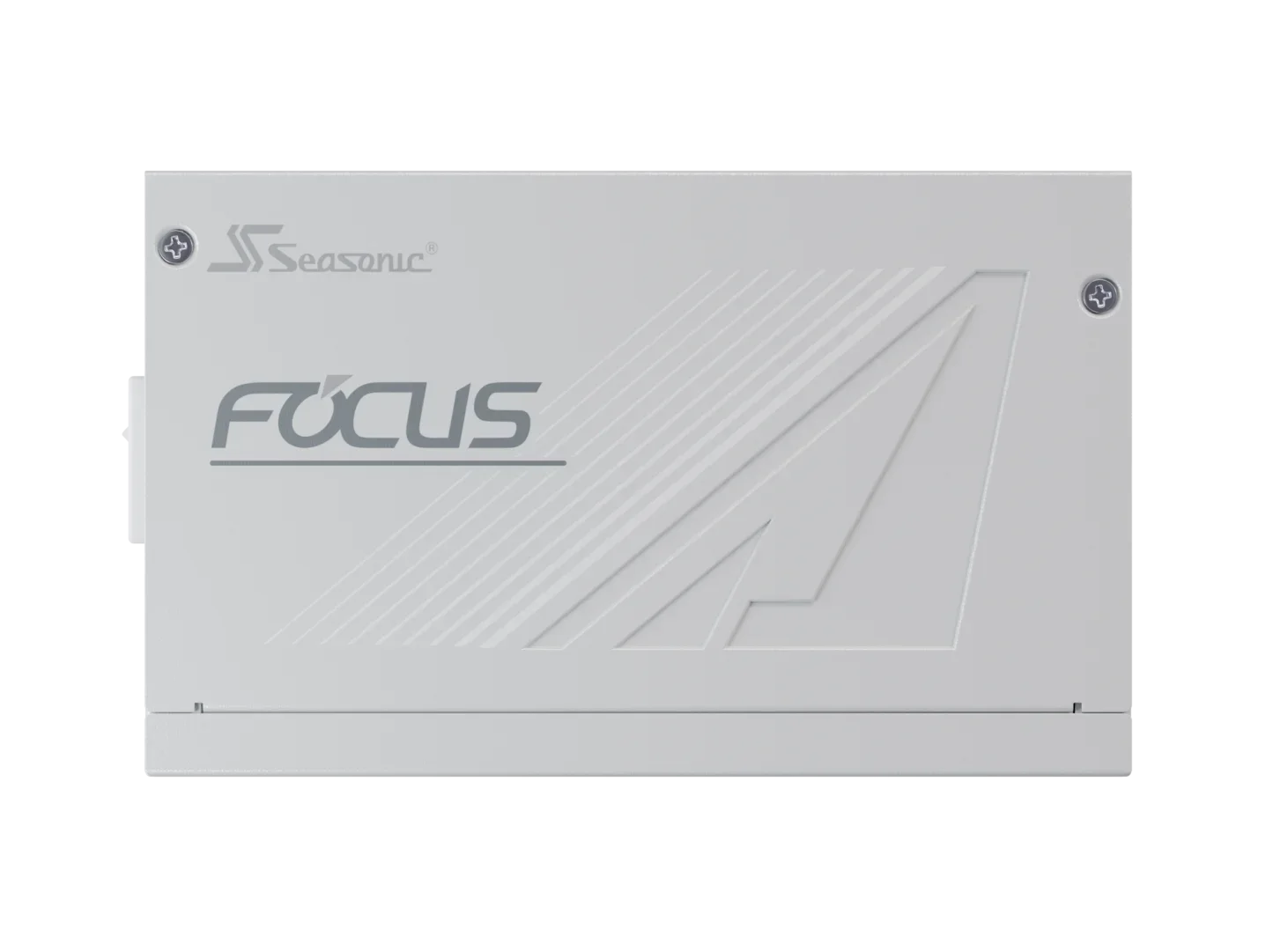

• White finish

Specifications

• Form factor: ATX/EPS
• AC input: 100 V - 240 V, 11 - 5.5 A, 50 Hz - 60 Hz (full range)
• DC output: +3.3 V (20 A), +5 V (20 A), +12 V (70 A), -12 V (0.3 A), +5 VSB (3 A)
• Maximum power: 100 W (+3.3 V and +5 V combined), 840 W (+12 V), 3.6 W (-12 V), 15 W (+5 VSB)
• Total continuous power: 850 W
• Operating temperature: 0 - 50 C
• MTBF: 100,000 hours at 25 C, excluding fan
• Protection: OCP, OPP, OTP, OVP, SCP, UVP
• Safety and EMC: BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV
• Environmental compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE
• Warranty: 10 years
