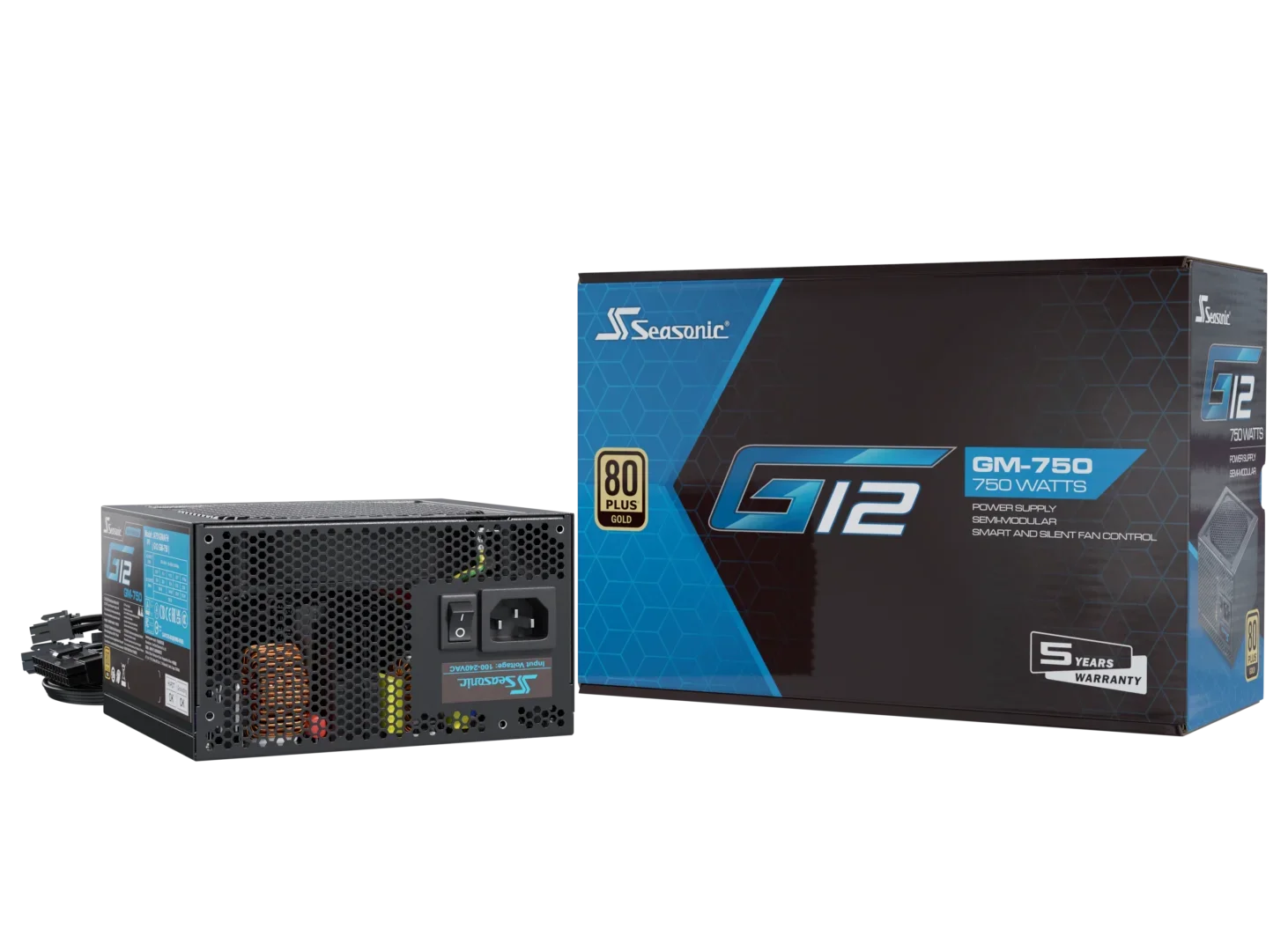

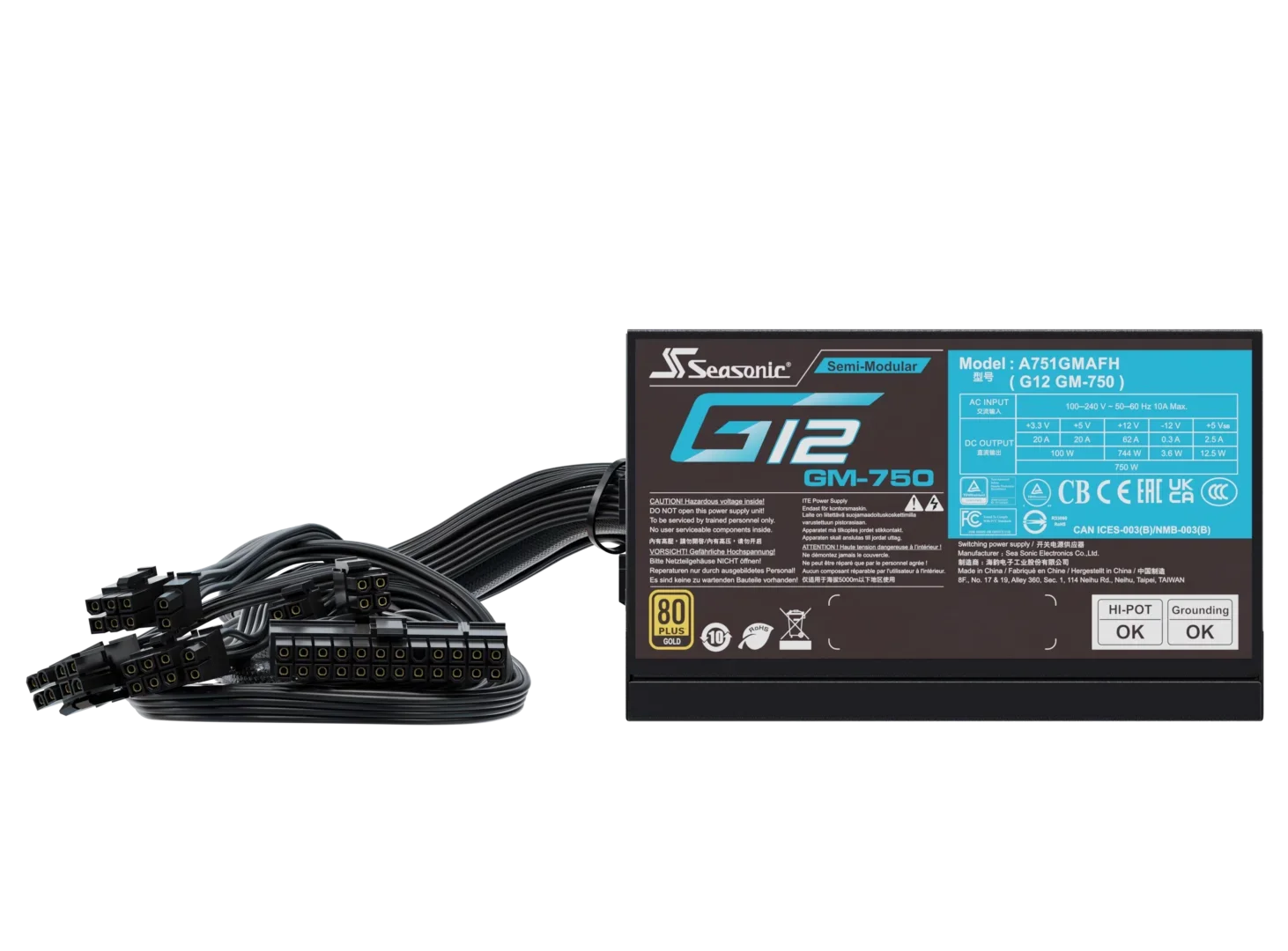

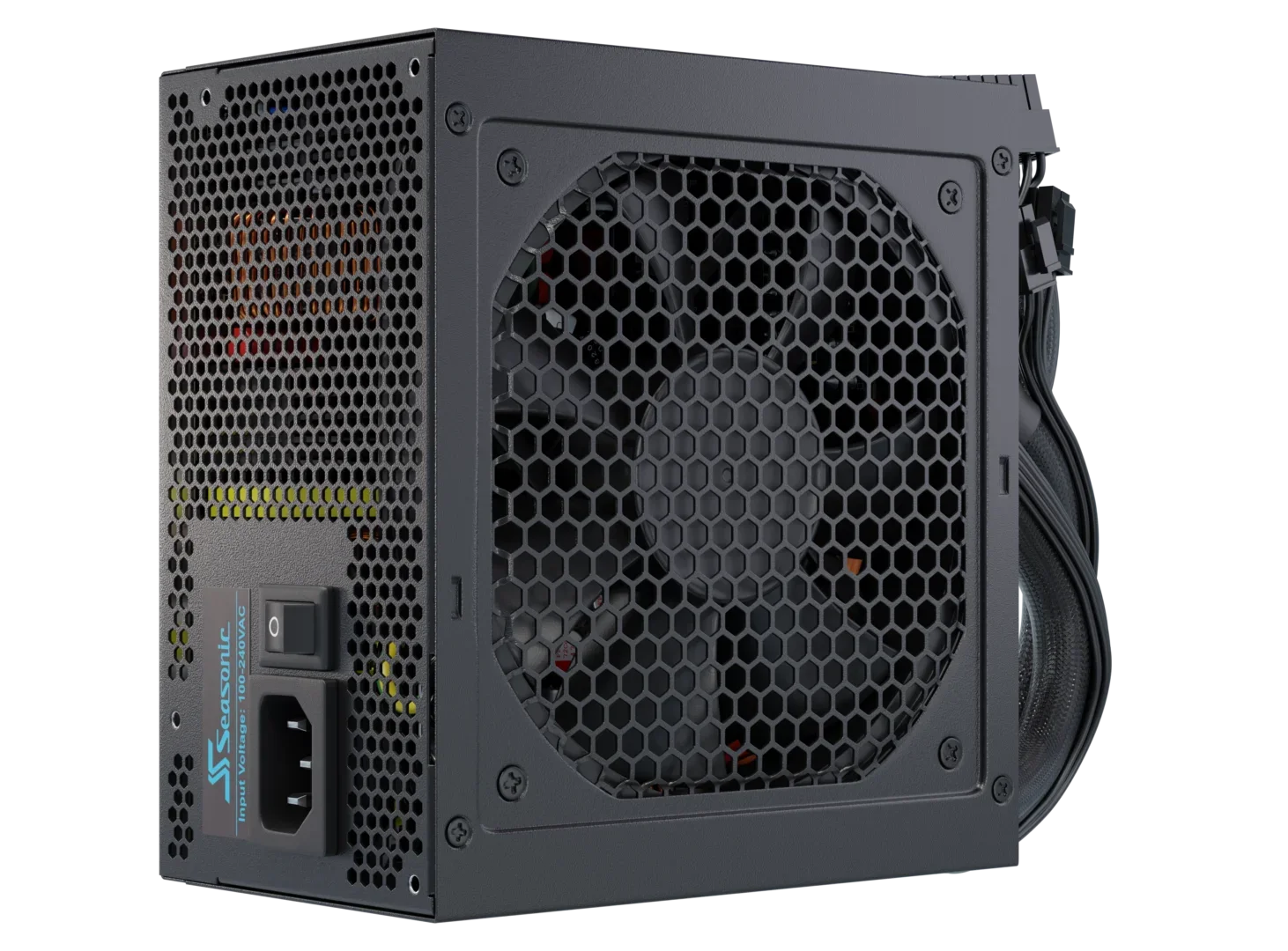

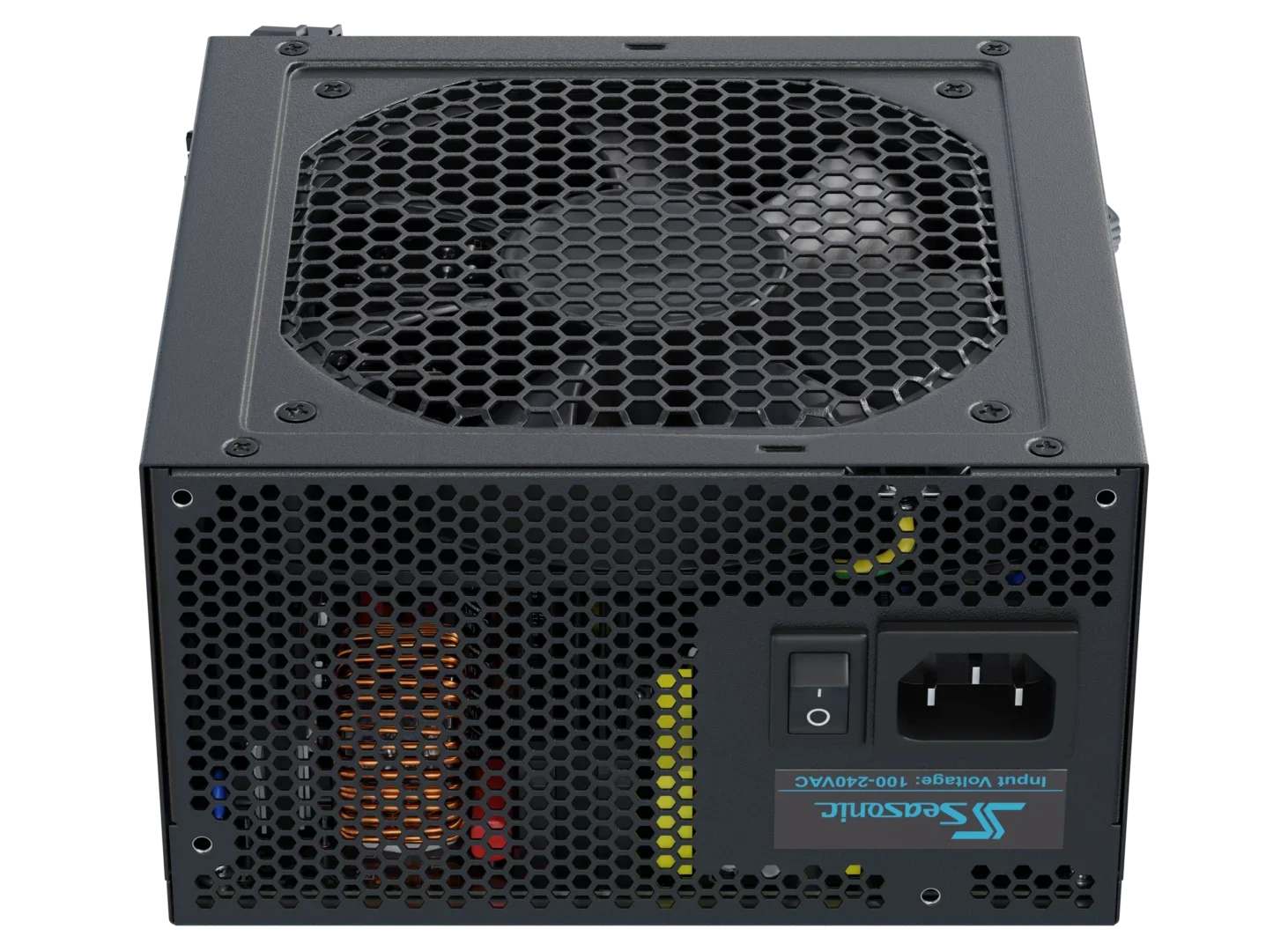

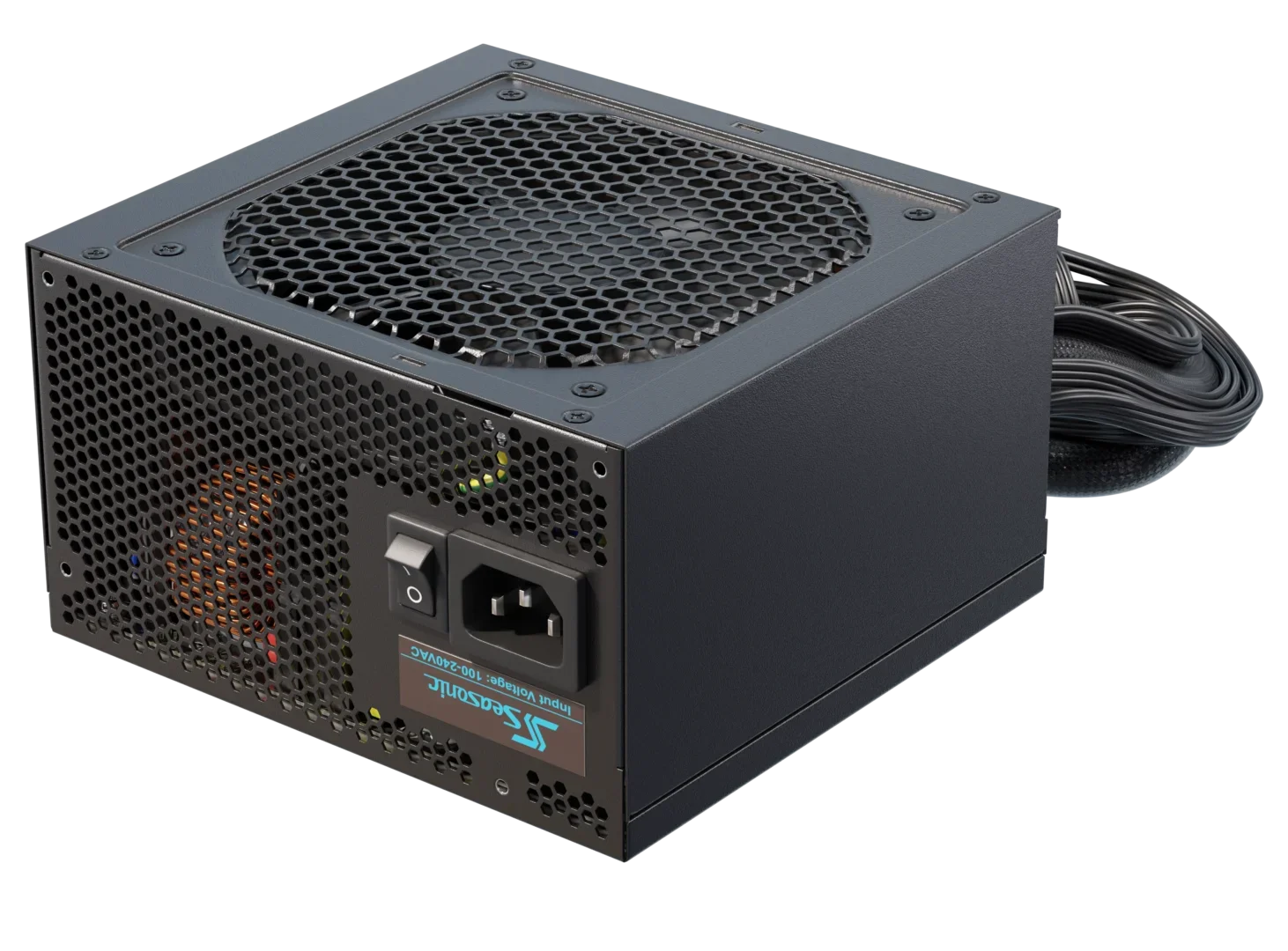

Seasonic G12 GM-750 750W 80 PLUS Gold Semi-Modular ATX PSU

The Seasonic G12 GM-750 is a 750W ATX power supply with 80 PLUS Gold efficiency and a semi-modular cable design. It delivers reliable, energy-efficient power for common PC builds while keeping operation quiet with Smart and Silent Fan Control.

Key Features

• 80 PLUS Gold efficiency: at least 87%, 90% and 87% power usage efficiency at 20%, 50% and 100% operating loads respectively
• Active Power Factor Correction helps reduce energy waste
• LLC resonant converter design
• Smart and Silent Fan Control (S2FC) for quiet operation
• Semi-modular cabling with black flat cables
• Full range AC input
• Protections: OPP, OVP, OCP, SCP

Specifications

• Model: G12 GM-750 (GM-750)
• Form factor: ATX/EPS
• Total continuous power: 750 W
• Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
• Fan: 120 mm, sleeve bearing, Smart and Silent Fan Control
• Fan life expectancy: 25,000 hours at 40 C, 15% to 65% RH
• Operating temperature: 0 to 50 C (derating from 100% to 80% from 40 C to 50 C linearly)
• MTBF at 25 C, excluding fan: 100,000 hours
• AC input voltage: 100 V to 240 V
• AC input current: 9 to 4.5 A
• AC input frequency: 50 Hz to 60 Hz
• DC output: +3.3 V 20 A, +5 V 20 A, +12 V 62 A, -12 V 0.3 A, +5 VSB 2.5 A
• Maximum power: 100 W (+3.3 V and +5 V), 744 W (+12 V), 3.6 W (-12 V), 12.5 W (+5 VSB)
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, CE, FCC
• Environmental compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Warranty: 5 years
