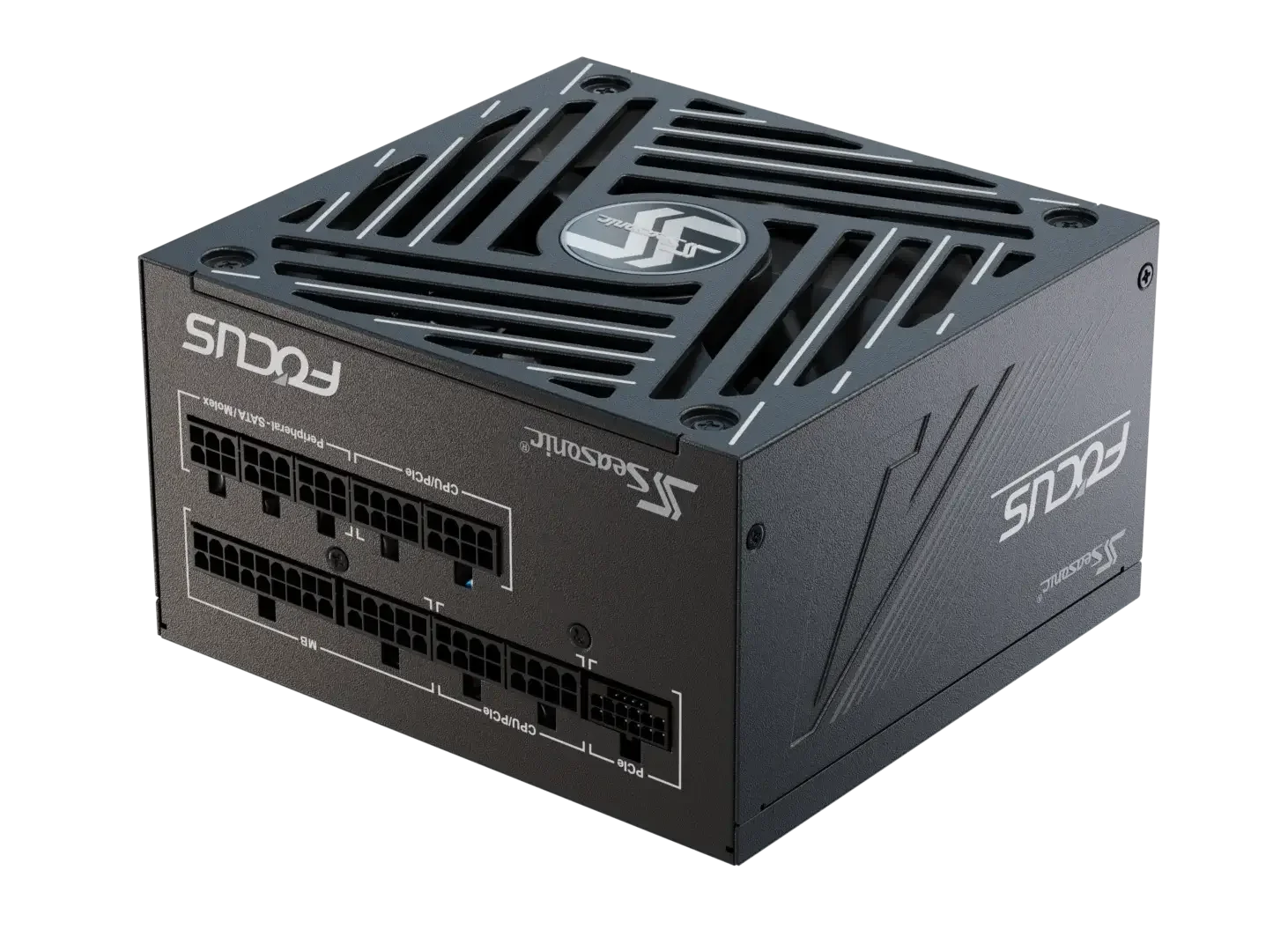

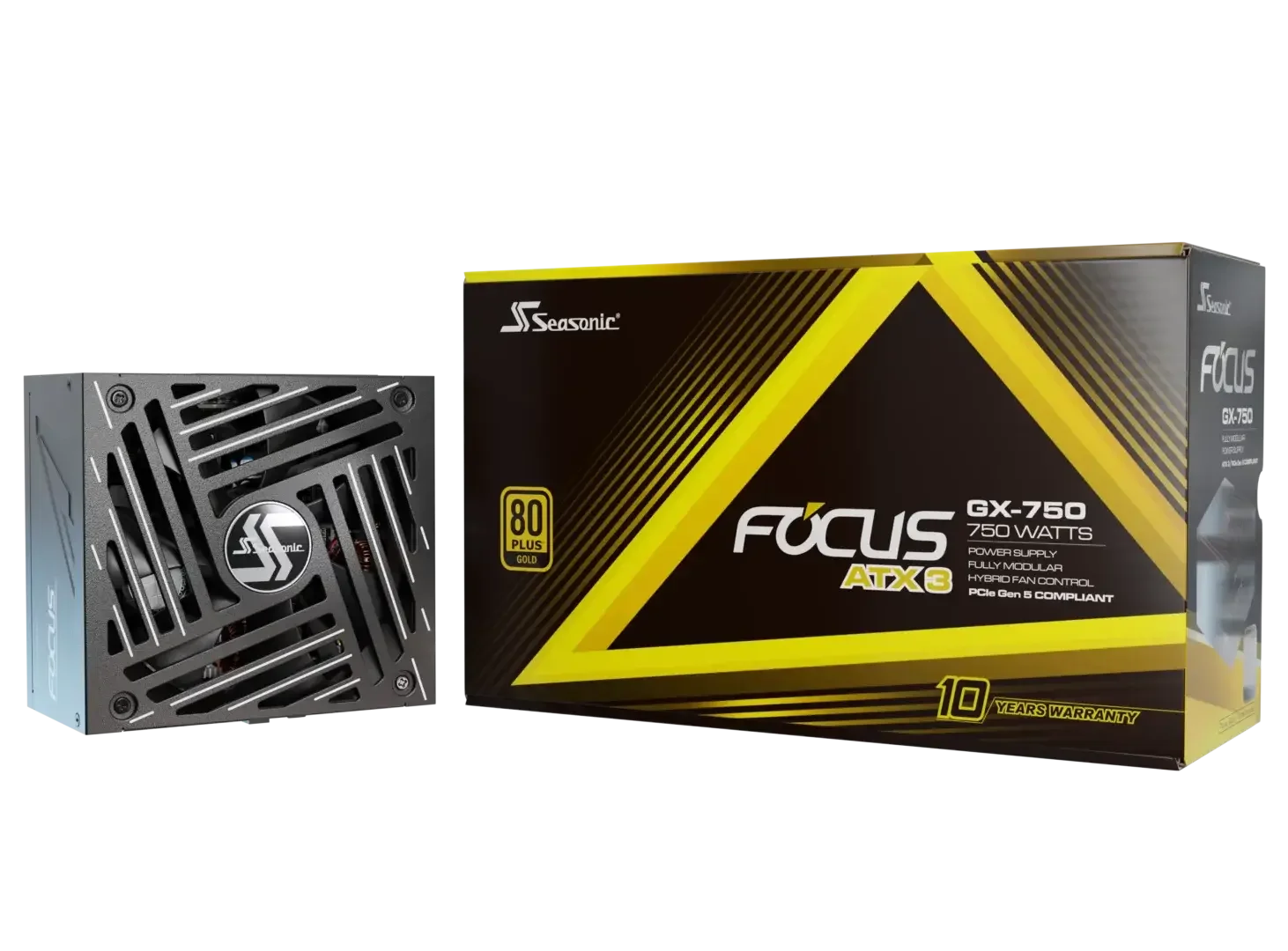

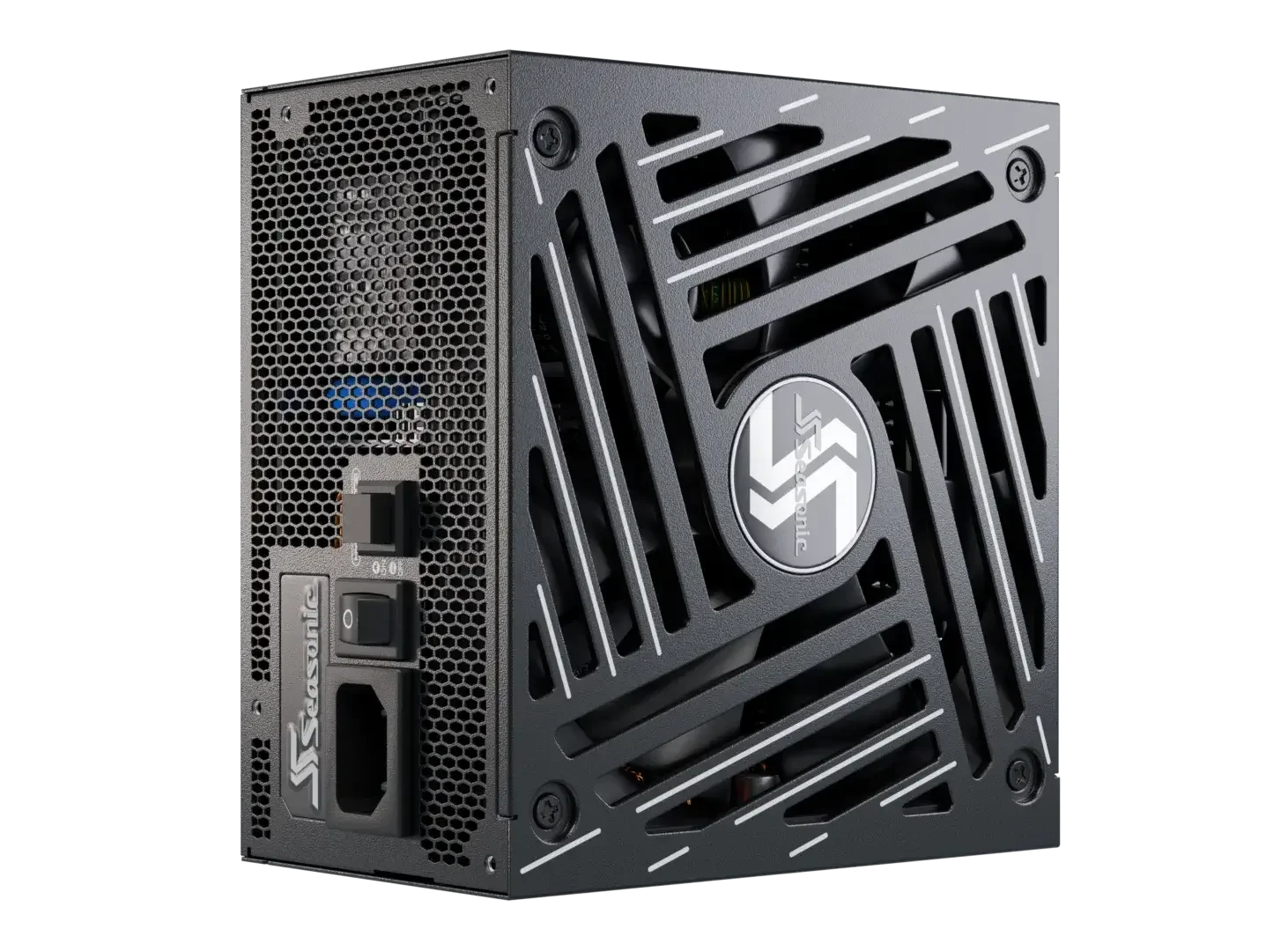

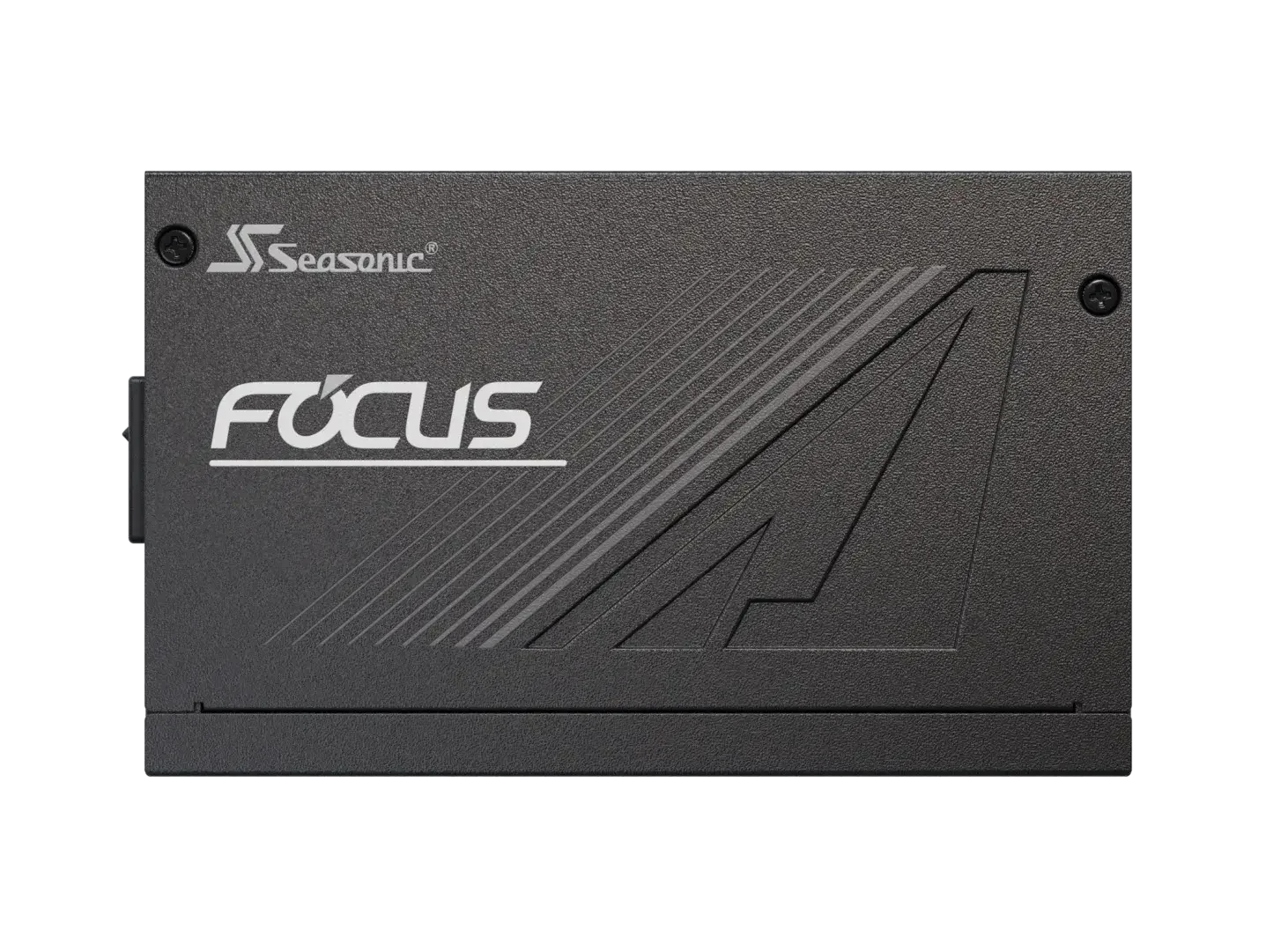

Seasonic Focus GX-750 V4 750W Fully-Modular 80 PLUS Gold ATX 3.1 PSU

The Seasonic Focus GX-750 V4 is a 750W fully-modular power supply built to ATX 3.1 and PCIe 5.1 standards, making it a strong match for the latest high-power graphics cards and processors. Its compact 140mm depth, 135mm fan and OptiSink technology help it run efficiently and quietly inside modern ATX builds.

Key Features

• 750W total continuous power output
• 80 PLUS Gold efficiency

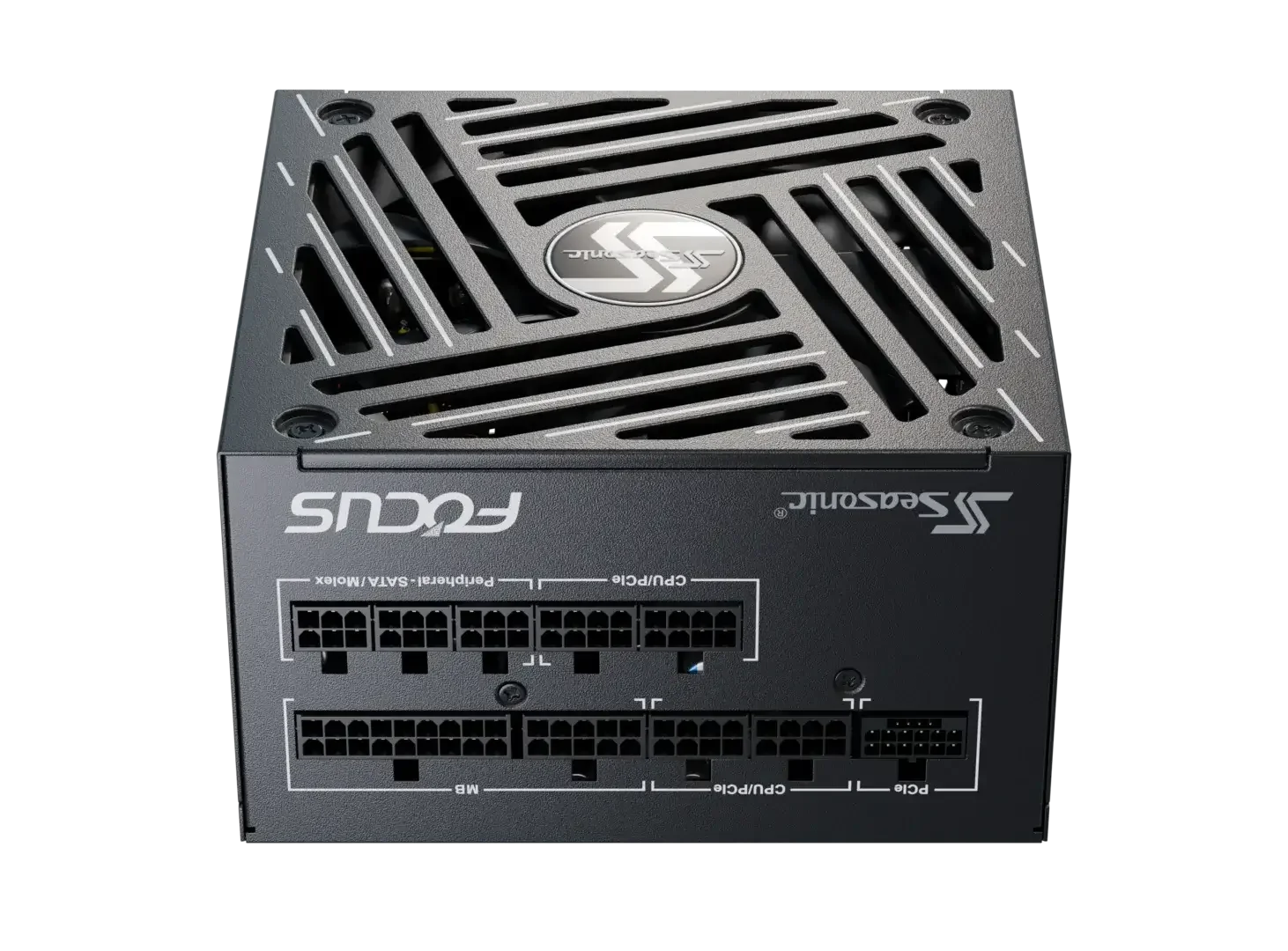

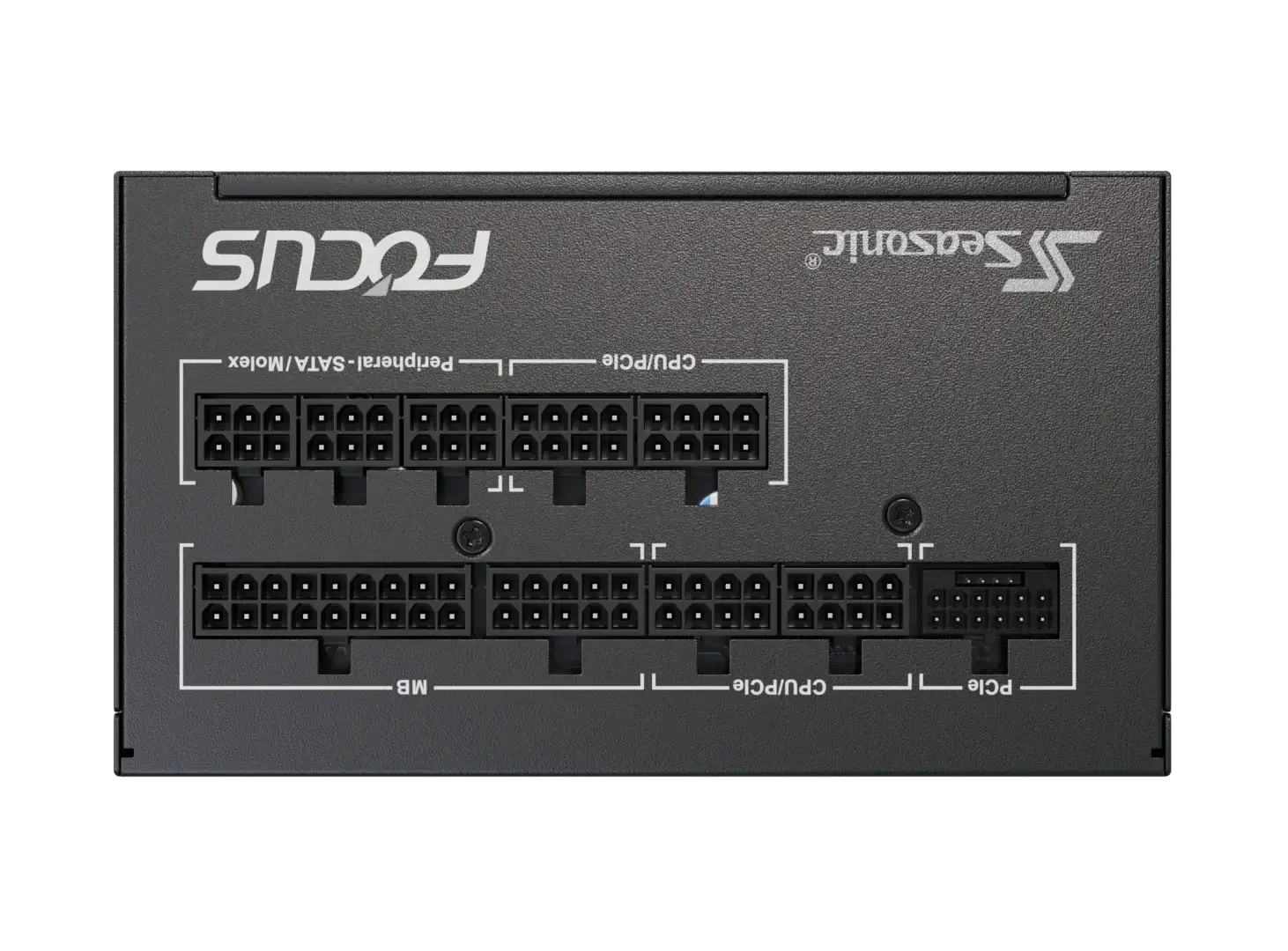

• Fully modular cabling for a cleaner build
• ATX 3.1 and PCIe 5.1 compliant
• Includes a 12V-2x6 cable

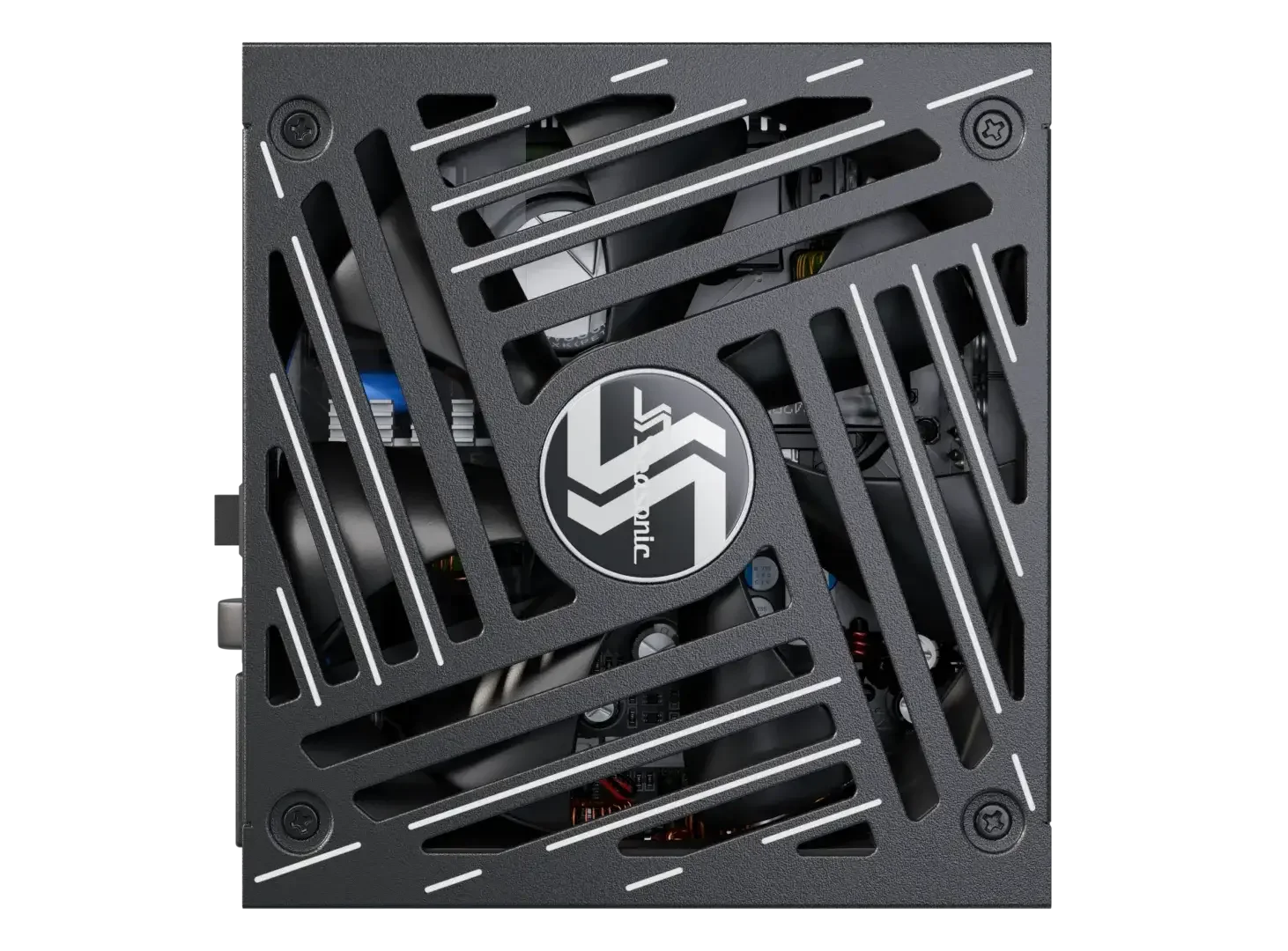

• 135mm fan with Digital Hybrid Fan Control and Fluid Dynamic Bearing

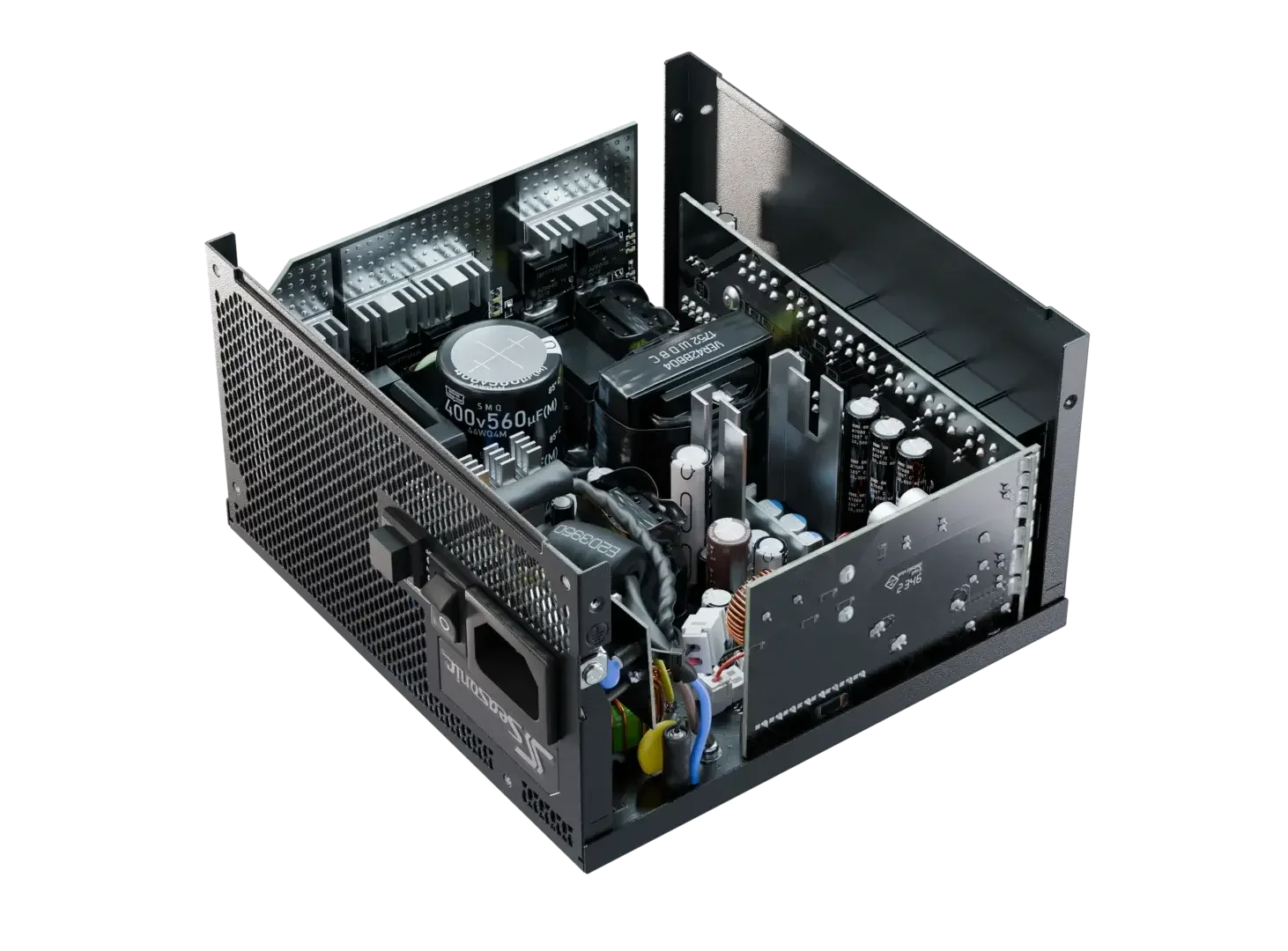

• OptiSink technology
• Compact 140mm depth
• Individual black cables with braided pattern

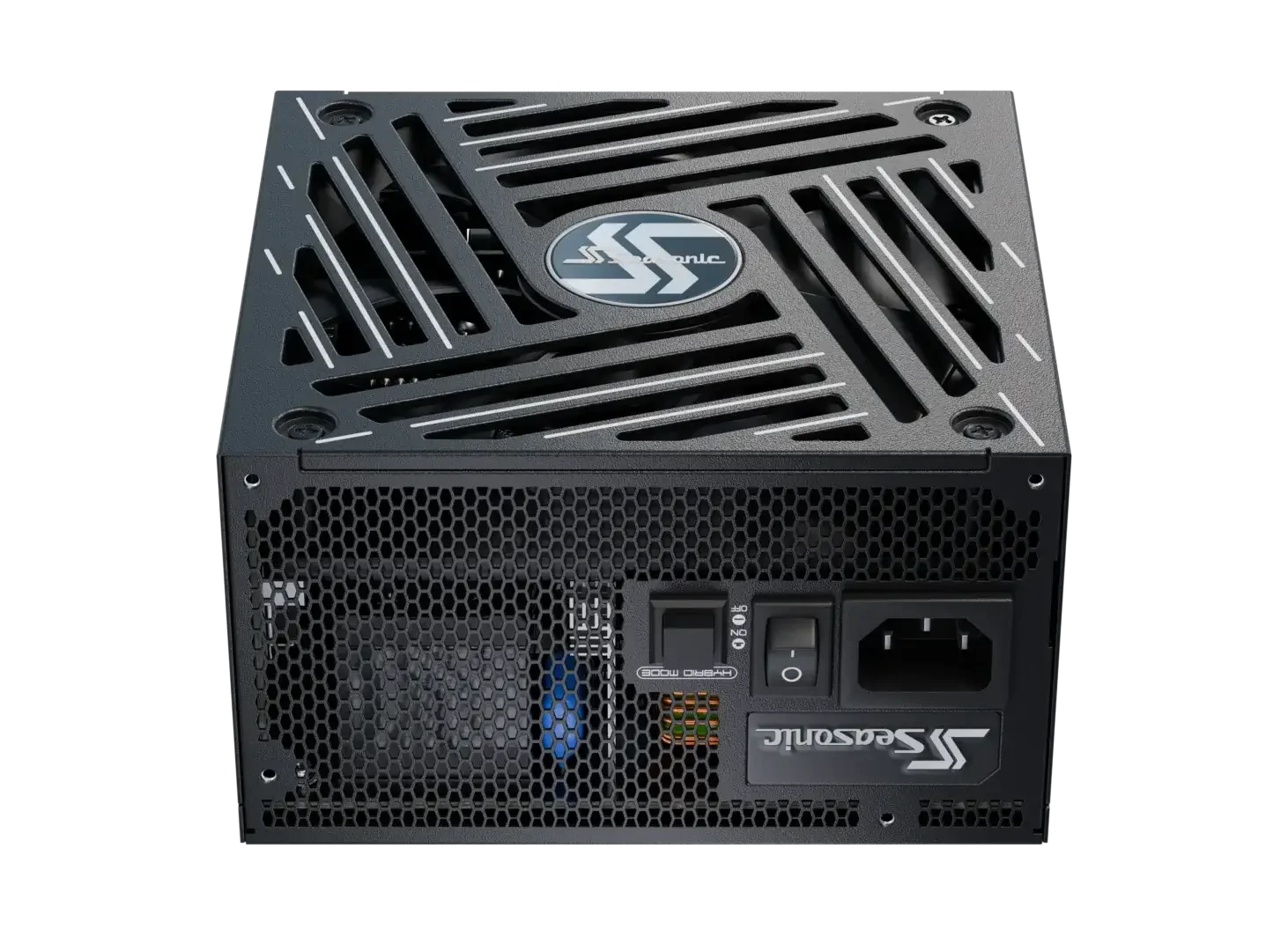

• Full range AC input
• 10-year warranty

Specifications

• Model: SRP-FGX751-A5A32SF
• Form factor: ATX/EPS
• 80 PLUS: Gold
• Cybenetics efficiency level: TBA
• Cybenetics noise level: TBA
• Fan size: 135mm
• Fan control: Digital Hybrid Fan Control
• Fan bearing: Fluid Dynamic Bearing
• Fan life expectancy: 50,000 hours at 40 C, 15% - 65% RH
• Modularity: Fully modular
• Cable type: Individual black cables with braided pattern
• Operating temperature: 0 - 50 C
• MTBF at 25 C, excluding fan: 100,000 hours
• AC input: 100 V - 240 V, 10 - 5 A, 50 Hz - 60 Hz
• Protection: OCP, OPP, OTP, OVP, SCP, UVP
• Safety and EMC: CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC
• Environmental compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE
• Warranty: 10 years

Power Output

• +3.3 V: 20 A
• +5 V: 20 A
• +12 V: 62 A
• -12 V: 0.3 A
• +5 VSB: 3 A
• Combined +3.3 V and +5 V: 100 W
• +12 V: 744 W
• -12 V: 3.6 W
• +5 VSB: 15 W
• Total continuous power: 750 W
