Simplecom CHT595 9-in-1 USB-C Docking Station with NVMe M.2 Enclosure

The Simplecom CHT595 9-in-1 USB-C Multiport Docking Station expands a single USB-C port into a full connectivity hub, adding extra USB ports, HDMI output, card readers, 100W PD charging and an integrated NVMe M.2 SSD slot that turns the dock into a high-speed portable USB drive. It is a comprehensive all-in-one solution for connecting multiple devices to your laptop at once.

Key Features

• 9-in-1 USB-C multiport docking station for all-in-one laptop expansion
• Expands a single USB-C to extra USB ports, HDMI, card reader, PD and an NVMe SSD slot

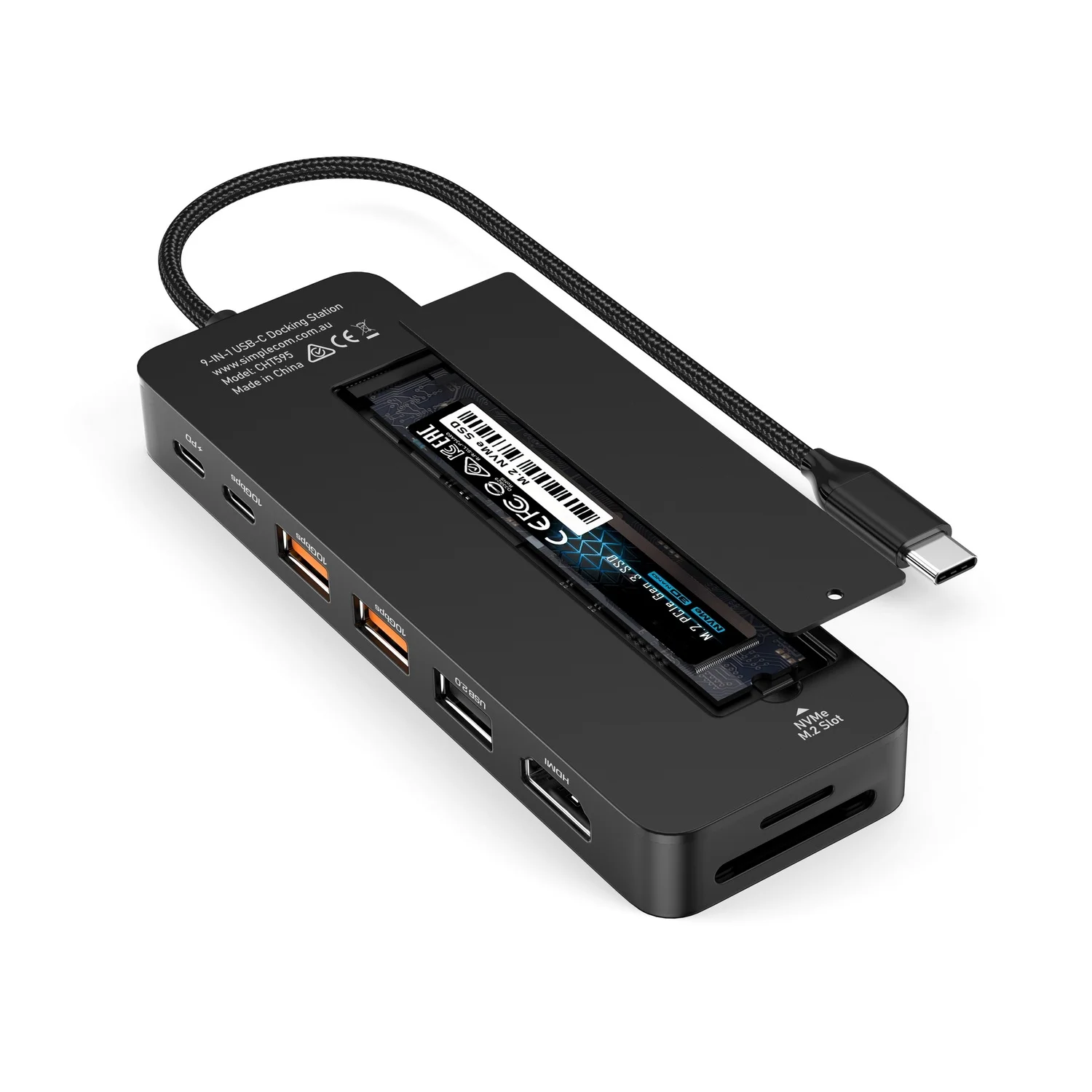

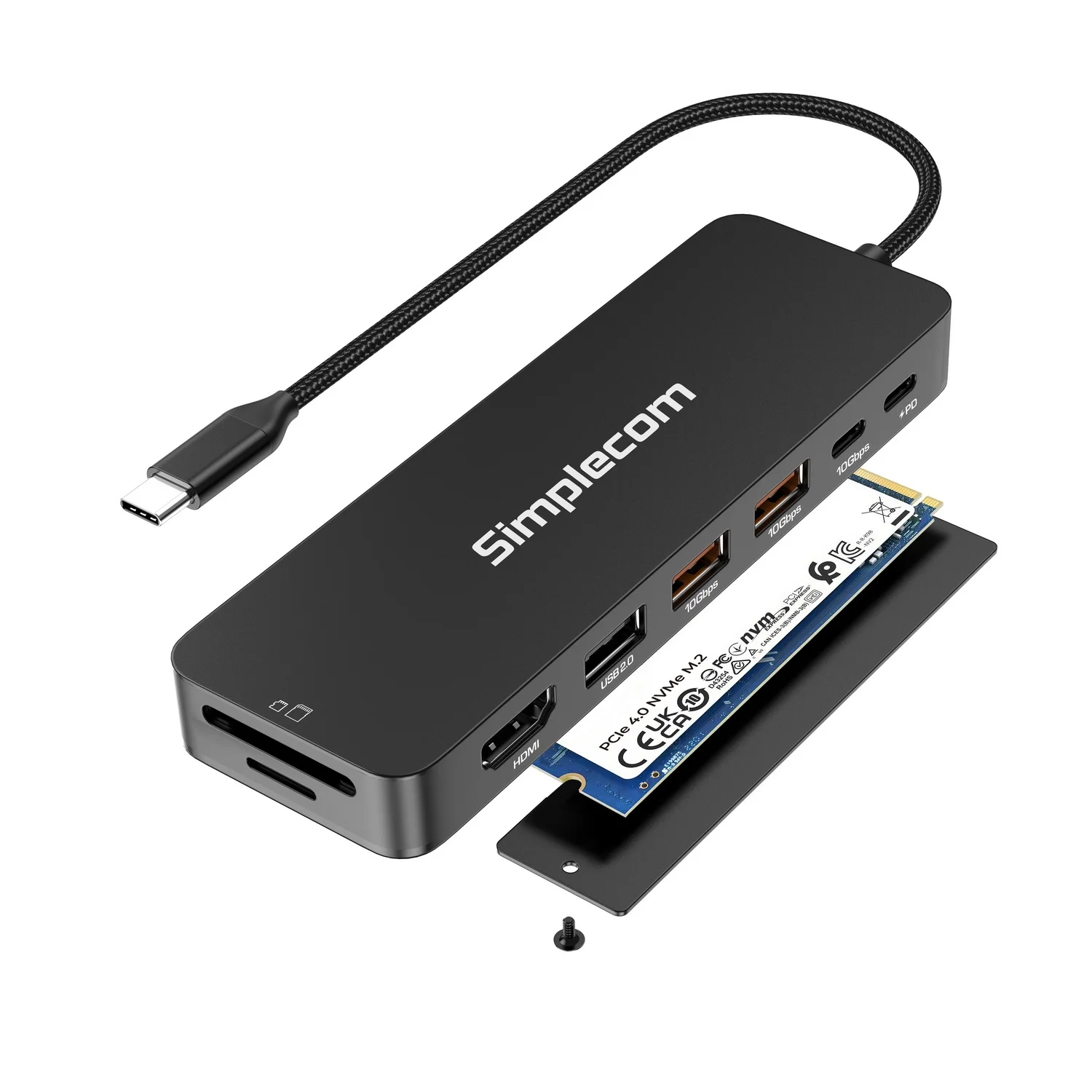

• Integrated NVMe M.2 SSD slot transforms the dock into a portable USB drive
• USB 3.2 Gen 2 interface delivers data transfer speeds up to 10Gbps
• Two 10Gbps USB-A ports and one 10Gbps USB-C port for ultra-fast file transfers
• HDMI 2.0 supports up to 4K@60Hz in both Mirror and Extended display modes
• 2-slot card reader for SD and microSD memory cards
• USB-C PD port supports up to 100W charging input
• Premium aluminium alloy housing for durability and heat dissipation
• Compact and lightweight design for travel-friendly portability
• Built-in flexible USB-C cable for hassle-free connectivity
• Plug-and-play, no driver installation required

Specifications

• Host Interface: USB-C
• USB Hub: 2x USB-A Female (10Gbps), 1x USB-C Female (10Gbps)
• HDMI Port: HDMI 2.0, up to 3840 x 2160p at 60Hz (4K@60Hz)
• Card Reader: SD and MicroSD (USB 2.0 Hi-Speed, 480Mbps)
• PD Input: USB-C PD (charging only), up to 100W
• Compatible M.2 Protocol: NVMe M.2
• Compatible M.2 Size: 2242, 2260, 2280
• M.2 Slot Data Transfer Rate: up to 10Gbps
• Operating Temperature: 0 to 55C
• Housing Material: Aluminium
• Dimensions: 13 x 4.2 x 1.5 cm
• Cable Length: 15cm
• Weight: 80g

System Requirements

• Operating system: Windows 10 or later, macOS 10.12 or later
• Available USB-C port with DP Alt Mode support (video output over USB-C), Thunderbolt USB-C port or USB4 port
• Laptop GPU with DP 1.4 or higher supports up to 4K@60Hz; laptop GPU with DP 1.2 supports up to 4K@30Hz

Important Notes

• Please confirm that the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports support only charging or data transfer and do not offer video output functionality.
• 4K@60Hz is supported by laptop GPUs with DP 1.4 or higher (e.g. Intel 11th Gen Core Mobile Processors or later).
• The USB-C PD port is for Power Delivery (PD) charging only and does not support data transfer.
• The NVMe M.2 slot supports only NVMe protocol M.2 SSDs (M Key); SATA M.2 SSDs are not compatible.
