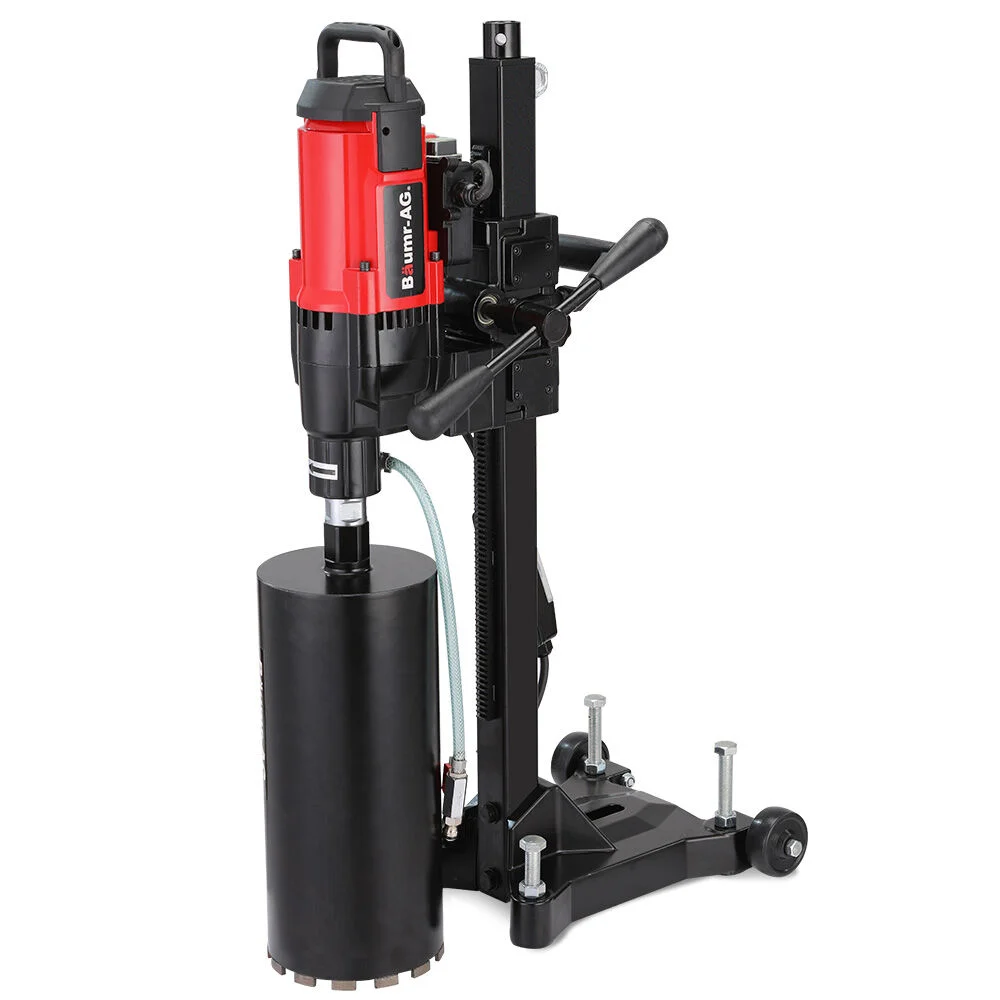

The Baumr-AG 3200W Diamond Core Drill with Stand Rig is a powerful wet/dry coring machine built for precision drilling through reinforced concrete, red brick and granite. With a 280mm maximum drilling diameter and a mountable stand, it handles demanding construction and repair tasks with control and accuracy.
Key Features
- 3200W motor for consistent power delivery
- 280mm maximum drilling diameter
- Pierces reinforced concrete, red brick and granite

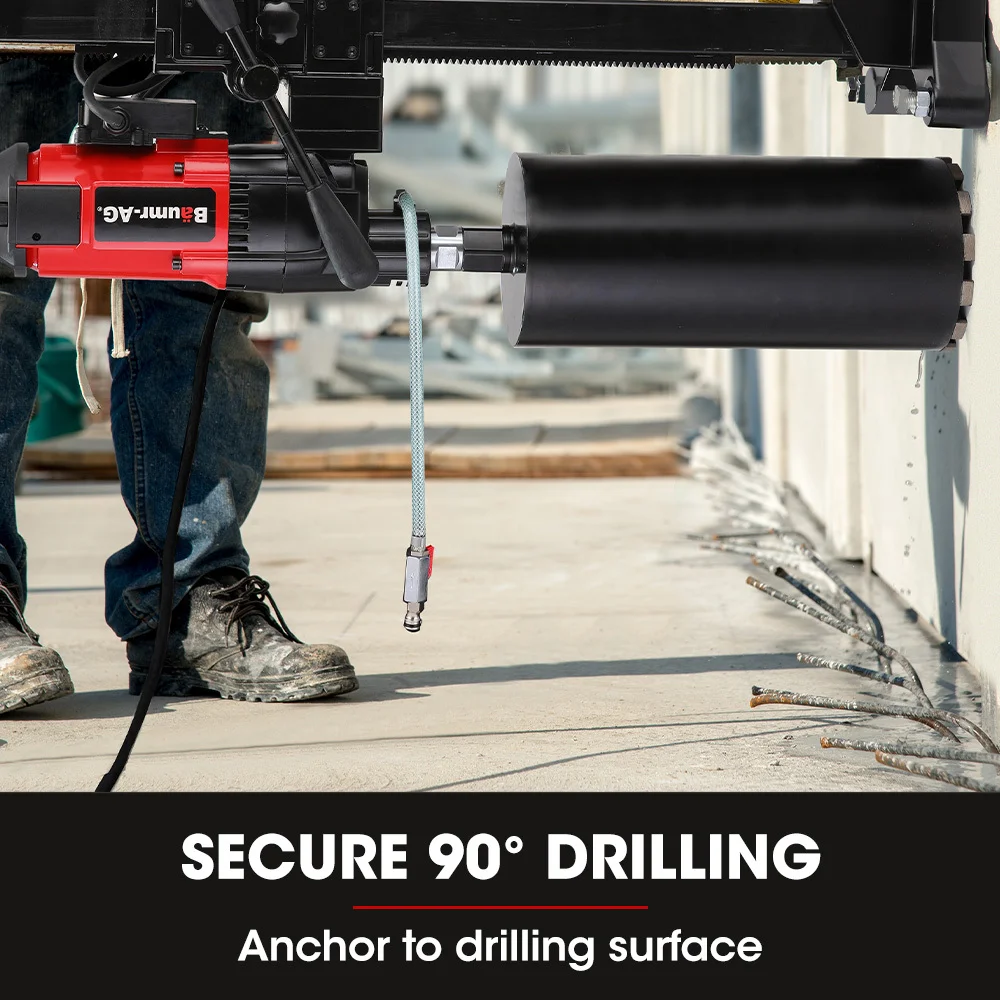

- Vertical stand mountable to 90 degrees horizontal for stability and precision

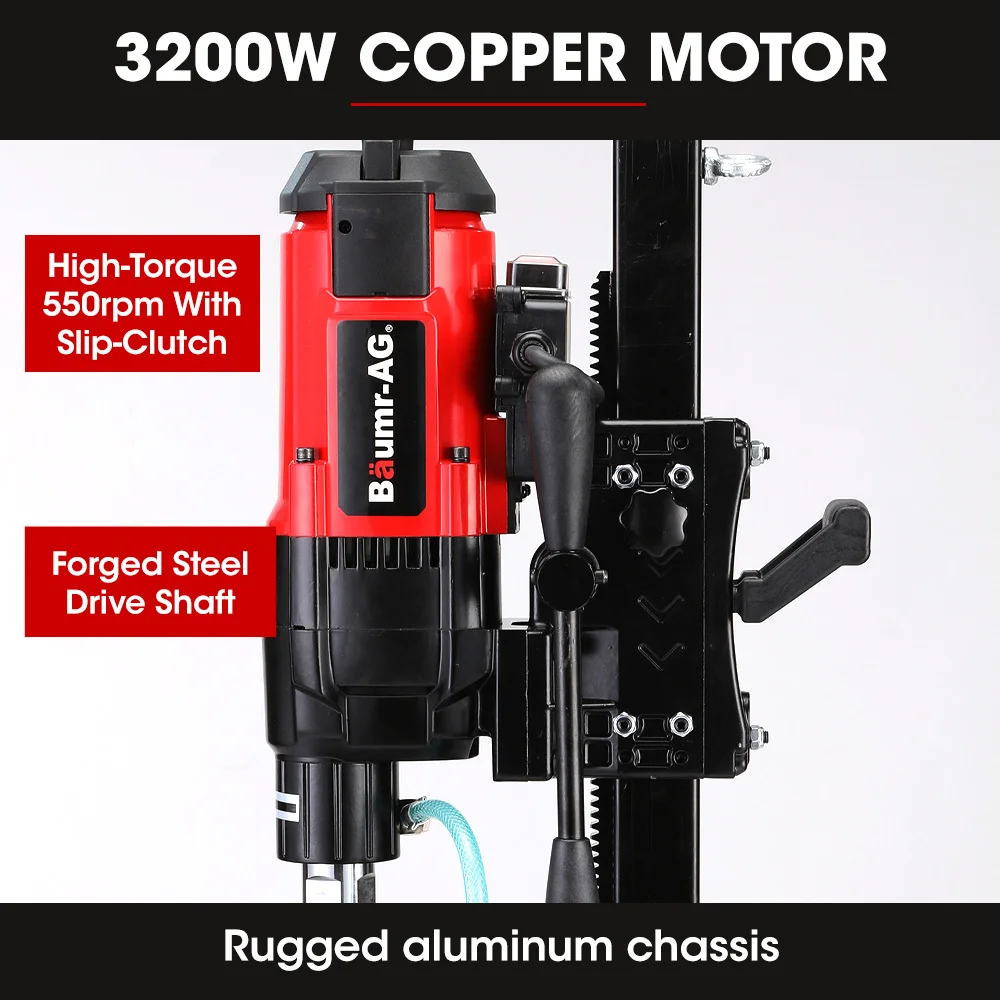

- Copper motor for high reliability
- Automatic slip-clutch delivers maximum power and protects against overload and sudden bit seizing
- 550r/min single speed
- Versatile for demolition, drilling, digging and punching tasks
- IP54 rating for dust protection and splash resistance
- Aluminium construction for strength and longevity
- Steel-forged drill shaft for robustness
- 1-1/4 inch UNC standard-sized spindle thread

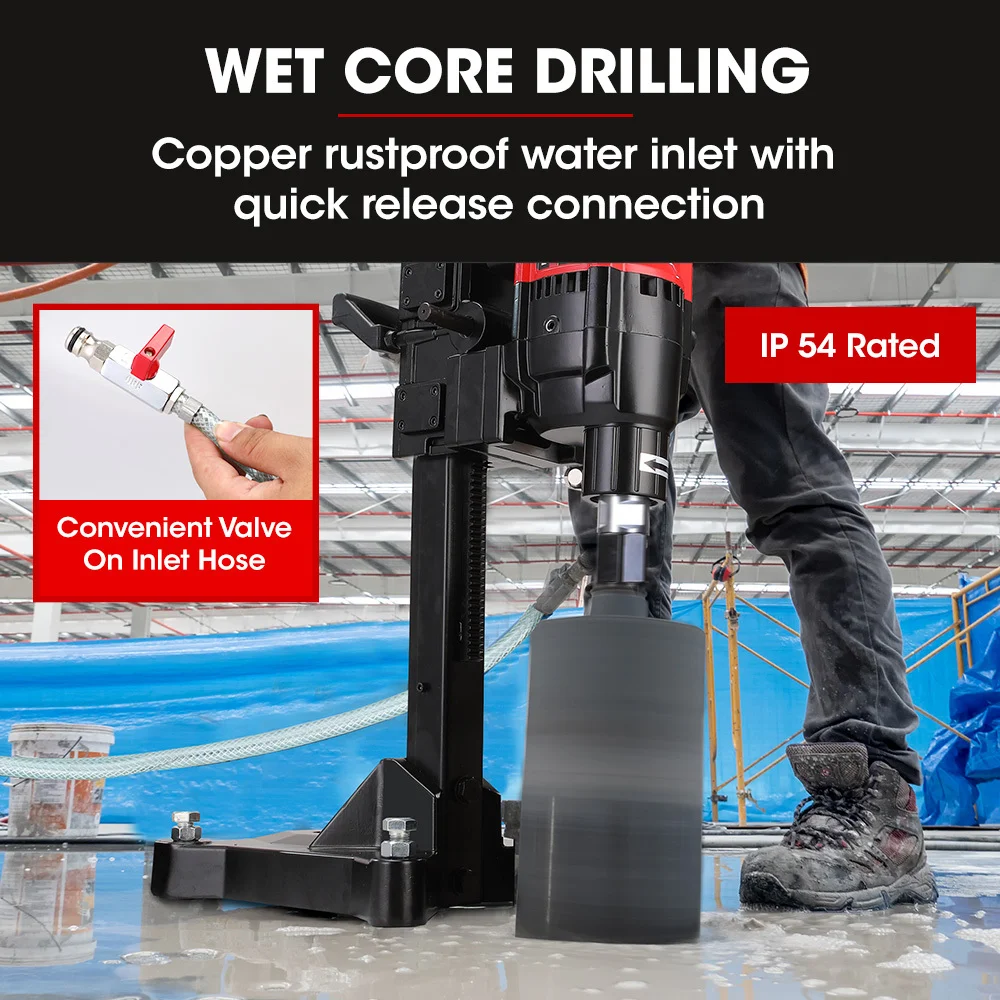

- Corrosion-proof copper water inlet
- Non-slip handle for a secure grip and precise control
- Inline circuit interrupt switch with overload protector
- Chassis-mounted on/off switch for added safety
- Double insulation for motor protection and operator safety
Specifications
- Input Power: 240V 50Hz AC
- Rated Output Power: 3200W

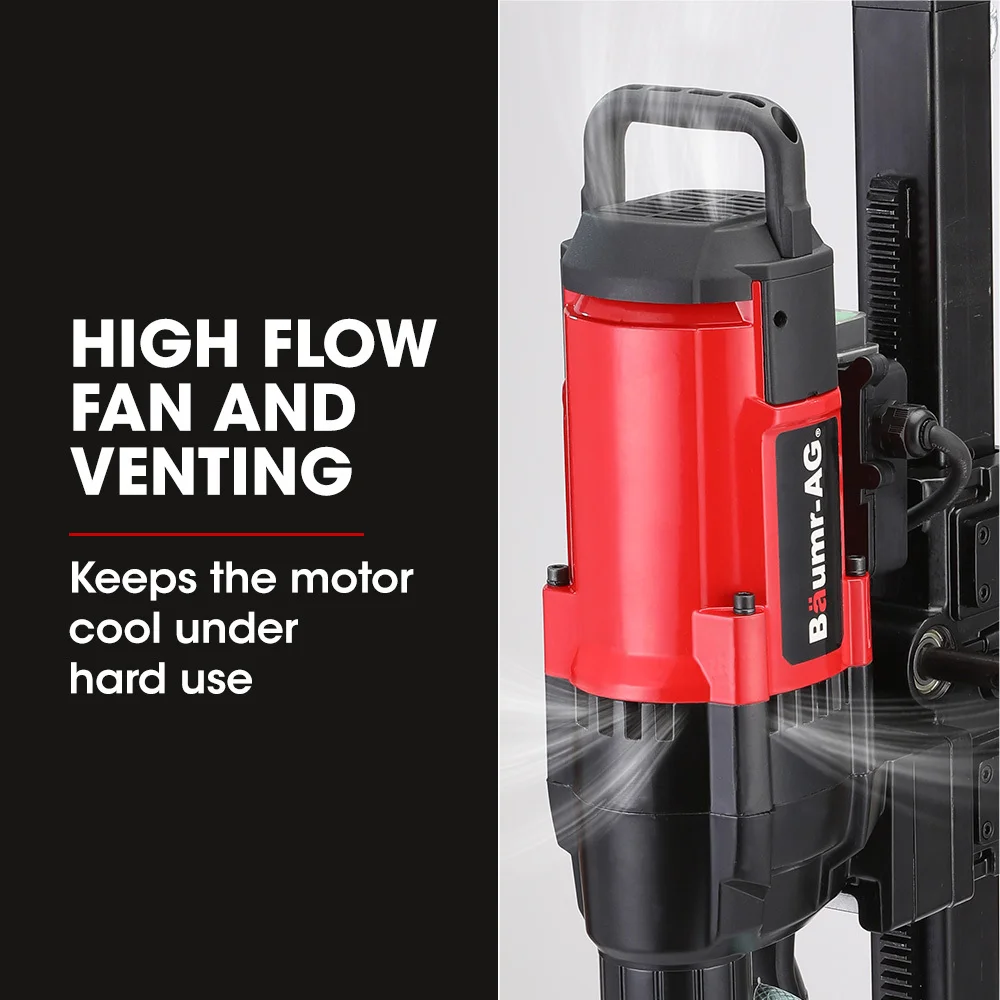

- Cooling: Air cooled
- No load speed: 550r/min
- Speeds: 1 speed
- Drilling Size Range: 20-280mm
- Spindle Thread: 1-1/4" UNC
- Coring Type: Wet/Dry Coring
- Construction Material (Drill): Aluminium chassis, steel forged output shaft, copper water inlet, copper motor

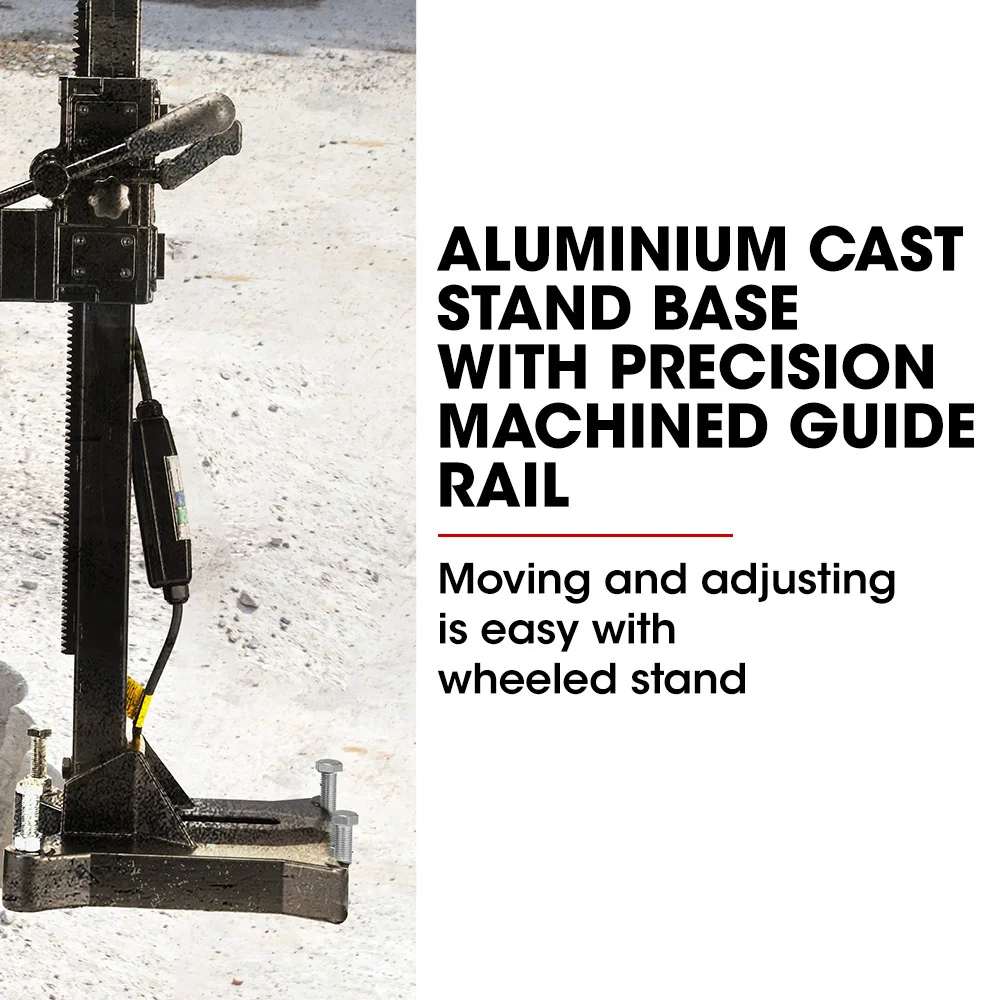

- Construction Material (Stand): Aluminium guide rail, steel base
- IP Rating: IP54

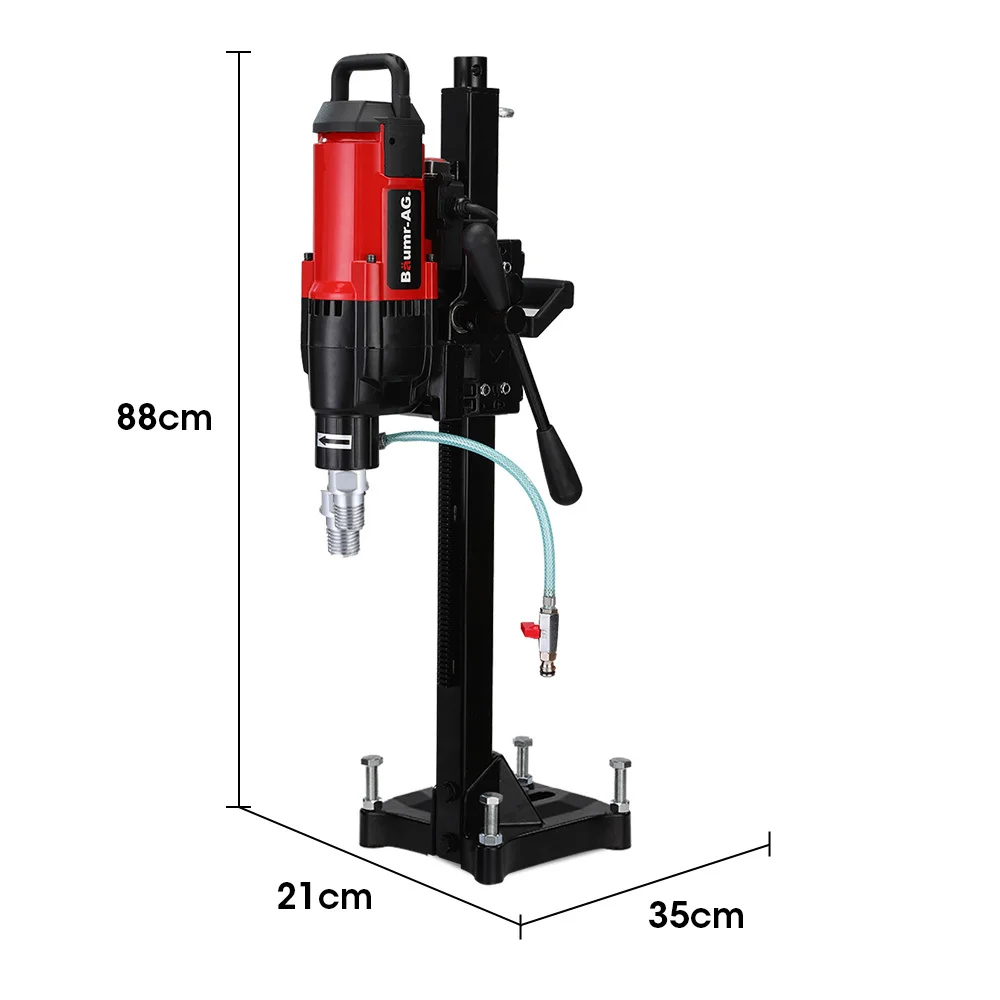

- Product Dimensions (W x D x H): 210 x 350 x 880mm
- Product Weight: 22kg
- Carton Dimensions (L x W x H): 94 x 36 x 21cm
- Carton Weight: 27kg
What's in the Box
- 1 x Baumr-AG Core Drill
- 1 x Drill Rig (assembly required)
