Baumr-AG 3000W 200mm Concrete Core Drill with Stand Rig

The Baumr-AG VC-200 Diamond Core Wet/Dry Drilling Machine is a powerful 3000W core drill with a 200mm maximum drilling diameter, supplied with a mountable drill stand for stable, precise coring. It handles reinforced concrete, red brick and granite for construction, repair and installation work.

Key Features

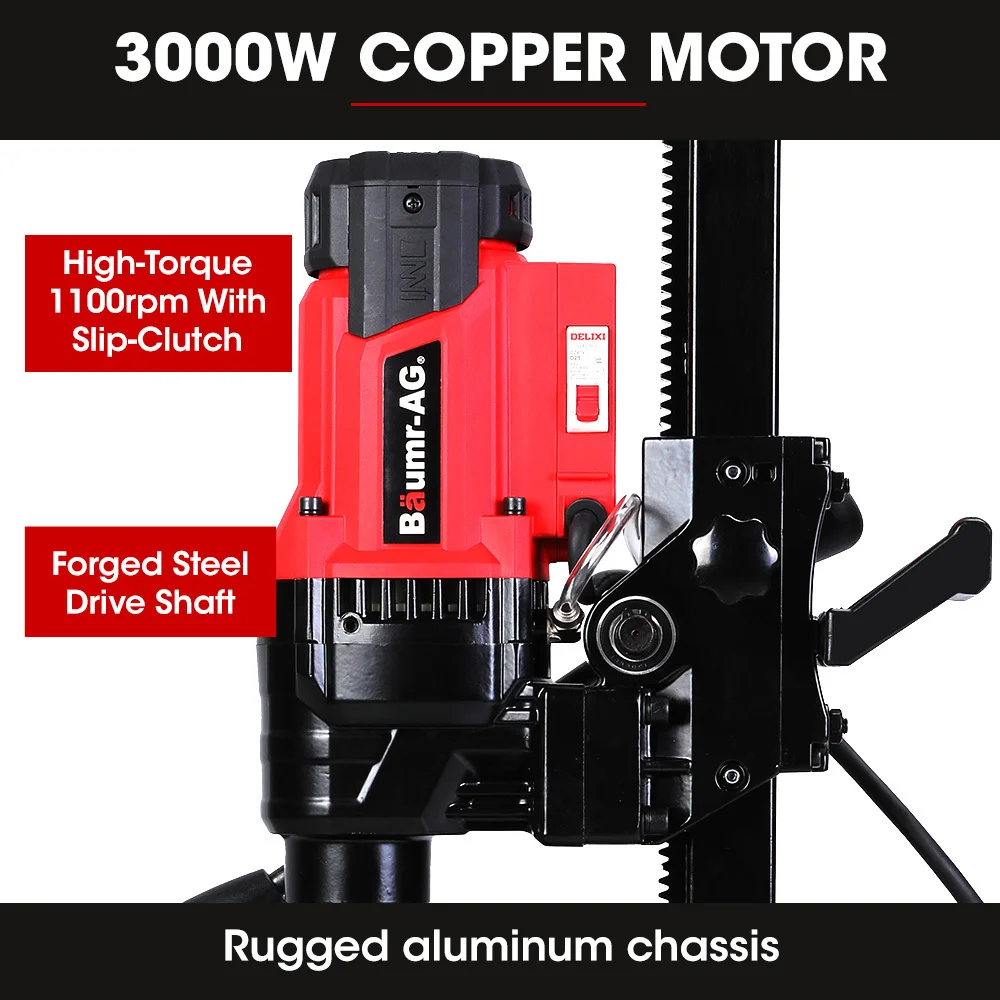

• 3000W copper motor for consistent power delivery
• 200mm maximum drilling diameter, with a 20-200mm drilling size range
• Pierces reinforced concrete, red brick and granite
• Drill stand mountable from 0 to 90 degrees for stability and precision
• Automatic slip-clutch delivers maximum power and protects against overload and sudden bit seizing
• 1100r/min single speed
• Suited to demolition, drilling, digging and punching tasks
• IP54 rating for dust protection and splash resistance
• Aluminium construction for strength and longevity
• Steel-forged drill shaft for robustness

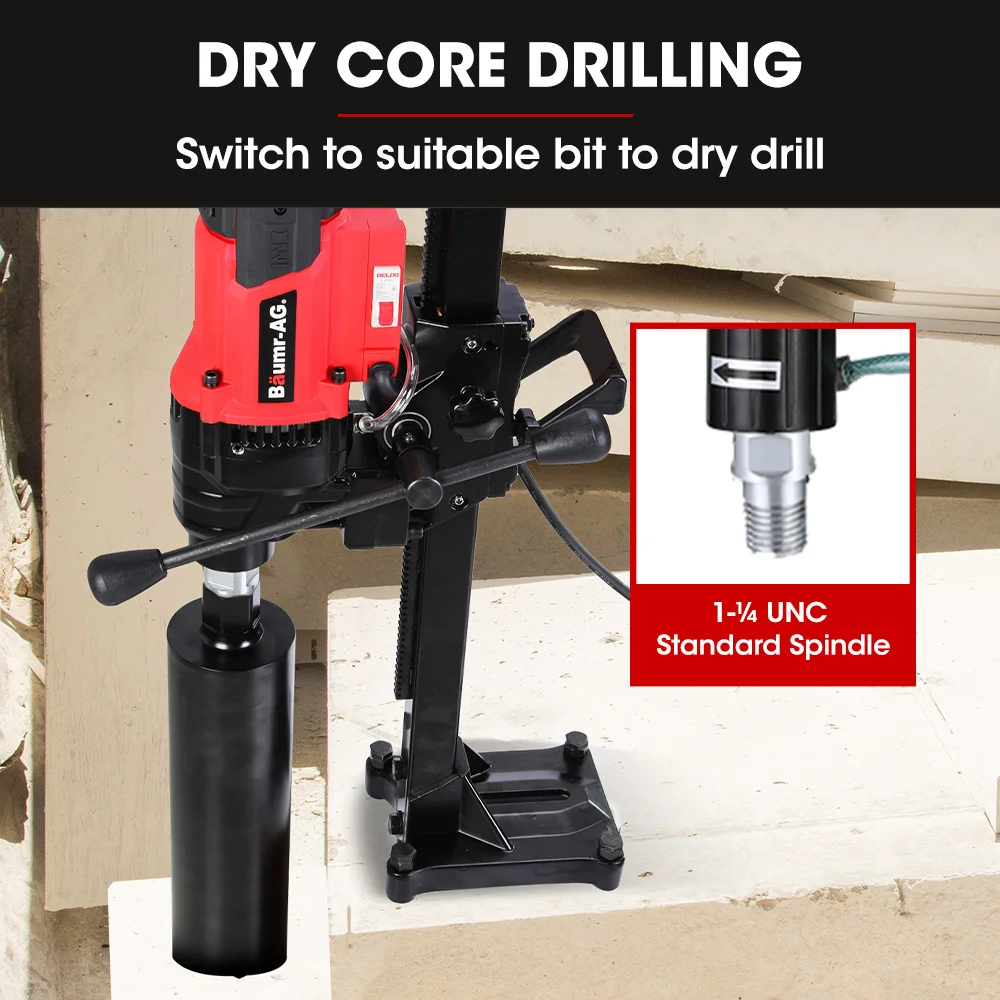

• 1-1/4 inch UNC standard-sized spindle thread

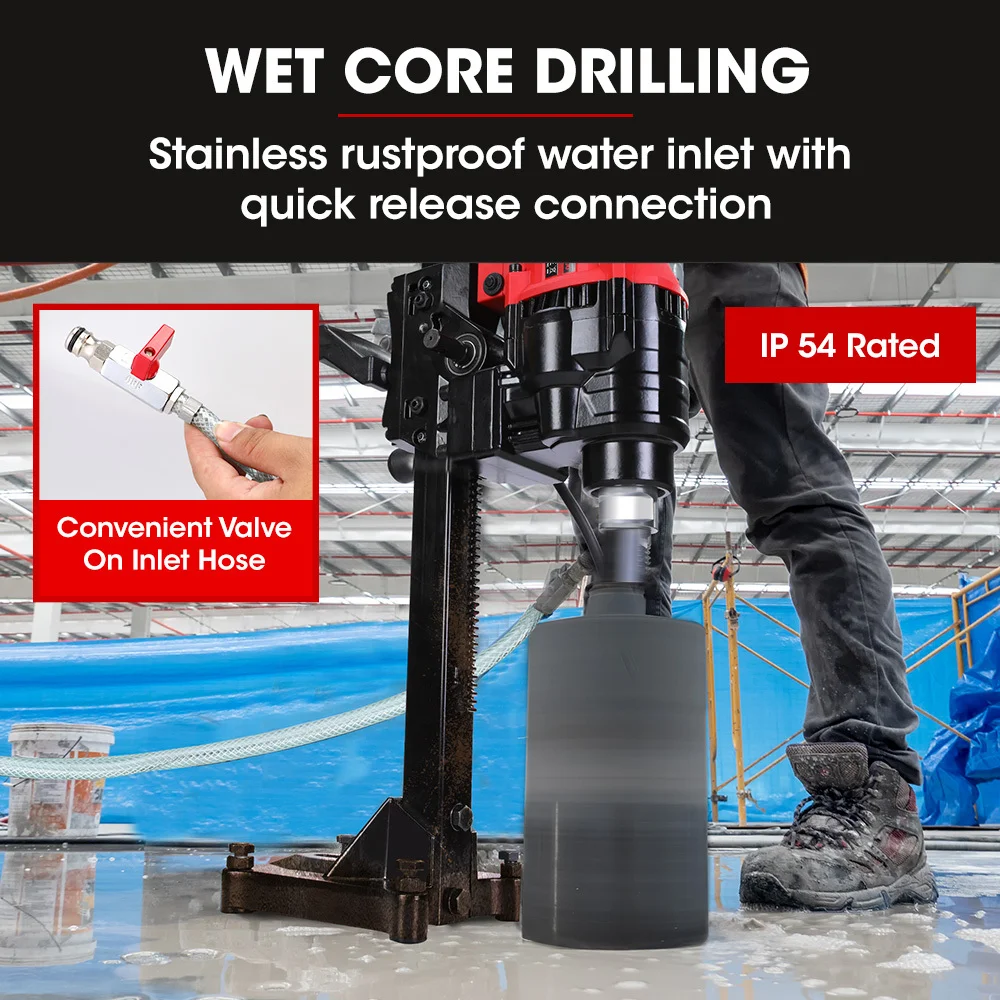

• Corrosion-proof copper water inlet
• Non-slip handle for a secure grip and precise control
• Inline circuit interrupt switch with overload protector
• Chassis-mounted on/off switch for added safety
• Double insulation for motor protection and operator safety

Specifications

• Input Power: 240V 50Hz AC
• Rated Output Power: 3000W

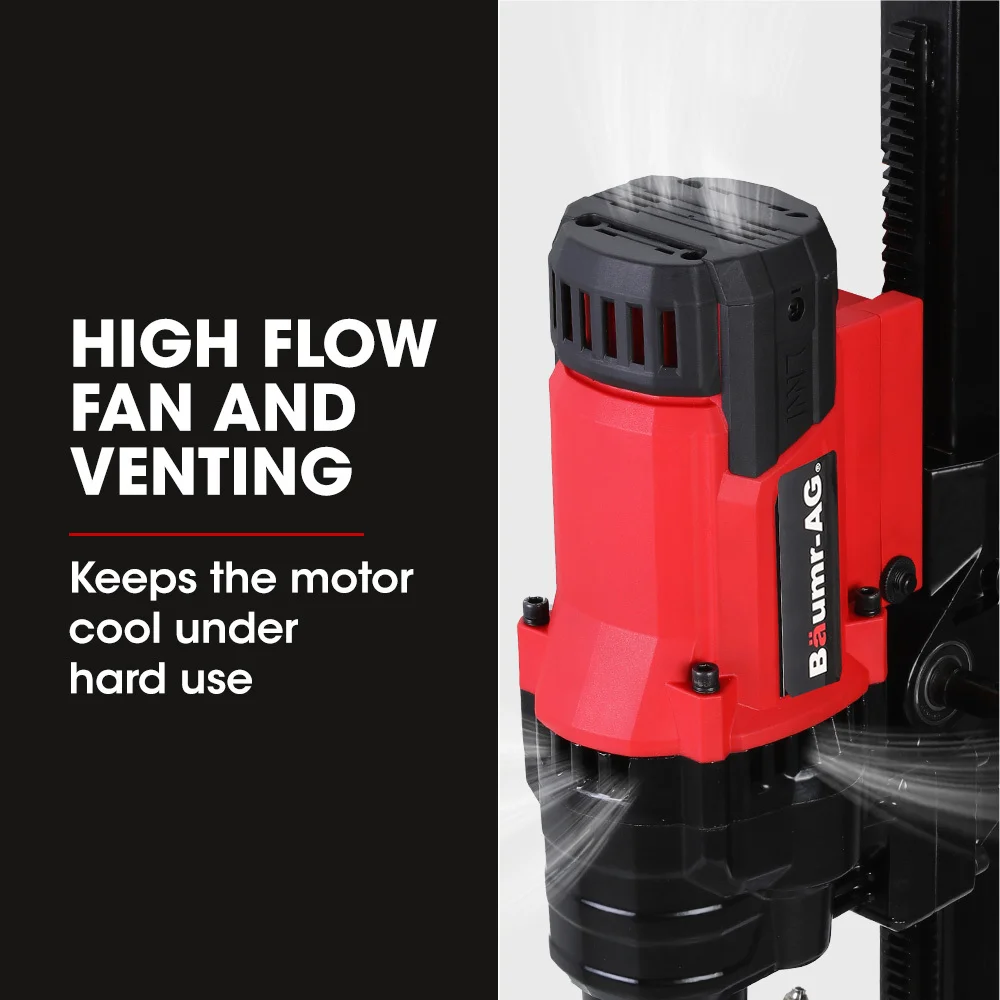

• Cooling: Air cooled
• No load speed: 1100r/min
• Speeds: 1 speed
• Drilling Size Range: 20-200mm
• Spindle Thread: 1-1/4 inch UNC
• Coring Type: Wet/Dry Coring
• Drill Construction: Copper motor, aluminium chassis, steel forged output shaft, copper water inlet

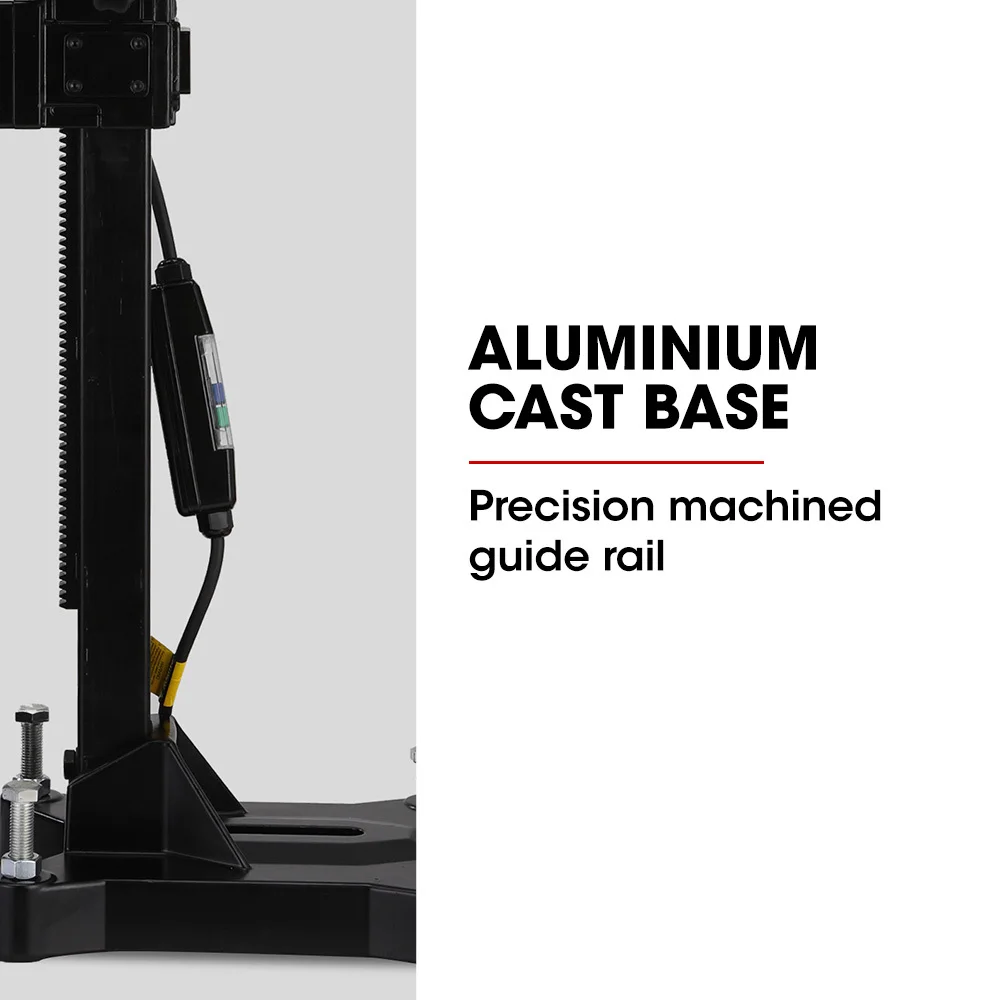

• Stand Construction: Aluminium guide rail, steel base
• IP Rating: IP54
• Power Plug: 15amp

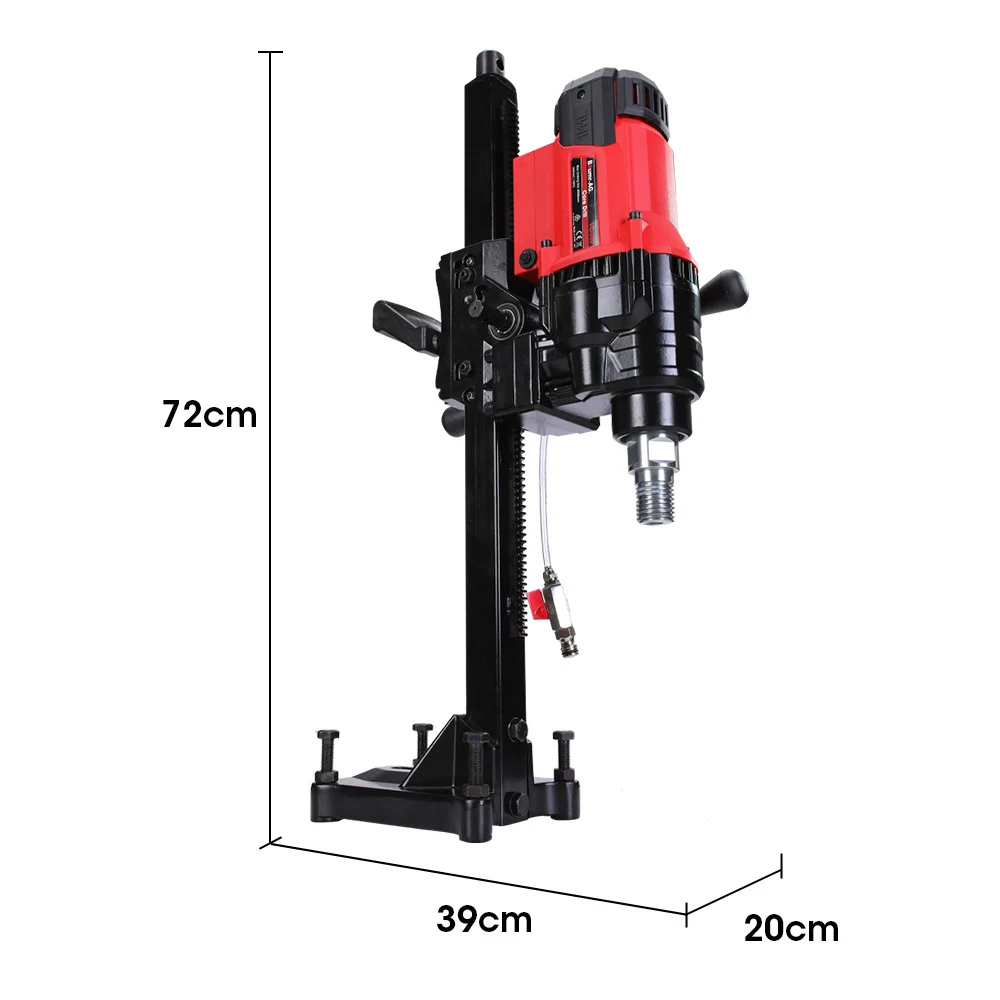

• Product Dimensions (W x D x H): 20 x 39 x 72cm
• Product Weight: 14kg
• Carton Dimensions (W x L x H): 32 x 76 x 23cm
• Carton Weight: 19kg

What's in the Box

• 1 x Baumr-AG Core Drill
• 1 x Drill Rig (assembly required)
