The Baumr-AG 2000W Handheld Diamond Core Drill with Rig Stand is a compact, heavy-duty wet/dry coring machine built for reinforced concrete, red brick and granite. Its 2000W copper motor and slip-clutch system deliver reliable power for demanding drilling, demolition and installation tasks.
Key Features
- 2000W copper motor for consistent power delivery
- 160mm maximum drilling diameter
- Pierces reinforced concrete, red brick and granite

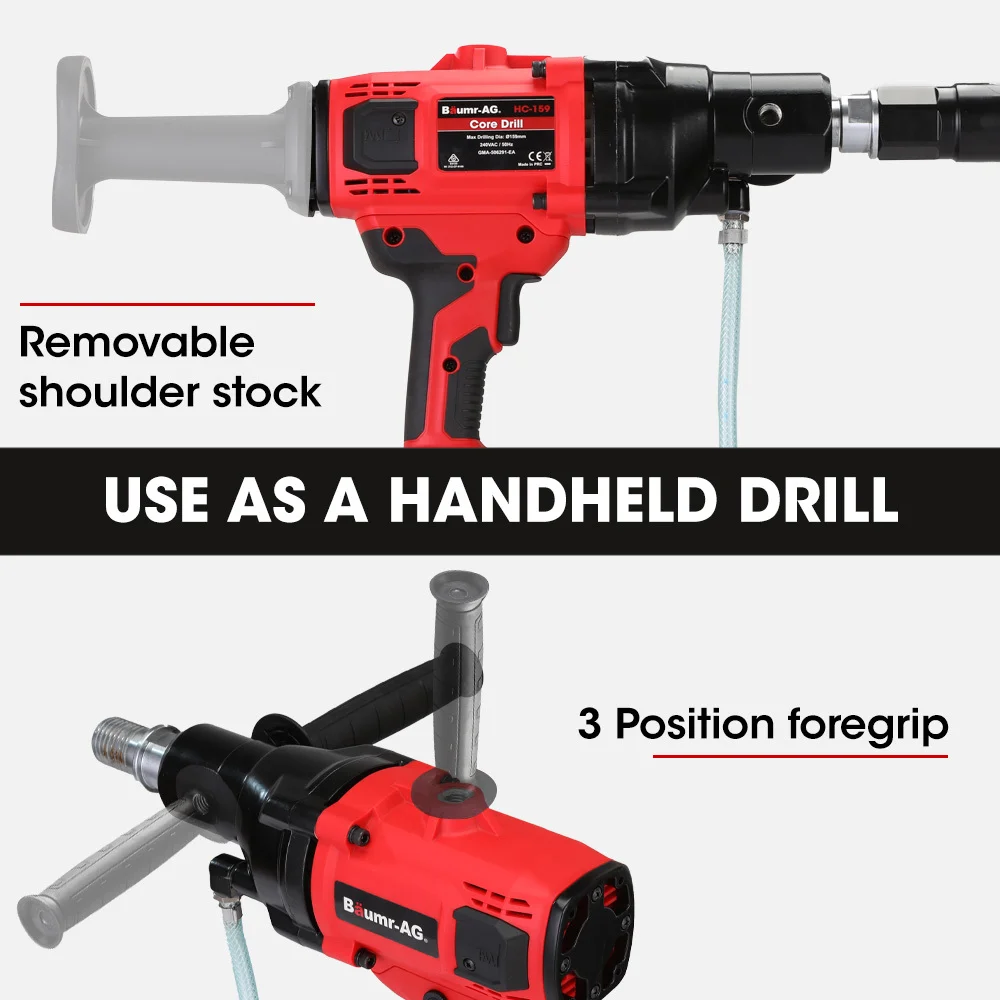

- Polycarbonate shoulder stock and adjustable barrel grip for steady, non-slip drilling
- Vertical stand mounts at 90 degrees to flat surfaces, including walls

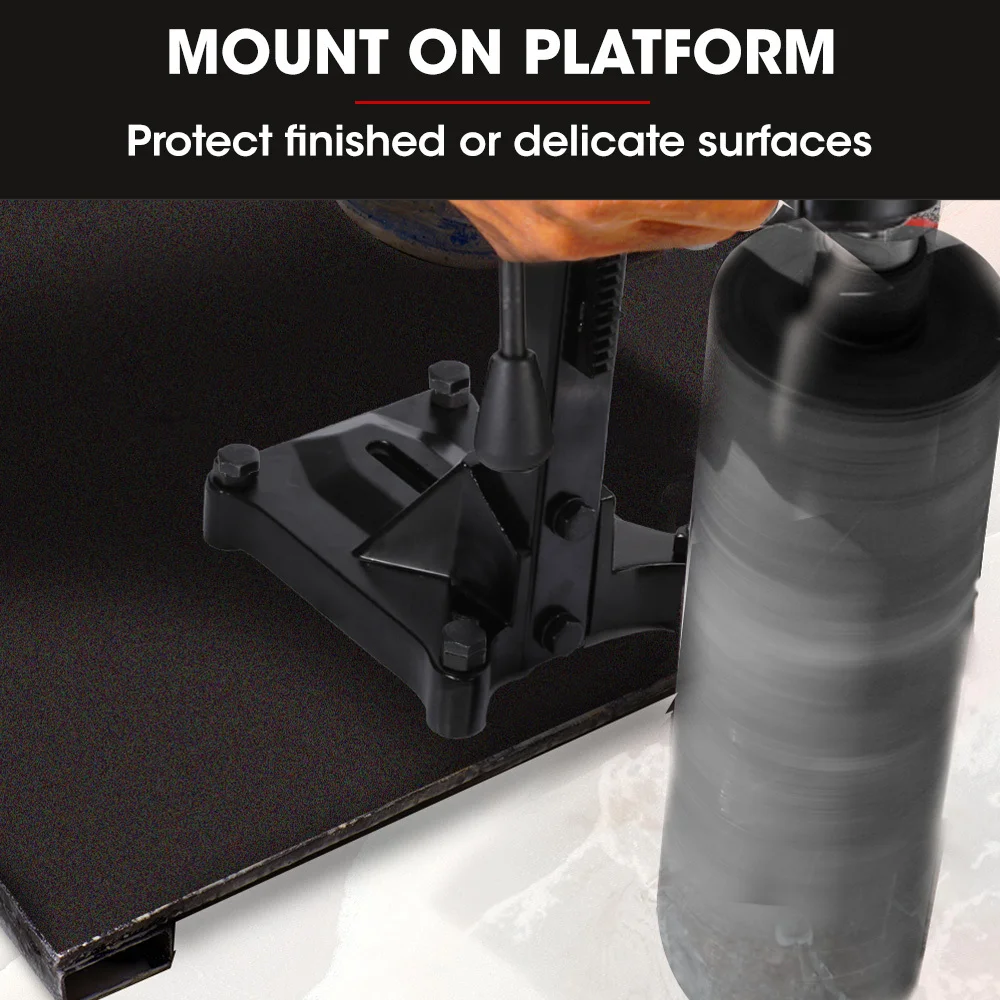

- Stand can be mounted to a plate or plank to prevent marring stone, tiles or fine flooring
- Automatic slip-clutch delivers maximum power and protects against overload and sudden seizing
- Variable speed trigger with 1900rpm maximum speed
- Versatile for demolition, drilling, digging and punching tasks
- IP54 rating for dust protection and splash resistance
- Aluminium construction for strength and longevity
- Steel-forged drill shaft for robustness
- 1 1/4 inch UNC standard-sized spindle thread
- Corrosion-proof copper water inlet with built-in on/off flow valve

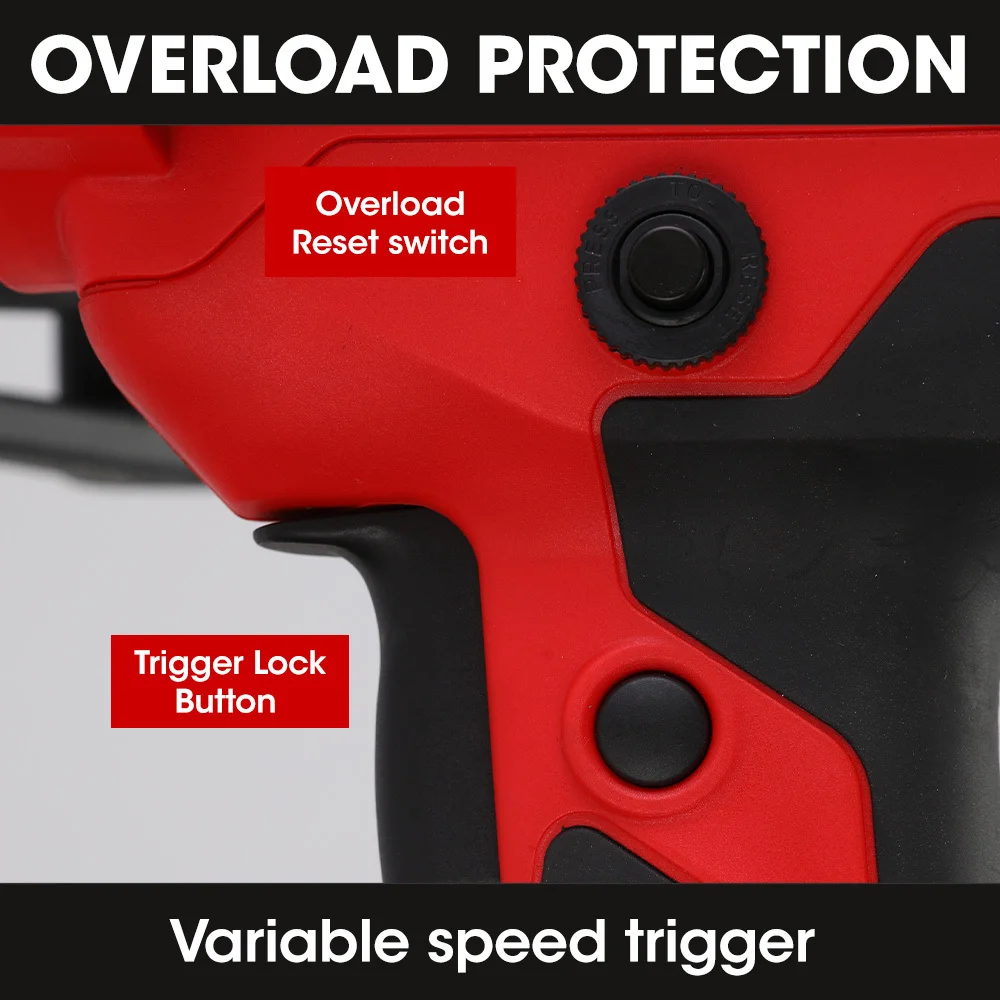

- Inline circuit interrupt switch with overload protector
- Chassis-mounted on/off switch and inline circuit breaker
- Double insulation for motor protection and operator safety
Specifications
- Input Power: 240V 50Hz AC
- Rated Output Power: 2000W

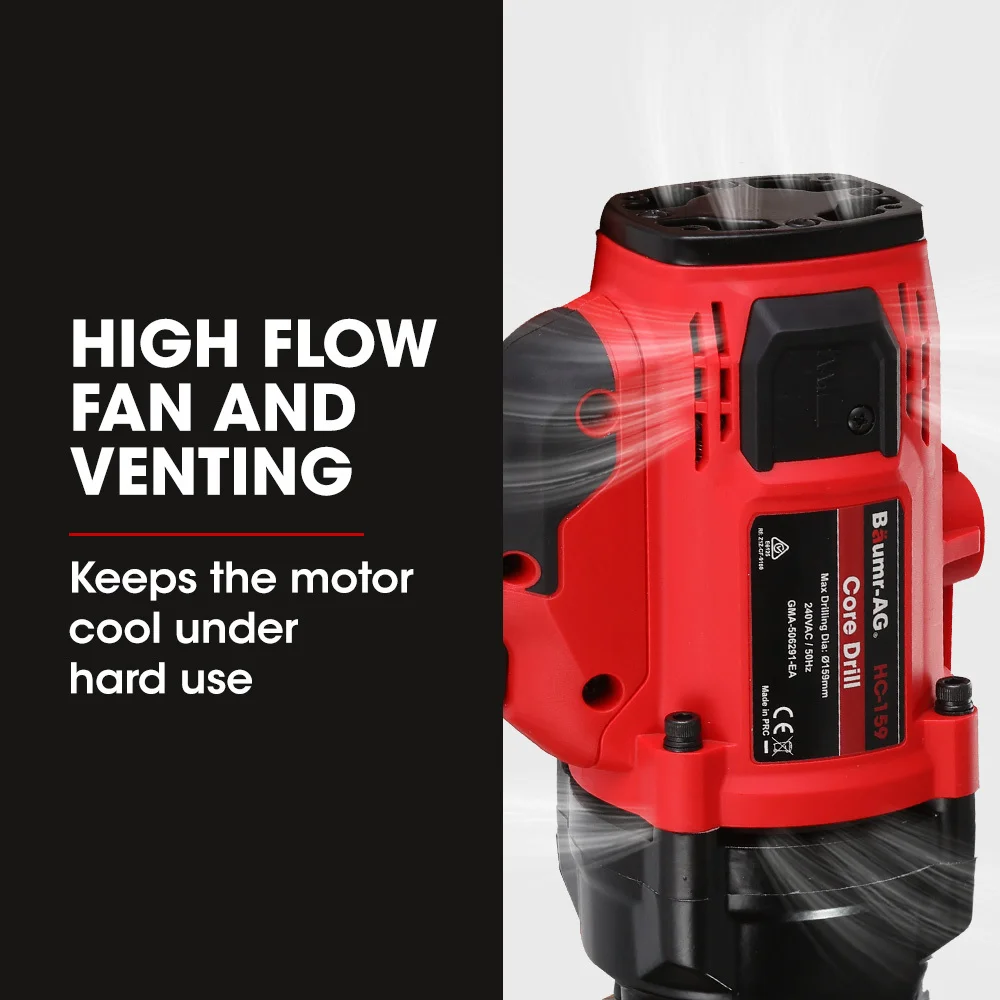

- Cooling: Air cooled
- No load speed: 1900r/min
- Speeds: Variable Speed Trigger
- Drilling Size Range: 20-200mm
- Spindle Thread: 1-1/4 inch UNC
- Coring Type: Wet/Dry Coring
- Drill Construction: Aluminium chassis, steel forged output shaft, copper water inlet, copper motor, polycarbonate shoulder stock and handgrip

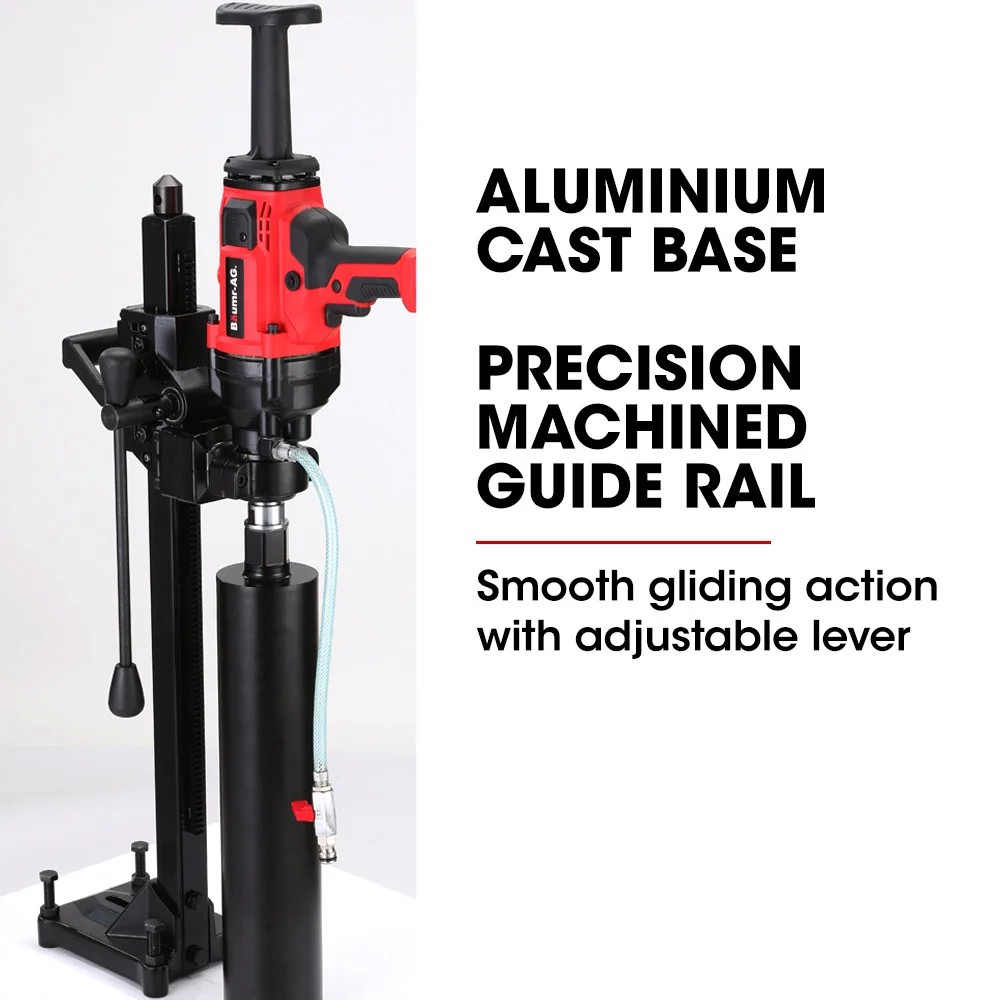

- Stand Construction: Aluminium guide rail, steel base
- IP Rating: IP54
- Product Dimensions (W x D x H): 31 x 37 x 71cm
- Product Weight: 14kg
- Carton Dimensions (L x W x H): 82 x 36 x 19cm
- Carton Weight: 19kg
What's in the Box
- 1 x Baumr-AG 160mm Core Drill
- 1 x Drill Rig (assembly required)
