Baumr-AG 3200W Vertical Stand Core Drill with 202mm Diamond Bit Combo
Click to enlarge

Baumr-AG 3200W Vertical Stand Core Drill with 202mm Diamond Bit Combo

$1158.00AUD
In Stock

Product Description

The Baumr-AG 3200W Vertical Stand Core Drill Combo pairs a powerful 3200W core drill with a 202mm diamond core drill bit, giving you a complete setup for concrete coring and hole drilling on demolition and construction jobs. The vertical stand and guide rail system helps keep the drill steady for controlled wet or dry coring.

Key Features

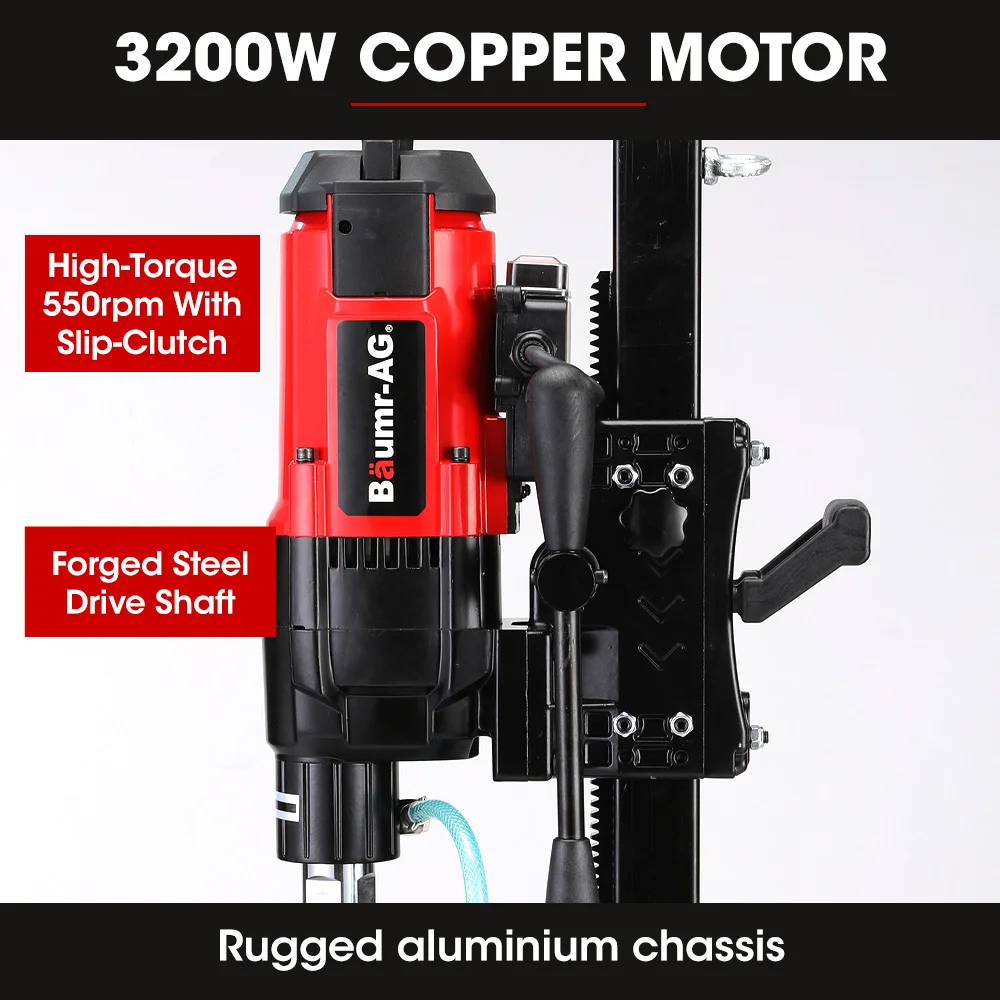

  • 3200W rated output power for demanding concrete coring tasks

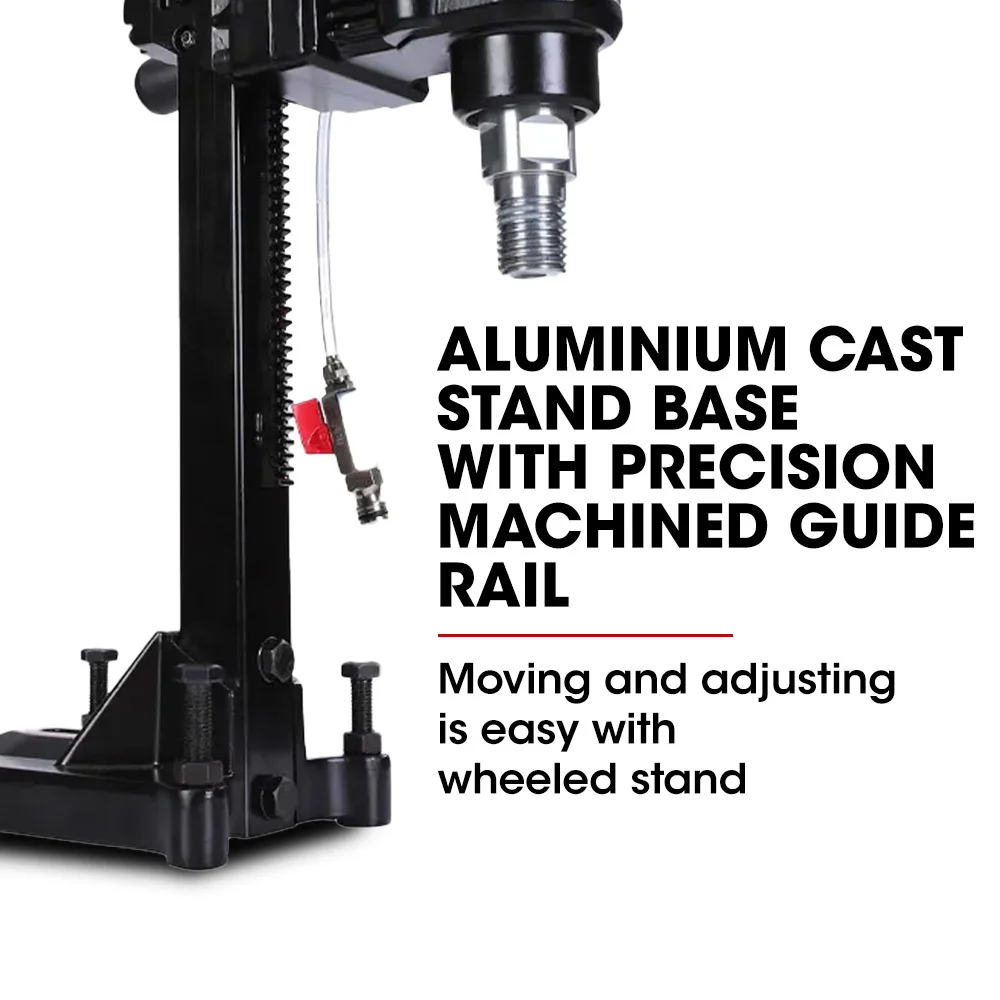

  • Vertical stand with aluminium guide rail and steel base
  • Drilling size range of 20-280mm

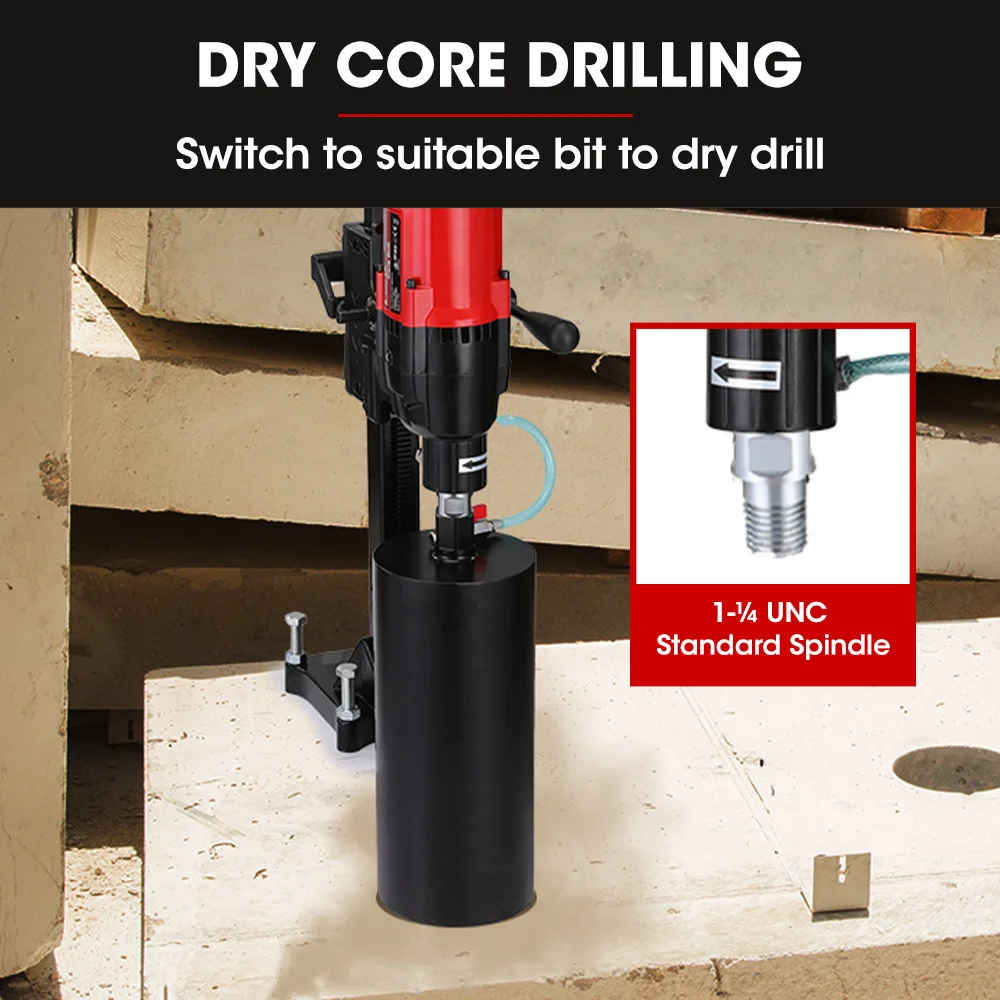

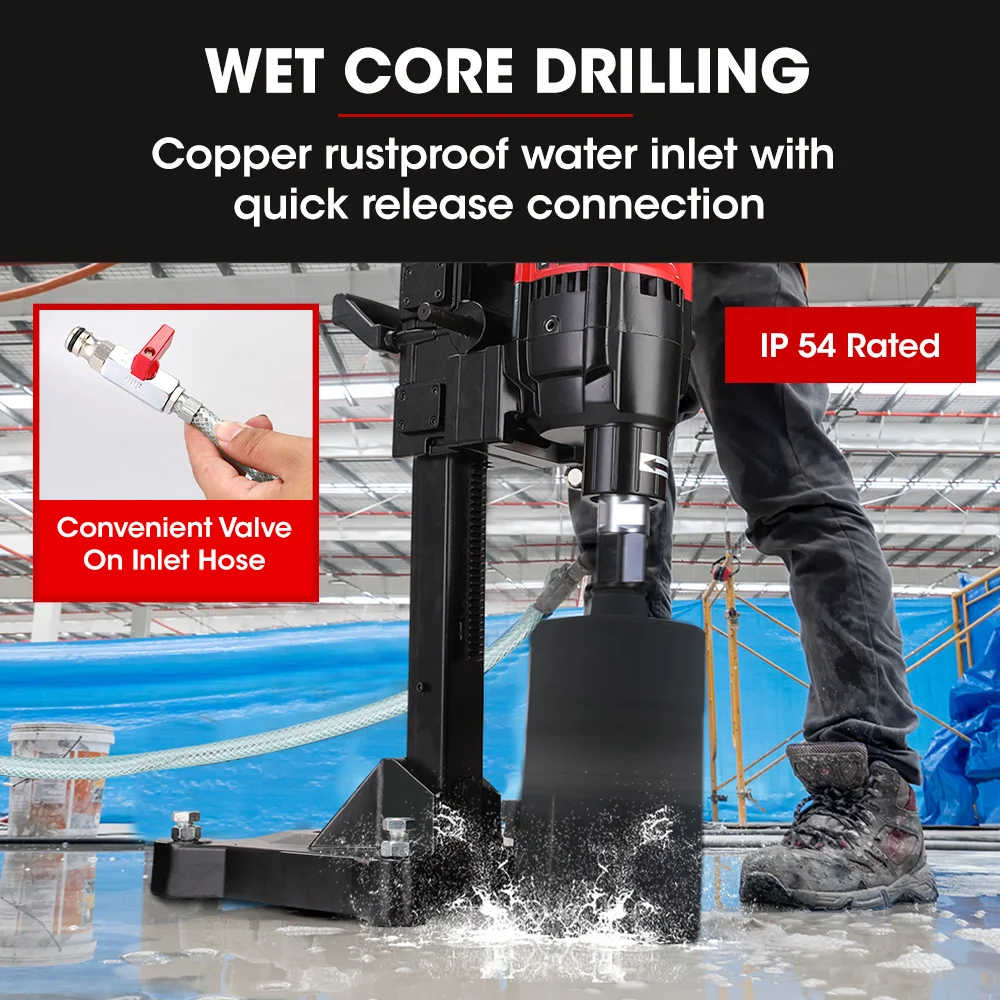

  • Wet or dry coring capability

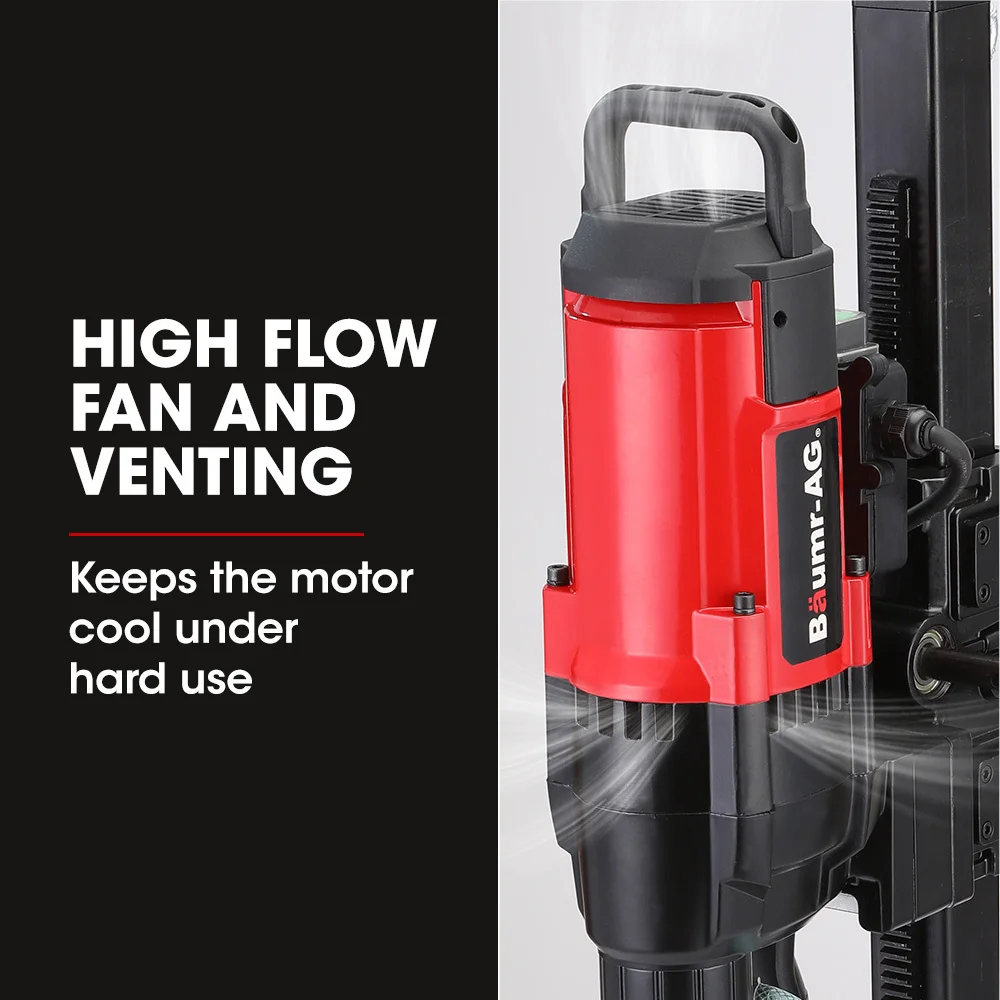

  • Air-cooled motor with copper water inlet
  • IP54 rated for dusty and wet job site conditions

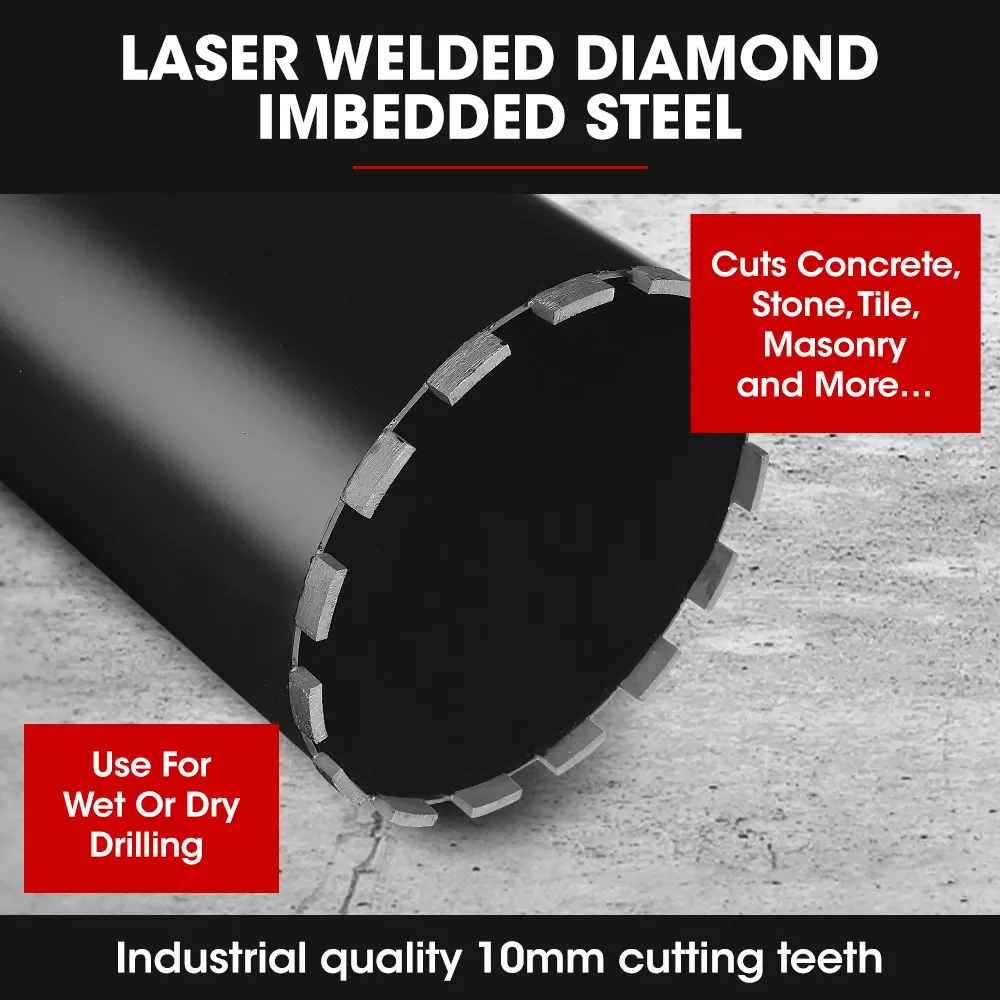

  • Includes a 202mm diamond core drill bit with laser welded diamond imbedded steel cutting teeth

Specifications

  • 280mm Vertical Stand Core Drill
  • Input Power: 240V 50Hz AC
  • Rated Output Power: 3200W
  • Cooling: Air cooled
  • No load speed: 550r/min
  • Speeds: 1 speed
  • Drilling Size Range: 20-280mm
  • Spindle Thread: 1-1/4" UNC
  • Coring Type: Wet/Dry Coring
  • Drill Construction: Aluminium chassis, steel forged output shaft, copper water inlet, copper motor
  • Stand Construction: Aluminium guide rail, steel base
  • IP Rating: IP54

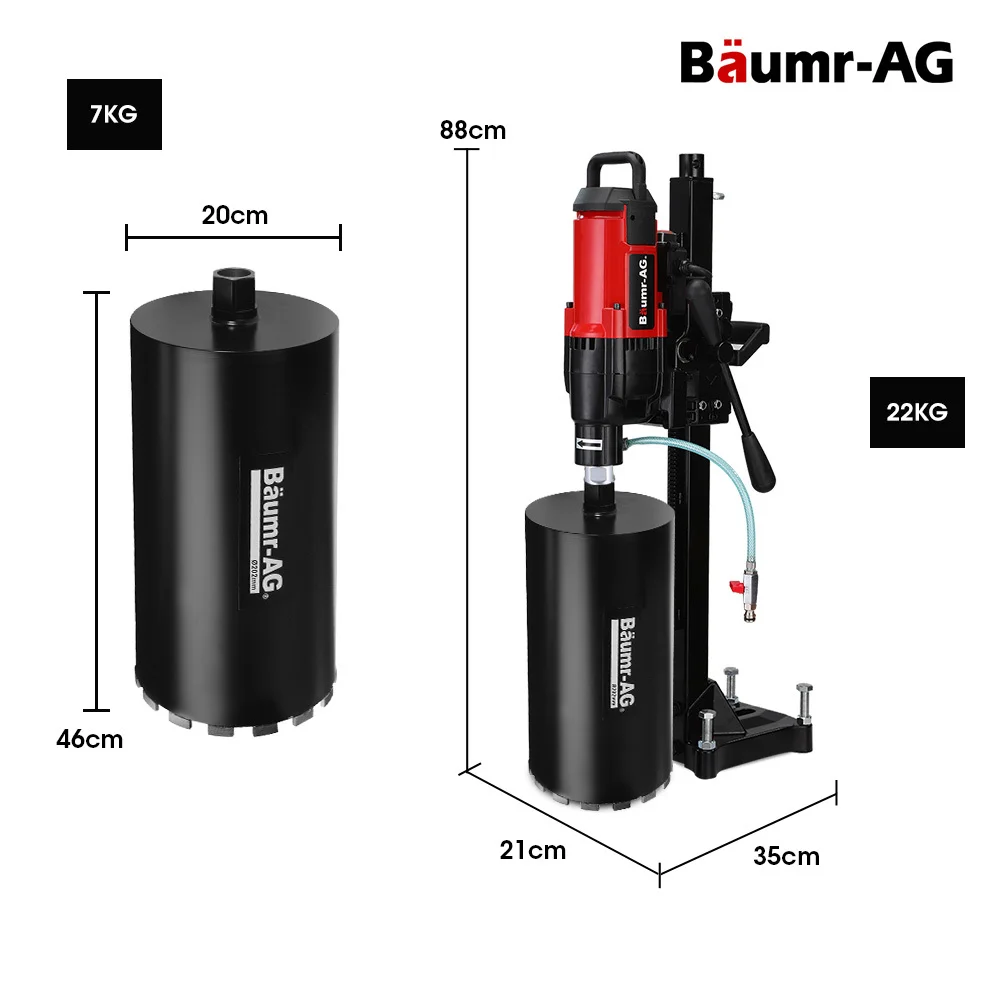

  • Product Dimensions (W x D x H): 210 x 350 x 880mm
  • Product Weight: 22kg
  • Diamond Core Drill Bit - 202mm
  • Cutting Diameter: 202mm
  • Working Length: 400mm
  • Total Length: 460mm
  • Type: Coring Cutter
  • Shaft Material: High-carbon industrial grade steel
  • Cutting Teeth Material: Laser welded diamond imbedded steel
  • Shank Size/Type: 1 1/4 UNC
  • Product Dimensions: 200mm x L460mm
  • Product Weight: 7kg

What's in the Box

  • 1 x Baumr-AG Core Drill
  • 1 x Drill Rig (assembly required)
  • 1 x 202mm Baumr-AG Diamond Core Drill Bit
  • User manual accessible online

Specifications

BrandBaumr-AG
Weight0 kg
Dimensions0×0×0 cm
