Baumr-AG 3200W Wet/Dry Diamond Core Drill with Wheeled Stand & 127mm Bit

The Baumr-AG 3200W Wet/Dry Diamond Core Drill with Wheeled Stand and 127mm Bit Combo is a heavy-duty coring rig built for reinforced concrete, red brick and granite. Its commercial-grade motor and adjustable stand deliver stable, precise hole drilling for demanding jobs.

Key Features

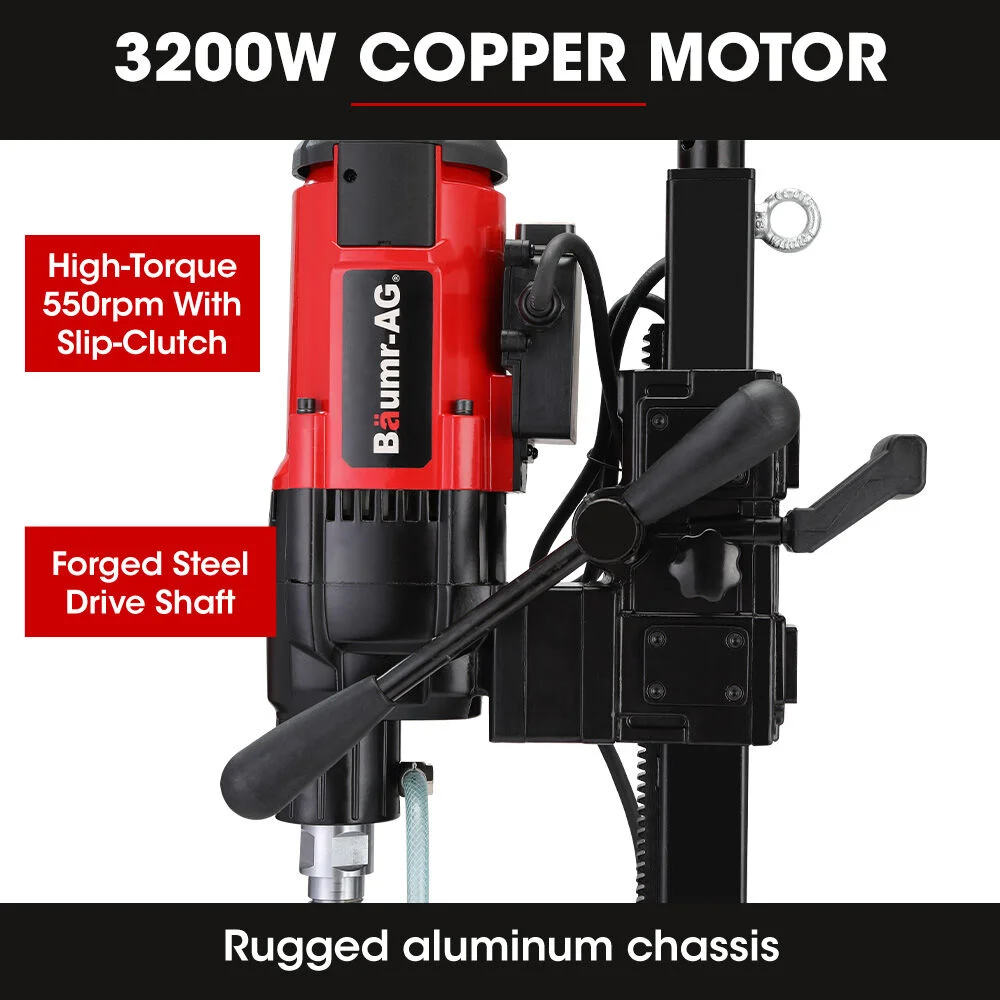

• Heavy-duty 3200W commercial-grade copper motor for consistent power
• 280mm maximum drilling diameter
• Includes 127mm diamond core drill bit for reinforced concrete, red brick and granite

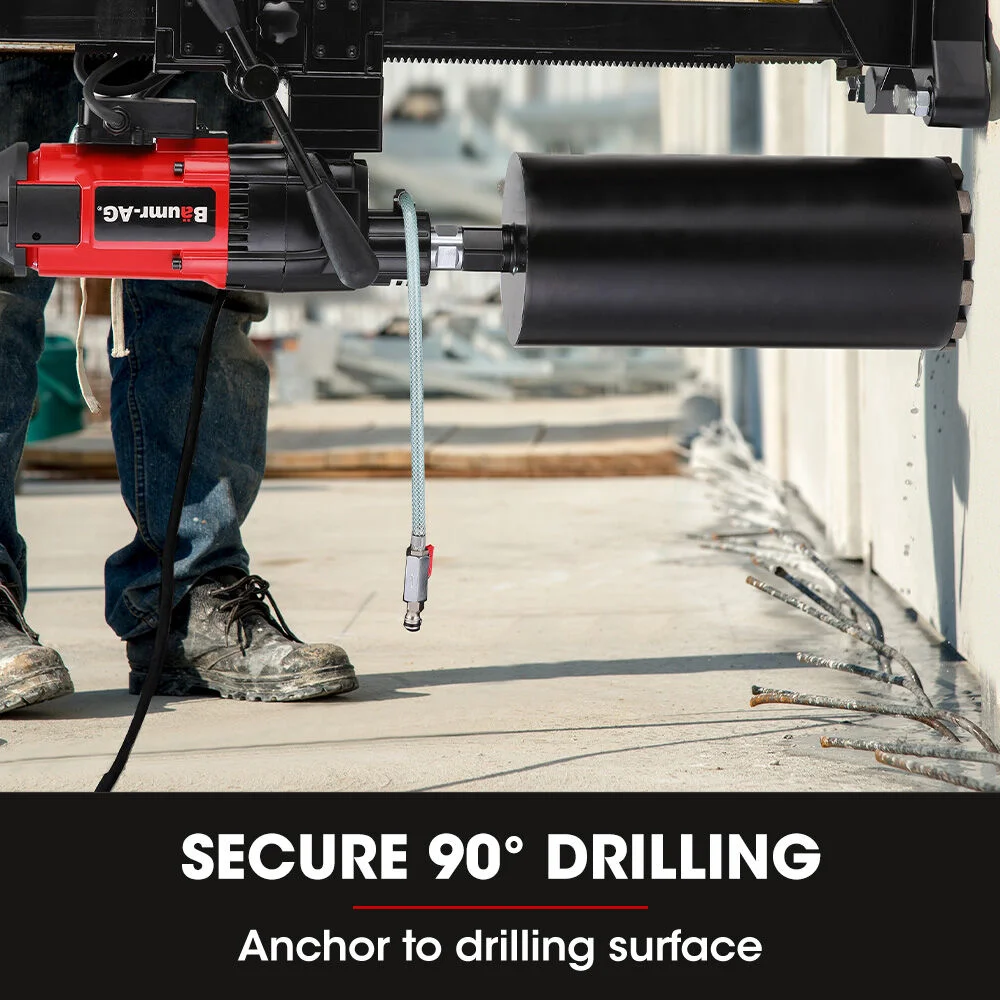

• Adjustable stand mounts from 0 to 90 degrees for vertical and horizontal drilling
• Wheeled base for effortless positioning and stability
• Slip-clutch system prevents overload and sudden bit seizing
• 550 RPM single speed for smooth, controlled drilling
• IP54 rating for dust protection and splash resistance
• Aluminium construction for durability in tough environments
• Steel-forged drill shaft for long-lasting performance

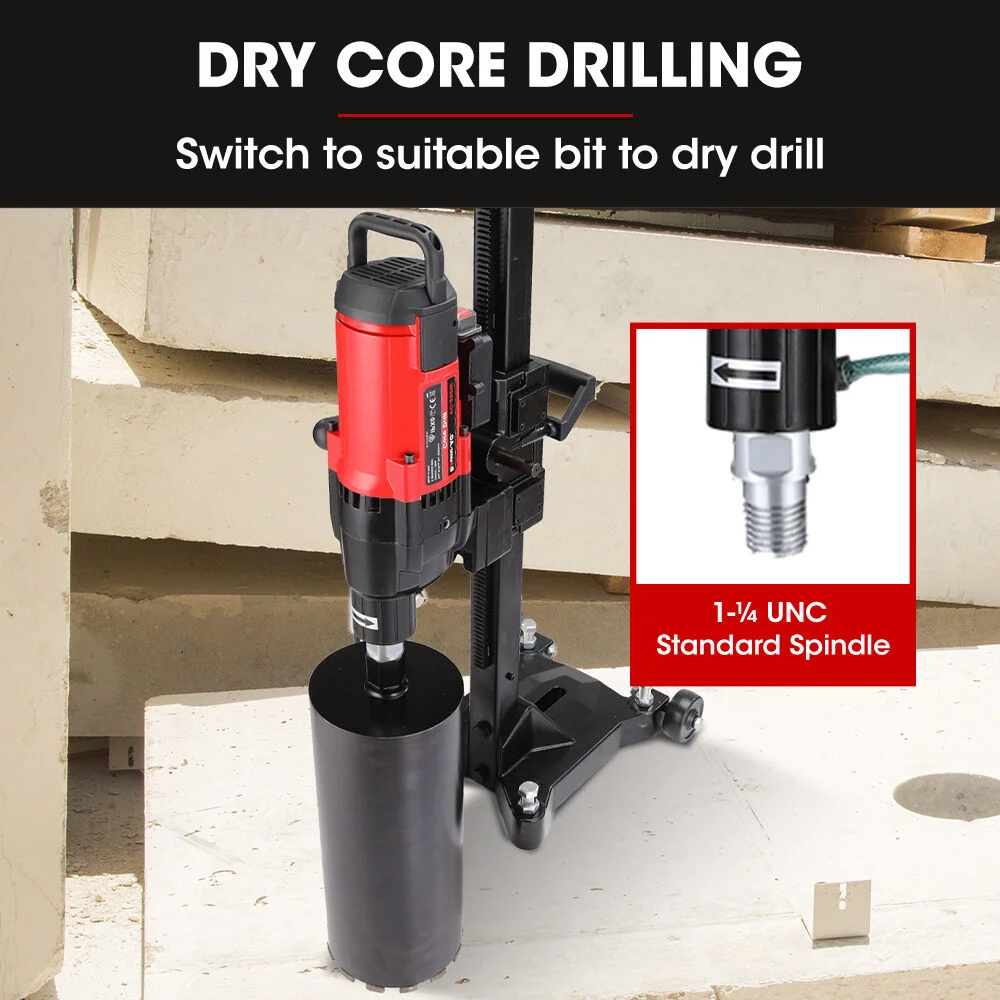

• 1 1/4 inch UNC standard-sized spindle thread

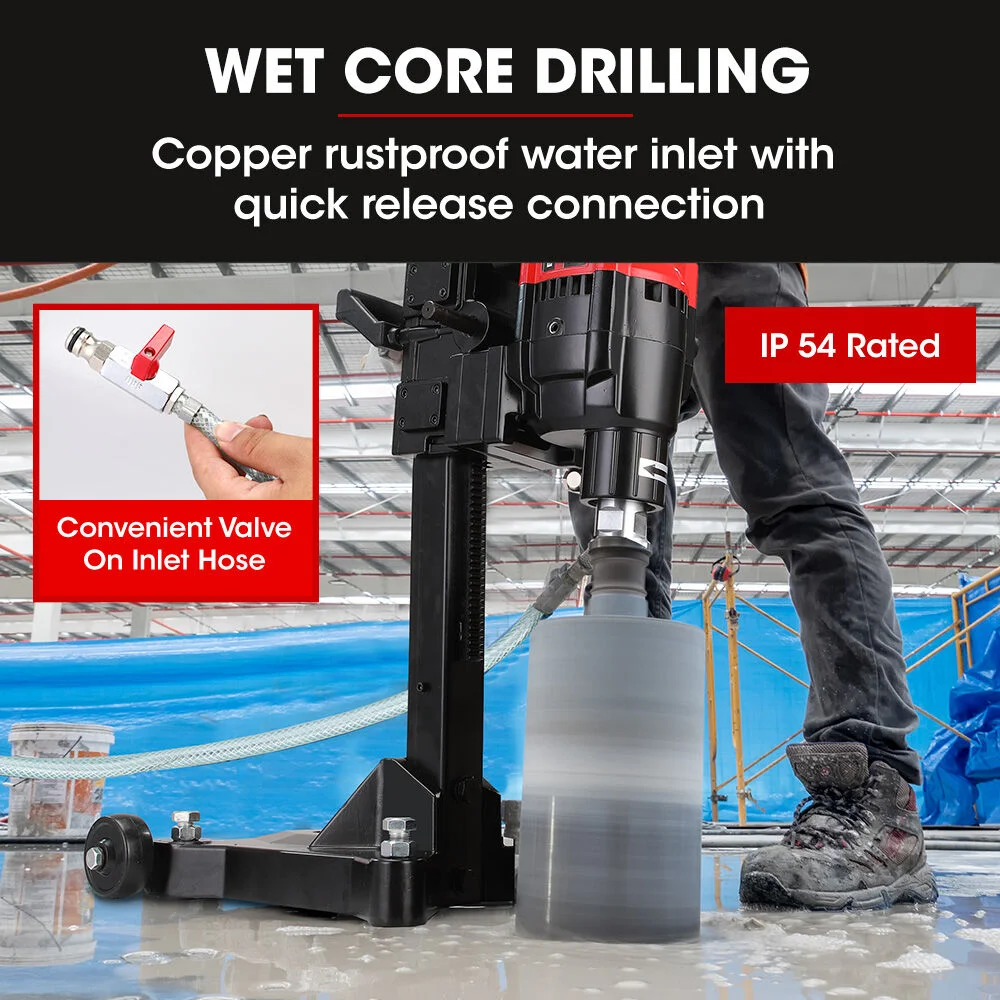

• Corrosion-proof copper water inlet
• Non-slip handle for a secure grip and reduced fatigue
• Double insulation for motor and operator protection

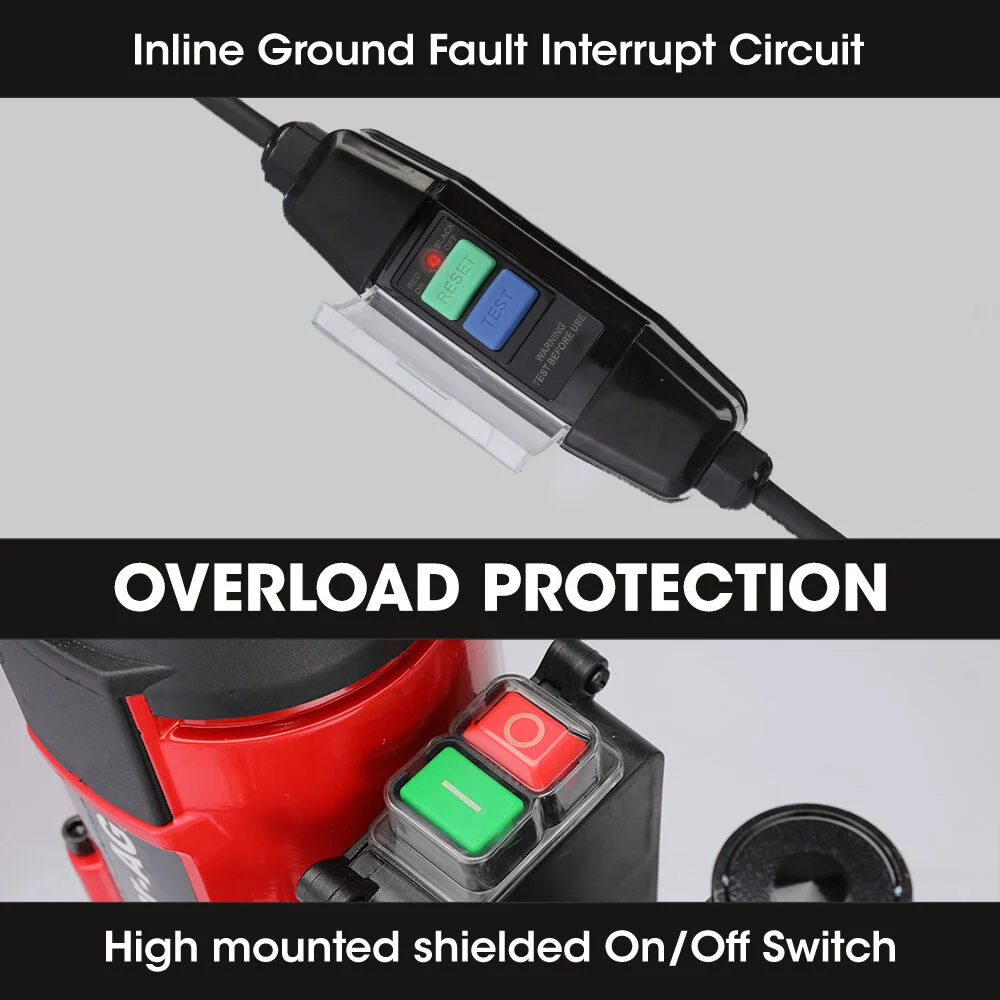

• Inline circuit interrupt switch

Specifications

280mm Core Drill

• Input Power: 240V 50Hz AC
• Rated Output Power: 3200W

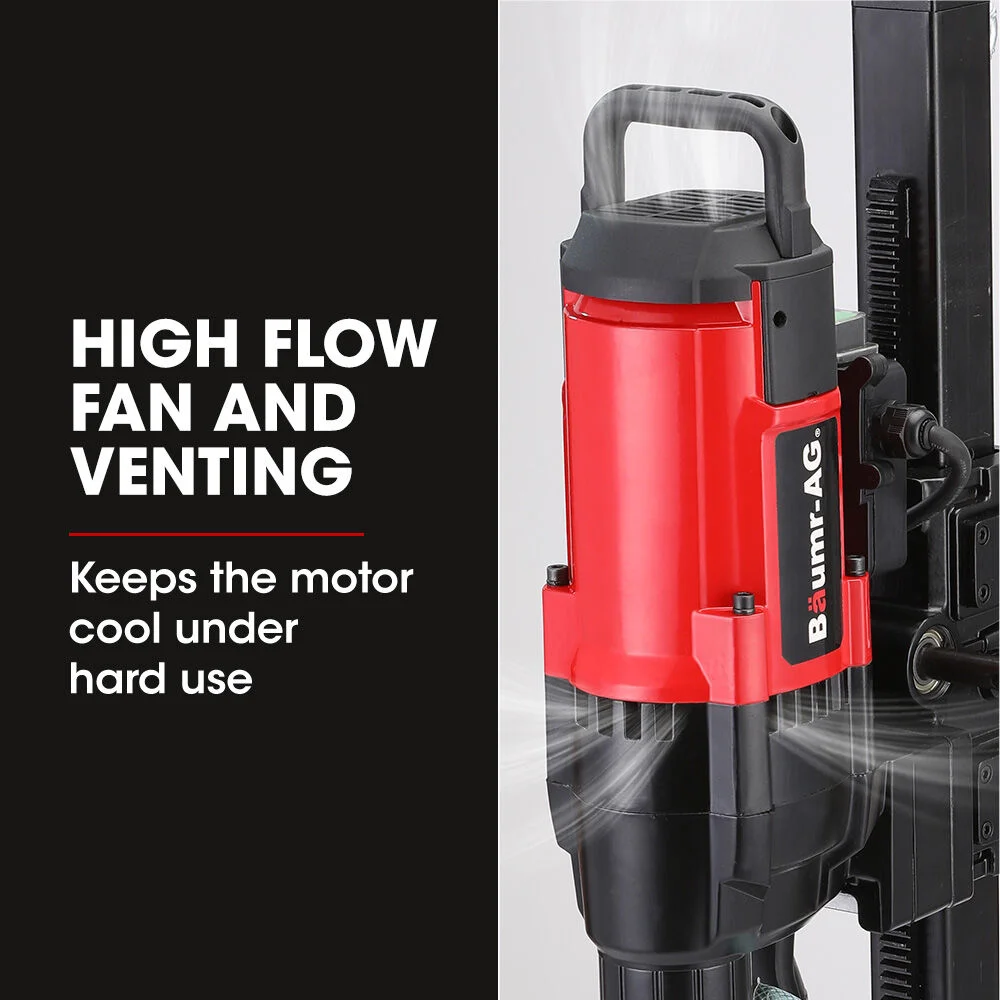

• Cooling method: Air
• No load speed: 550r/min
• Speeds: 1
• Drilling Diameter Range: 20-280mm
• Spindle Thread: 1-1/4" UNC
• Coring Type: Wet/Dry Coring
• Drill Construction: Aluminium chassis, steel forged output shaft, copper water inlet, copper motor

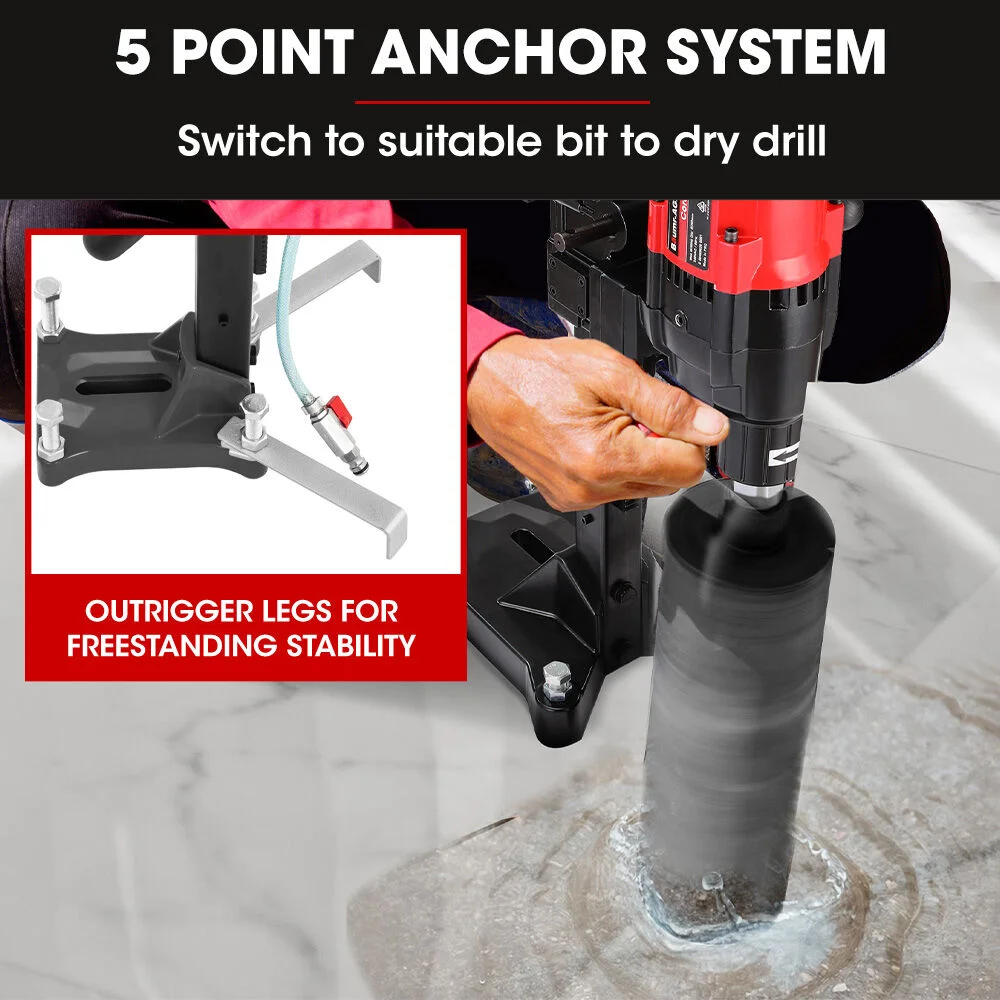

• Stand Construction: Aluminium guide rail, steel base
• IP Rating: IP54

Diamond Core Drill Bit - 127mm

• Cutting Diameter: 127mm
• Length: 10mm
• Type: Hole Cutter
• Featured Refinements: Hole Saw
• Shaft Material: Commercial Grade Steel
• Cutting Teeth Material: Diamond/Steel Blend
• Thread Size: 1 1/4 UNC
• Cutting Teeth Length: 10mm
• Threaded Connection: 1 1/4 UNC

Size & Weight

280mm Core Drill with Stand

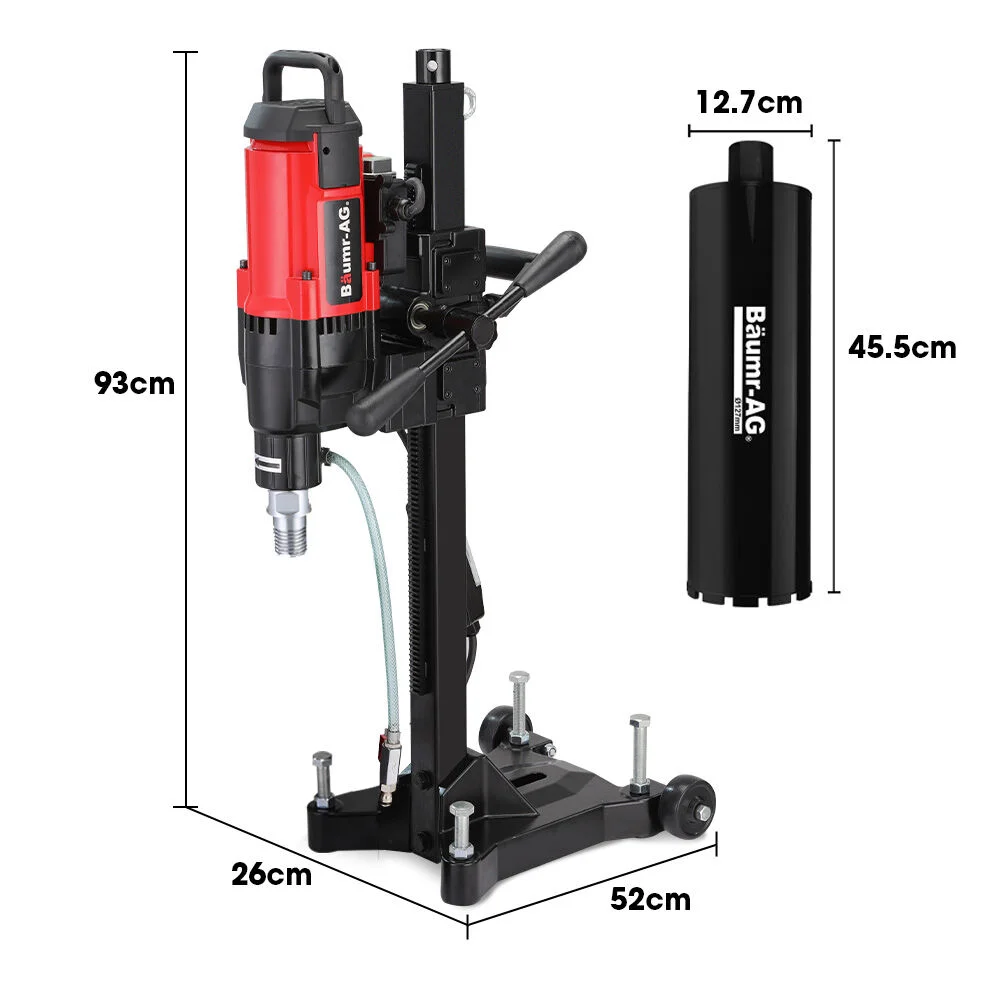

• Product Dimensions (W x D x H): 260 x 520 x 930mm
• Product Weight: 28kg
• Carton Dimensions (W x L x H): 32 x 100 x 44cm
• Carton Weight: 32kg

Diamond Core Drill Bit - 127mm

• Product Dimensions: 127mm x L455mm
• Product Weight: 3.5kg
• Carton Dimensions (W x L x H): 30 x 49 x 29cm
• Carton Weight: 15.45kg

What's in the Box

• 1 x Baumr-AG Core Drill
• 1 x Drill Rig (Assembly Required)
• 1 x Baumr-AG Diamond Core Drill Bit

Note: User Manual is accessible online.
