The Baumr-AG 2000W Handheld Core Drill with Stand is a wet/dry diamond coring machine built for precision hole drilling in reinforced concrete, red brick and granite. Supplied as a combo with 63mm and 127mm diamond core drill bits, it handles demanding construction and repair tasks with controlled, accurate results.
Key Features

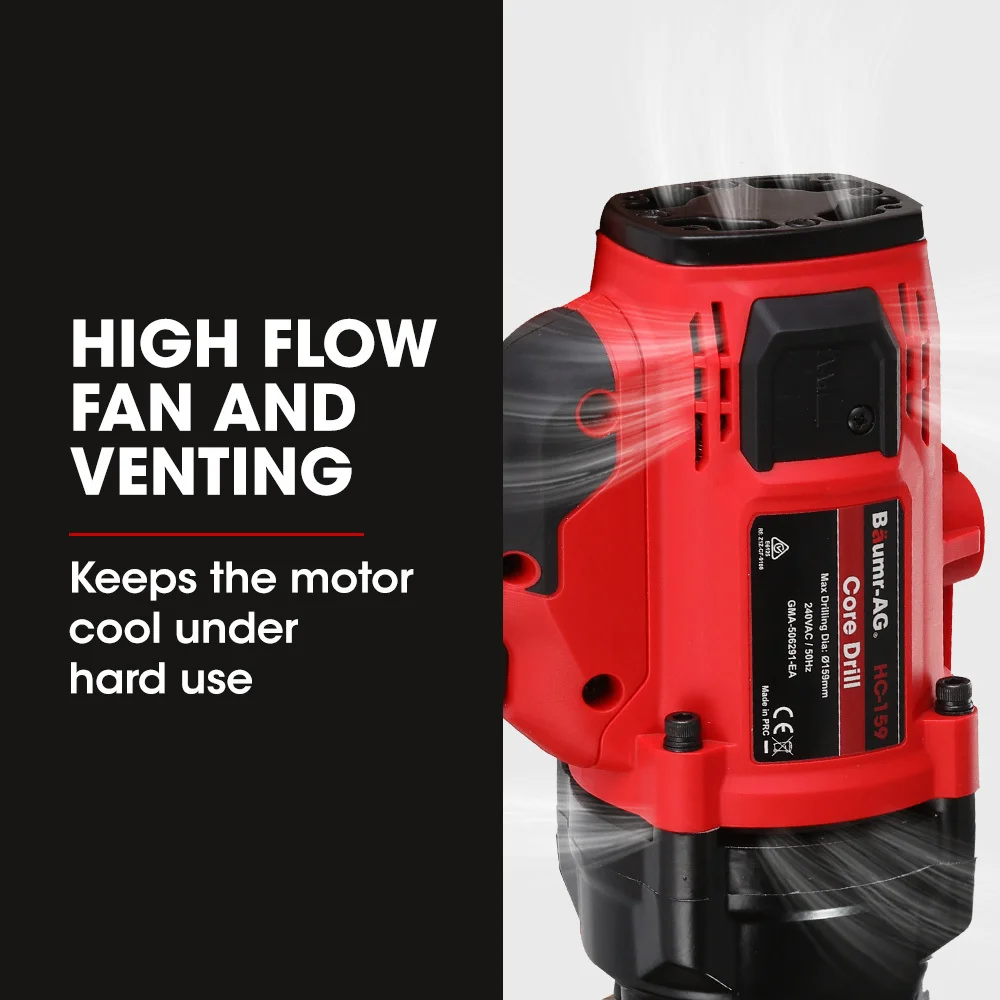

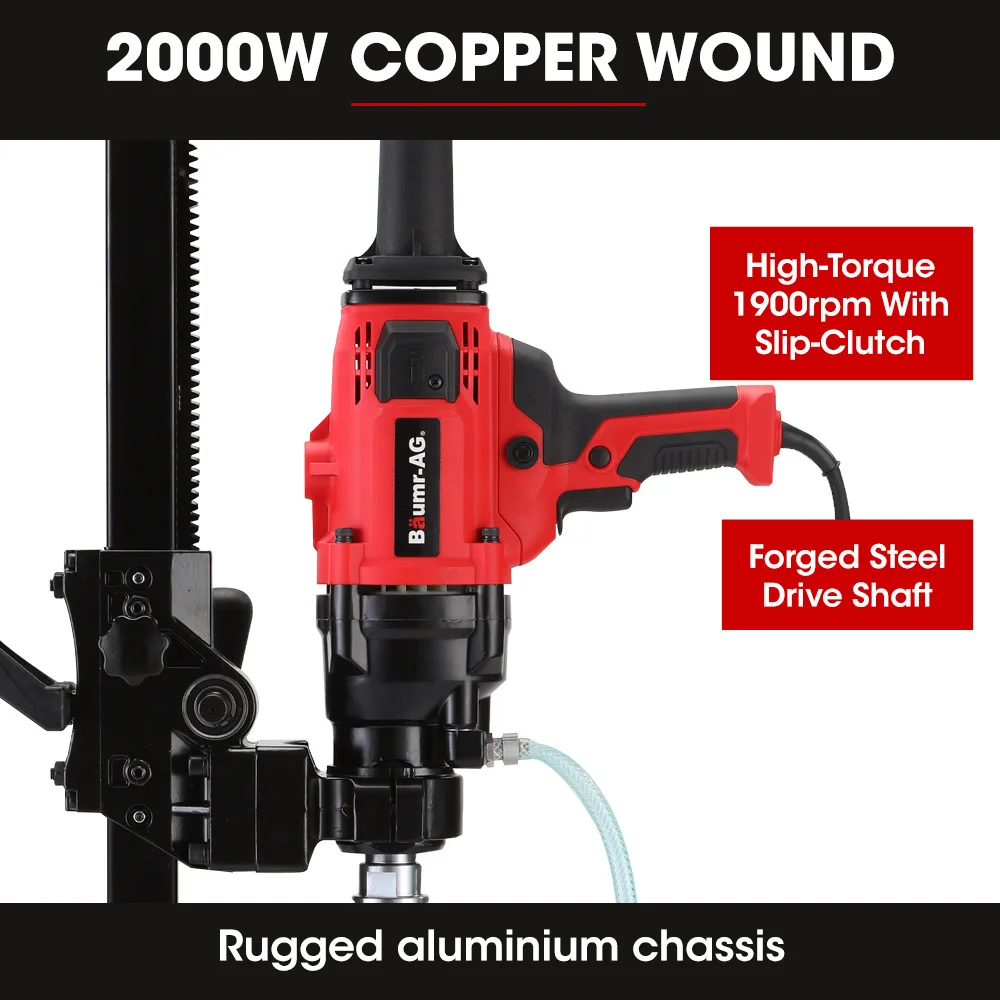

- 2000W copper motor with air cooling for consistent power delivery
- 160mm maximum drilling diameter for demanding coring jobs

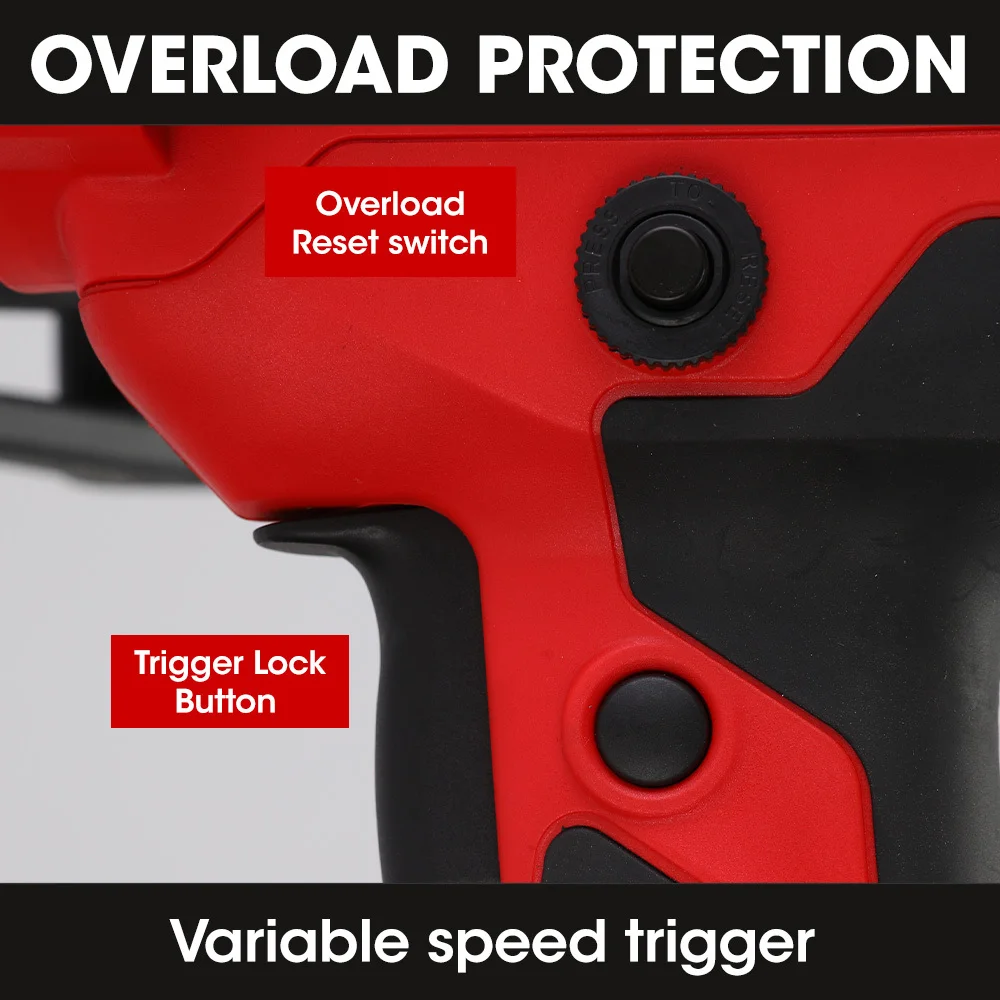

- Automatic slip-clutch delivers maximum power while protecting against overload and sudden bit seizing
- Variable speed trigger with 1900RPM maximum no-load speed

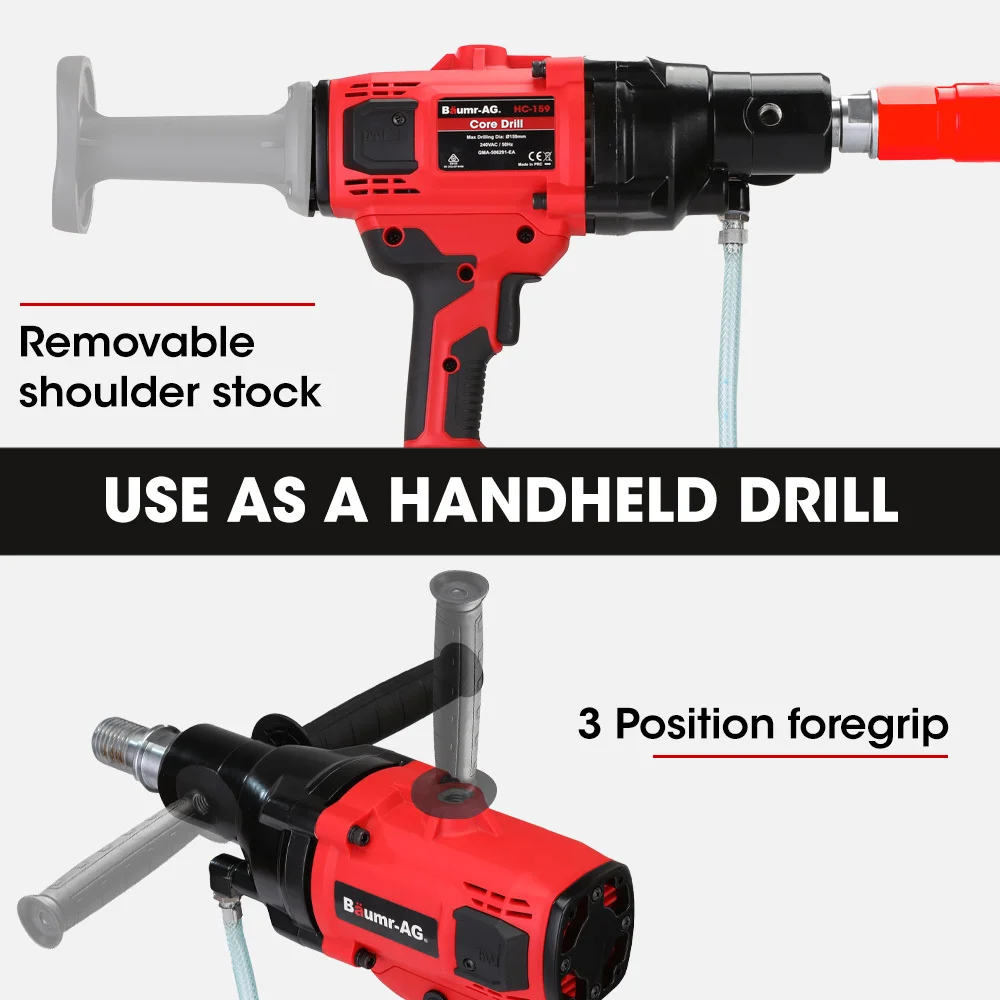

- Polycarbonate shoulder stock and adjustable non-slip barrel grip for steady, controlled drilling
- IP54 rating for dust protection and splash resistance
- Aluminium construction with a steel-forged output shaft for strength and longevity
- 1 1/4 inch UNC standard spindle thread
- Corrosion-proof copper water inlet with built-in on/off flow valve
- Inline circuit interrupt switch with overload protector to prevent motor damage
- Chassis-mounted on/off switch and double insulation for operator safety

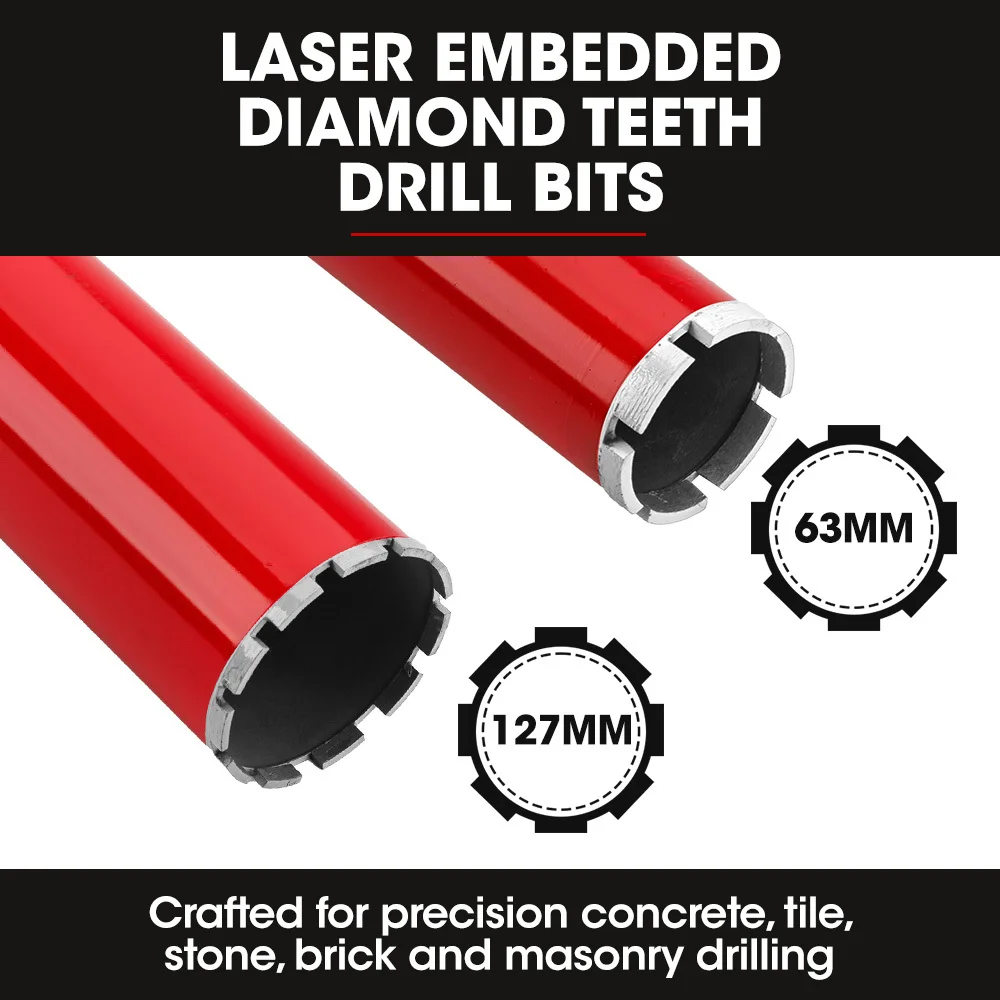

- Diamond cutting teeth drill bits in commercial-grade steel for solid surfaces
Specifications
160mm Handheld Core Drill
- Input Power: 240V 50Hz AC
- Rated Output Power: 2000W
- Cooling: Air cooled
- No load speed: 1900r/min
- Speeds: Variable speed trigger
- Drilling Size Range: 20-200mm
- Spindle Thread: 1-1/4' UNC
- Coring Type: Wet/Dry coring

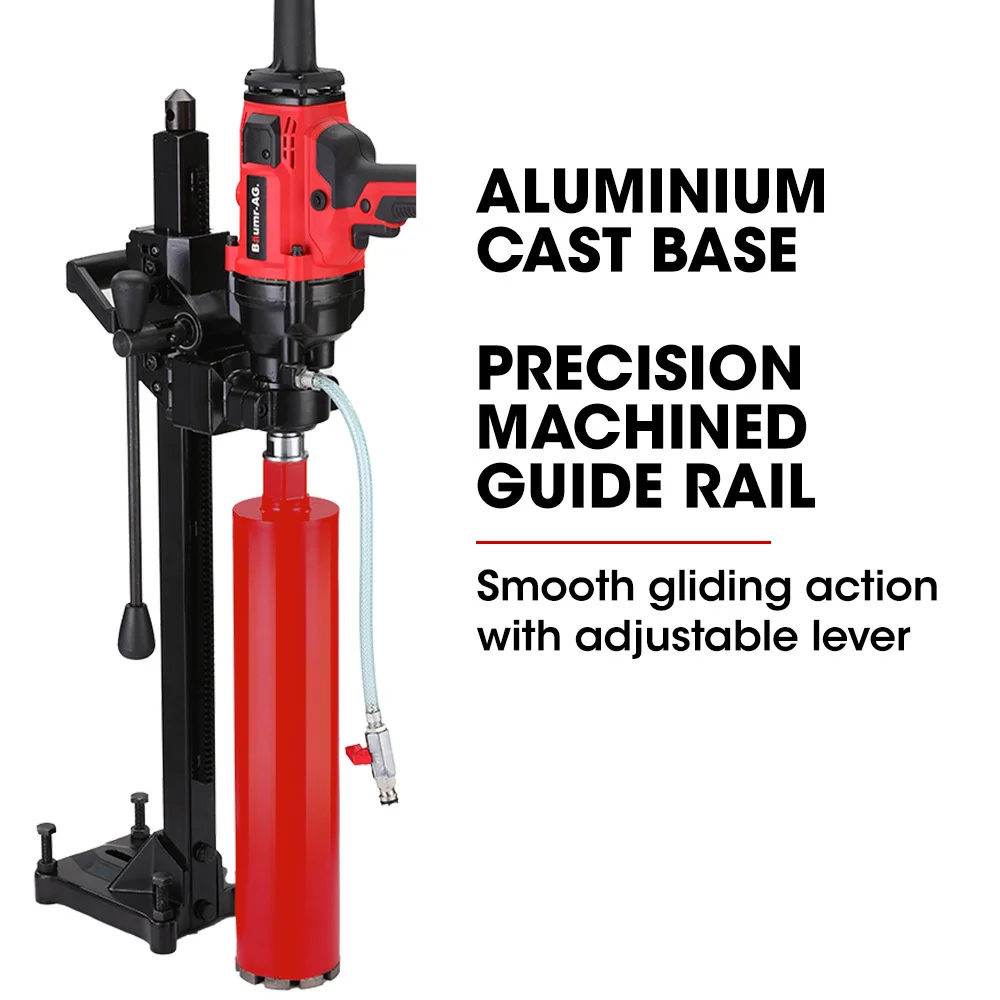

- Construction Material: Drill - aluminium chassis, steel forged output shaft, copper water inlet, copper motor, polycarbonate shoulder stock and handgrip; Stand - aluminium guide rail, steel base
- IP Rating: IP54
Diamond Core Drill Bit - 127mm
- Cutting Diameter: 127mm
- Length: 10mm
- Type: Hole cutter
- Featured Refinements: Hole saw
- Shaft Material: Commercial grade steel
- Cutting Teeth Material: Diamond/steel blend
- Thread Size: 1 1/4 UNC
- Cutting Teeth Length: 10mm
- Threaded Connection: 1 1/4 UNC
Diamond Core Drill Bit - 63mm
- Cutting Diameter: 63mm
- Length: 10mm
- Type: Hole cutter
- Featured Refinements: Hole saw
- Shaft Material: Commercial grade steel
- Cutting Teeth Material: Diamond/steel blend
- Thread Size: 1 1/4 UNC
- Cutting Teeth Length: 10mm
- Threaded Connection: 1 1/4 UNC

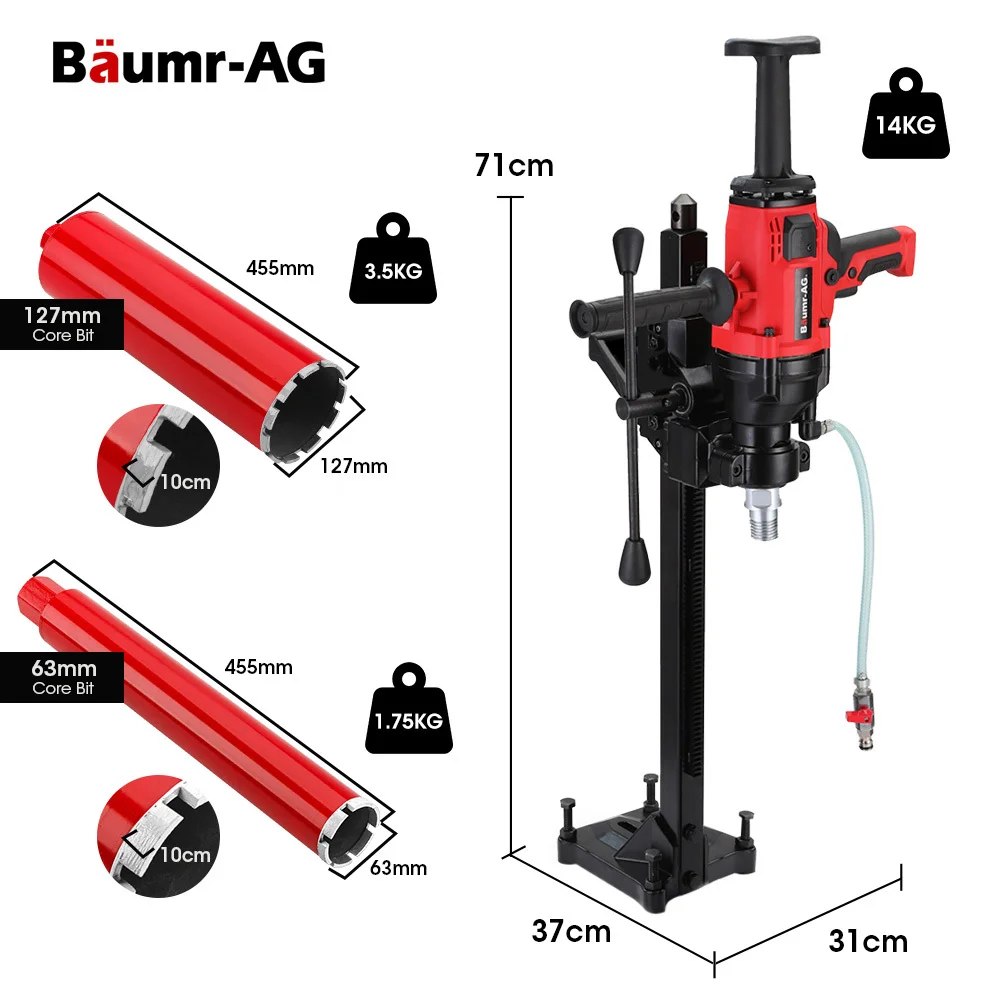

Size and Weight
- 160mm Handheld Core Drill with Stand - Product Dimensions (W x D x H): 310 x 370 x 710mm; Product Weight: 14kg; Carton Dimensions (W x L x H): 36 x 82 x 19cm; Carton Weight: 19kg
- Diamond Core Drill Bit - 127mm - Product Dimensions: 127mm x L455mm; Product Weight: 3.5kg; Carton Dimensions (W x L x H): 13 x 47 x 13cm; Carton Weight: 4kg
- Diamond Core Drill Bit - 63mm - Product Dimensions: 63mm x L455mm; Product Weight: 1.75kg; Carton Dimensions (W x L x H): 7.5 x 47 x 7.5cm; Carton Weight: 2kg

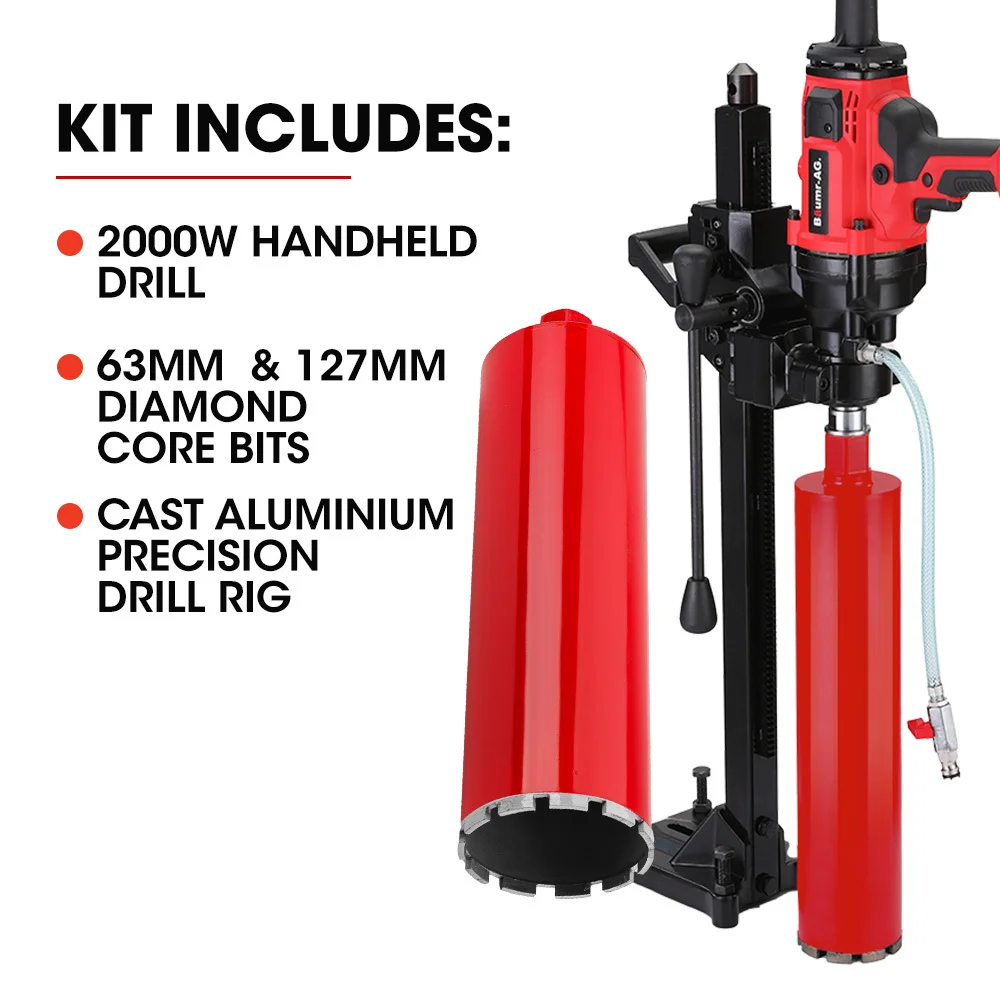

What's in the Box
- 1 x Baumr-AG Core Drill
- 1 x Drill Rig (assembly required)
- 1 x Baumr-AG 127mm Diamond Core Drill Bit
- 1 x Baumr-AG 63mm Diamond Core Drill Bit
- User Manual Accessible Online
