Baumr-AG 3200W Wet/Dry Diamond Core Drill 300mm Concrete Hole Drilling
Click to enlarge

Baumr-AG 3200W Wet/Dry Diamond Core Drill 300mm Concrete Hole Drilling

$636.00AUD
In Stock

Product Description

The Baumr-AG 3200W Wet/Dry Diamond Core Drill is a heavy-duty drilling machine built for concrete hole drilling and coring through reinforced concrete, red brick and granite. With a 300mm maximum drilling diameter and a powerful copper motor, it handles demanding construction and repair tasks with precision and stability.

Key Features

  • 3200W motor for consistent power delivery
  • 300mm maximum drilling diameter
  • Pierces through reinforced concrete, red brick and granite

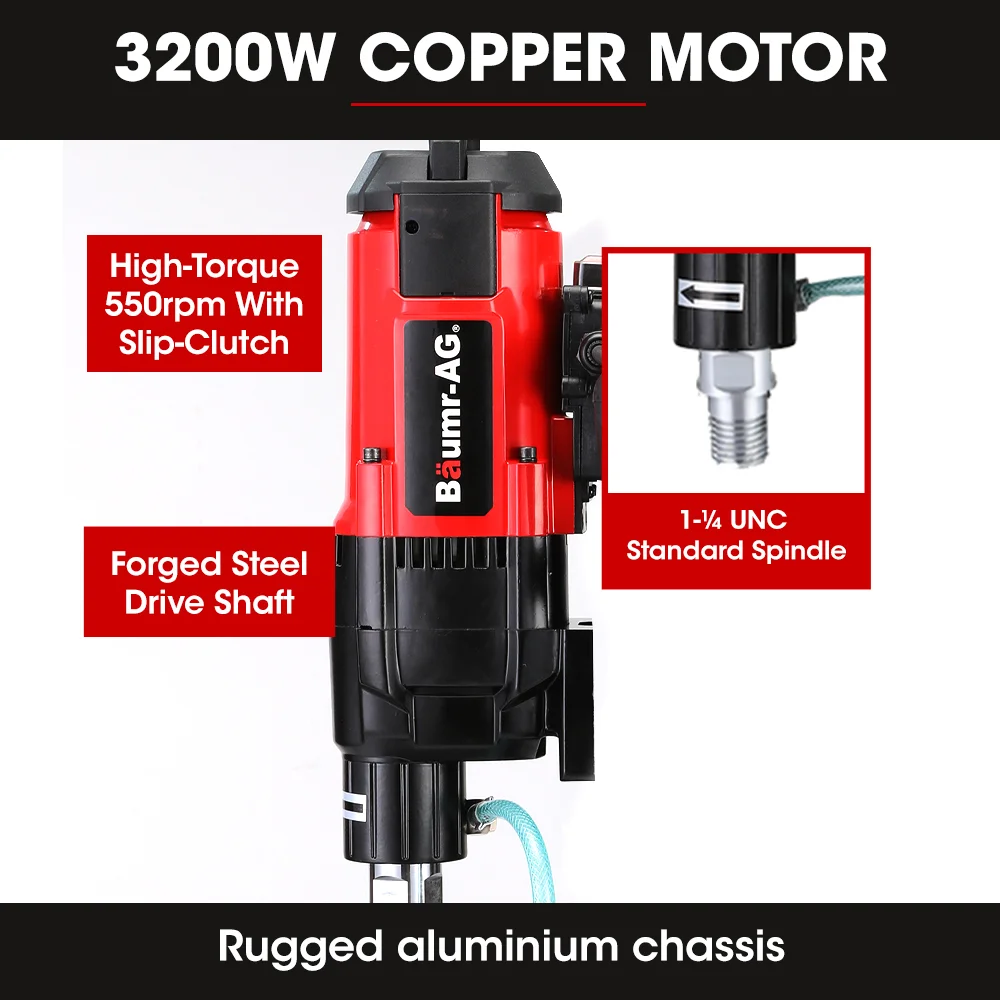

  • Copper motor for high reliability
  • Automatic slip-clutch protects against overload and sudden bit seizing
  • 550RPM single speed for relentless power
  • Versatile machine for demolition, drilling, digging and punching tasks
  • IP54 rating for dust protection and splash resistance
  • Aluminium chassis for strength and longevity
  • Steel-forged drill shaft for exceptional quality
  • 1-1/4 inch UNC standard-sized spindle thread

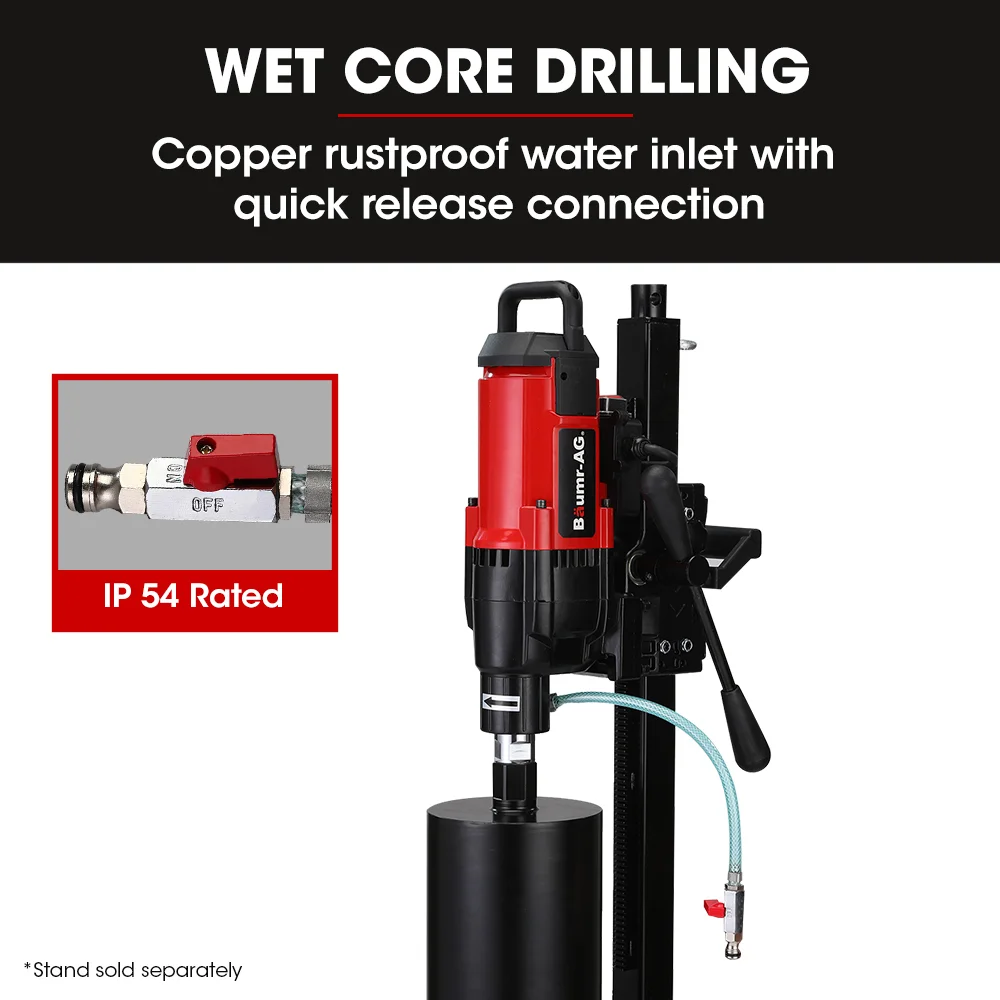

  • Corrosion-proof water inlet
  • Quick release inlet valve to turn the water supply on and off

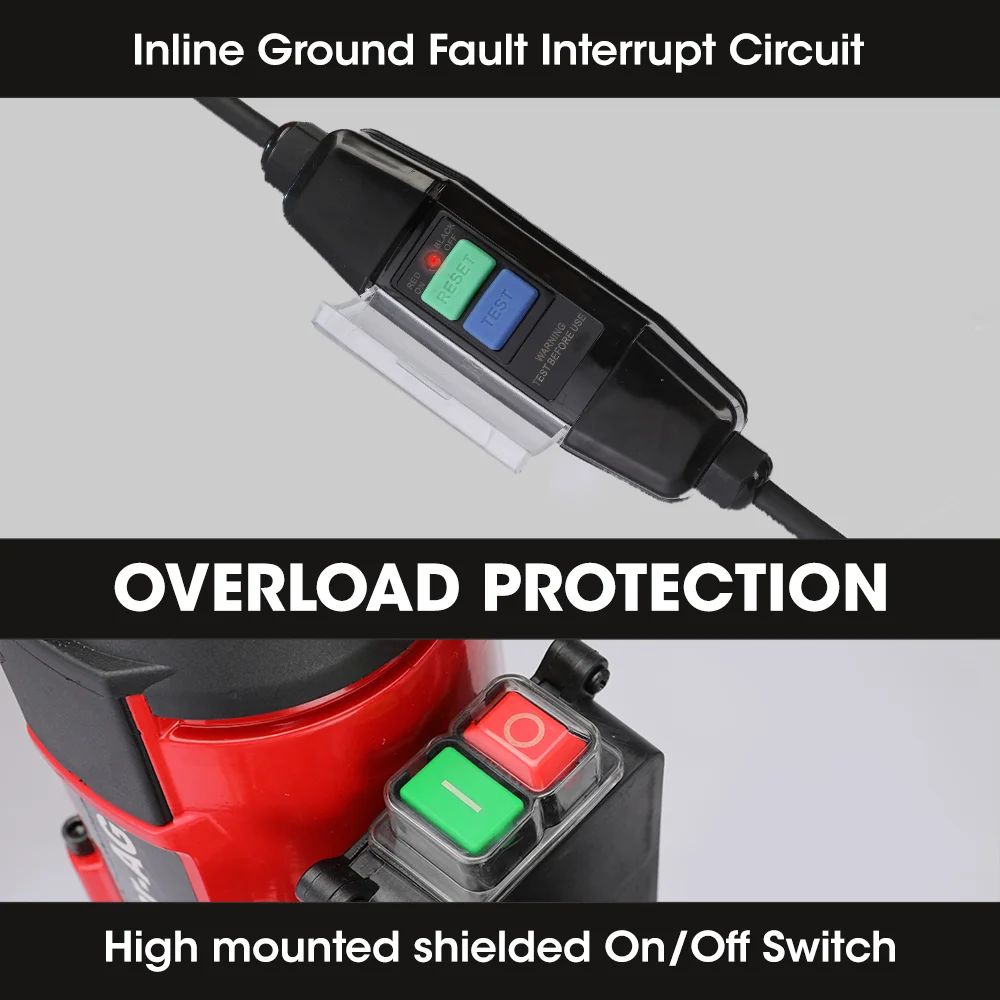

  • Inline circuit interrupt with overload protector to prevent motor damage
  • Chassis-mounted on/off switch for added safety
  • Double insulation for motor protection and operator safety

Specifications

  • Model: HCD-280
  • Input Voltage: 240V / 50Hz AC
  • Rated Output Power: 3200W

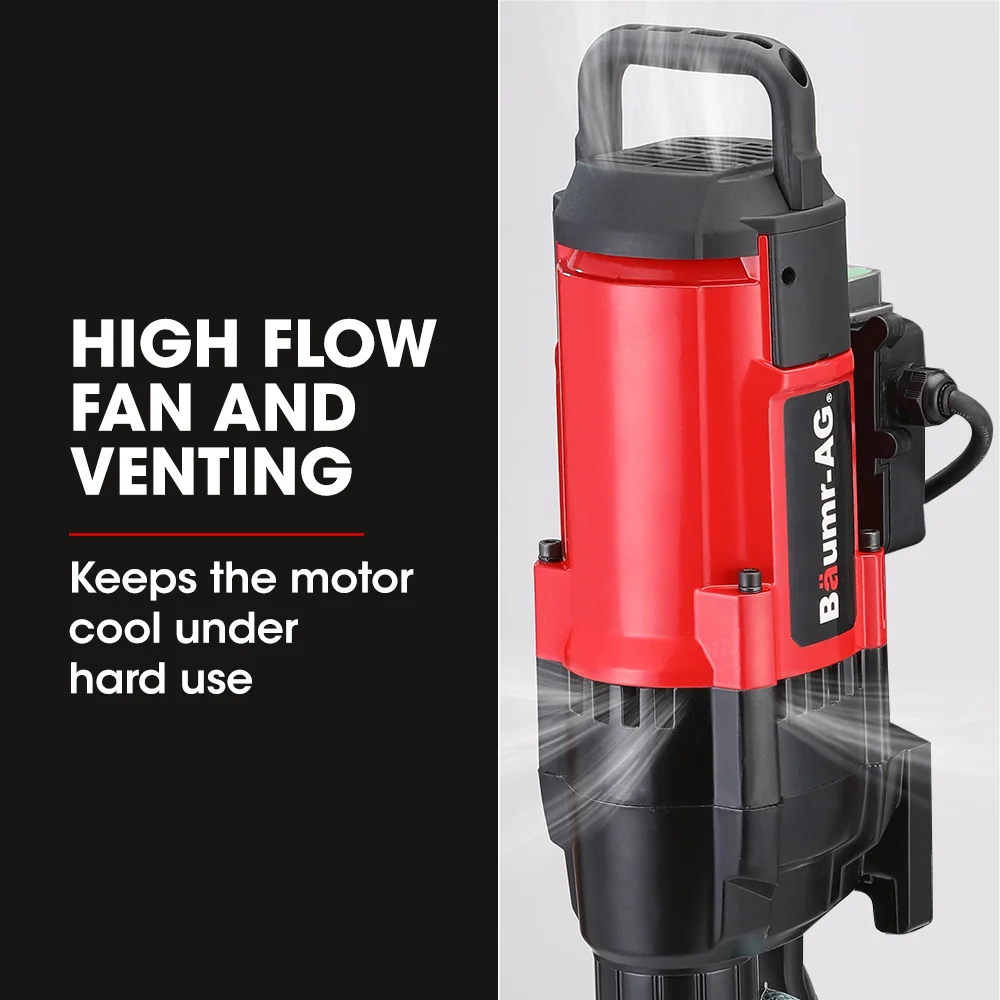

  • Cooling Method: Air
  • No Load Speed: 550r/min
  • Power Plug: 15amp
  • Speeds: 1 speed
  • Drilling Diameter Range: 20-300mm (280mm without the included connector)
  • Spindle Thread: 1-1/4' UNC

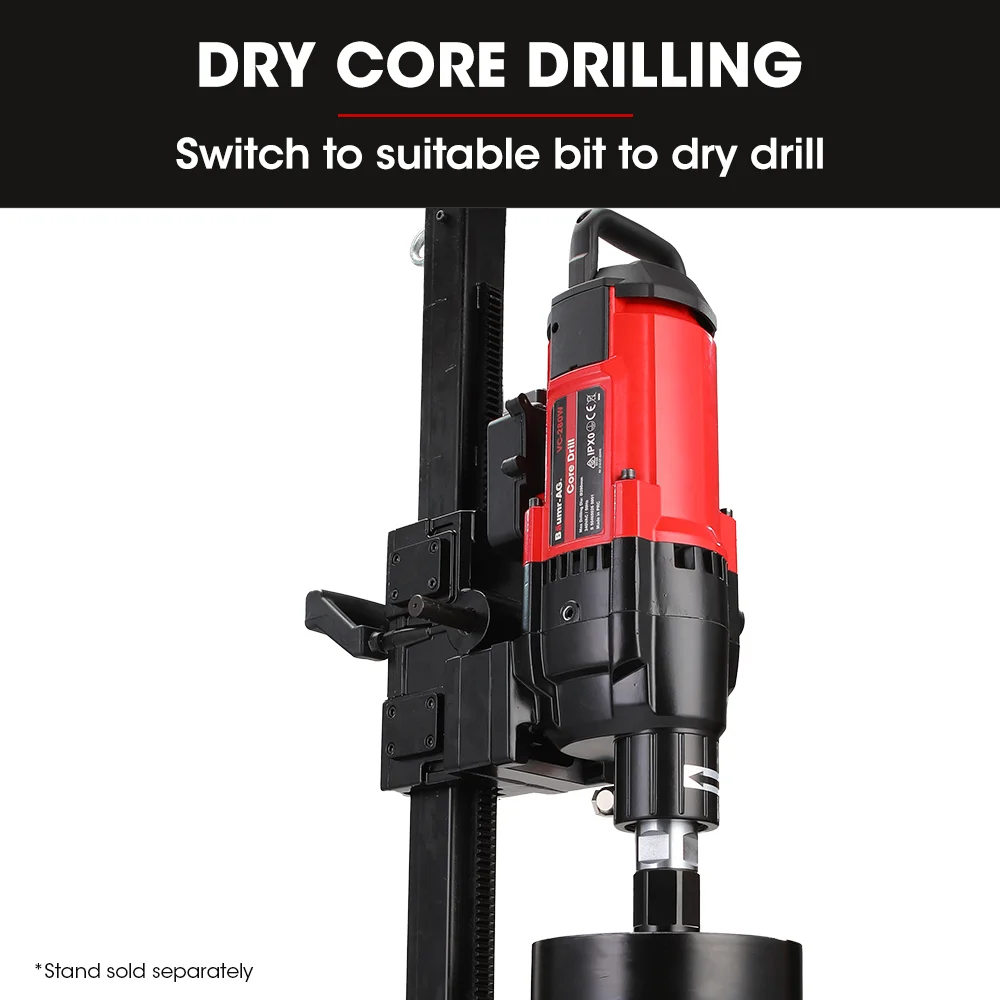

  • Coring Type: Wet/Dry Coring
  • Construction Material: Aluminium chassis, steel forged output shaft, copper water inlet, copper motor with carbon brushes

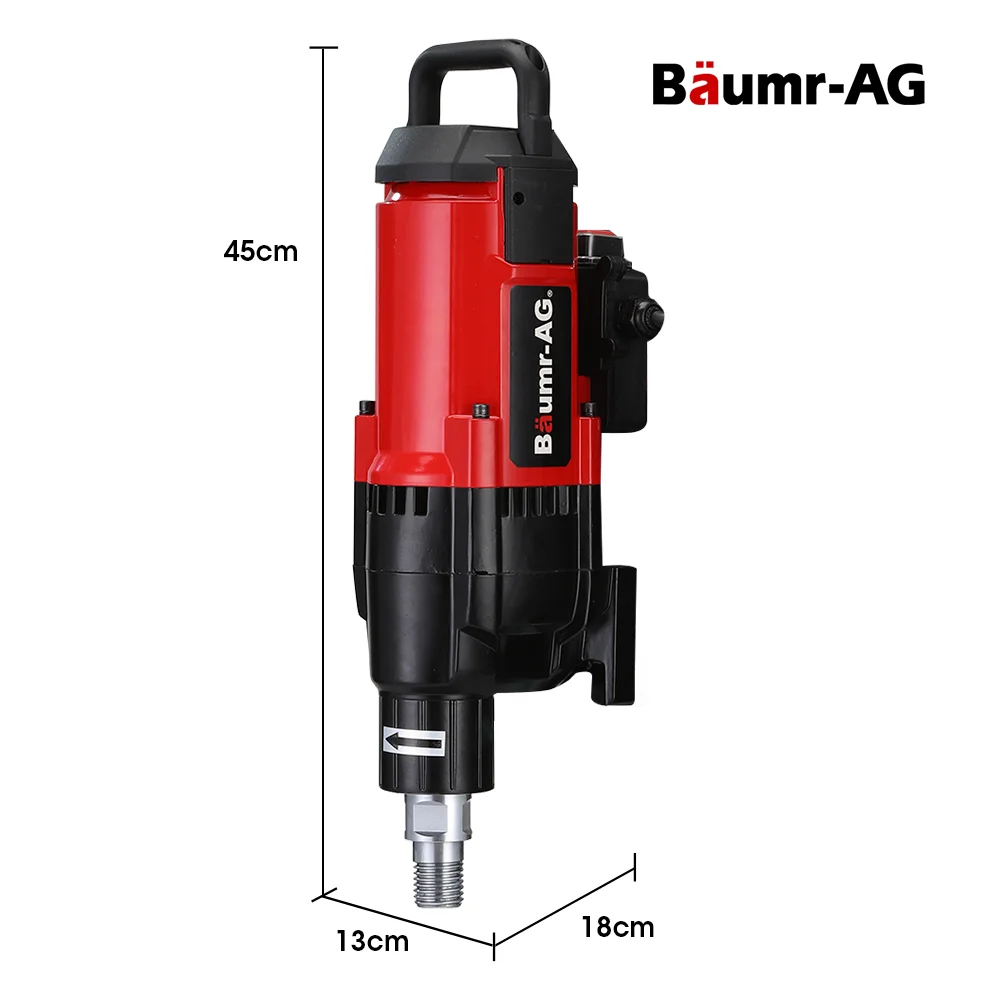

  • Product Dimensions (W x L x H): 13 x 45 x 18cm
  • Product Weight: 11kg
  • Carton Dimensions (W x L x H): 20 x 56 x 23cm
  • Carton Weight: 14kg

What's in the Box

  • 1 x Baumr-AG Core Drill
  • Note: User Manual is accessible online

Specifications

BrandBaumr-AG
Weight13.8 kg
Dimensions56×20×23 cm
