Baumr-AG 1800W Handheld Core Drill HC-120 with 76mm Diamond Drill Bit

The Baumr-AG HC-120 Handheld Core Drill Combo pairs an 1800W wet/dry core drill with a 76mm diamond core drill bit, giving you a powerful, portable setup for coring holes in reinforced concrete, red brick, granite and other tough materials. Lightweight enough to carry and use in any position, it delivers precise control for demanding drilling, demolition and installation work.

Key Features

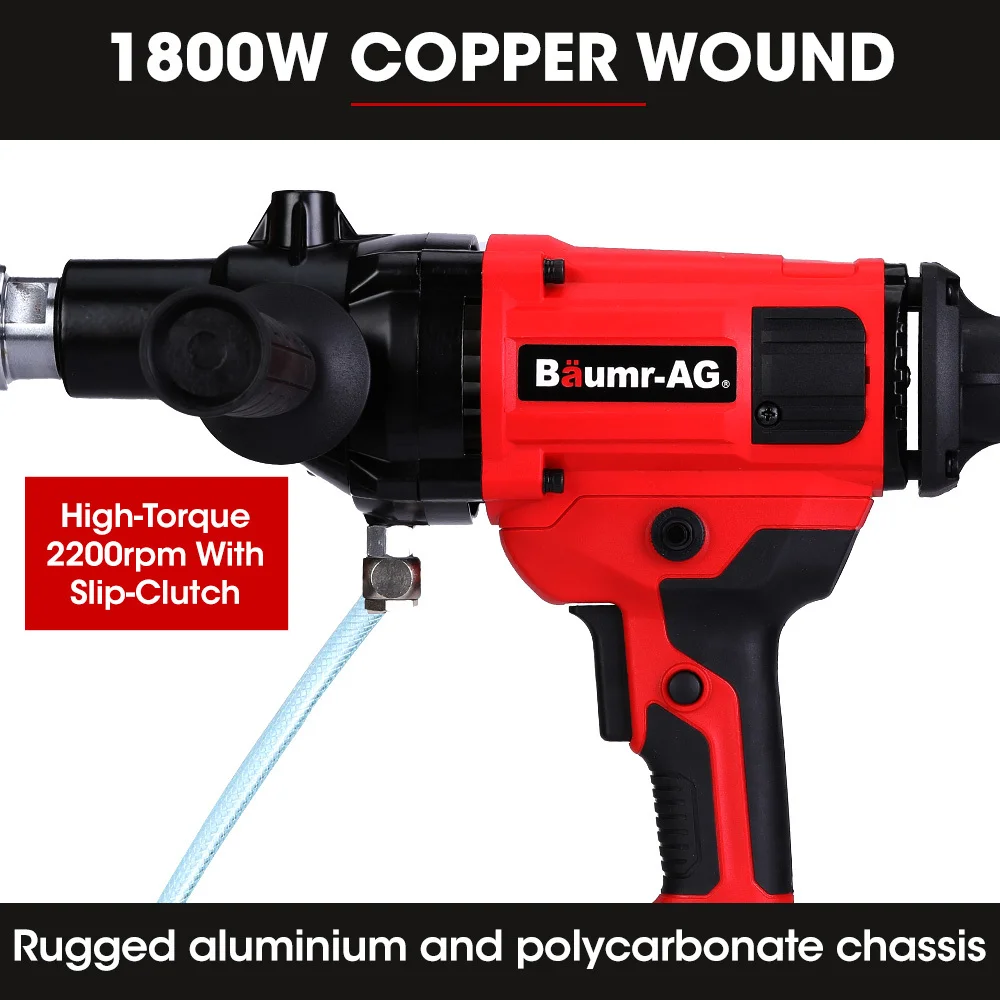

• 1800W copper motor for consistent power delivery
• 120mm maximum drilling diameter
• Pierces reinforced concrete, red brick and granite

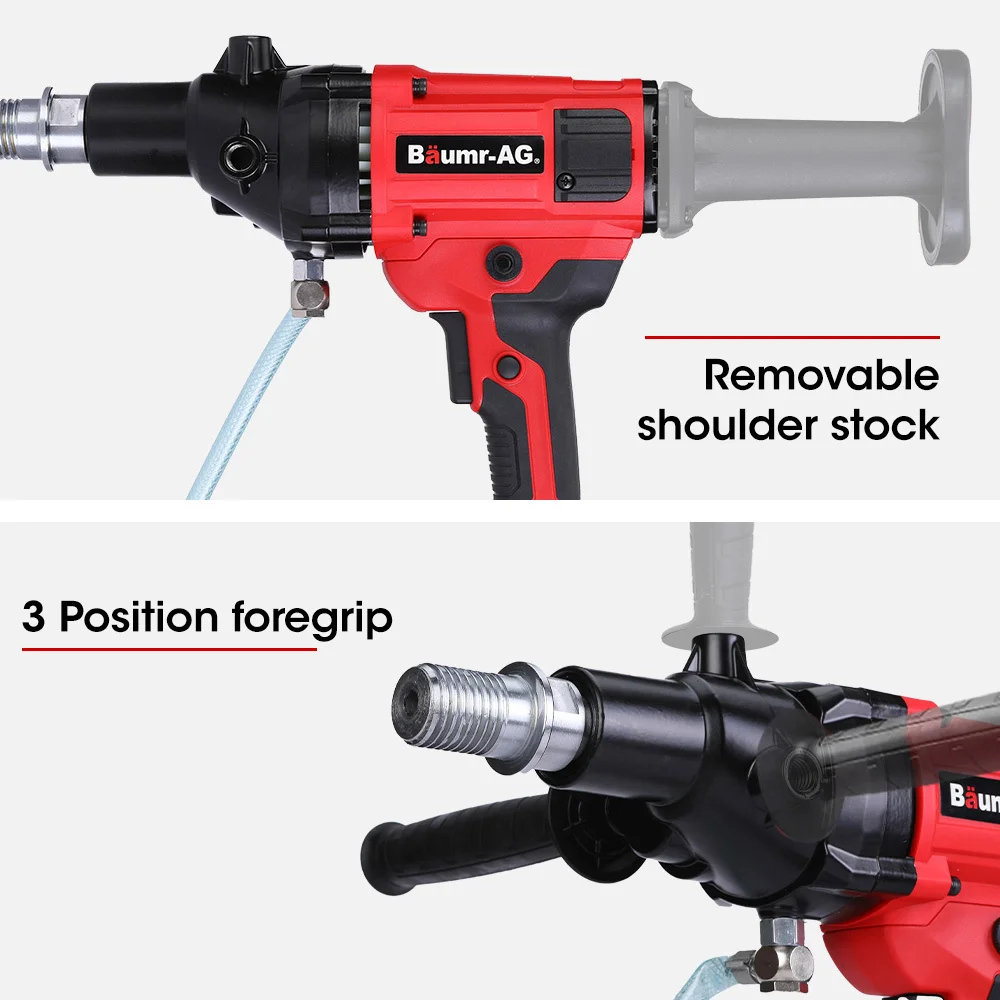

• Polycarbonate shoulder stock and adjustable barrel grip for steady, non-slip drilling
• Automatic slip-clutch delivers maximum power and protects against overload and sudden bit seizing
• Variable speed trigger with 2200RPM maximum speed
• Suitable for demolition, drilling, digging and punching tasks
• IP54 rating for dust protection and splash resistance
• Aluminium construction for strength and longevity

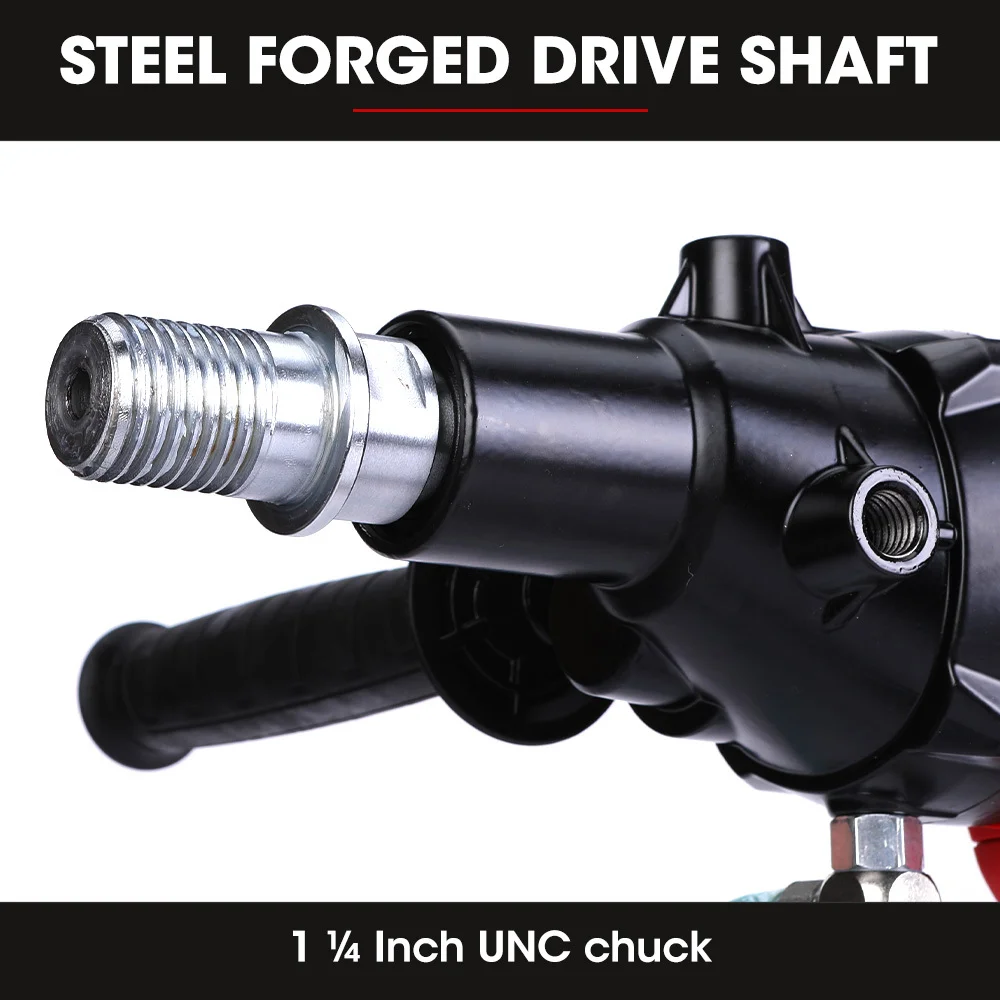

• Steel-forged drill shaft for robustness
• 1 1/4 inch UNC standard-sized spindle thread
• Corrosion-proof copper water inlet

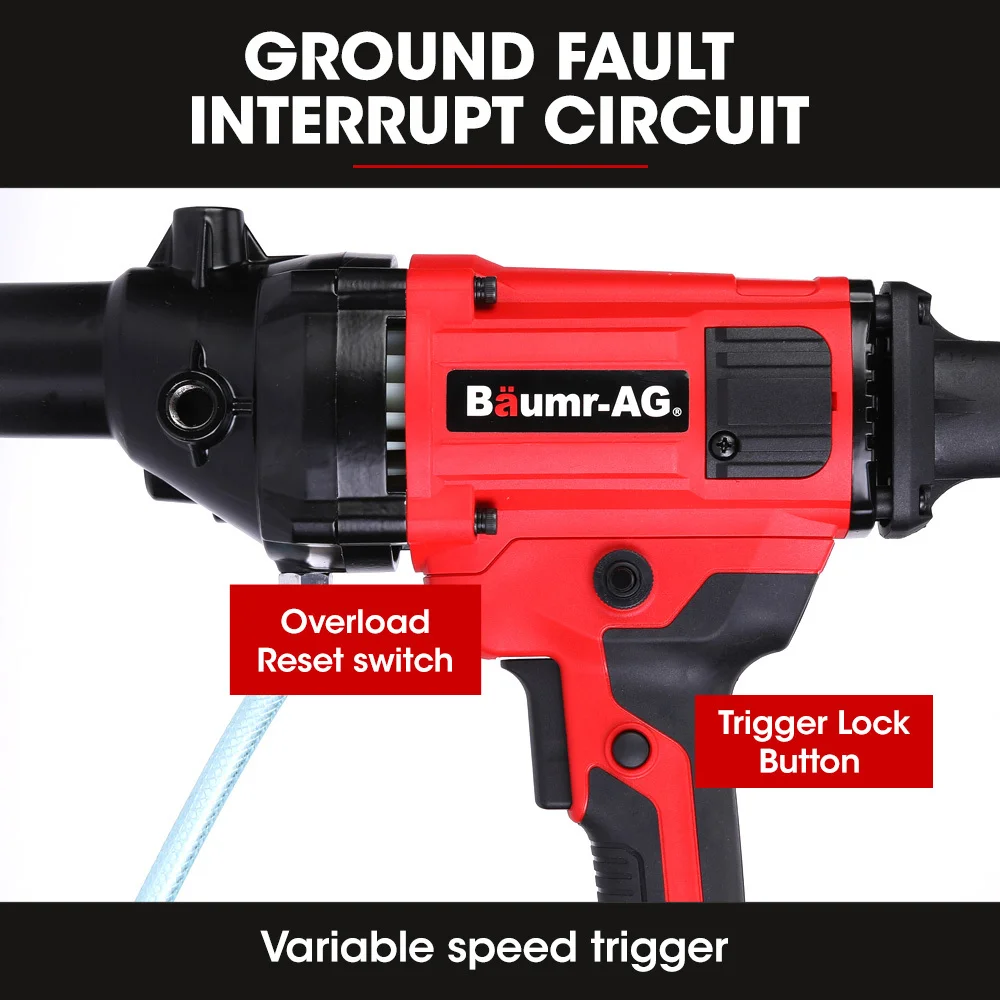

• Inline circuit interrupt switch for overload protection and on/off functionality
• Double insulation for motor protection and operator safety
• Diamond cutting teeth drill bit suited to a wide range of construction and repair tasks

Specifications

120mm Handheld Core Drill

• Model: HC-120
• Input Power: 240V 50Hz AC
• Rated Output Power: 1800W

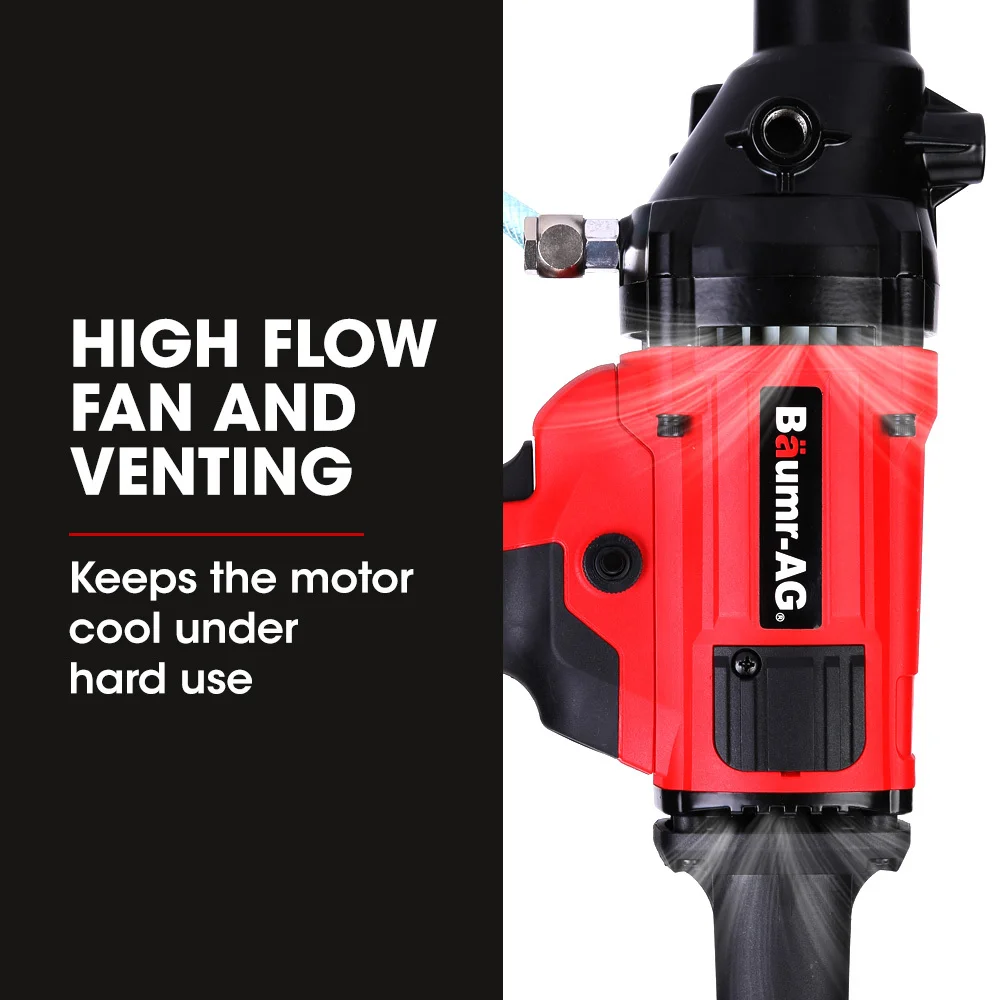

• Cooling: Air cooled
• No load speed: 2200r/min
• Speeds: Variable speed trigger
• Drilling Size Range: 20-120mm
• Spindle Thread: 1-1/4 inch UNC
• Coring Type: Wet/Dry coring
• Construction Material: Aluminium chassis, steel forged output shaft, copper water inlet, copper motor, polycarbonate shoulder stock and handgrip
• IP Rating: IP54

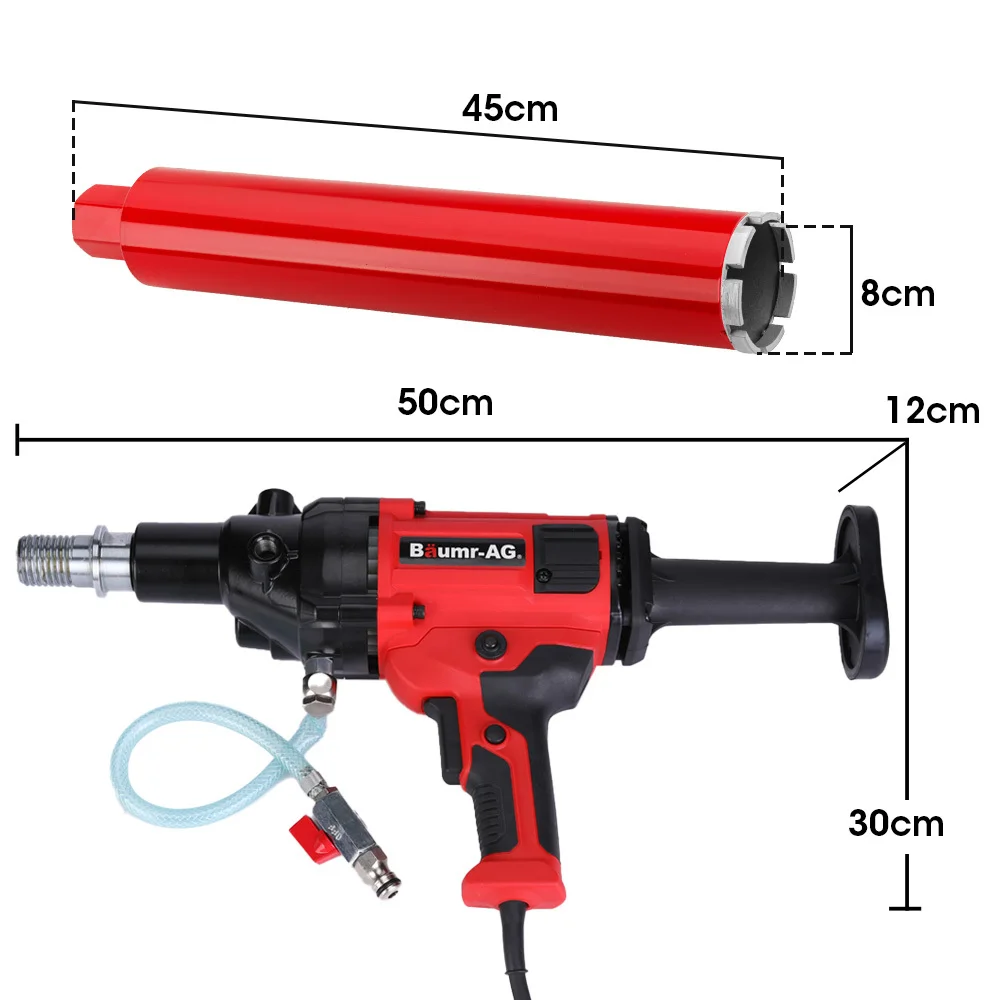

• Product Dimensions (W x L x H): 120 x 500 x 300mm
• Product Weight: 5kg
• Carton Dimensions (W x L x H): 14 x 46 x 34cm
• Carton Weight: 8kg

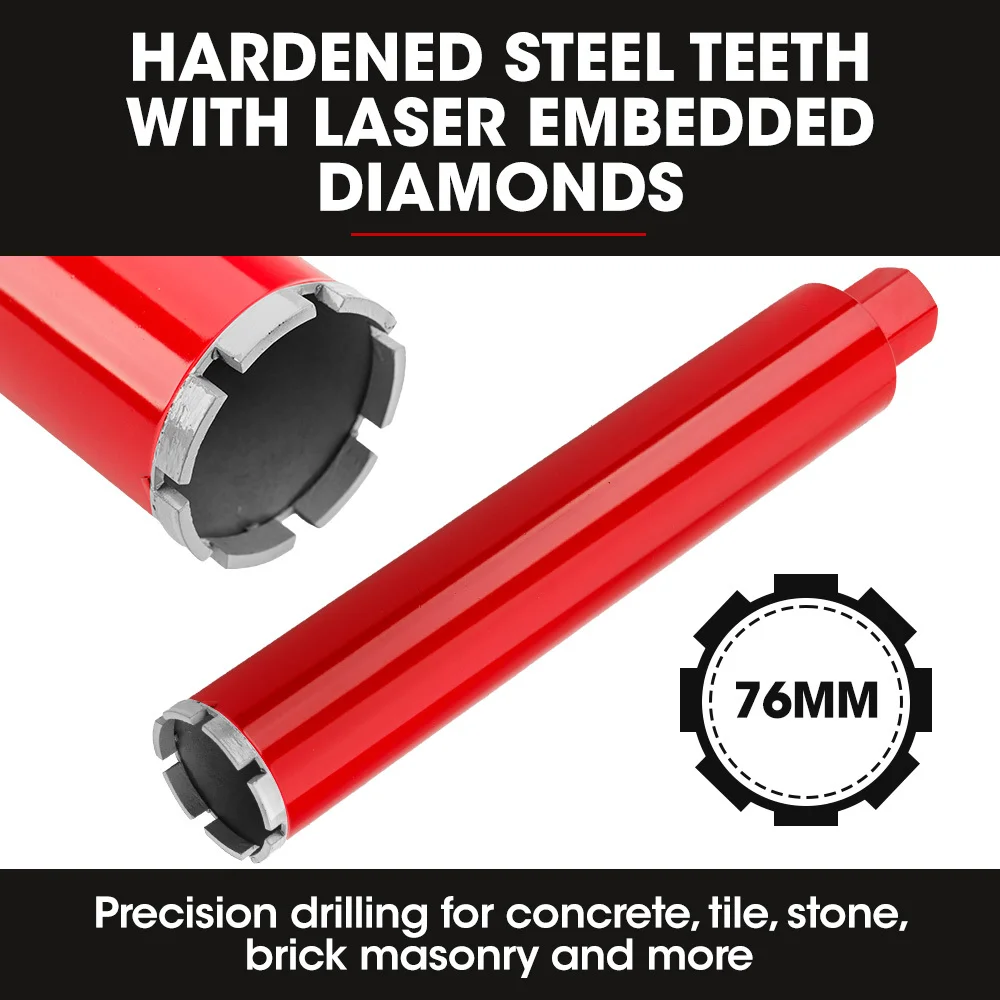

Diamond Core Drill Bit - 76mm

• Cutting Diameter: 76mm
• Length: 10mm
• Type: Hole cutter
• Featured Refinements: Hole saw
• Shaft Material: Commercial grade steel
• Cutting Teeth Material: Diamond/steel blend
• Thread Size: 1 1/4 UNC
• Cutting Teeth Length: 10mm
• Threaded Connection: 1 1/4 UNC
• Product Dimensions: 76mm x L455mm
• Product Weight: 1.85kg
• Carton Dimensions (W x L x H): 9 x 47 x 8cm
• Carton Weight: 3kg

What's in the Box

• 1 x Baumr-AG Core Drill
• 1 x Baumr-AG Diamond Core Drill Bit
• User Manual Accessible Online
