Baumr-AG 6.5HP Petrol Stationary Engine 196cc 4-Stroke OHV Horizontal Shaft Recoil Start

The Baumr-AG 6.5HP Petrol Stationary Engine is a reliable 196cc 4-stroke OHV horizontal shaft motor built to replace tired engines on generators, water pumps, air compressors, log splitters, high pressure cleaners, go karts and a wide range of construction and agricultural equipment. Its standard shaft and footprint suit most stationary engines on the market, including Briggs and Stratton and Honda patterns, and low oil shut-down helps protect the engine during use.

Key Features

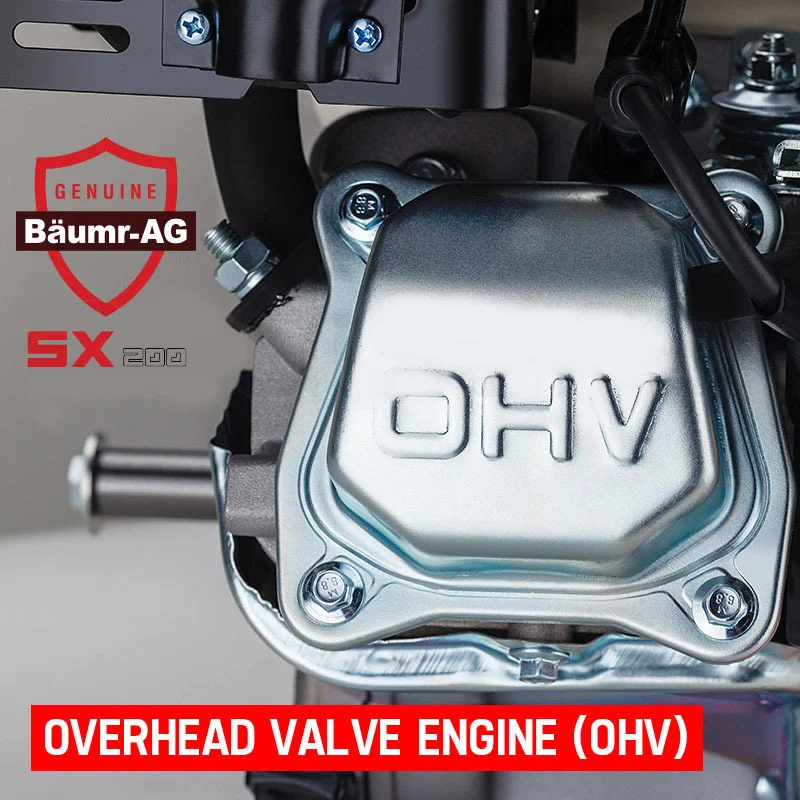

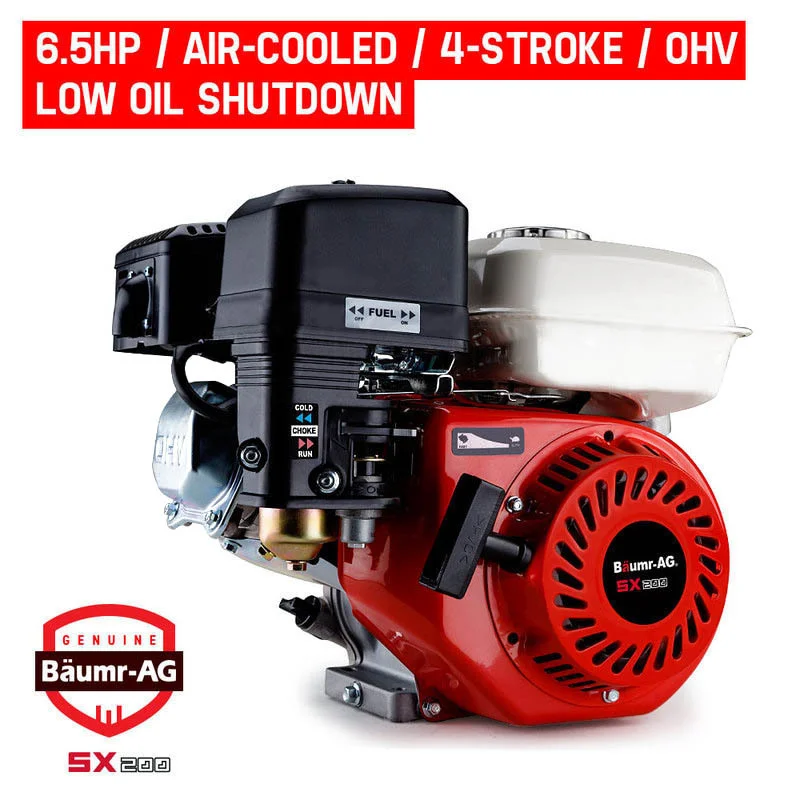

• 1-cylinder, 4-stroke, air-cooled OHV engine

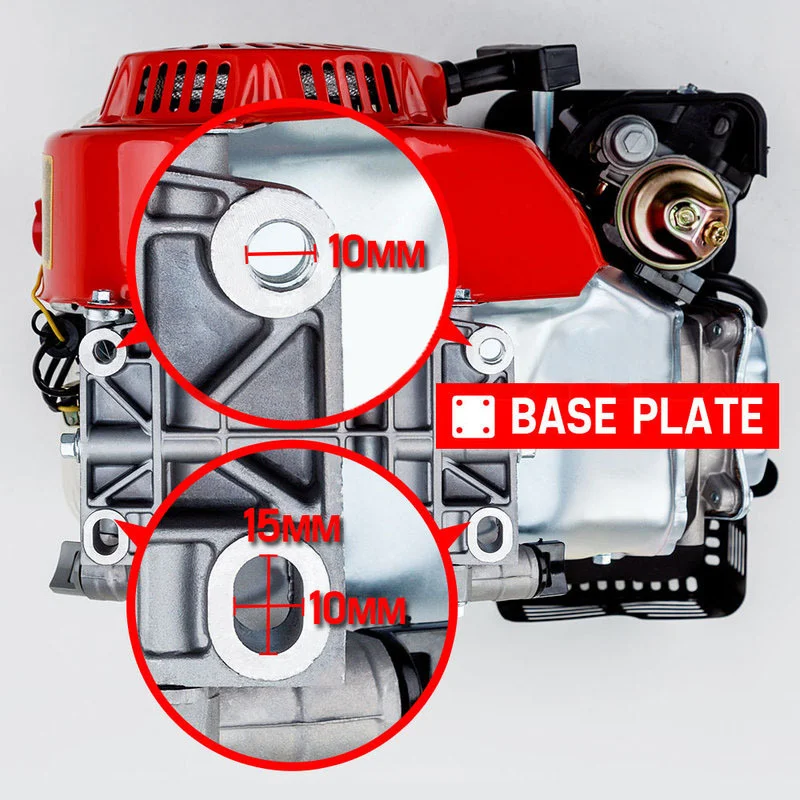

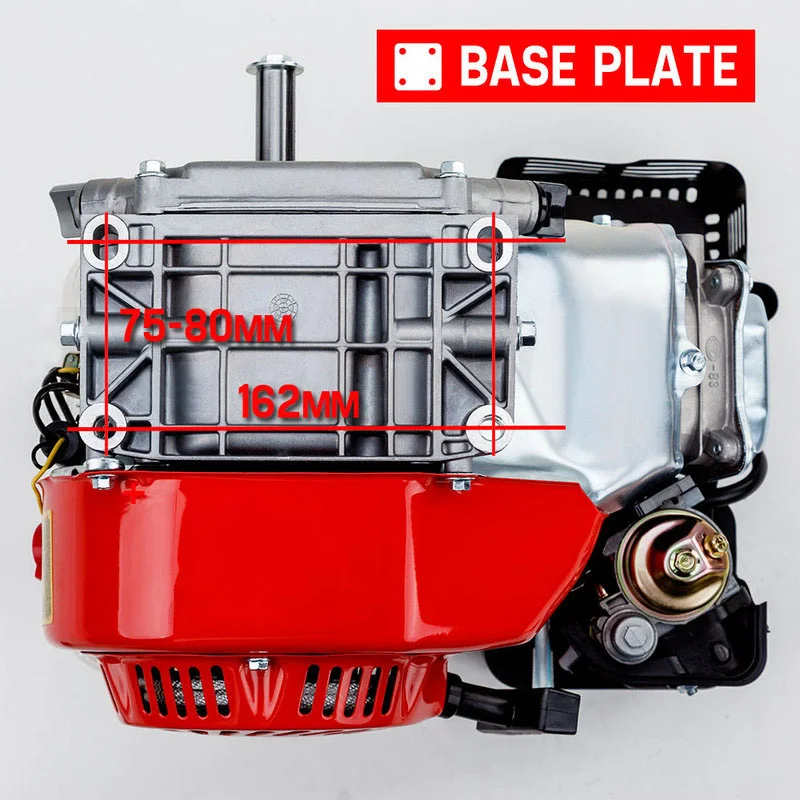

• Standard shaft and footprint to suit most stationary engines on the market, including Briggs and Stratton and Honda patterns
• Low oil shut-down for added engine protection
• Designed for reliable, consistent output with a high power-to-displacement ratio
• Purpose-built components for reliability, good fuel economy and low oil usage
• Recoil starting system
• Transistor magneto ignition
• Semi-dry, silent, cyclone air cleaner
• Suitable for industrial, agricultural and domestic applications

Specifications

• Engine Type: 1-cylinder; 4-stroke; air-cooled; OHV
• Bore x Stroke: 68 x 45 mm
• Displacement: 196CC
• Compression Ratio: 8.5:1
• Maximum Power Output: (6.5HP) 4.8kW
• Rated Power Output: (5.7HP) 4.2kW
• Keyway: 5mm
• Shaft Length: 58mm
• Speed: 3600rpm
• Maximum Torque: 14N.m
• Ignition System: Transistor magneto
• Starting System: Recoil
• Engine Oil Type: 10W-30 / 10W-40 / 15W-30 / 15W-40 non-synthetic engine oil (not included with purchase)
• Engine Oil System Capacity: 0.6 Litres

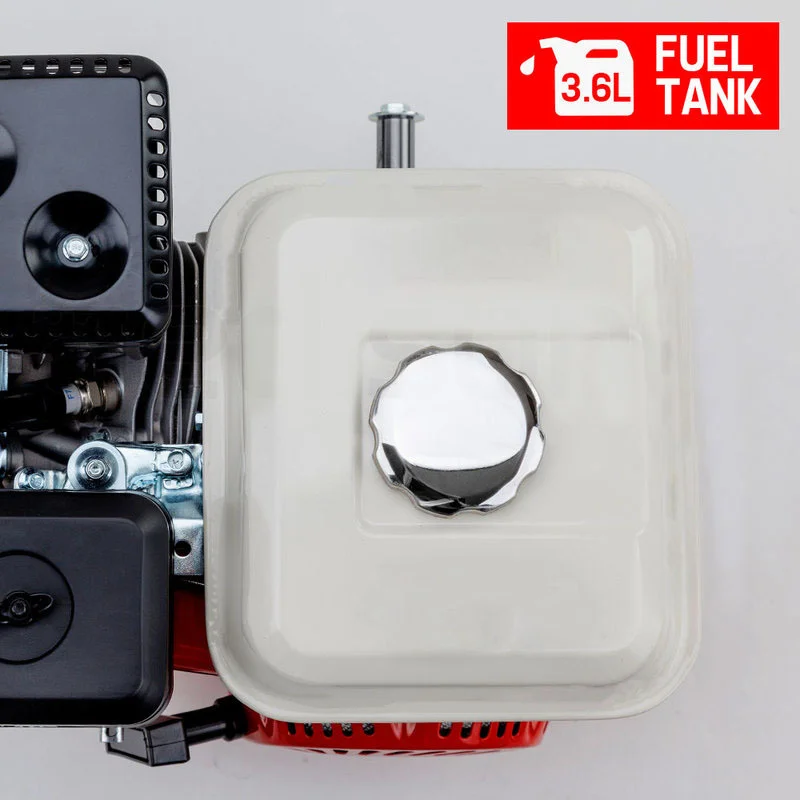

• Fuel Capacity: 3.6 Litres
• Fuel Type: Regular Unleaded 95+ RON
• Min. Fuel Consumption: 360g/Kw/h
• Output Axle Steering: Left
• Air Cleaner: Semi-dry, silent, cyclone

Size and Weight

• Carton Weight: 17 kg
• Carton Dimensions (L x W x H): 42 x 39 x 39 cm
• Product Weight: 15 kg

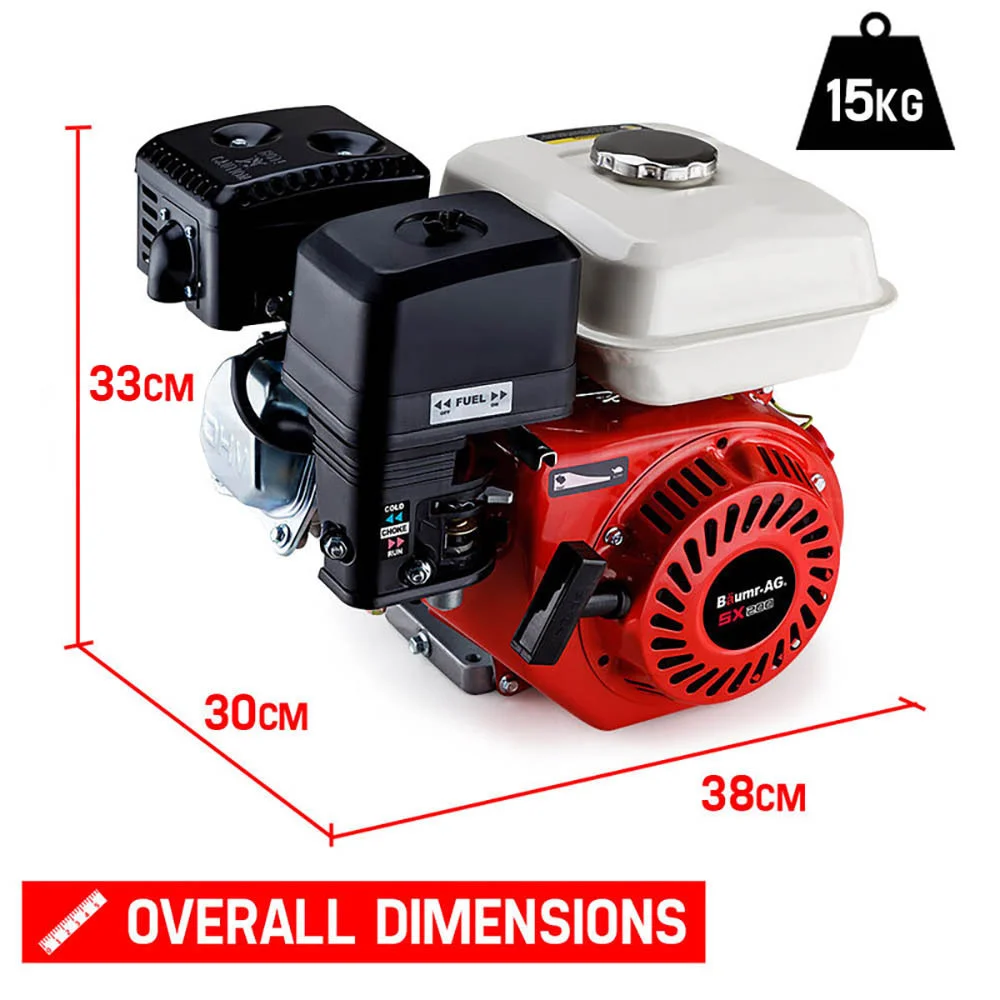

• Product Dimensions (L x W x H): 38 x 30 x 33 cm

What's in the Box

• 1x Baumr-AG SX200 Stationary Petrol Engine
