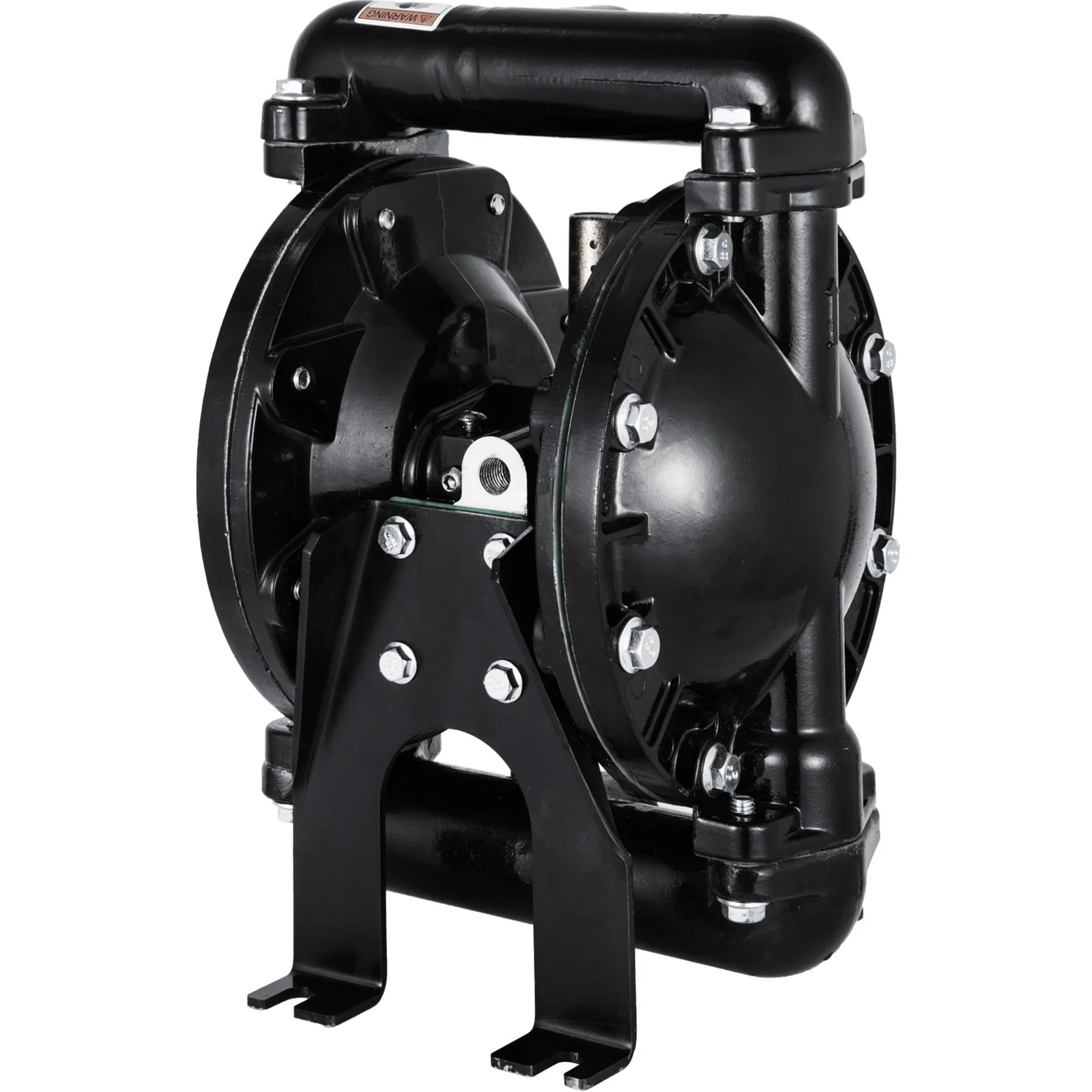

VEVOR Air-Operated Double Diaphragm Pump 24 GPM 1 Inch Inlet and Outlet

The VEVOR air-operated double diaphragm pump delivers a 24 GPM flow rate through 1 inch inlet and outlet ports, making it a dependable choice for transferring waste oil, fuel, detergent and other fluids across workshops and industrial settings.

Key Features

• Double PTFE diaphragms for durability and corrosion resistance
• Aluminium alloy housing, bolted against leakage for sturdy, long-term use
• High-quality glyd ring with double-acting sealing to strengthen air performance
• Externally available air distribution system with a stainless modular air valve
• Low pulsation air valve for smooth, rapid changeover, greater efficiency and minimal downtime
• Handles a wide range of fluids including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent and drink
• Suited to industries such as petroleum, metallurgy, mining, coating, printing, water treatment and automobile

Specifications

• Max flow rate: 24 GPM
• Max pressure: 100 psi
• Max temperature: 150 °F / 66 °C
• Max head lift: 229.6 ft / 70 m ±15%
• Inlet/outlet port size: 1 inch
• Air inlet size: FNPT 1/2 inch
• Diaphragm material: PTFE (double diaphragm)
• Housing material: aluminium alloy
• Air valve: stainless, modular
