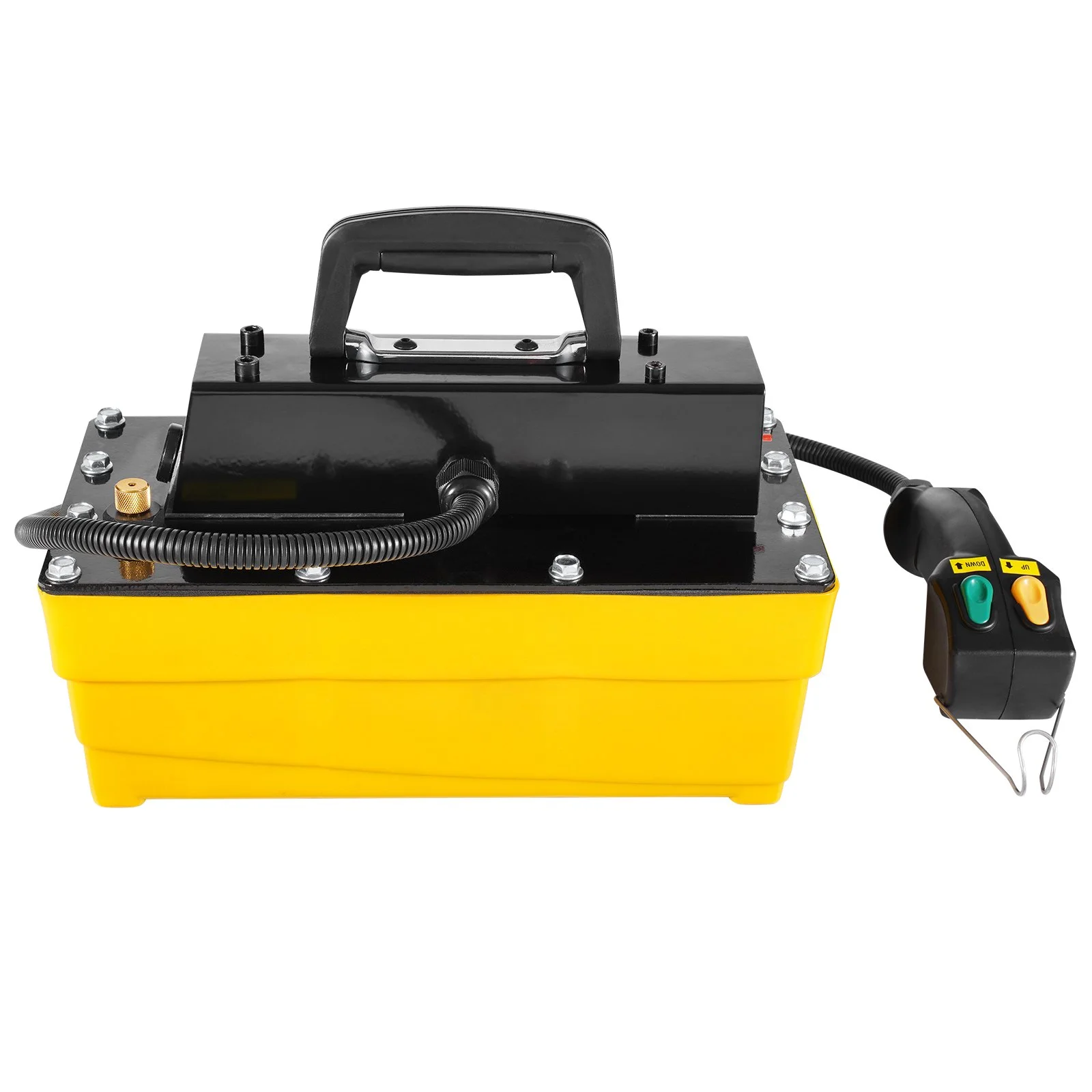

VEVOR 10,000PSI Air Hydraulic Foot Pump, 2.3L Reservoir, NPT 3/8 Outlet

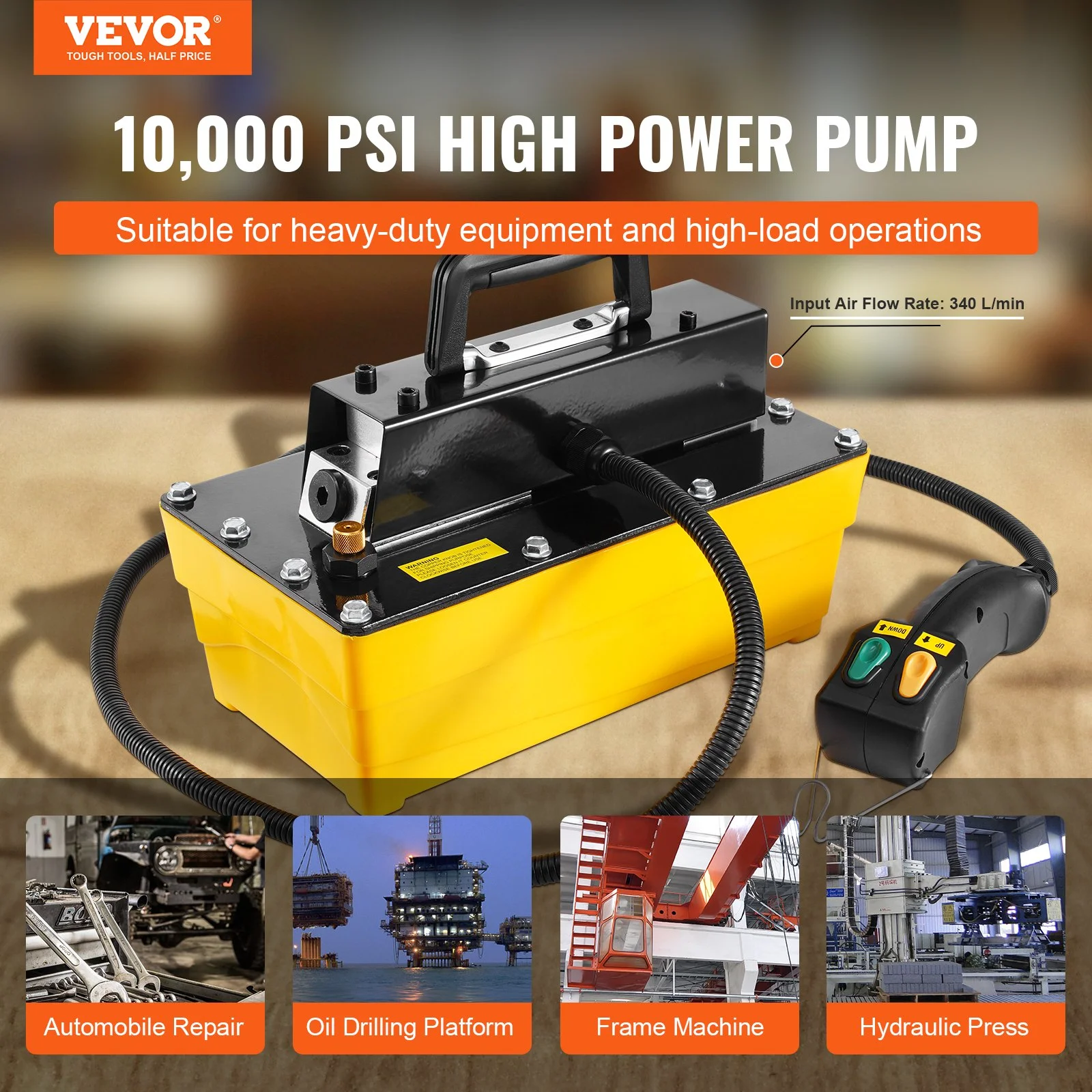

The VEVOR air hydraulic pump delivers up to 10,000 PSI of hydraulic pressure, making it a dependable choice for lifting, pressing, bending, straightening, cutting, assembling and disassembling tasks. It suits automobile frame machines, hydraulic presses and other heavy-duty workshop applications.

Key Features

• Reaches up to 10,000 PSI of hydraulic pressure with an airflow of 340 L/min
• Flow rates of 0.8 L/min (no load) and 0.16 L/min (load)

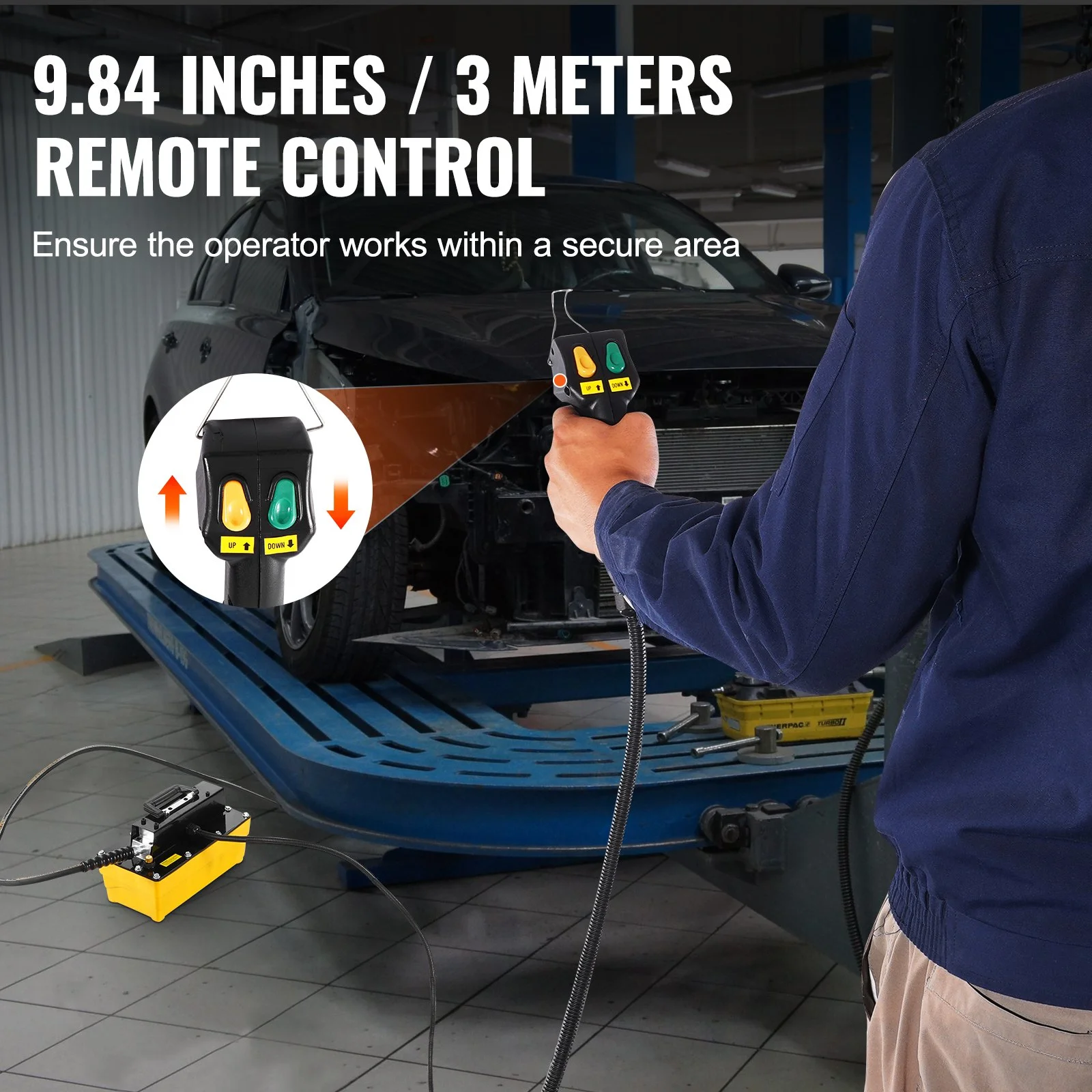

• Air actuated foot pump design with a 9.84 in / 3 m remote control actuator for safer, more comfortable operation and quick reactions in emergencies

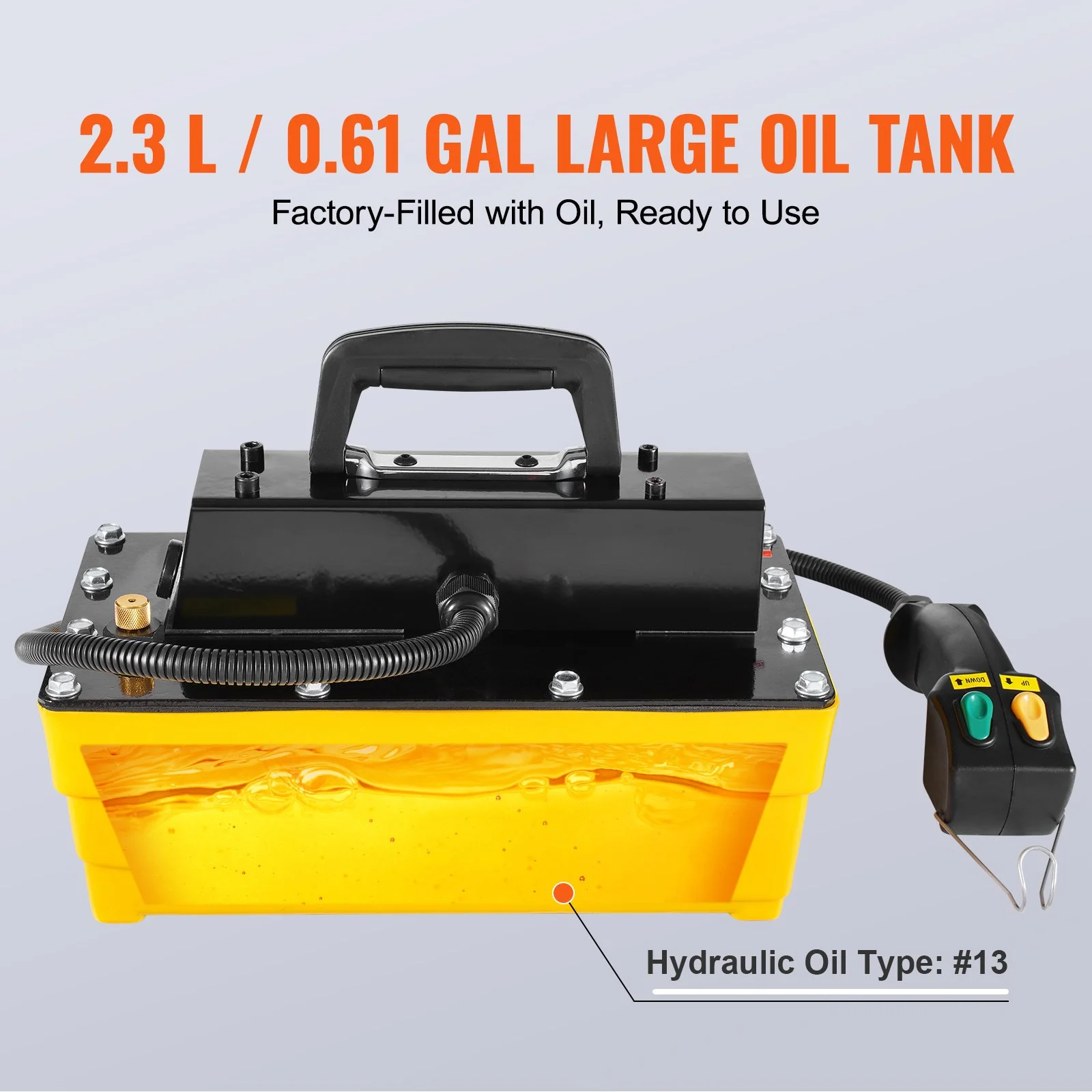

• 2.3 L / 0.61 gal tank factory-filled with hydraulic oil (#13) so you can start working immediately

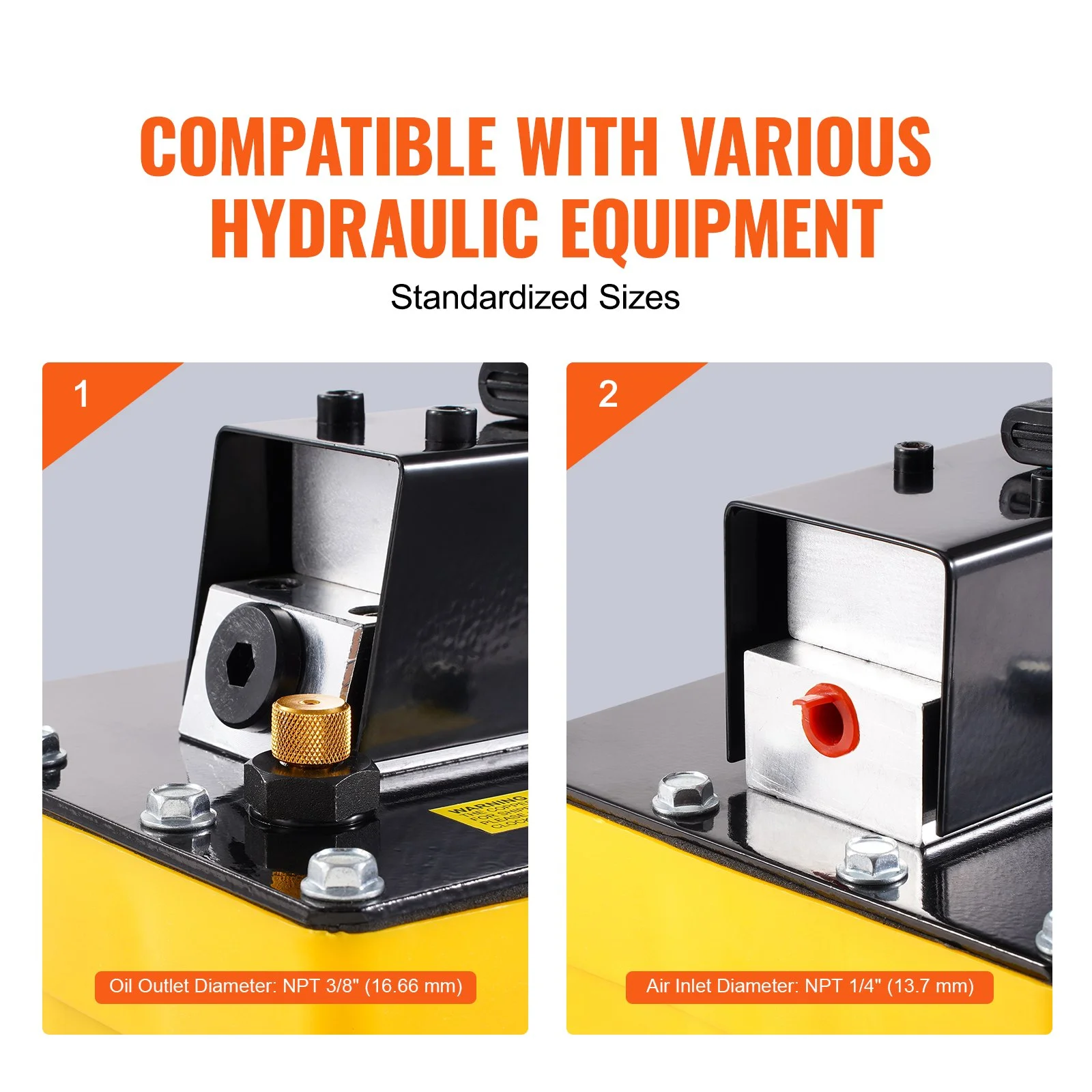

• NPT 1/4 in air inlet and NPT 3/8 in high-pressure oil outlet connect to standard pneumatic accessories
• Constructed from aerospace-grade aluminium with a high-quality casing for harsh industrial environments
• Internal relief valve protects the hydraulic components under pressure

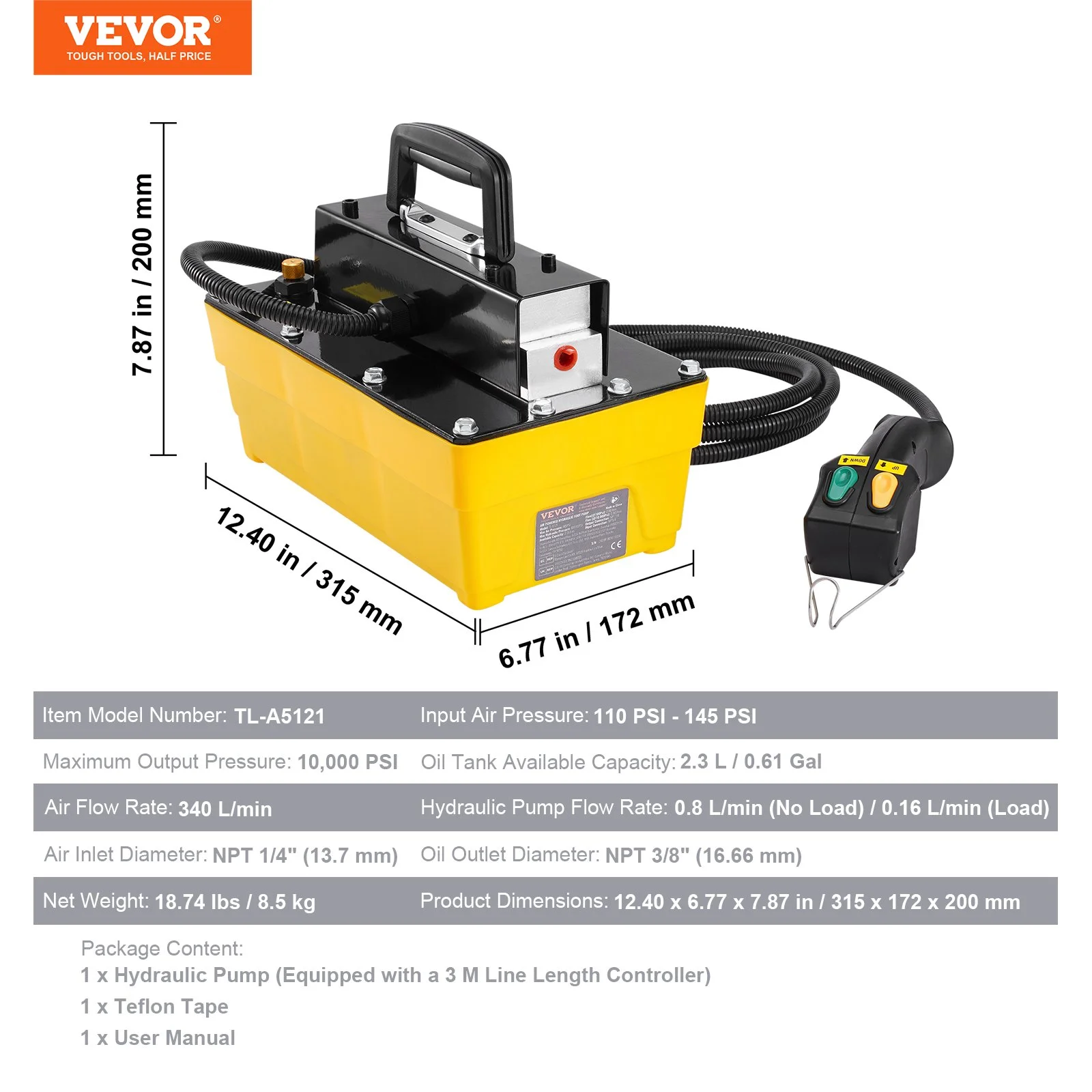

Specifications

• Brand: VEVOR
• Maximum pressure: 10,000 PSI
• Airflow: 340 L/min
• Flow rate (no load): 0.8 L/min
• Flow rate (load): 0.16 L/min
• Reservoir capacity: 2.3 L / 0.61 gal
• Oil type: hydraulic oil #13 (factory-filled)
• Air inlet: NPT 1/4 in
• Oil outlet: NPT 3/8 in
• Remote control actuator length: 9.84 in / 3 m
• Material: aerospace-grade aluminium

What's in the Box

• Air hydraulic foot pump with 2.3 L reservoir (factory-filled with hydraulic oil #13)
• Remote control actuator (9.84 in / 3 m)
