Unimac ACM-700c 70L 2.2kW Belt Drive Air Compressor 280L/min 116PSI

The Unimac ACM-700c is a belt-driven commercial air compressor built for professionals and serious DIYers who need reliable airflow for heavy-duty tasks. With a 70L steel tank, a 3hp motor and a quiet 68 dBa (Lpa) operating level, it delivers consistent air power for pneumatic tools in the workshop or garage.

Key Features

• 3hp motor delivers exceptional power for heavy-duty tasks

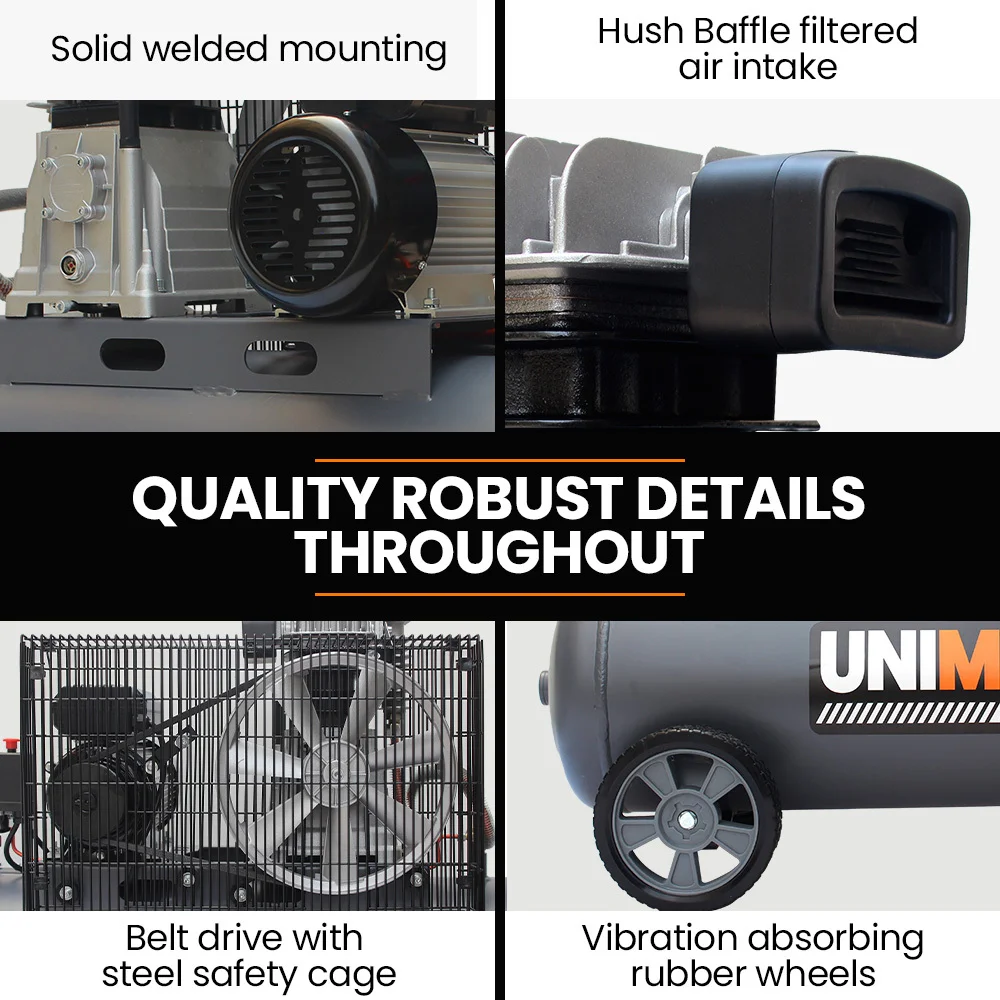

• Belt-driven design for smoother, more efficient and longer-lasting performance

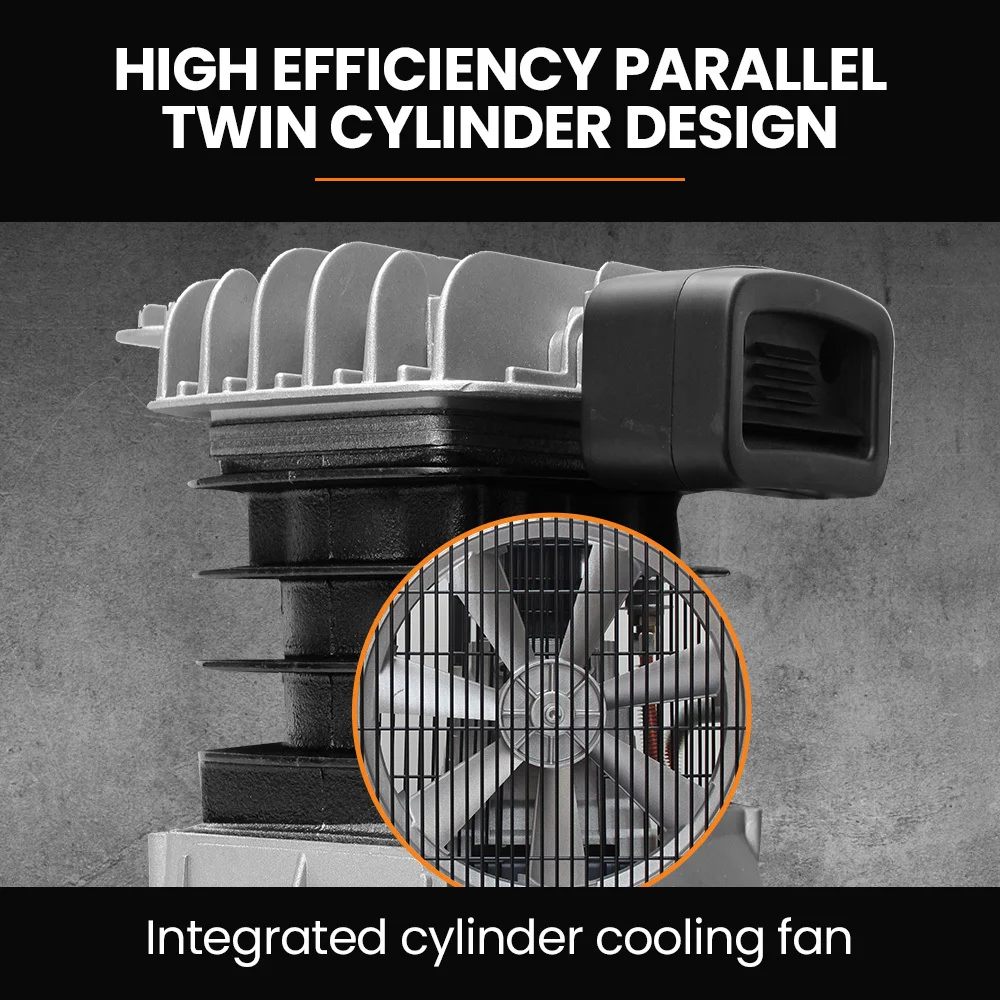

• Durable cast iron parallel twin-cylinder compressor with aluminium pistons
• Large 70L steel tank for extended run times
• 116PSI working pressure with an 86PSI restart pressure

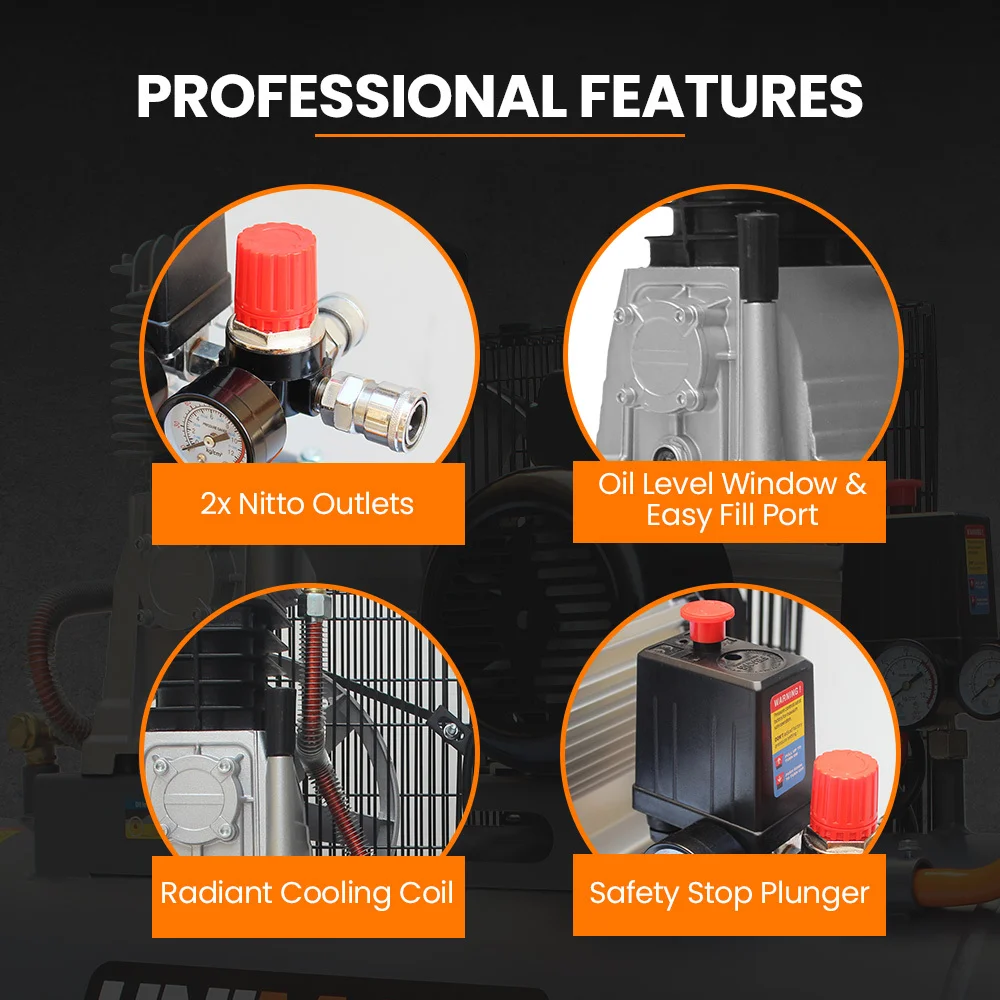

• Convenient dual Nitto air outlets for using two tools simultaneously
• Powerful 280L/Min (9.9 CFM) air displacement
• 200L/Min (7.0 CFM) free air delivery at 7 bar for consistent performance

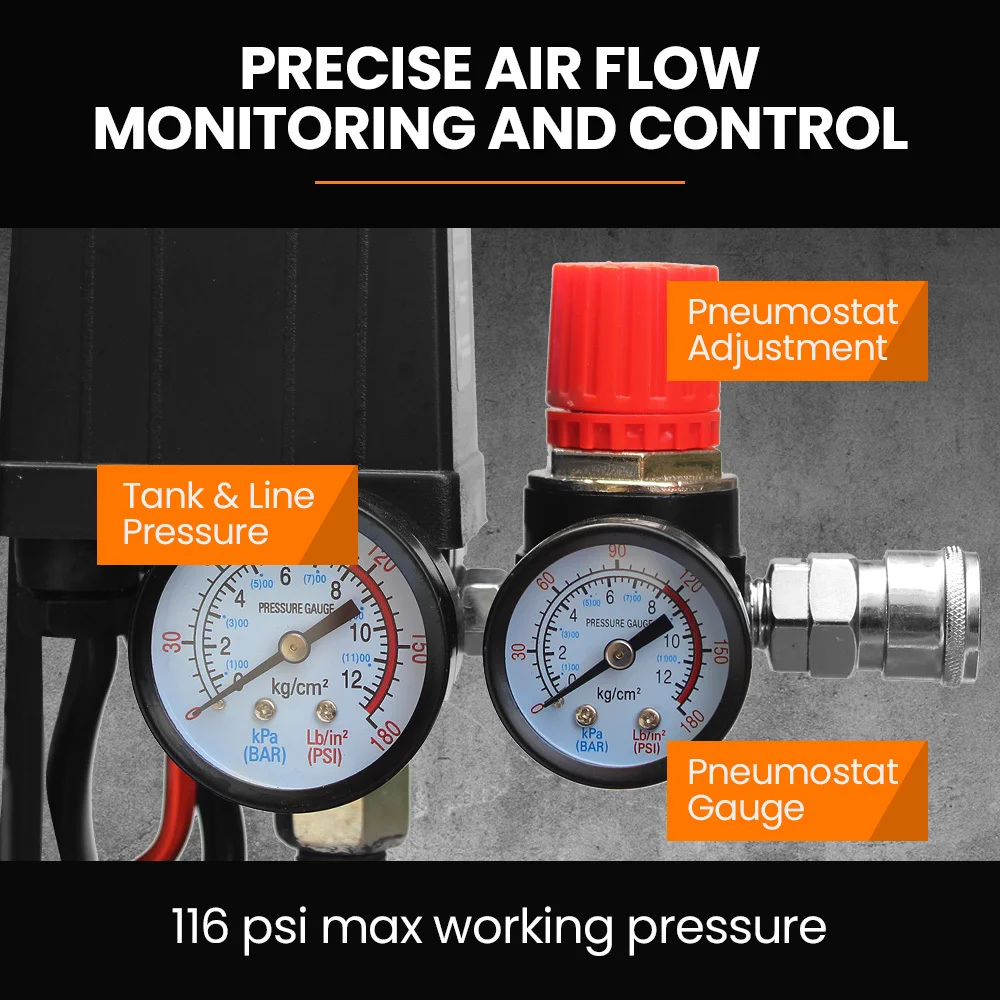

• Separate tank and line gauges for accurate air pressure monitoring
• Easy-to-use moisture bleed valve with quarter-turn valve, large gauges and safety off button
• Operates at a quiet 68 dBa (Lpa) for a more comfortable working environment
• Aluminium after-cooler and integrated fan in the drive pulley help reduce moisture and contamination in the air hose

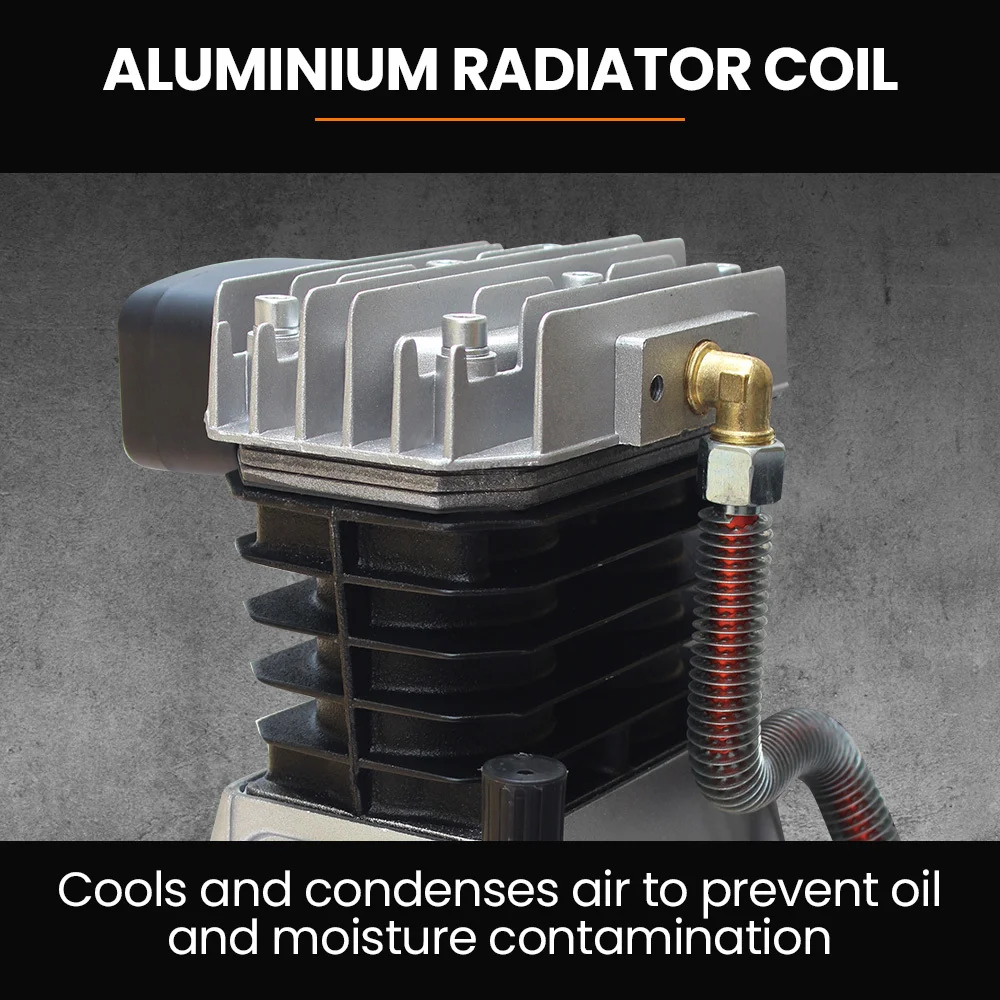

• Aluminium radiator for optimal output air temperature
• 920 rpm pump and 0.75 duty cycle for reliable performance
• Automatic pressure control switch for hassle-free operation

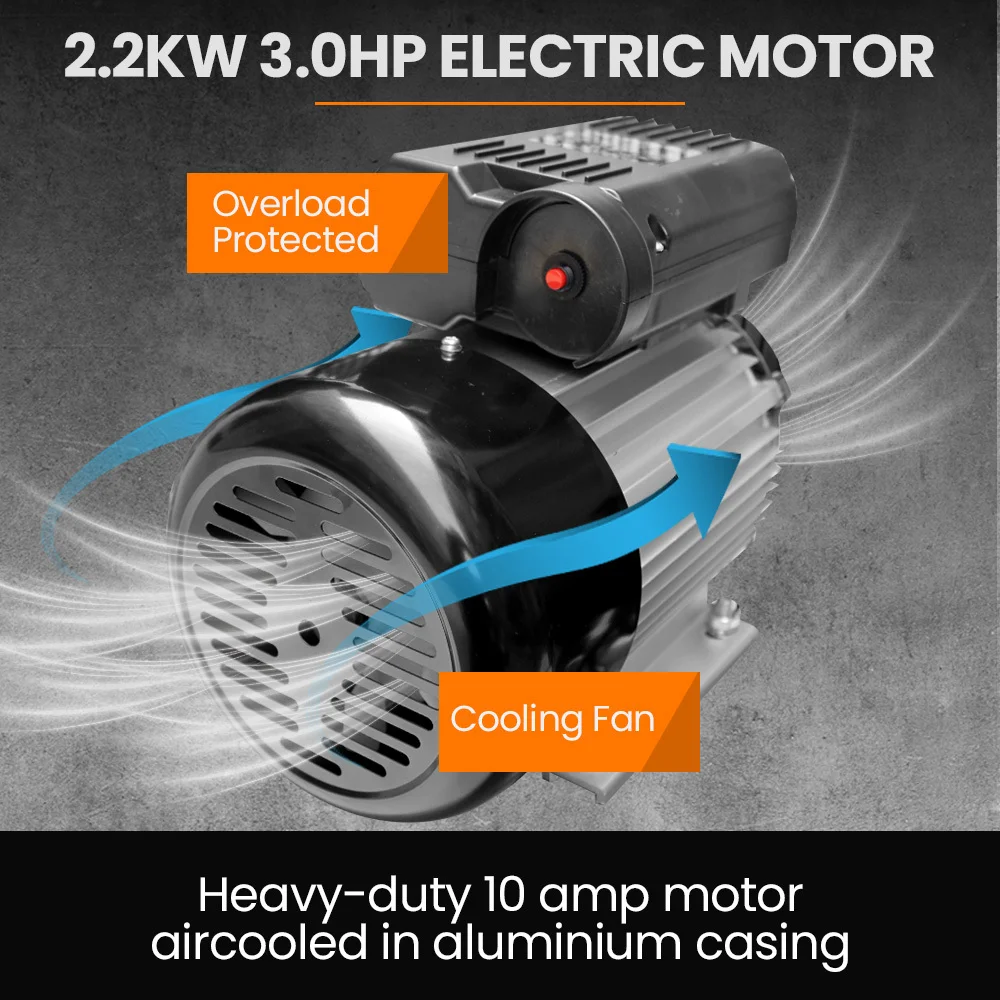

• Overload protection circuit breaker on the electric motor control
• Emergency shut-down plunger switch
• Removable handle and rubber tyres for easy transport and manoeuvring
• Rubber feet absorb vibration and prevent hopping action
• No assembly required

Specifications

• Brand: Unimac
• Model: ACM-700c
• Receiver Capacity: 70L
• Input Voltage: 240V
• Motor Input: 230~240V 50Hz
• Air Displacement: 280L/Min (9.9 CFM)
• Free Air Delivery: 200L/Min (7.0 CFM)
• Working Pressure: 116PSI (8 bar)
• Restart Pressure: 86PSI (6 bar)
• IP Rating: IP20
• Power Rating: 2.2kW
• Power Plug: Standard 10A (SAA Approved)
• Product Weight: 56 kg

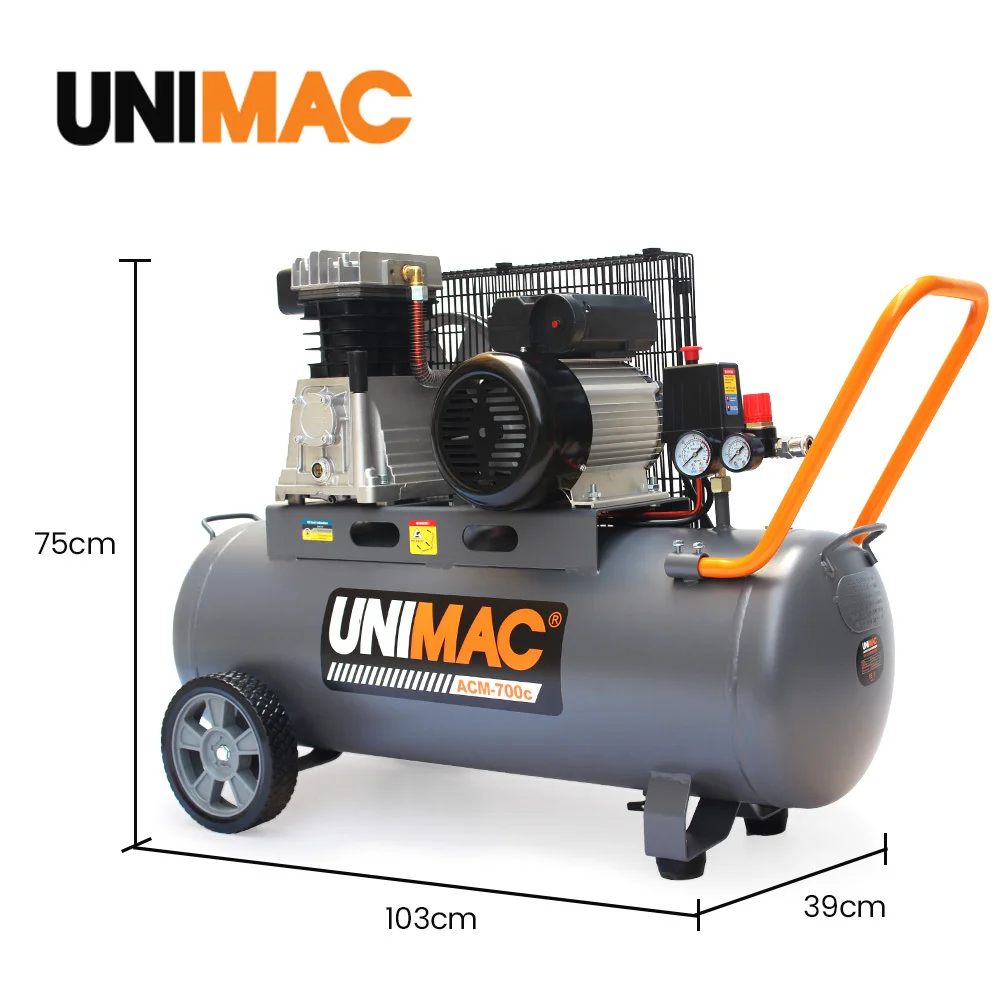

• Product Dimensions (L x W x H): 103 x 39 x 75 cm
• Carton Weight: 64 kg
• Carton Dimensions (L x W x H): 102 x 39 x 82 cm

What's in the Box

• 1 x Unimac ACM-700c Air Compressor
• User Manual is accessible online
