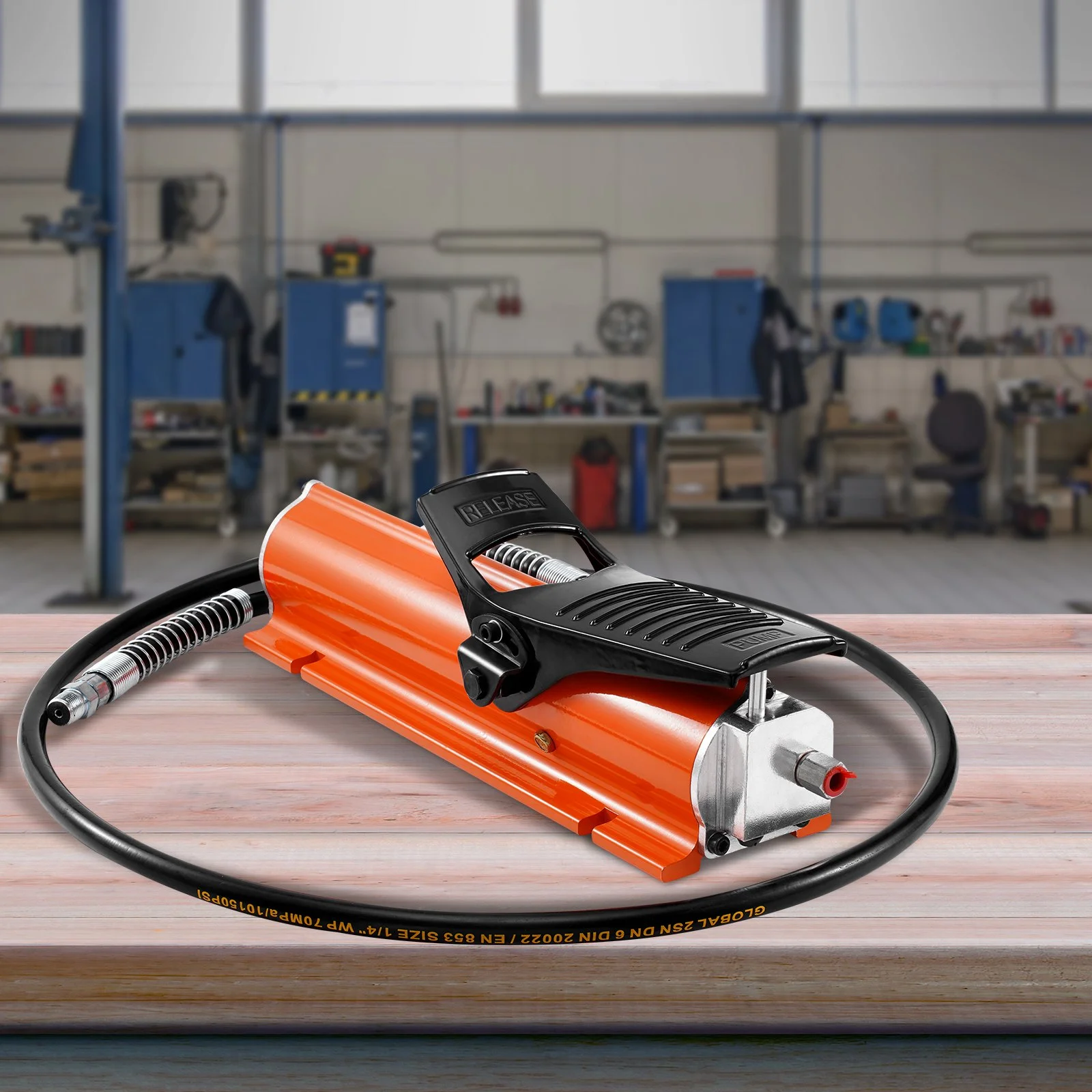

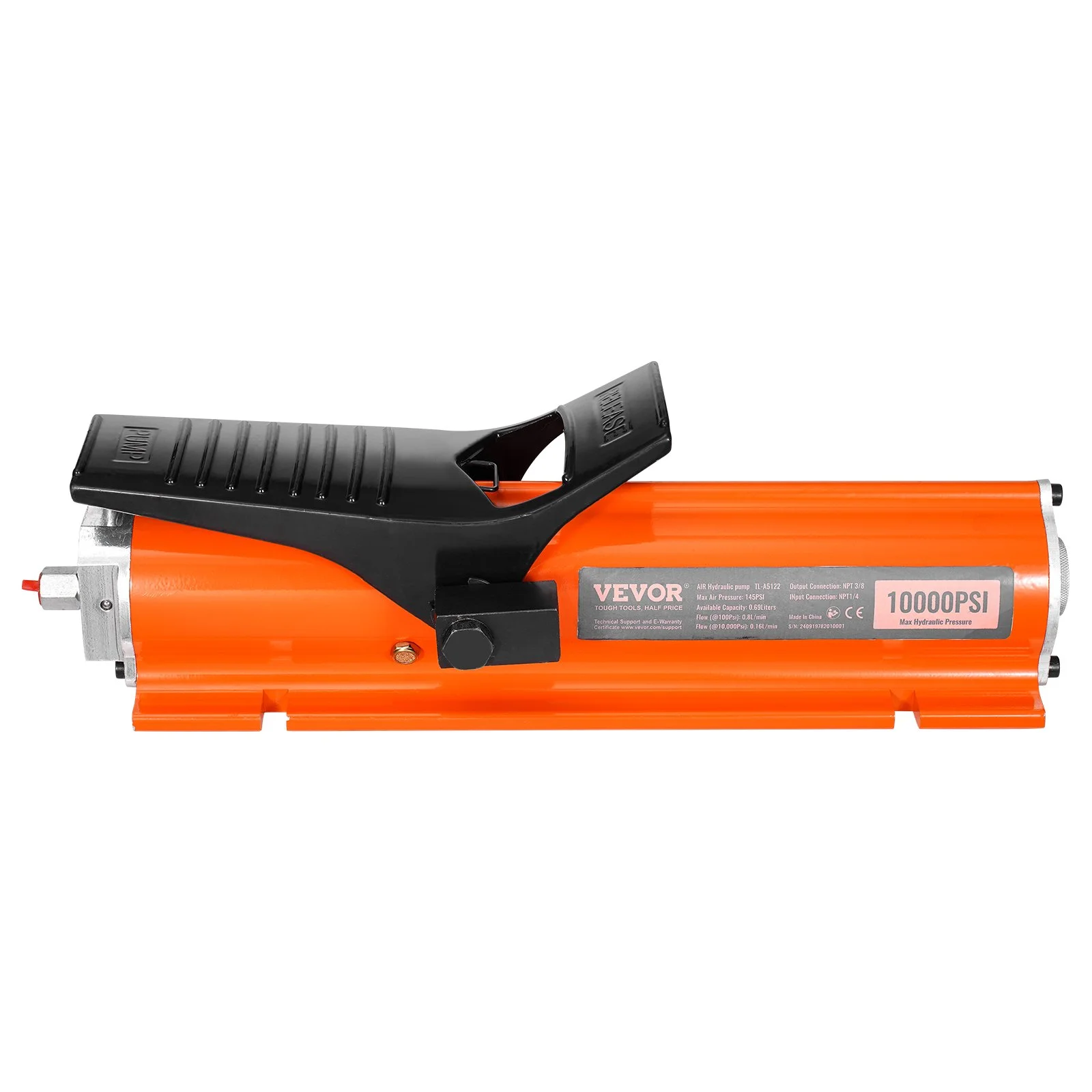

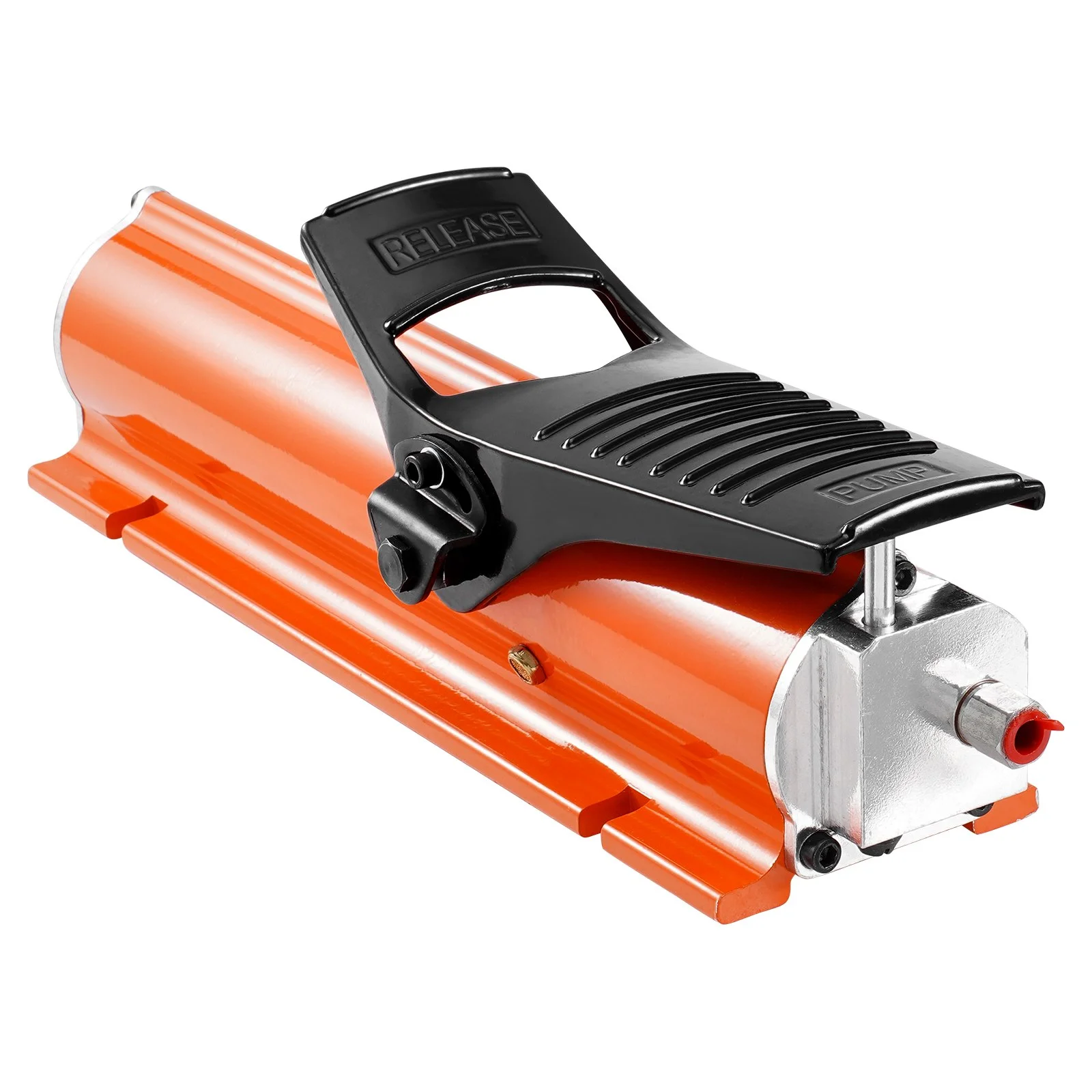

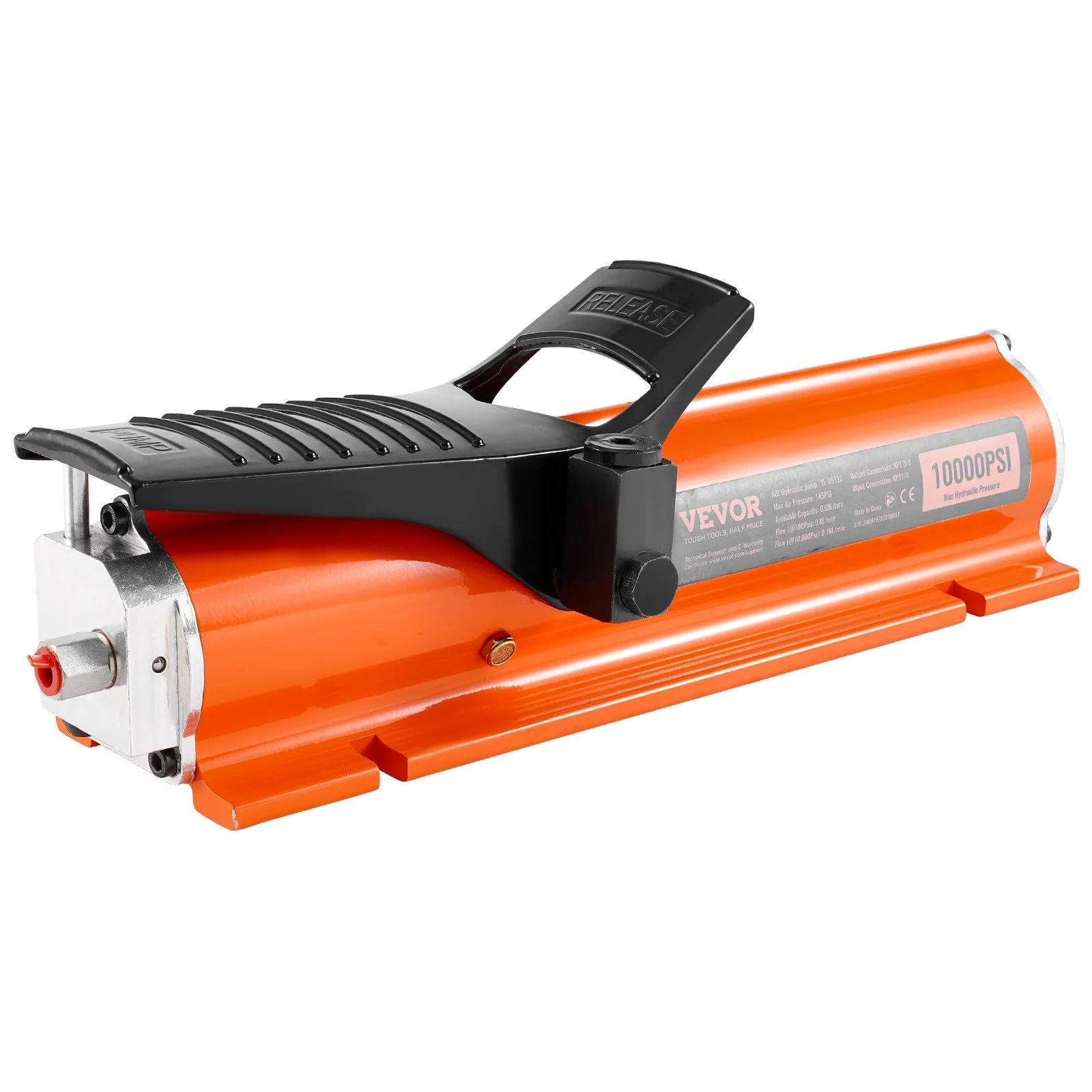

VEVOR 10,000PSI Air Hydraulic Treadle Foot Pump, 0.18 Gal Reservoir, NPT 3/8 In Outlet

The VEVOR air hydraulic treadle foot pump delivers up to 10,000 PSI of hydraulic pressure for heavy-duty lifting, pressing, bending, straightening, cutting, assembling and disassembling tasks. Built for precision industrial machinery and aerospace equipment, it comes factory-filled with hydraulic oil so you can get to work straight away.

Key Features

• Reaches up to 10,000 PSI of hydraulic pressure with an airflow of 340 L/min
• Flow rates of 0.8 L/min (no load) and 0.16 L/min (load)

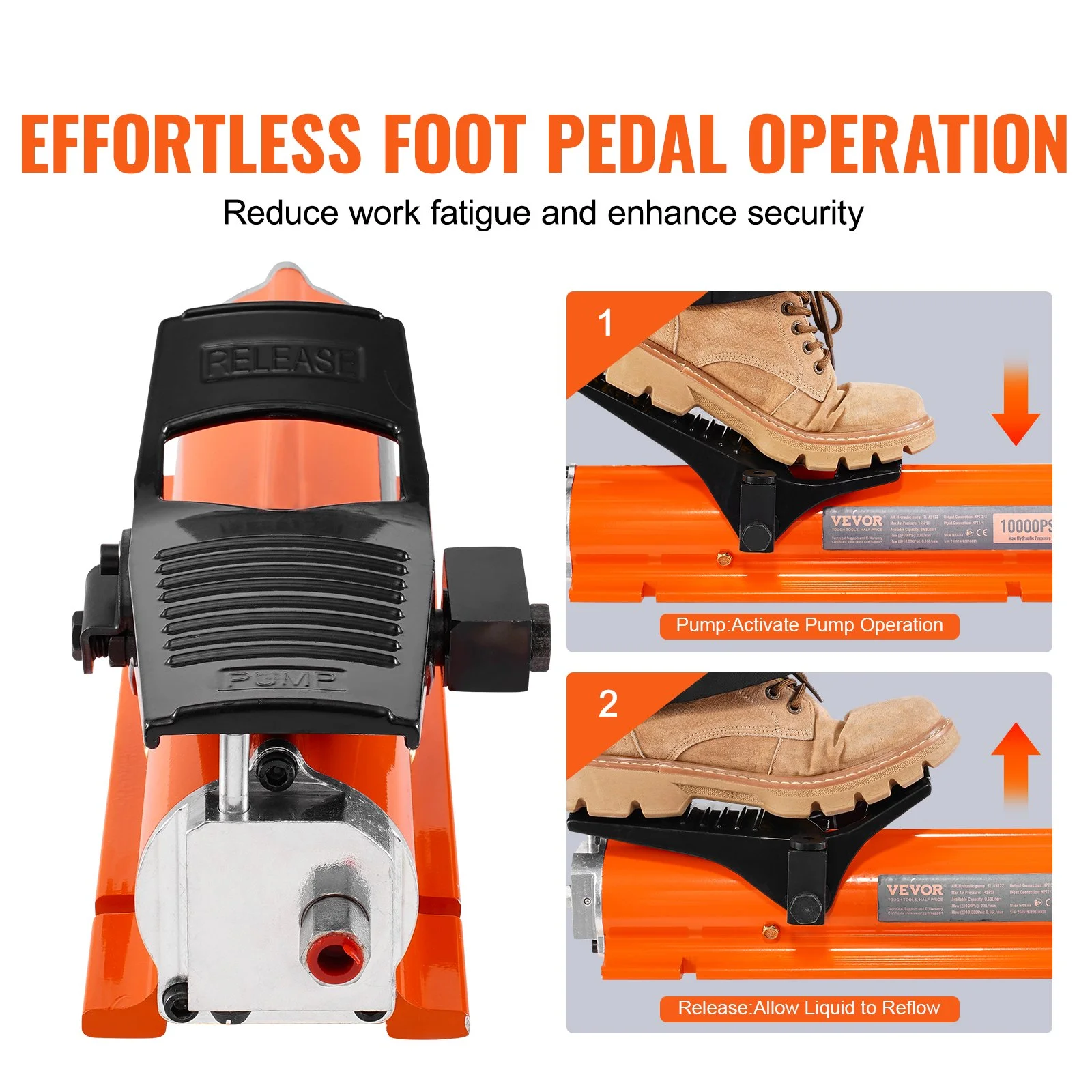

• Foot-operated treadle design: press down to build pressure and release quickly
• Factory-filled with hydraulic oil (#13) to cut down on setup time and effort

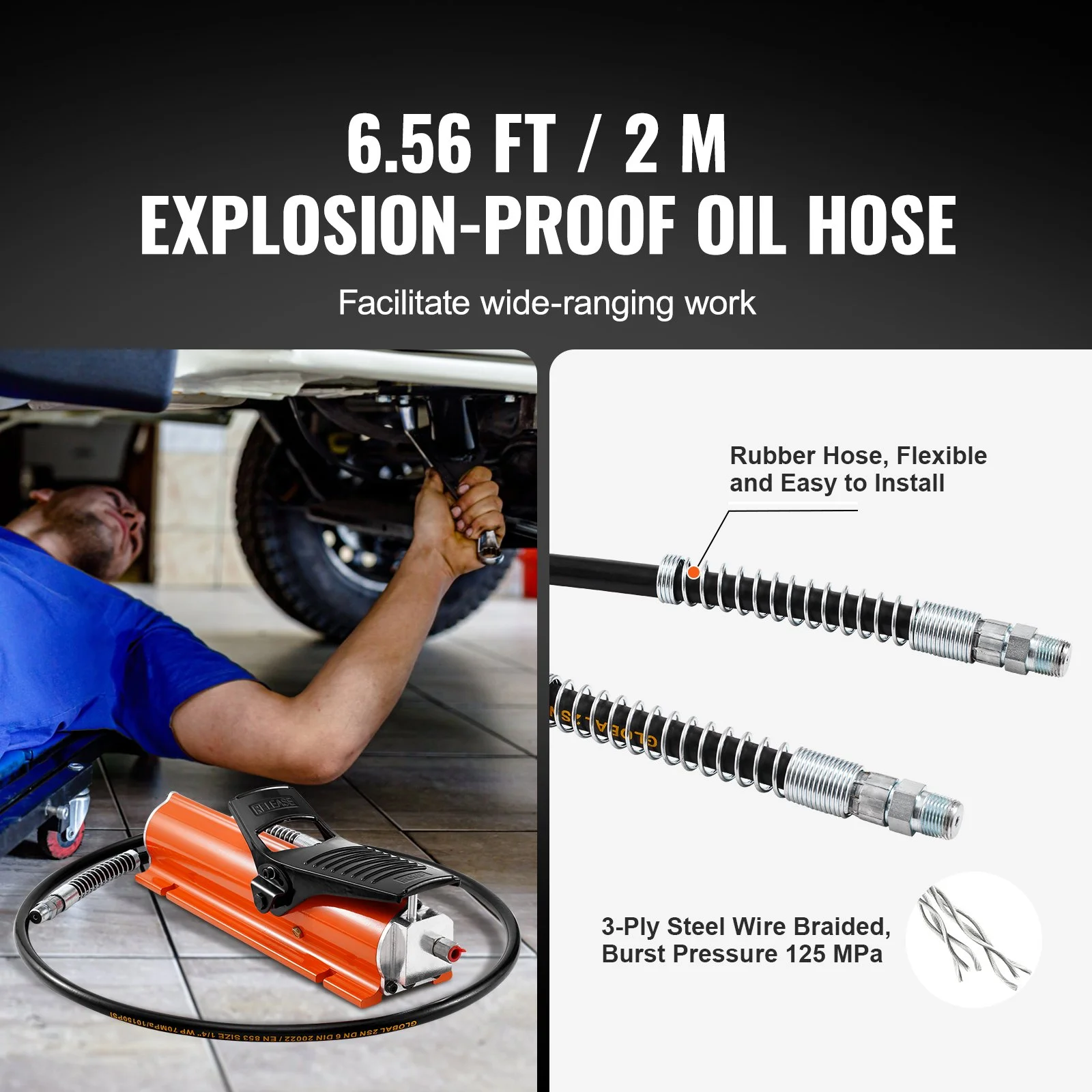

• 6.56 ft / 2 m rubber hose reinforced with three layers of steel wire, rated for pressures up to 125 MPa
• Hose design helps prevent leaks and allows flexible, long-distance operation

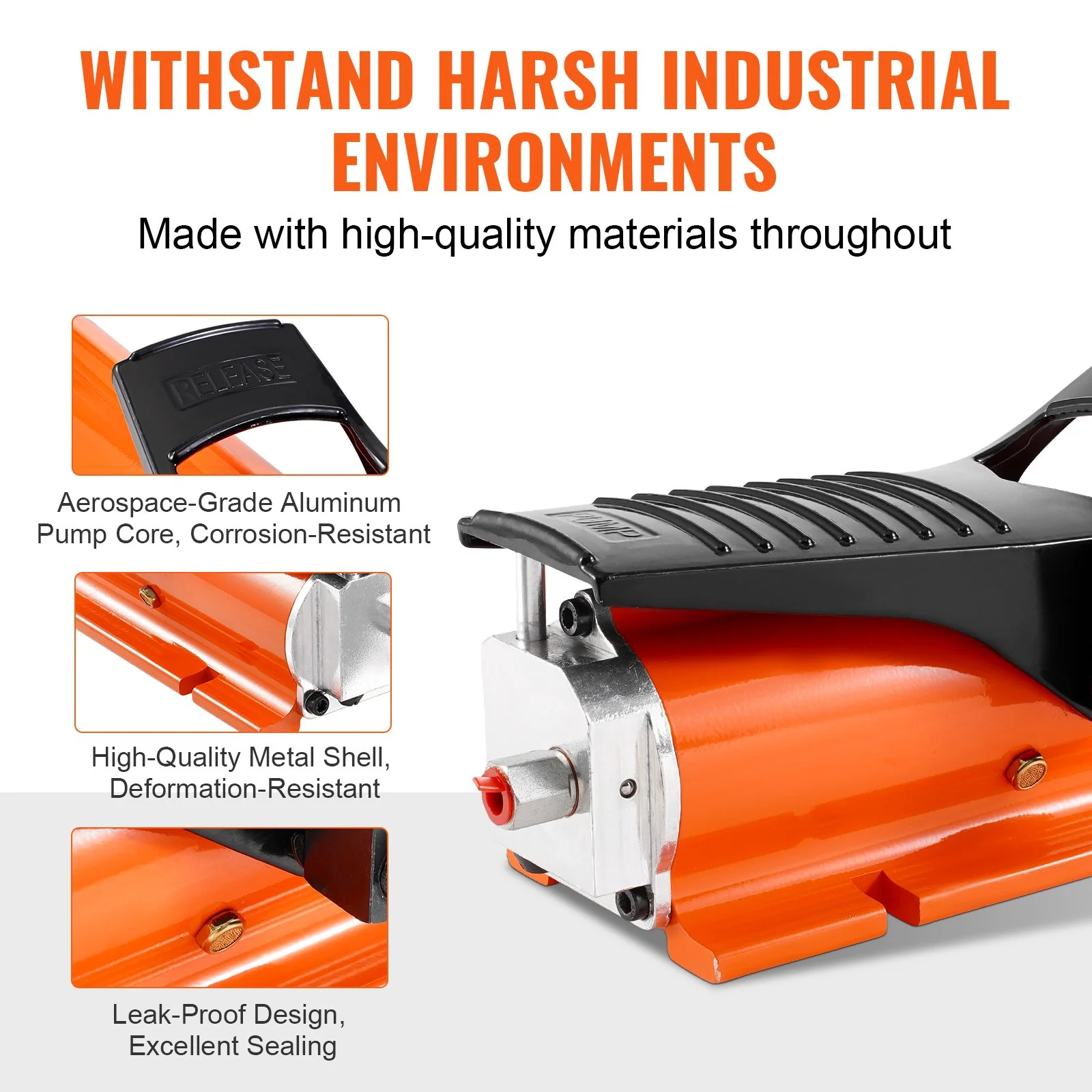

• Aerospace-grade aluminium construction with a high-quality casing for harsh industrial environments
• Internal relief valve protects the hydraulic components under pressure

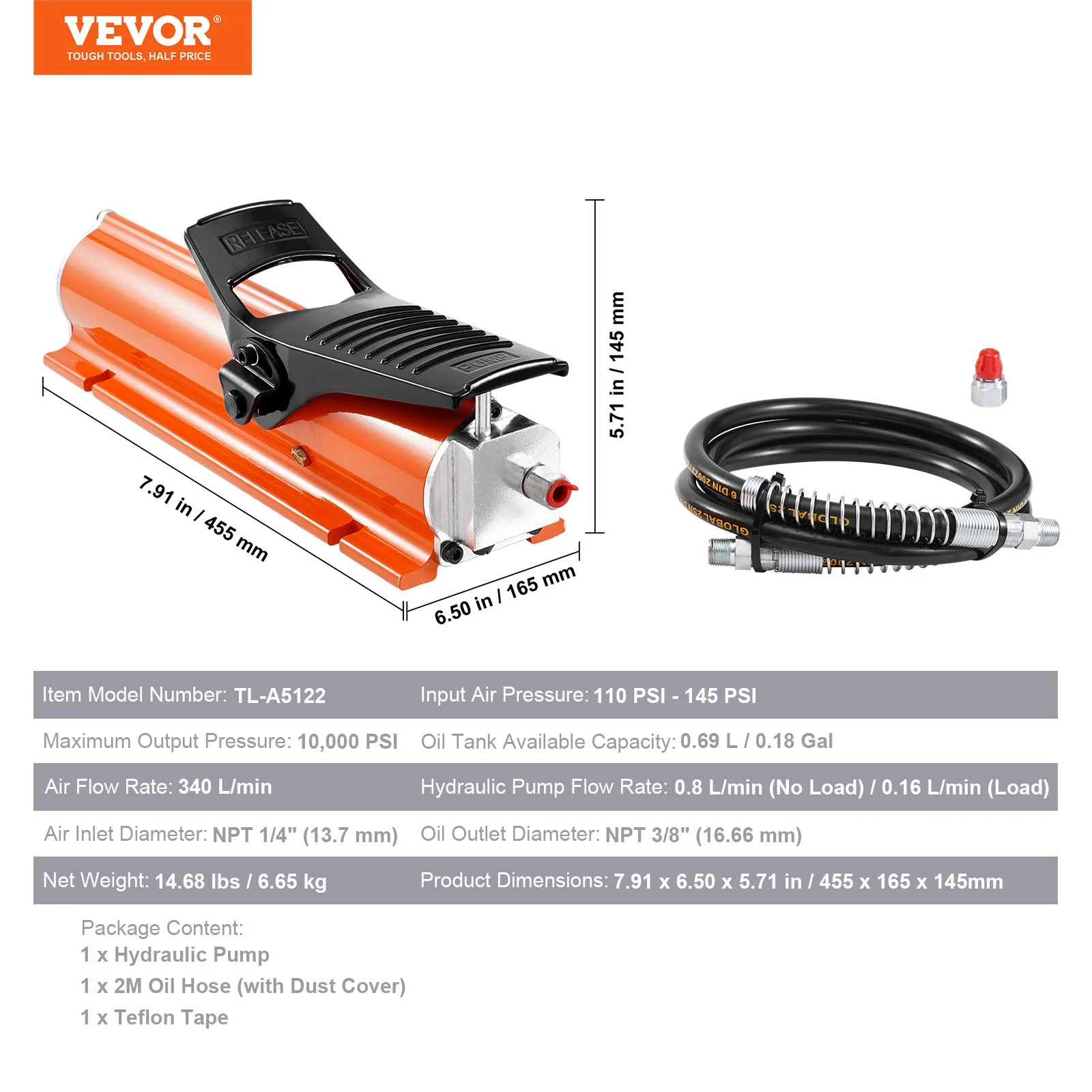

Specifications

• Brand: VEVOR
• Maximum pressure: 10,000 PSI
• Airflow: 340 L/min
• Flow rate (no load): 0.8 L/min
• Flow rate (load): 0.16 L/min

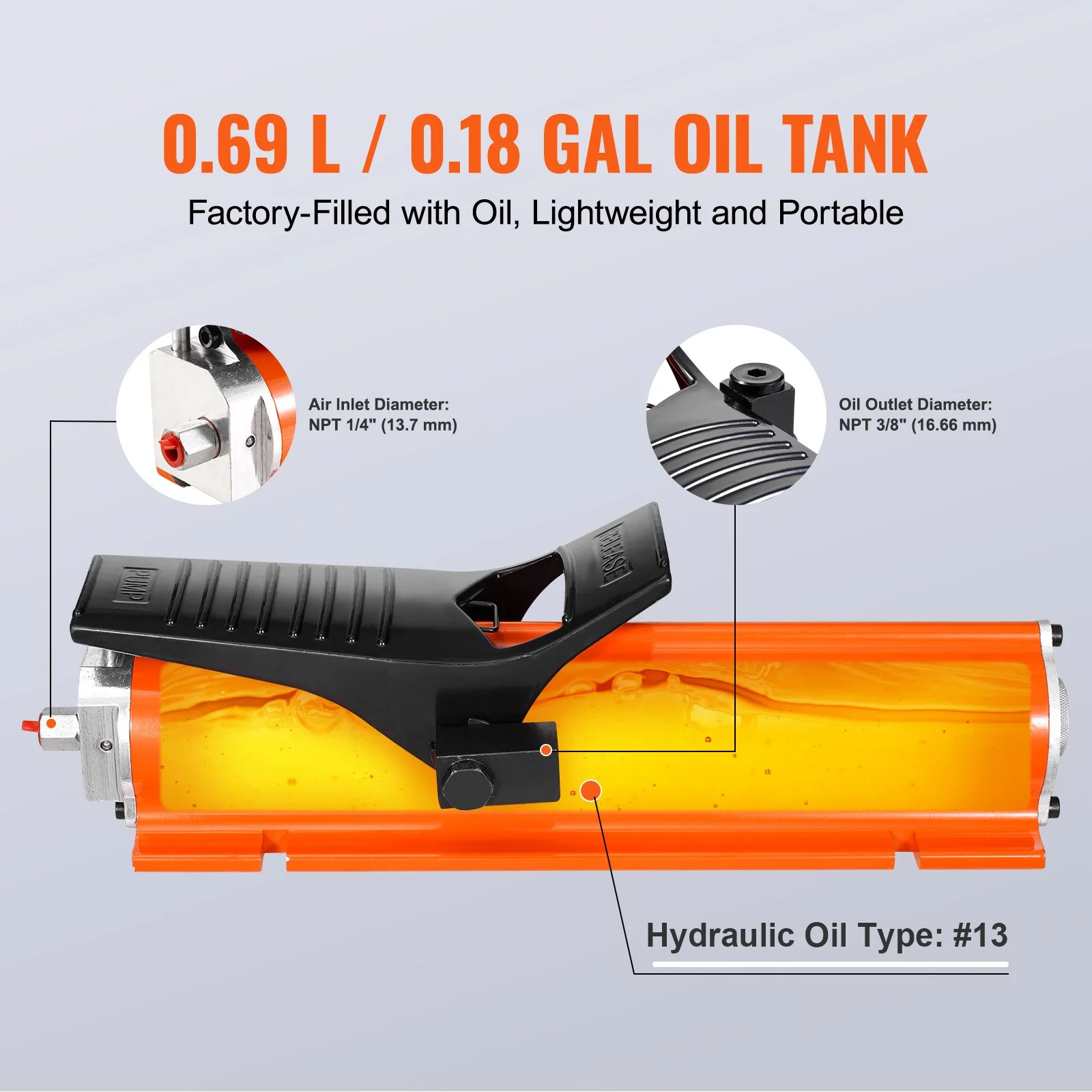

• Reservoir capacity: 0.69 L / 0.18 gal
• Oil outlet: NPT 3/8 in
• Air inlet: NPT 1/4 in
• Hose length: 6.56 ft / 2 m
• Hose pressure rating: up to 125 MPa
• Material: aerospace-grade aluminium with metal shell casing
• Oil: factory-filled with hydraulic oil (#13)

What's in the Box

• Air hydraulic treadle foot pump
• 6.56 ft / 2 m reinforced rubber hose
