Unimac UMV-15S 150L 7.5kW 3-Phase Industrial Air Compressor 115PSI

The Unimac UMV-15S is a heavy-duty industrial electric air compressor built to deliver a continuous, dependable volume of air for demanding jobs. With a 150L receiver, 7.5kW 3-phase motor and 115PSI working pressure, it maintains strong output even under load.

Key Features

• Automatic stop/start with an ultra-dependable IP55-rated 7.5kW 415V 3-phase electric motor

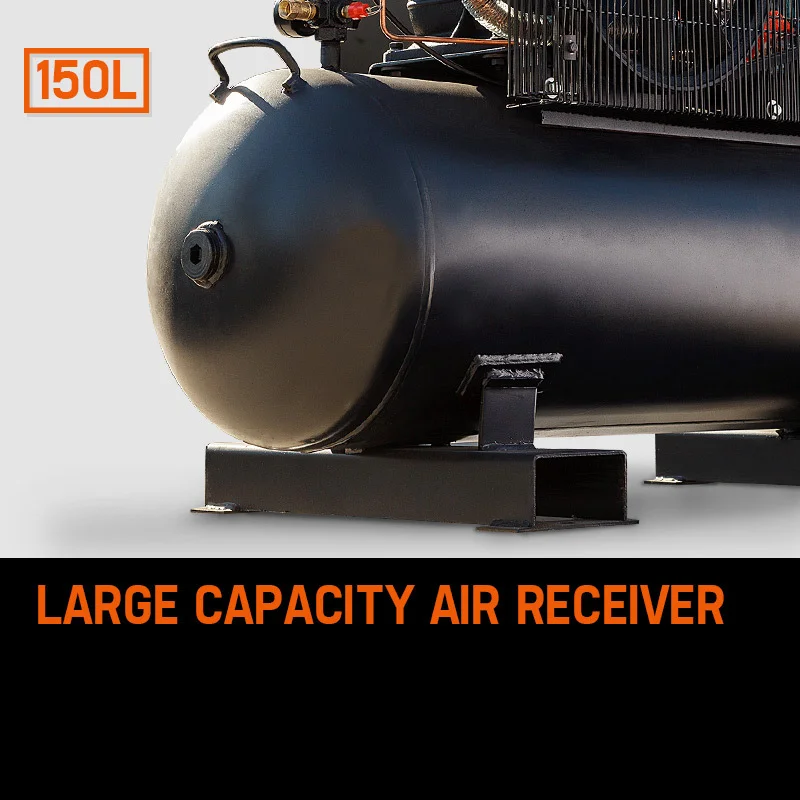

• Oversize 150L receiver for a steady air supply
• Delivers 1180L/min (42 CFM) of free air delivery while maintaining 115PSI under demanding load

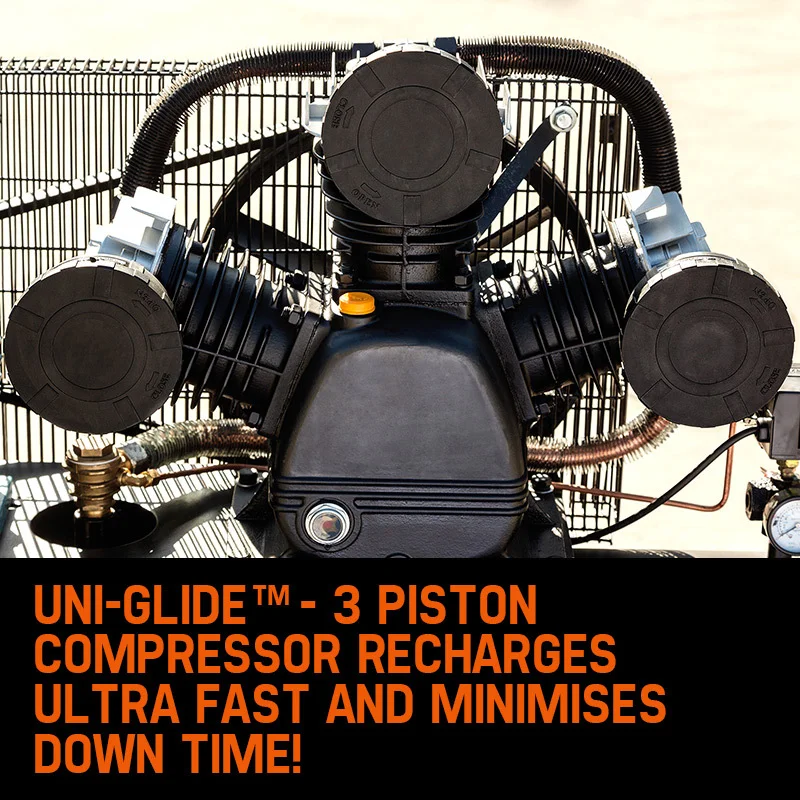

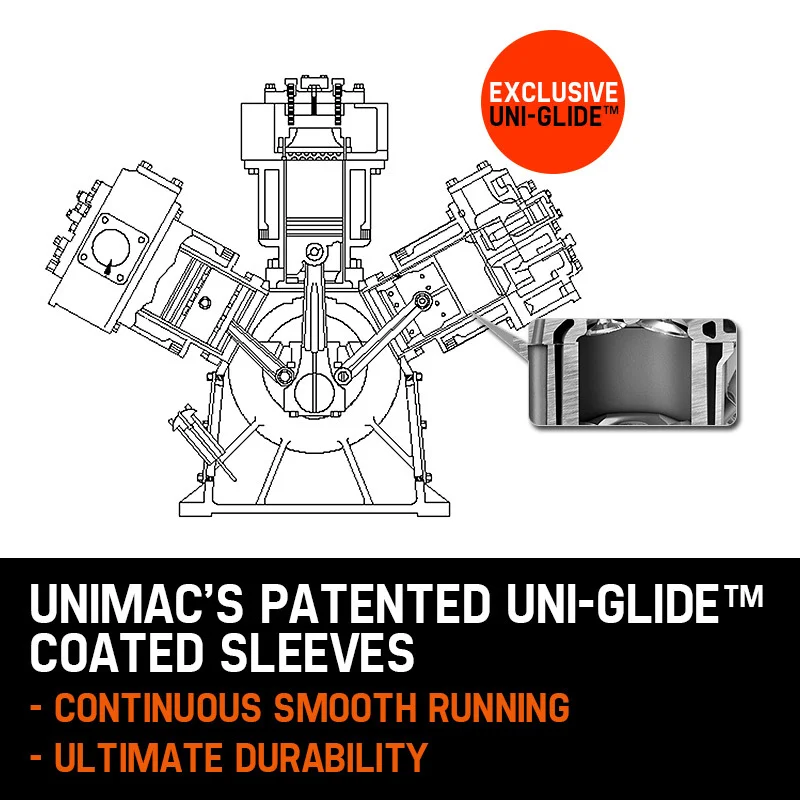

• Tri-V piston configuration with triple 90mm Uni-Glide coated sleeves and twin belt drive
• Larger pistons run at lower RPM, producing lower operating temperatures and less moisture
• Lower moisture helps prolong the life of the compressor and air tools, and supports a clean finish for spray painting

Specifications

• Brand: Unimac
• Model: UMVC-15S
• Free Air Delivery: 1180L/min (42 CFM)
• Receiver Capacity: 150L

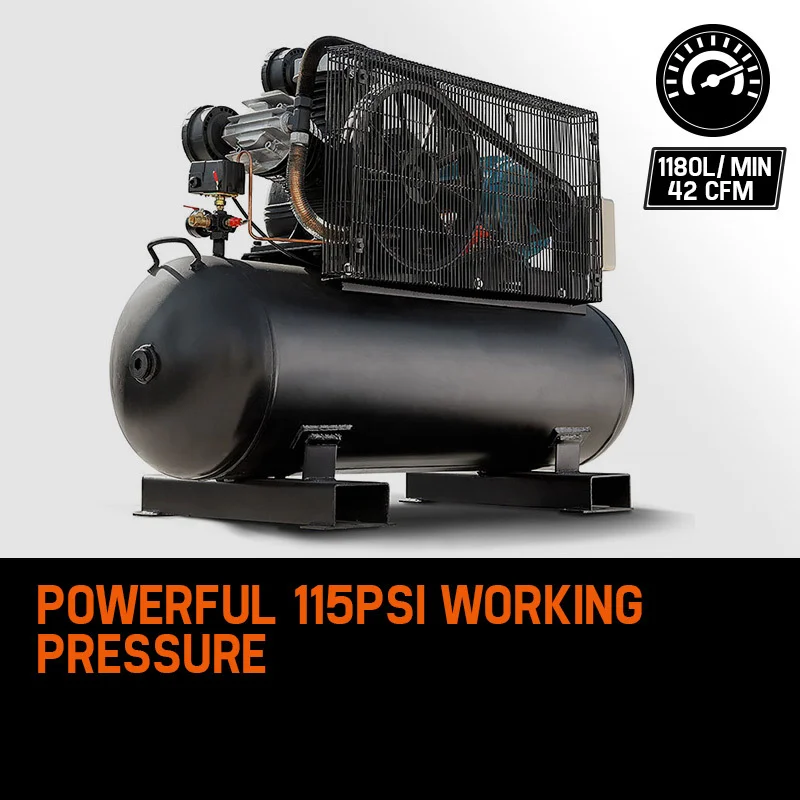

• Working Pressure: 115PSI
• Restart Pressure: 85PSI
• POP OFF: 160PSI

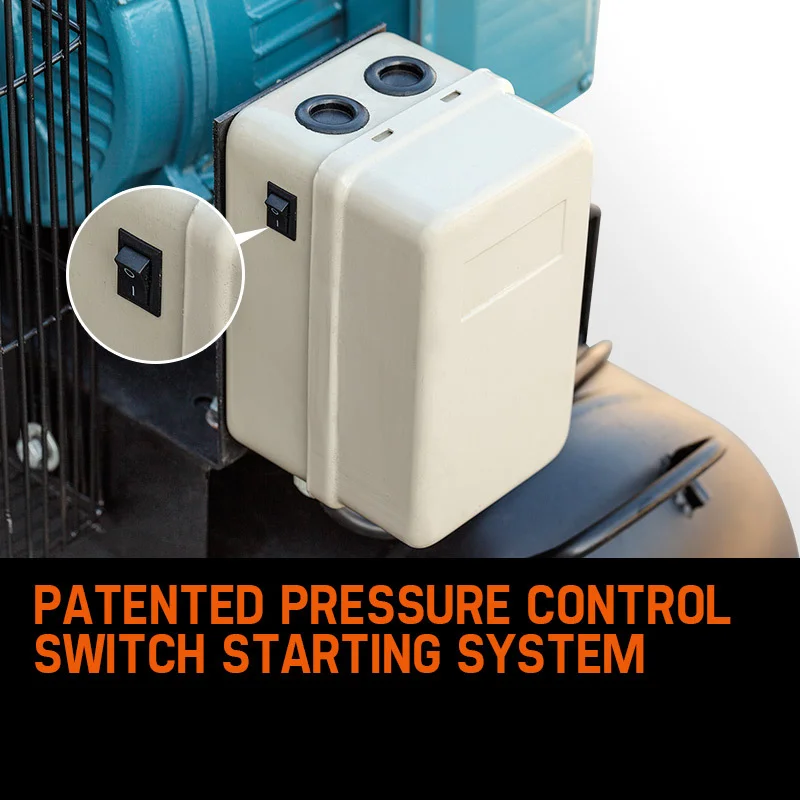

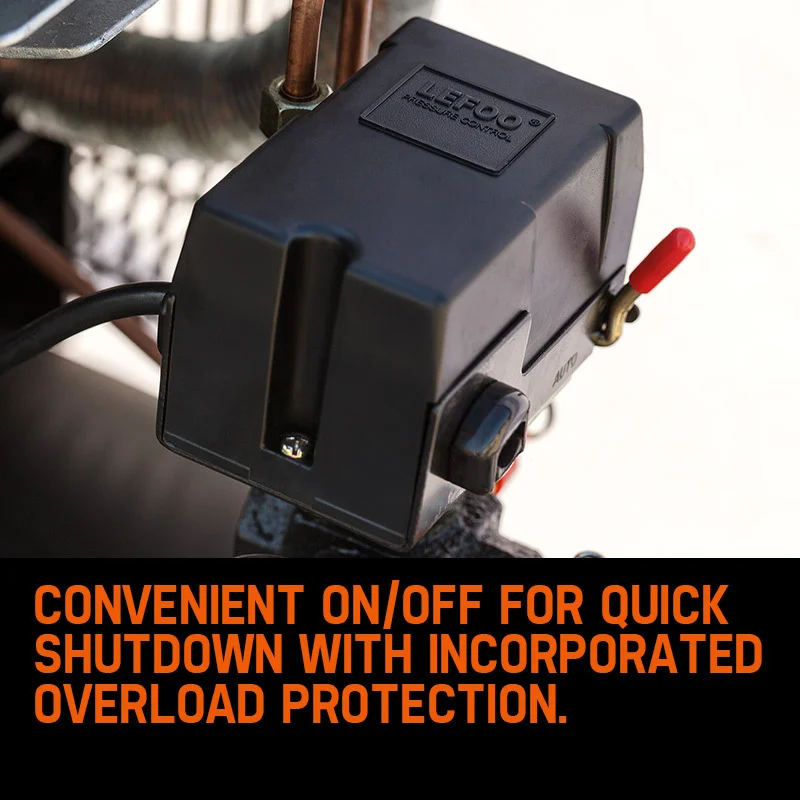

• Starting Method: Automatic Pressure Control Switch
• Power Rating: 7.5kW
• Motor Input: 380V-415V 50Hz
• IP Rating: IP55

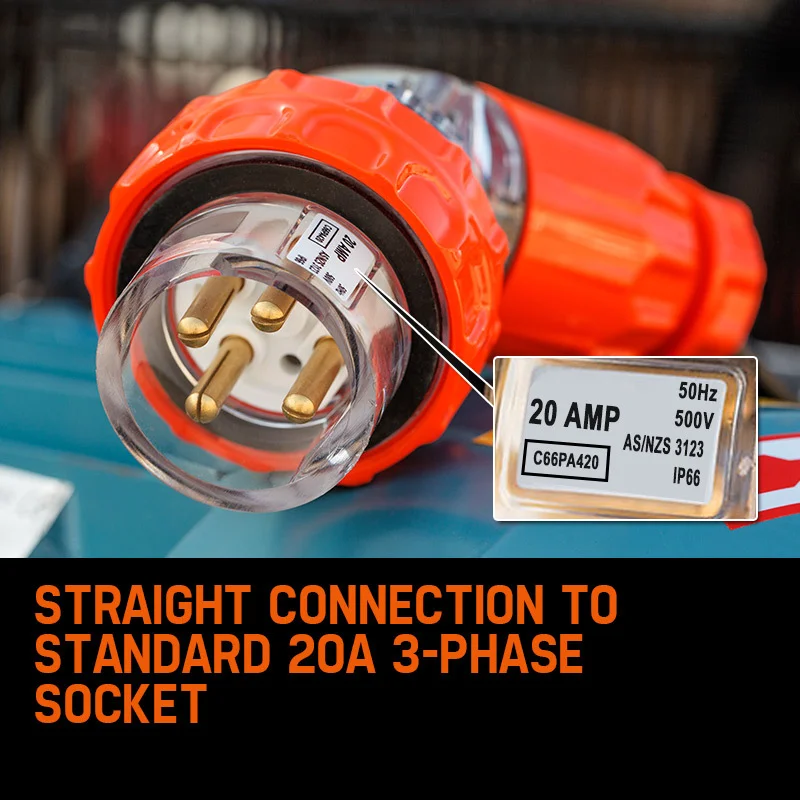

• Plug: 20A 415V 3-Phase
• Power Plug: 15A
• Noise Level: 85dBA
• Product Dimensions (W x L x H): 50 x 126 x 92cm
• Product Weight: 170kg
• Carton Dimensions (W x L x H): 50 x 128 x 103cm
• Carton Weight: 180kg

What's in the Box

• 1 x Unimac UMV-15S 3-Phase Air Compressor
• User manual is accessible online

Note: When installing and commissioning this air compressor, the onus is on the buyer to check and adjust valves and fittings to prevent air leaks.
