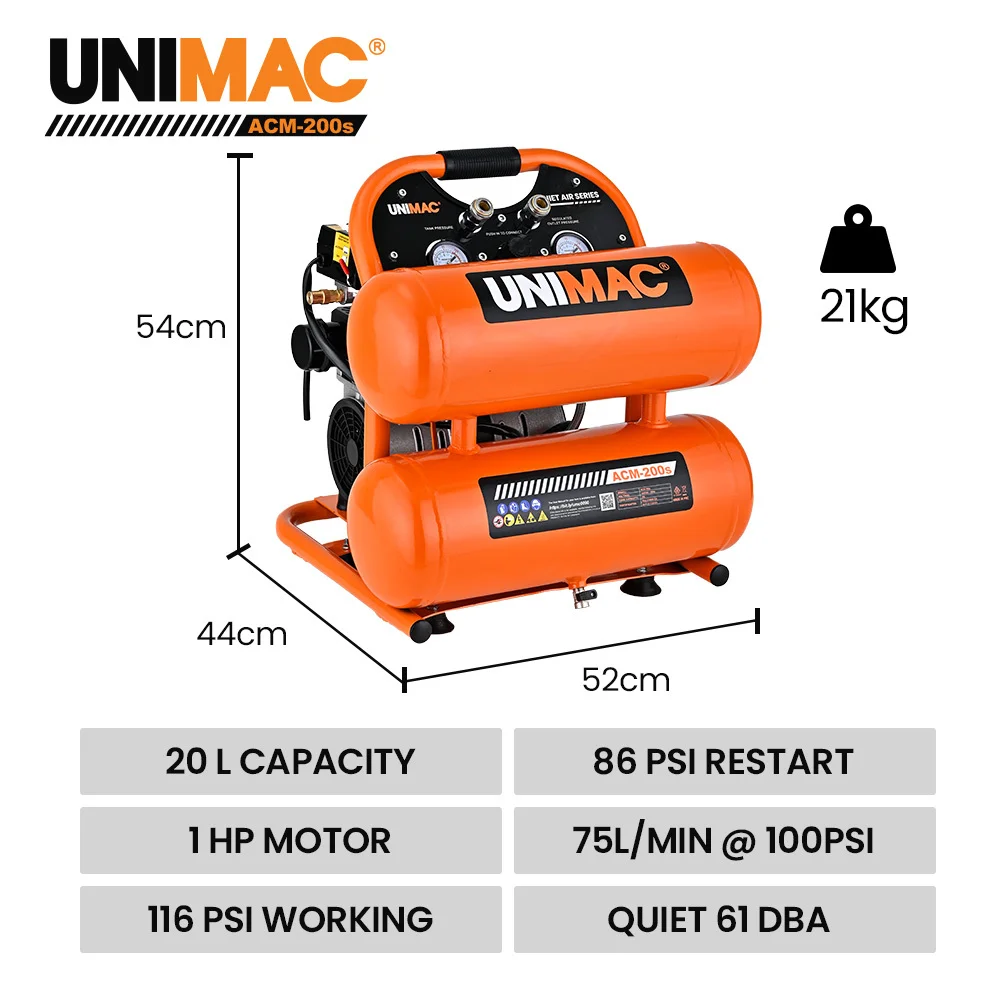

Unimac 20L Twin Tank Air Compressor, 116PSI Portable Oil-Free Electric

The Unimac 20L Twin Tank Air Compressor is a portable, oil-free electric compressor built for air tools and tyre inflation. With a 1.1HP twin-cylinder motor and 20L receiver, it delivers fast filling and a continuous air supply for tradies, home mechanics and DIYers.

Key Features

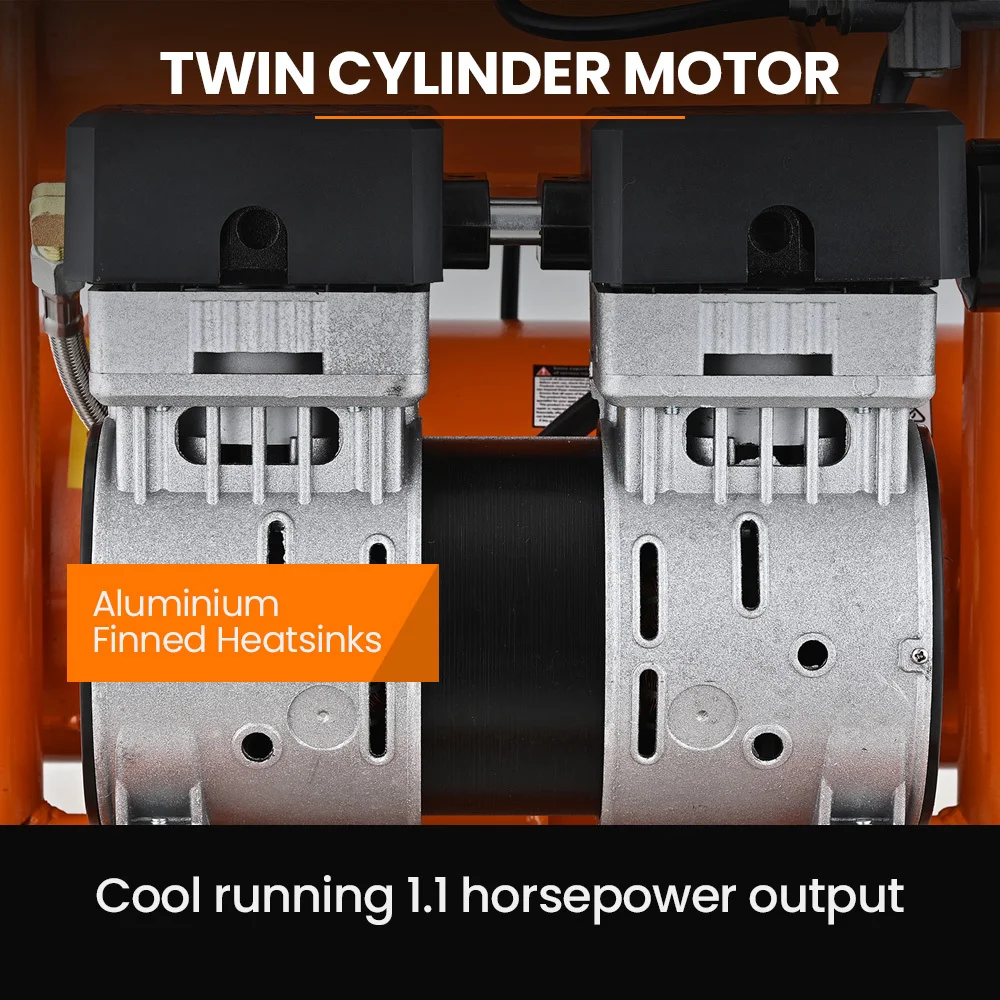

• 1.1HP twin-cylinder motor with fan-forced cooling and aluminium heatsinks

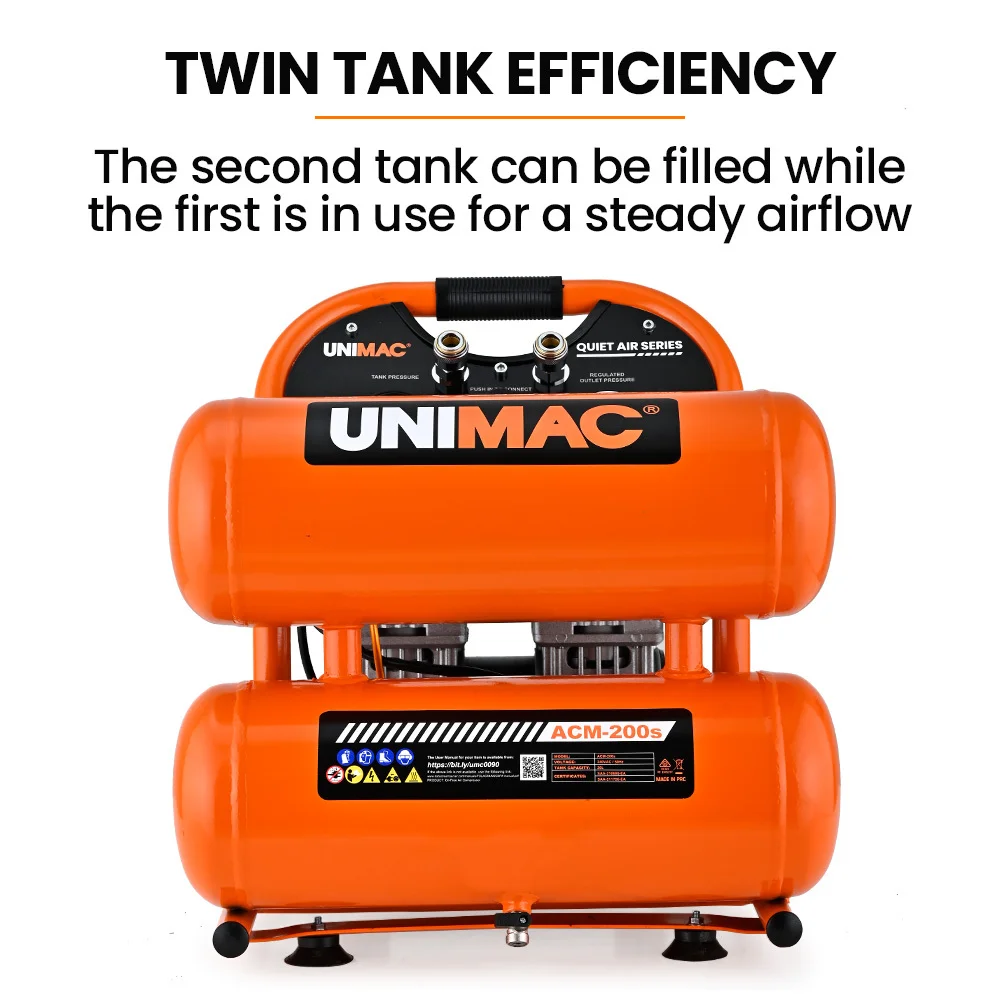

• 20L twin tank with 116L/min air displacement and 75L/min free air delivery at 100 PSI
• Working pressure of 116 PSI (8 bar) and restart pressure of 86 PSI (6 bar)

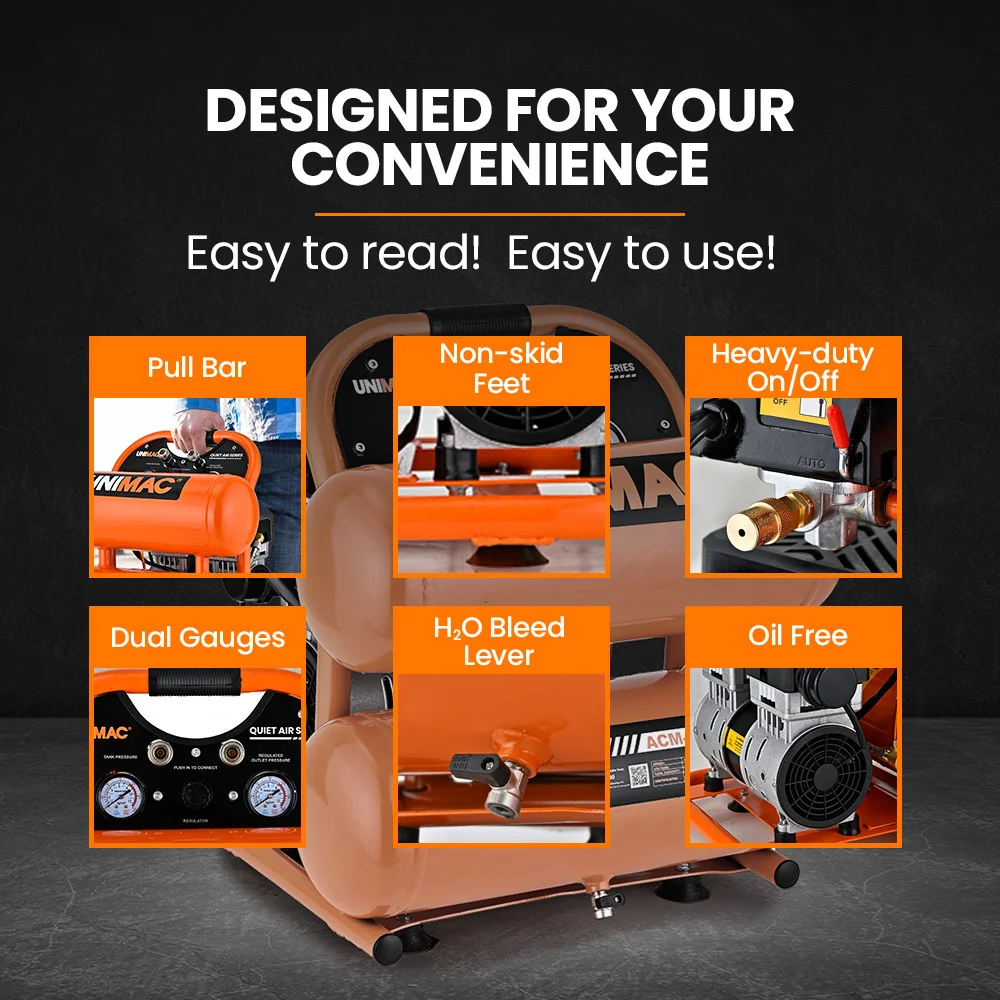

• Oil-free, service-free design with no engine maintenance, belts or pulleys
• Automatic pressure control switch for efficient operation

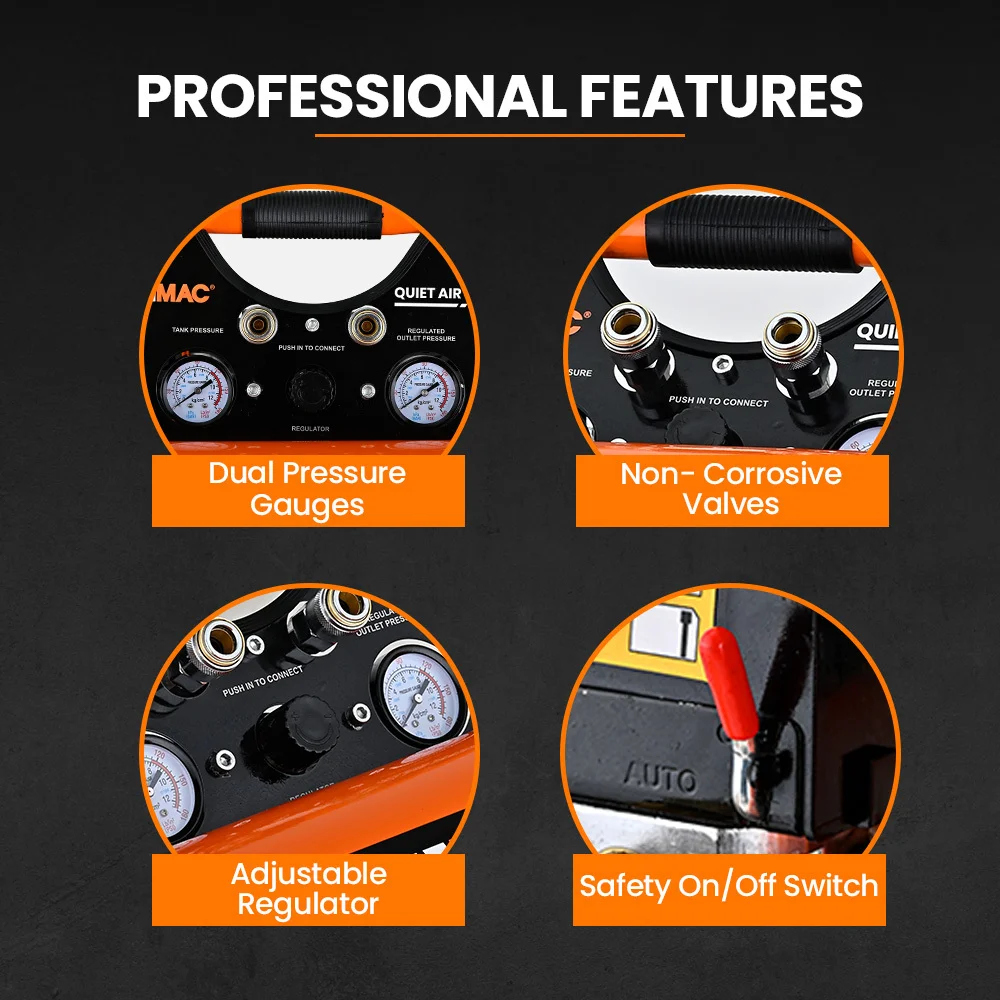

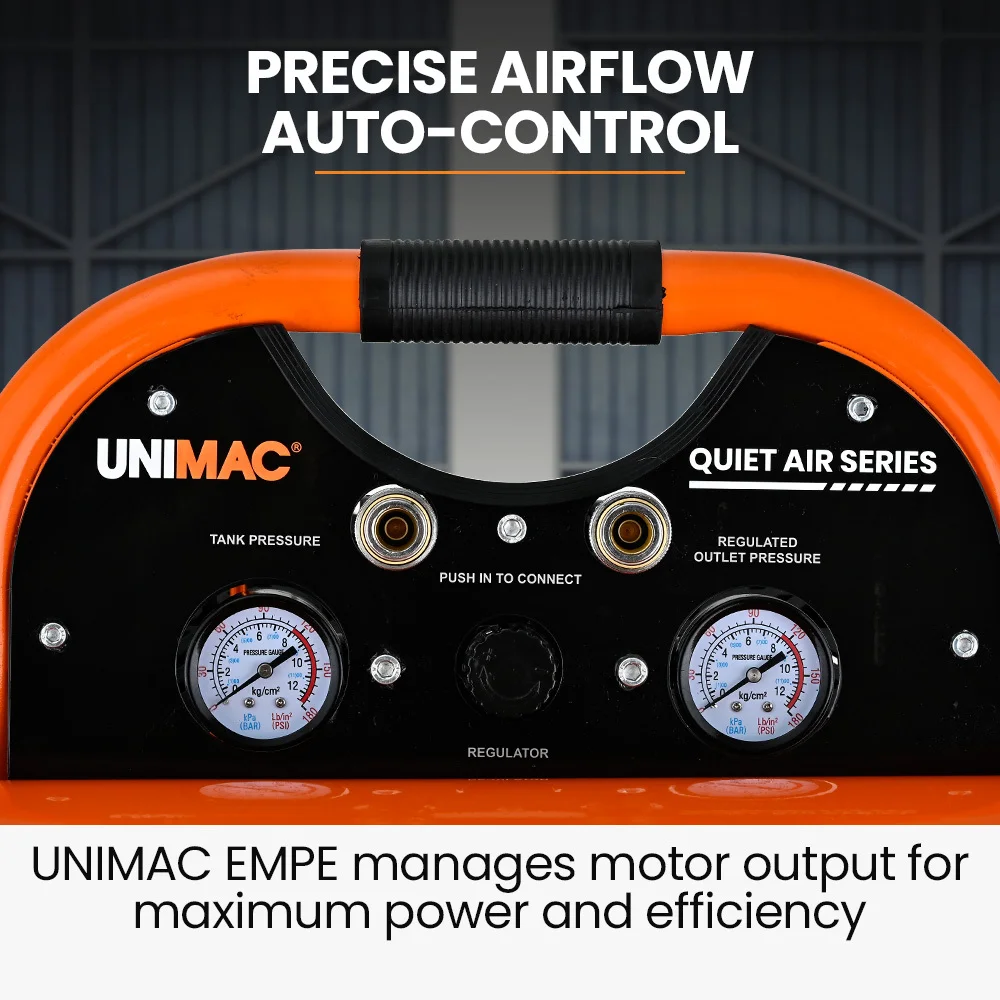

• Easy-to-read tank and line pressure gauges

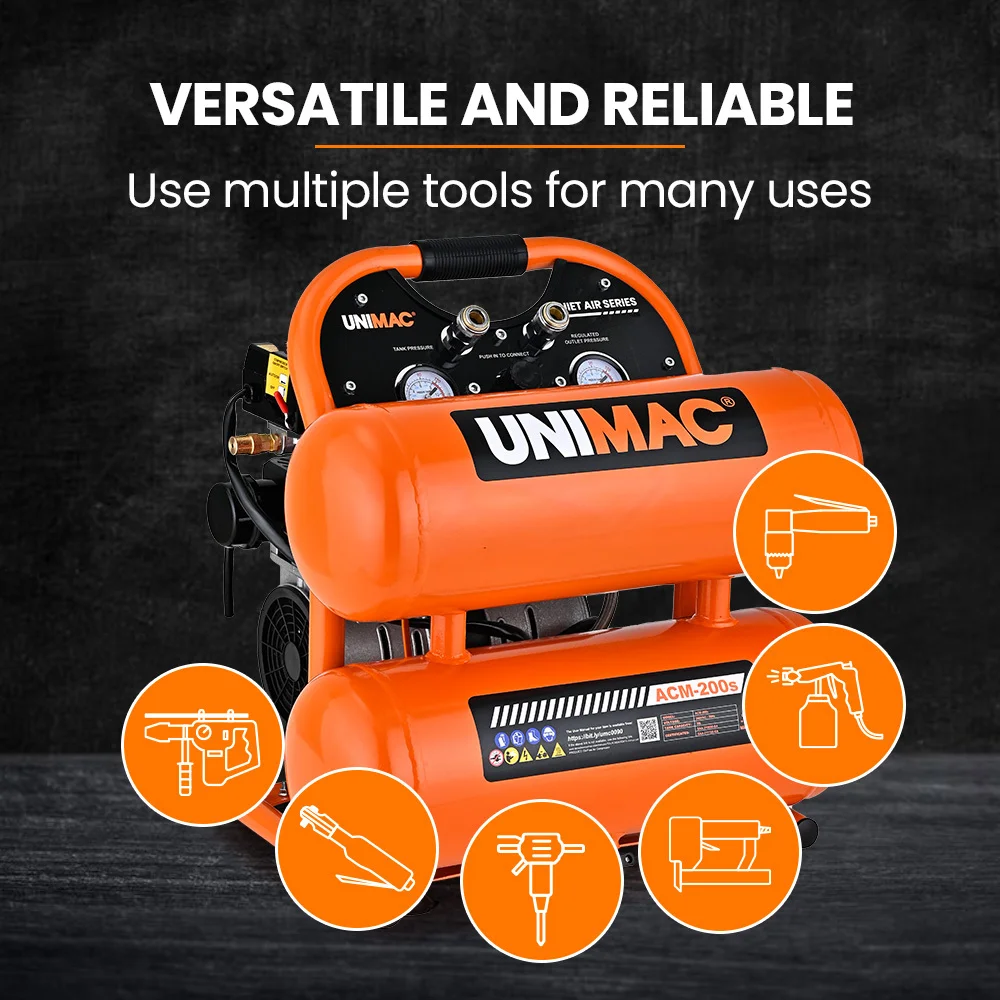

• Quick-connect ¼ Nitto outlet compatible with grinders, impact wrenches, welders, nail guns, grease guns and chisels

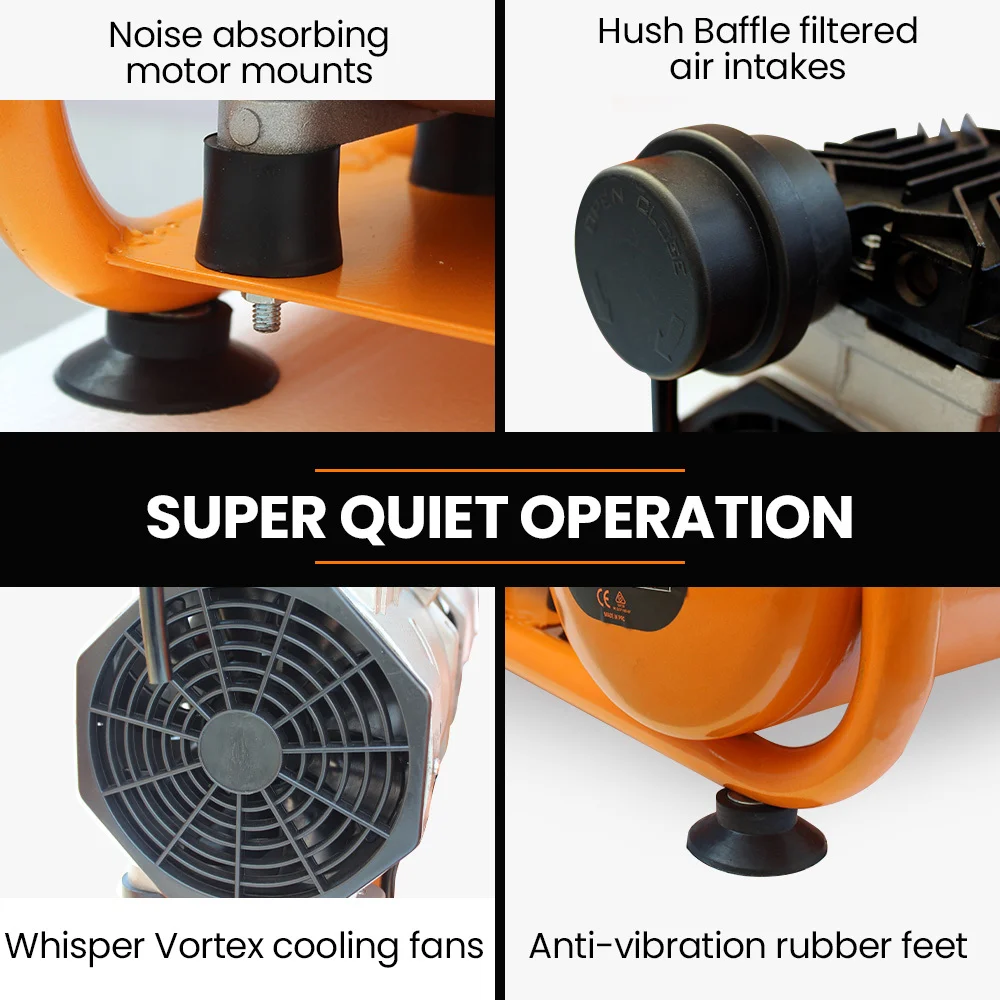

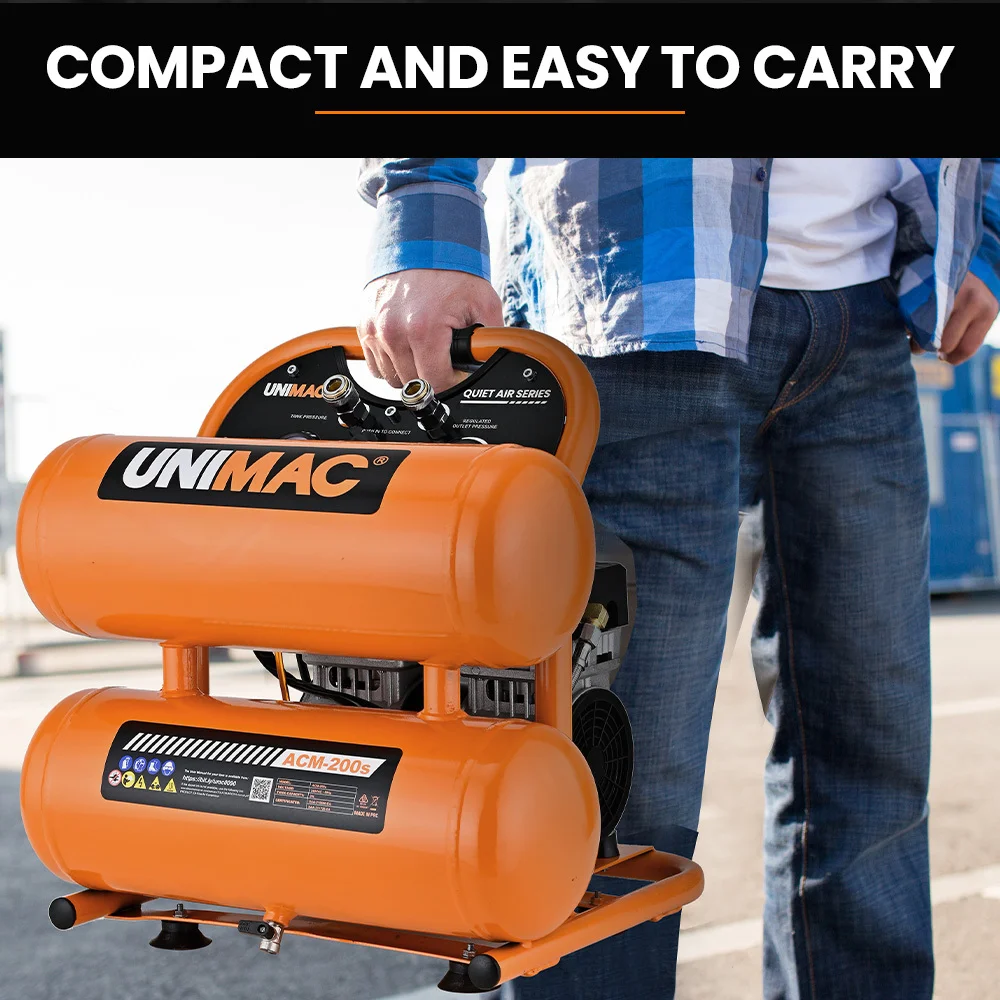

• Portable at 21kg with four rugged rubber feet and a padded grab handle

Specifications

• Brand: Unimac
• Model: ACM-200s Quiet Air series
• Free Air Delivery: 75L/min @ 100 PSI (2.7 CFM)
• Receiver Capacity: 20L
• Working Pressure: 116 PSI
• Restart Pressure: 86 PSI
• Starting Method: Automatic Pressure Control Switch
• Power Rating: 0.8kW (1.1HP)
• Motor Input: 230–240V 50Hz
• Input Voltage: 240V
• IP Rating: IP20
• Power Plug: 10A Australian Standard
• Product Dimensions (W x L x H): 52 x 44 x 54cm
• Product Weight: 21kg
• Carton Dimensions (W x L x H): 44 x 55 x 56cm
• Carton Weight: 28kg

What's in the Box

• 1 x Twin Tank Air Compressor

Note: User manual is accessible online. Minimal assembly required. Prior to installing and operating this air compressor, it is the buyer's responsibility to check and adjust valves/fittings to prevent air leaks.
