Unimac 2HP 50L Silent Oil-Free Vertical Air Compressor ACM-500sv

The Unimac ACM-500sv is a 2HP, 50L vertical electric air compressor built for quiet, oil-free operation. With a low noise level of just 62 dBa, it suits tyre inflation, air tools and general workshop tasks without disrupting your surroundings.

Key Features

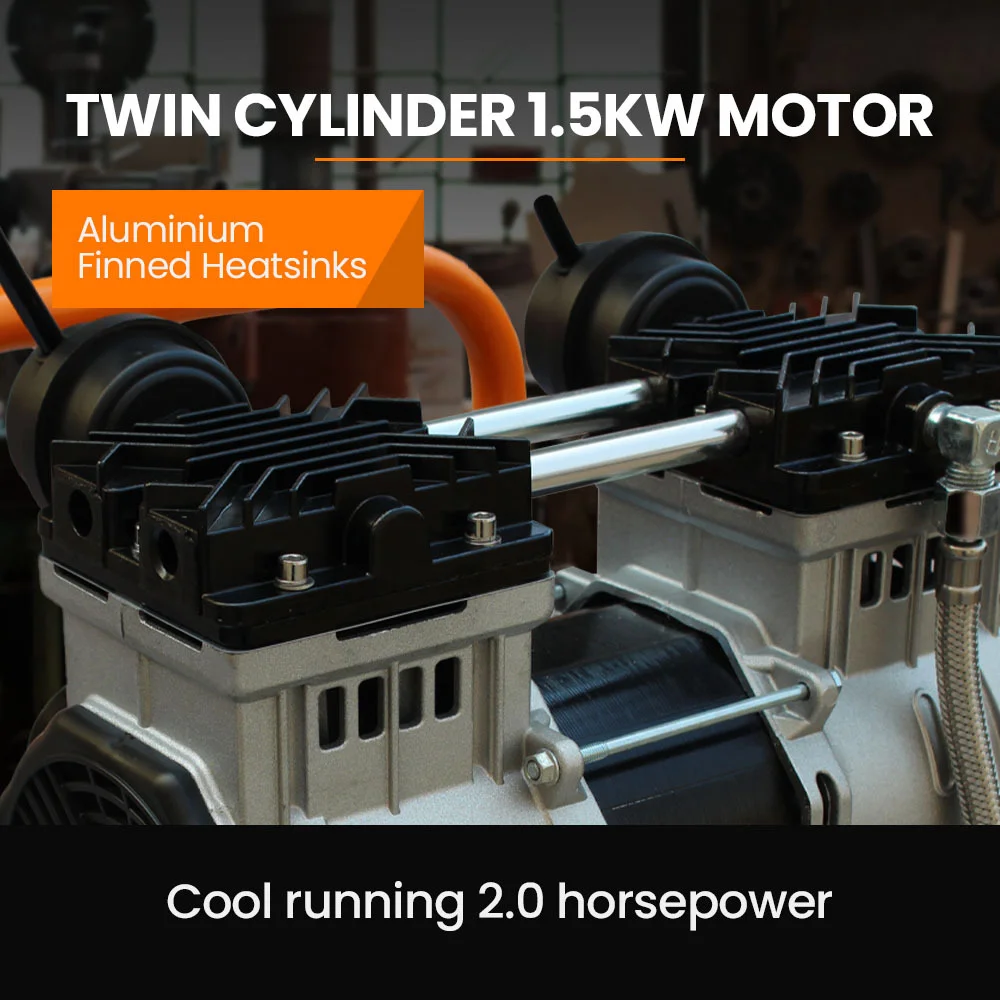

• Oil-free two-cylinder pump design for clean, low-maintenance operation

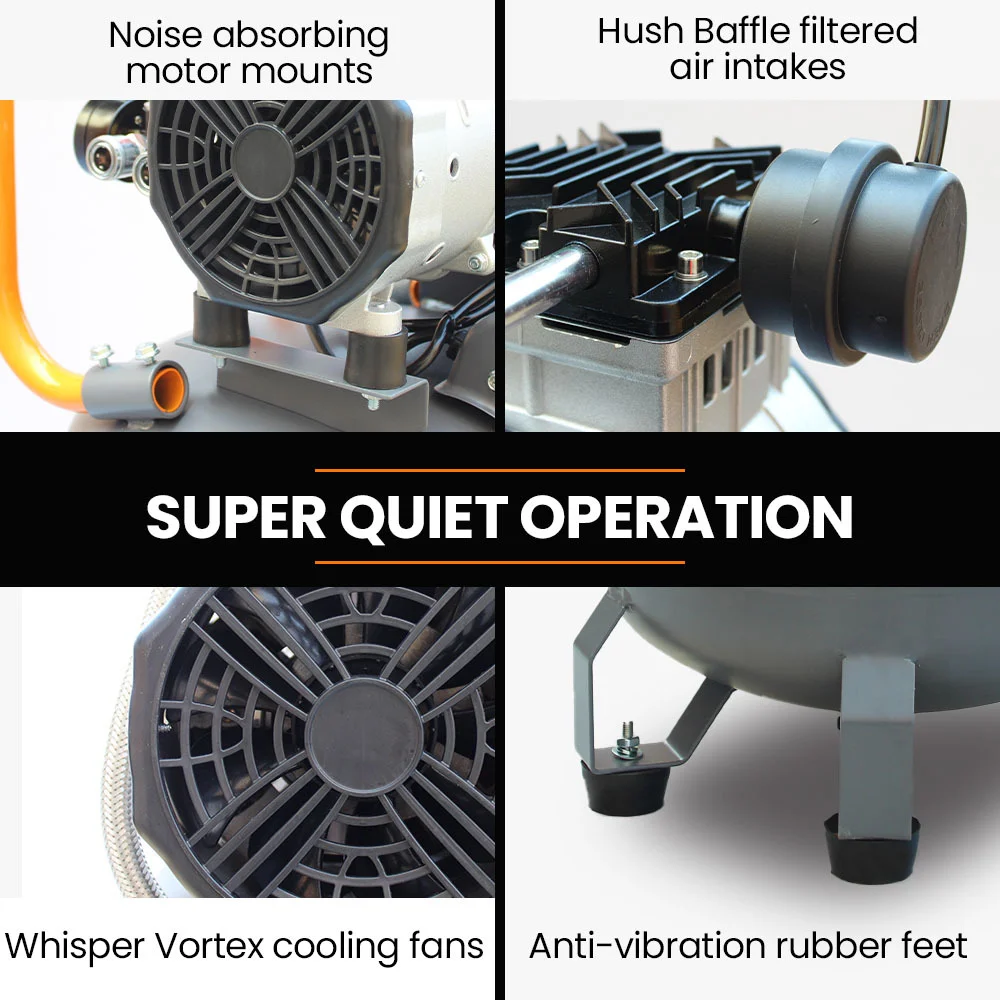

• Quiet Air Series with Whisper Vortex cooling fans, Hush Baffle air intakes and vulcanised rubber motor mounts

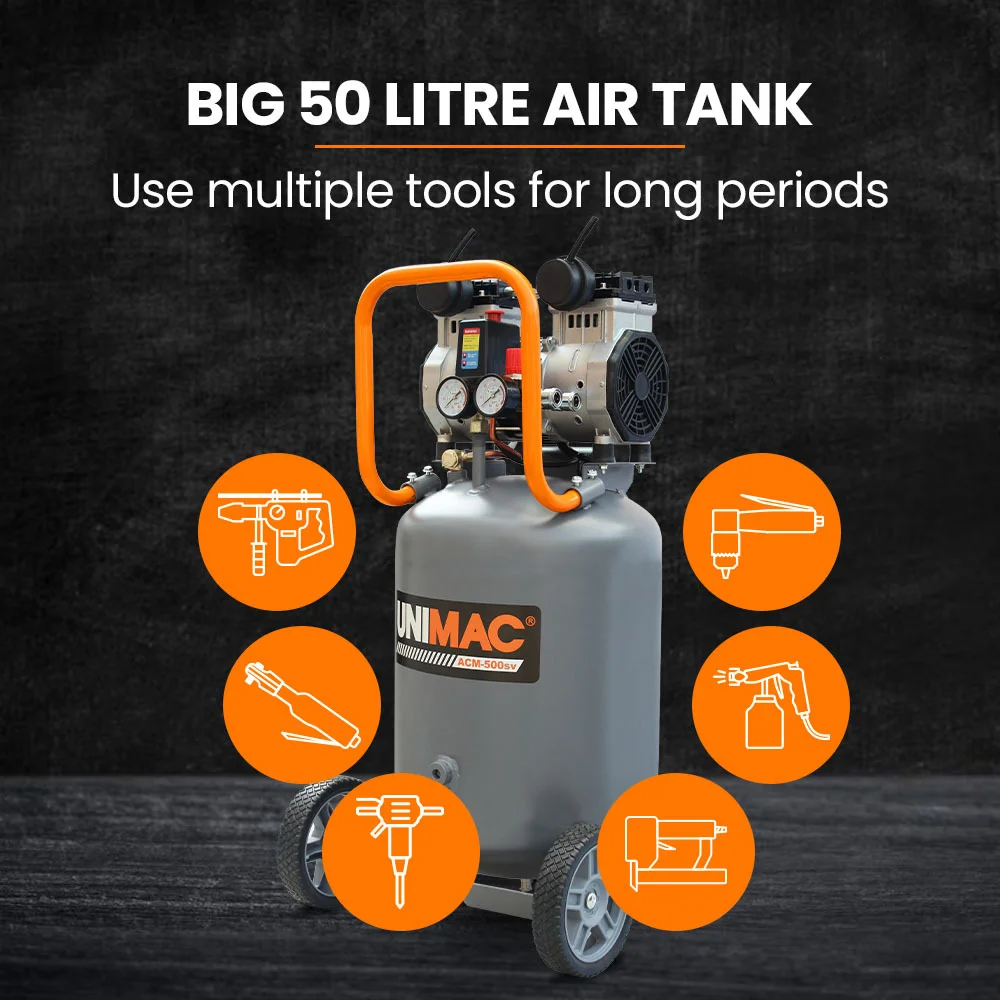

• Vertical 50L tank saves workspace and improves stability during use

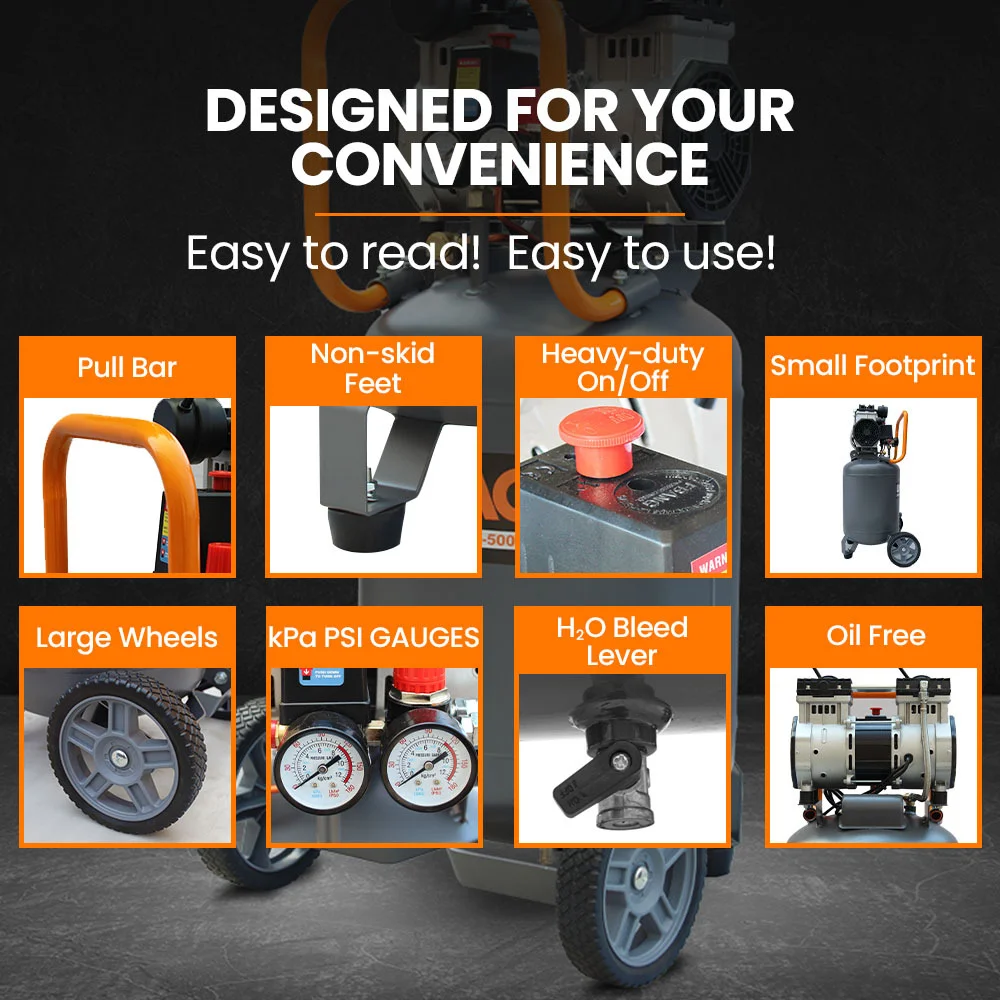

• Sturdy handle and rugged airless vulcanised rubber tyres for easy transport
• Automatic pressure control switch for efficient motor operation
• Two ¼” Nitto corrosive-resistant valves

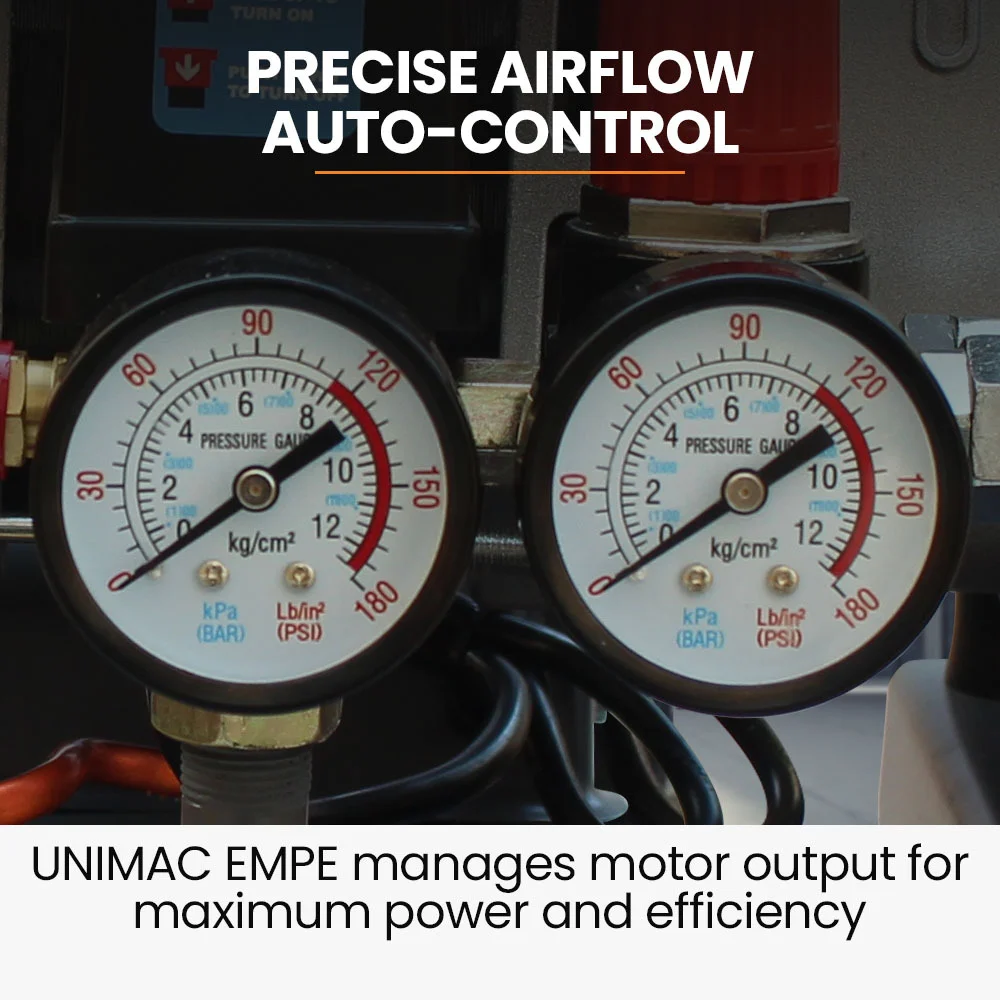

• Moisture bleed valve, large gauges, safety off button and air bleed safety

Specifications

• Brand: Unimac
• Model: ACM-500sv Quiet Air series
• Air displacement: 254L/min (8.9 CFM)
• Free air delivery @ 7bar: 125L/min (4.4 CFM)
• Receiver capacity: 50L
• Working pressure: 116PSI (8bar)
• Restart pressure: 86PSI (6bar)
• Starting method: Automatic pressure control switch
• Motor power: 1.5kW (2.0hp)
• Motor input: 230–240V 50Hz
• IP rating: IP20
• Plug: SAA 240V 10A, Australian standard
• Pump speed: 2850 rpm
• Noise level: Lpa = 62 dBa
• Fill time 0–8bar: 145 seconds
• Refill time 6–8bar: 44 seconds
• Duty cycle: 0.75
• Measurement system: Metric
• Rubber tyres: Yes
• Oil free: Yes

What's in the Box

• 1 x Air compressor
• 2 x Spare air filters

Note: User manual is accessible online.

Size and Weight

• Product dimensions (W x L x H): 42 x 41 x 88cm
• Product weight: 34kg
• Carton dimensions (W x L x H): 38 x 38 x 88cm
• Carton weight: 33kg
