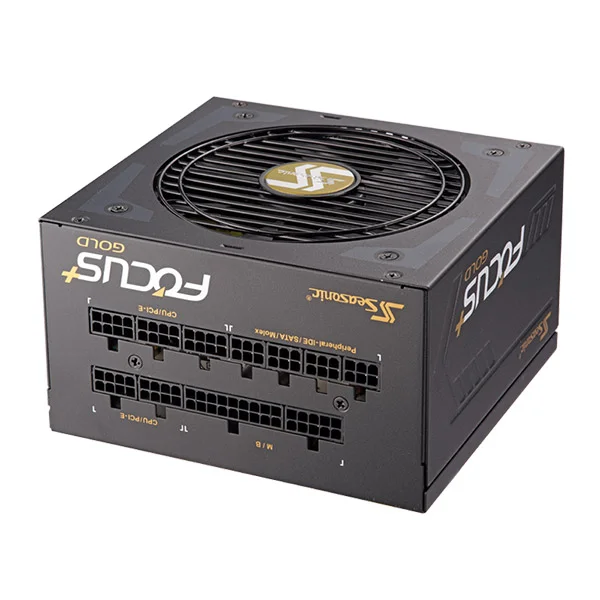

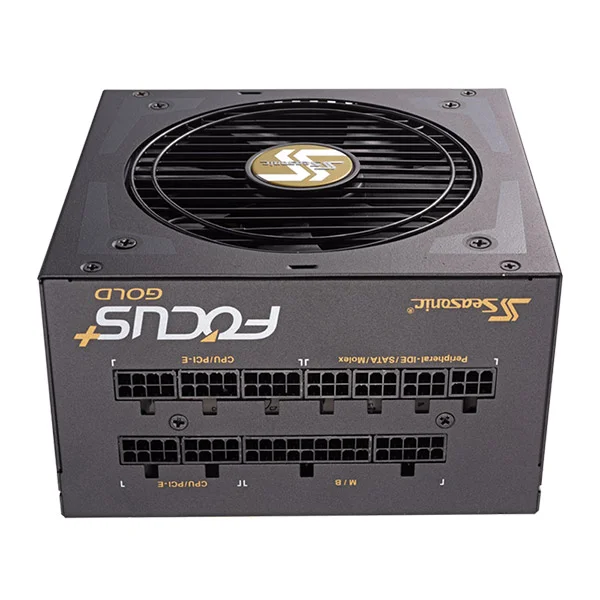

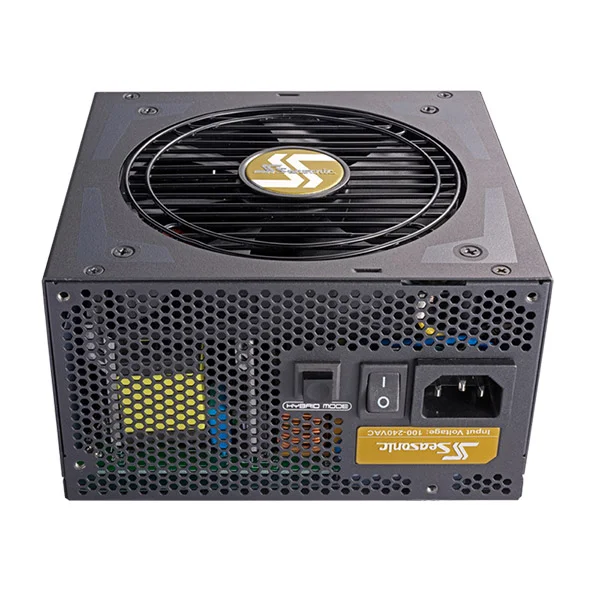

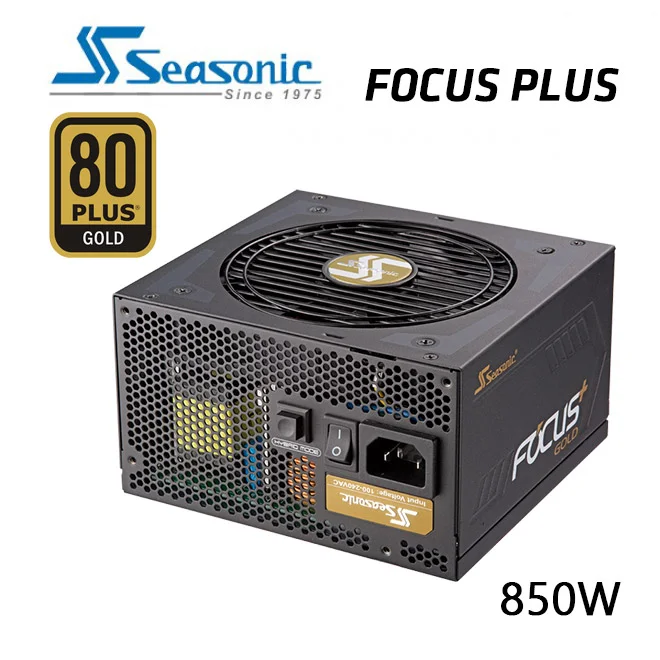

SeaSonic FOCUS PLUS Gold 850W Fully Modular PSU (SSR-850FX)

The SeaSonic FOCUS PLUS Gold 850W power supply delivers high performance and reliable power for modern desktop builds, with 80PLUS Gold efficiency and a fully modular design. It meets the latest ATX and EPS standards and is ready for use with state-of-the-art Intel Core i7 processors.

Key Features

• 80PLUS Gold efficiency
• Fully modular design with flat black cables

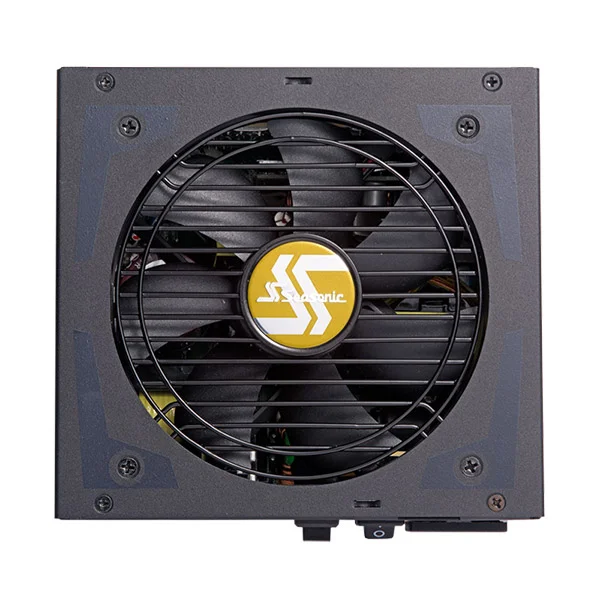

• 120 mm fan with Hybrid Silent fan control and Fluid Dynamic Bearing
• Wide range of protection features: OPP, OVP, UVP, OCP, OTP, SCP
• Official approvals from major safety agencies

Specifications

• 80PLUS: Gold
• Form Factor: Intel ATX 12 V
• Dimensions: 150 mm (W) x 140 mm (L) x 86 mm (H)
• Fan Size: 120 mm
• Fan Control: Hybrid Silent fan Control
• Fan Bearing: Fluid Dynamic Bearing
• Fan Life Expectancy: 70,000 hours at 40 °C, 15 % - 65 % RH
• Modularity: Fully Modular
• Cable Type: Flat black cables
• Operating Temperature: 0 - 50 °C
• MTBF @ 25 °C, excl. fan: 100,000 hours
• AC Input: Full Range
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH

What's in the Box

• 1 x SeaSonic SSR-850FX FOCUS PLUS 850W 80+ Gold Power Supply
