Protégé WashLink 4 Plus Macerator Pump with 4 Inlets for Toilet, Shower, Sink and Washing Machine

The Protégé WashLink 4 Plus Macerator Pump lets you add a toilet, shower, basin or washing machine to spaces without conventional drainage, such as a basement bathroom, wet bar or utility room. It macerates waste and pumps it away through a compact, slim unit that operates quietly.

Key Features

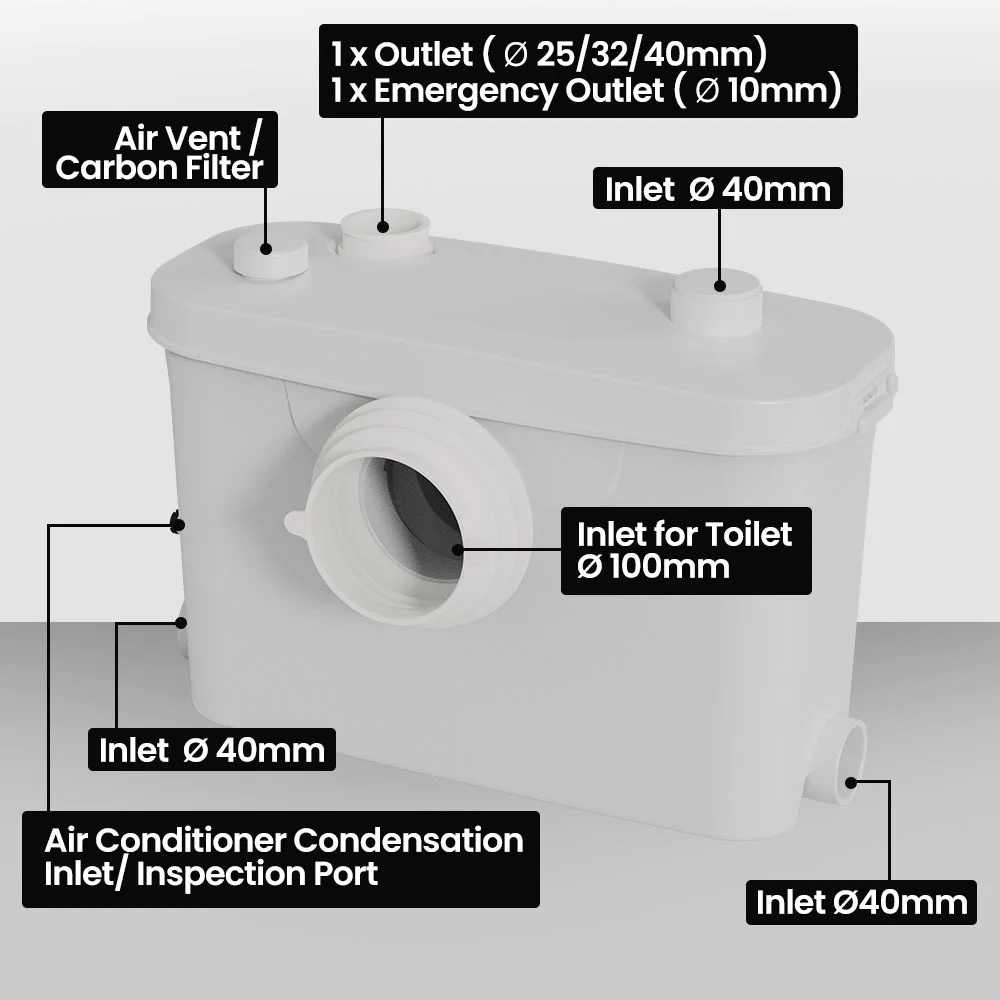

• Four inlets for flexible connections: 3 x 40mm and 1 x 100mm
• Suitable for P-trap toilets, wash basins, bathtubs, showers and washing machines
• Not suitable for wall hung toilets
• 304 stainless steel impeller blades and cutting system
• Quiet operation at 30~40dB

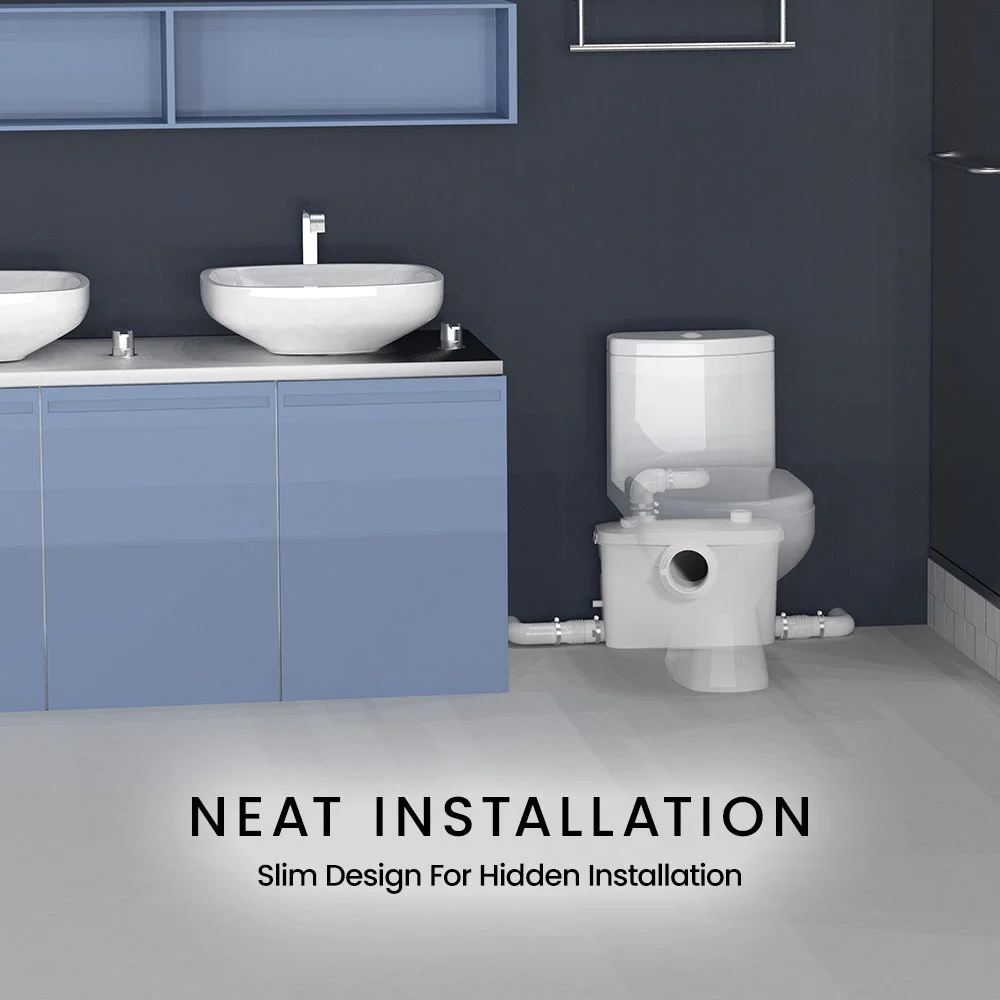

• Slim construction for space-saving installation
• Copper wound motor with oil
• Fully automated operation triggered by flushing
• Air vent included

Specifications

• Brand: Protégé
• Model: WashLink 4 Plus
• Product standard: GS / CE
• Cutting system: Yes
• Blade material: 304 stainless steel
• Toilet inlet: Included
• Number and size of inlets: 3 x 40mm, 1 x 100mm
• Number and size of outlets: 1 x outlet (23/28/32/44mm), 1 x emergency outlet 10mm
• Tank size: 13L

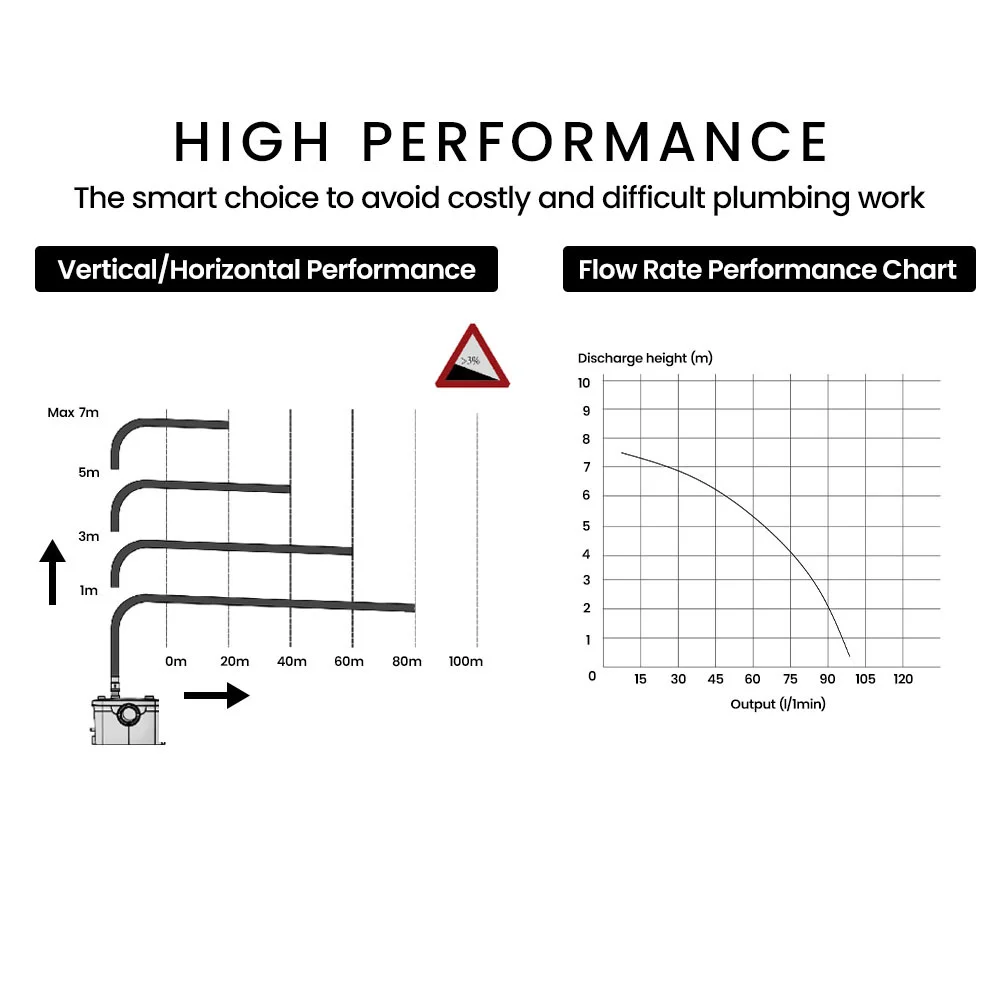

• Flow rate at max head: 100L/min
• Water temperature: 65°C (80°C in 4 hours)
• Thermal protection: 100°C
• Noise level: 30~40dB
• Horizontal discharge: 70m
• Vertical discharge: 7m
• IP rating: IPX4
• Air vent: Yes
• Power: 400W
• Motor: 220~240V / 50Hz / 2800 RPM copper wire motor with oil
• Motor size: 95mm
• Plug: SAA
• Cord length: 1.7m
• Tank material: Polypropylene
• Water start level: 7.5~8.5cm

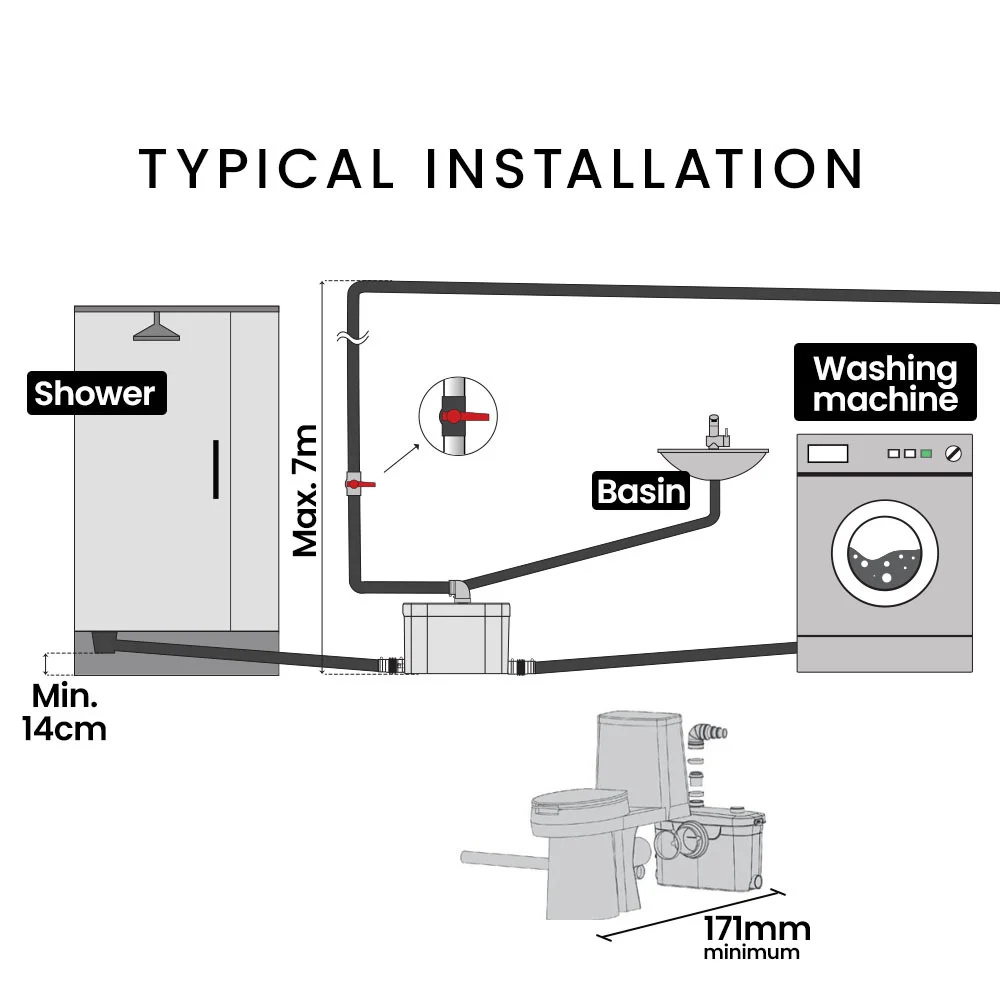

• Minimum shower floor clearance: 14cm
• Minimum distance from toilet outlet to rear wall: 171mm

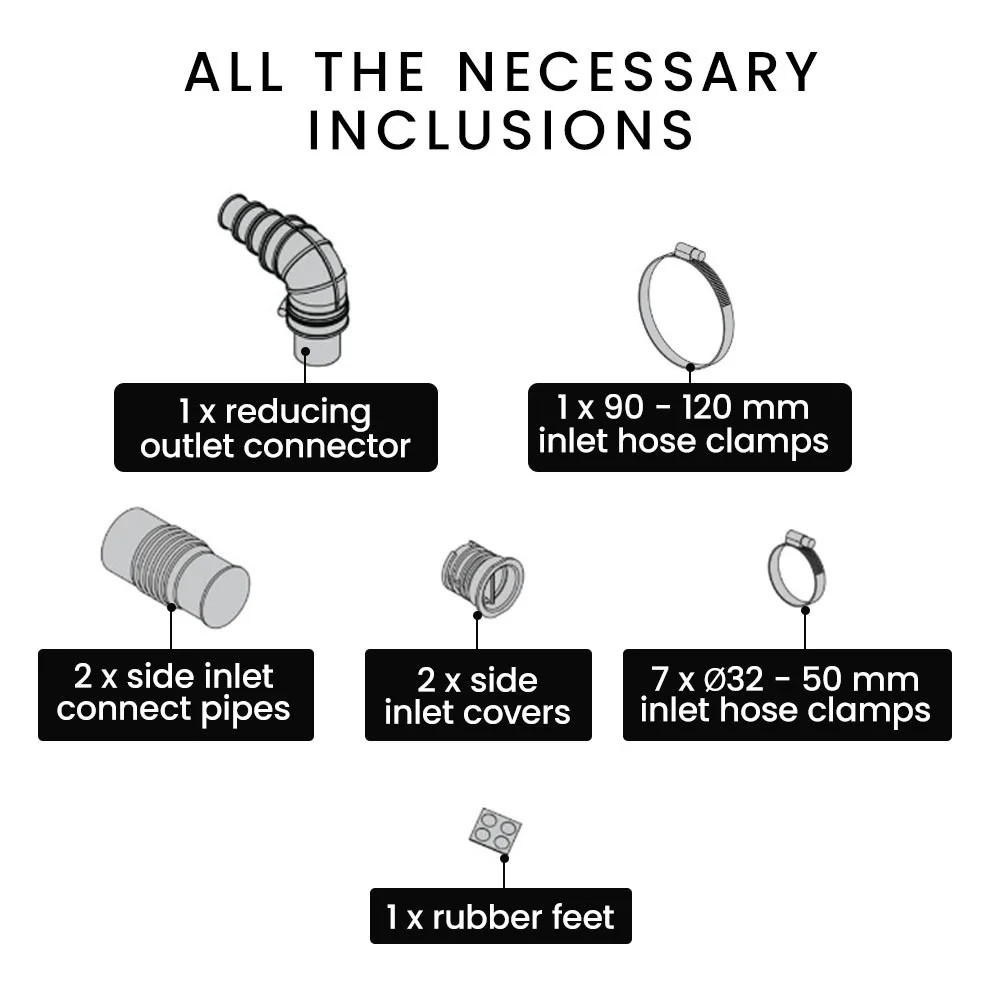

What's in the Box

• 1 x Protégé Macerator
• 1 x Reducing outlet connector
• 2 x Side inlet covers
• 2 x Side inlet connect pipes
• 7 x ⌀32-50mm inlet hose clamps
• 1 x ⌀90-120mm inlet hose clamp
• 1 x Rubber feet set
• Note: User manual is accessible online
• Note: Requires assembly

Size and Weight

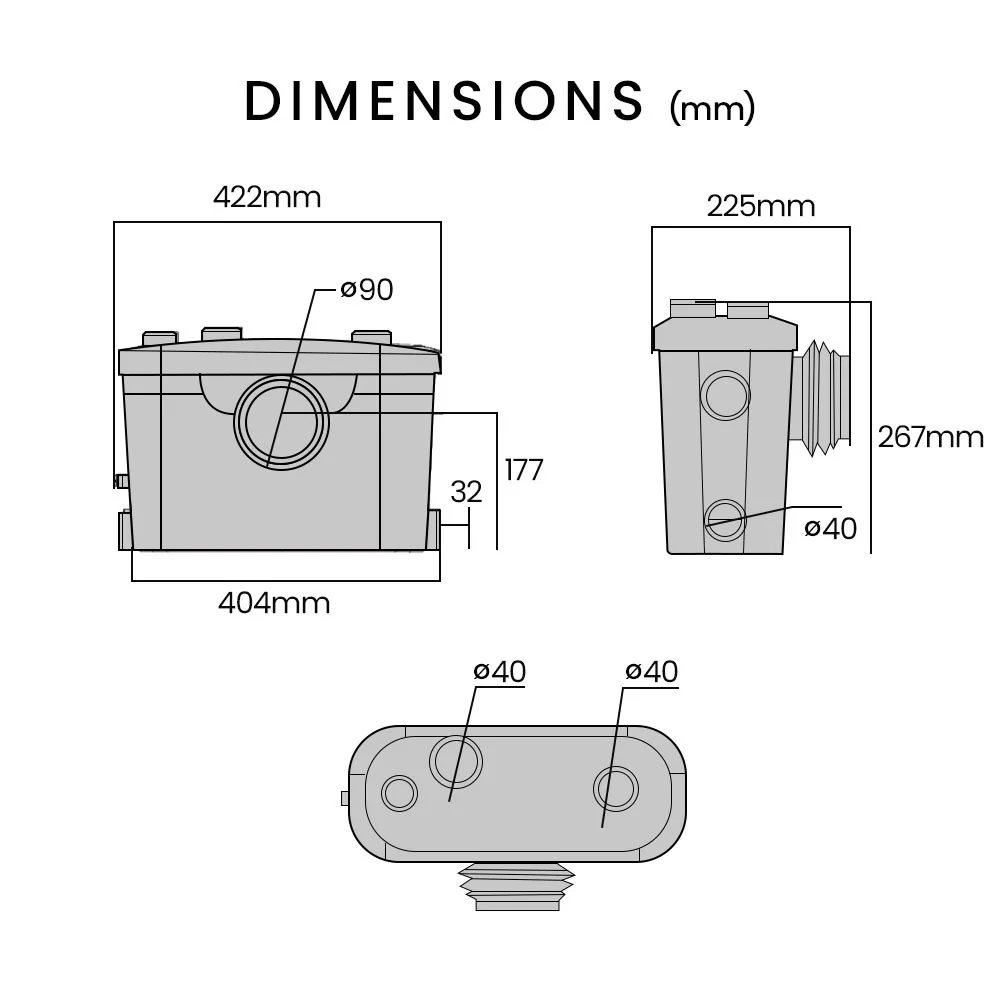

• Product dimensions (W x D x H): 422 x 225 x 267mm
• Product weight: 5kg
• Carton dimensions (W x L x H): 25 x 50 x 35cm
• Carton weight: 7kg
