Protege Washlink 4 Commercial Macerator Pump 800W with 4 Inlets for P-Trap Toilet

The Protege Washlink 4 Commercial Macerator Pump is a heavy-duty solution for adding a bathroom or en-suite where traditional plumbing is impractical. With its powerful 800W motor and four inlets, it efficiently macerates waste and pumps it away, making it ideal for commercial environments and P-trap toilets.

Key Features

• Heavy-duty 800W copper-wound motor for reliable performance
• Four inlets: 1x toilet (⌀100mm) and 3x ⌀40mm for connecting up to four sanitary fixtures such as basin, shower, bath, bidet or washing machine
• Non-clog stainless-steel impeller blades cut through waste materials including condoms, paper towels and sanitary products
• Maximum vertical pumping height of 9m and horizontal pumping distance of 90m
• 16L tank capacity with automatic activation
• Non-return valve included to prevent backflow
• Rubber feet for smooth, quiet operation (noise level 55-80dB)
• Quality instructions and all necessary fittings included for straightforward installation

Specifications

• Brand: Protege
• Model: Washlink 4 Commercial
• Application: Commercial
• Rated Voltage: 220-240V, 50Hz
• Power: 800W
• Motor: Copper Wound
• Noise level: 55-80dB
• Inlets: 4 (1x Toilet ⌀100mm, 3x ⌀40mm)
• Tank Capacity: 16L

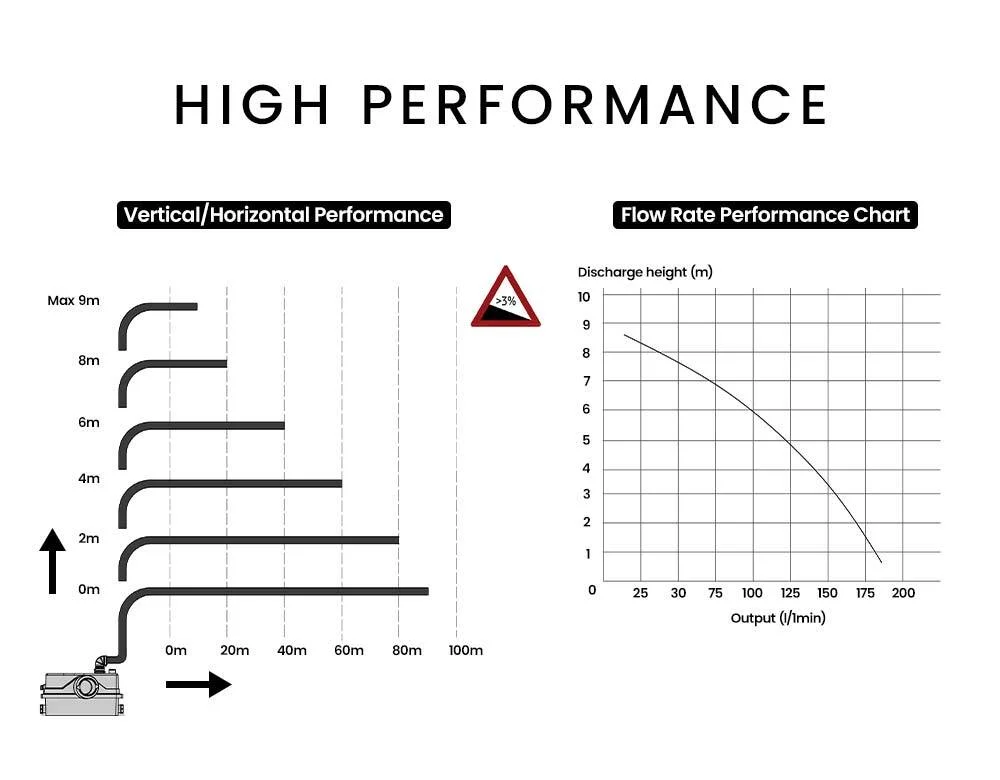

• Vertical Pumping (Max): 9m
• Horizontal Pumping (Max): 90m
• Rated Flow: 180L/min
• Blade: Stainless Steel
• Non Return Valve: Yes
• Water Start Level: 14 - 15cm
• Power Cord Length: 1.7m
• Power Plug: Australian Standard

What's in the Box

• 1 x Protege Macerator
• 1 x Universal toilet inlet hose fitting and ⌀90-100mm hose clamp
• 1 x Sanitary device inlet hoses
• 2 x Inlet blanking plug caps
• 1 x Toilet Inlet blanking cap
• 1 x ⌀90-100mm Inlet hose clamps
• 2 x ⌀32-50mm Inlet hose clamps
• 1 x ⌀20-32mm Inlet hose clamps
• 2 x Foot brackets and screws
• 6 x Rubber feet
• User Manual is accessible online

Size and Weight

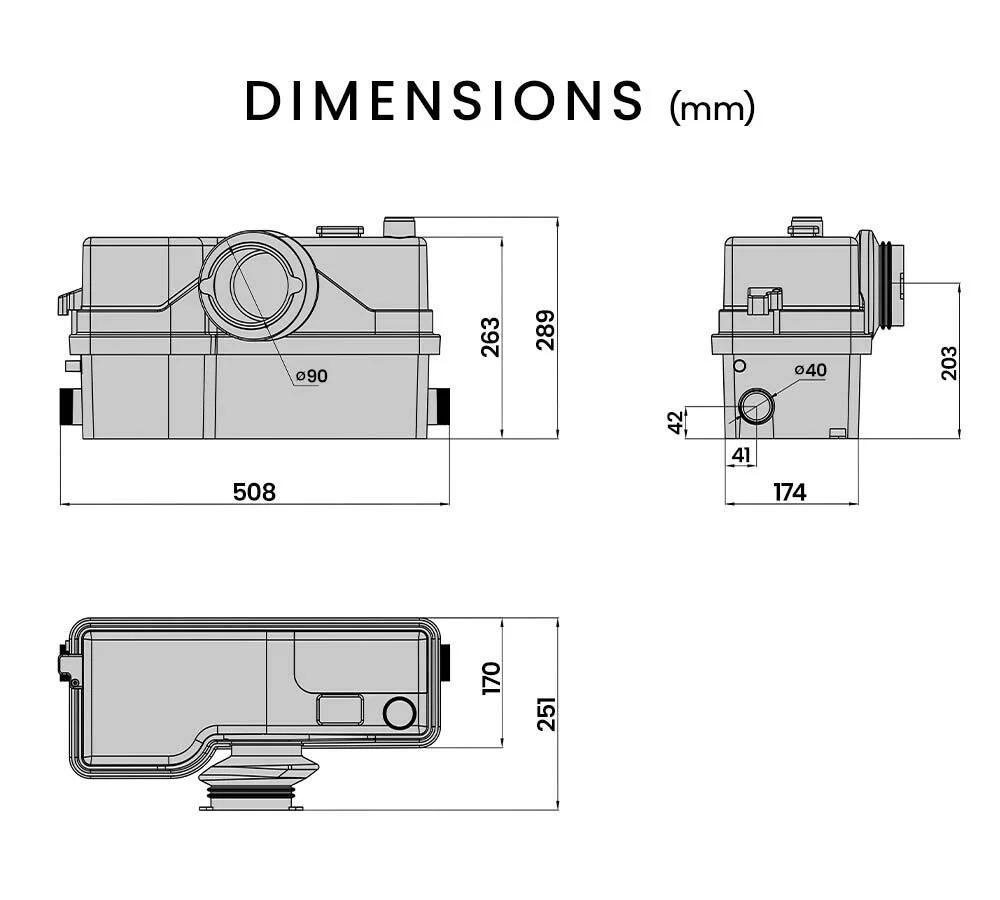

• Product Dimensions (W x L x H): 25.9 x 51.5 x 26.5cm
• Product Weight: 9kg
• Carton Dimensions (W x L x H): 26.5 x 55 x 36cm
• Carton Weight: 10kg
