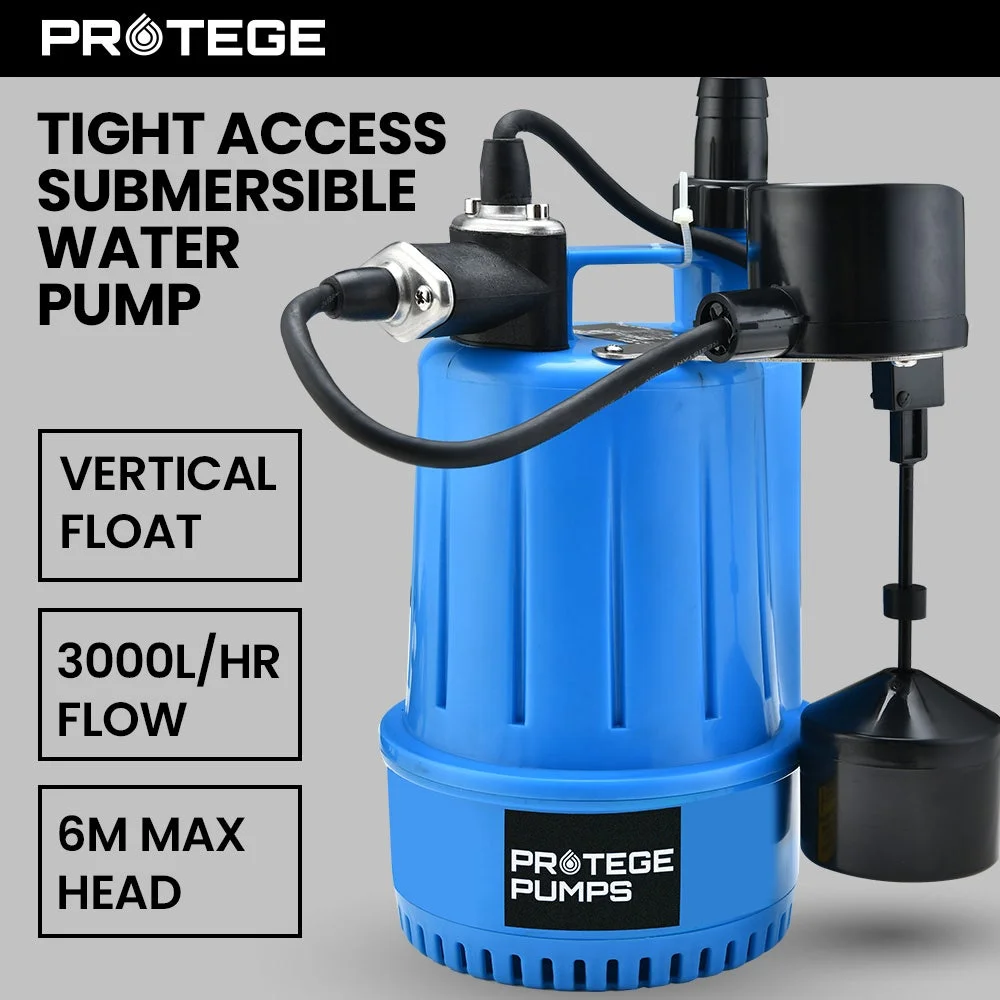

Protege PRG-M1 Tight Access Submersible Grey Water Sump Pump with Vertical Float Switch

The Protege PRG-M1 Tight Access Submersible Grey Water Pump is a compact, power-efficient sump pump for draining tanks, containers and flooded areas, or for watering gardens with grey water. Its vertical float switch lets it operate automatically in tight pits and sumps without the float catching on walls or other equipment.

Key Features

• Automatic operation via built-in vertical float switch
• Adjustable float on-switch from 71mm to 170mm, turns off at 70mm

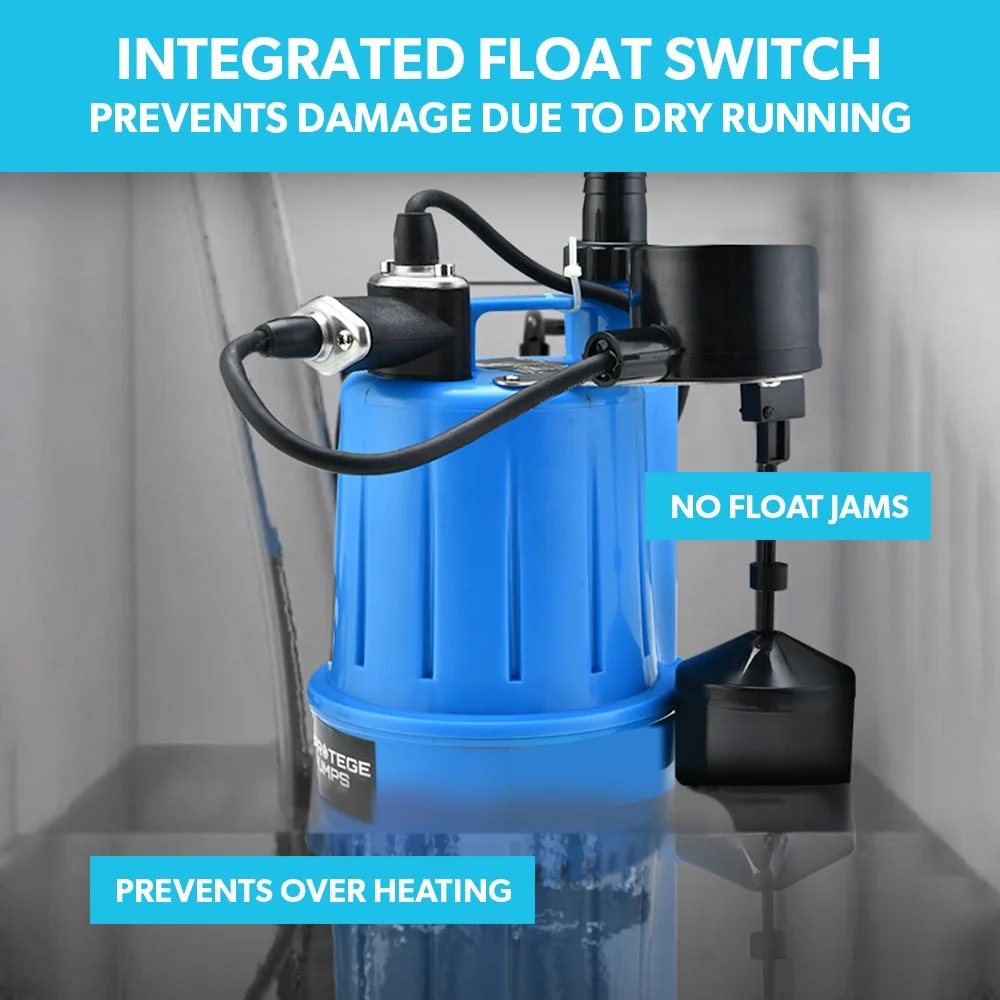

• Float switch helps protect against dry running and overheating

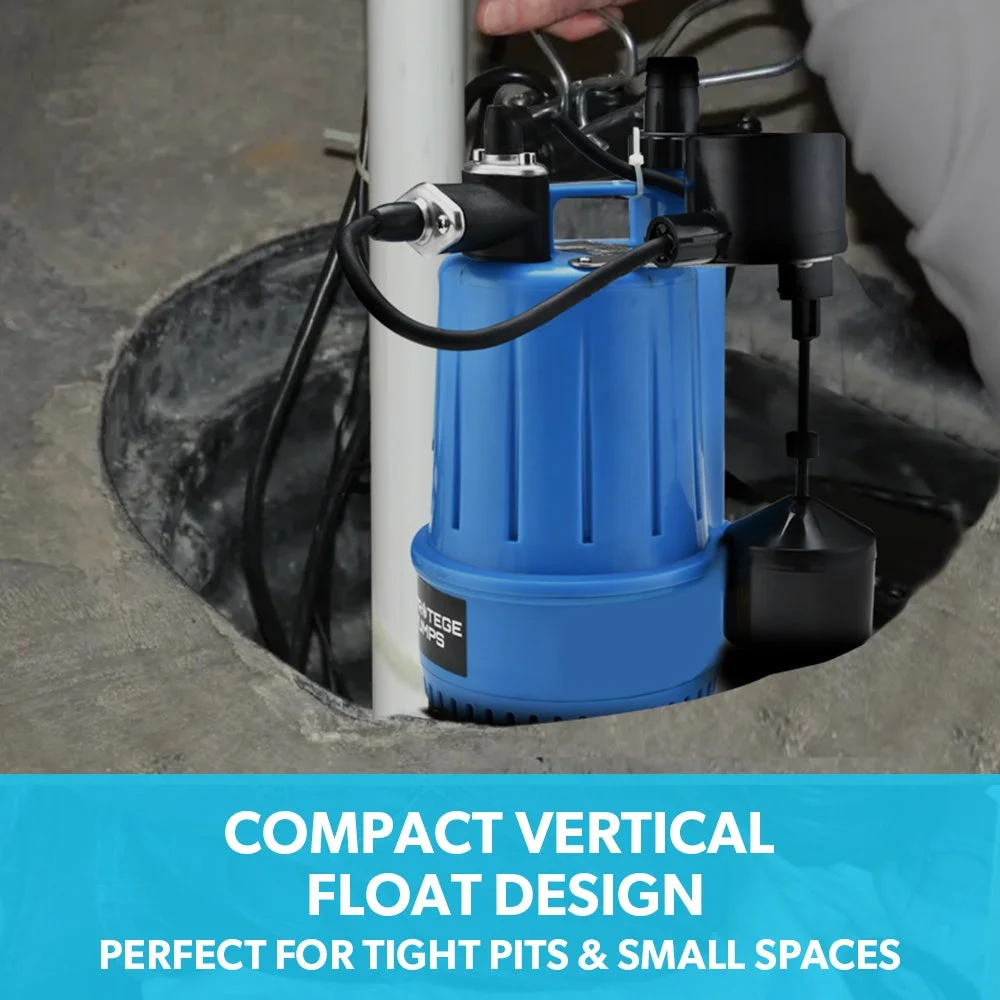

• Compact design suits basement or crawl space sump pits

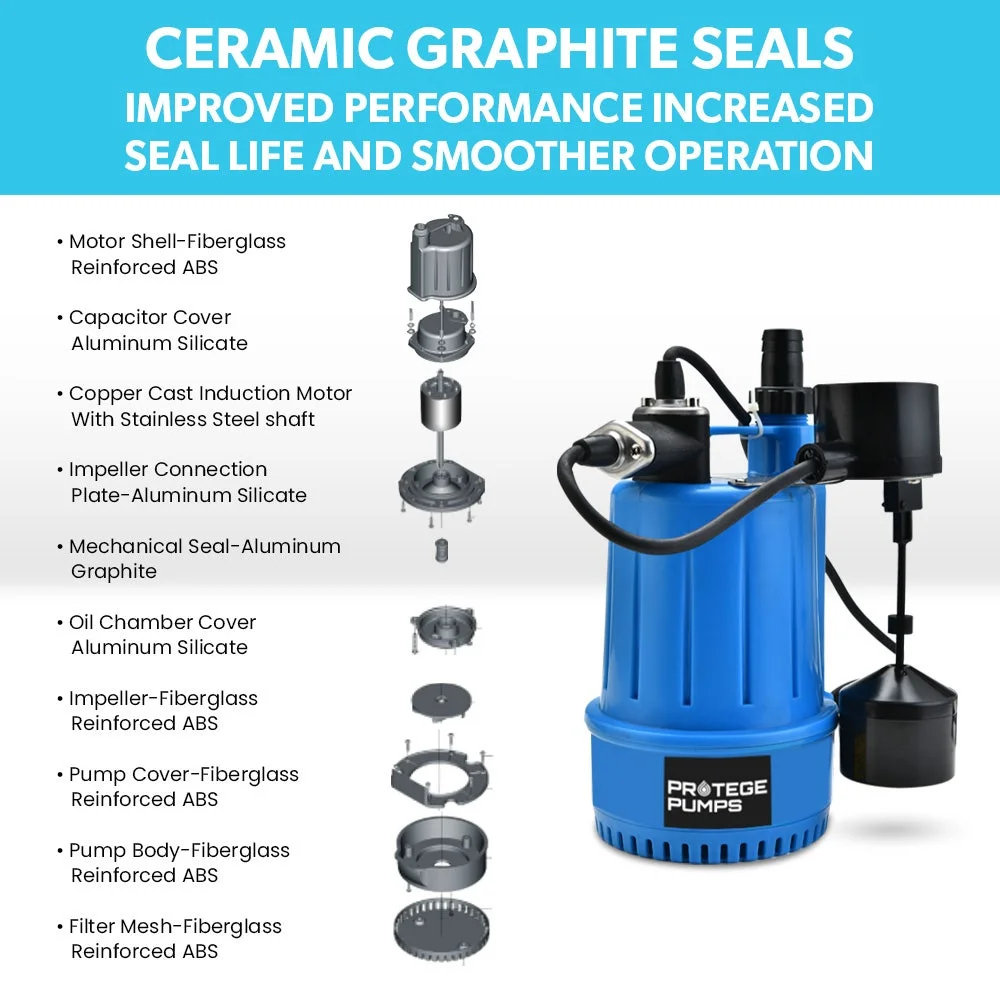

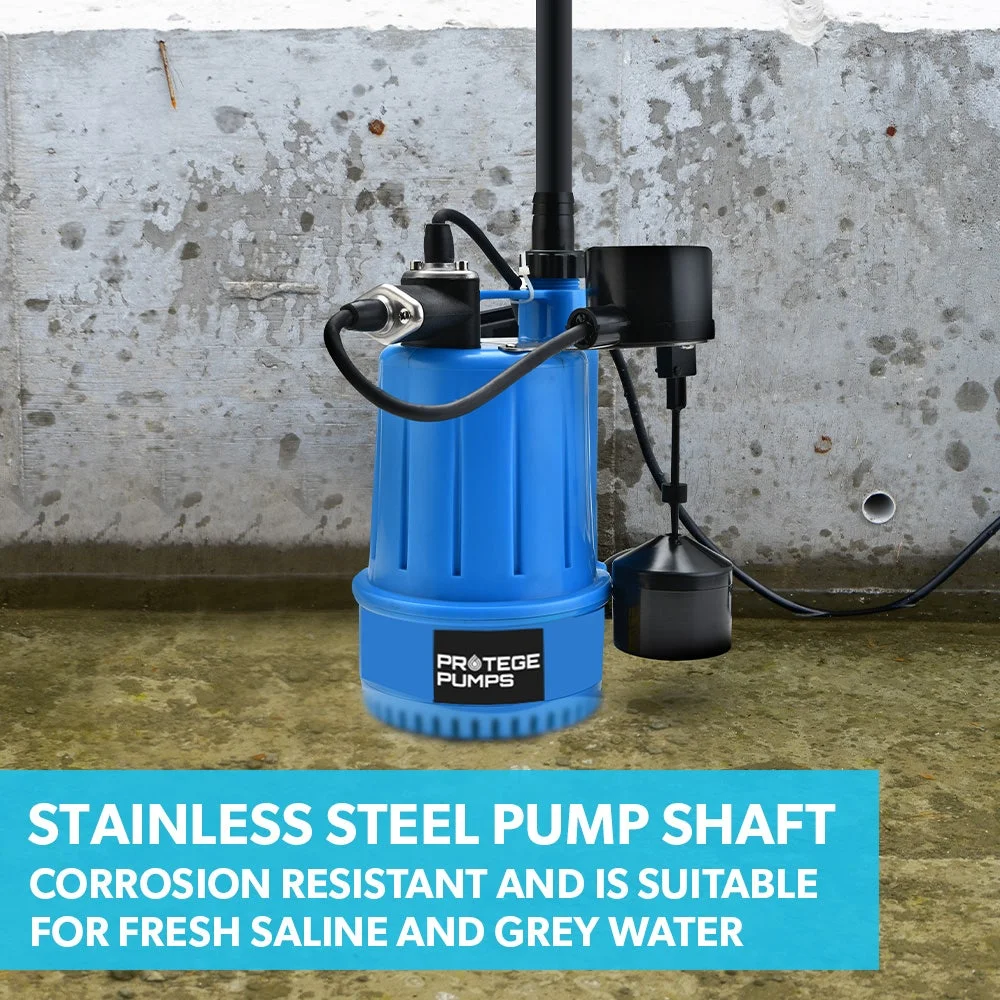

• Stainless steel shaft with ceramic graphite seals
• Nylon fibreglass impeller
• Sturdy polypropylene fibreglass reinforced case
• Handles fresh, grey or salt water (rinse with fresh water after every salt water use)

Specifications

• Brand: Protege
• Model: PMG-M1
• Power rating: 100W
• Discharge head / pressure: 6m / 60kPa
• Water resistant rating: IP68, submersible to 4m
• Capacity: 50 litres per minute (3000 L/H)
• On/Off: automatic vertical float
• Output voltage: 240V AC/50Hz
• Power plug: 10A, Australian Standard
• Power cord length: 4m
• Max operating temperature: 40℃

What's in the Box

• 1 x Protege PMG-M1 Tight Access Submersible Pump
• 3 x Pipe adaptors (1'/25mm, 0.8'/20mm, 0.6'/15mm)
• 1 x Pressure fitting
• 1 x Rubber washer
• Note: User manual is accessible online

Size and Weight

• Product dimensions (W x H): 210 x 292 mm
• Product weight: 5kg
• Carton dimensions (W x L x H): 250 x 280 x 330mm
• Carton weight: 6kg
