mbeat H3 USB 3.2 Gen2x2 20Gbps Dual M.2 NVMe SSD Dock with Clone Duplicator (Black)

The mbeat H3 Dual M.2 NVMe SSD Dock connects two M.2 SSDs over USB 3.2 Gen2x2 for fast data transfer and offline cloning. With support for NVMe and AHCI drives, it is a versatile tool for duplicating, backing up and accessing solid-state storage.

Key Features

• Dual SSD dock with built-in clone duplicator for connecting two M.2 SSDs at once
• Supports multiple transfer modes, including NVMe to NVMe and AHCI to NVMe, plus offline clone capability
• Compatible with AHCI SSDs and B+M Key or M Key NVMe SSDs
• USB 3.2 Gen2x2 connectivity with speeds up to 20Gbps
• Built-in LED indicators for quick status checks during clone operations
• Works with Windows and Mac OS systems

Specifications

• USB port: USB-C 3.2 Gen2x2
• Data speed: Max. 20Gbps for one SSD, 10Gbps per SSD for two
• USB compatibility: Backward compatible with USB 3.1/3.0/2.0
• Controller IC: JMS586U

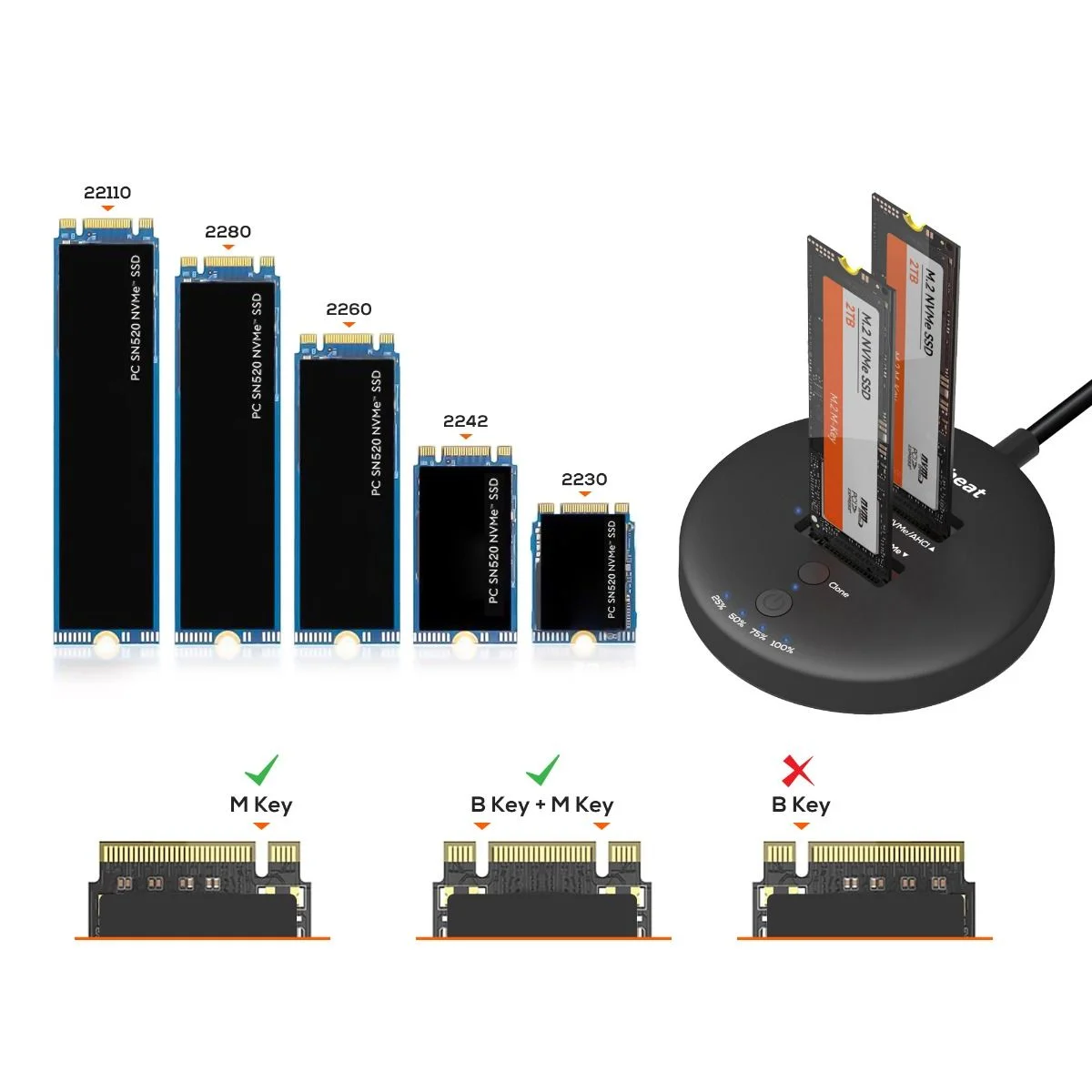

• SSD interface: Supports B+M Key and M Key NVMe SSD
• Clone speed: Up to 15Gbps maximum (SSD requires minimum 2000MB/s read and 1600MB/s write)
• Supported SSD sizes: M.2 2230/2242/2260/2280/22110
• Supported OS: Windows 2000/2003/XP/Vista/7/8/8.1/10/11 and Mac OS

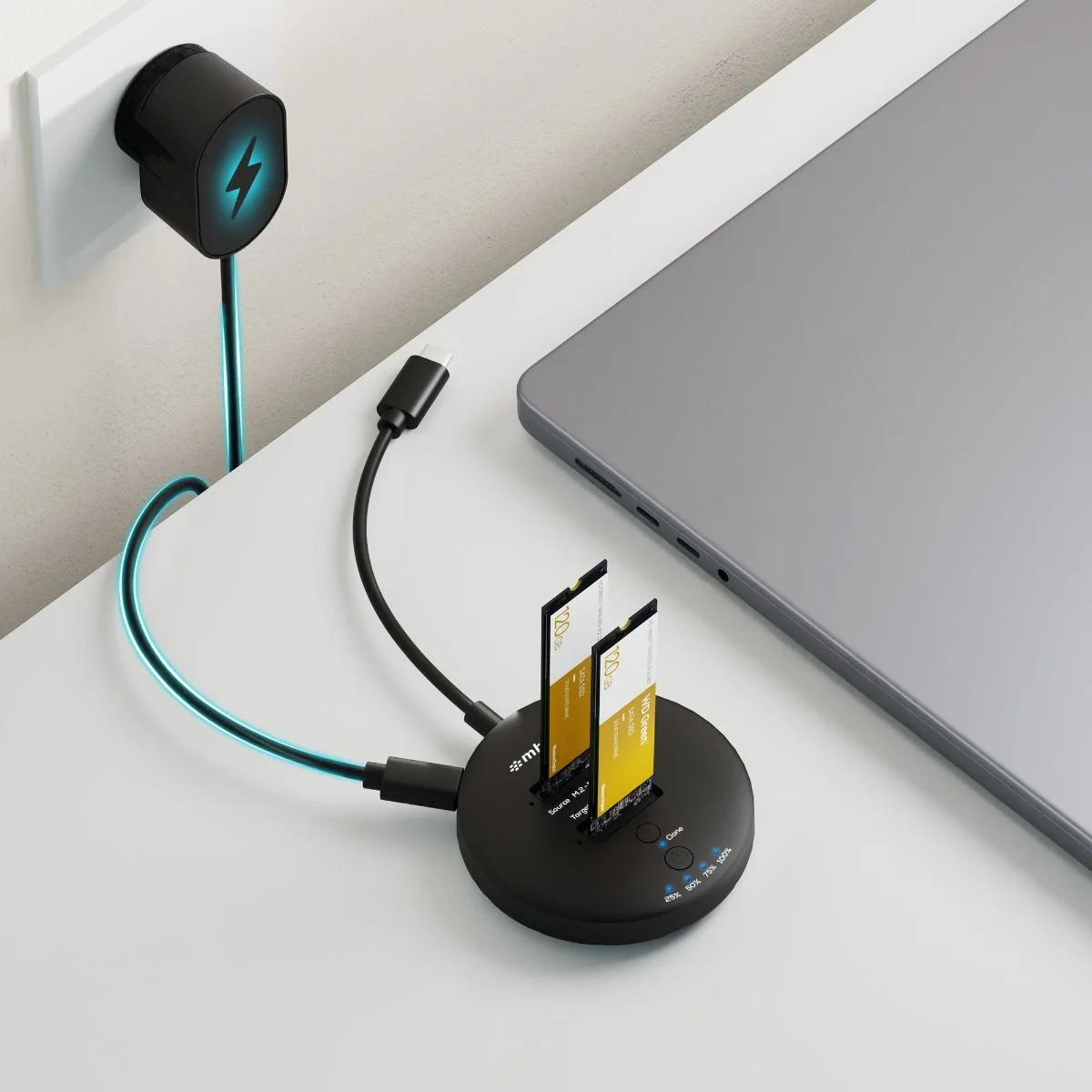

• DC power: Includes 5V/3A power supply
• Cable length: Built-in 25cm cable

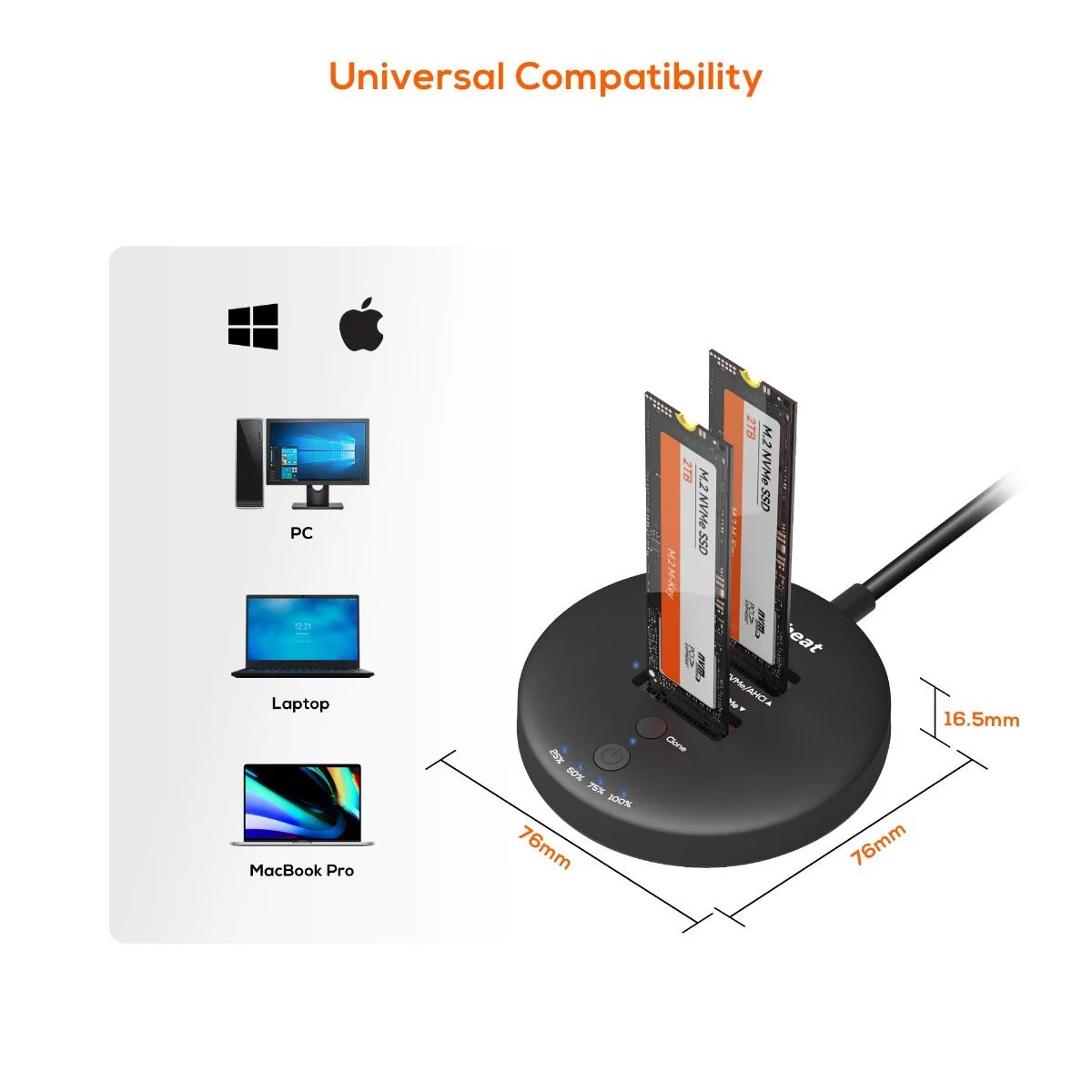

• Product dimensions (with cable): 332mm x 76mm x 16.3mm
• Product weight (with cable): 96g

What's in the Box

• Dual M.2 SSD Dock
• DC Power Supply
• User Manual
