Simplecom SA536 USB-C to M.2 and SATA 2-in-1 Adapter, 10Gbps

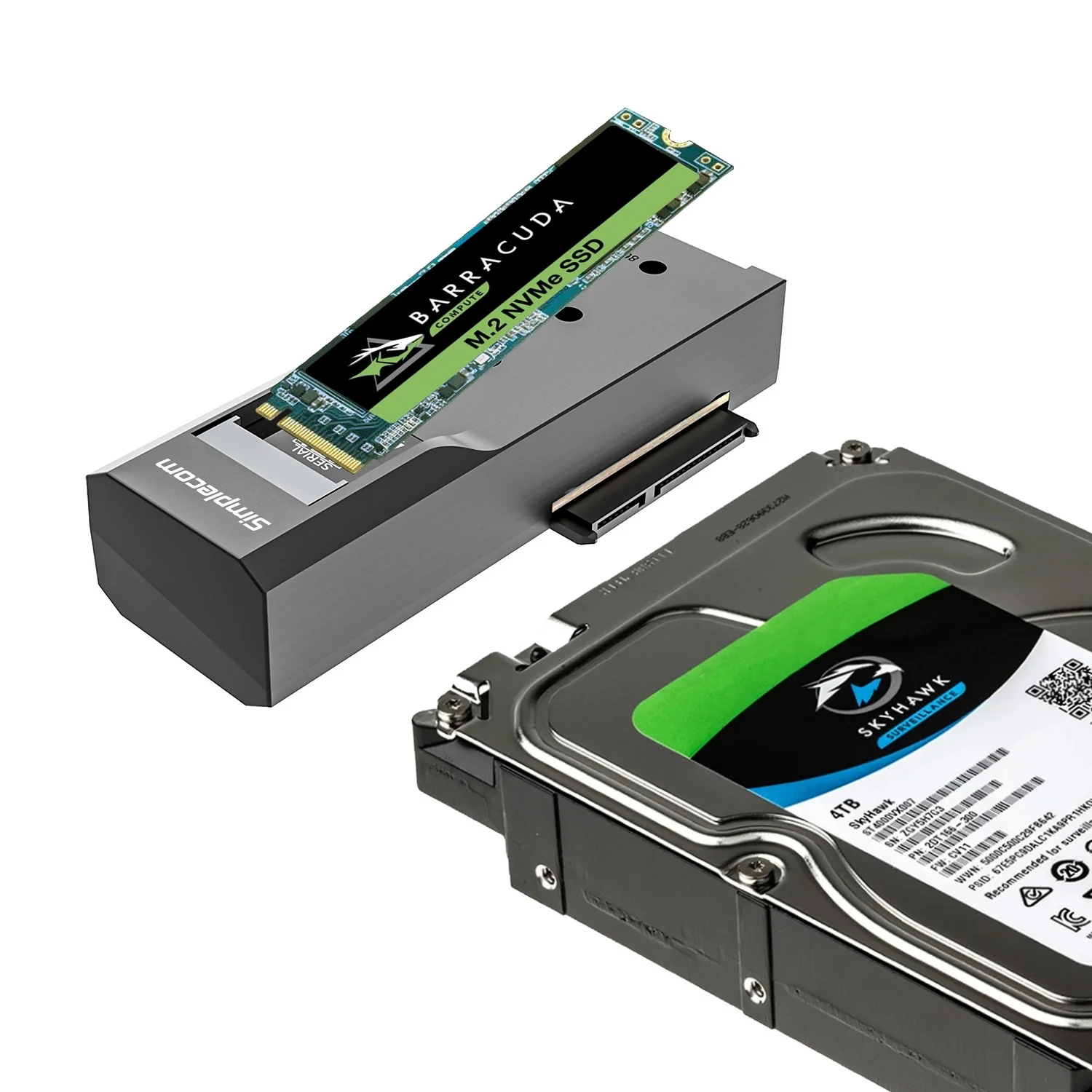

The Simplecom SA536 is a 2-in-1 USB adapter with both SATA and M.2 sockets, giving you one plug-and-play solution for accessing most common storage drives. Connect a 2.5" or 3.5" SATA HDD/SSD or an NVMe/SATA M.2 SSD and swap drives without installing them into an enclosure or PC tower.

A toggle switch lets you quickly select between SATA and M.2 modes, and the USB 3.2 Gen 2 interface supports read and write speeds up to 10Gbps. The included external power supply lets the adapter power and access desktop 3.5" SATA hard drives, while 2.5" SATA drives and M.2 SSDs are powered by USB alone. It is suited to data migration, data backup and fast access to SATA HDDs and M.2 SSDs.

Key Features

• 2-in-1 USB adapter with SATA and M.2 sockets
• Supports NVMe and SATA M.2 SSDs

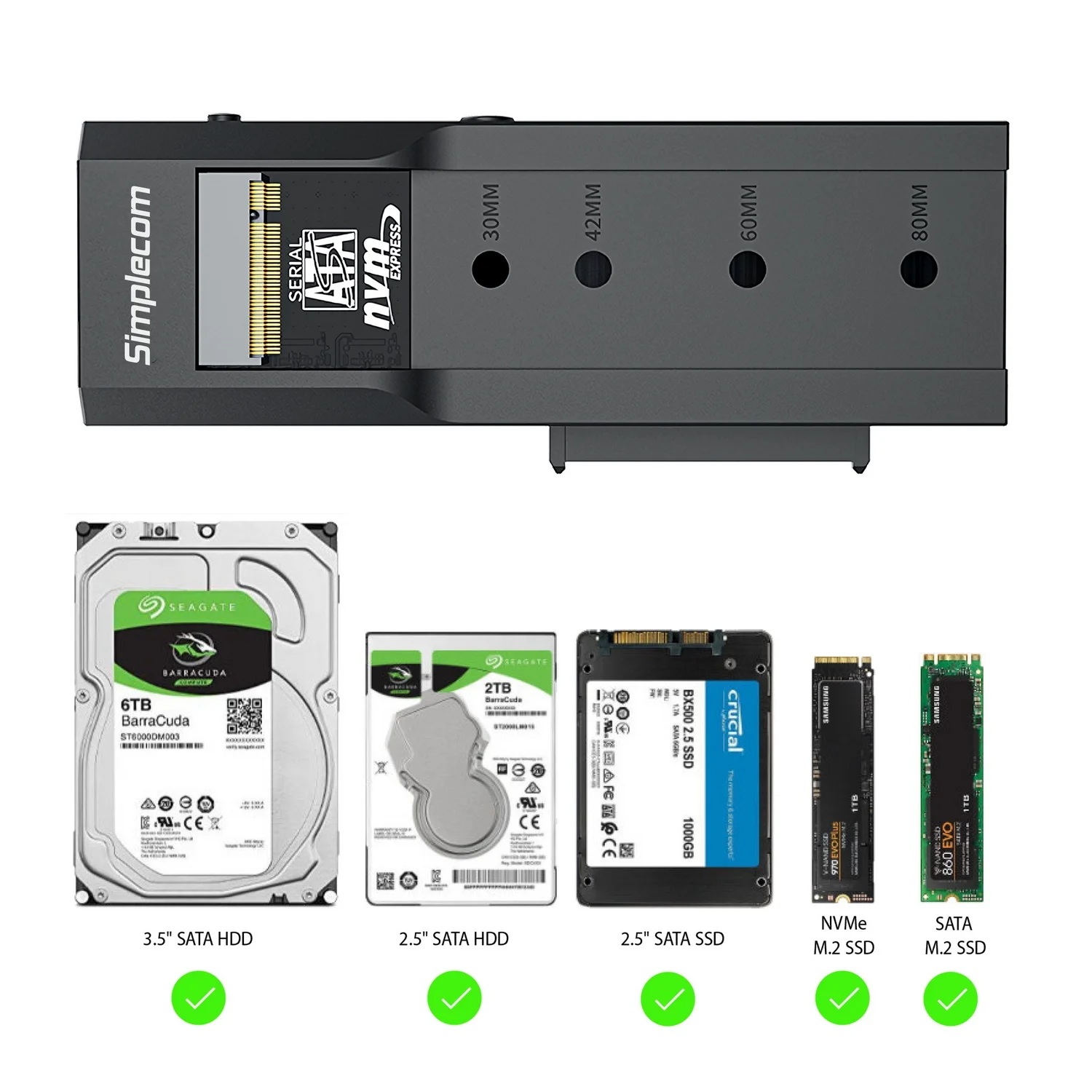

• Supports 2.5" and 3.5" SATA HDD/SSD with SATA I/II/III interface

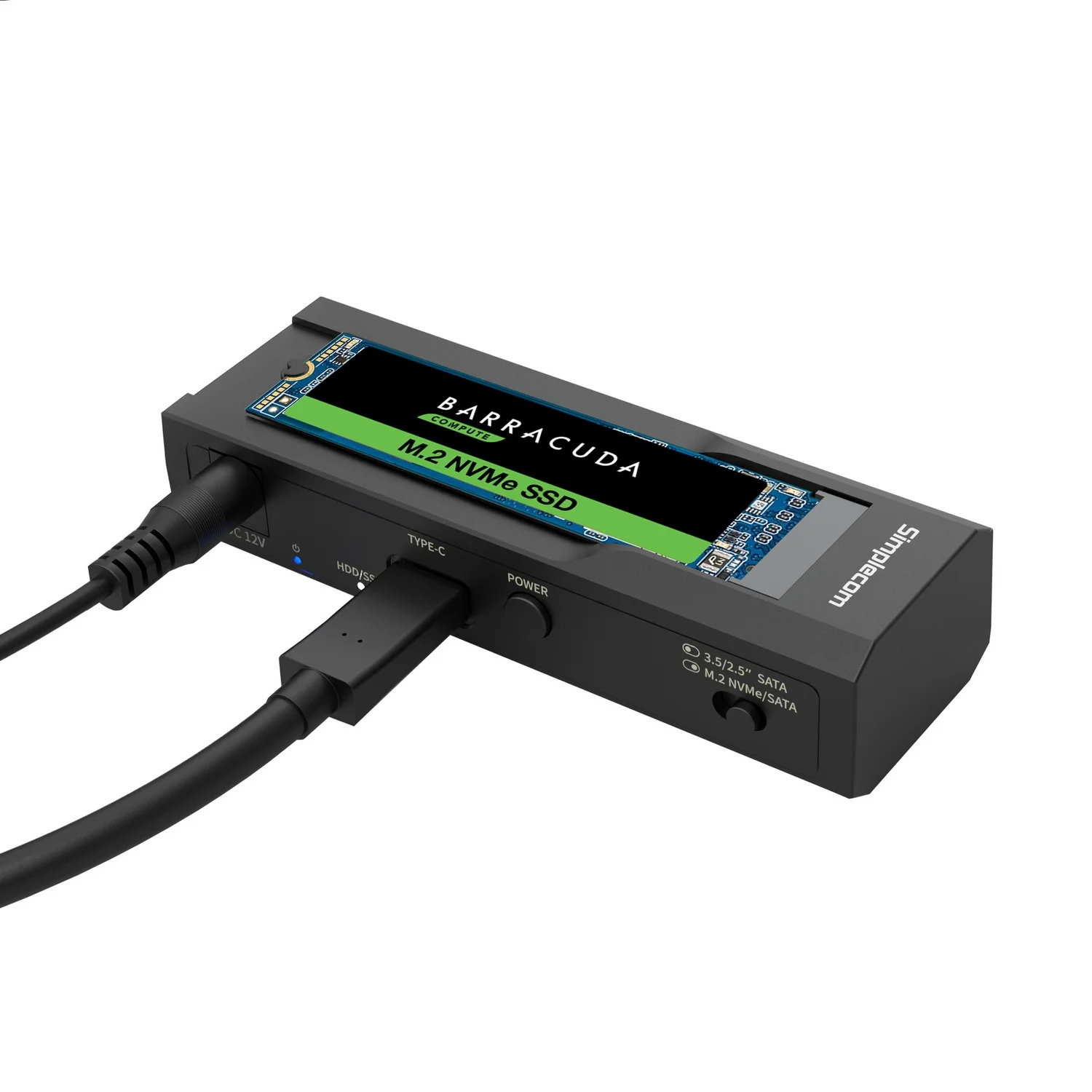

• Toggle button to quickly switch between SATA and M.2
• USB 3.2 Gen 2 interface supporting up to 10Gbps data transfer rate
• Plug and play, no driver required
• Supports UASP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• External power adapter included for 3.5" hard drives

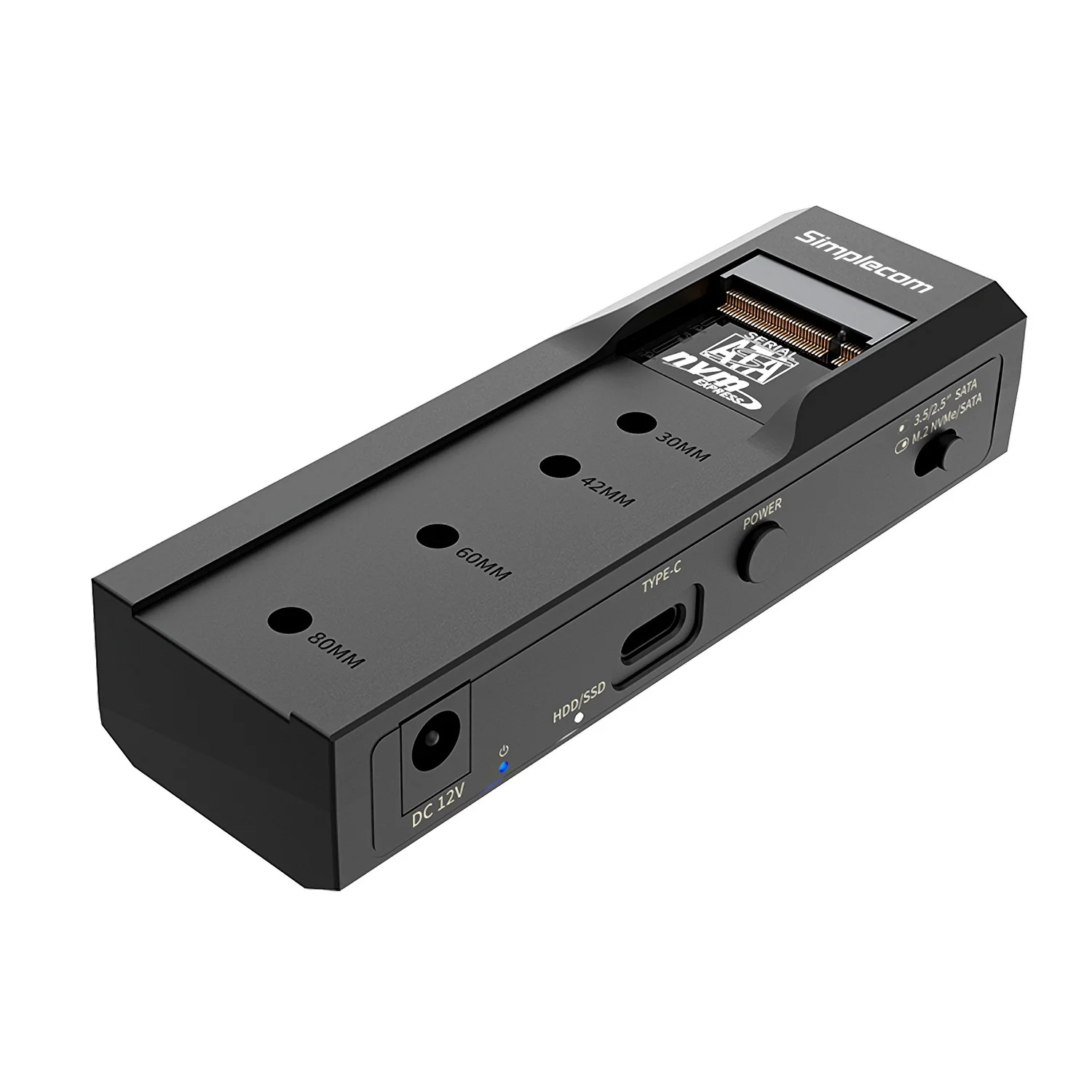

• LED light indicates power and activity status

Specifications

• Model: SA536
• Interface: USB-C (USB 3.2 Gen 2)
• Transfer rate: up to 10Gbps
• NVMe slot support: NVMe or SATA M.2 SSD (2230 / 2242 / 2260 / 2280)
• SATA slot support: 3.5" or 2.5" SATA HDD/SSD
• Main material: ABS plastic
• Power input: DC 12V 2A
• Dimensions: 108 x 44 x 24mm (LxWxH)
• Weight: 49g (without power adapter)
• Supported operating systems: Windows 7 and above, Mac OS 10.8 and above

What's in the Box

• 1x USB to SATA and M.2 adapter
• 1x AC power adapter
• 1x USB-C to USB-A cable
• 1x USB-C to USB-C cable
• Rubber standoff for M.2 SSD
• User manual

Important Notes

• External power is not required when using a 2.5" SATA drive or M.2 SSD; these can be powered by USB.
• External power is required for a 3.5" SATA HDD; connect the USB cable before connecting the power cable.
• The SATA and M.2 sockets cannot be used simultaneously; the toggle button must be set to SATA or M.2 mode.
