CHOETECH HUB-M20 USB-C 11-in-1 Multifunction Adapter with 4K HDMI, VGA and Gigabit Ethernet

The CHOETECH HUB-M20 USB-C 11-in-1 Multifunction Adapter expands a single USB-C port into the connections you need for work and entertainment, including 4K HDMI, VGA, Gigabit Ethernet, USB 3.0 and card readers. It is a compact all-in-one hub for compatible USB-C laptops, tablets and smartphones.

Key Features

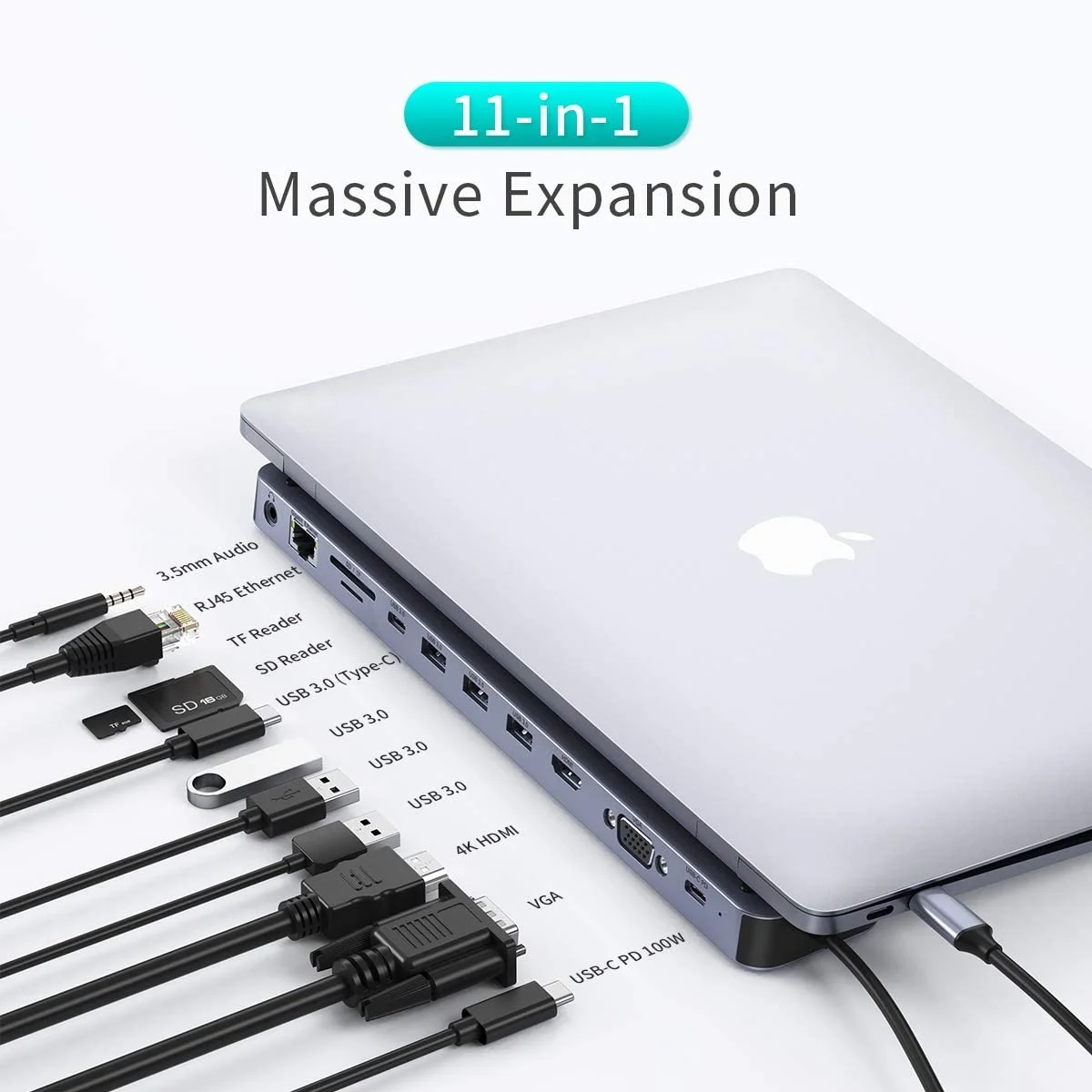

• 11-in-1 expansion: 4 USB 3.0 Type-A ports, 1 USB-C PD port, 4K HDMI output, VGA port, RJ45 Gigabit Ethernet port, audio/mic 2-in-1 port, and SD/Micro SD card reader slots
• Dual-core technology with advanced heat management in an aerospace aluminium shell for efficient heat dissipation and stable performance
• Short circuit protection, overcurrent protection and stable protection design

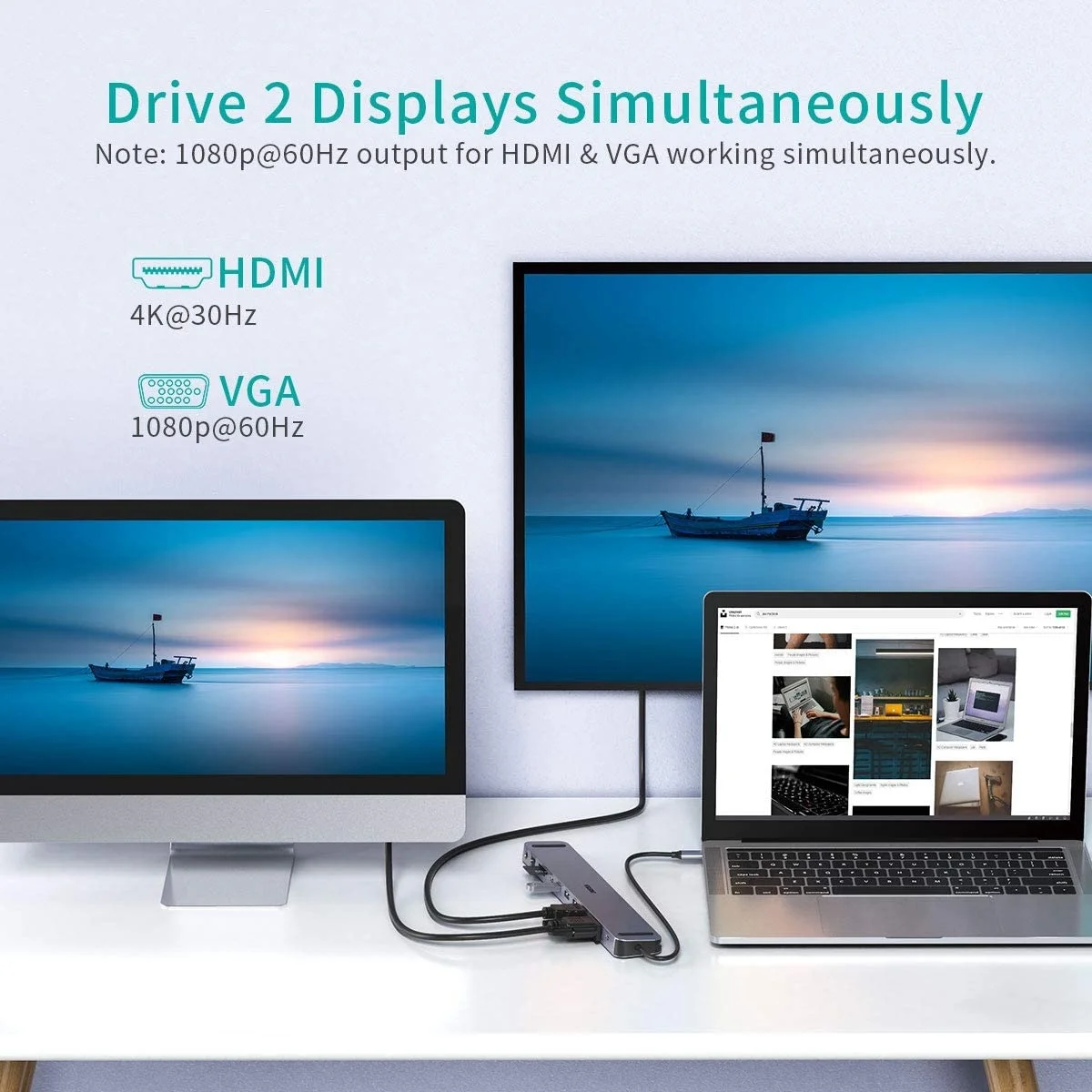

• HDMI and VGA output can be used simultaneously with different display devices such as a monitor, TV or projector
• Maximum output resolution of 4K (3840x2160 @30Hz) via HDMI and 1920x1080 @60Hz via VGA

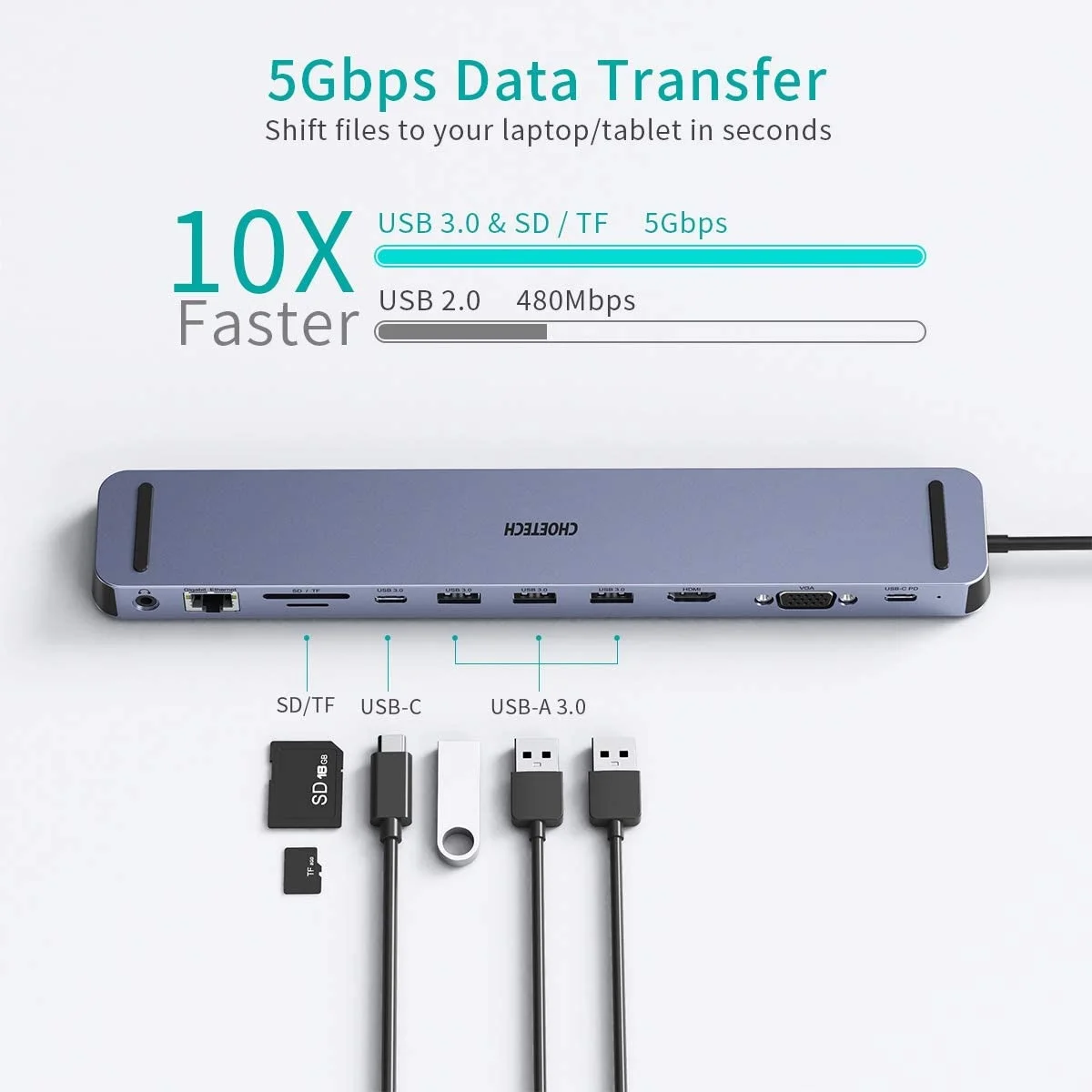

• 2 USB 3.0 ports support transfer speeds up to 5Gbps, and another 2 USB 3.0 ports are designed for 2.4G wireless mouse and keyboard without signal interference
• SD/TF slot provides read speeds up to 70MB/s

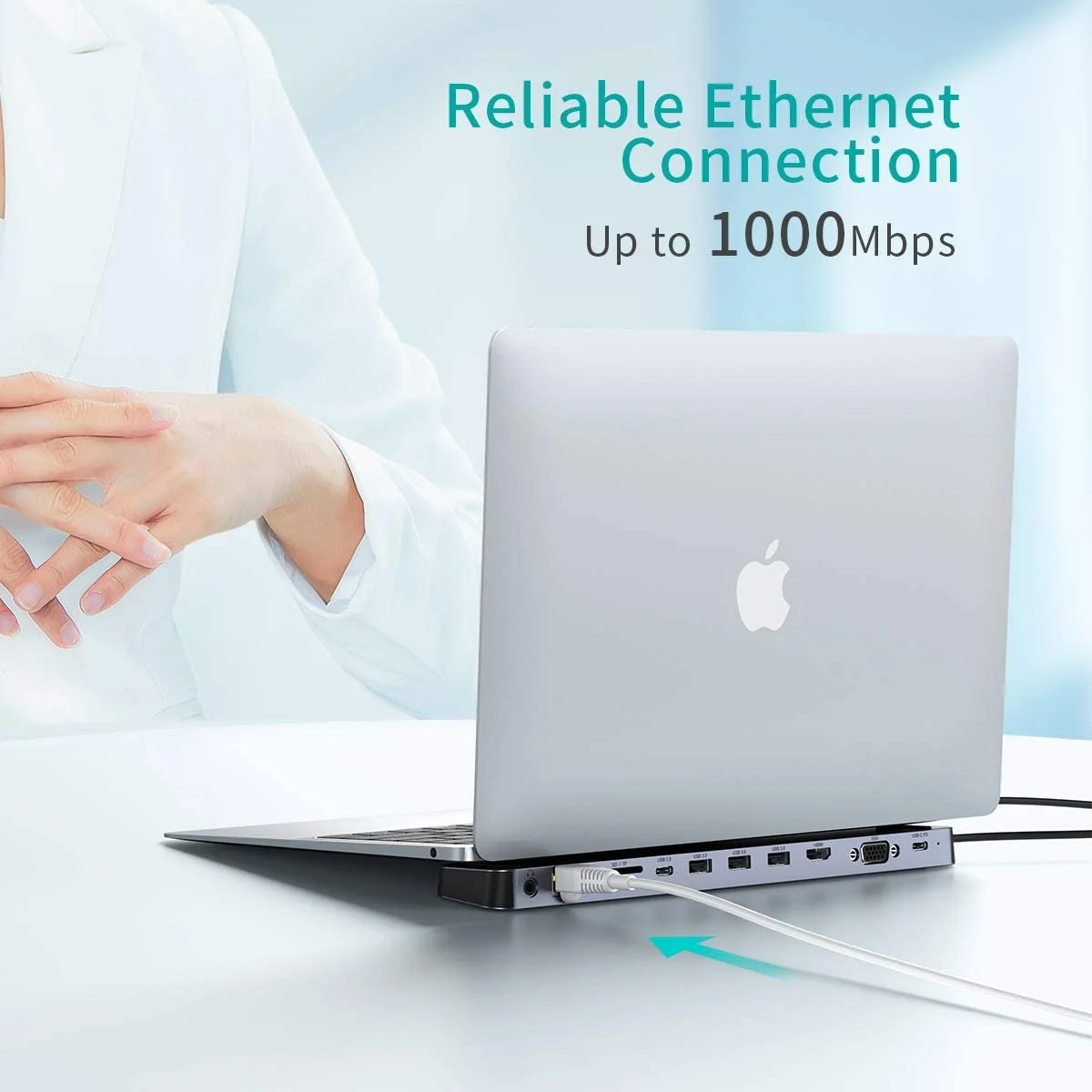

• RJ45 Gigabit Ethernet port supports 1000Mbps/100Mbps/10Mbps for stable wired internet access

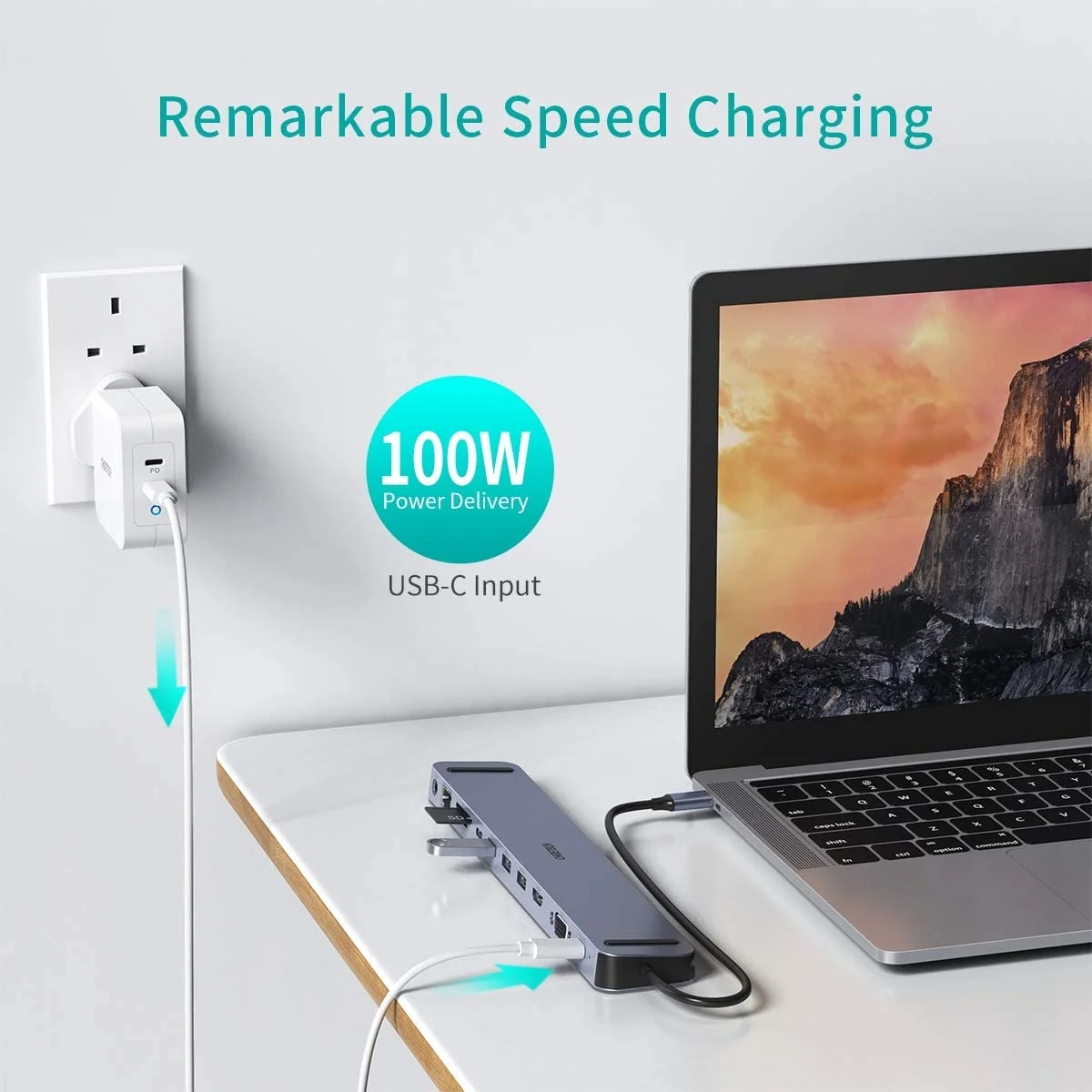

• USB-C PD port supports charging up to 100W with a PD wall charger
• 3.5mm headphone jack lets you connect a speaker, stereo system or mic
• SD/micro SD reader supports cards up to 104MB/s including SD, SDHC, SDXC, SD3.0 UHS-1 and capacities greater than 2TB
• Cable fits into the side of the hub for travel, and the compact slim design fits easily in your pocket or wallet

Specifications

• Model: HUB-M20
• Ports: 4x USB 3.0 Type-A, 1x USB-C PD, 1x HDMI, 1x VGA, 1x RJ45 Gigabit Ethernet, 1x audio/mic 2-in-1, 1x SD slot, 1x Micro SD slot
• HDMI resolution: up to 4K (3840x2160 @30Hz)
• VGA resolution: up to 1920x1080 @60Hz
• USB 3.0 transfer speed: up to 5Gbps
• SD/TF read speed: up to 70MB/s
• Ethernet: 1000Mbps/100Mbps/10Mbps RJ45 LAN
• USB-C PD charging: up to 100W
• Shell material: aerospace aluminium
• Compatibility: compatible with the latest laptops, tablets and smartphones with a USB-C port, including Apple MacBook Air 2018/2019, Apple MacBook Pro 2016/2017/2018/2019, Google Chromebook Pixel 2016/2017, Dell XPS 13/15, and more USB-C laptops, most phones and tablets

Notes

• A 4K compatible display and 4K compatible HDMI cable are required to achieve 4K resolution.
• A separate HDMI/VGA cable is required and is not included.
• The USB-C PD port only has a charging function and cannot transfer data. The USB 3.0 ports only transfer data and do not charge.
• The other USB-C port only has the function of transmitting data, with no charging function.
• When using HDMI and VGA ports at the same time, output is 1080P at 30Hz. Extended mode and mirror mode are supported, but the two external screens will only show the same picture.
• Connect the PD charger to the docking station before linking any USB drive or hard drive to avoid some ports being out of function.

What's in the Box

• 1x CHOETECH HUB-M20 USB-C 11-in-1 Multifunction Adapter
