Baumr-AG DBR-305 305mm Dual Bevel Sliding Compound Mitre Saw 2200W

The Baumr-AG DBR-305 is a 305mm dual bevel sliding compound mitre saw built for accurate cross cuts, bevels and compound mitres. Its 2200W motor and twin-rail sliding action make it a capable choice for workshop and worksite cutting tasks.

Key Features

• 2200W motor running at 5000rpm

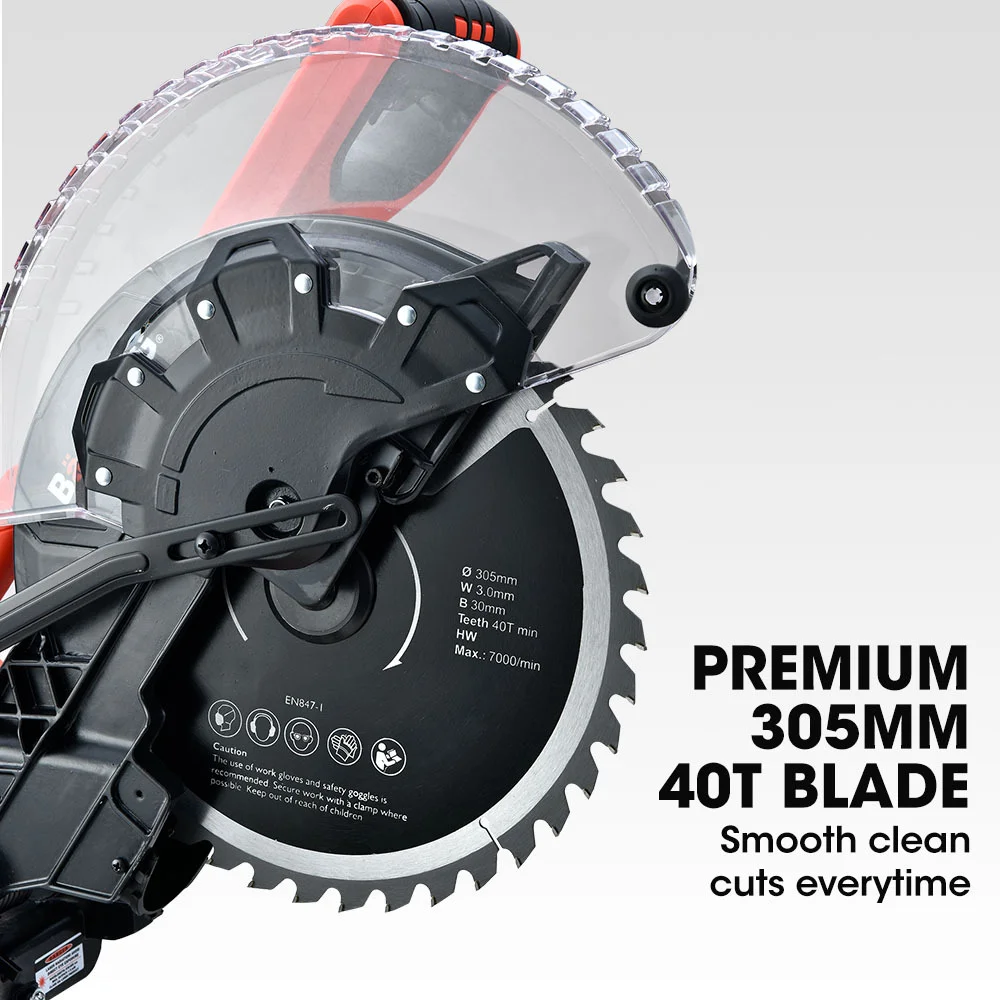

• 305mm (12 inch) 40T tungsten carbide tipped blade for fine, flush cuts

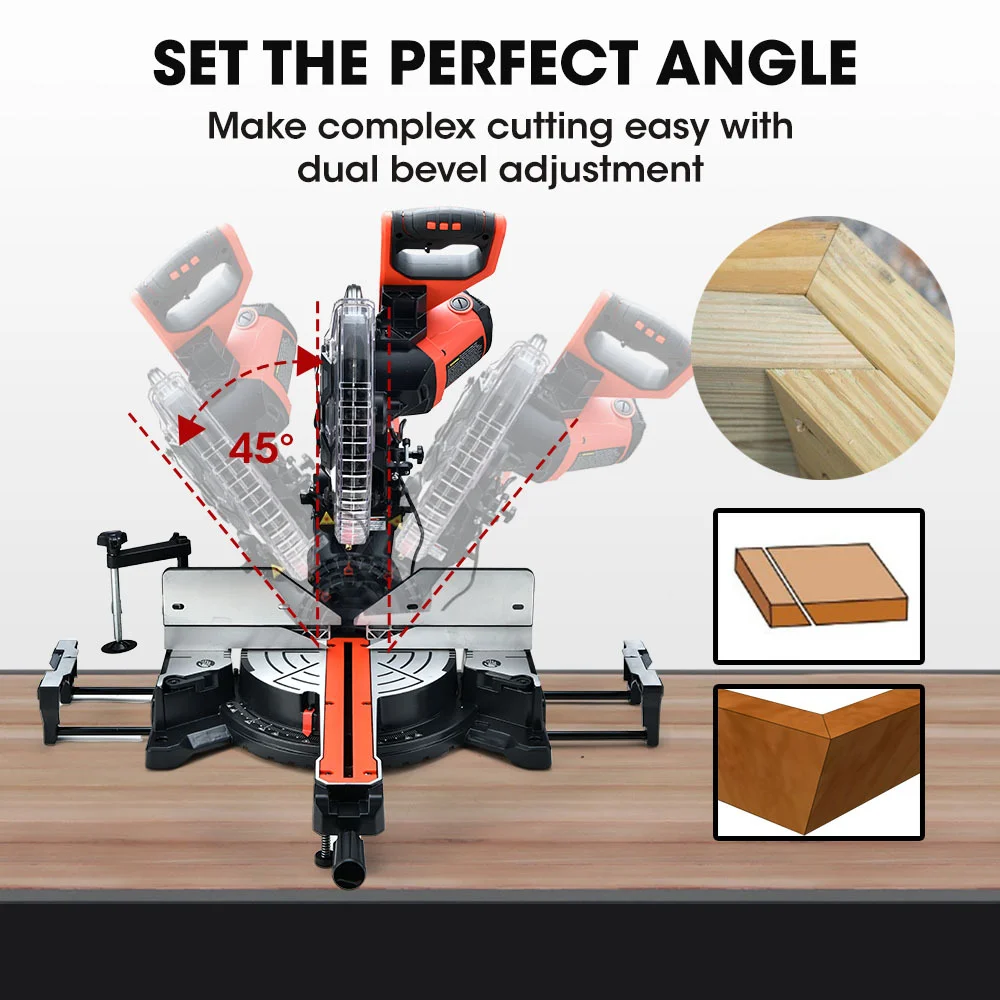

• Dual bevel head for complex compound cuts with fewer stock adjustments

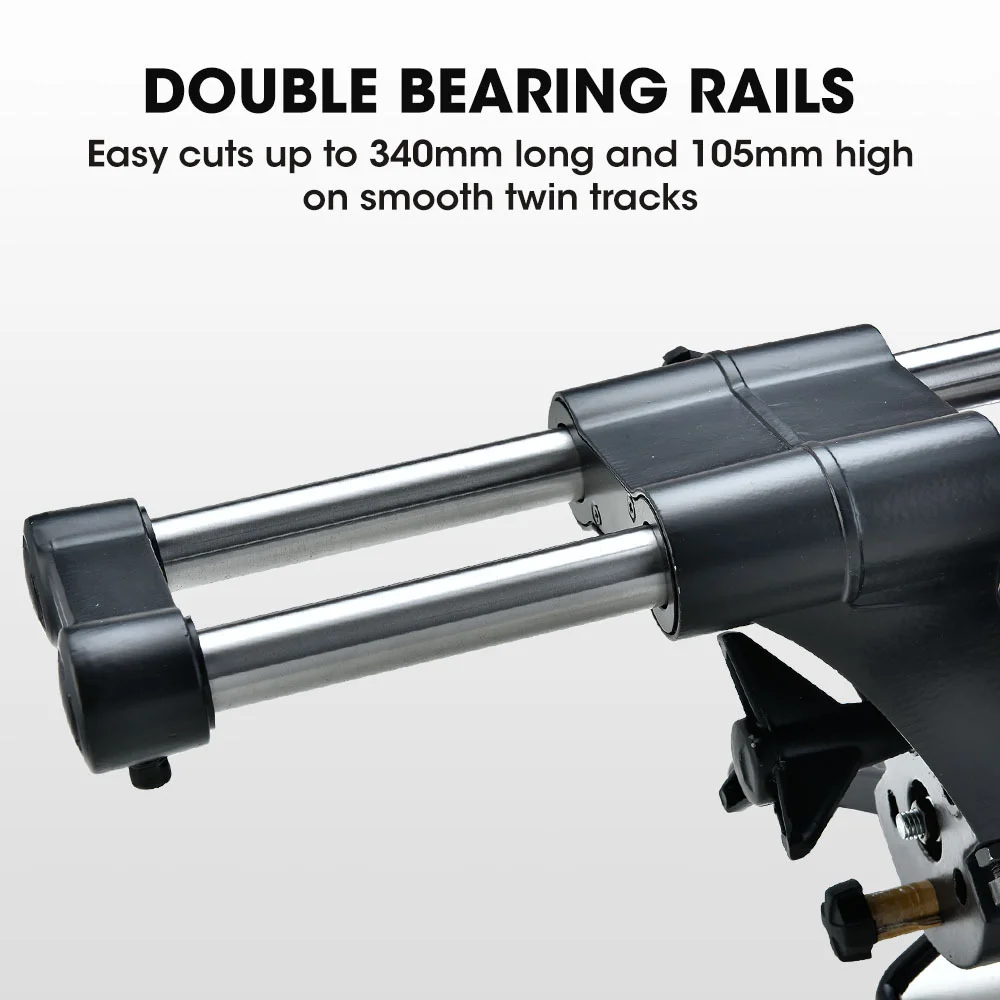

• Double bearing twin rail with a 340mm (13.5 inch) reach for large cross cuts and smooth sliding action

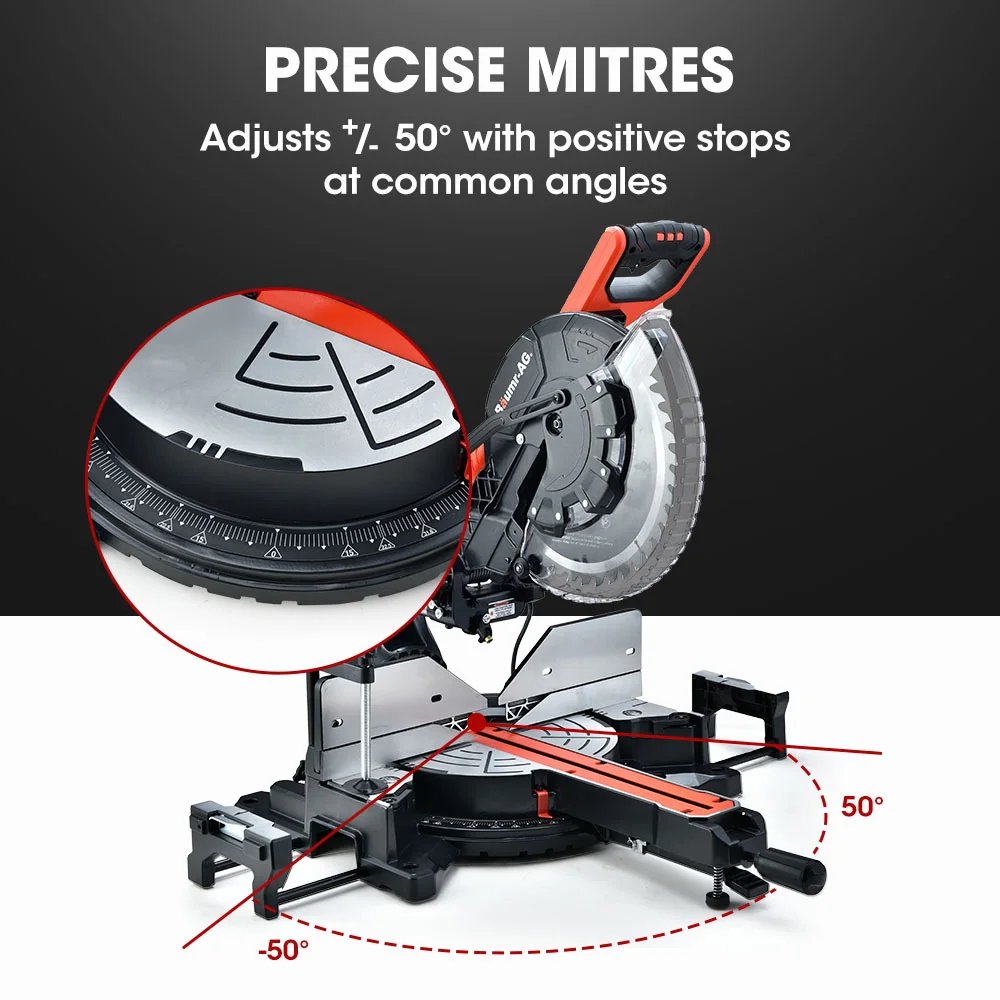

• Work table gauge with accurate reference marks for dados, bevels and mitres up to ±50°
• Adjustable depth limiter for mitre, bevel and groove cutting

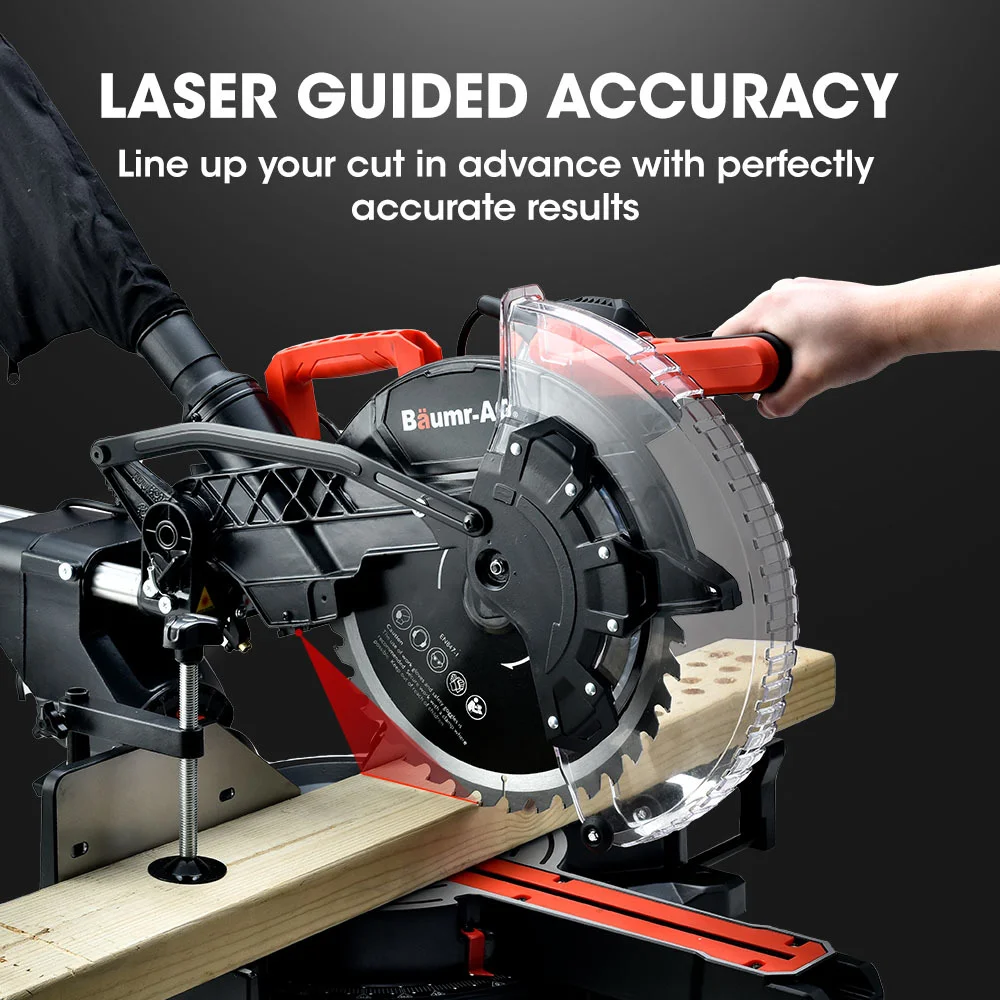

• Built-in laser guide for precision alignment

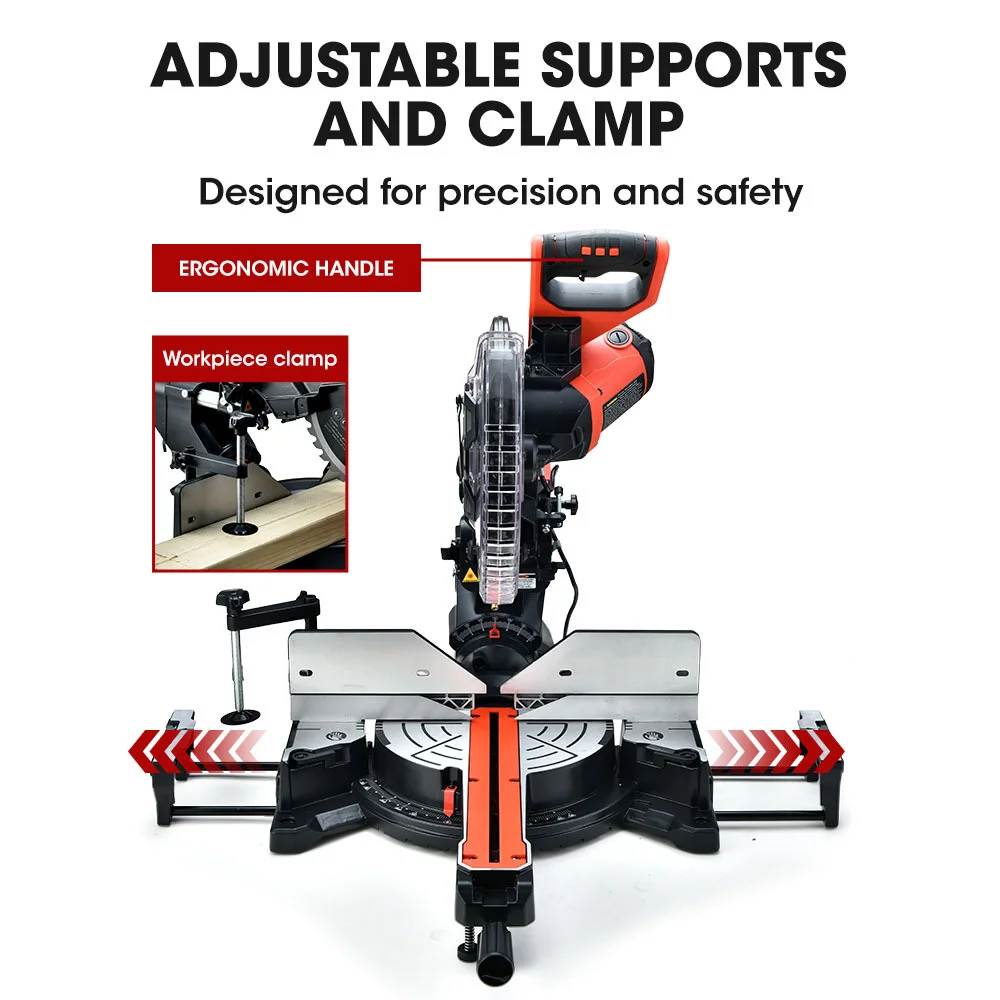

• Cast aluminium base, extendable work table supports and securing clamp
• Sawdust collection bag included, with the option of attaching a Baumr-AG BM-DD5 vacuum for maximum extraction
• Quick release table with blade and guard lock for safe, easy transport
• Can be mounted on a Baumr-AG purpose-built mitre saw stand or secured to a bench

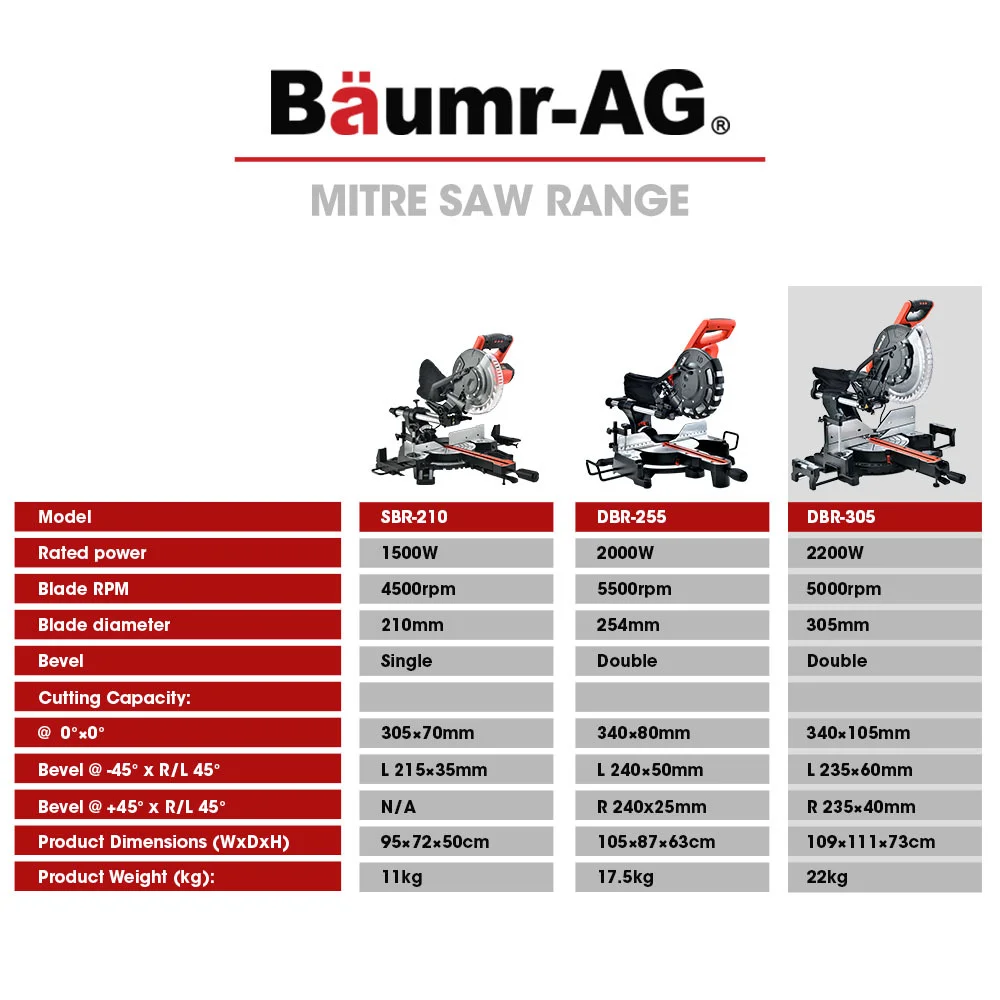

Specifications

• Brand: Baumr-AG
• Model: DBR-305
• Rated power: 2200W
• No-load speed: 5000 rpm
• Blade diameter: 305mm (12 inch)
• Blade teeth: 40T
• Swivel range: ±50°
• Bevel tilt range: ±45°
• Cutting capacity: 0°×0°: 340×105mm; 45°×0°: 235×105mm; 0°×45°: L 340×60mm, R 340×40mm; 45°×45°: L 235×60mm, R 235×40mm
• Laser class: 2
• Input voltage: 220-240V / 50Hz
• Power plug: Australian standard
• Product dimensions (W x D x H): 109 x 111 x 73cm
• Product weight: 22kg
• Carton dimensions (W x L x H): 58 x 98 x 38cm
• Carton weight: 26kg
• Minimal assembly required
• User manual is accessible online

What's in the Box

• 1 x Baumr-AG 2200W Compound Mitre Saw
• User manual is accessible online
