Baumr-AG BTS65 600W Electric Tile Saw with 180mm Diamond Blade

The Baumr-AG BTS65 tabletop tile saw makes wet-cutting ceramic and porcelain tiles simple, with a 600W motor and a 180mm diamond blade for clean, low-dust results. Its compact, portable design suits DIY tiling projects where accuracy and repeatability matter.

Key Features

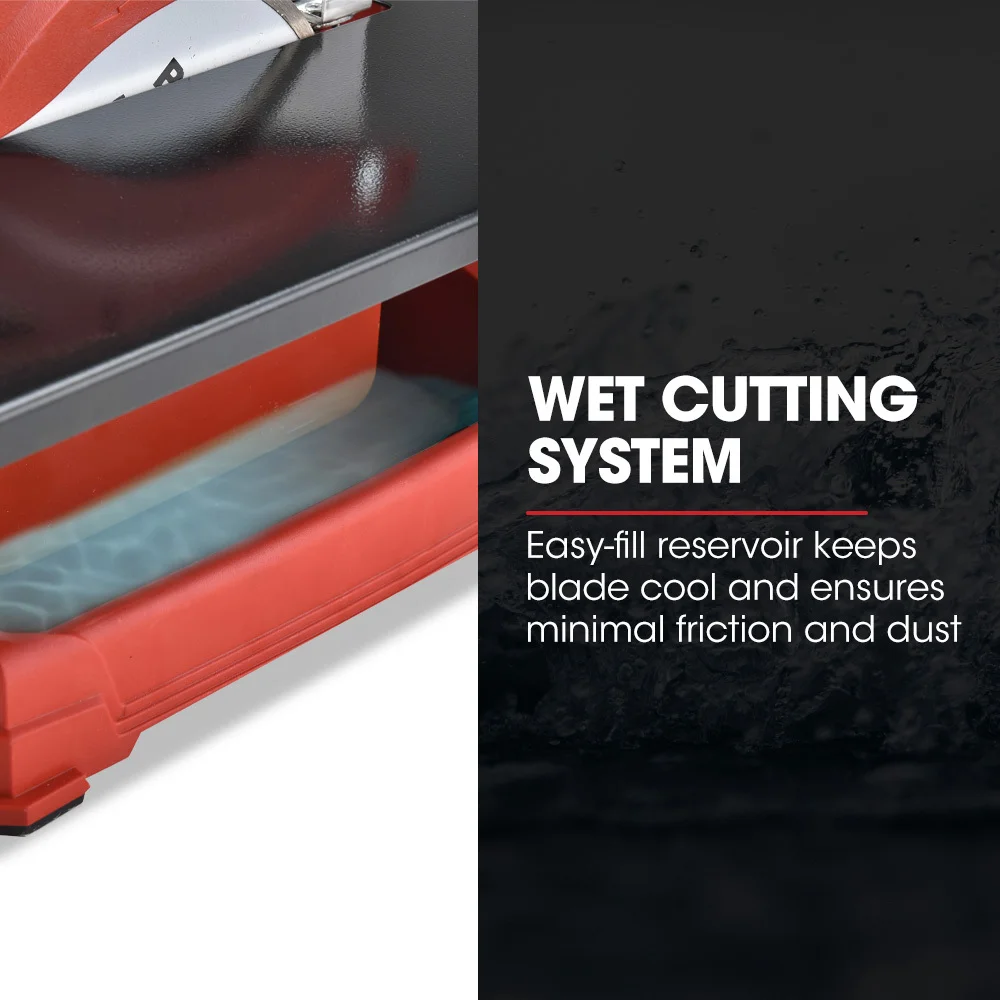

• Wet-cutting system with a pull-out water tray that feeds the blade through the reservoir for reduced friction, cleaner cuts and minimal dust

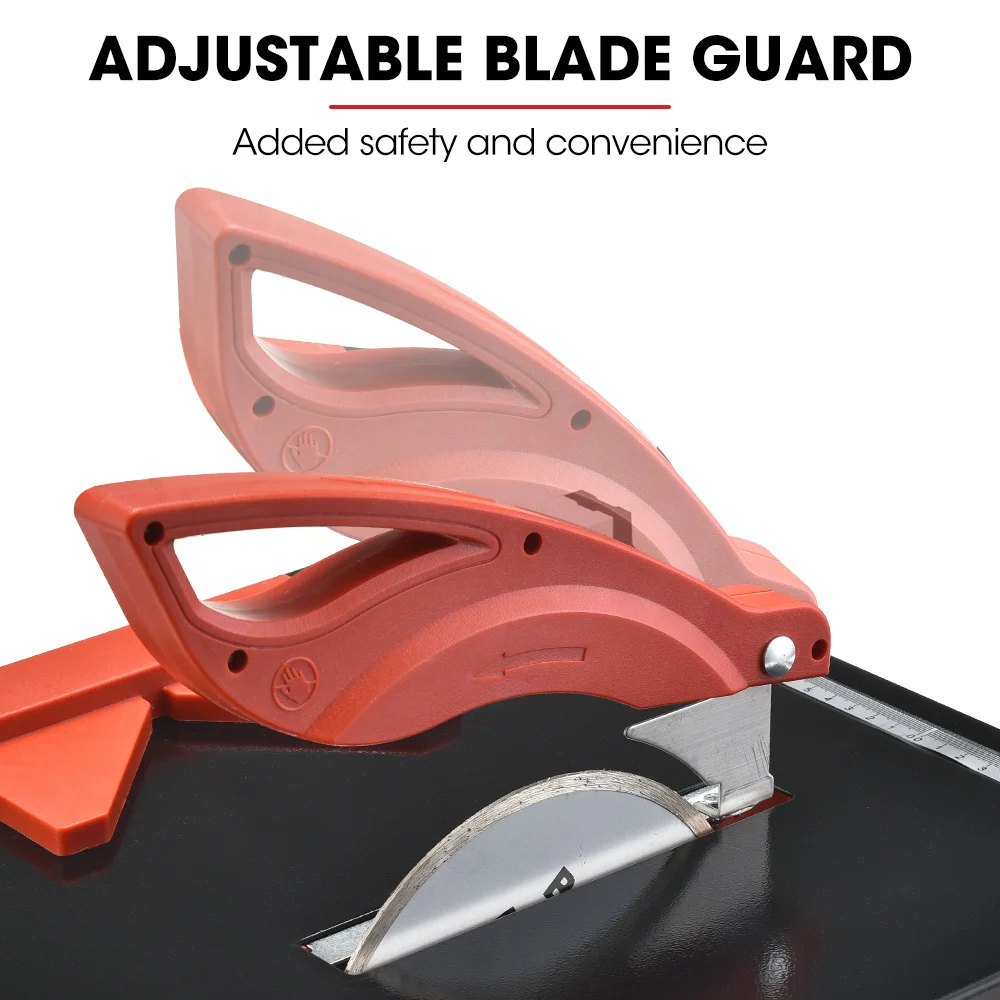

• Adjustable blade guard for working with tiles up to 34mm deep
• Ultra-tough reinforced nylon base

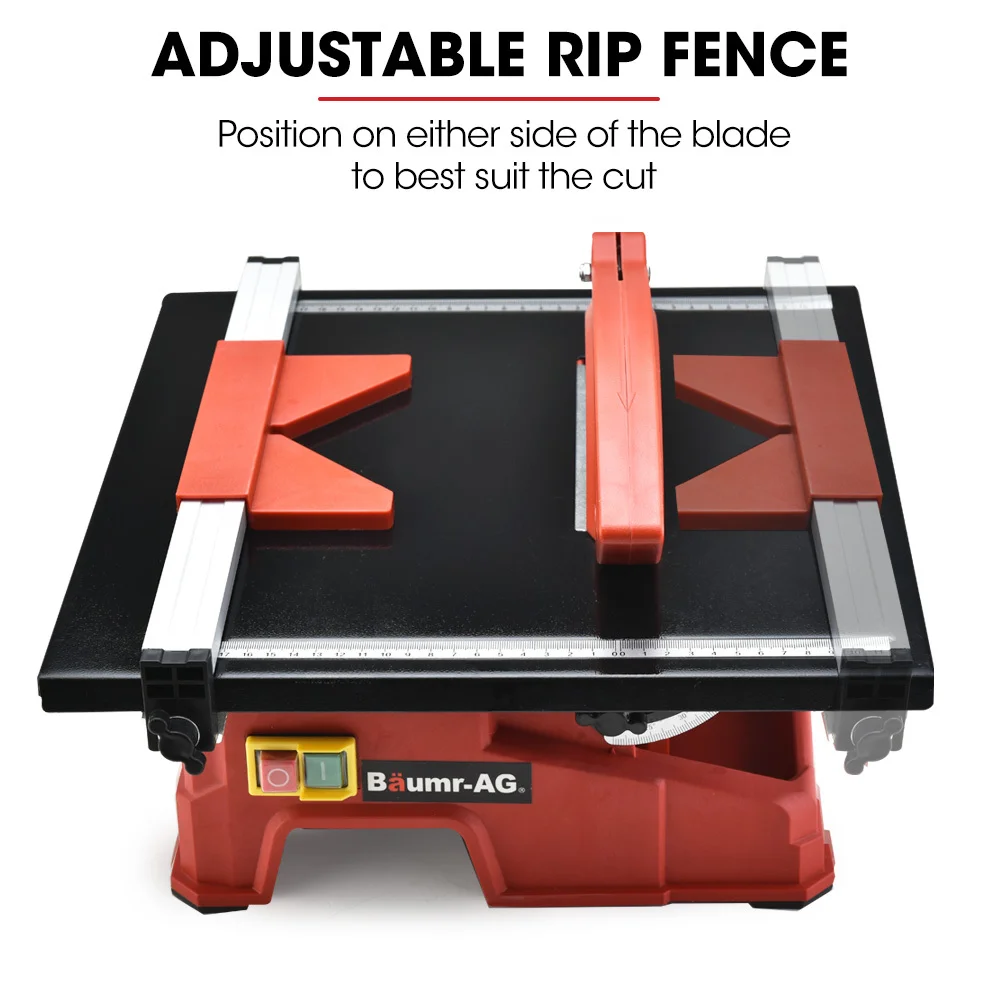

• Rip fence with two measurement scales for accurate positioning, detachable for mounting on either side of the blade to suit different tile widths
• Generous table size allows rip cuts up to 300mm wide and unlimited length

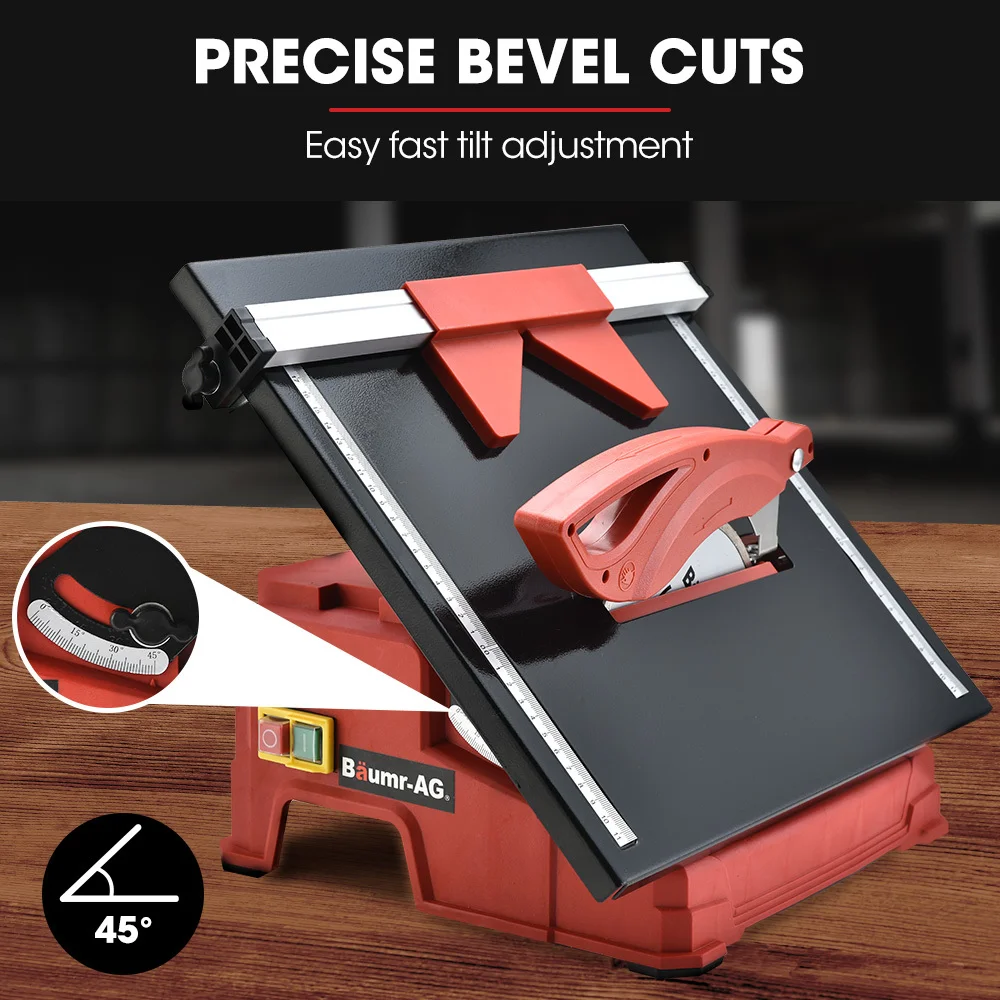

• Table tilt adjusts in seconds for bevelled edges on tiles up to 30mm deep

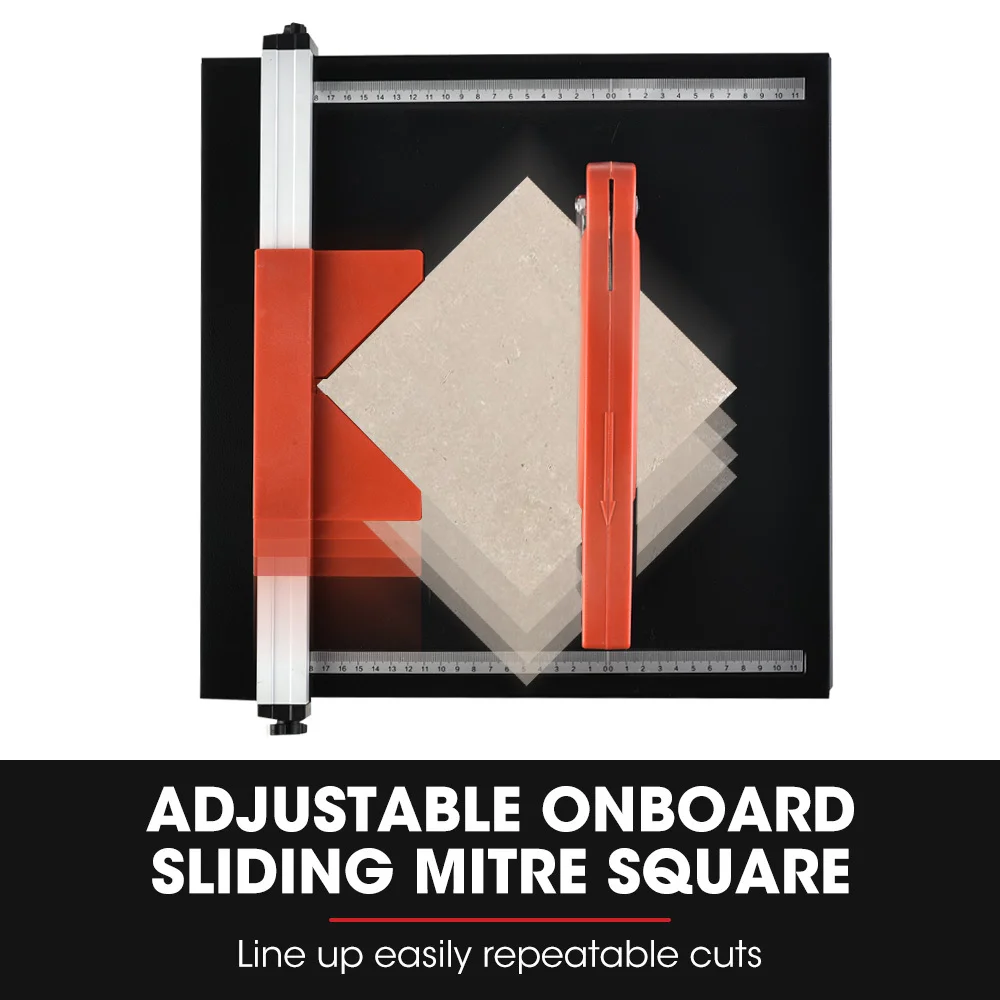

• Onboard mitre square for repeatable diagonal cuts
• Diamond blade suited to most ceramic and porcelain tiles; an aftermarket blade can provide optimal results on dense materials such as marble and granite
• Compact and highly portable

Specifications

• Brand: Baumr-AG
• Model: BTS65

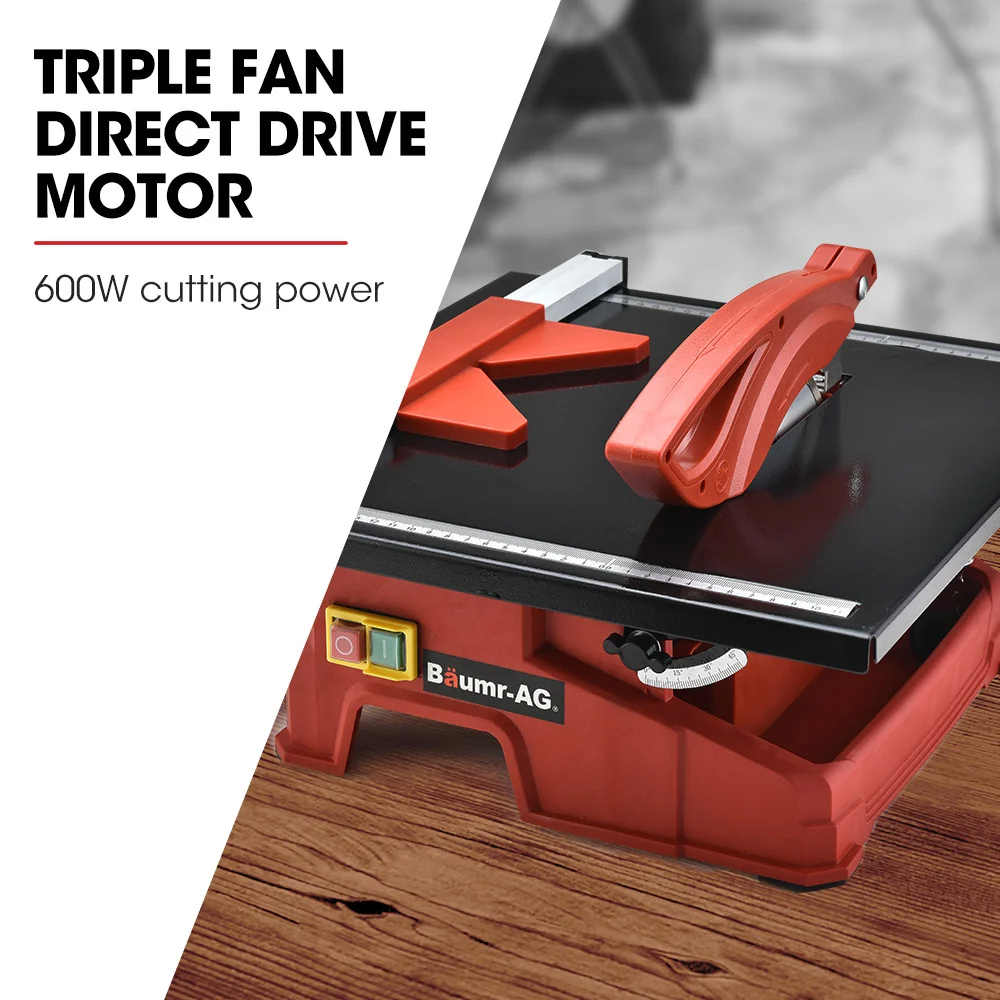

• Motor: 600W
• Blade: 180mm (7') diamond
• Motor speed: 3000 RPM
• Mitre cuts: 45° (fixed)
• Bevel range: 0°–45°
• Max cutting depth: 34mm @ 90°
• Deck size: 386 x 397mm
• Input voltage: 240V AC 50Hz
• Power plug: Australian standard

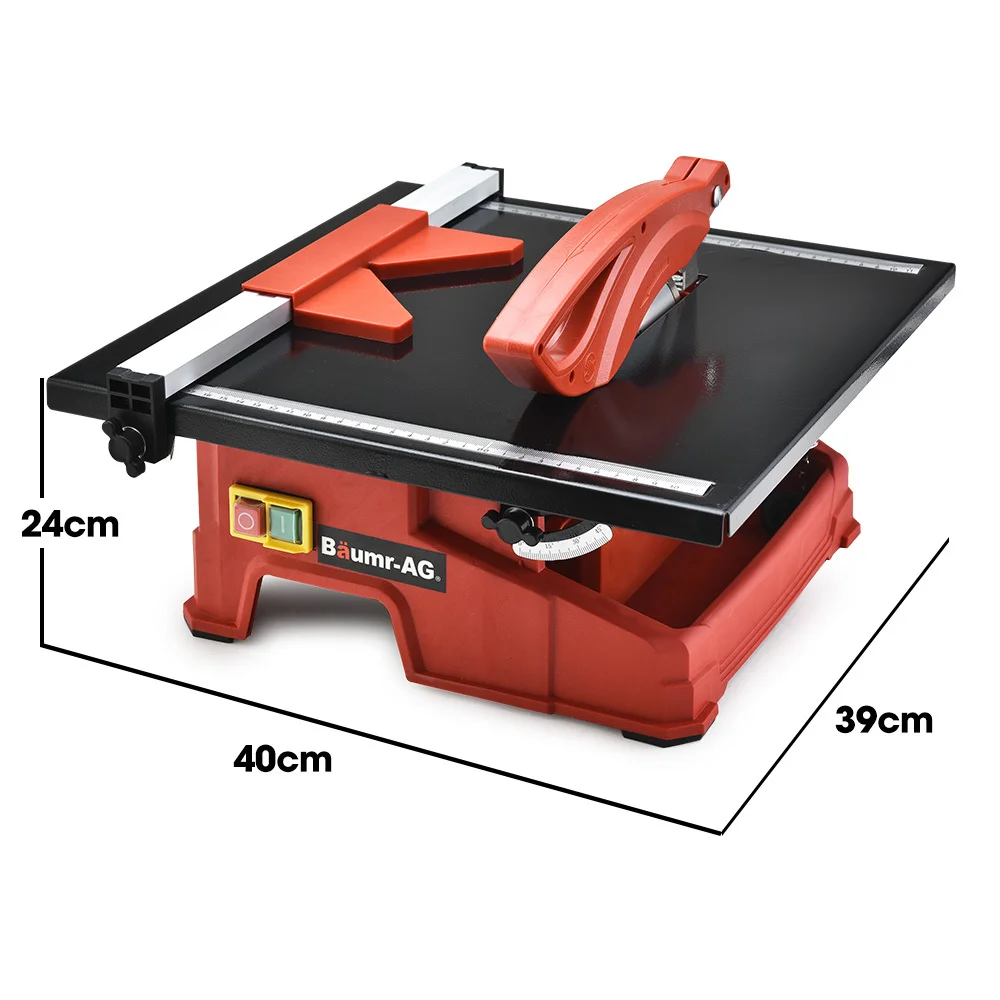

• Product dimensions (W x L x H): 40 x 39 x 24cm
• Product weight: 7.5kg
• Carton dimensions (W x L x H): 42 x 45 x 22cm
• Carton weight: 10kg

What's in the Box

• 1 x Baumr-AG BTS65 wet tile saw
• User manual is accessible online

Important Notes

• Some assembly is required.
• Not suitable for cutting travertine.
• Angled bevel cuts can be arduous; ensure you are qualified to perform them before operating the machine. Be aware of adjustable parts that may sit in the cutting line during an angled cut but not during normal operation. Guide the blade along the full range of the cutting table before activating power to confirm no object obstructs an angled cut.
• The supplied blade may not be suitable for all applications; refer to a tile supplier for the recommended blade.
