Baumr-AG BTS95 800W Wet Tile Saw with 200mm Diamond Blade, 620mm Cut

The Baumr-AG BTS95 Wet Cut Tile Saw is a rugged, full-featured tile cutter that lets you cut large format tiles with minimal effort and better results. Its powerful 800W motor runs on a steel U-beam with a quad ball-bearing carriage for smooth, accurate cutting.

Key Features

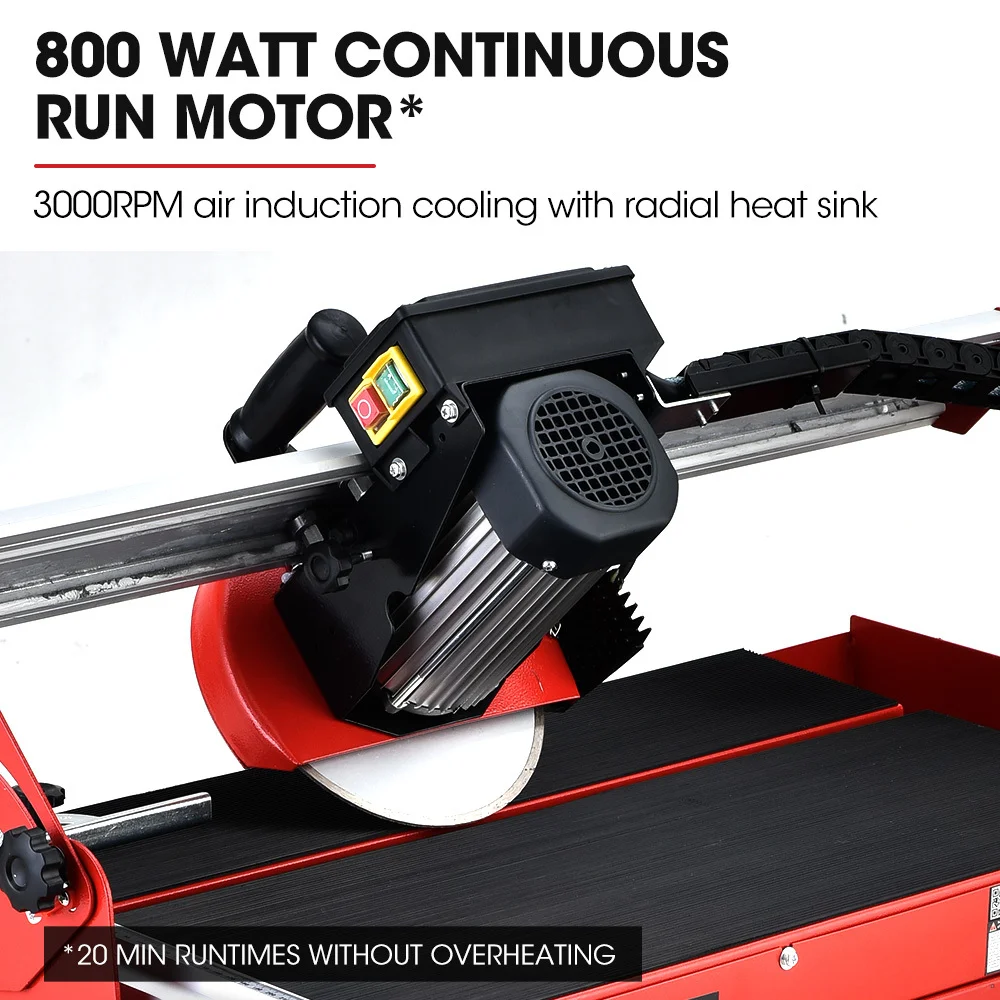

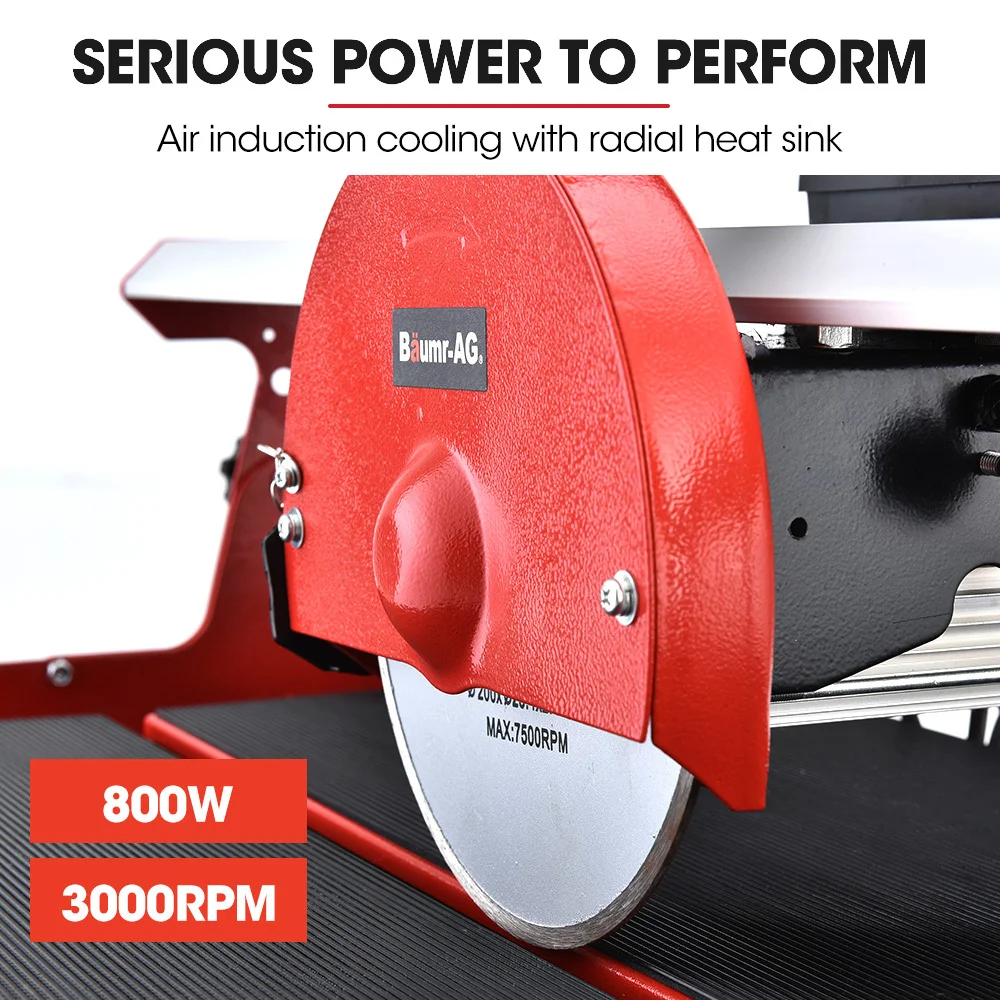

• 800W copper motor with a 200mm (8") diamond blade running at 3000 RPM

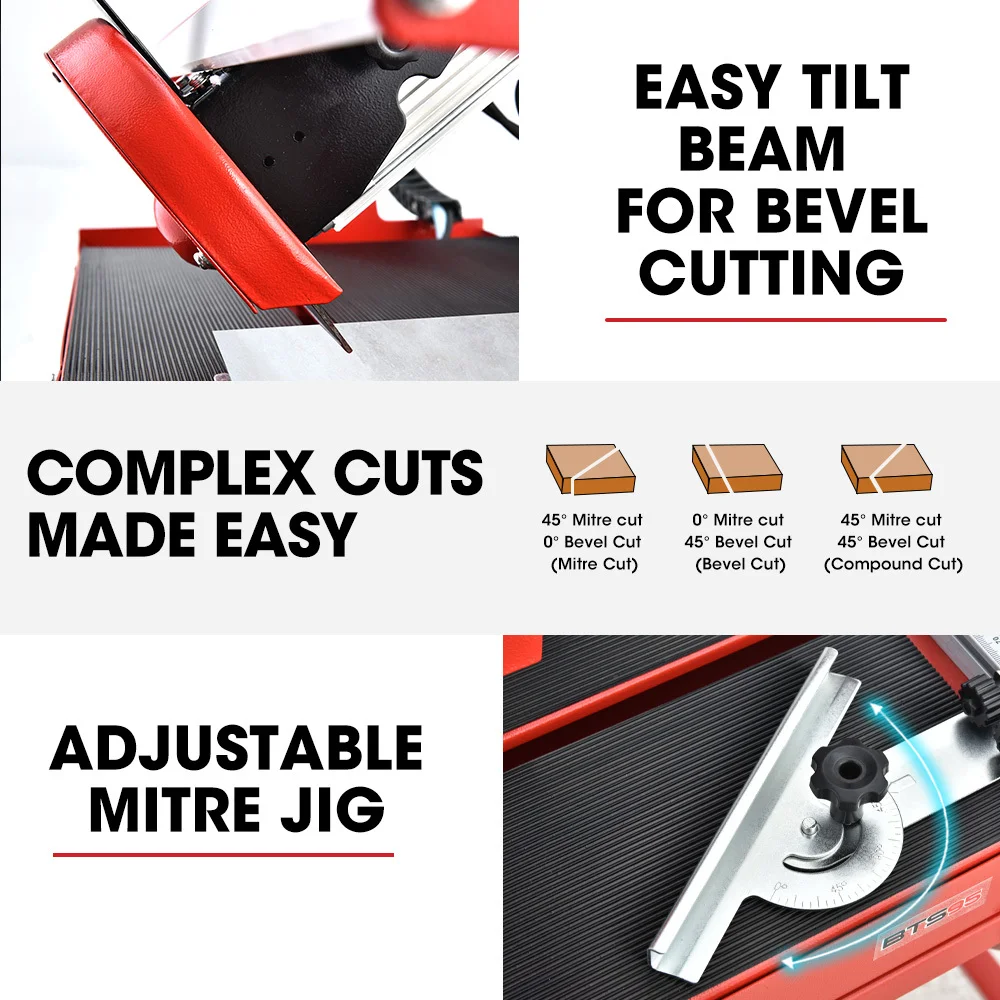

• Jib rail pivots 45 degrees for bevel cuts
• Adjustable mitre jig makes duplicating cuts fast and easy

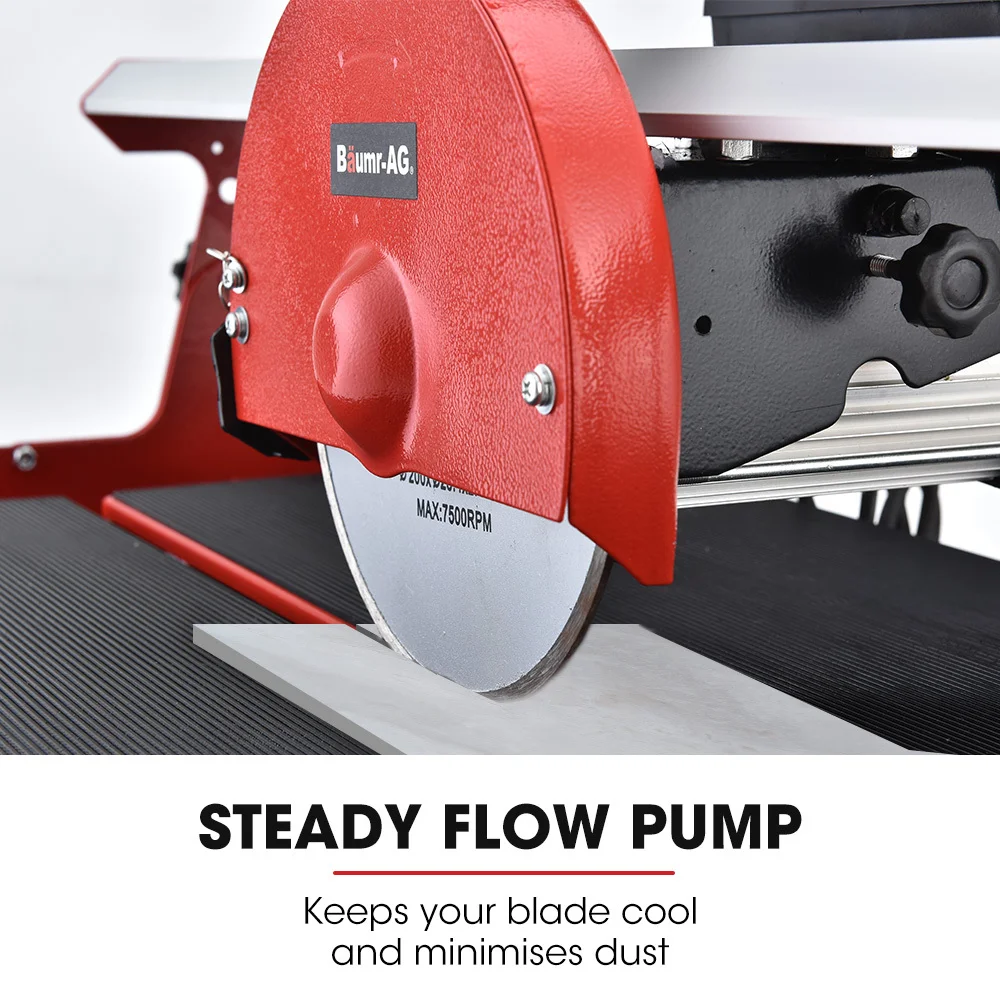

• Wet-cutting system fed by a dependable high-volume pump
• Pump mounted for protection in the large undertray reservoir
• Nylon knit reinforced hose pipe shielded from accidental damage
• Large deck accommodates almost all tile sizes

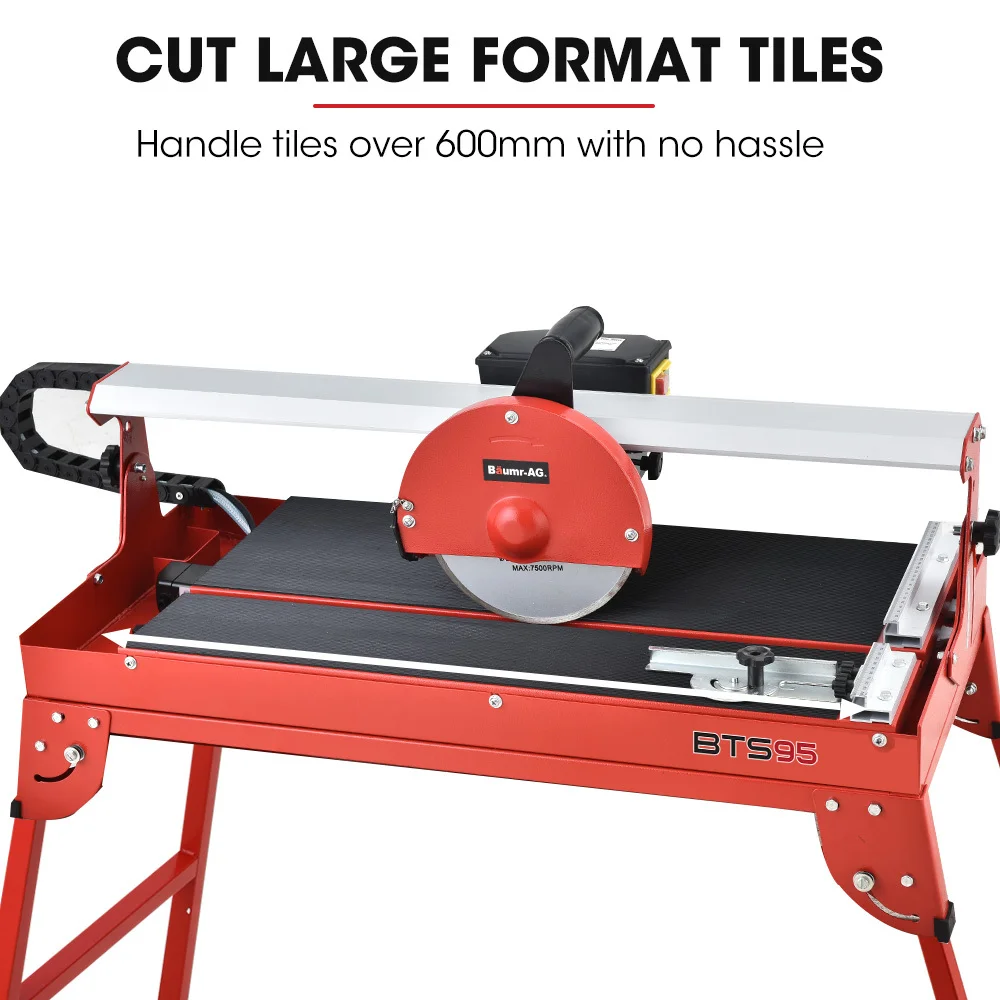

• Rip cuts large format porcelain and ceramic tiles up to 600mm in length, plus bevel and mitre cuts
• Removable steel legs allow free-standing use or bench and table use

Specifications

• Brand: Baumr-AG
• Model: BTS95
• Motor: 800W Copper
• Blade: 200mm (8") Diamond
• Motor Speed: 3000 RPM
• Mitre Range: +/- 45 degrees
• Bevel Range: +45 degrees
• Max Cutting Depth: 32mm @ 90 degrees, 28mm @ 45 degrees
• Max Cut Length: 620mm
• Max Diagonal Cut: 435mm
• Deck Size: 690 x 385mm
• Input Voltage: 240V AC 50Hz
• Power Plug: Australian Standard

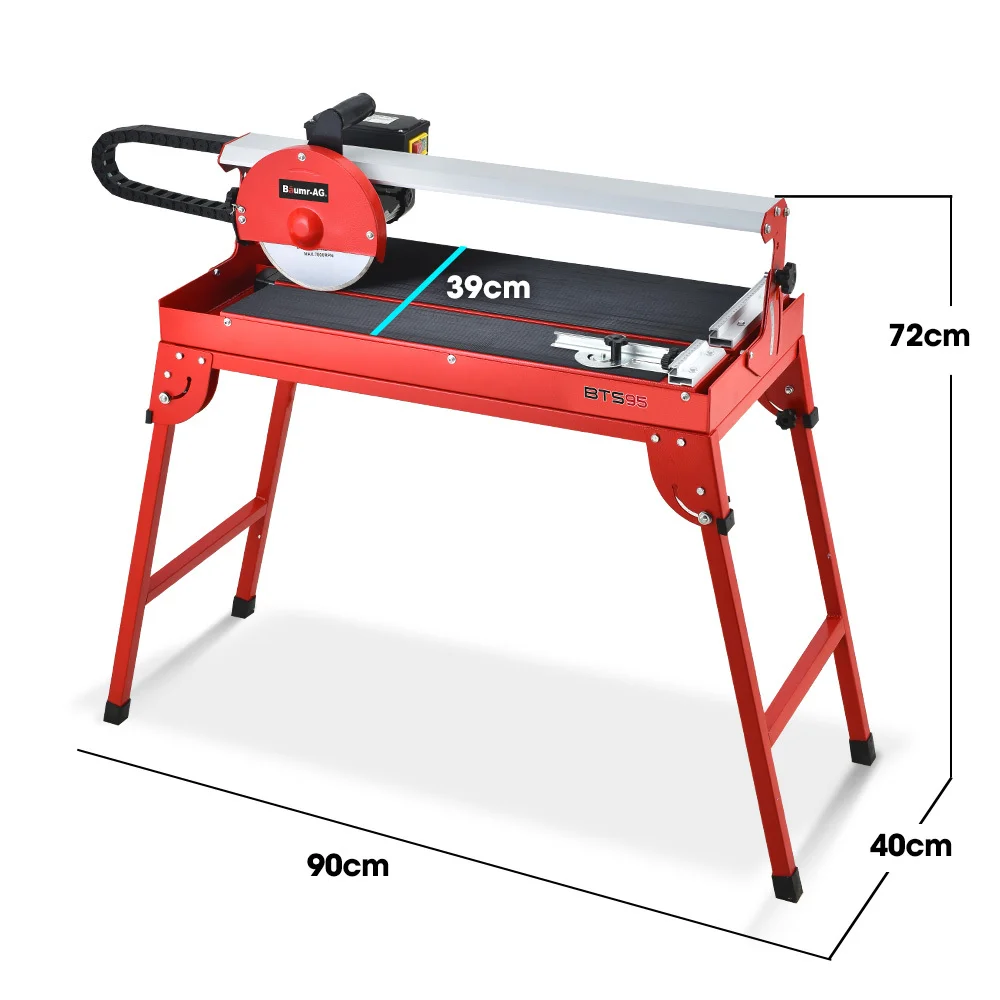

• Product Dimensions (W x L x H): 40 x 72 x 90cm
• Product Weight: 25kg
• Carton Dimensions (L x W x H): 92 x 46 x 46cm
• Carton Weight: 30kg

What's in the Box

• 1 x Baumr-AG BTS95 Wet Tile Saw
• User Manual is accessible online

Important Notes

• Some assembly required.
• Not suitable for cutting Travertine.
• The supplied blade may not be suitable for all applications; refer to a tile supplier for the recommended blade.
• A high-performance aftermarket blade will provide optimal cutting results and enable working with dense materials like marble and granite.
• Performing angled bevel cuts can be arduous. If you choose to perform such cuts, ensure you are qualified to do so before operating the machine.
• Be aware of any adjustable parts of the machine that may be in the cutting line when performing an angled cut that is otherwise not in the way during normal operation.
• It is recommended to guide the circular saw blade along the full range of the cutting table before activating its power to ensure no object is obstructing an angled cut.
