Baumr-AG HPS600 MkII 20 Tonne Hydraulic Petrol Log Splitter 8HP

The Baumr-AG Hercules Series HPS600 MkII petrol log splitter delivers 20 tonnes of splitting force from an 8HP 212cc four-stroke engine, making tough Australian hardwood jobs faster and easier on your back. A large two-stage gear pump and a 160mm hardened steel wedge combine for reliable, powerful splitting.

Key Features

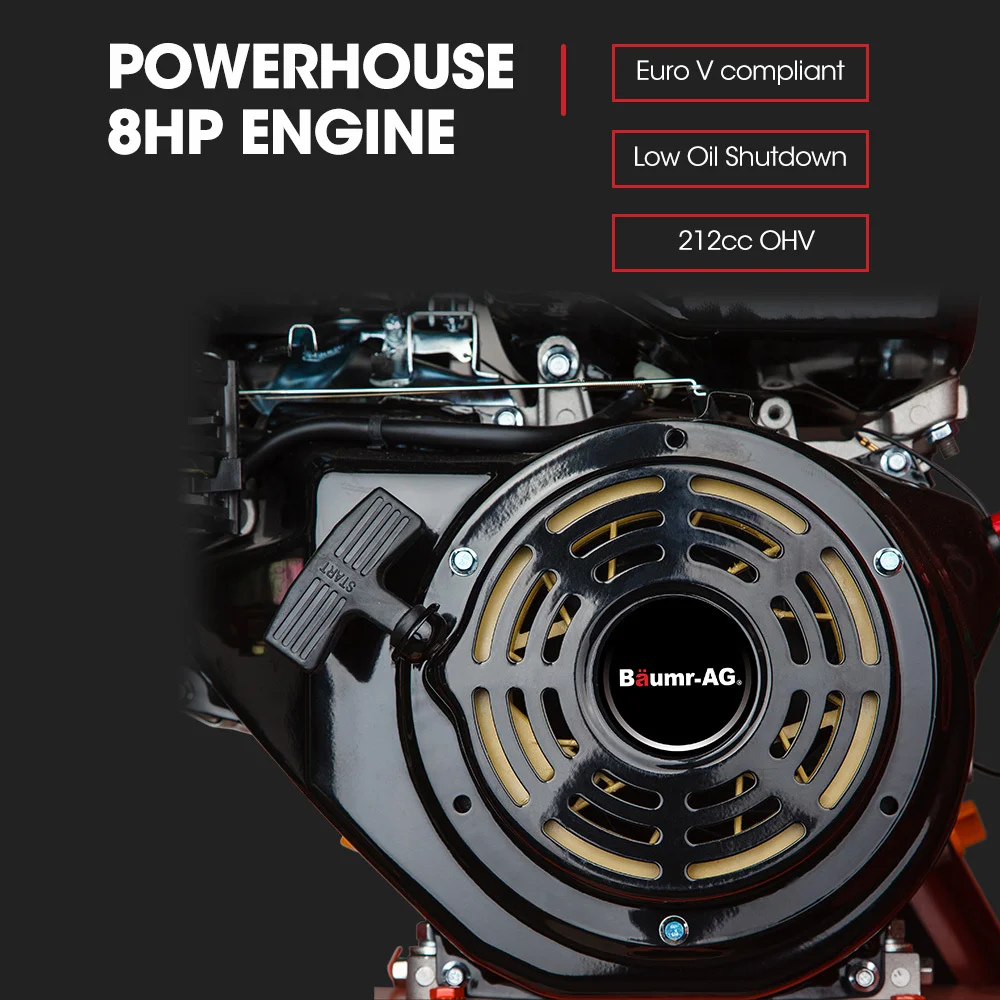

• 20 tonnes of splitting force from a 212cc 8HP OHV petrol engine

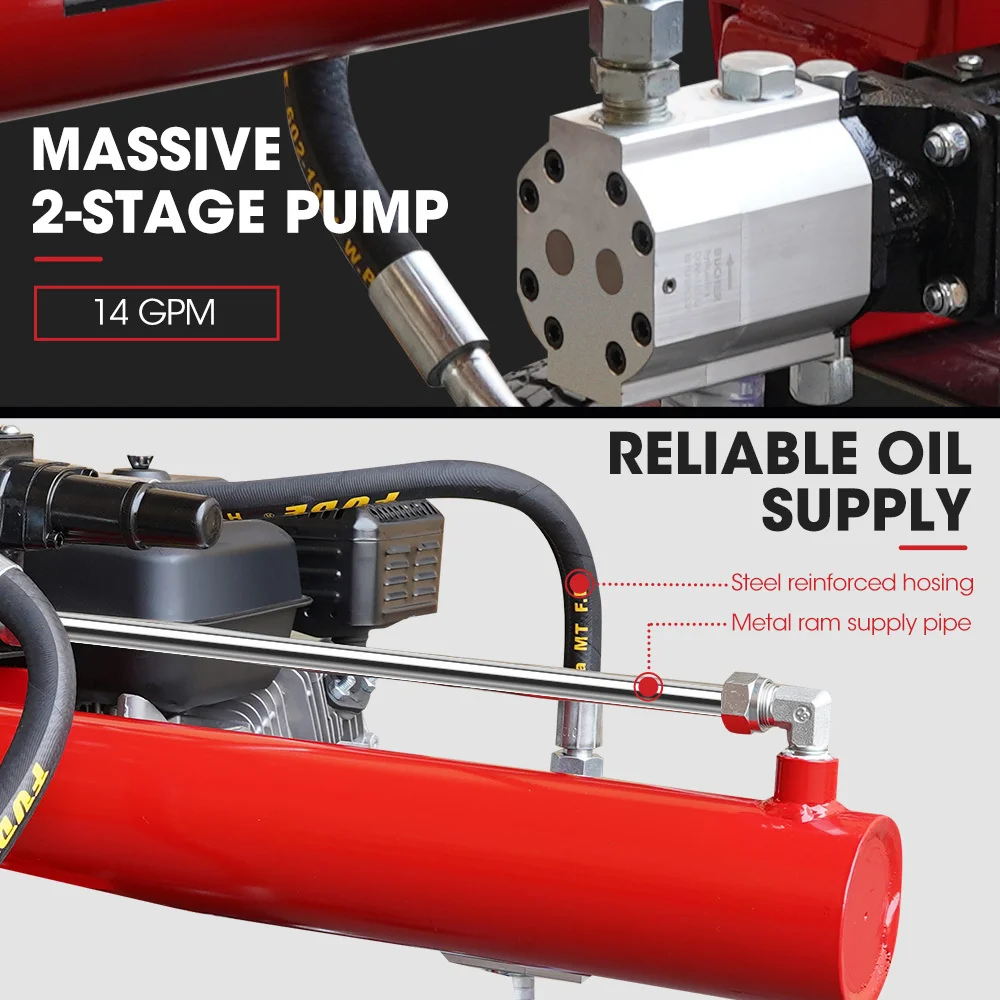

• Large two-stage gear pump for consistent hydraulic power
• 160mm hardened steel splitting wedge with dual triangle design
• Auto-return with a 7-second split and back cycle time

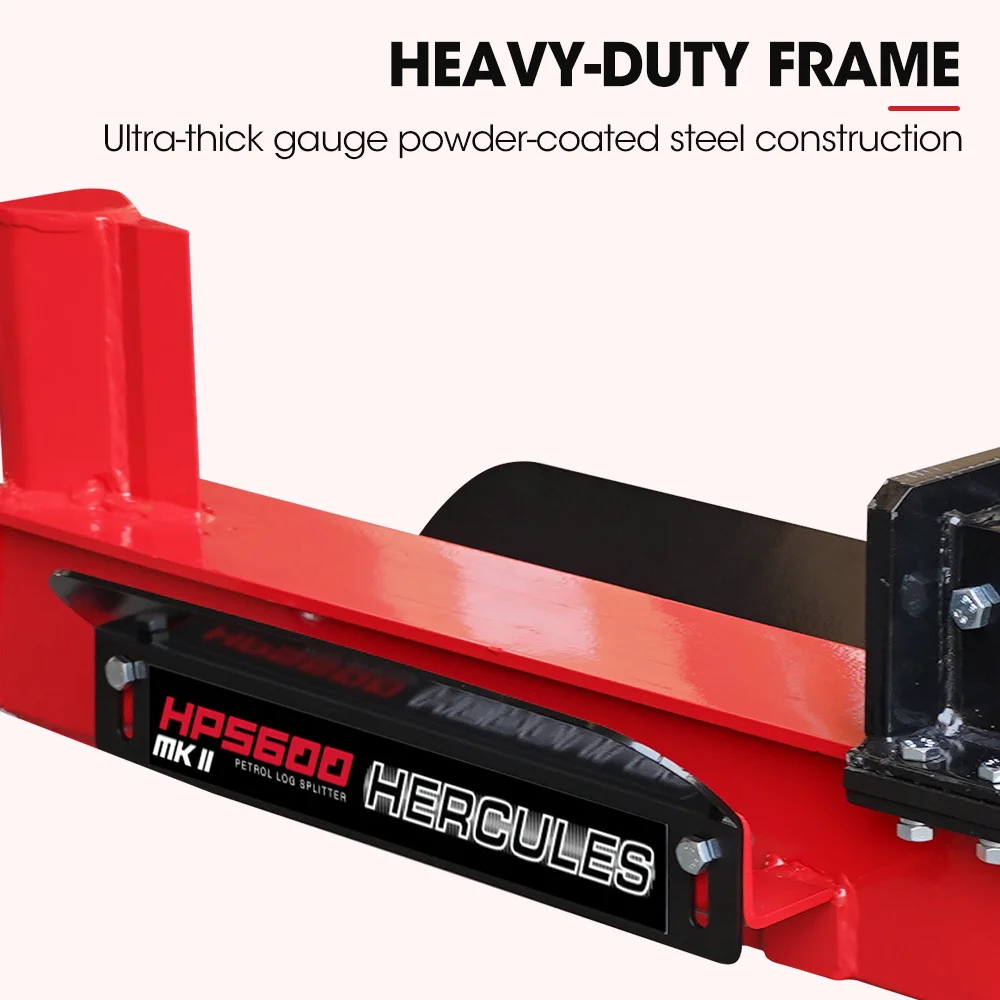

• Thick gauge steel frame and 13 inch pneumatic all-terrain tyres
• Commercial-grade air filter and steel reinforcement on all hoses

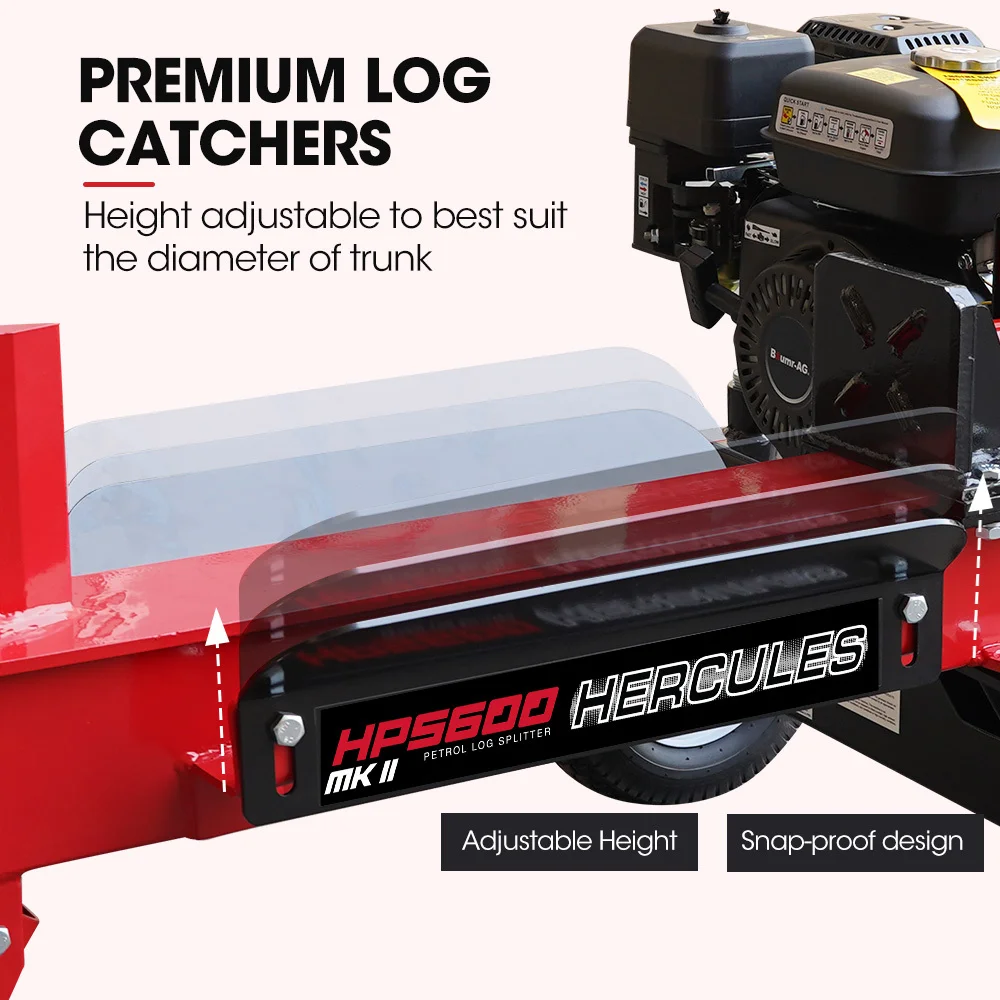

• Adjustable winged log catchers designed to resist snapping
• Full metal pipe linking the controller to the ram for smooth oil supply
• Patented Baumr-AG Sure-Seal hydraulic seal system

Specifications

• Manufacturer: Baumr-AG
• Model: Hercules HPS600 MkII
• Max. splitting force: 20 tonnes
• Engine: 8HP petrol 212cc 4-stroke
• Max. splitting log length: 540mm*

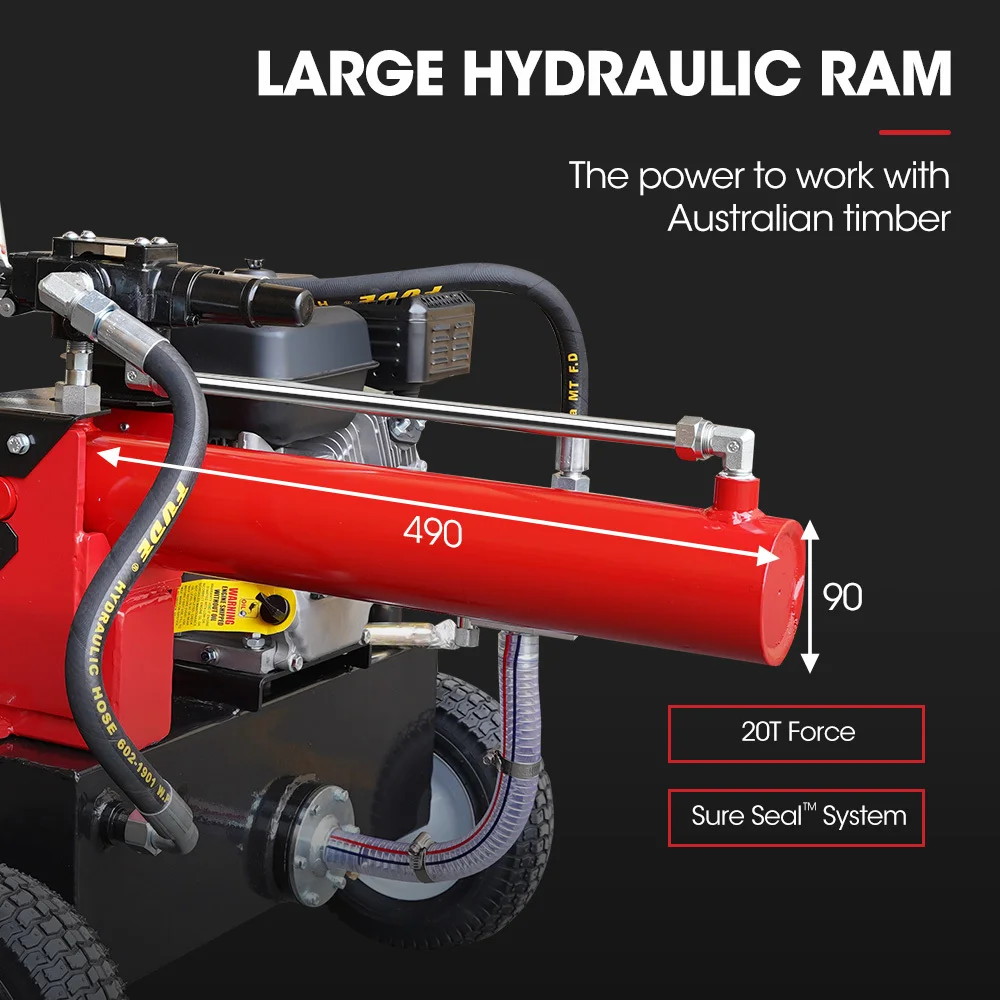

• Length of ram: 490mm*
• Diameter of ram: 90mm*
• Max. ram travel: 490mm*
• Wedge: 160mm hardened steel
• Cycle time: 7 sec
• Hydraulic oil capacity: 11L
• Hydraulic oil type: AW32, AW46 universal hydraulic oil
• Engine oil type: 10w-30 / 10w-40 / 15w-30 / 15w-40 non-synthetic engine oil (not included)
• Hydraulic seal: Patented Baumr-AG Sure-Seal system
• Hydraulic operating pressure: 3700 psi
• Tyres: 13 inch pneumatic
• Fuel type: Regular unleaded 95+RON
• Note: Shipped in a high-quality crate (assembly required)

What's in the Box

• 1 x Baumr-AG Hercules HPS600 MkII log splitter
• User manual is accessible online

Size and Weight

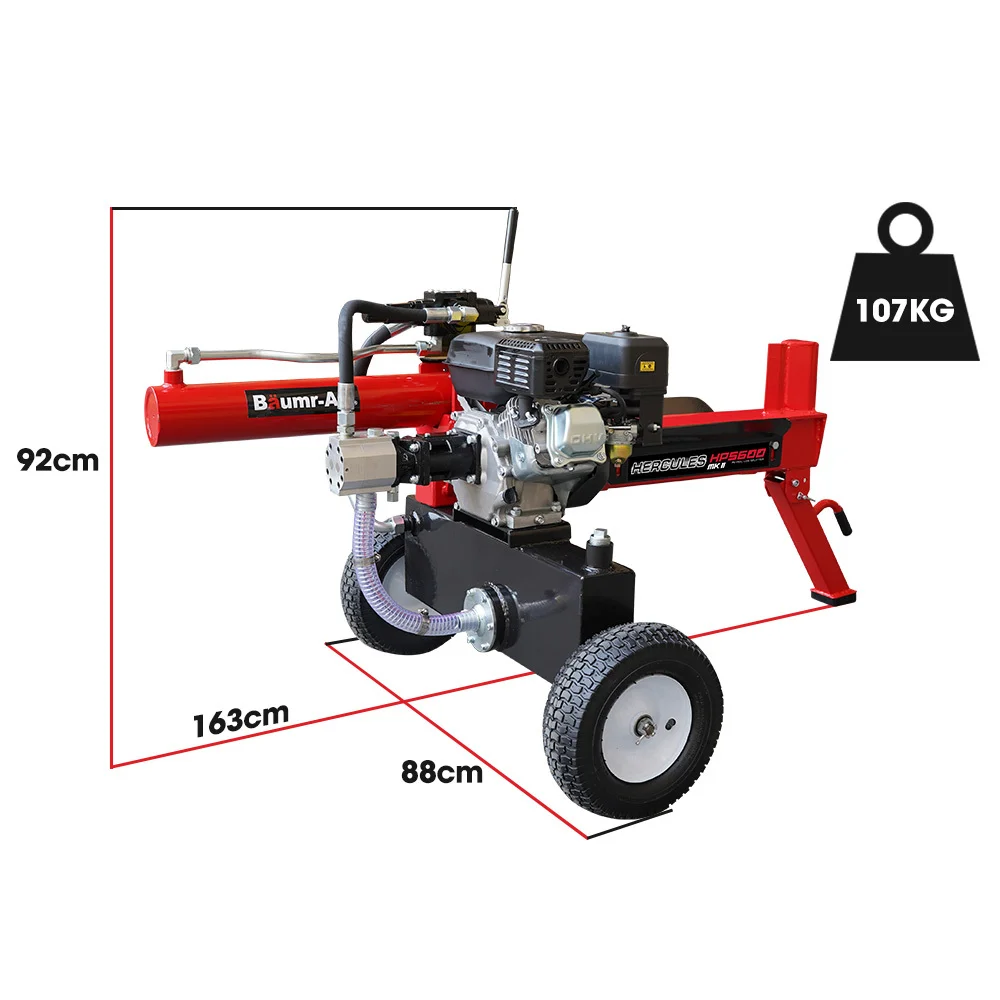

• Product dimensions (W x L x H): 88 x 163 x 92cm
• Product weight: 107kg
• Carton dimensions (W x L x H): 61.5 x 155.5 x 42.5cm
• Carton weight: 130kg
