Baumr-AG HPS700 40 Tonne Petrol Hydraulic Log Splitter, Horizontal and Vertical Towed

The Baumr-AG Hercules HPS700 petrol hydraulic log splitter delivers 40 tonnes of splitting force in both horizontal and vertical configurations, making tough wood-splitting jobs faster and easier on larger properties. Its towable trailer base and 16-inch pneumatic tyres let you move it to where the work is.

Key Features

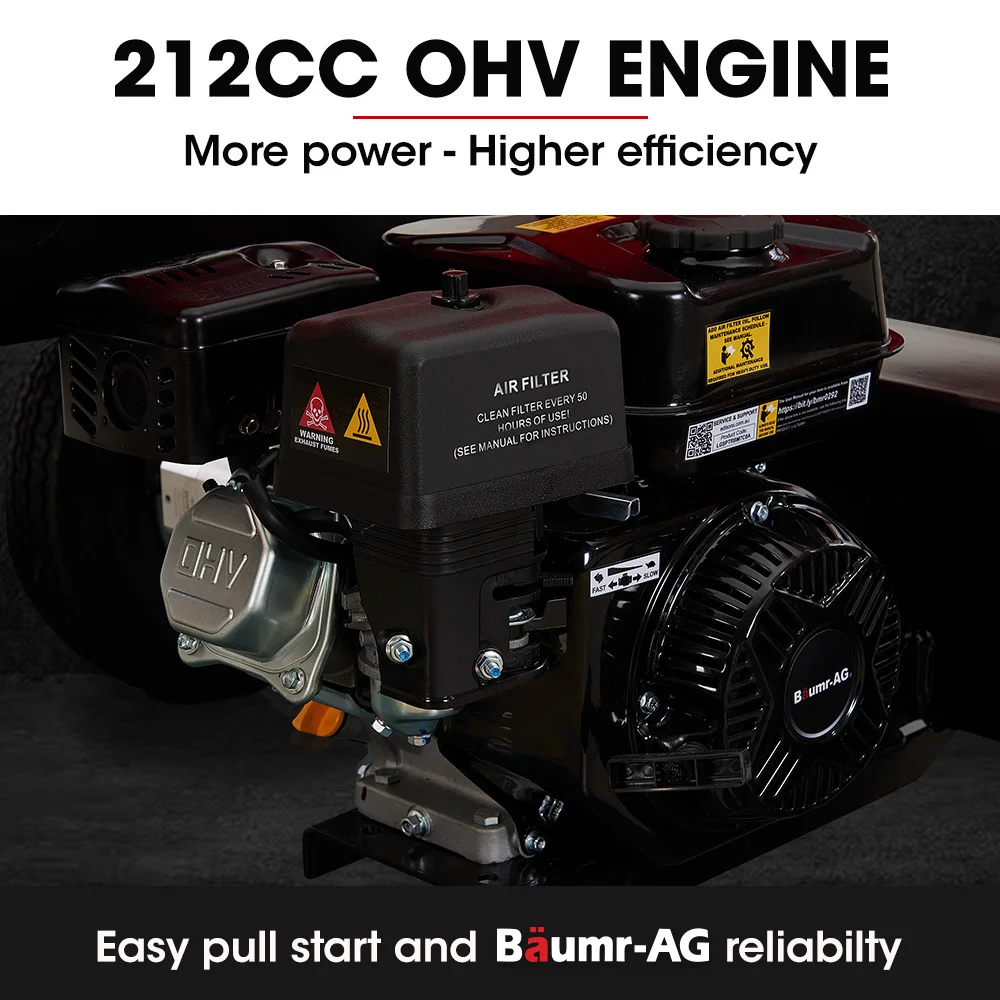

• 40-tonne tested splitting force powered by a 7.0hp 212cc 4-stroke engine with overhead valve design

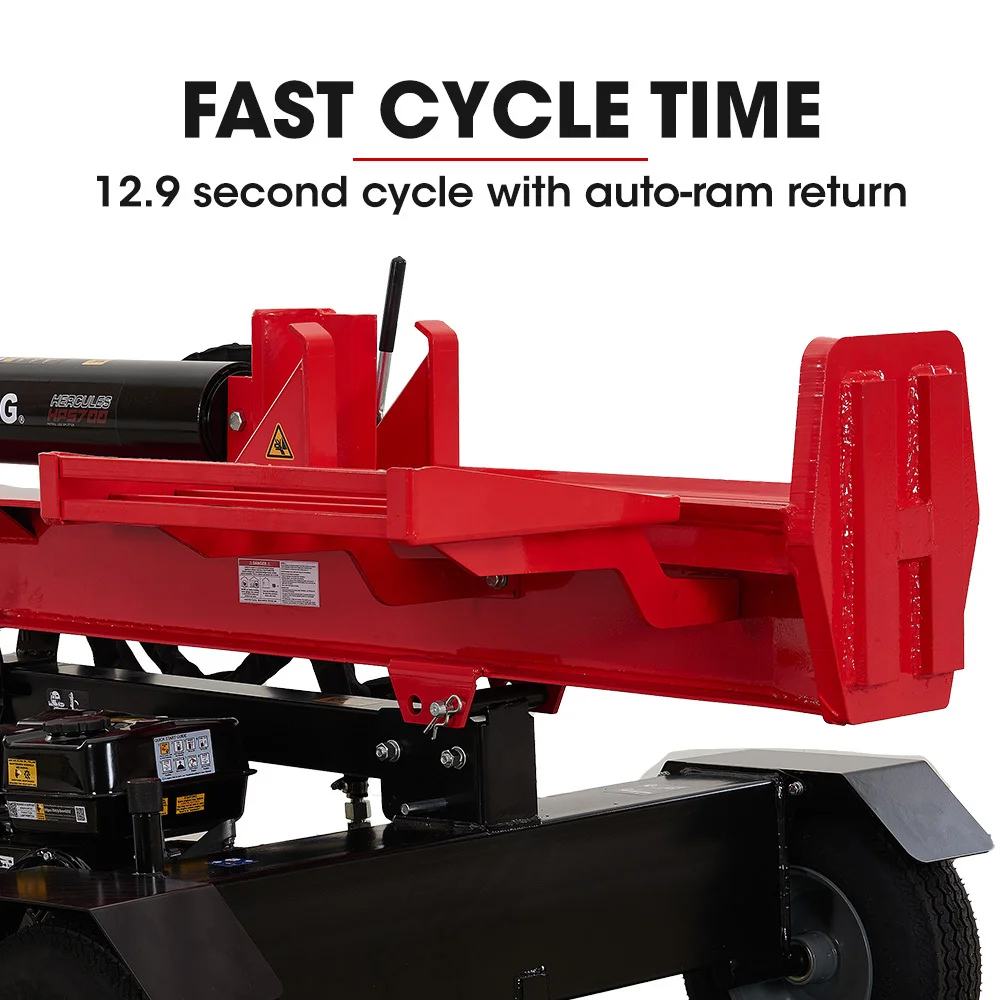

• Two-stage 57 LPM hydraulic pump with a fast 12.9-second cycle time
• Auto-return ram with 610mm ram travel

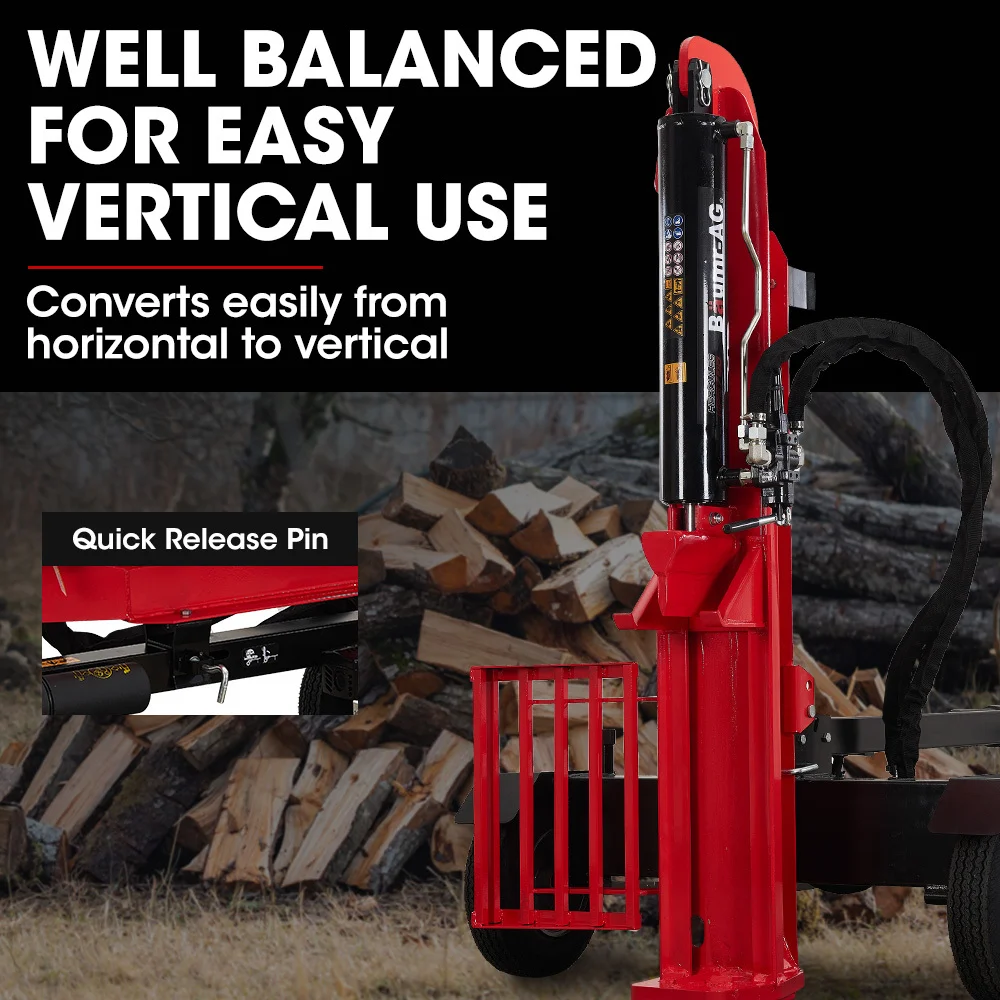

• Switch between horizontal and vertical splitting; vertical configuration avoids lifting large logs

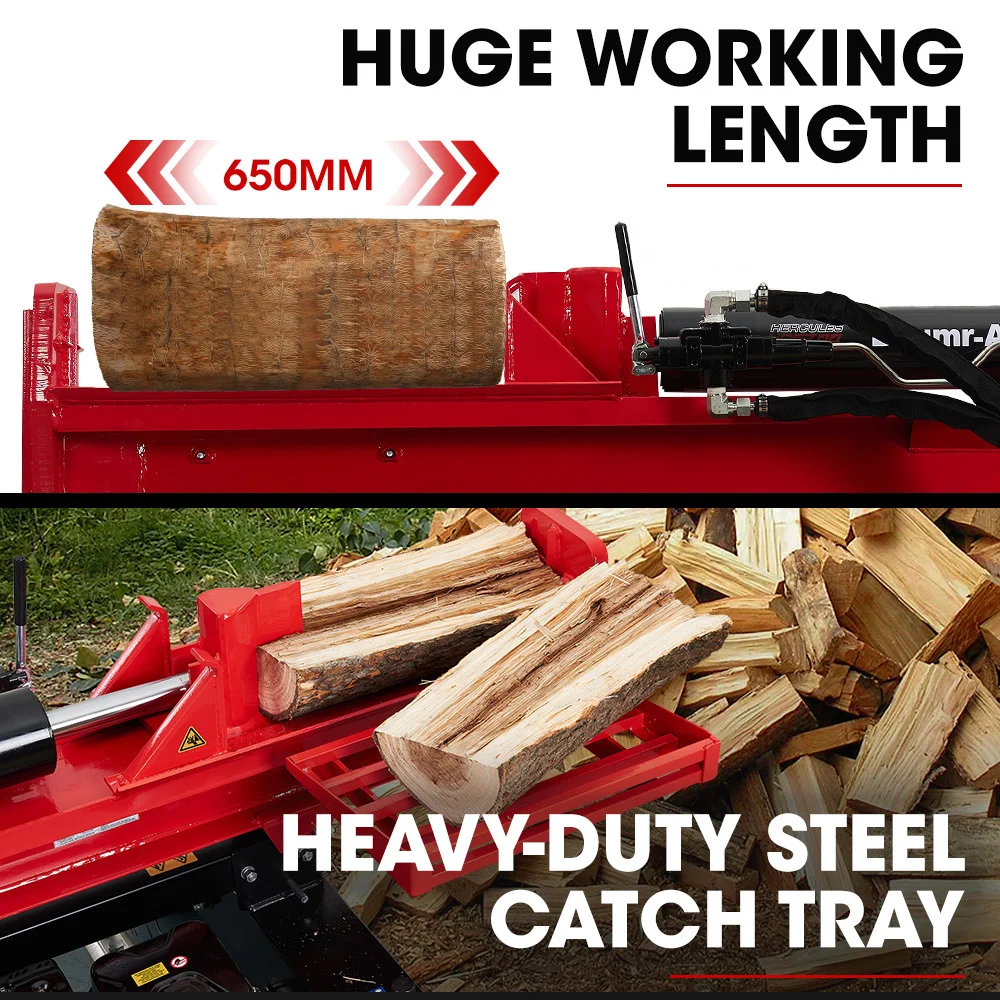

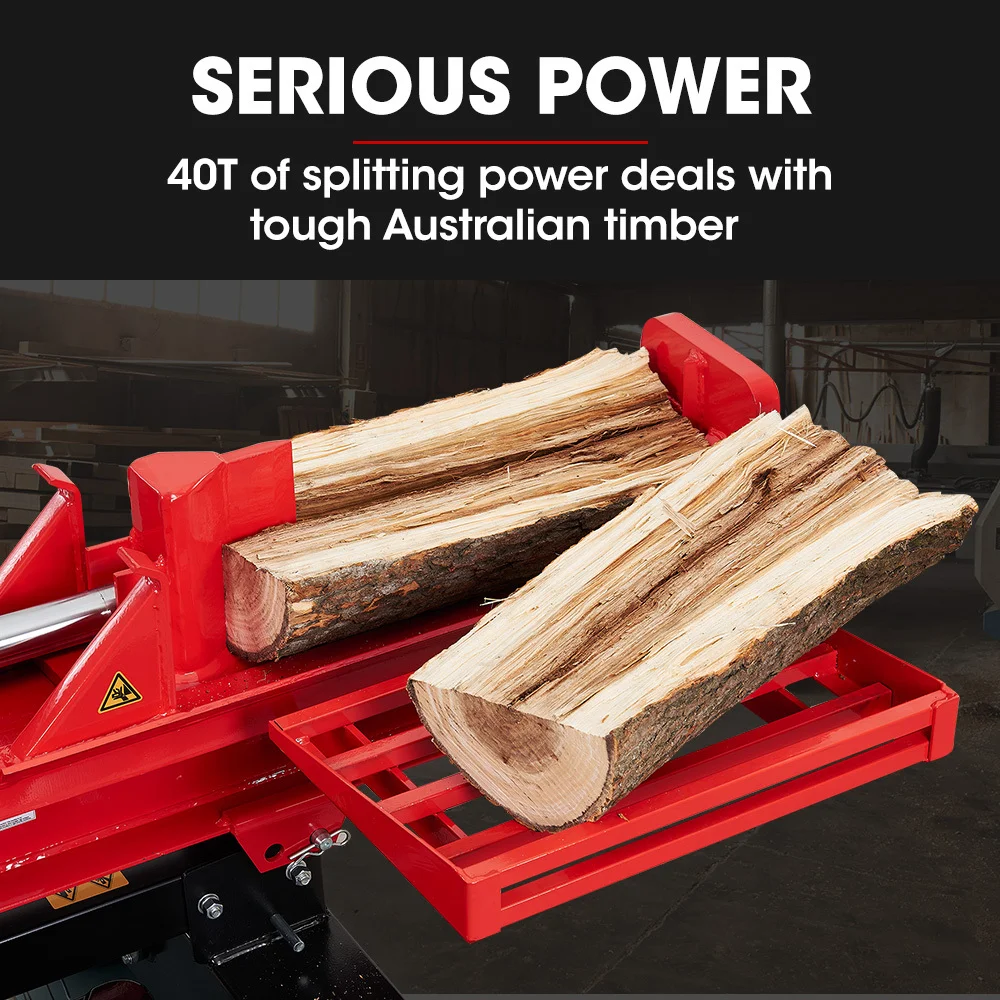

• Side table catches split firewood for easy transfer to a trailer or cart
• High-mounted stand-clear operator handle and deadman switch stop the machine instantly when released
• Square beam trailer base with a 2-inch receiver for towing by ATV, yard tractor or ride-on mower
• Wide wheel base for stability and deep-tread 16-inch pneumatic tyres

Specifications

• Brand: Baumr-AG
• Model: Hercules HPS700
• Engine type: 7.0hp 4-stroke (Euro V standard)
• Engine displacement: 212cc
• Log splitter type: Horizontal, vertical
• Fuel type: Petrol regular unleaded 95+ RON
• Max. tested splitting force: 40 tons
• Max. splitting length: 650mm
• Max. ram travel: 610mm
• Engine oil capacity: 1.1L
• Pump type: 57 LPM two-stage
• Hydraulic cylinder diameter: 115mm
• Hydraulic oil capacity: 23L
• Hydraulic oil type: AW-22/ISO VG22 (not included)
• Cycle time: 12.9 sec
• Tyre type: 16-inch pneumatic

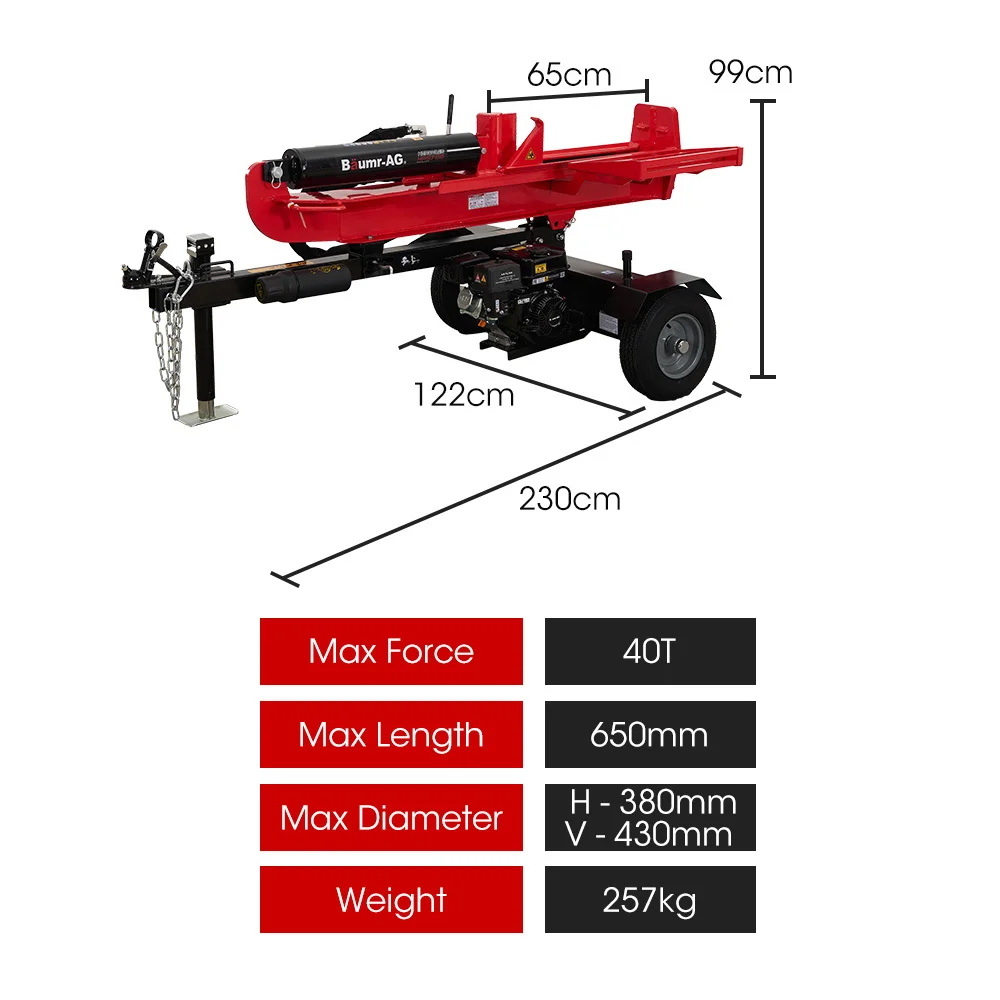

• Product dimensions (W x L x H): 122 x 230 x 99cm
• Product weight: 257kg
• Carton dimensions (W x L x H): 74 x 185 x 62cm
• Carton weight: 294kg
• Note: Assembly required

What's in the Box

• 1 x Baumr-AG HPS700 log splitter
• Note: User manual is accessible online
