Baumr-AG 13HP Petrol Stationary Engine OHV 4 Stroke Electric Start Horizontal Shaft

The Baumr-AG 13HP petrol stationary engine is a reliable replacement motor for machinery such as generators, water pumps, air compressors, log splitters, high pressure cleaners and go karts. Its OHV four-stroke design delivers consistent output with a high power-to-displacement ratio, good fuel economy and low oil usage.

Key Features

• Standard shaft and footprint to suit most stationary engines on the market, including Briggs and Stratton and Honda
• Low oil shut-down for engine protection
• Purpose-built components for reliability year after year
• Good fuel economy and low oil usage

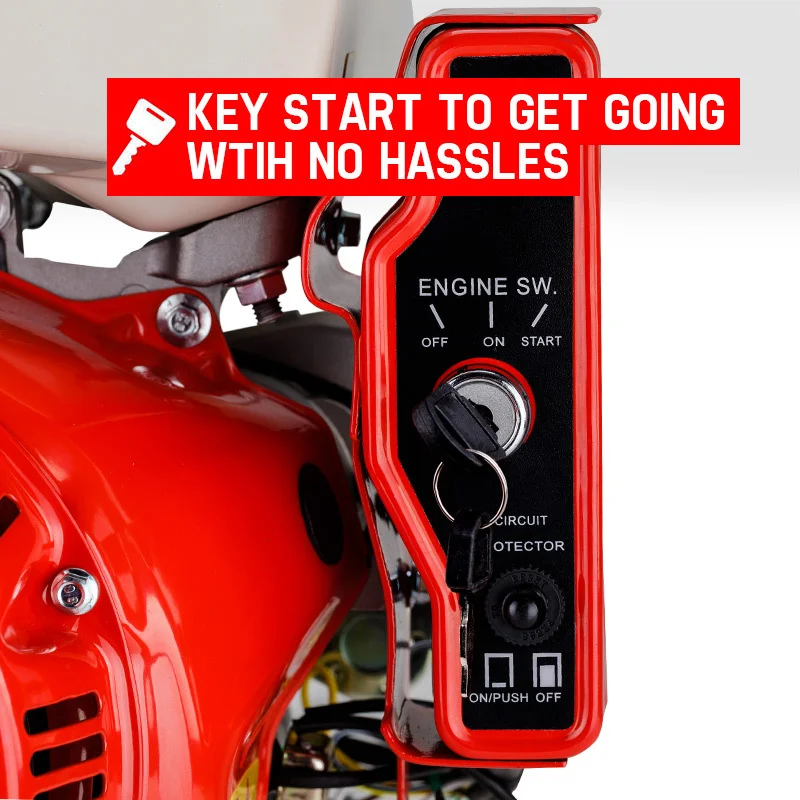

• Electric starting system
• Output axle steering: left
• Semi-dry, silent, cyclone air cleaner

Specifications

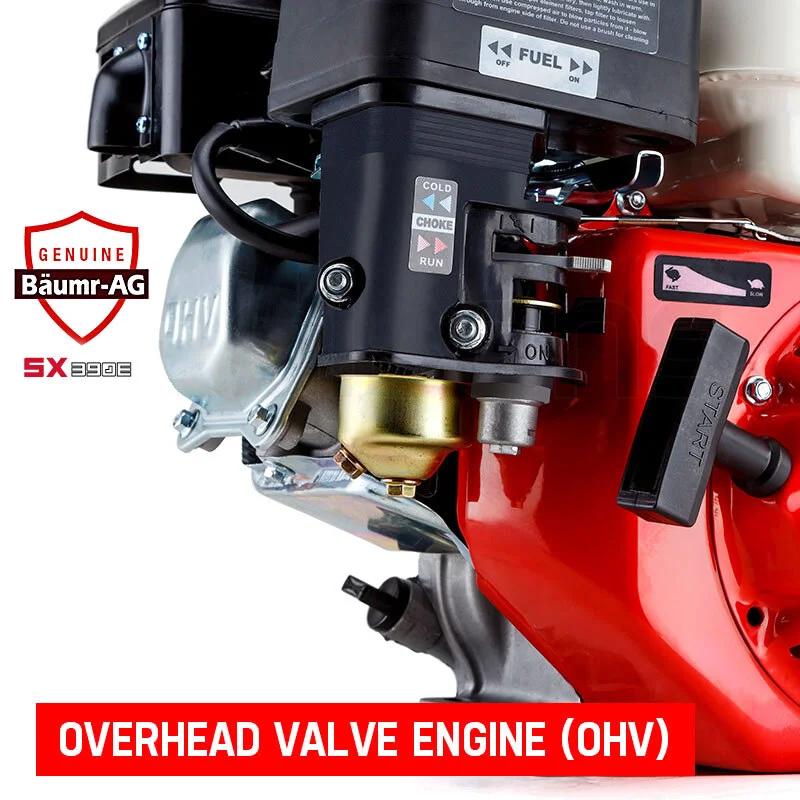

• Engine type: 1-cylinder, 4-stroke, air-cooled, OHV
• Bore x stroke: 88 x 64 mm
• Displacement: 389cc
• Compression ratio: 8.5:1
• Maximum power output: 13HP (9.6kW)
• Rated power output: 11.7HP (8.6kW)
• Speed: 3600rpm
• Maximum torque: 26.5N.m
• Ignition system: transistor magneto
• Starting system: electric
• Engine oil type: 10W-30 / 10W-40 / 15W-30 / 15W-40 non-synthetic engine oil (not included)
• Engine oil system capacity: 1.1 litres

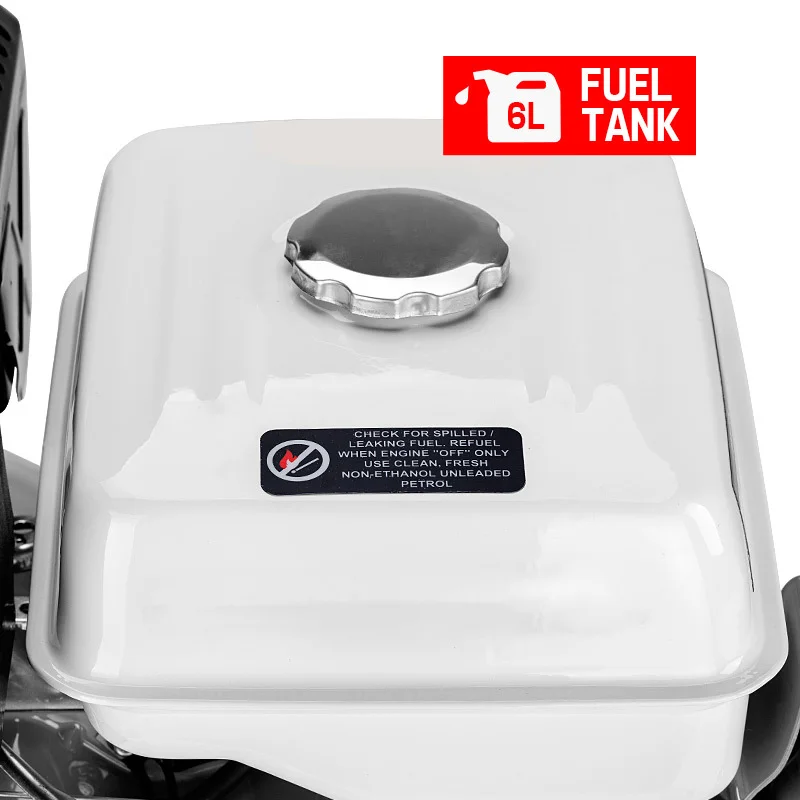

• Fuel capacity: 6 litres
• Fuel type: regular unleaded 95+ RON
• Minimum fuel consumption: 325g/kW/h
• Note: battery not included

What's in the Box

• 1x Baumr-AG SX390E stationary petrol engine

Size and Weight

• Carton weight: 36 kg
• Carton dimensions (W x D x H): 48 x 52 x 51 cm
• Product weight: 33 kg

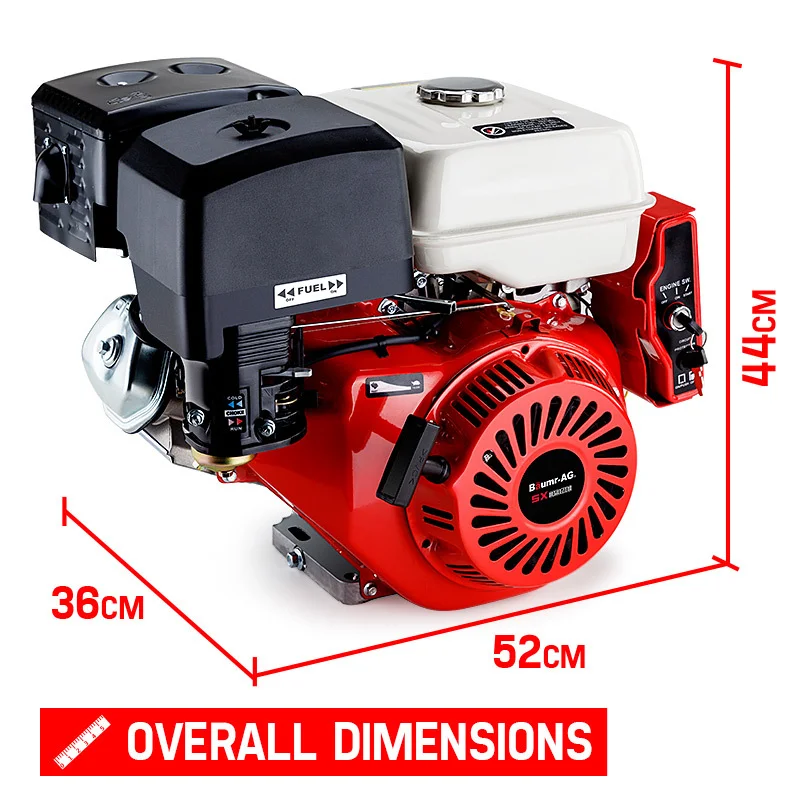

• Product dimensions (W x D x H): 52 x 36 x 44 cm
