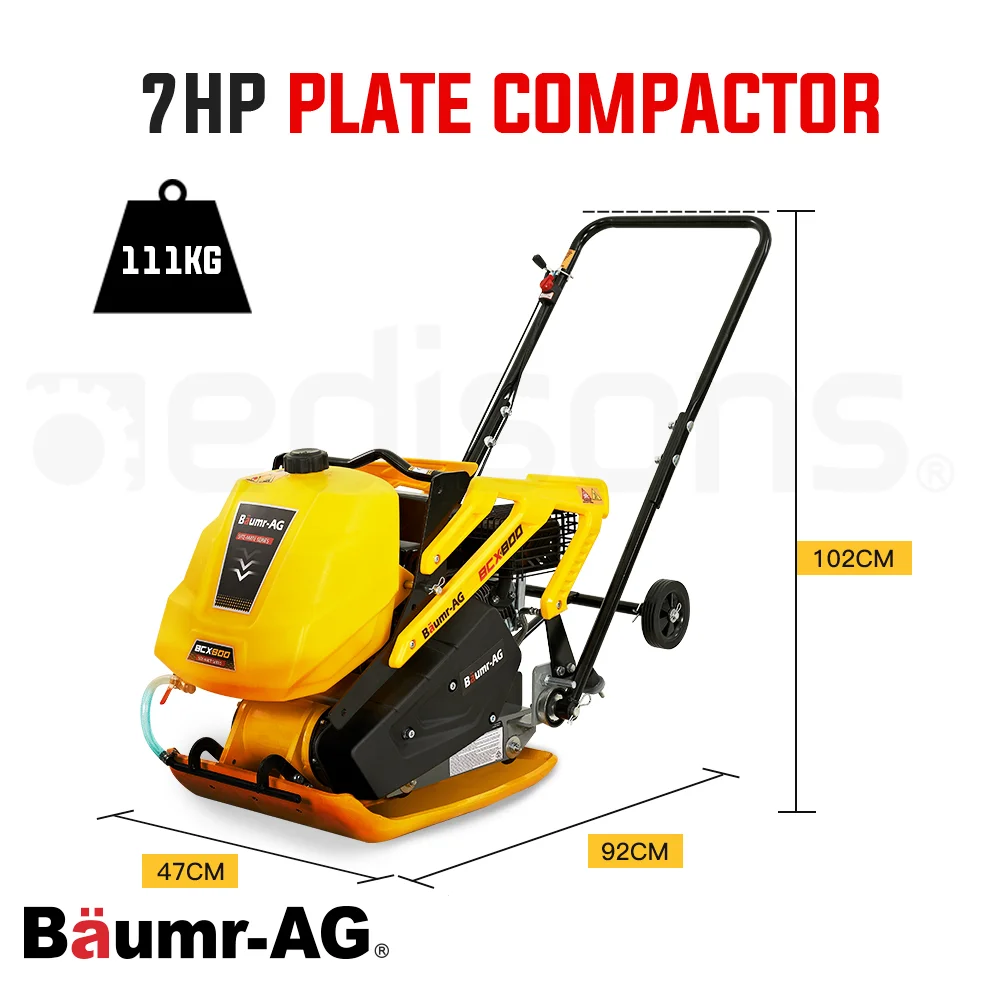

Baumr-AG BCX800 Plate Compactor 7HP with 14L Sprinkler System

The Baumr-AG BCX800 Site-Mate Series Plate Compactor is a vibratory compactor built for firm soil, sand and gravel compaction on driveways, landscaping and concreting projects. Its 7HP engine, 111kg maximum operational mass and one-piece steel base plate deliver reliable, level compression in confined spaces.

Key Features

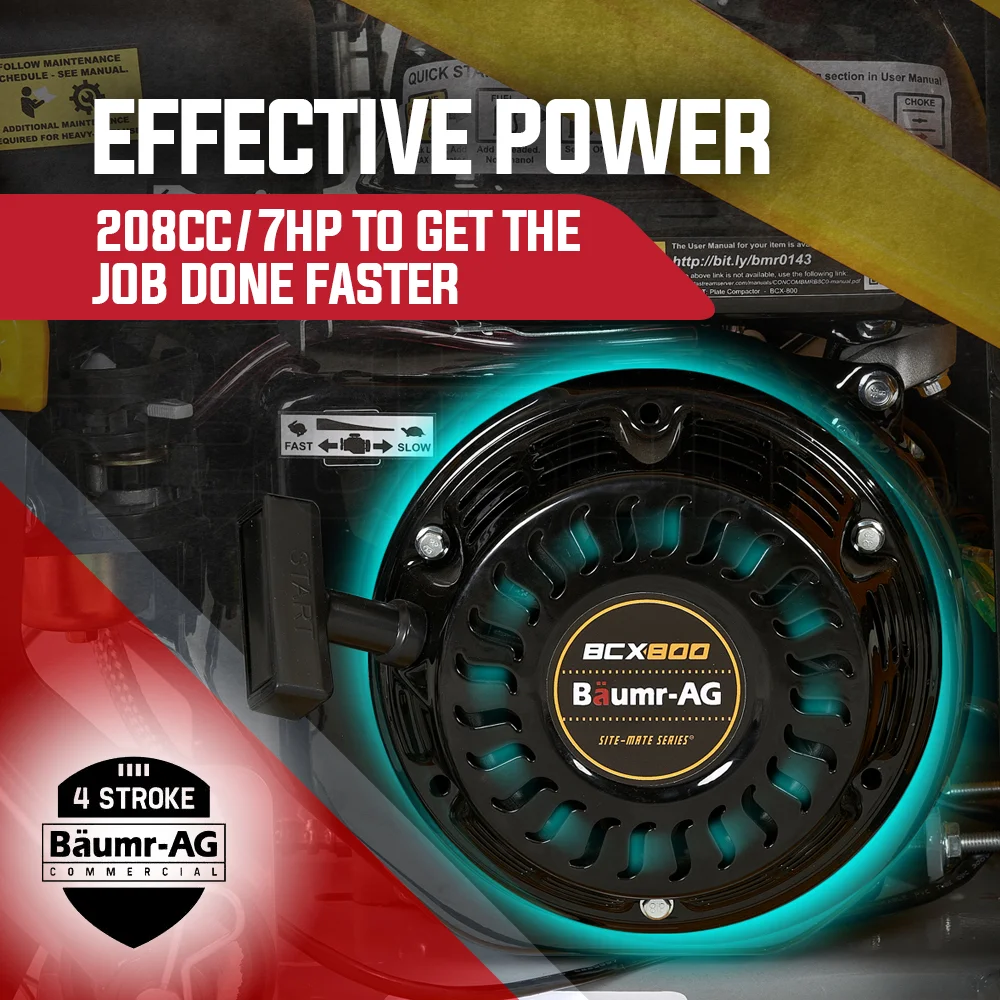

• Powerful 7HP 208cc 4-stroke engine
• 111kg maximum operational mass with a solid one-piece prime strength steel base plate

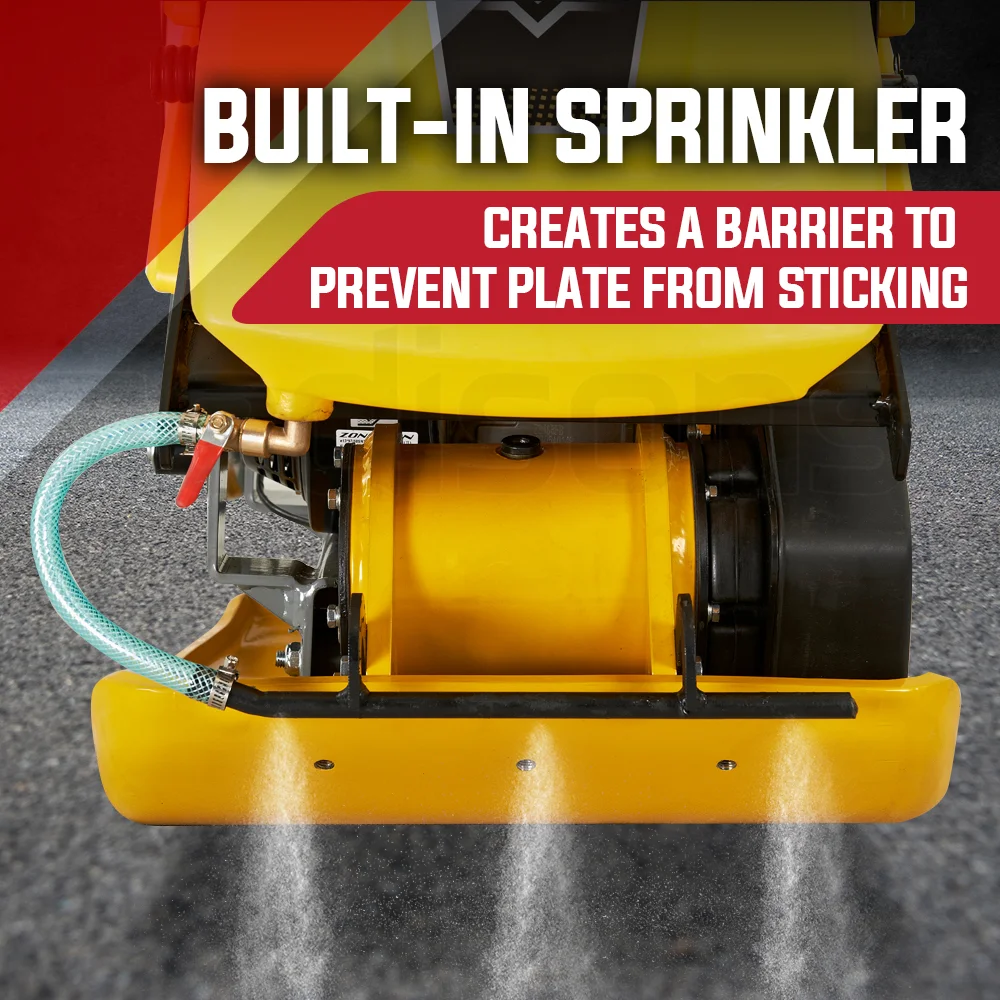

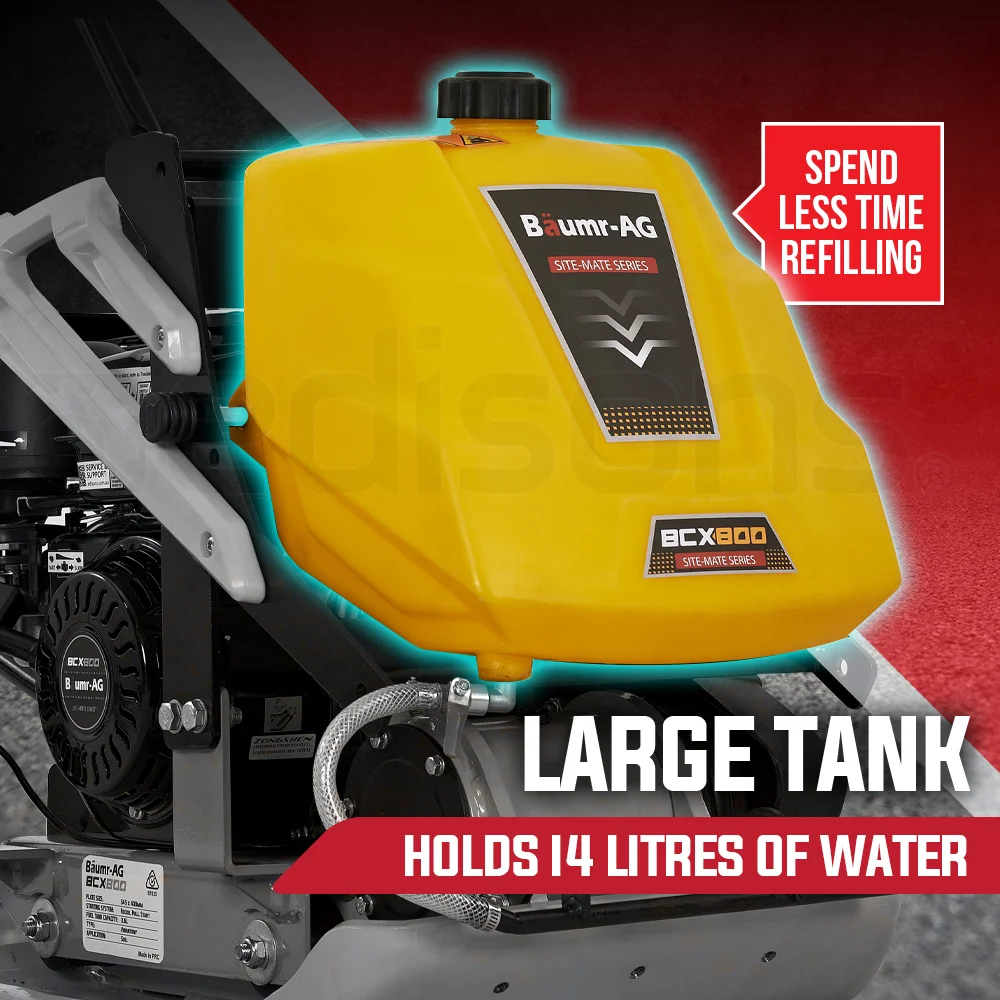

• Integrated sprinkler system with a large 14L water tank to keep the plate cool and reduce asphalt adhesion

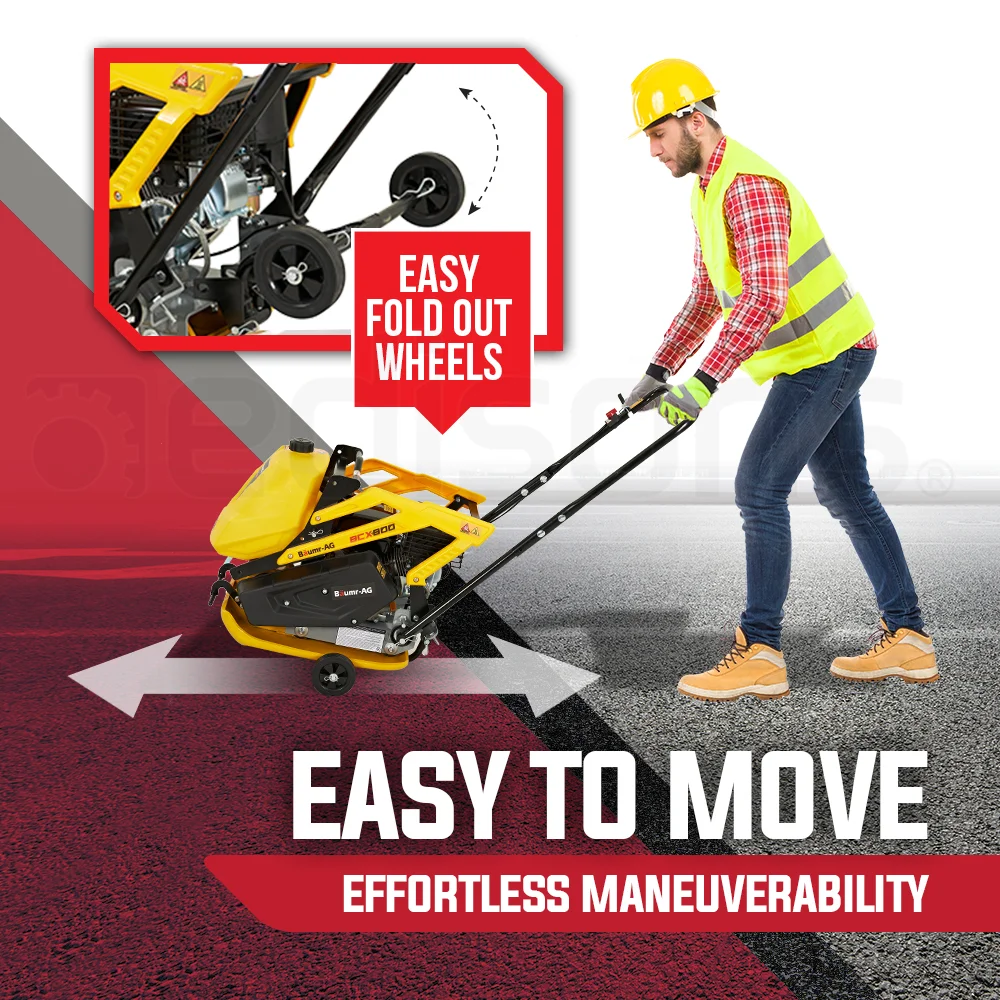

• Fold-away retractable wheels for easy transport between jobs

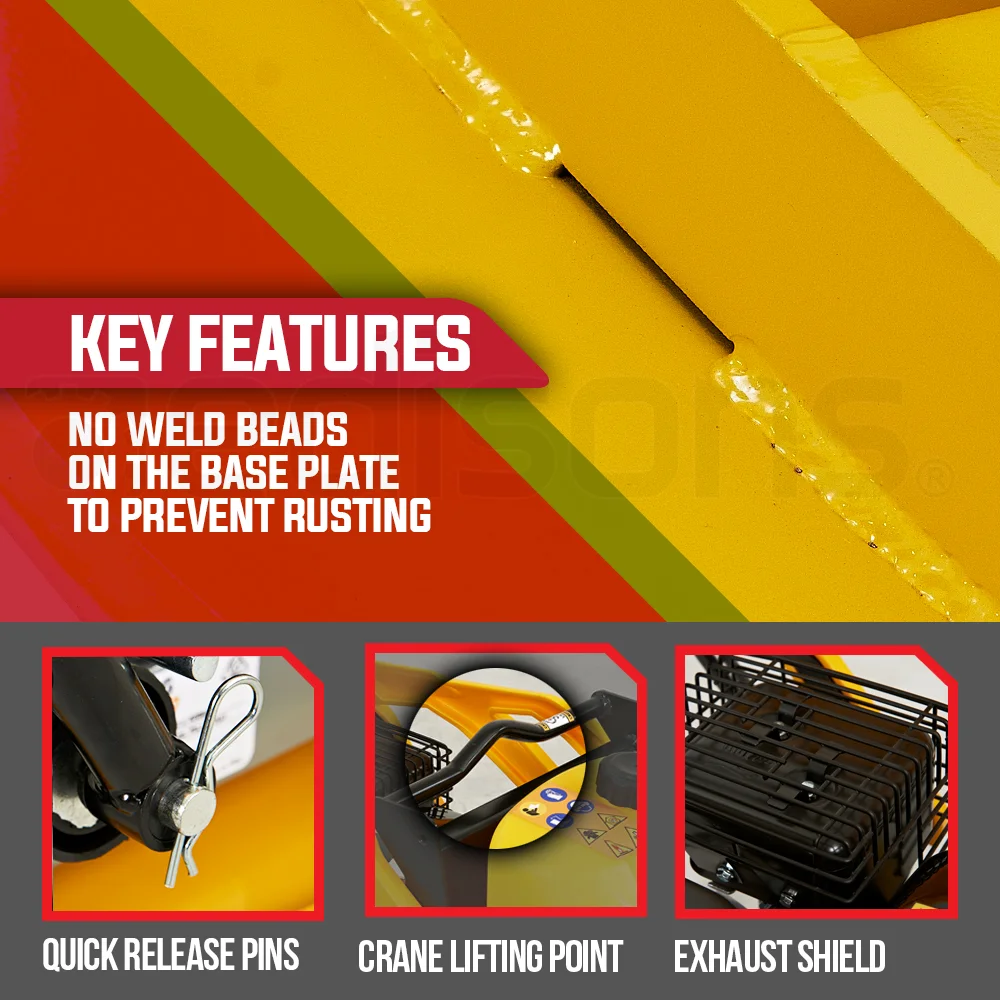

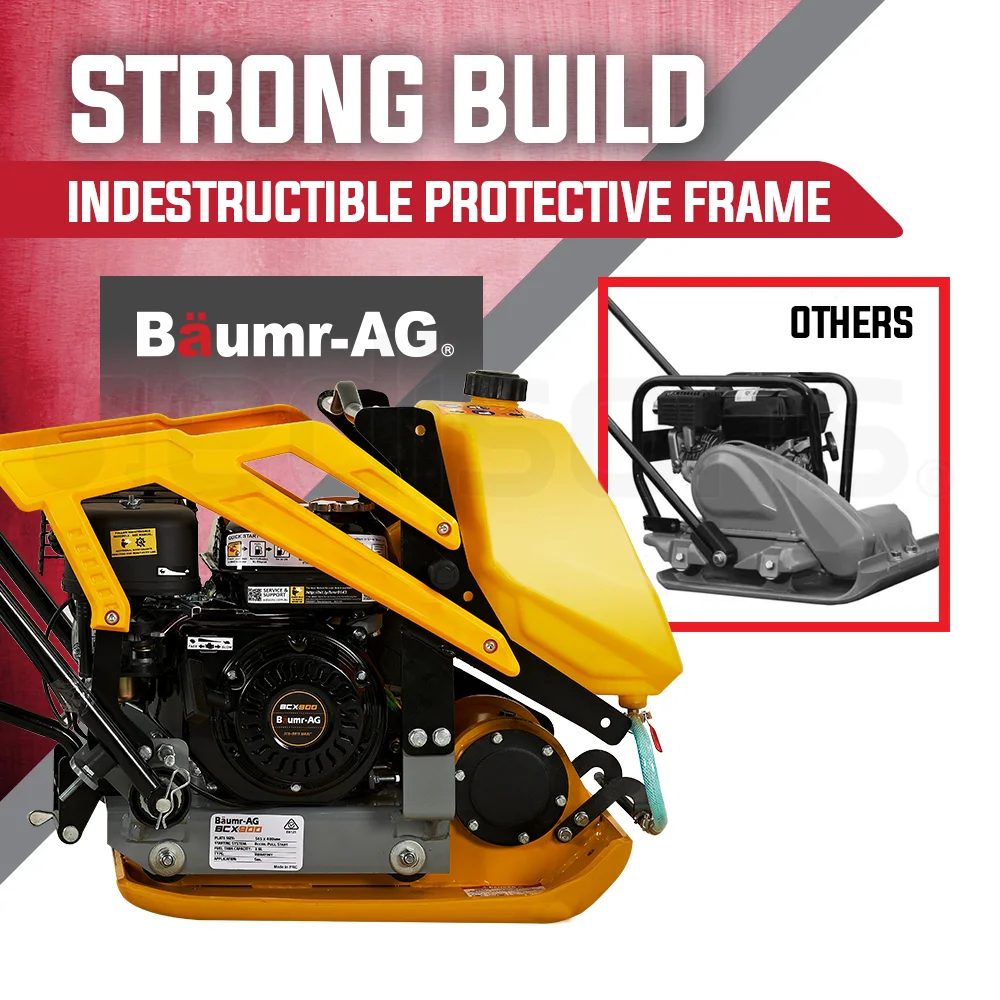

• Precision robot-welded construction for maximum strength and rust resistance

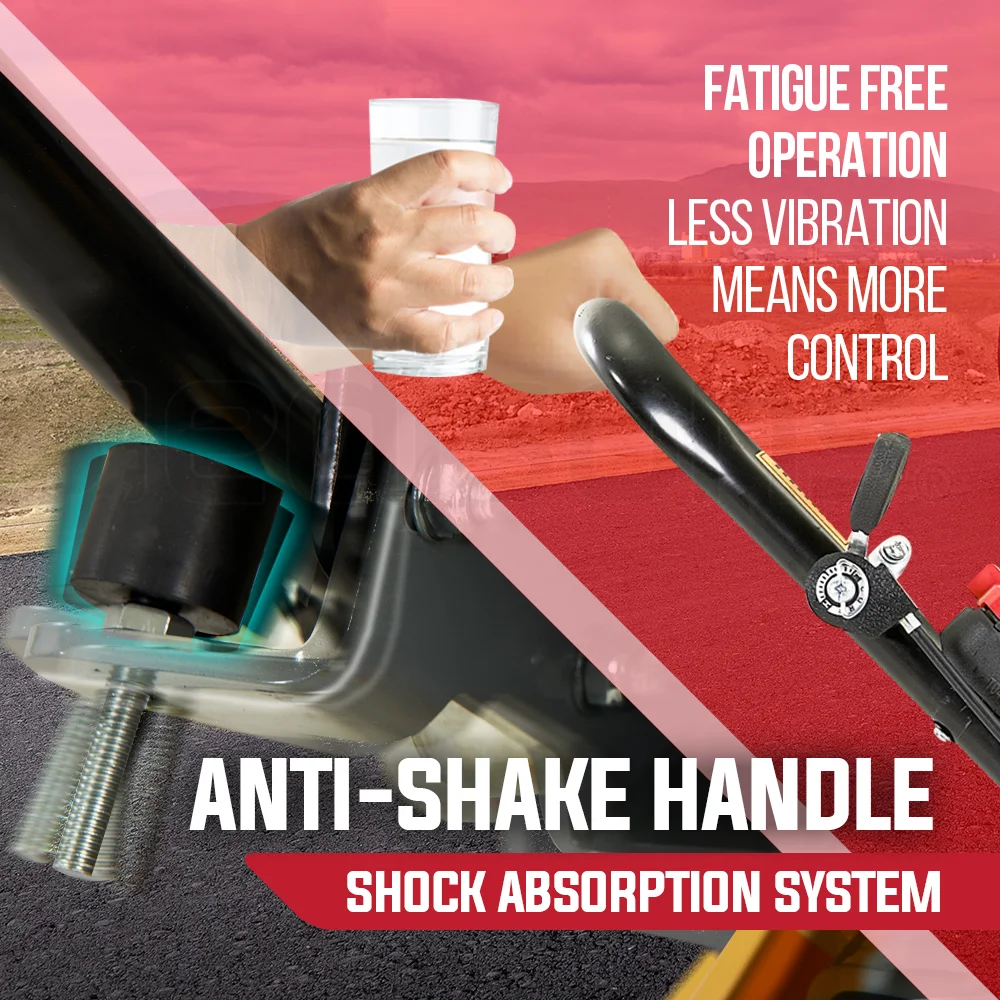

• Oversized shock-absorption system integrated into the handles

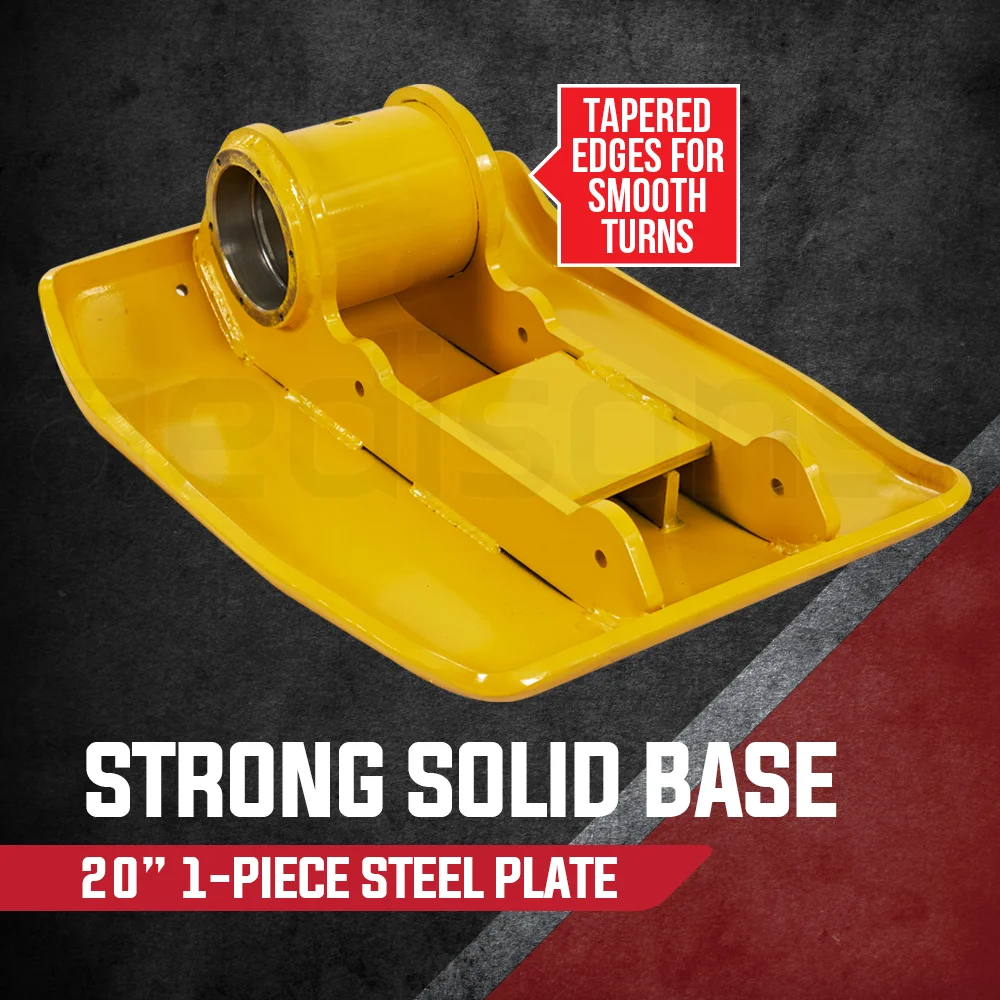

• Tapered base plate edges for manoeuvring in confined spaces
• Lifting hook incorporated into the frame for crane lifting

Specifications

• Brand: Baumr-AG
• Model: BCX800
• Engine Type: 7HP OHV
• Displacement: 208cc
• Type: Vibratory
• Application: Soil
• Starting System: Recoil pull start
• Fuel Type: Regular Unleaded 95 +RON
• Fuel Tank Capacity: 3.6L
• Oil Capacity: 0.7L
• Max Operational Mass (with full tanks): 111kg
• Water Tank Capacity: 14L
• Centrifugal Force: 13kN
• Walk Speed: 15m/min
• Plate Size: 545 x 400mm
• Compaction Depth: 300mm (Soil)
• Frequency: 5500 vpm
• Dry Weight: 95kg
• Product Dimensions (W x L x H): 47 x 93 x 102cm
• Product Weight: 95kg
• Carton Dimensions (L x W x H): 80 x 53 x 70cm
• Carton Weight: 94kg

What's in the Box

• 1 x BCX800 Plate Compactor
• User's manual is accessible online
