Product Description

Create a streamlined corner shower with the Della Francesca 90x80cm corner frameless shower screen. Built from 10mm toughened safety glass with matte black wall channels and solid brass hardware, it opens up the space while keeping water contained.

Key Features

  • Frameless corner design that maximises space and light
  • 10mm toughened safety glass meeting AS/NZS 2208 standards
  • Matte black powder-coated aluminium wall channels for a flush, secure fit
  • Solid brass hinges with squared edges and dual-action swing
  • Self-closing hinge action from the 25-degree position
  • Solid brass double pull handle that is rust and corrosion resistant
  • Low-maintenance glass that resists water spots and soap residue

Specifications

  • Overall size: 90x80cm
  • Colour: Matte black
  • Bracket type: Wall channel
  • Handle type: Square double pull

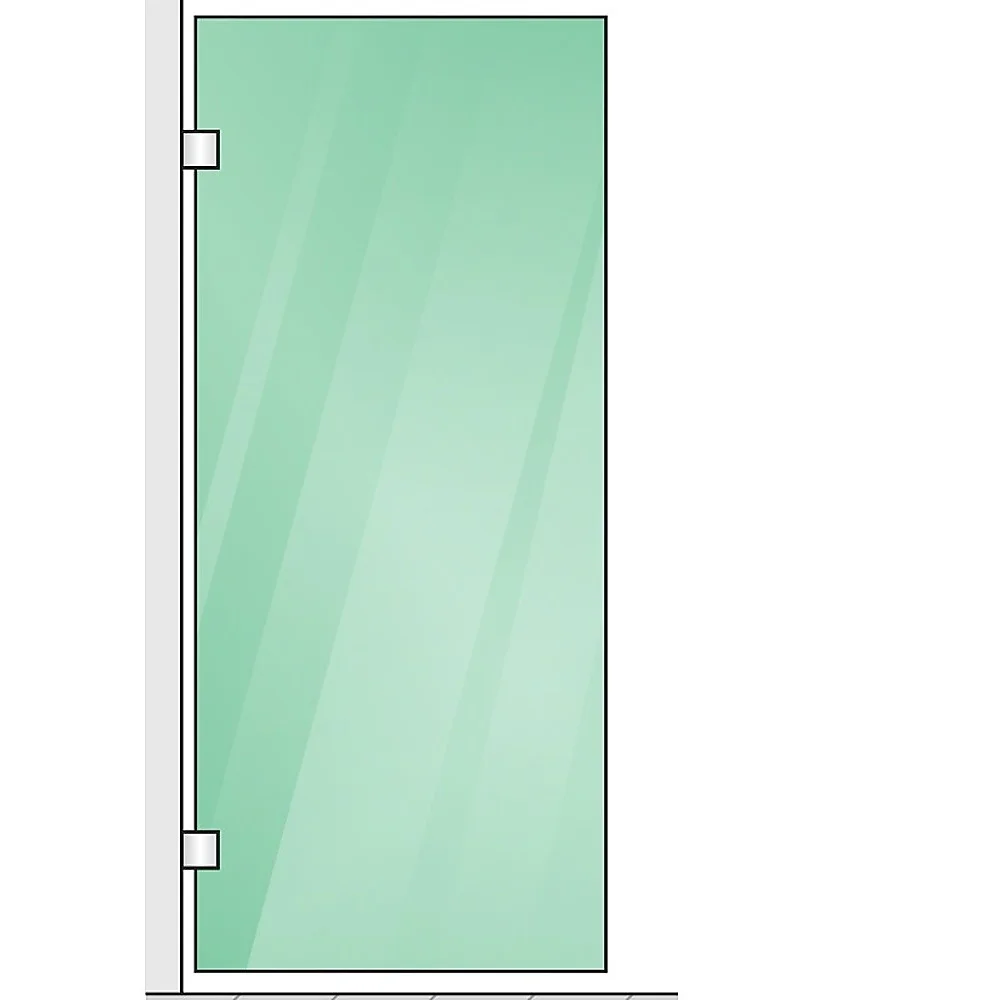

  • Door panel: 610 x 1990mm, 10mm AS/NZS 2208 glass, 10mm handle hole
  • Hinge panel: 280 x 2000mm, 10mm AS/NZS 2208 glass

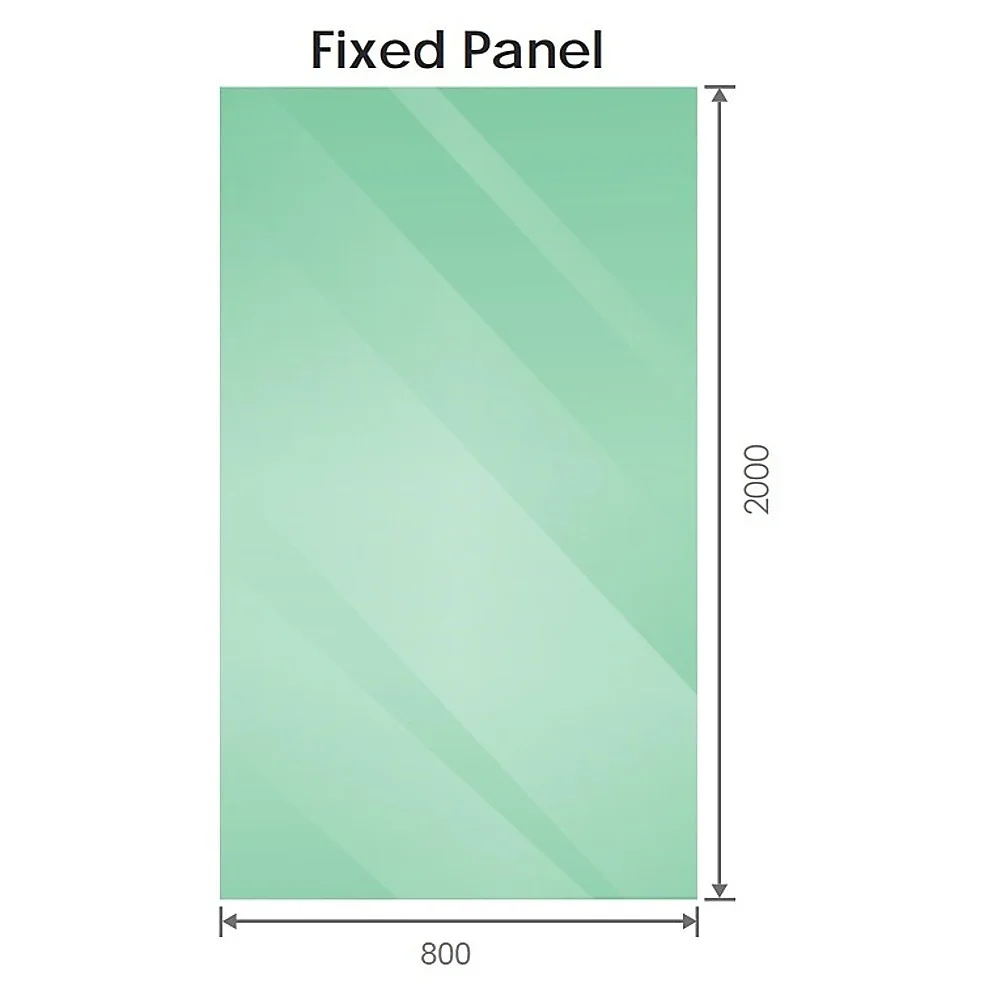

  • Single panel: 800 x 2000mm, 10mm toughened safety glass, AS/NZ 2208:1996 compliant

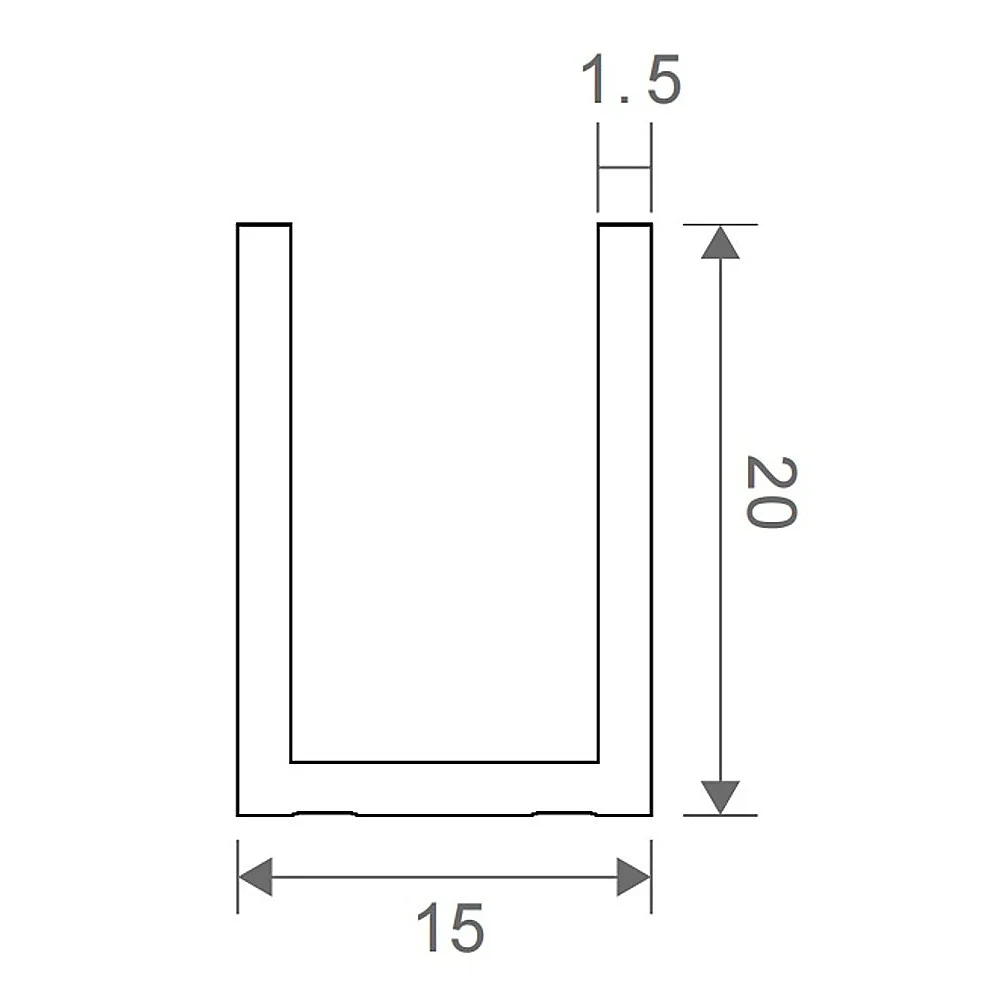

  • Wall channel: 2100mm length, cut to size on installation; 21.5mm height, 15mm width, 1.5mm thickness, suits 10mm glass

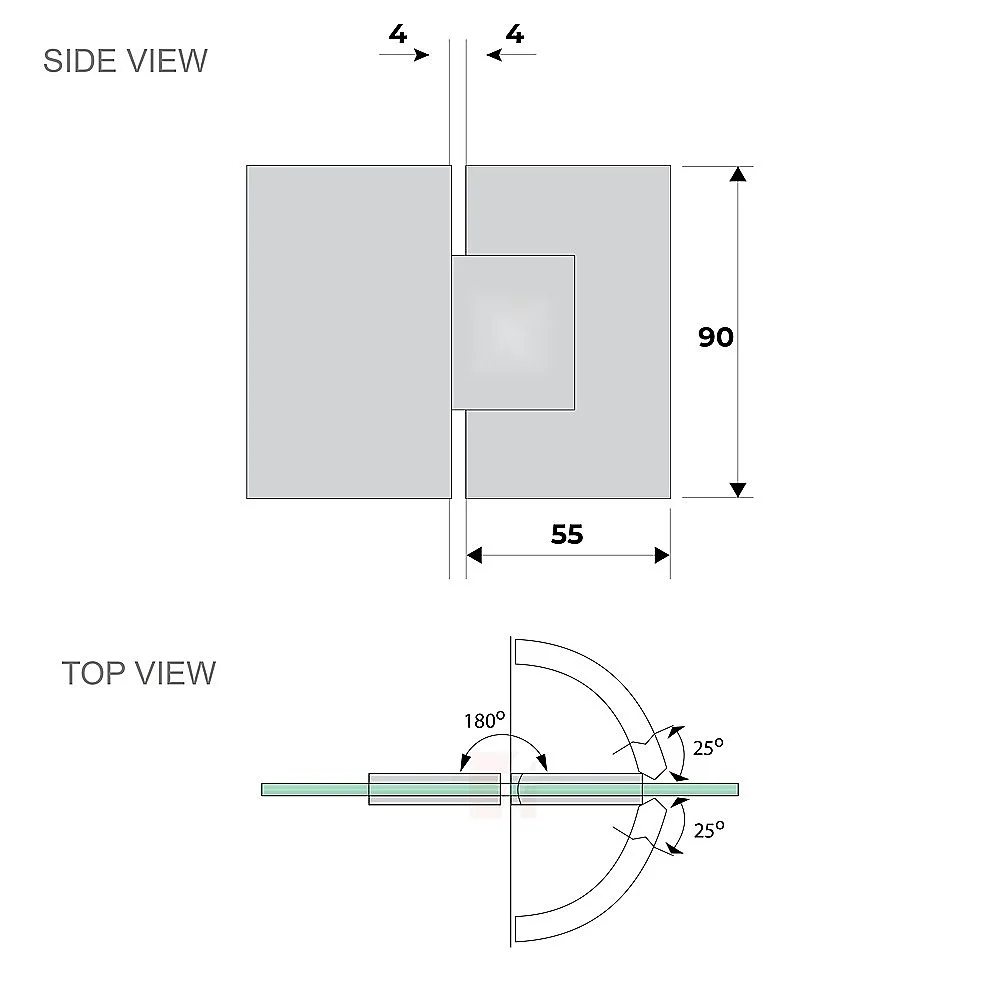

  • Hinge: suits 10mm glass, self-closes from 25 degrees, clamping plates pre-glued with EPDM 119mm gaskets, maximum weight 45kg

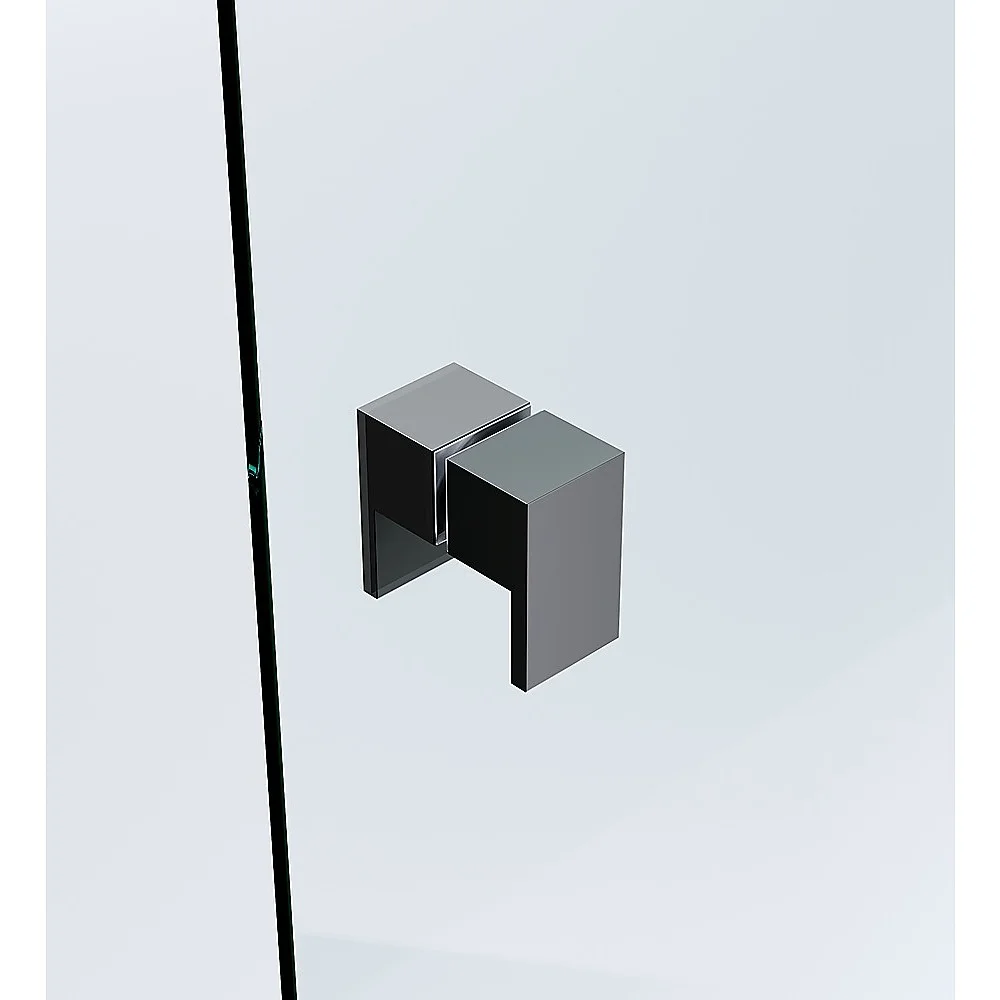

  • Handle: 49mm x 25mm double pull knob, suits 6mm, 8mm, 10mm and 12mm glass
  • Colour intensity may vary from actual due to different lighting conditions

What's in the Box

  • 1 x 61 x 199cm frameless shower screen door for 10mm door handle
  • 1 x 28 x 200cm frameless hinge glass panel
  • 1 x 800 x 2000mm frameless safety glass shower screen

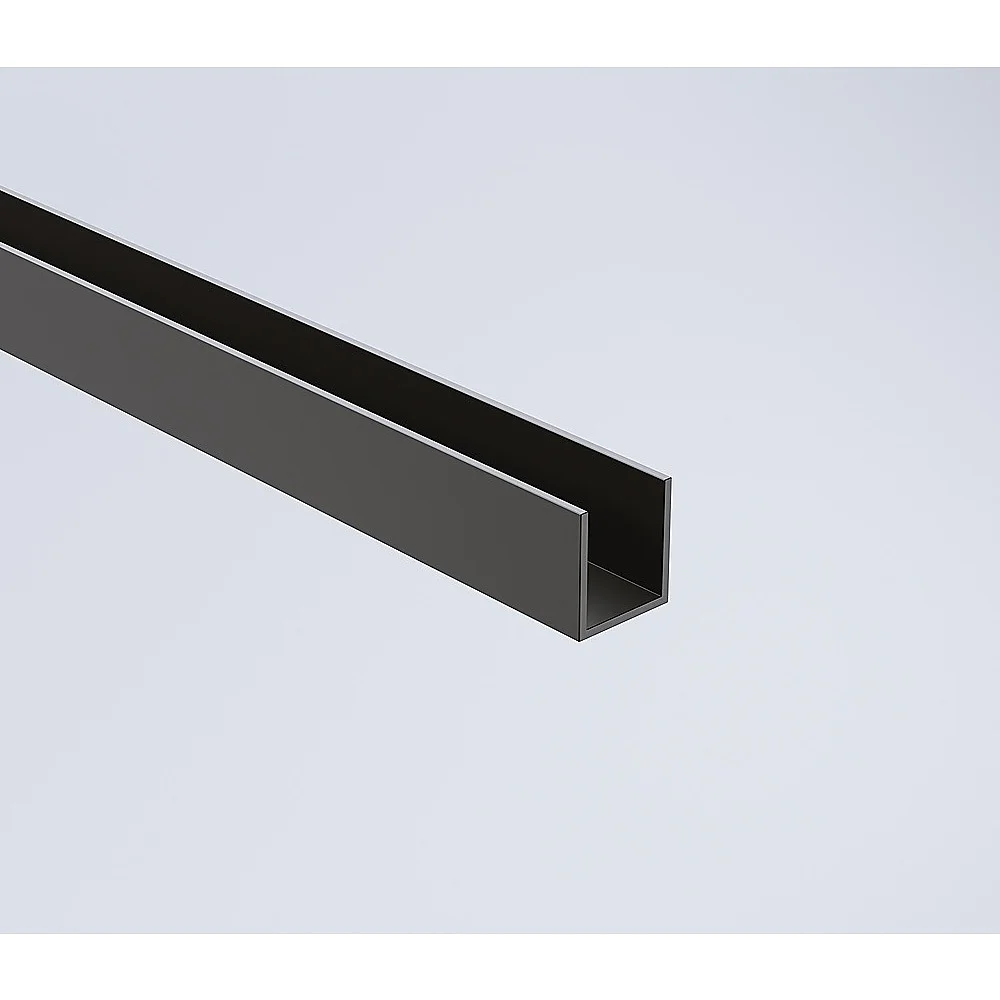

  • 2 x matte black wall channels

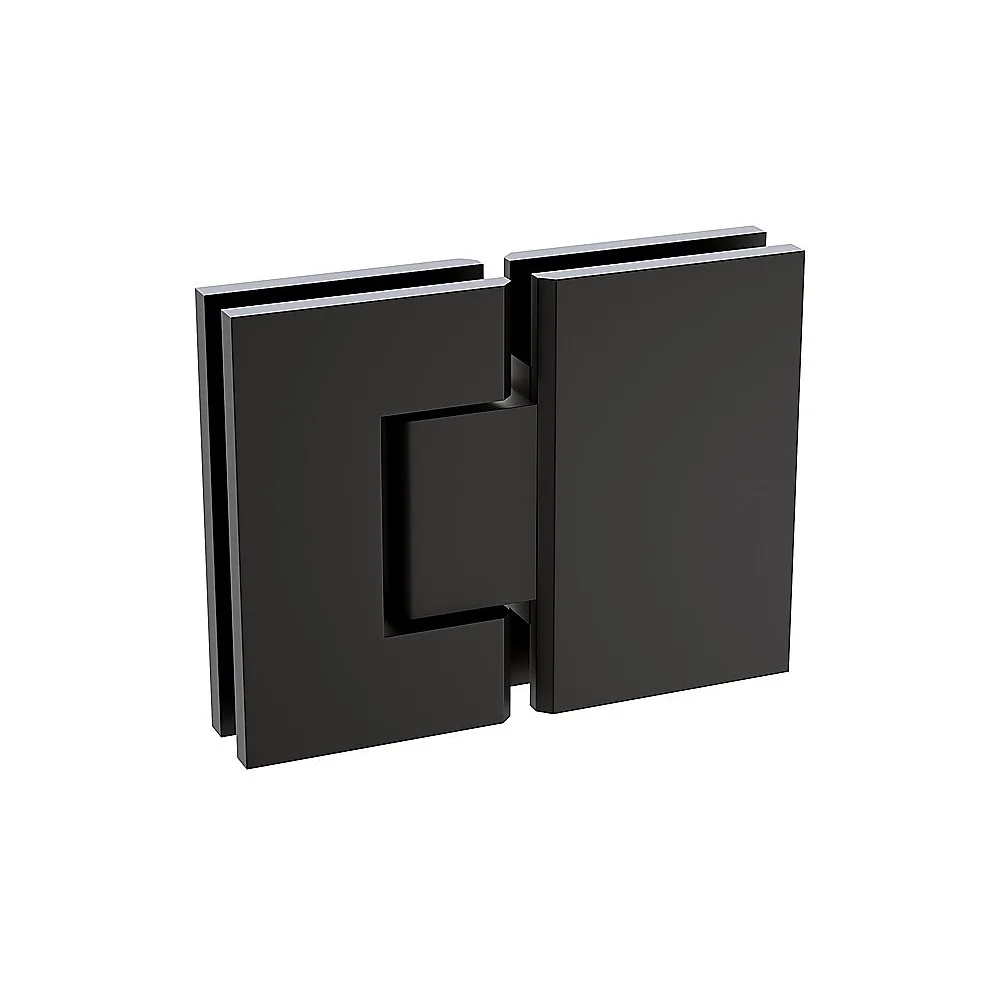

  • 1 pair (2pcs) 180-degree brass wall-to-wall shower door hinges in matte black
  • 1 x 25mm brass shower door double pull handle in matte black

Images may show optional accessories for illustrative purposes only; only the indicated accessories in the specified colour are included.

Specifications

BrandDella Francesca
Weight97.1 kg
Dimensions213×87×38 cm
