Product Description

Create a sleek, open corner shower with the Della Francesca 110x70cm corner frameless shower screen. Built from 10mm toughened safety glass with matte black wall channels and solid brass hardware, it delivers a clean, modern look with reliable water containment.

Key Features

  • Frameless corner design maximises space and light in small or large bathrooms
  • 10mm toughened safety glass compliant with AS/NZS 2208
  • Matte black powder-coated aluminium wall channels for a secure, flush fit
  • Solid brass hinges with squared edges and dual-action swing
  • Self-closing hinge action from the 25-degree position
  • Solid brass double pull handle resists rust and corrosion
  • Low-maintenance glass resists water spots and soap residue

Specifications

  • Overall size: 110x70cm
  • Colour: Matte black
  • Bracket type: Wall channel
  • Handle type: Square double pull

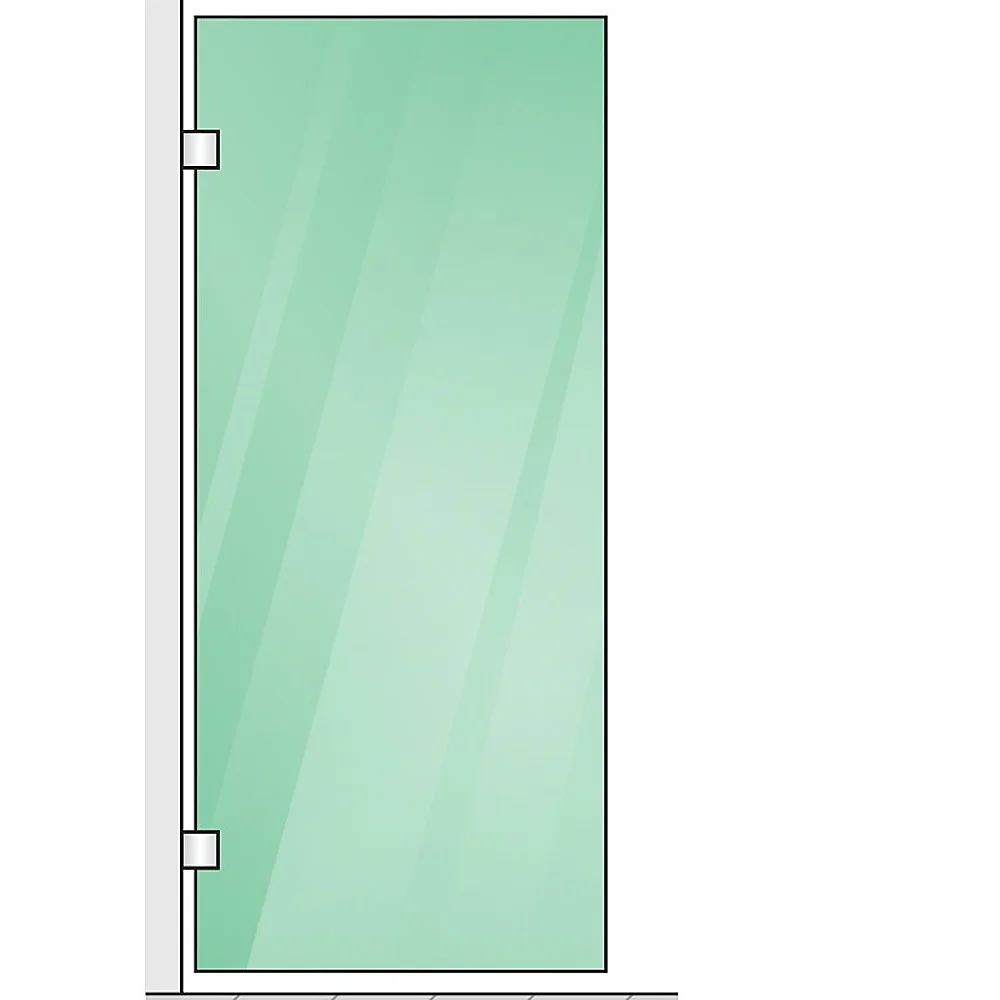

  • Door panel: 650 x 1990mm, 10mm AS/NZS 2208 standard glass, 10mm handle hole
  • Hinge panel: 440 x 2000mm, 10mm AS/NZS 2208 standard glass

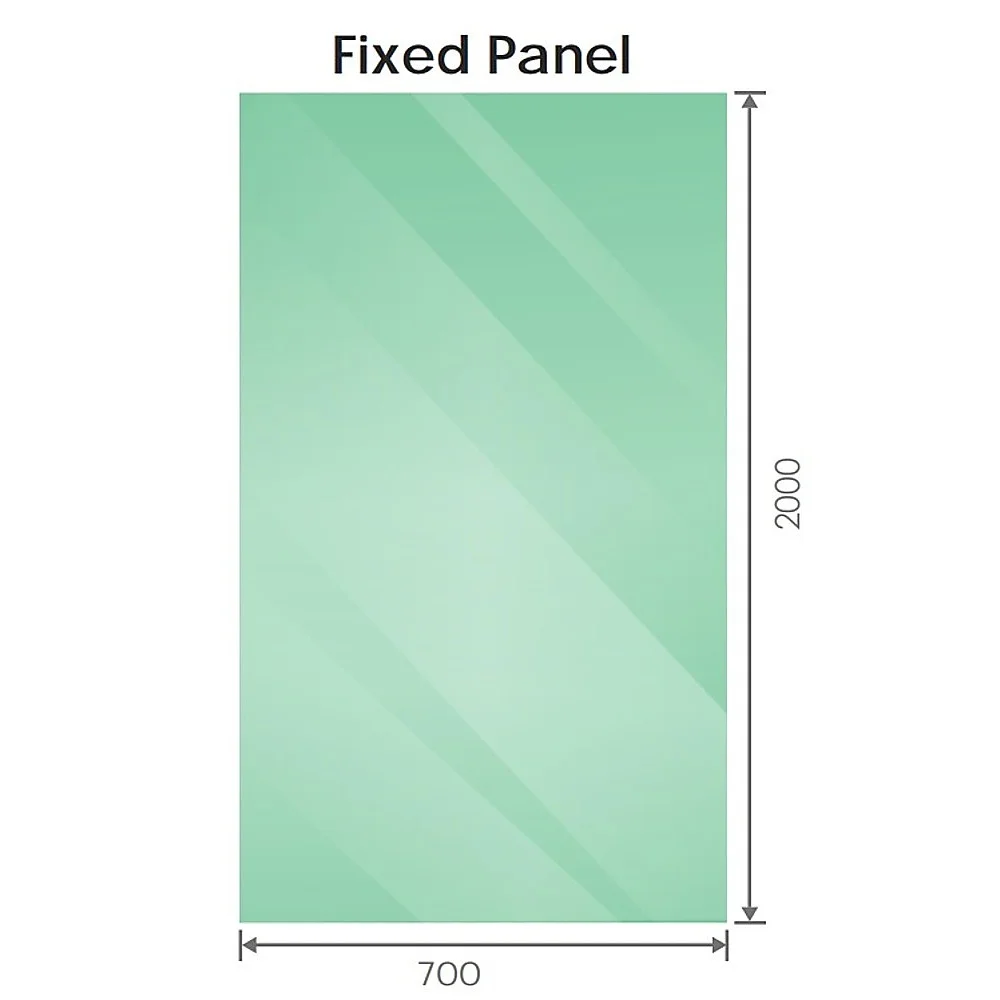

  • Single panel: 700 x 2000mm, 10mm toughened safety glass, AS/NZ 2208:1996 compliant

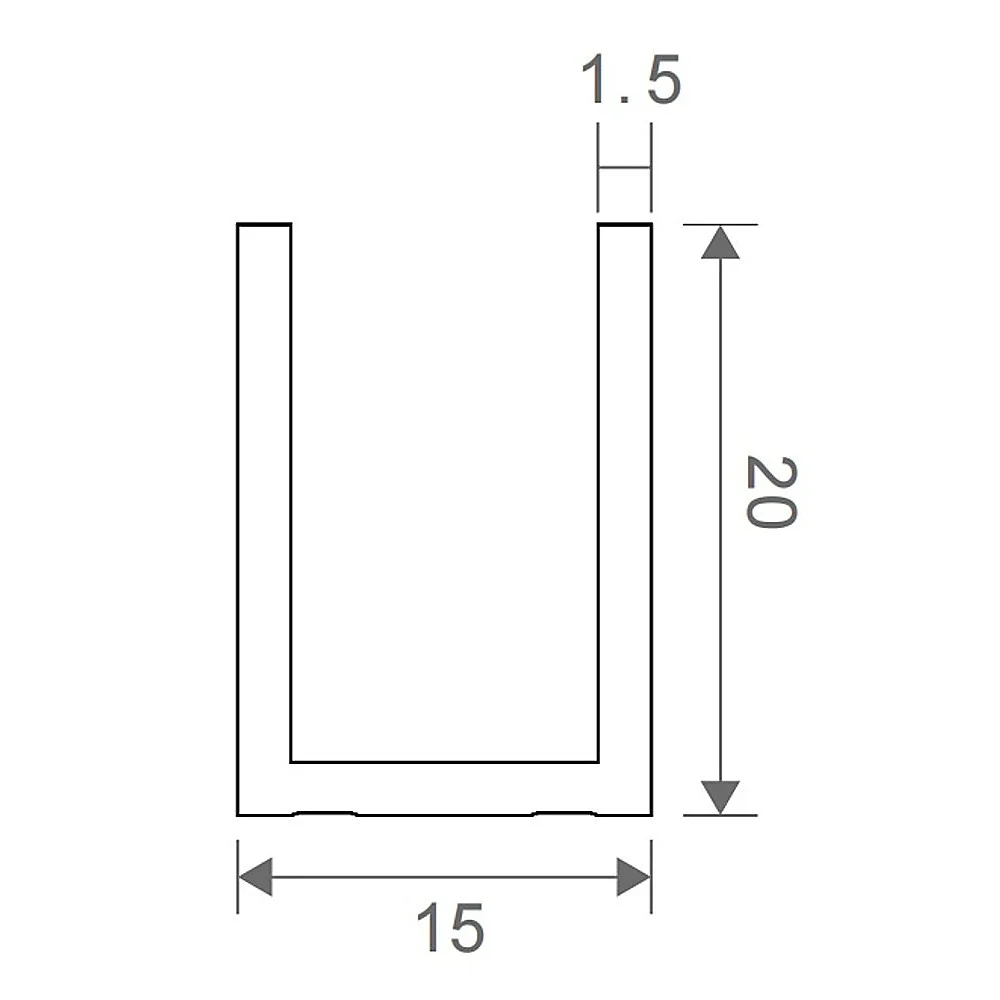

  • Wall channel: 2100mm length (cut to size on installation where applicable), 21.5mm height, 15mm width, 1.5mm thickness, suits 10mm glass

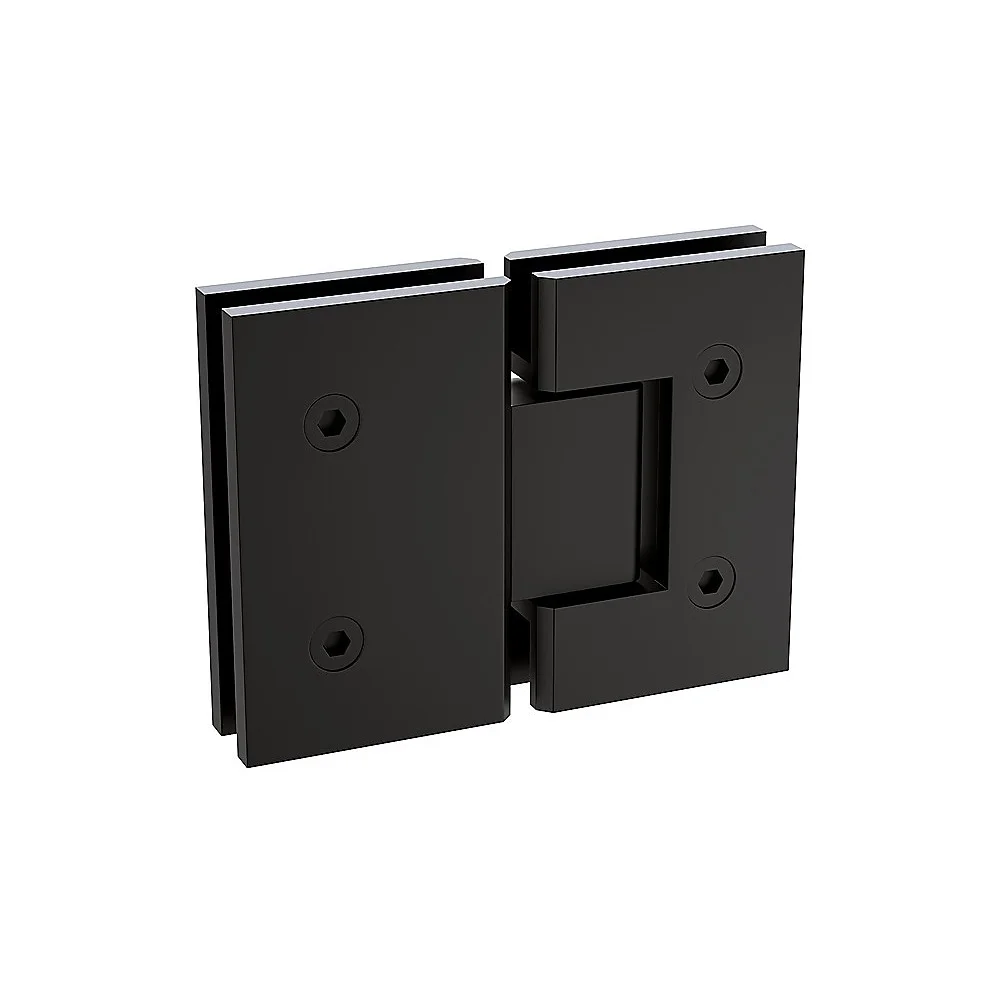

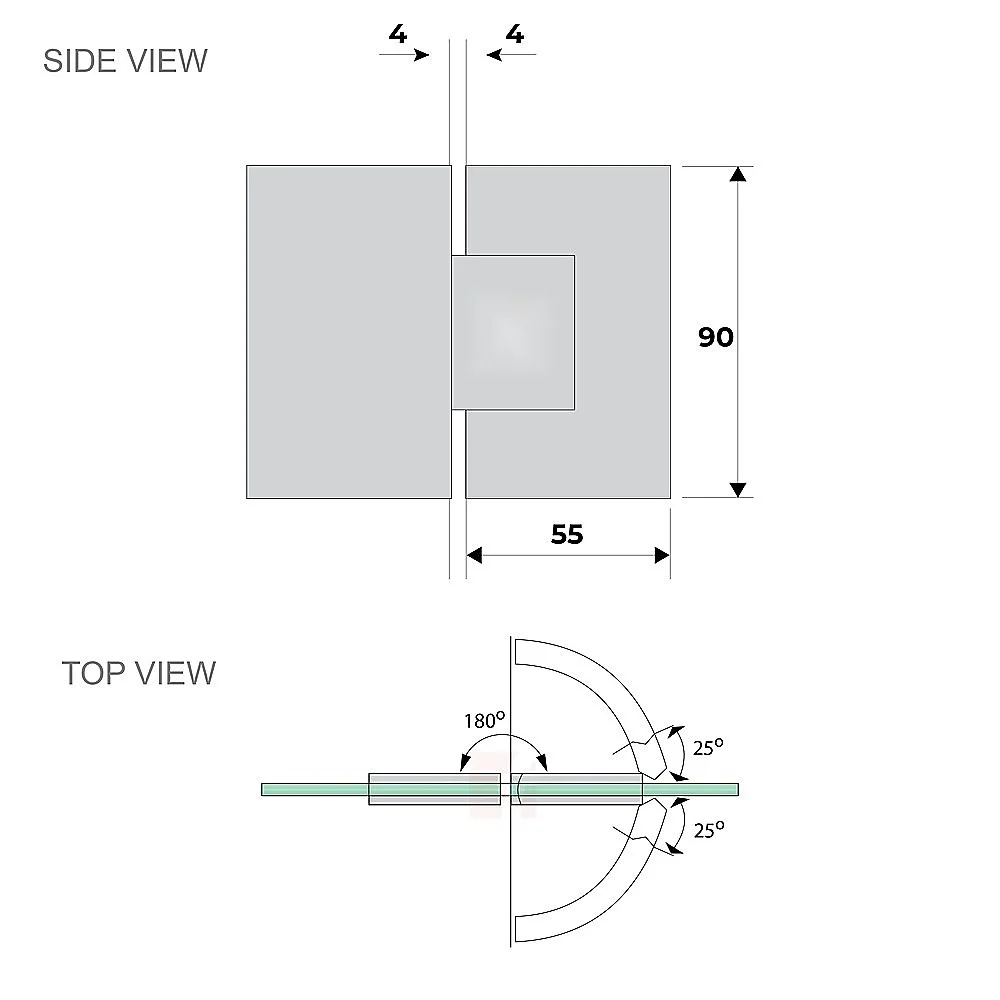

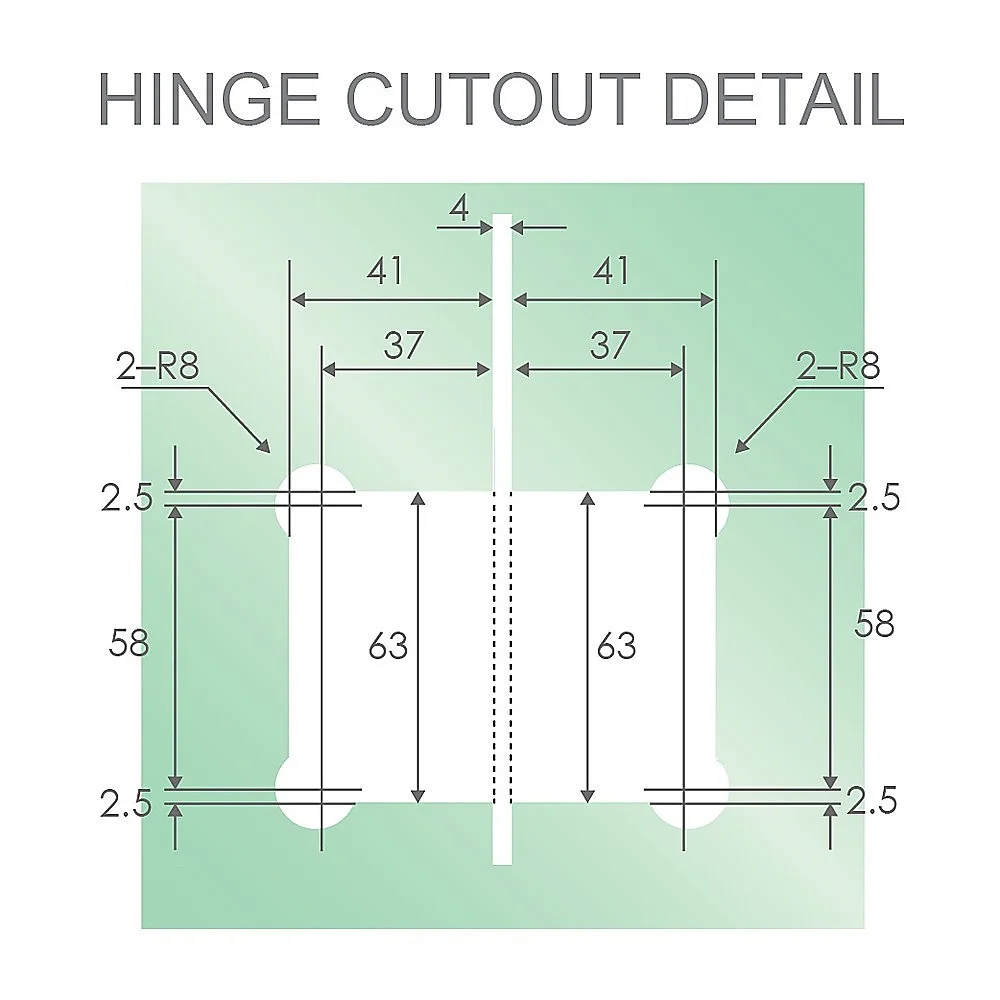

  • Hinge: suits 10mm glass, maximum weight 45kg, clamping plates pre-glued with EPDM 119mm gaskets

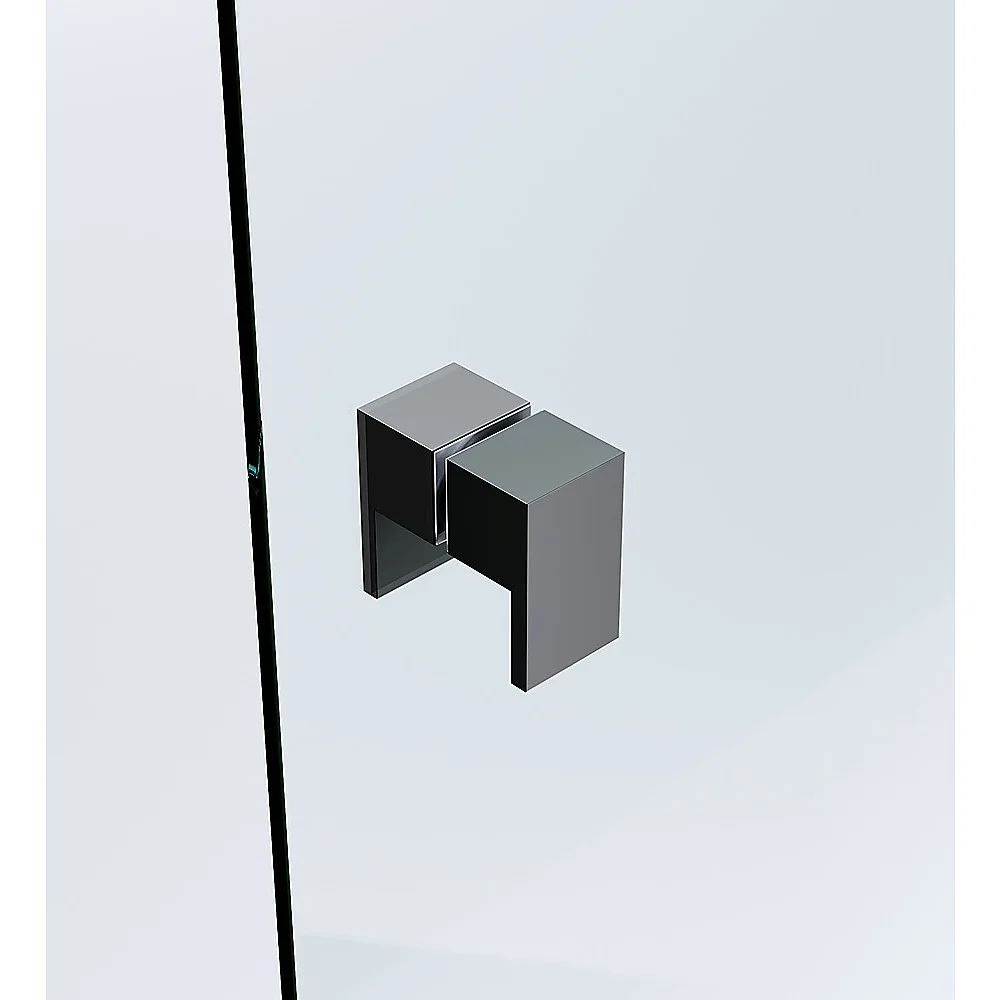

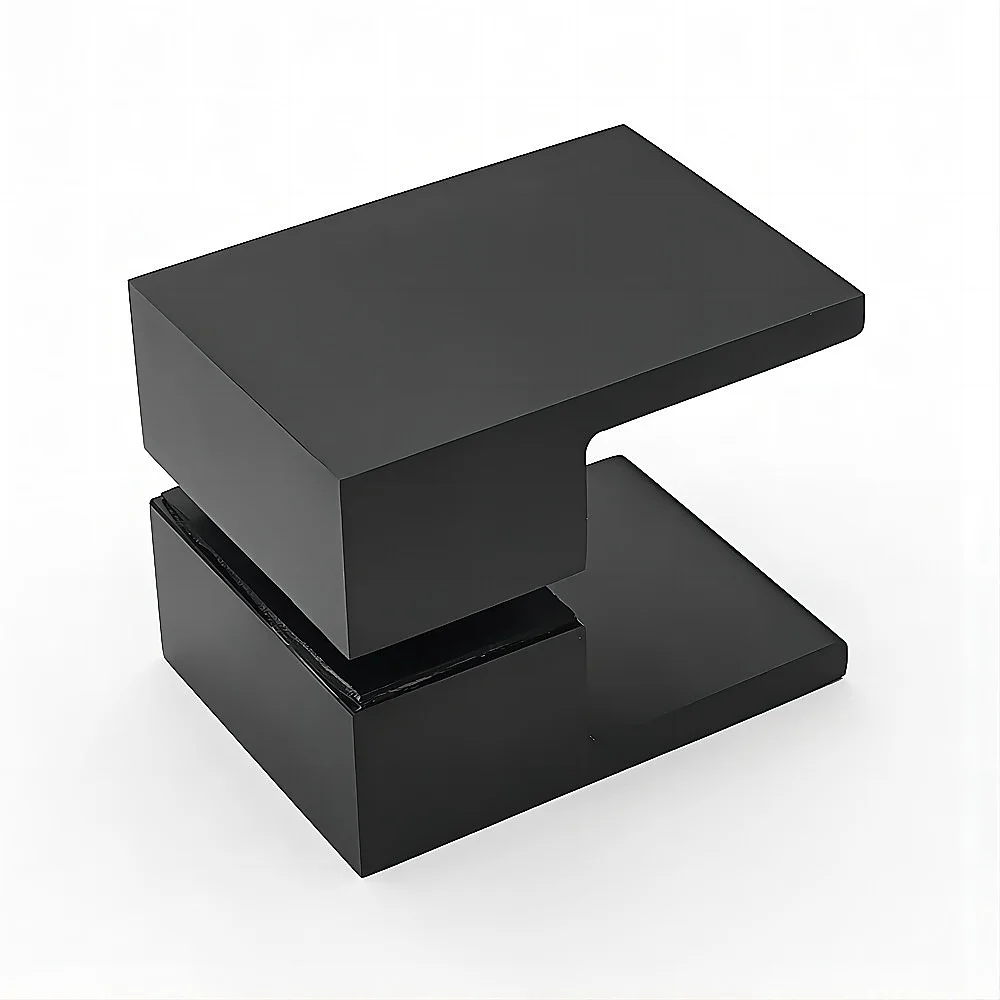

  • Handle: 49mm x 25mm double pull knob, suits 6mm, 8mm, 10mm and 12mm glass

What's in the Box

  • 1 x 650 x 1990mm frameless shower screen door panel for 10mm door handle
  • 1 x 440 x 2000mm frameless hinge glass panel
  • 1 x 700 x 2000mm frameless safety glass shower screen panel
  • 2 x matte black wall channels
  • 1 pair (2pcs) 180-degree brass wall-to-wall shower door hinges in matte black
  • 1 x 25mm brass double pull handle in matte black

Note: Images may show optional accessories for illustrative purposes only. Only the accessories and colour specified above are included. Colour intensity may vary from actual due to different lighting conditions.

Specifications

BrandDella Francesca
Weight101.6 kg
Dimensions213×77×38 cm
