The Della Francesca 90x70cm corner frameless shower screen brings a bright, open feel to your bathroom while keeping water neatly contained. Crafted from 10mm toughened safety glass with brushed gunmetal hardware, it combines a sleek minimalist look with dependable everyday performance.
Key Features
- Frameless corner design maximises space and light flow
- 10mm toughened safety glass to AS/NZS 2208 standard
- Brushed gunmetal anodised aluminium wall and floor channels for a secure, watertight fit
- Stainless steel 180° wall-to-wall hinge with dual-action swing and self-centring close
- Solid brass square double pull handle with a smooth, rust-resistant finish
- Minimalist structure makes cleaning easy and reduces streaks and buildup
Specifications
- Size: 90x70cm
- Colour: Gunmetal
- Bracket type: Wall channel
- Additional support: Floor channel
- Handle type: Square double pull

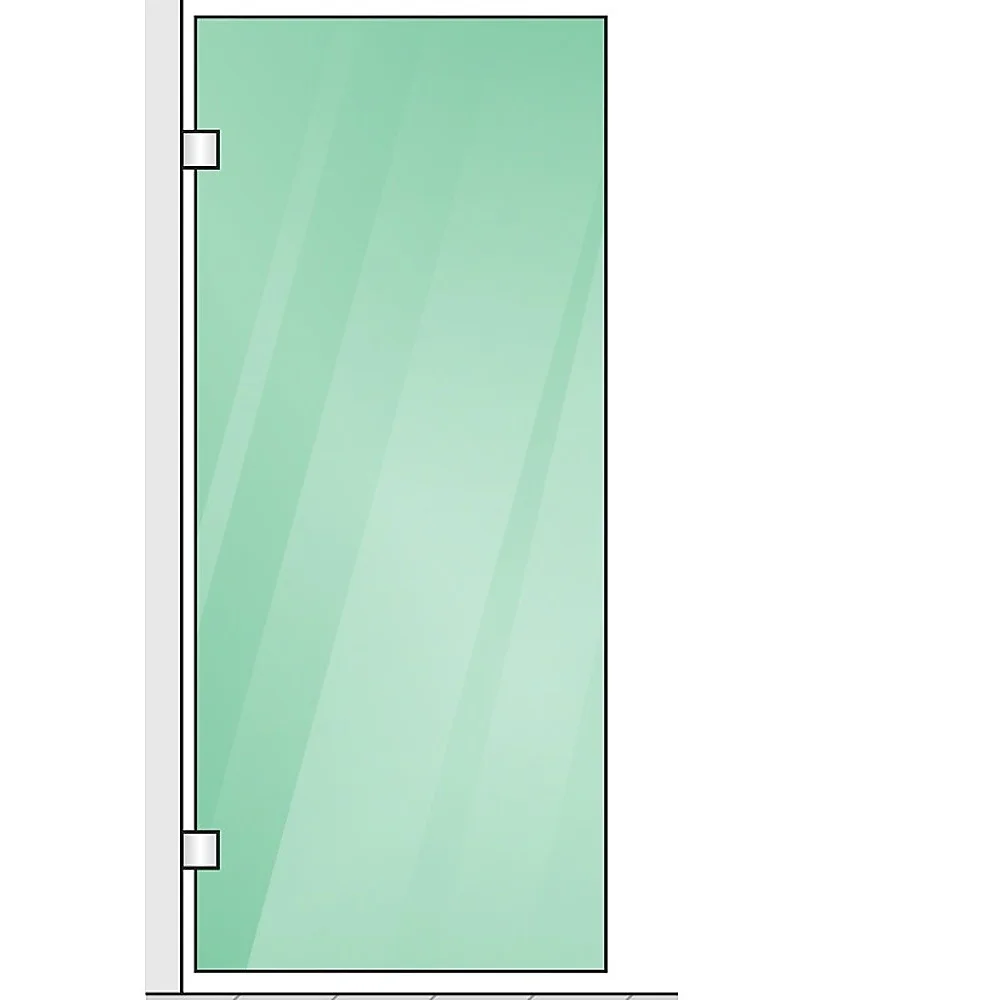

- Door panel: 610 x 1990mm, 10mm glass, 10mm door handle hole

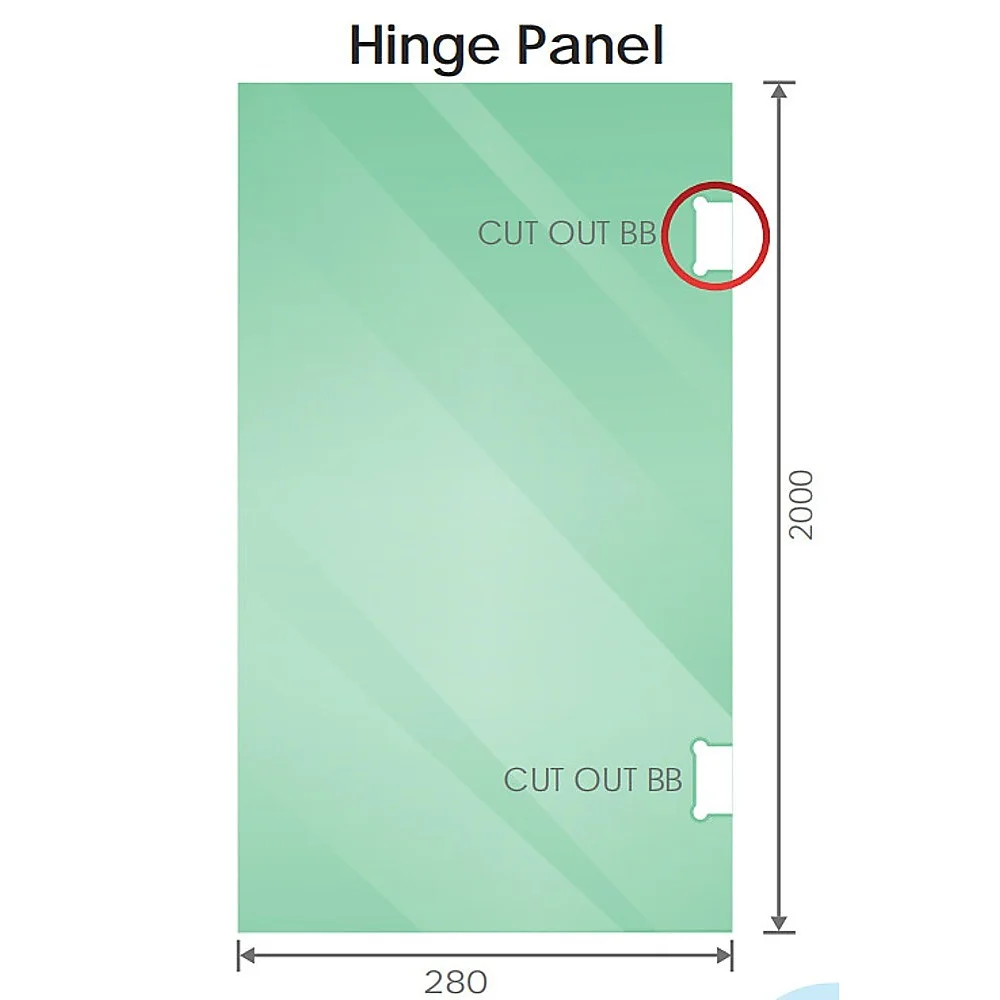

- Hinge panel: 280 x 2000mm, 10mm glass

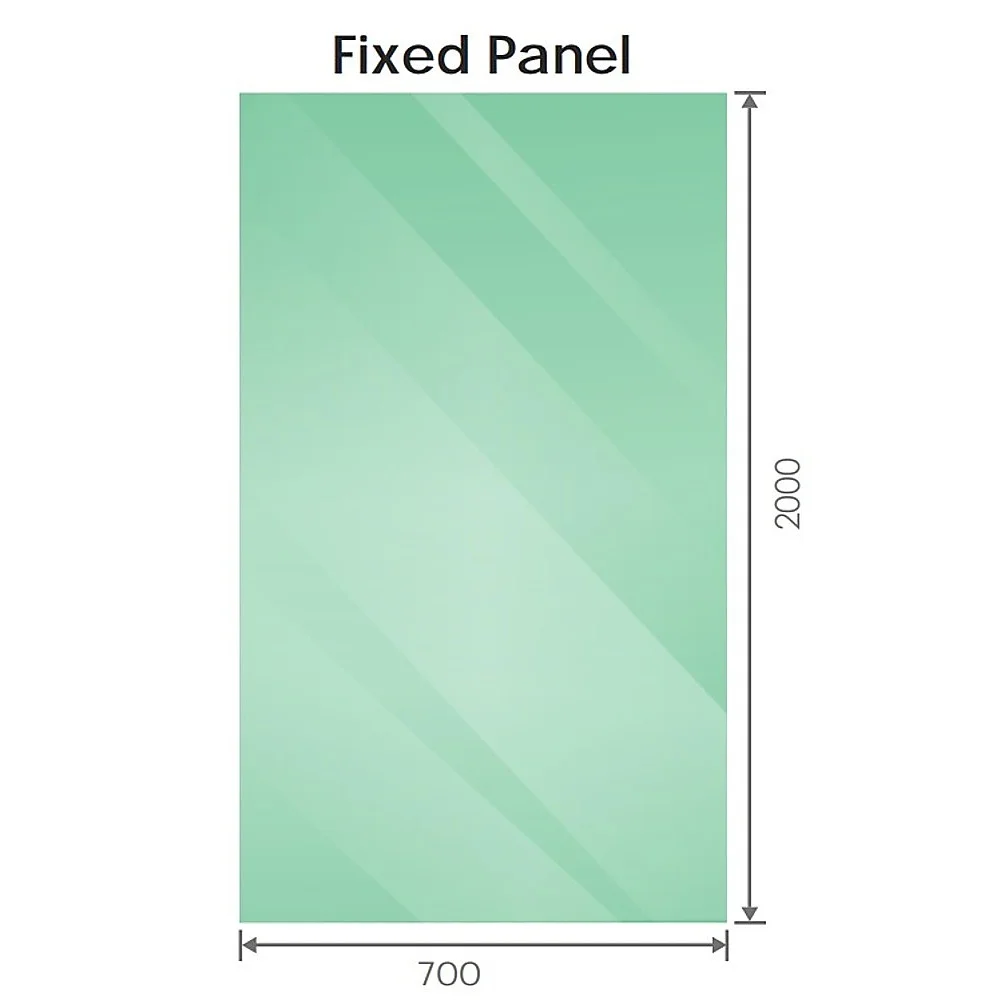

- Single panel: 700 x 2000mm (W x H), 10mm toughened safety glass

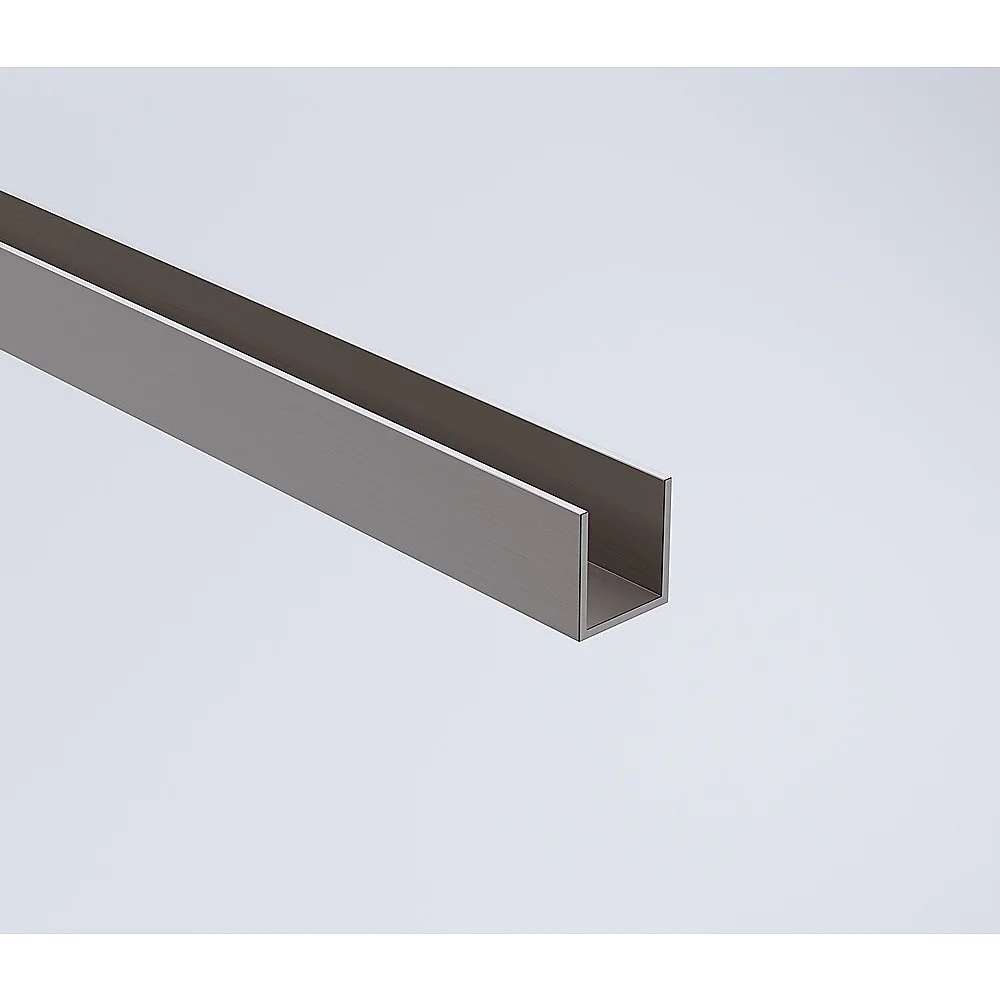

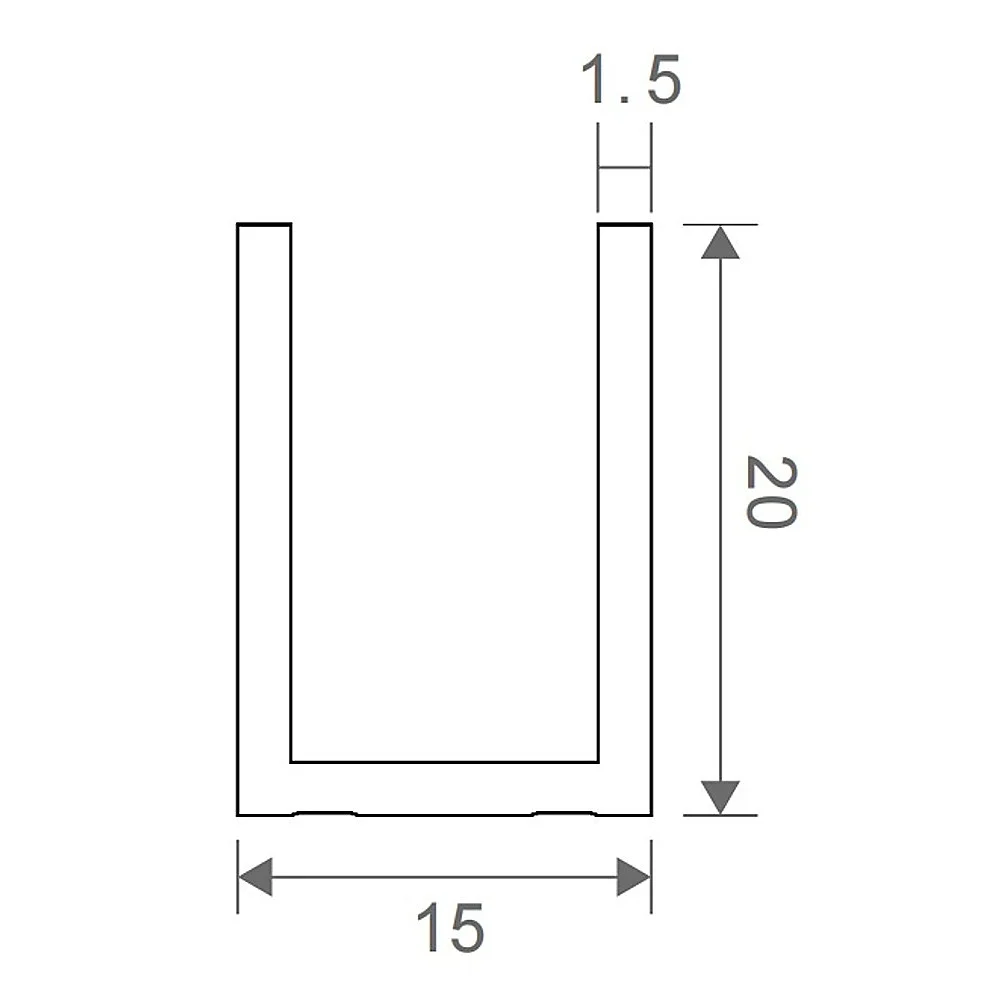

- Wall channel: 2100mm length (cut to size on installation), 21.5mm height, 15mm width, 1.5mm thickness, suits 10mm glass
- Floor channel: 1200mm length (cut to size on installation), 21.5mm height, 15mm width, 1.5mm thickness, suits 10mm glass

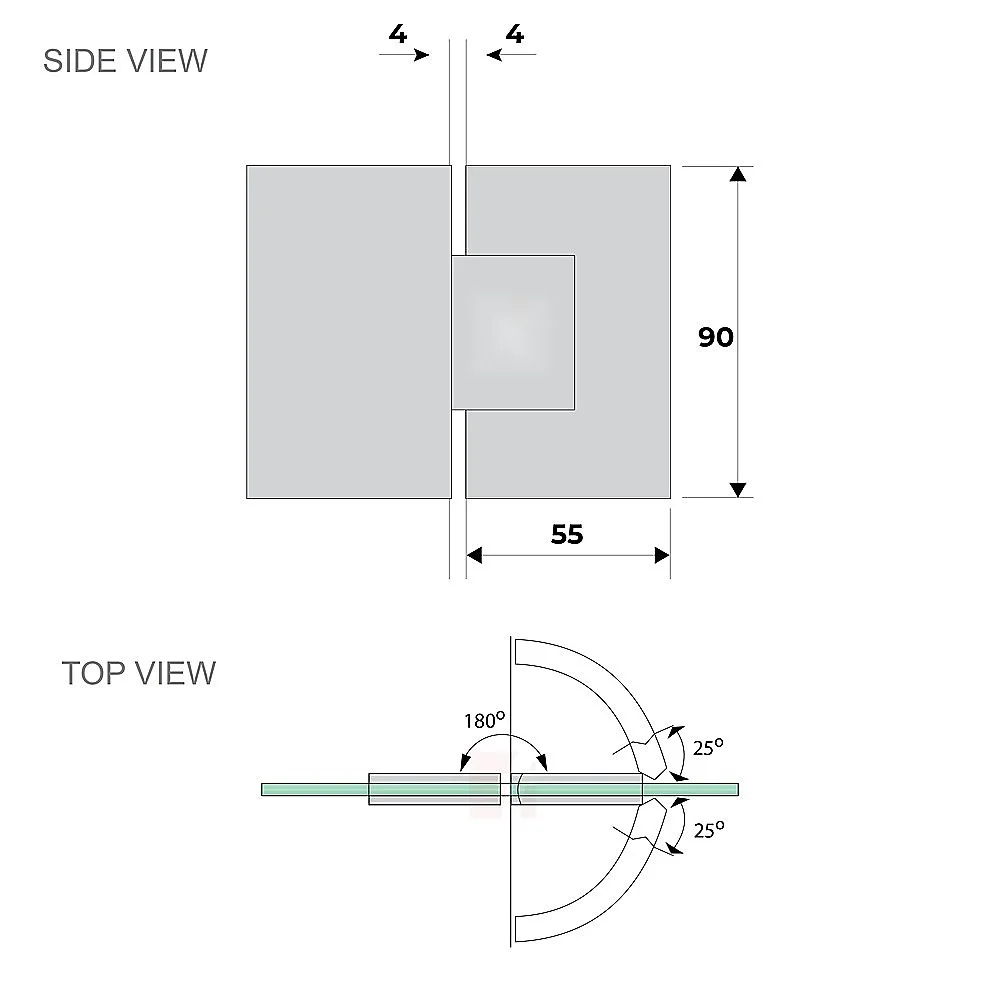

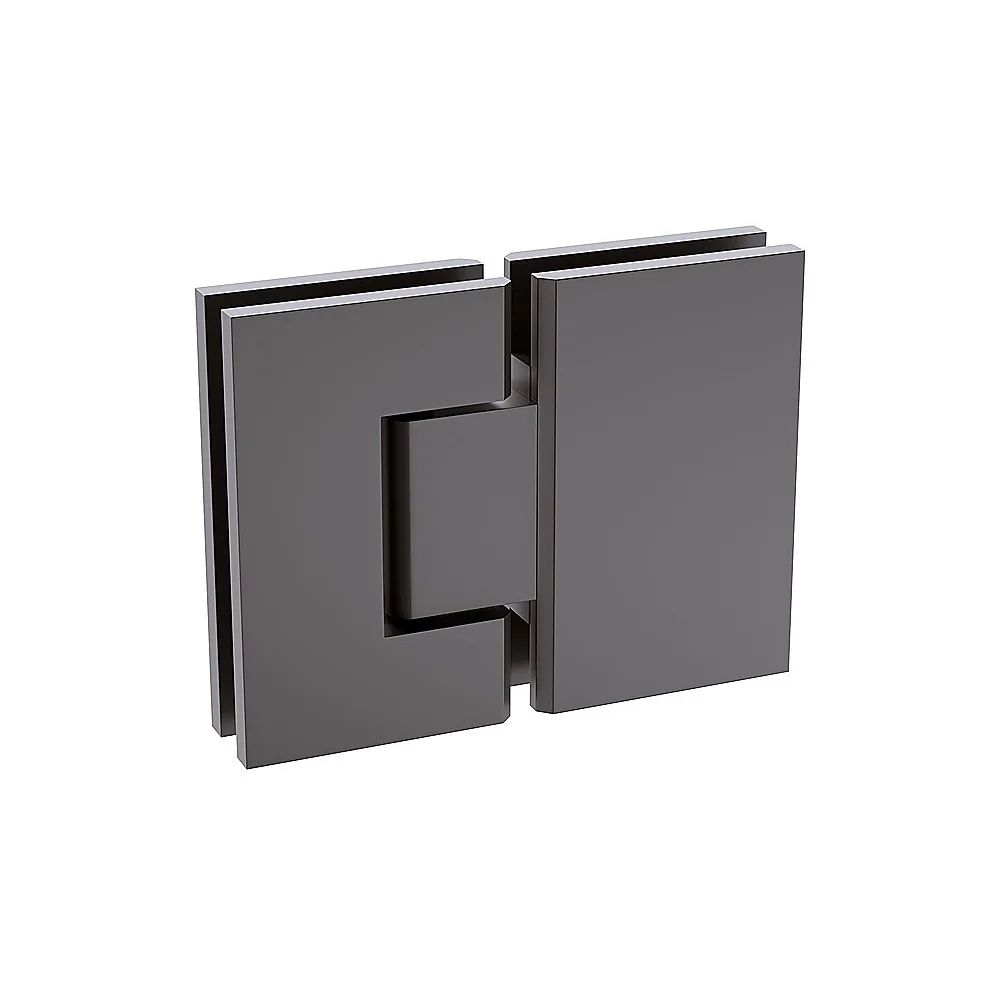

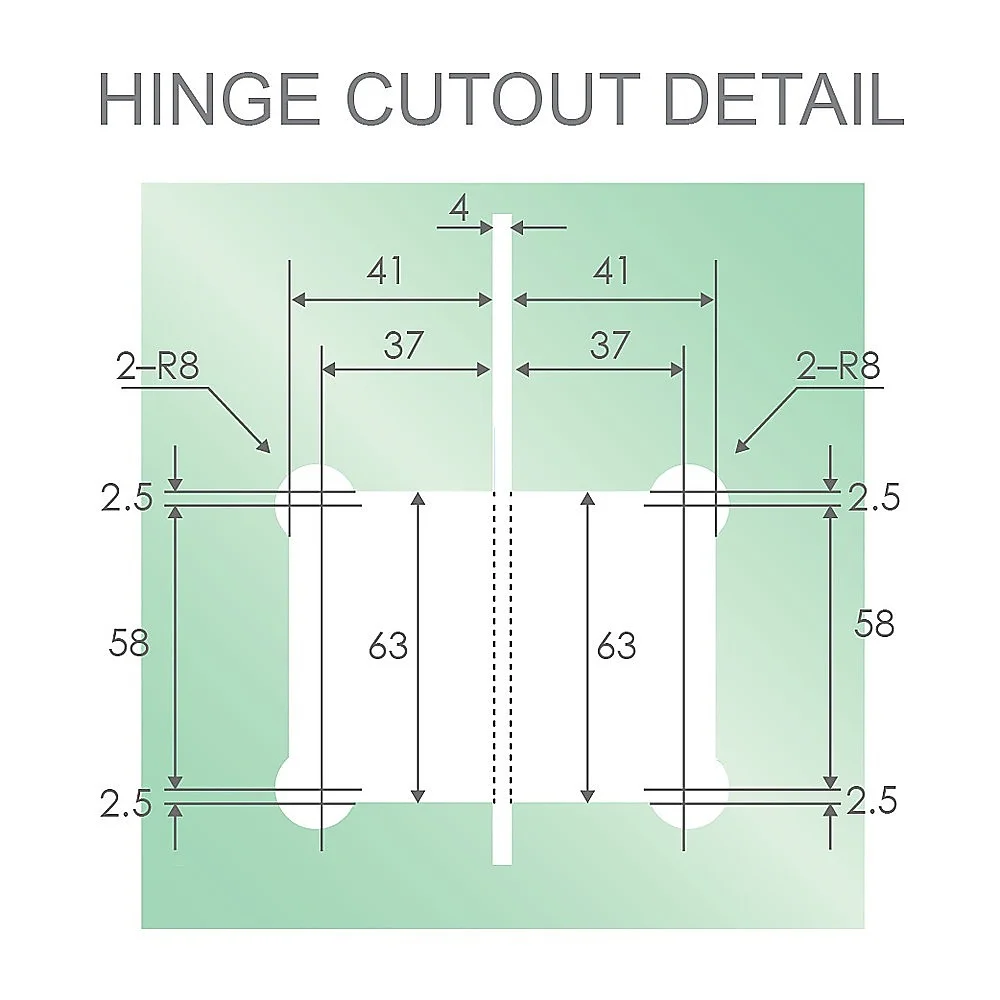

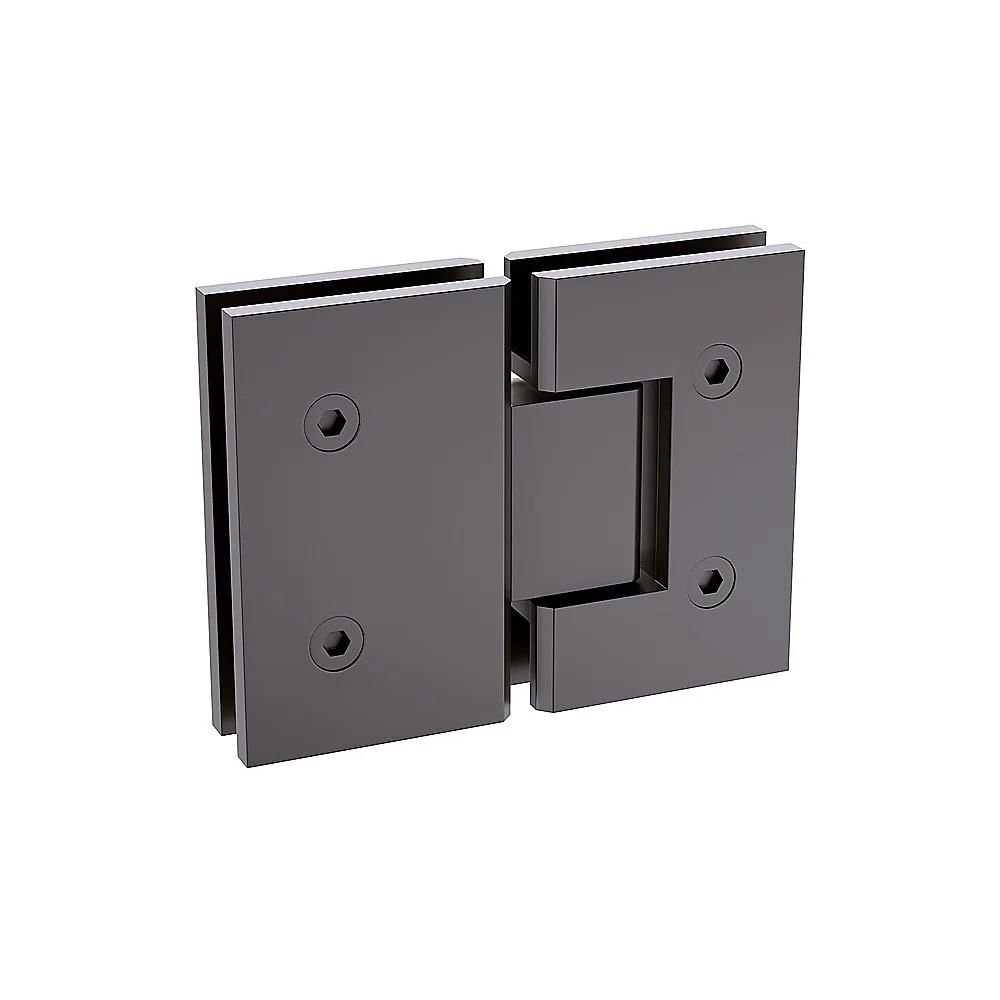

- Hinge: stainless steel with squared edges, suits 10mm glass, dual action (opens inwards and outwards), self-centres within 25° and closes automatically, EPDM 119mm gaskets pre-glued to clamping plates, maximum weight capacity 45kg, electroplated, brushed gunmetal finish
- Handle: 49mm x 25mm double pull knob, solid brass, suits 6mm, 8mm, 10mm and 12mm thick glass, brushed gunmetal finish, includes plastic gaskets
What's in the Box
- 1 x 610 x 1990mm frameless shower screen door panel (10mm glass, 10mm handle hole)
- 1 x 280 x 2000mm frameless hinge glass panel (10mm glass)
- 1 x 700 x 2000mm frameless safety glass shower screen panel (10mm glass)
- 2 x brushed gunmetal wall channels (2100mm)
- 2 x brushed gunmetal floor channels (1200mm)
- 1 x 180° wall-to-wall shower door hinge in brushed gunmetal (1 pair, 2pcs)
- 1 x 25mm brass shower door double pull handle in brushed gunmetal
Note: Images may show optional accessories for illustrative purposes only. Only the accessories and colours specified above are included. Colour intensity may vary from actual product due to different lighting conditions.
