Product Description

Create a sleek corner shower enclosure with this Della Francesca frameless shower screen set, supplied with matte black wall channels, stainless steel hinges and a square double pull handle. Toughened safety glass and a minimalist frameless design keep the space bright and easy to clean.

Key Features

  • Toughened safety glass to AS/NZS 2208 standard
  • Frameless design for an open, light-filled look
  • Discreet matte black wall channels for a secure fit
  • Stainless steel hinges with dual-action swing
  • Solid brass square double pull handle

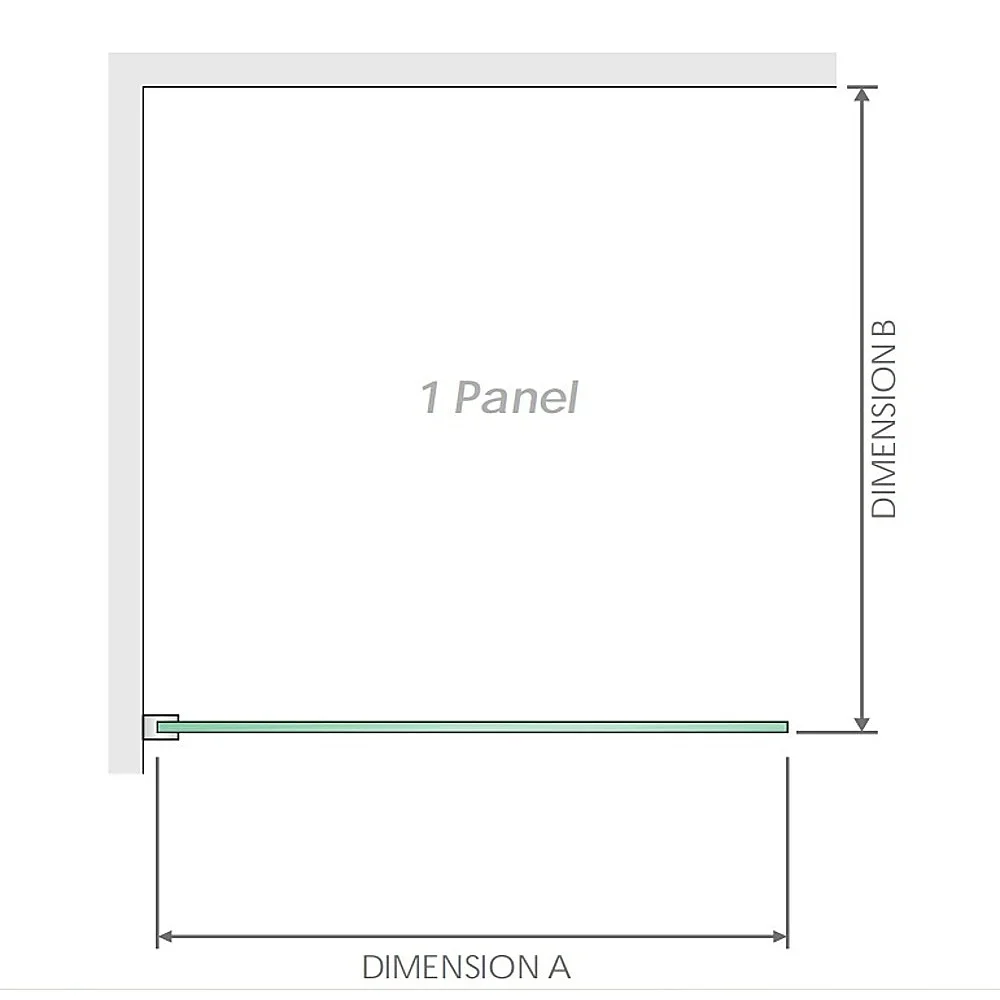

  • Space-saving corner layout

Specifications

  • Size: 100x90cm
  • Colour: Black
  • Bracket type: Wall channel
  • Handle type: Square double pull
  • Glass thickness: 10mm

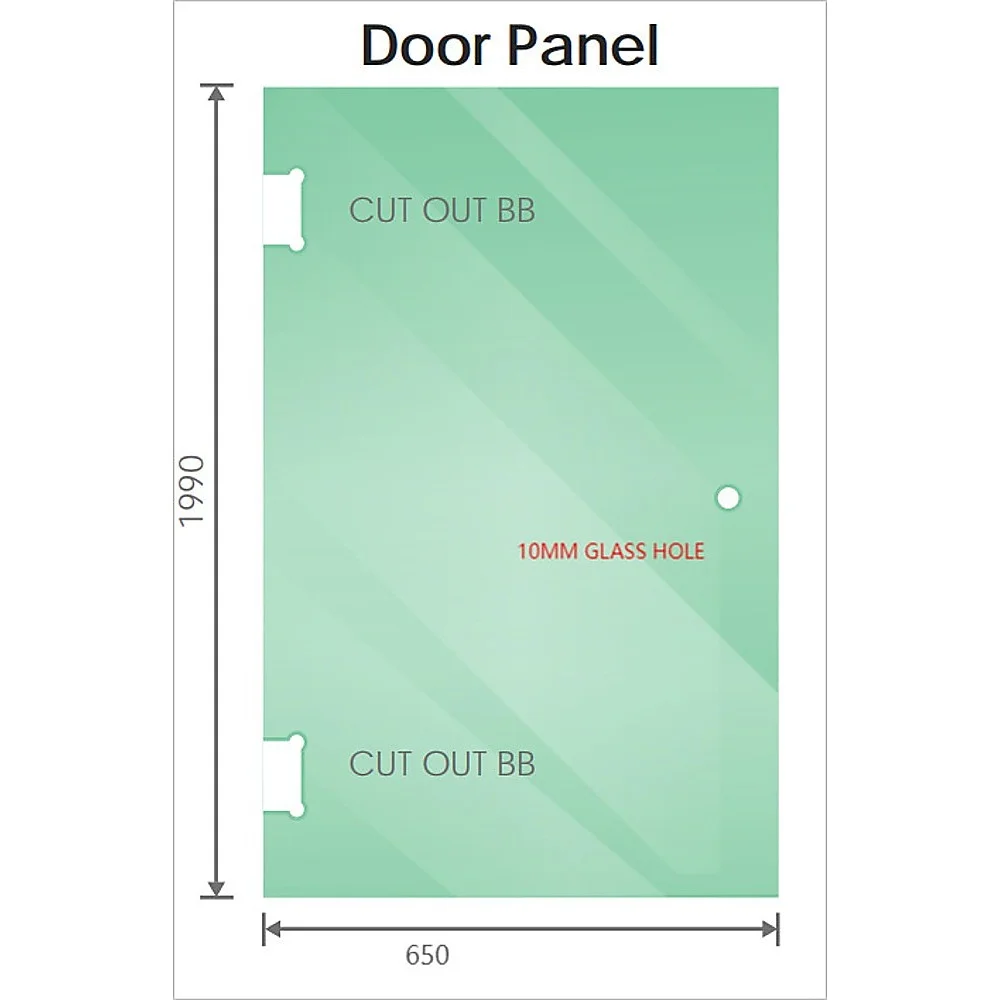

Door panel:

  • 1x door panel: 650 x 1990mm
  • 10mm AS-NZS2208 standard glass
  • Door handle hole: 10mm

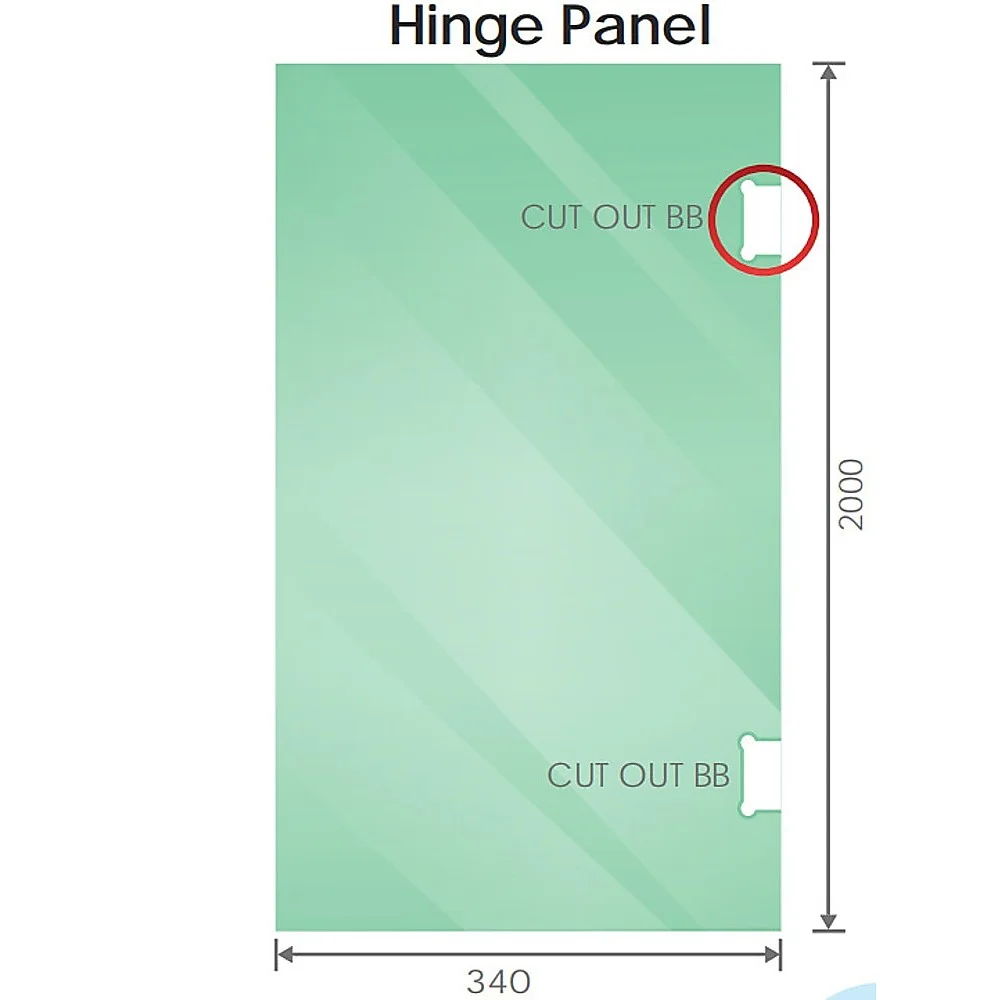

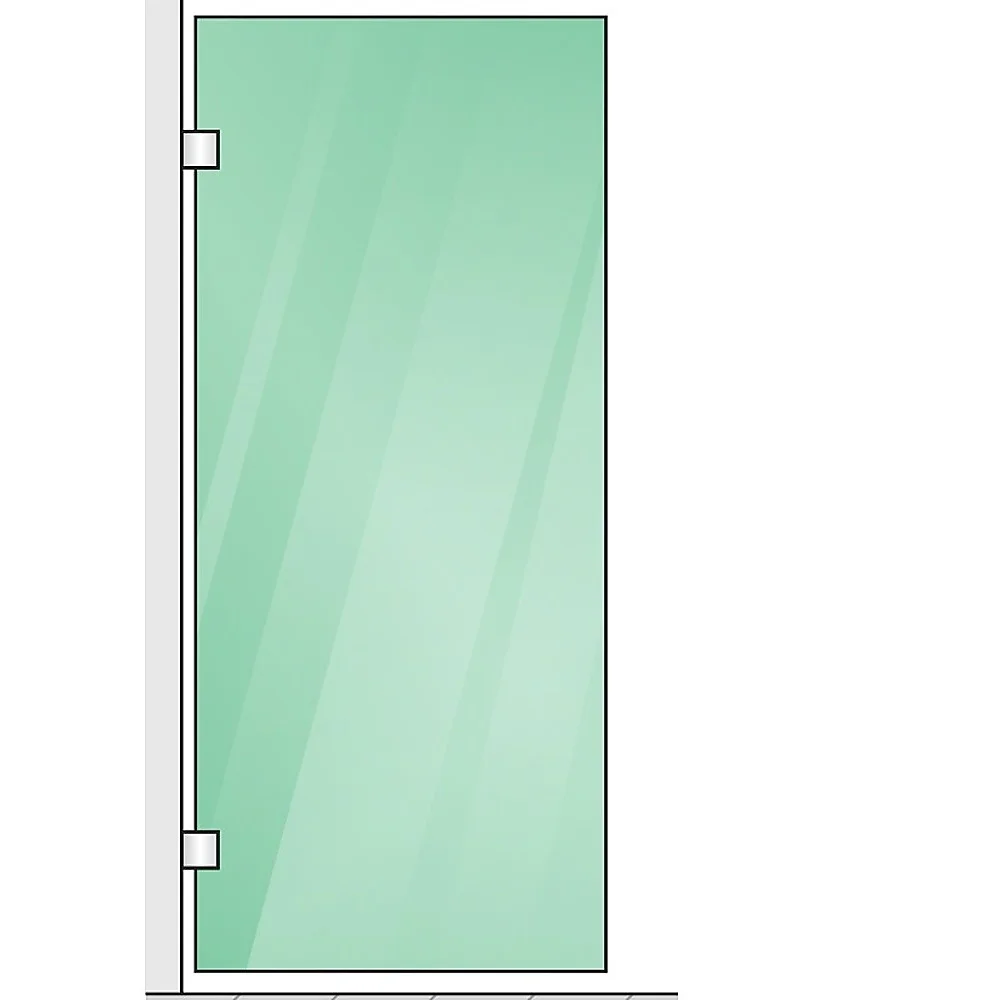

Hinge panel:

  • 1x hinge panel: 340 x 2000mm
  • 10mm AS-NZS2208 standard glass

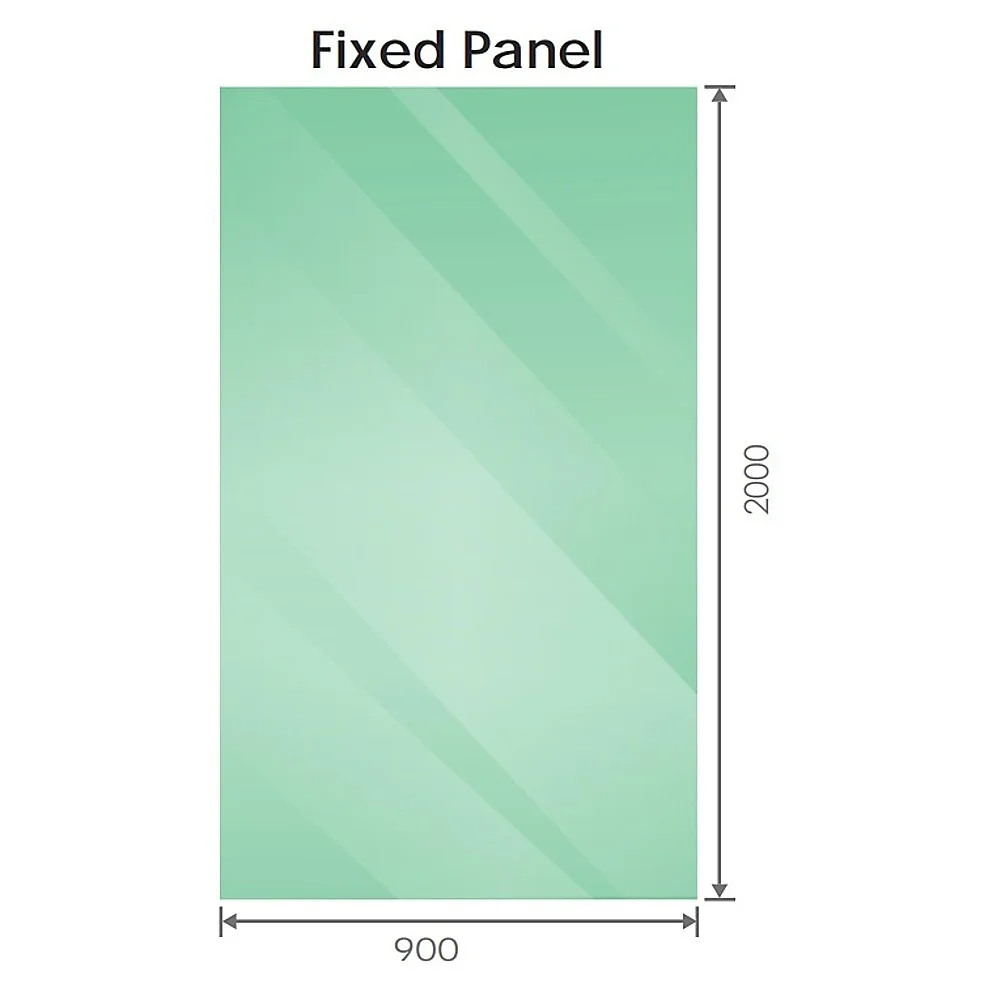

Single panel:

  • 1x panel: 900 x 2000mm (W x H)
  • 10mm-thick toughened safety glass
  • Complies with AS/NZ 2208:1996 Safety Glazing Materials in Buildings

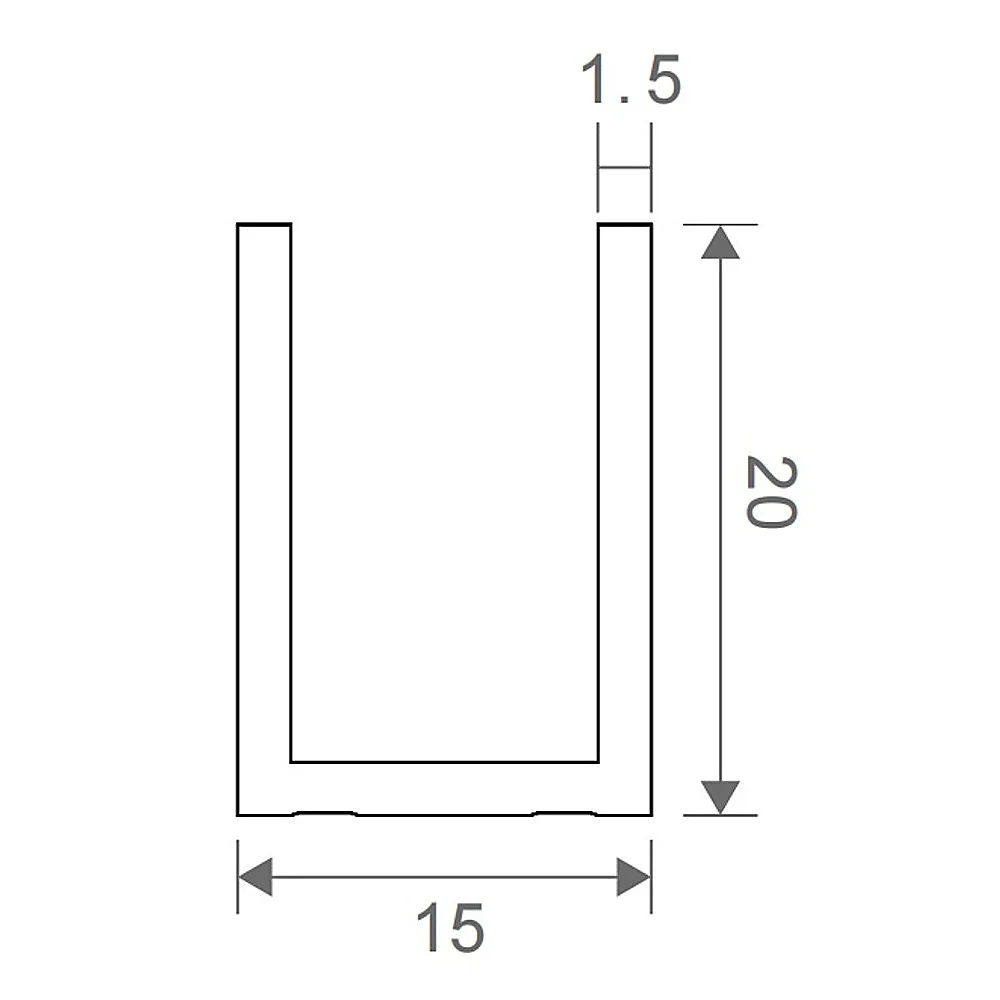

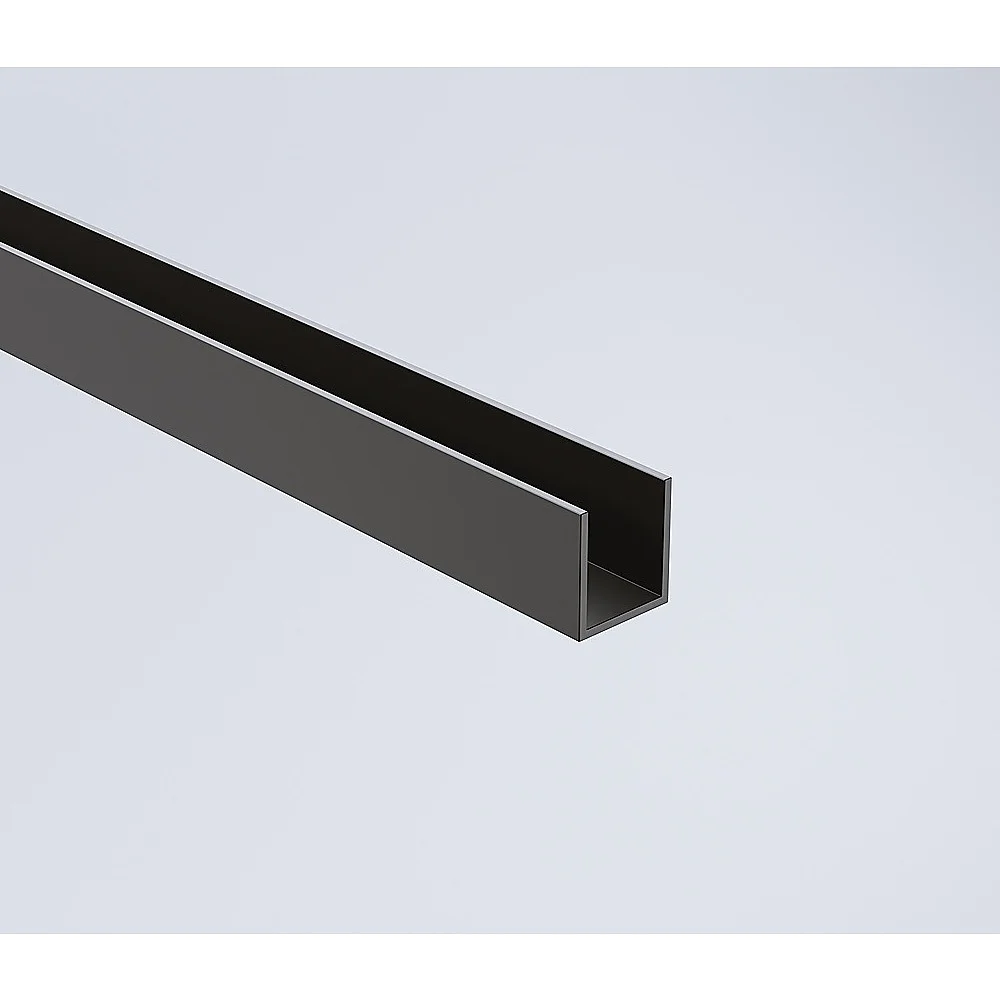

Wall channels:

  • 2x matte black powder-coated aluminium channels
  • Channel length: 2100mm, to be cut to size upon installation where applicable
  • Height: 21.5mm
  • Width: 15mm
  • Thickness: 1.5mm
  • Suitable for 10mm glass

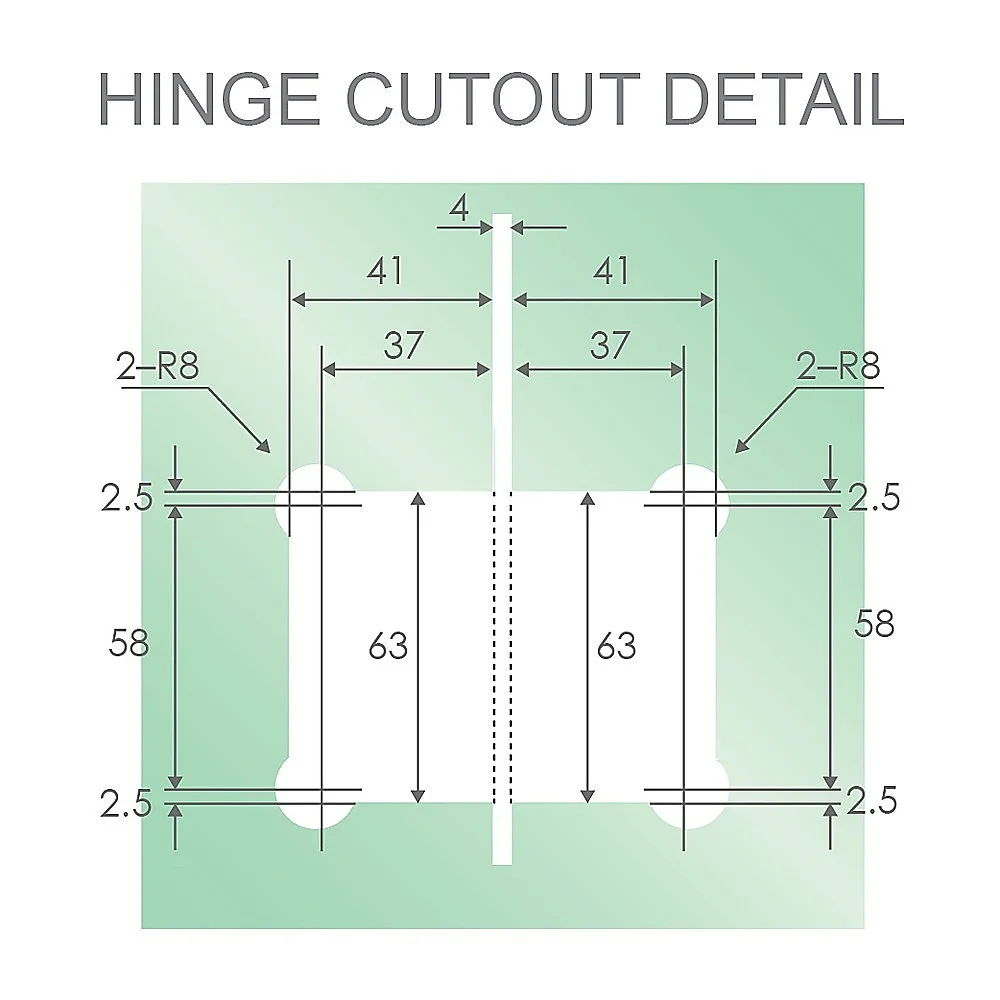

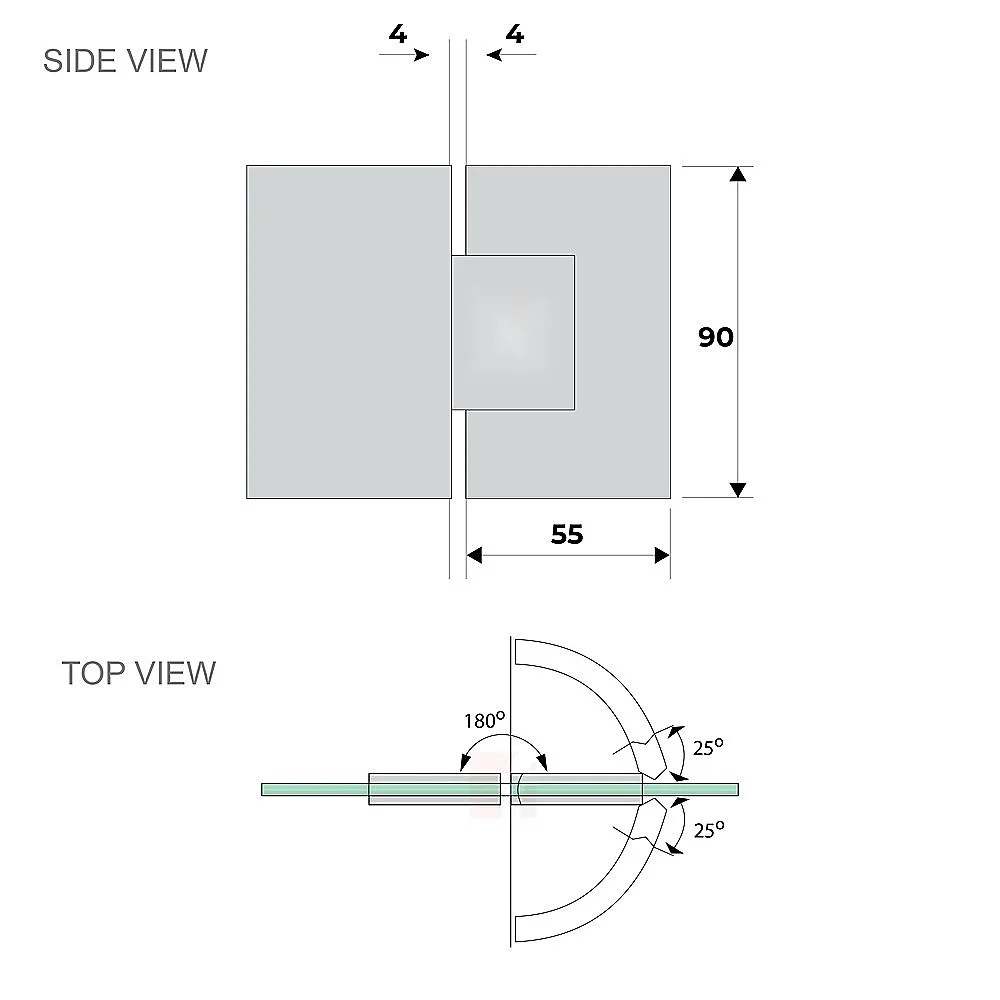

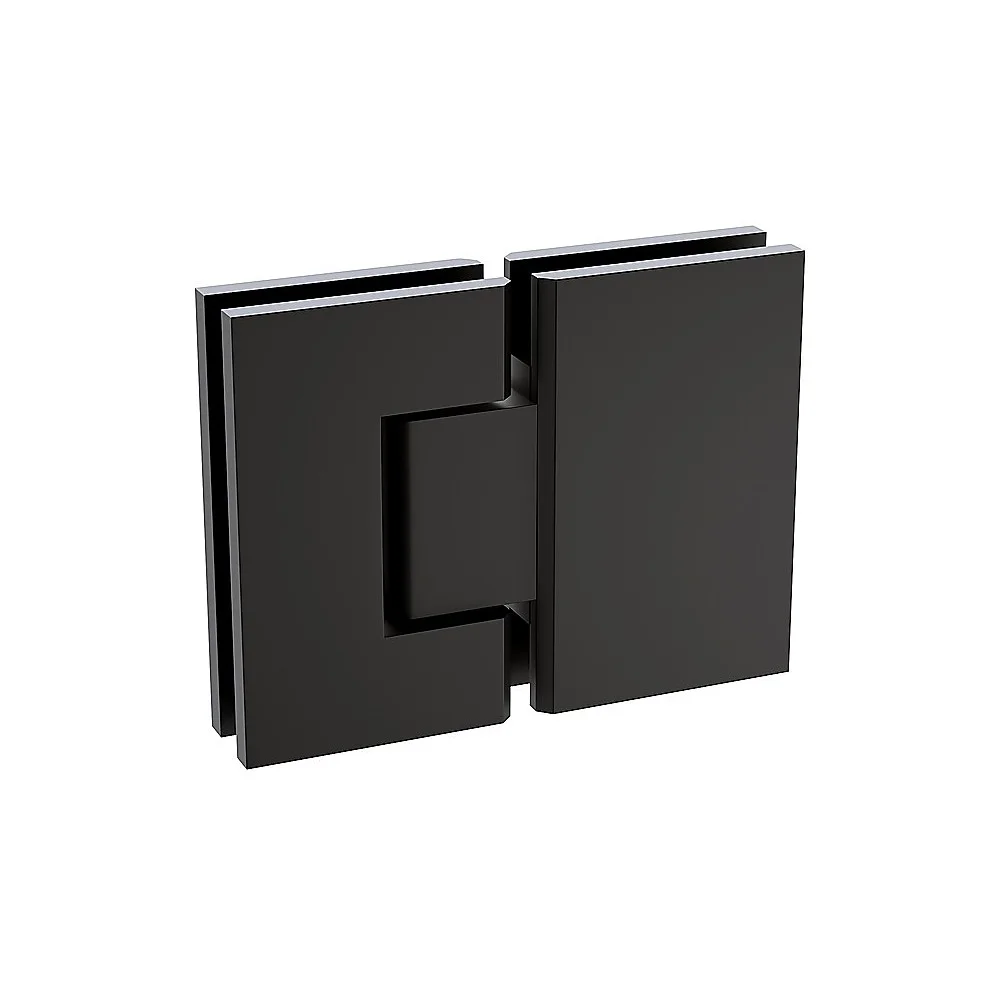

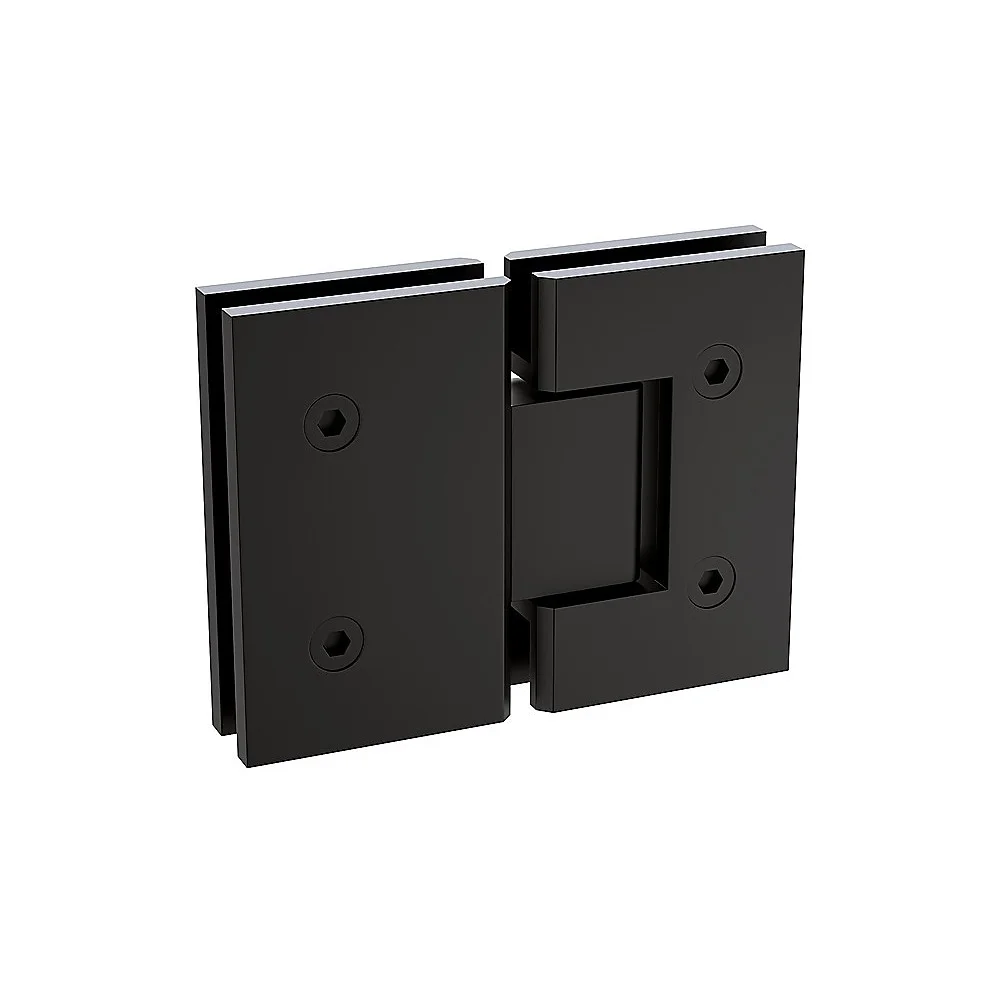

Hinge:

  • 1 pair (2pcs) matte black stainless steel hinges with squared edges
  • For 10mm toughened safety glass
  • Dual action: opens inwards and outwards
  • Swings a full 90 degrees in both directions
  • Self-centres within 25 degrees and automatically closes

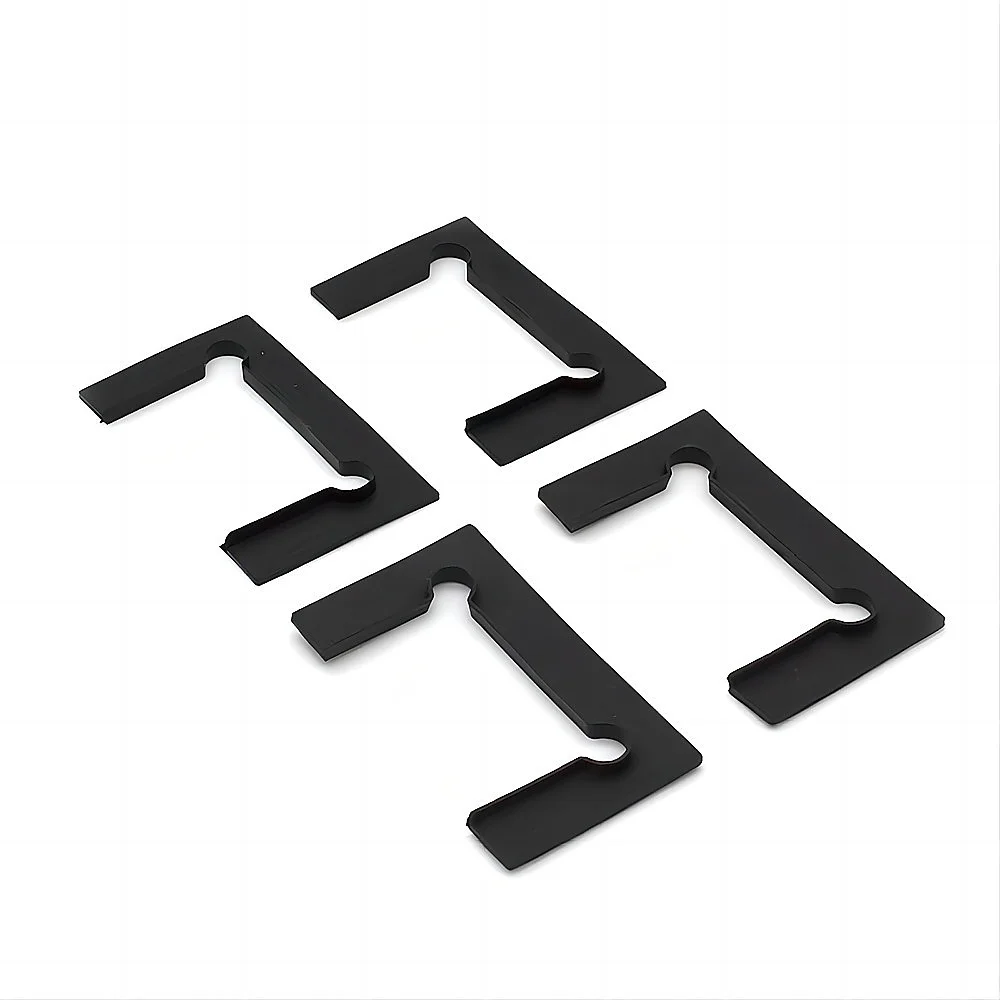

  • Clamping plates pre-glued with EPDM 119mm gaskets for easy fitting
  • Maximum weight capacity: 45kg

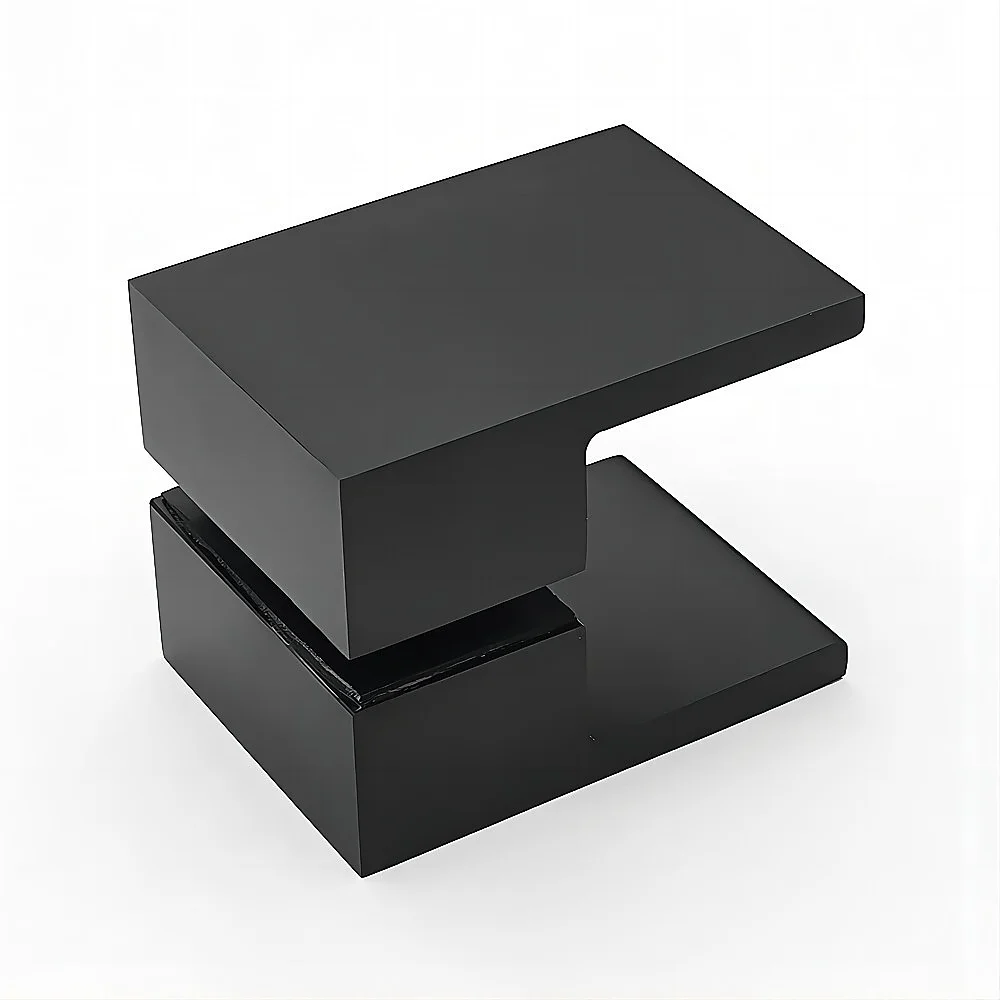

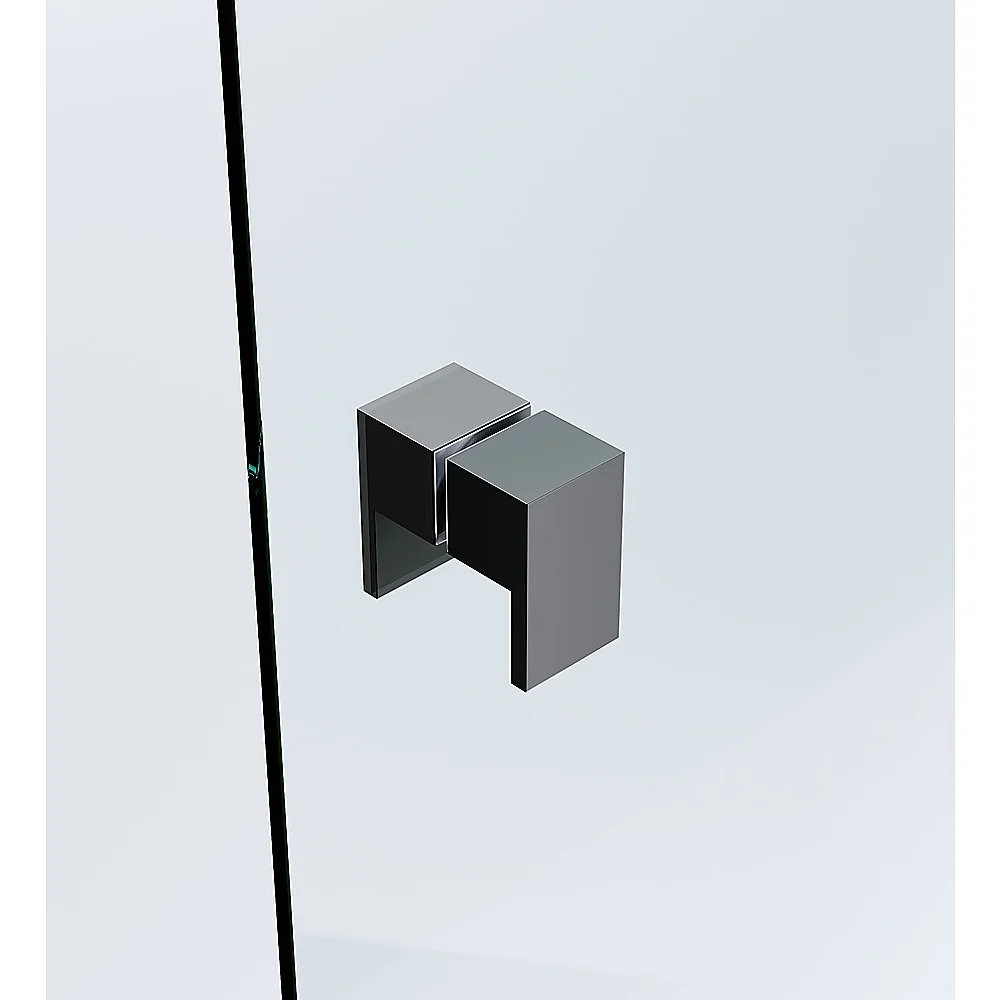

Handle:

  • 1x 49mm x 25mm double pull knob in matte black brass
  • Suits 6mm, 8mm, 10mm and 12mm thick glass
  • Includes plastic gaskets for added glass protection
  • Rust and corrosion resistant

Note: Images may show optional accessories for illustrative purposes only. Only the indicated accessories in the specified colour are included. Colour intensity may vary from actual due to different lighting conditions.

What's in the Box

  • 1x door panel, 650 x 1990mm
  • 1x hinge panel, 340 x 2000mm
  • 1x single panel, 900 x 2000mm
  • 2x matte black wall channels
  • 1 pair (2pcs) matte black stainless steel hinges
  • 1x matte black brass square double pull handle

Specifications

BrandDella Francesca
Weight106.9 kg
Dimensions213×97×38 cm
