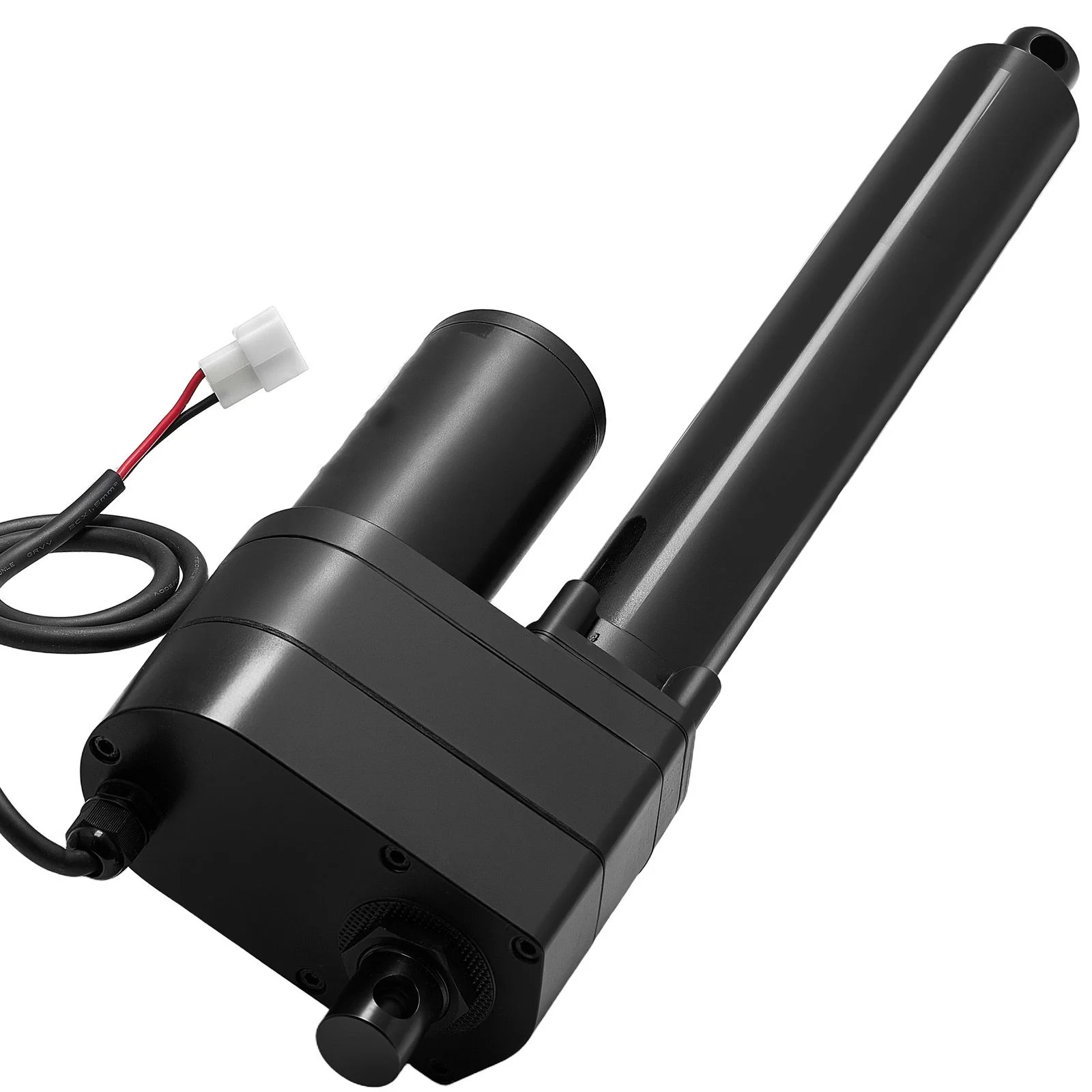

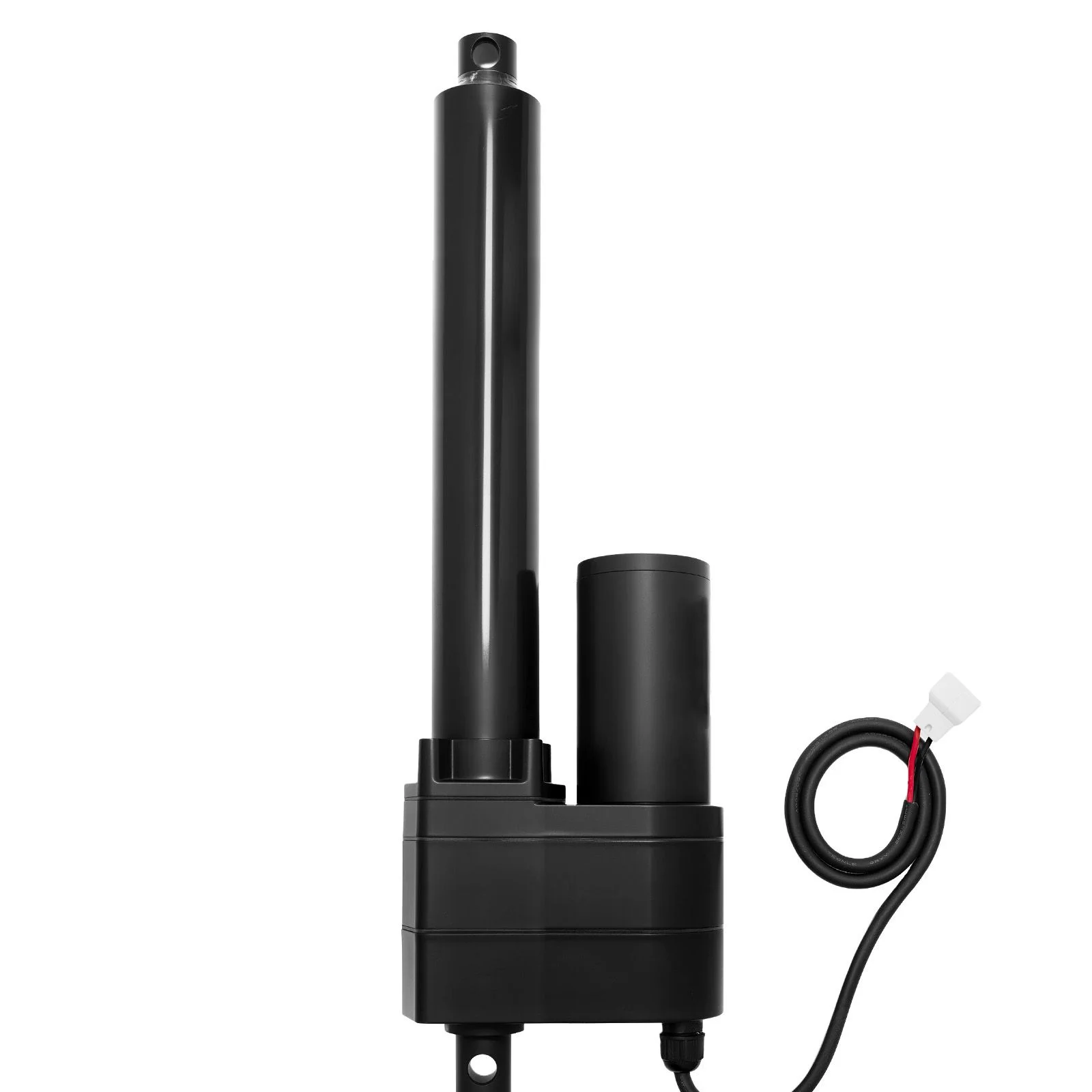

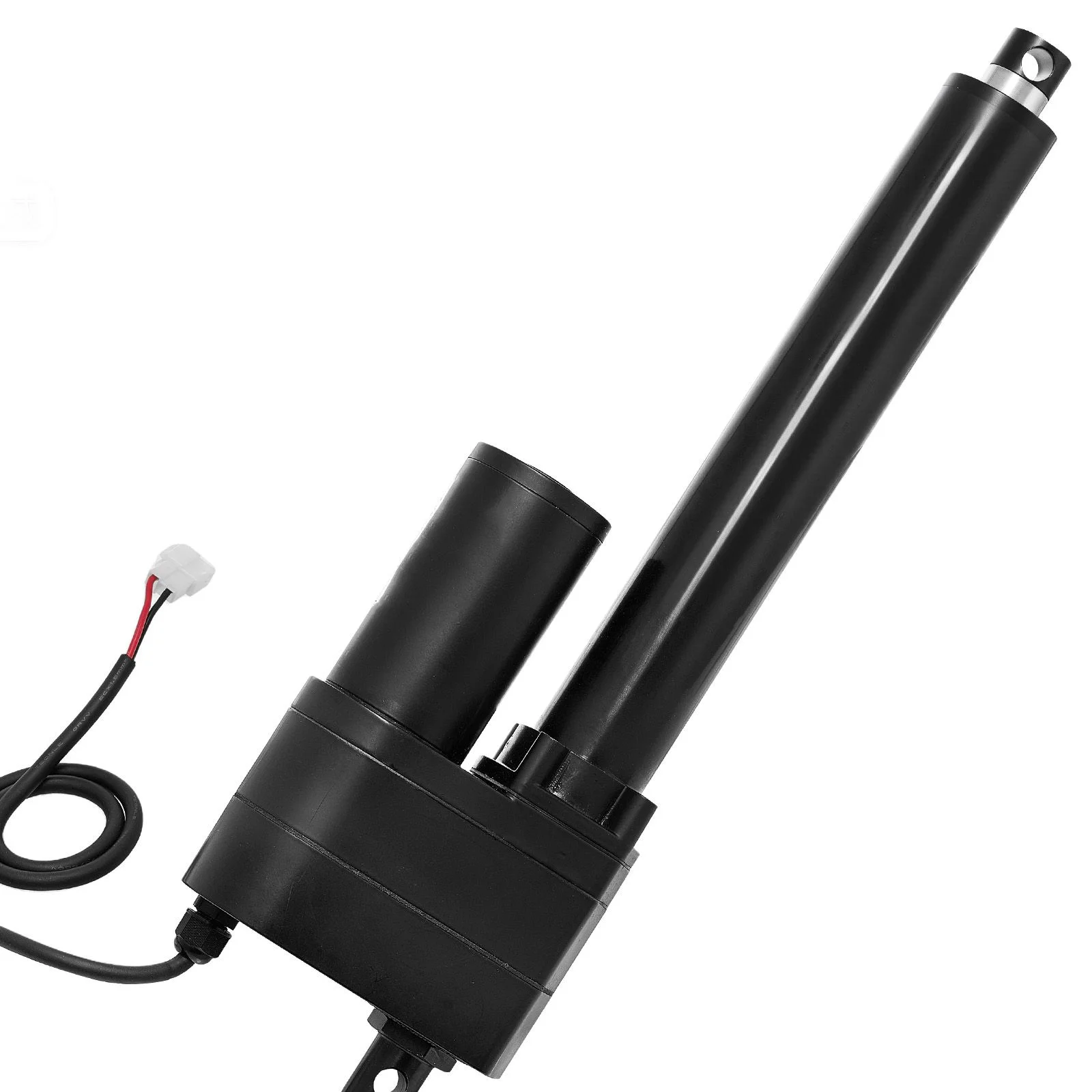

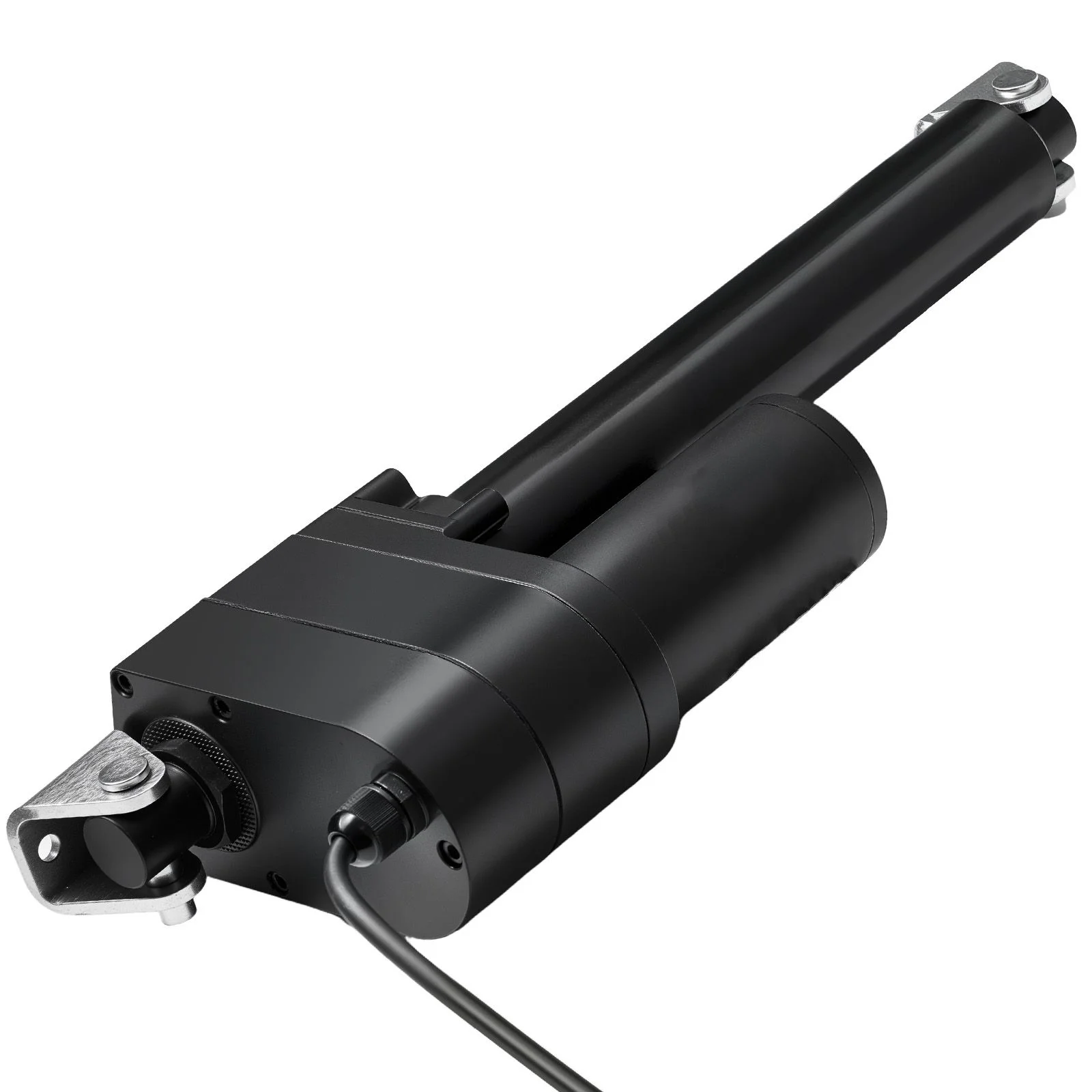

VEVOR 12V Linear Actuator 200mm Stroke 9000N Heavy-Duty IP65 with Mounting Brackets

The VEVOR 12V linear actuator delivers ultra heavy-duty linear motion with 9000N of thrust and a 200mm stroke, making it a reliable choice for industrial machinery, heavy lifting systems and vessels. Its IP65-rated housing and reinforced seals handle demanding, high-load tasks in factories, warehouses and outdoor settings.

Key Features

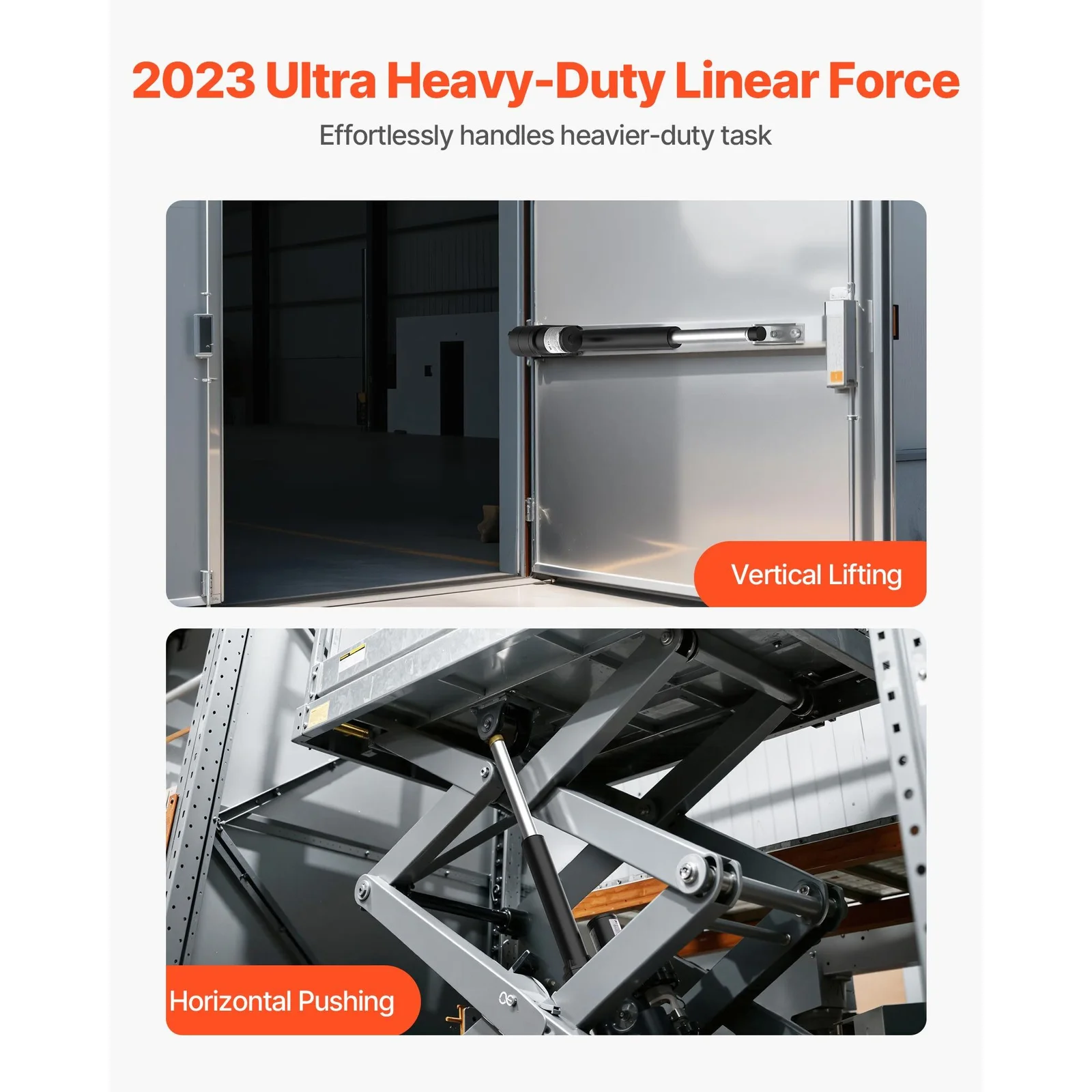

• Industrial-grade thrust of 2023 lbs (9000N) for extreme conditions and heavy loads

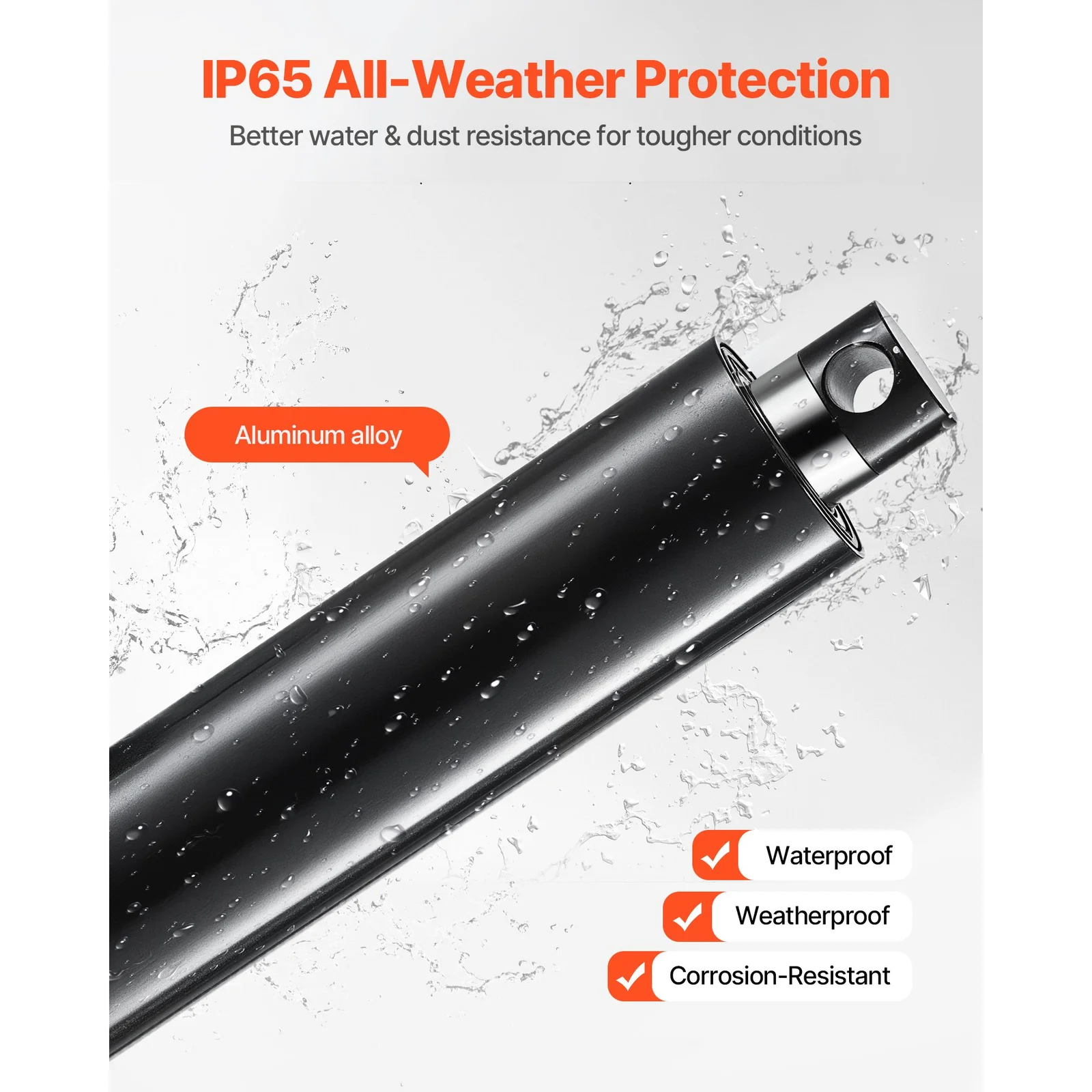

• IP65 protection level for dust and water resistance, suitable for indoor and outdoor use (prolonged outdoor exposure is not recommended for longer lifespan)

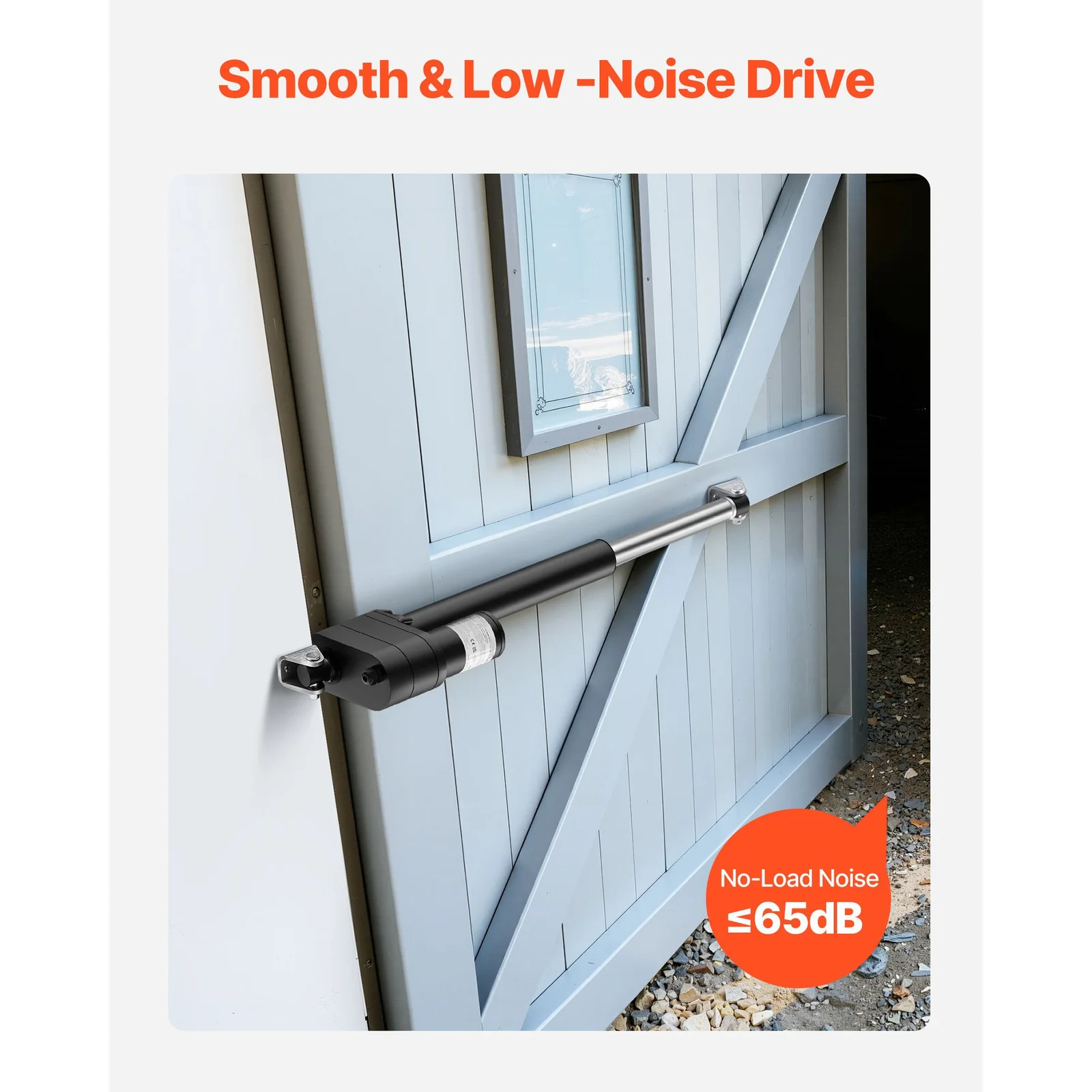

• Quiet operation below 65 dB at no load

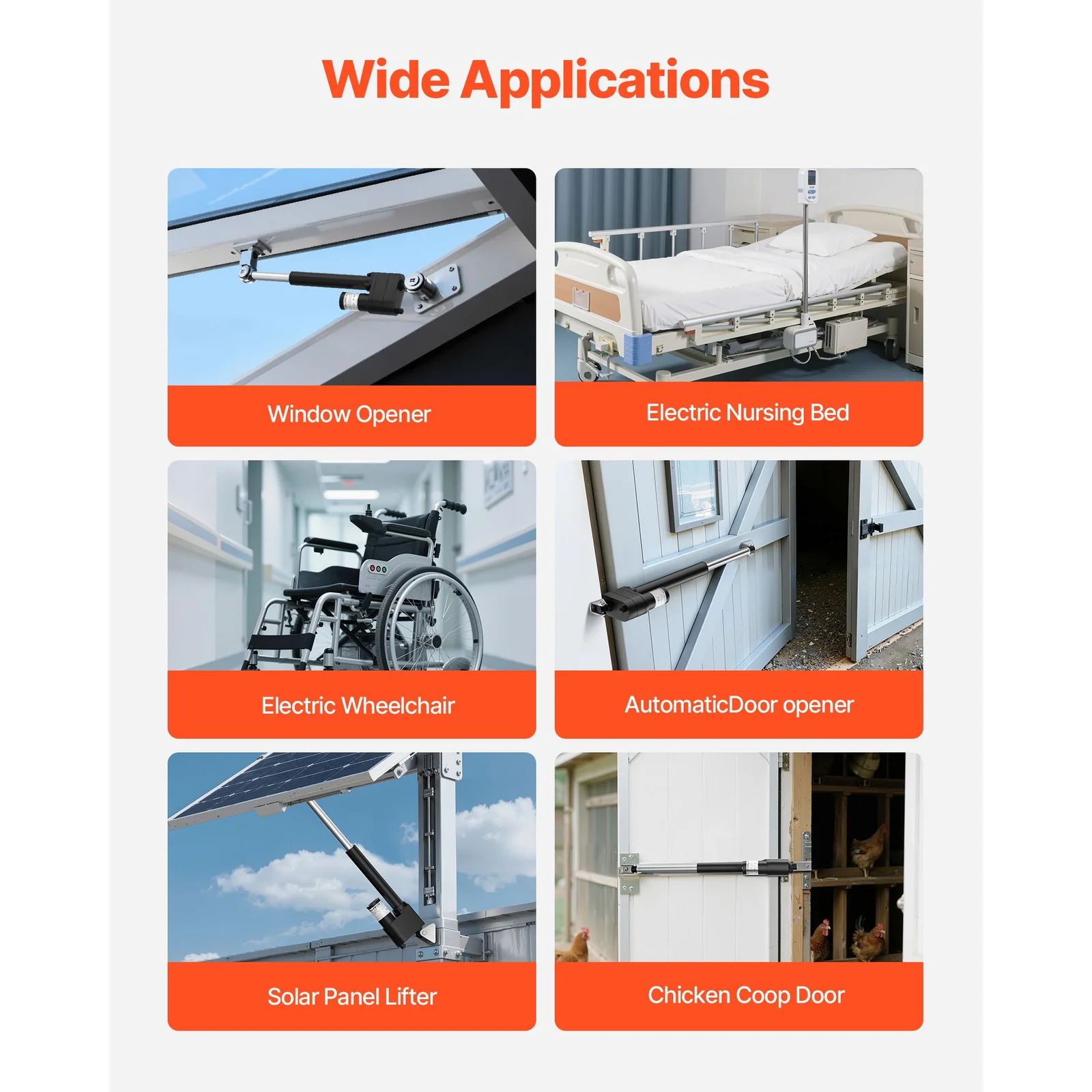

• Versatile use for barn doors, heavy robotic arm pushing, heavy machinery, vessels, transportation systems, heavy lifting platforms and industrial automation systems
• Robust aluminium alloy housing and reinforced seals for durability and corrosion resistance

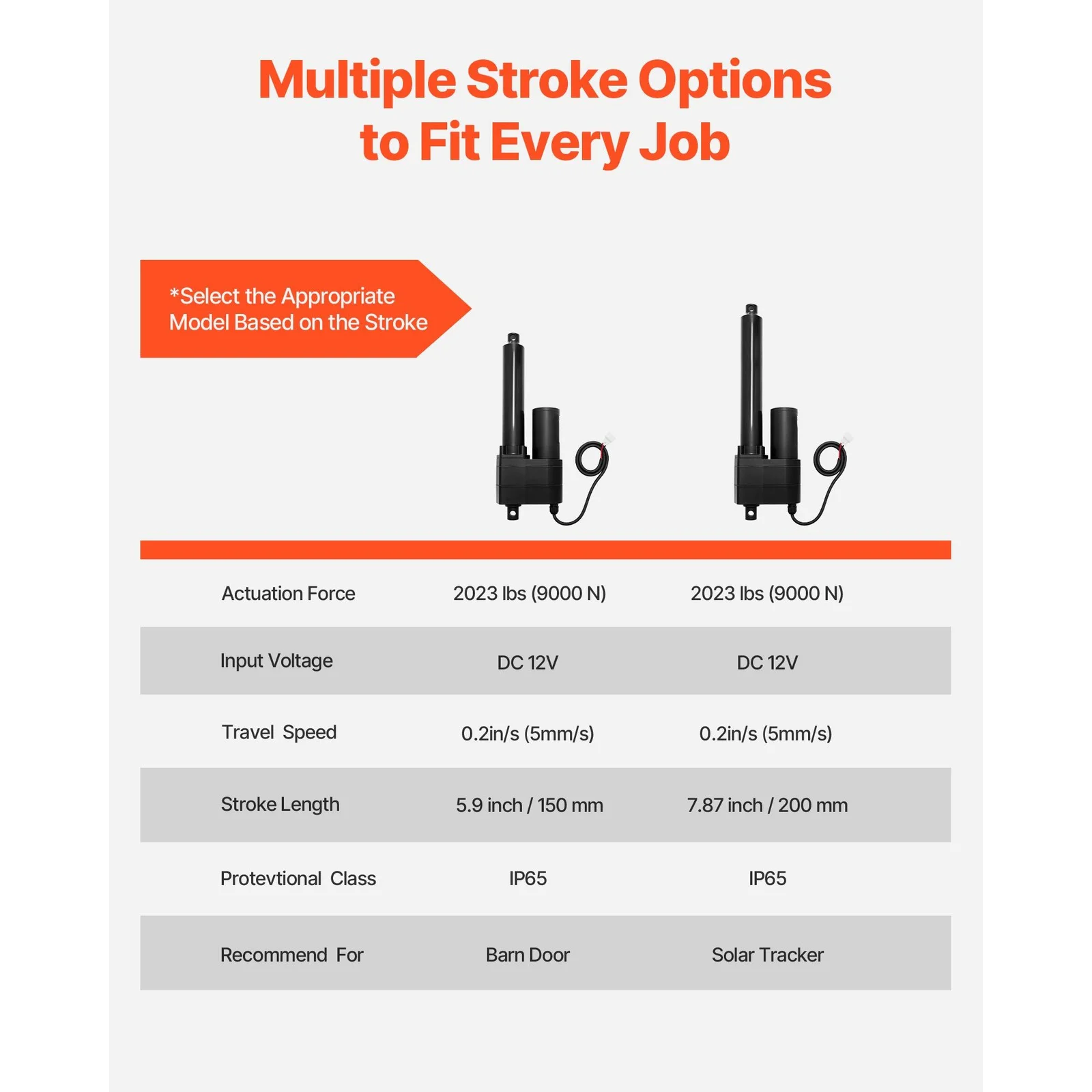

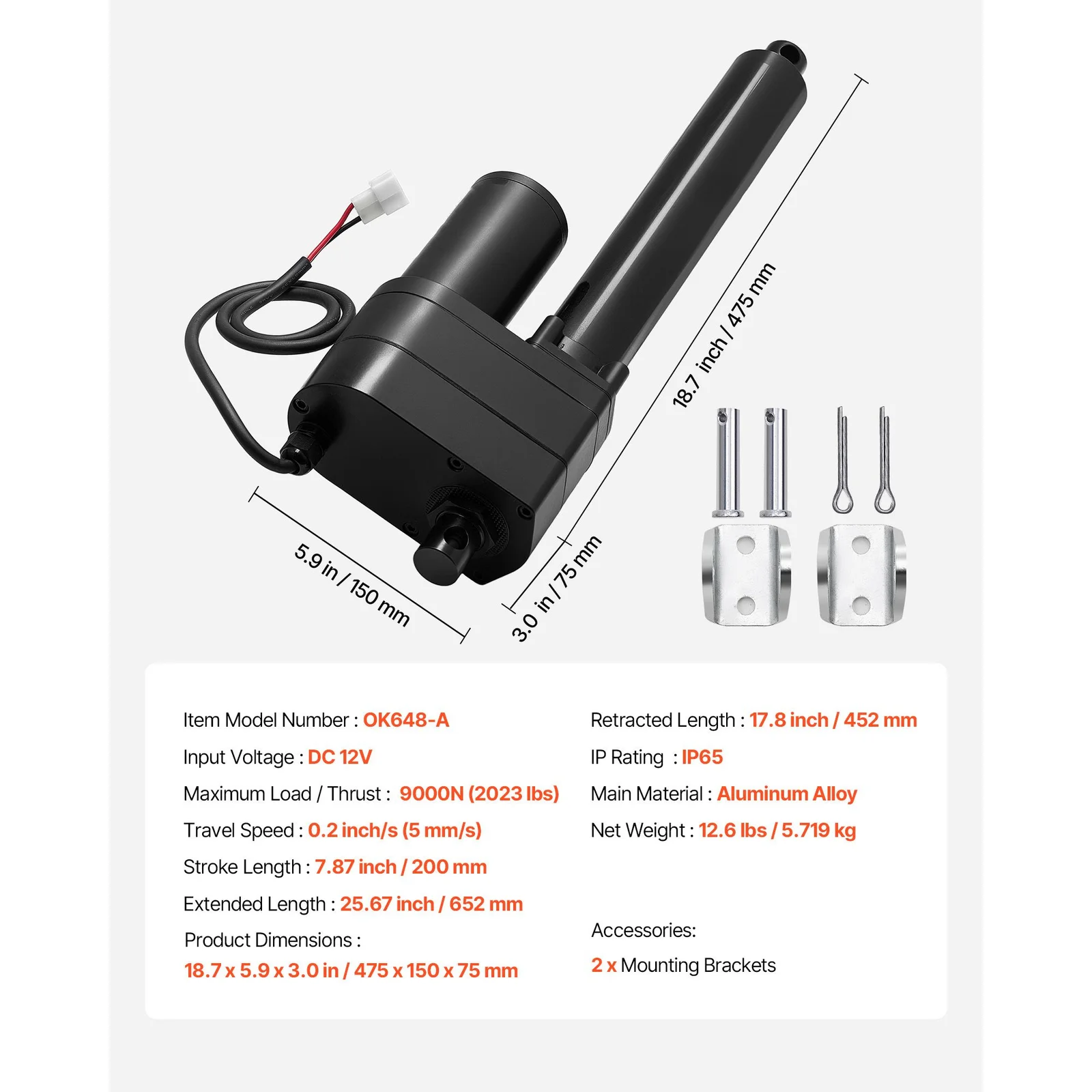

Specifications

• Input voltage: DC 12V
• Thrust: 9000N (2023 lbs)
• Stroke length: 200 mm (7.87 in)
• Travel speed: 5 mm/s (0.2 in/s)

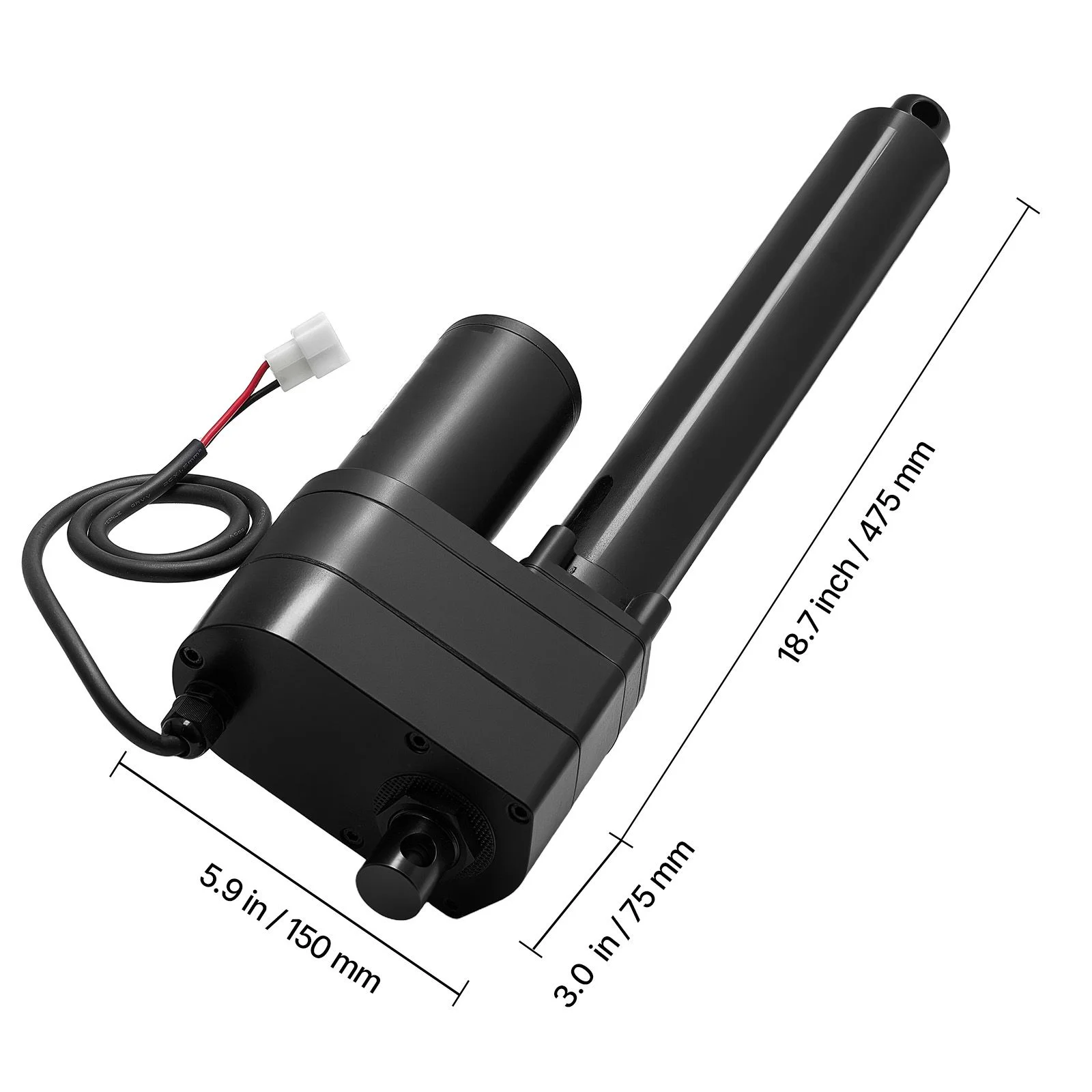

• Extended length: 652 mm (25.67 in)
• Retracted length: 452 mm (17.8 in)
• Current draw: 20 Amps
• Protection rating: IP65
• No-load noise: below 65 dB

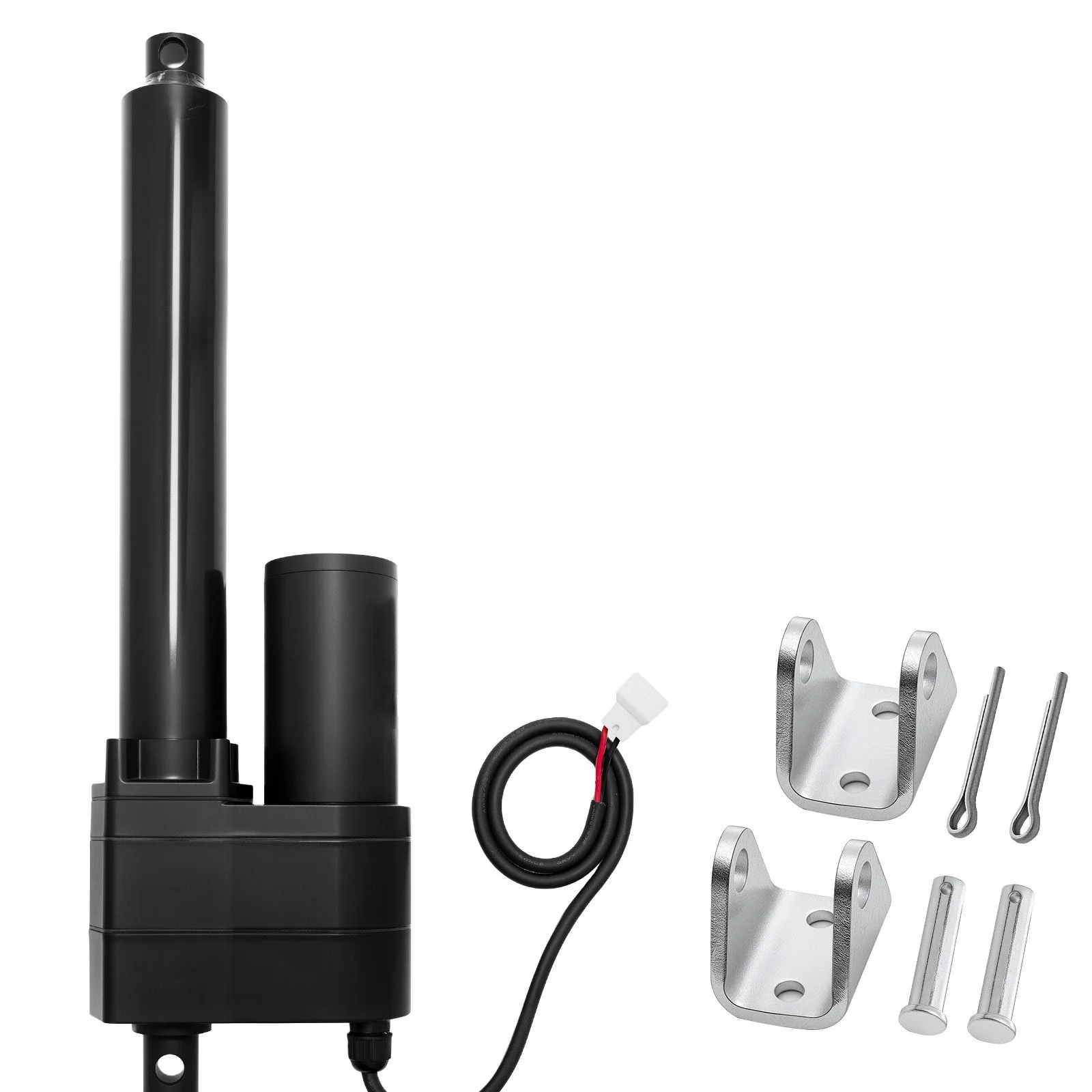

What's in the Box

• 12V linear actuator
• Mounting brackets
