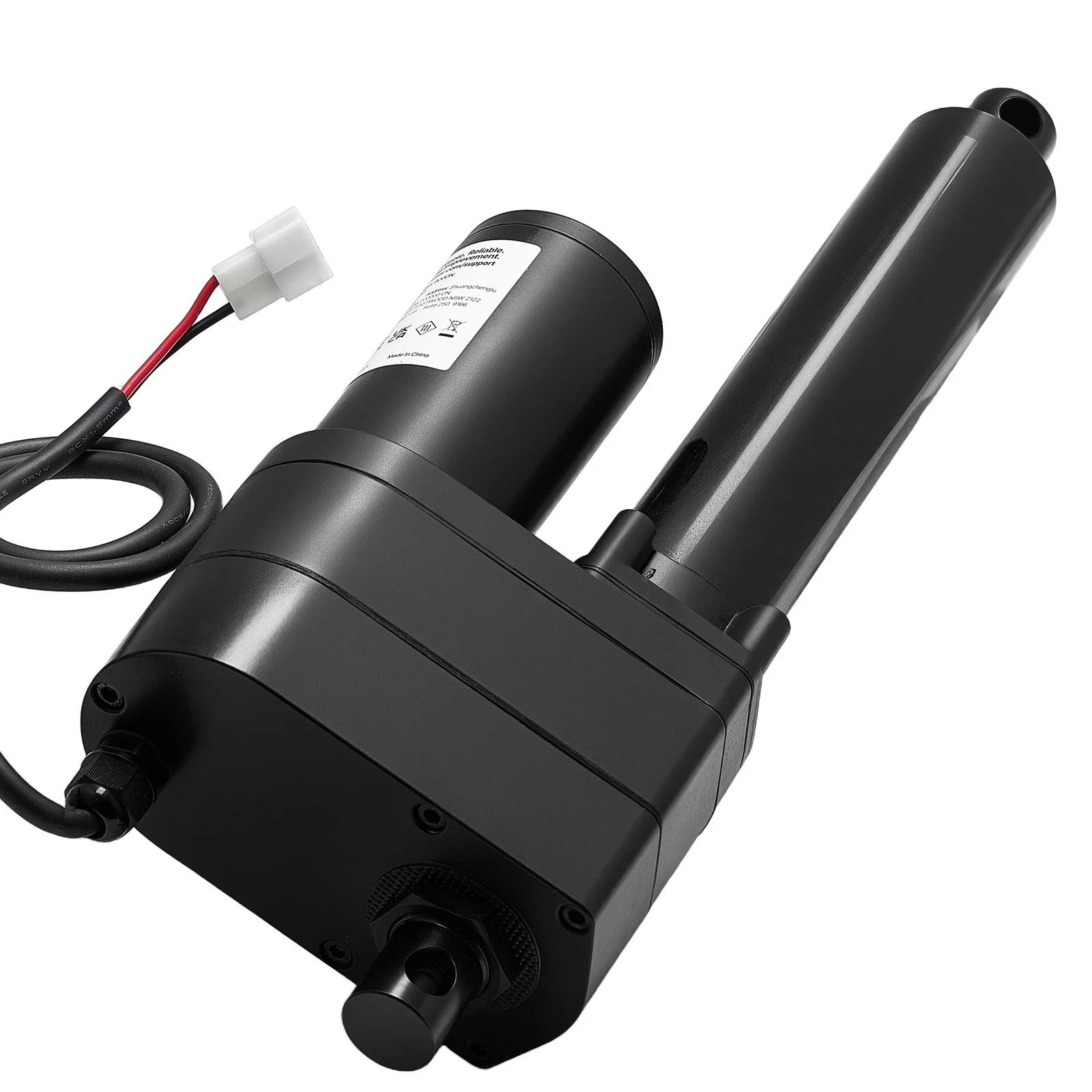

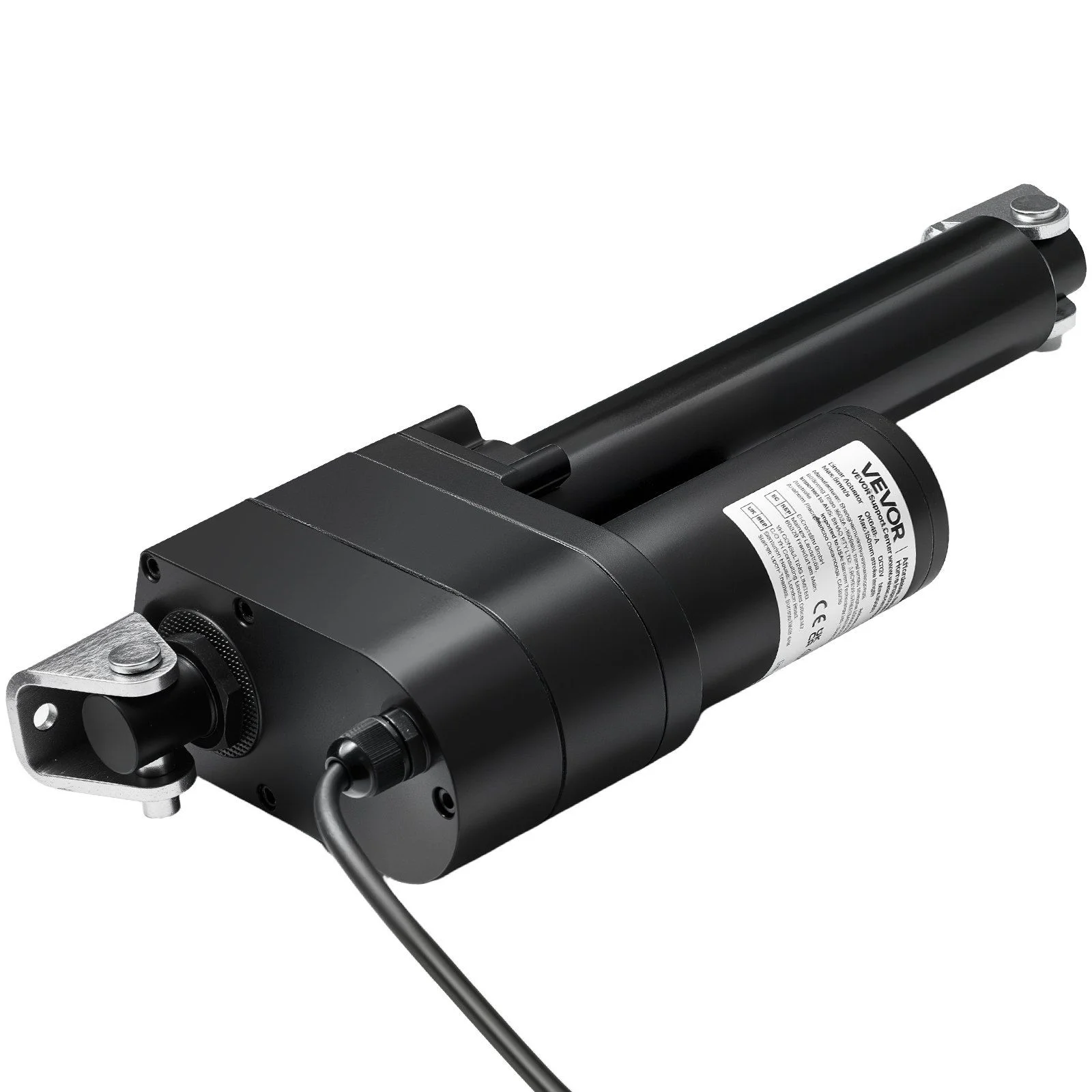

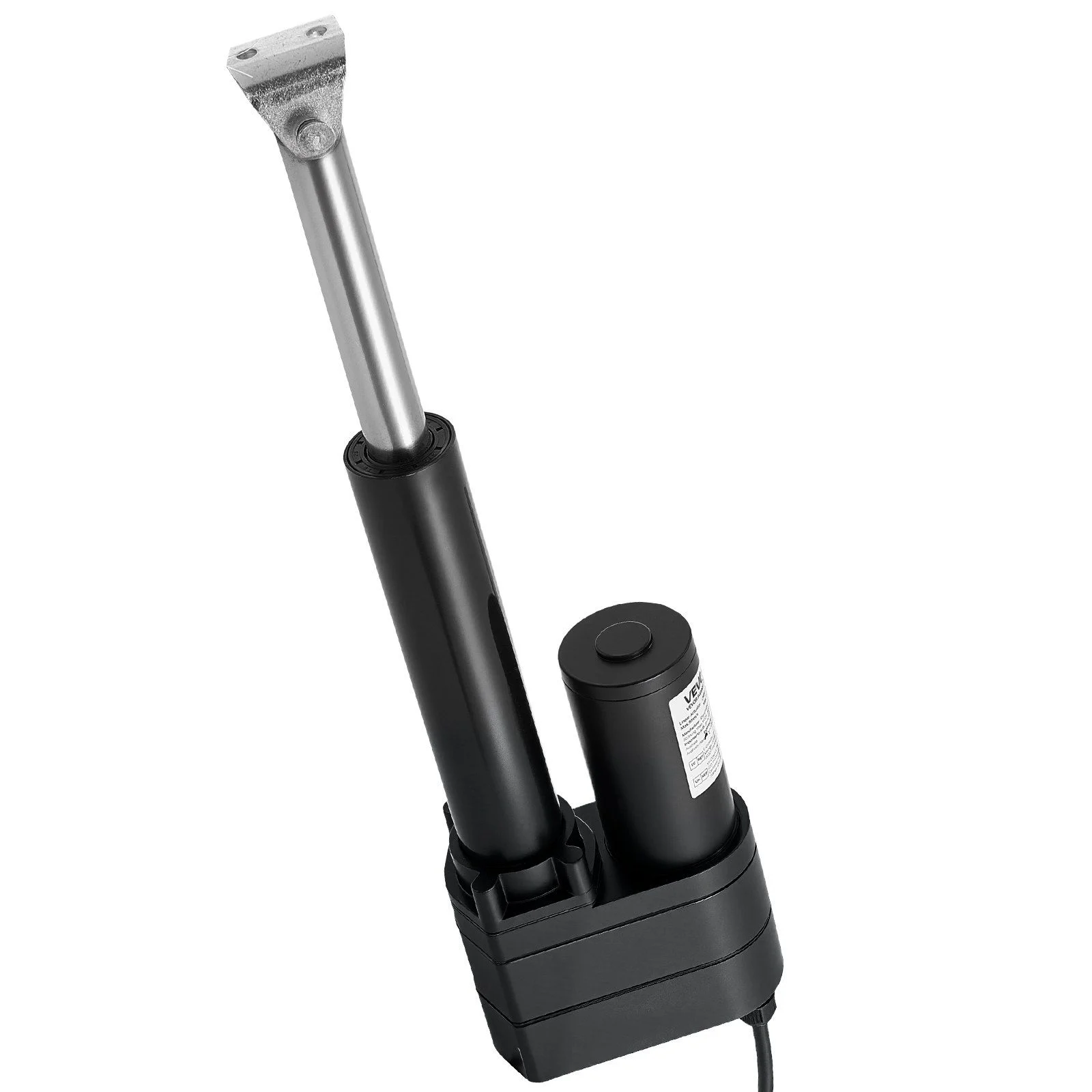

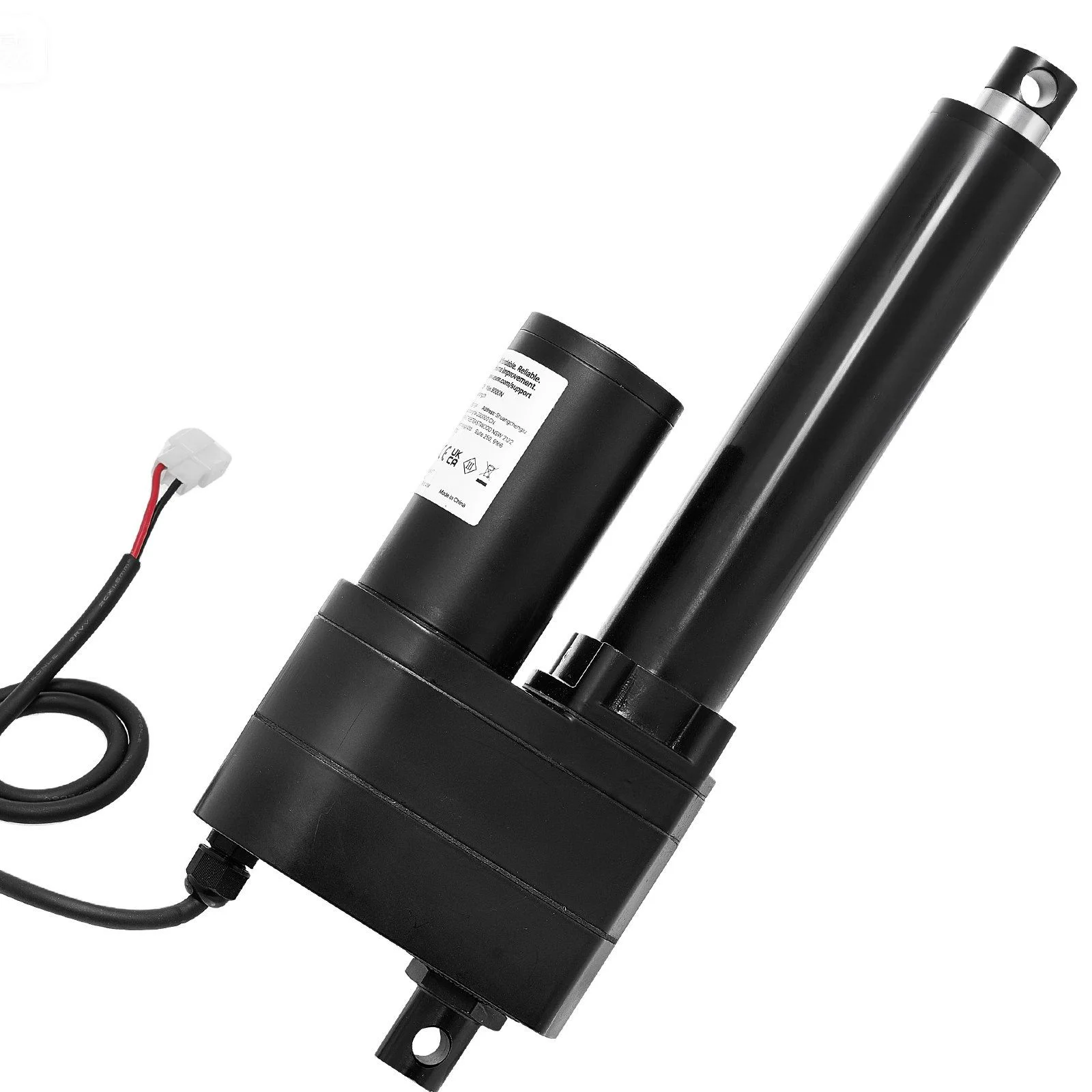

VEVOR 12V Linear Actuator 150mm Stroke 9000N Heavy-Duty IP65 with Brackets

The VEVOR 12V ultra heavy-duty linear actuator delivers 9000N of thrust with a 150mm stroke, making it a dependable choice for heavy lifting systems, industrial machinery and vessels. Its IP65-rated aluminium alloy housing and reinforced seals provide dust and water resistance for demanding indoor and outdoor applications.

Key Features

• 2023 lbs (9000N) of thrust for extreme conditions and heavy loads

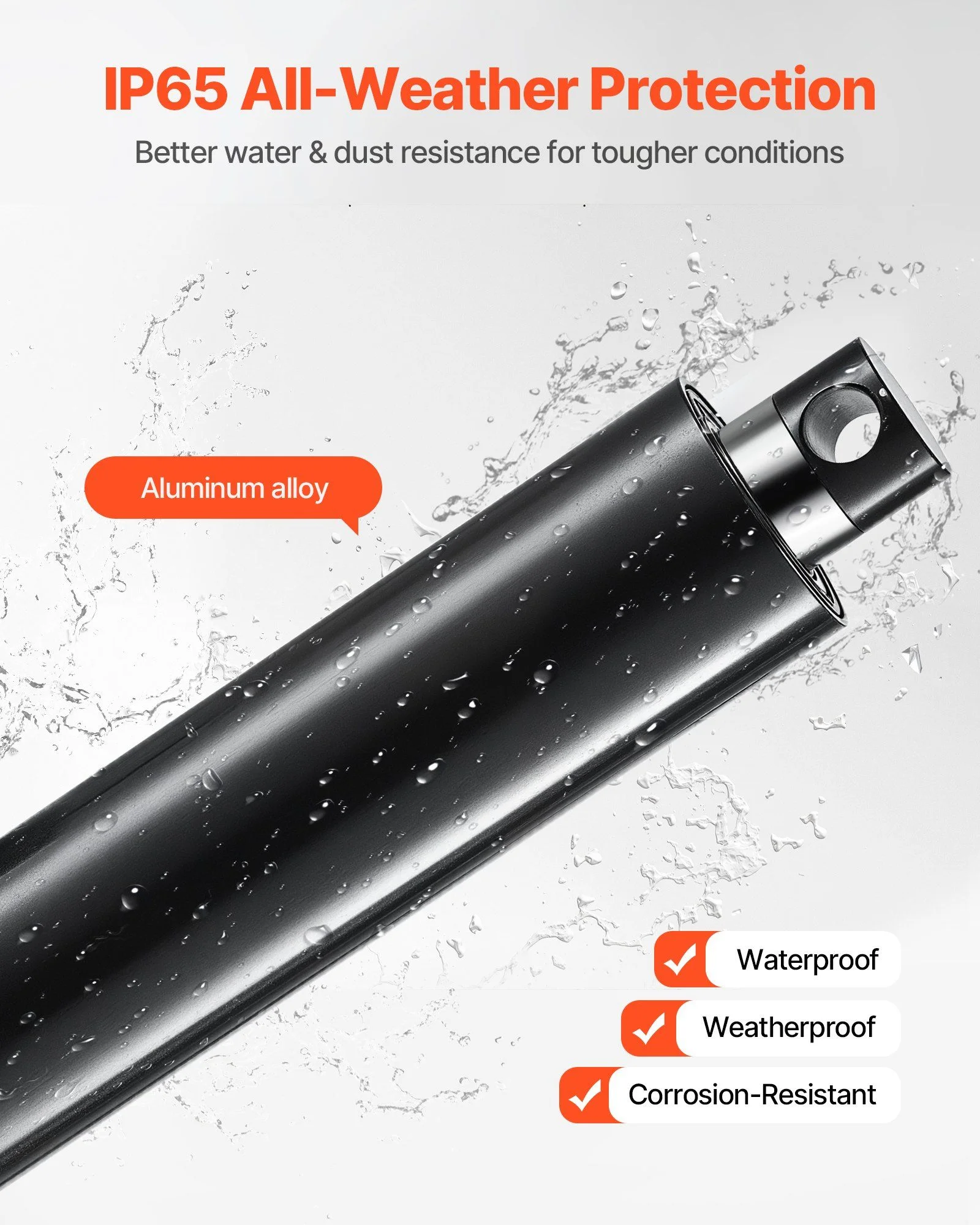

• IP65 protection level for dust and water resistance, suitable for indoor and outdoor use (prolonged outdoor exposure is not recommended for longer lifespan)

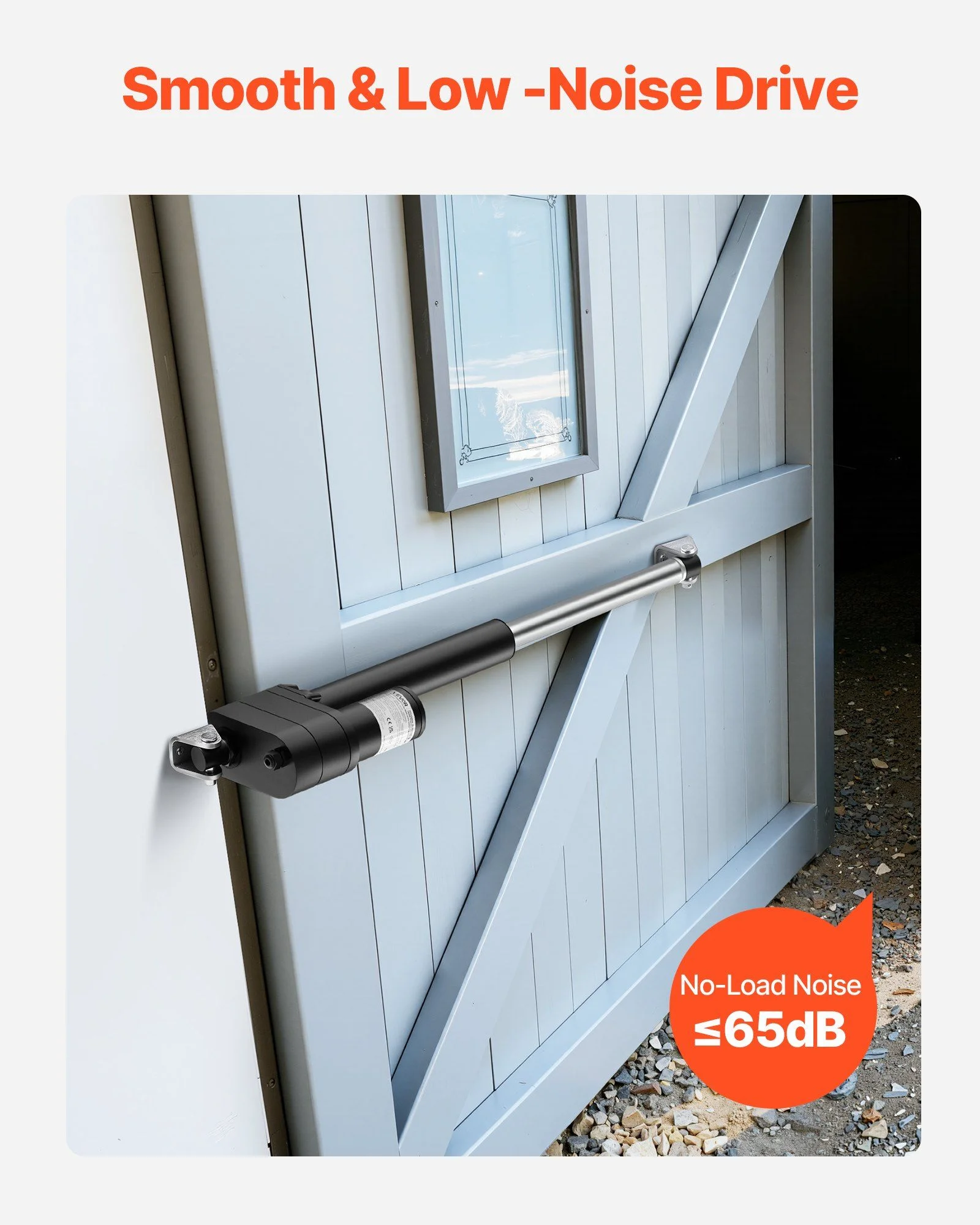

• Operates below 65 dB no-load noise
• Robust aluminium alloy housing and reinforced seals for high durability and corrosion resistance

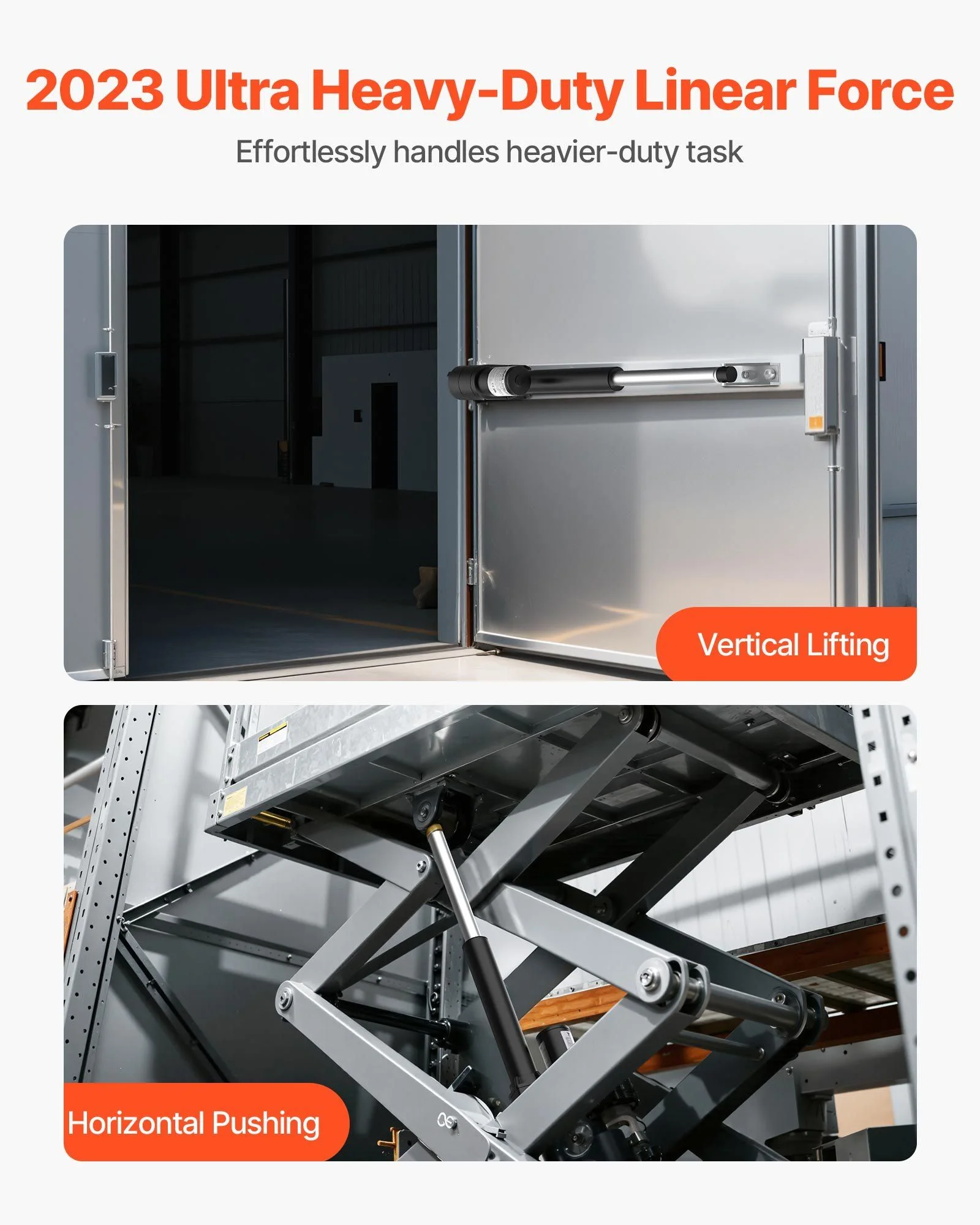

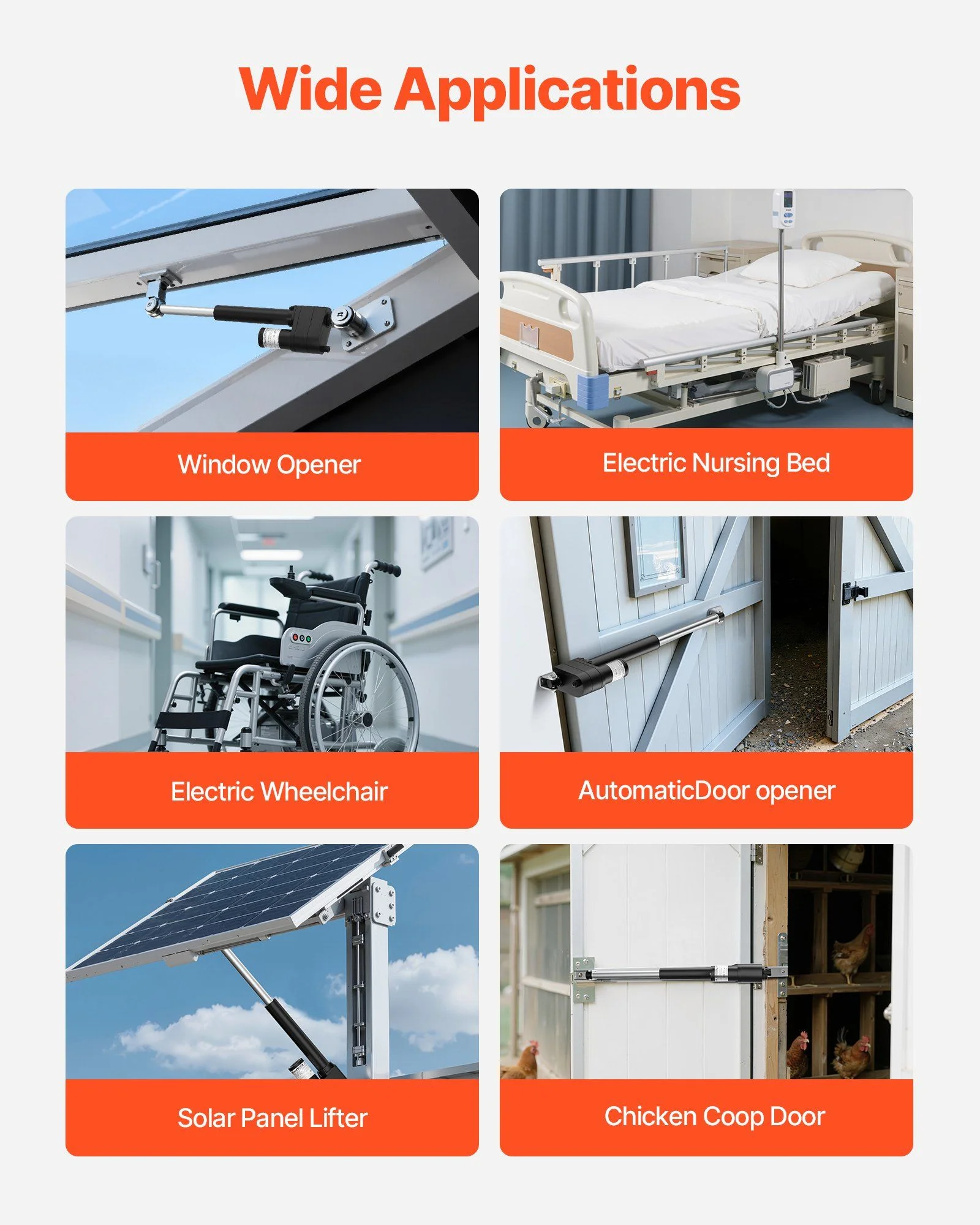

• Suitable for barn doors, heavy robotic arm pushing, heavy machinery, vessels, transportation systems, heavy lifting platforms and industrial automation systems

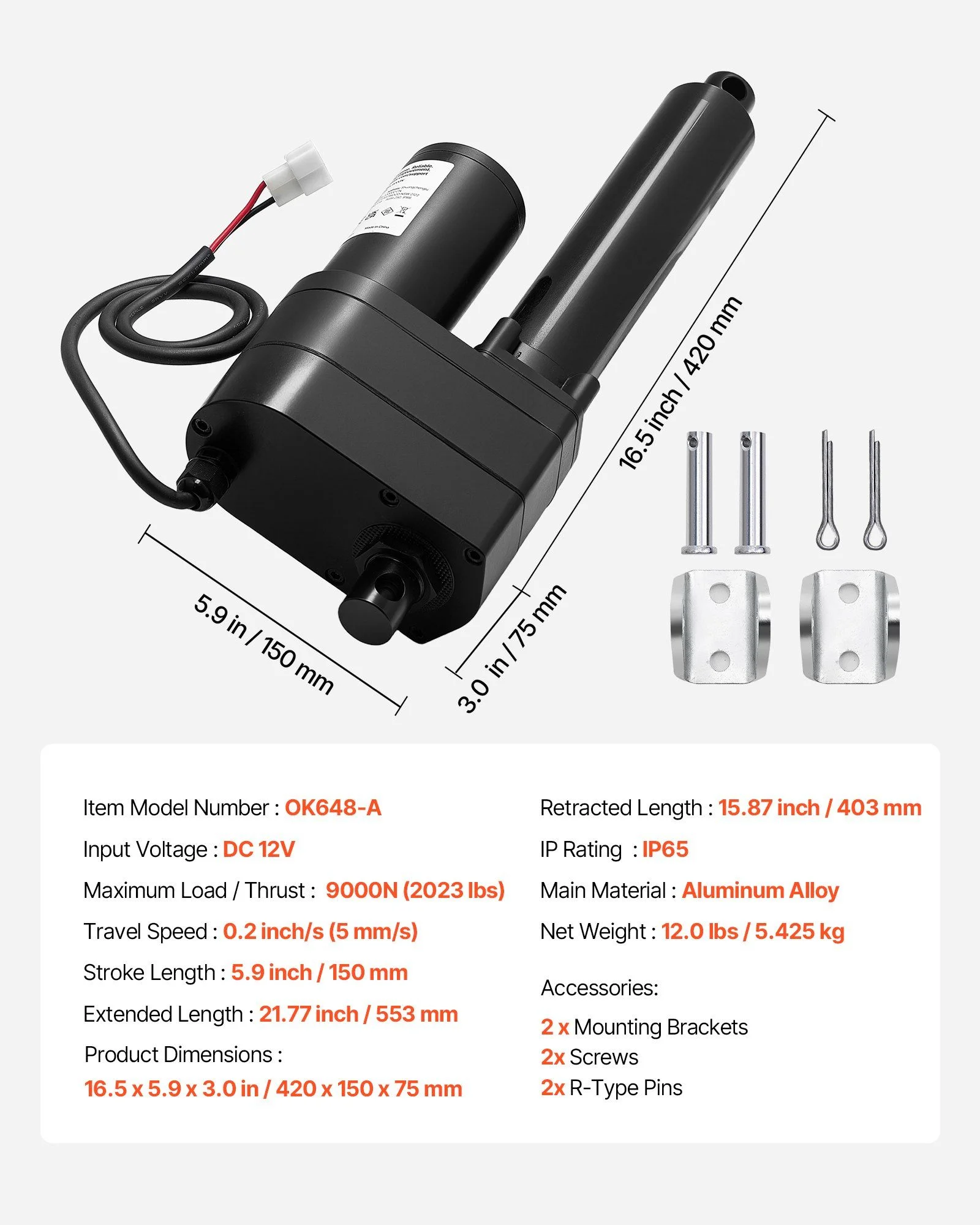

Specifications

• Input voltage: DC 12V
• Thrust: 2023 lbs (9000N)

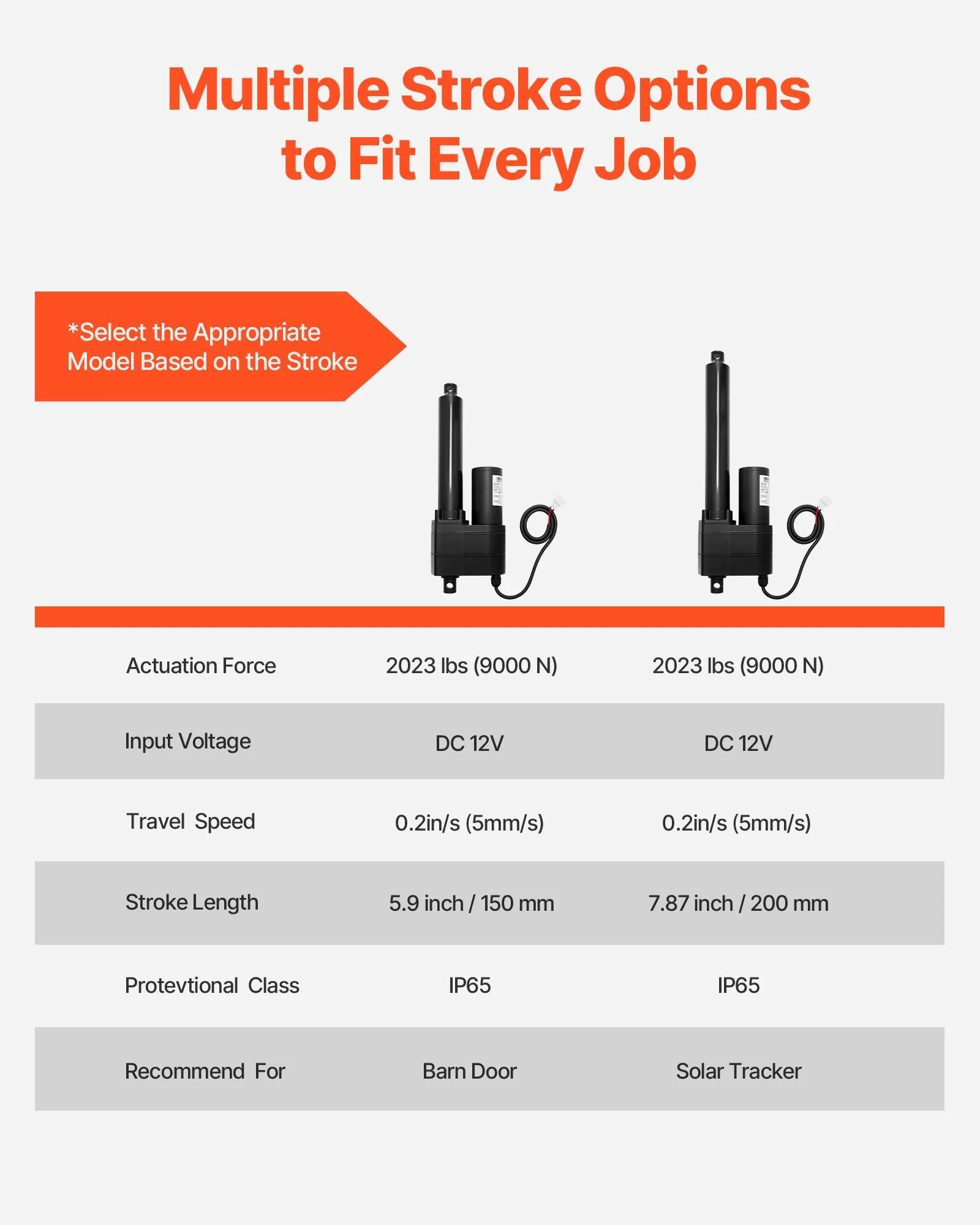

• Stroke length: 6" (150 mm)
• Travel speed: 0.2"/s (5 mm/s)
• Extended length: 21.77" (553 mm)
• Retracted length: 15.87" (403 mm)
• Current draw: 20 Amps
• Protection level: IP65
• No-load noise: below 65 dB
• Housing material: aluminium alloy

What's in the Box

• 1 x 12V linear actuator
• Mounting brackets
