Yukon 60 Ton Diesel Hydraulic Log Splitter with Electric Start

The Yukon 60 Ton Diesel Hydraulic Log Splitter is a heavy-duty wood splitter built for large jobs, combining a powerful 498cc diesel engine with vertical and horizontal operation. With a massive 140mm ram and two-stage pump, it delivers a peak splitting force of 60 ton and a continuous 50 ton.

Key Features

• Genuine Yukon product

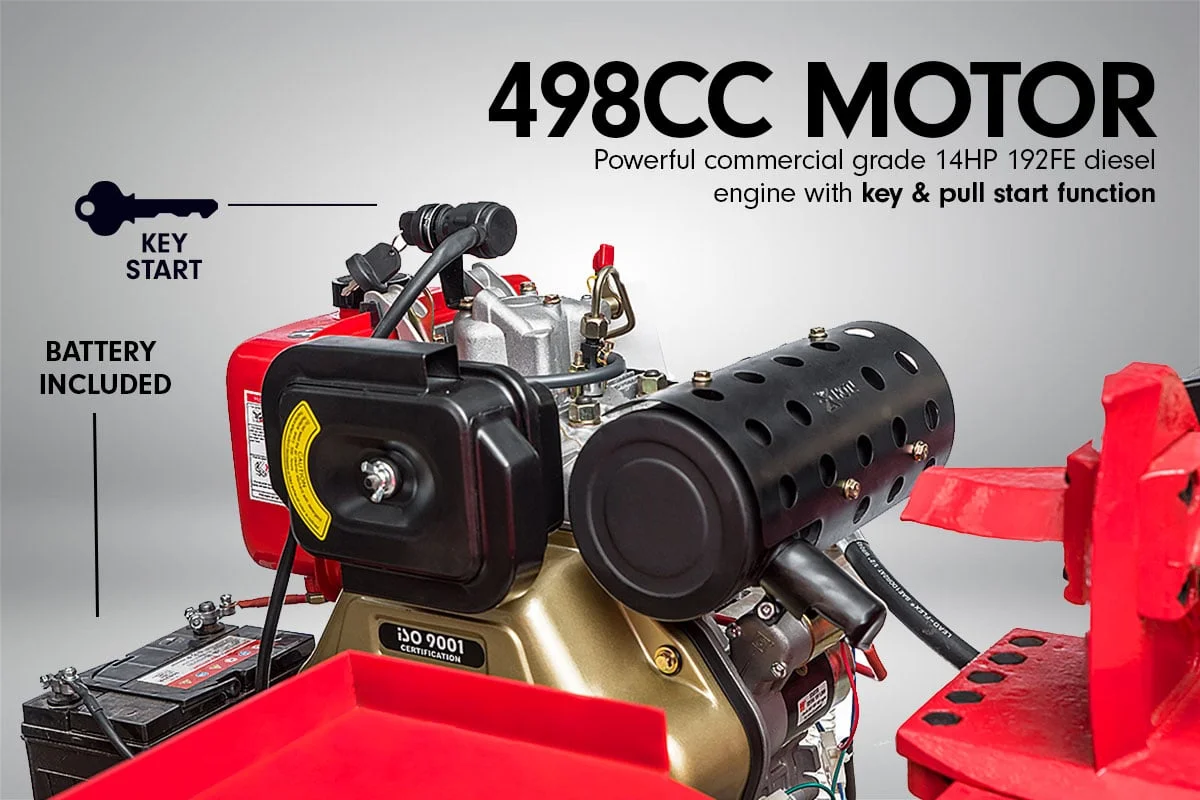

• 498cc powerful diesel engine
• Massive 140mm ram
• Maximum force continuous: 50T
• Maximum force peak: 60T

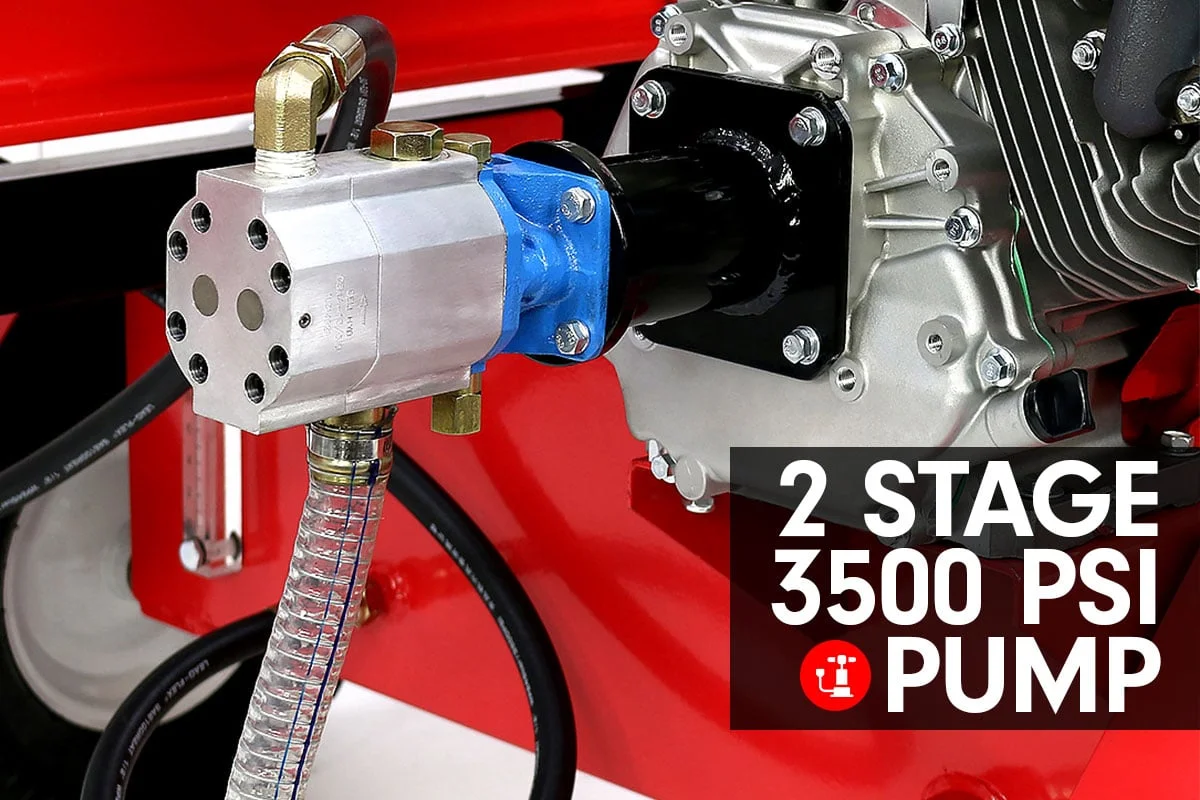

• Two-stage pump

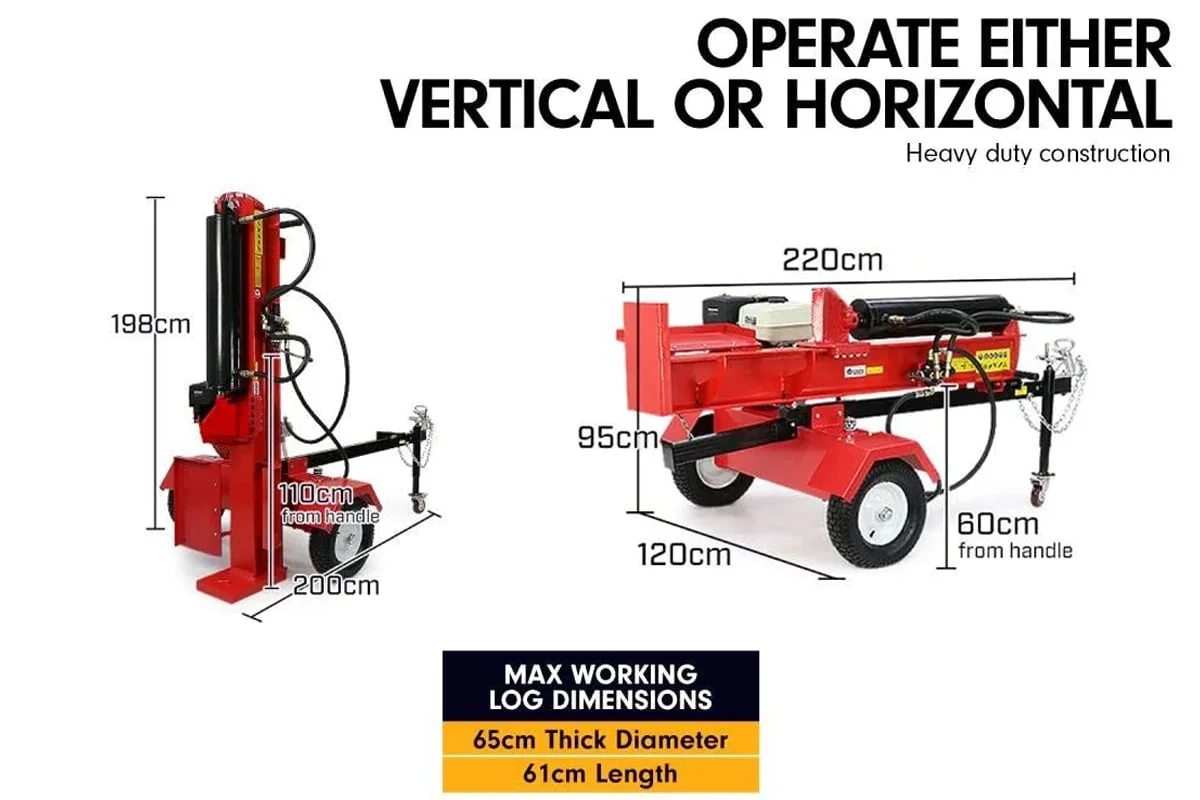

• Vertical and horizontal operation
• Automatic cylinder return

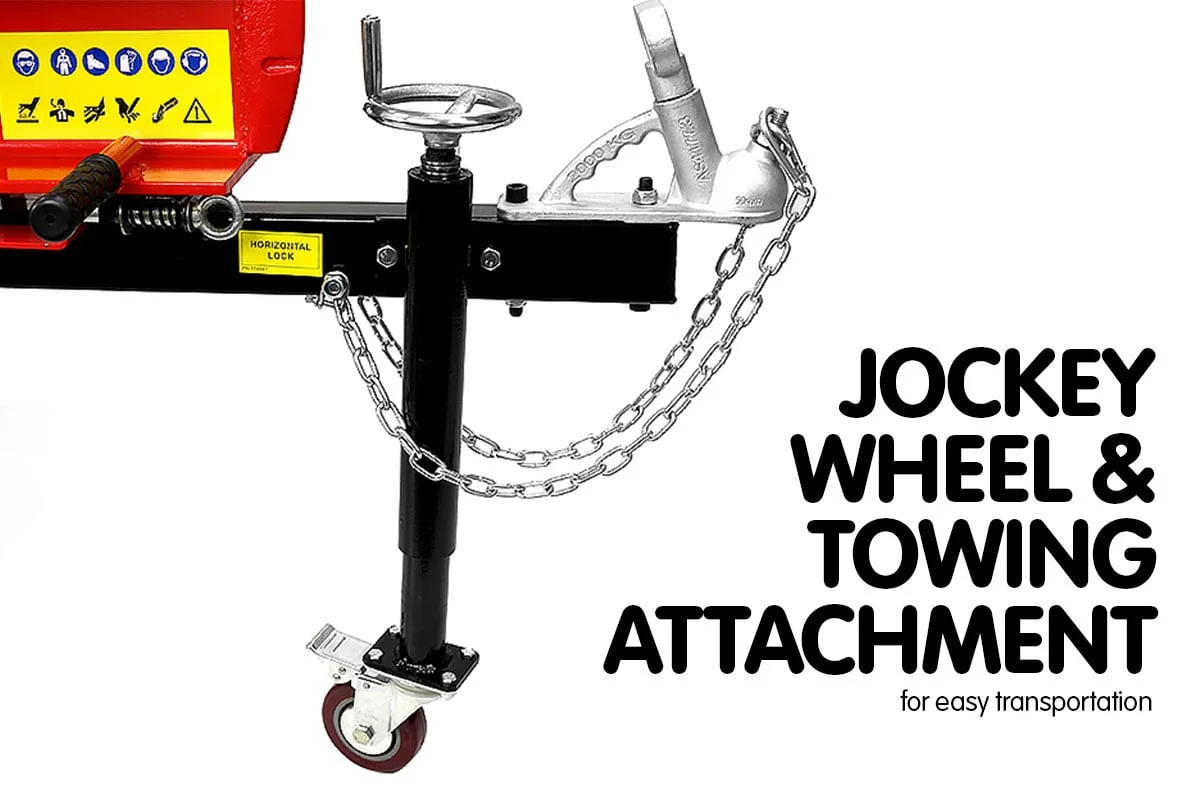

• Cast iron tow ball mount
• Hydraulic oil gauge
• Electric start with battery supplied, plus pull start backup

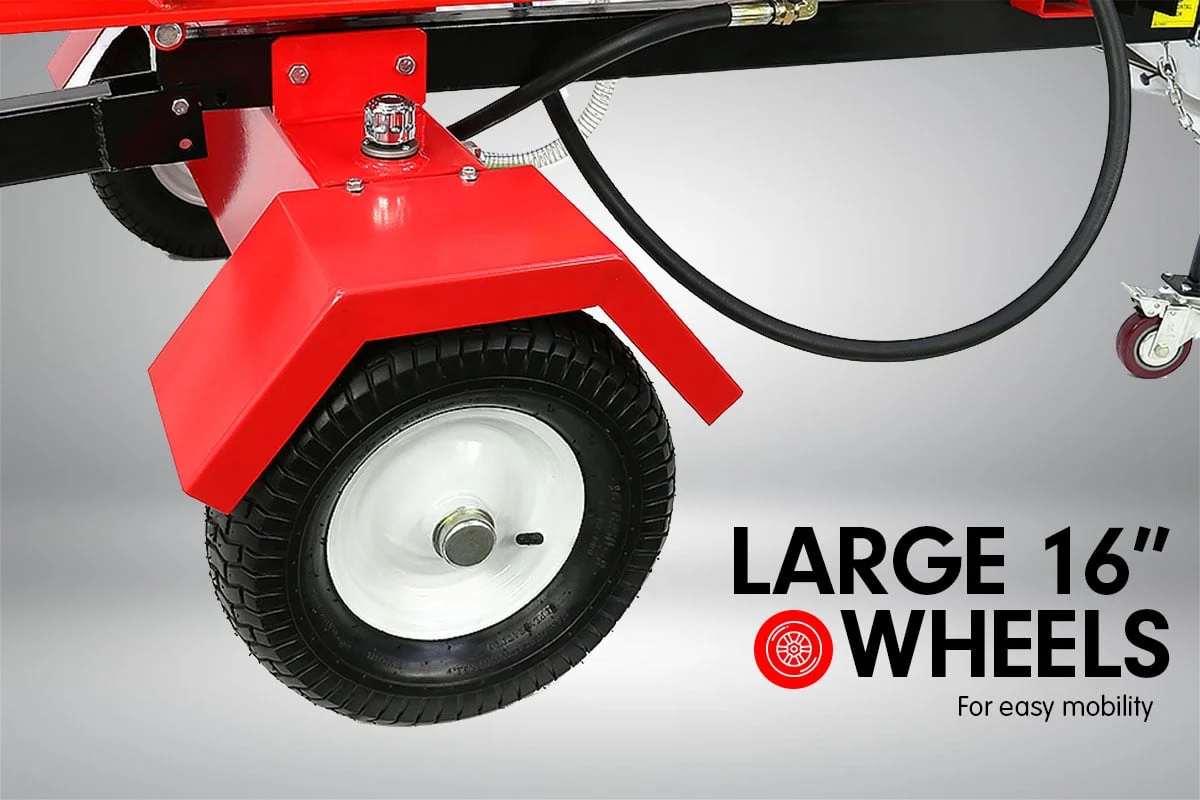

• 16in wheels

Specifications

• Brand: Yukon
• Max. splitting force: 60 ton (peak)
• Max. splitting length: 610mm
• Ram diameter: 5.5in (140mm)
• Log diameter: up to 650mm
• Cycle time: 20 sec
• Ignition type: electric start
• Fuel tank: 5.5 litres
• Hydraulic oil capacity: 32 L
• Minimum 25 litres of Shell Tellus 32 or equivalent
• 1 to 1.5 litres of diesel engine oil

What's in the Box

• 1 x 60 Ton Diesel Log Splitter
• 1 x 12V starter battery
• 2 x ignition keys
• 1 x user's manual

Important: This unit cannot be lifted by hand. It comes disassembled in 4 major sections and is shipped with no hydraulic oil, engine oil or fuel. Some assembly is required and the hydraulic lines need to be connected. A forklift will be required to unload at the destination. If collecting, ensure your vehicle can carry 220cm x 60cm x 55cm at 350kg. This unit is not suitable to be registered for road use. Hardwood requires higher splitting forces, so may not be suitable up to the maximum rated diameter.
